Test method for erosion of wave soldering equipment using molten lead-free solder alloy - Part 3: Selection guidance of erosion test methods

IEC 62739-3:2017 describes the selection methodology of an appropriate evaluating test method for the erosion of the metal materials without or with surface processing intended to be used for lead-free wave soldering equipment as a solder bath and other components which are in contact with the molten solder.

Méthode d'essai de l'érosion de l'équipement de brasage à la vague utilisant un alliage à braser sans plomb fondu - Partie 3 : Recommandations pour la sélection des méthodes d’essai d’érosion

L’IEC 62739-3:2017 décrit la méthodologie de sélection d’une méthode d'essai appropriée pour évaluer l'érosion des matériaux métalliques sans ou avec traitement de surface, destinés à être utilisés comme bain de brasure pour les équipements de brasage à la vague sans plomb, ainsi que l'érosion d'autres composants qui entrent en contact avec la brasure fondue.

General Information

Status
Published
Publication Date
05-Jan-2017
Current Stage
PPUB - Publication issued
Start Date
06-Jan-2017
Completion Date
06-Jan-2017
Ref Project

Buy Standard

Standard
IEC 62739-3:2017 - Test method for erosion of wave soldering equipment using molten lead-free solder alloy - Part 3: Selection guidance of erosion test methods
English and French language
63 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62739-3
Edition 1.0 2017-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Test method for erosion of wave soldering equipment using molten lead-free
solder alloy –
Part 3: Selection guidance of erosion test methods
Méthode d'essai de l'érosion de l'équipement de brasage à la vague utilisant
un alliage à braser sans plomb fondu –
Partie 3: Recommandations pour la sélection des méthodes d’essai d’érosion
IEC 62739-3:2017-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62739-3
Edition 1.0 2017-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Test method for erosion of wave soldering equipment using molten lead-free
solder alloy –
Part 3: Selection guidance of erosion test methods
Méthode d'essai de l'érosion de l'équipement de brasage à la vague utilisant
un alliage à braser sans plomb fondu –
Partie 3: Recommandations pour la sélection des méthodes d’essai d’érosion
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.190; 31.240 ISBN 978-2-8322-8096-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

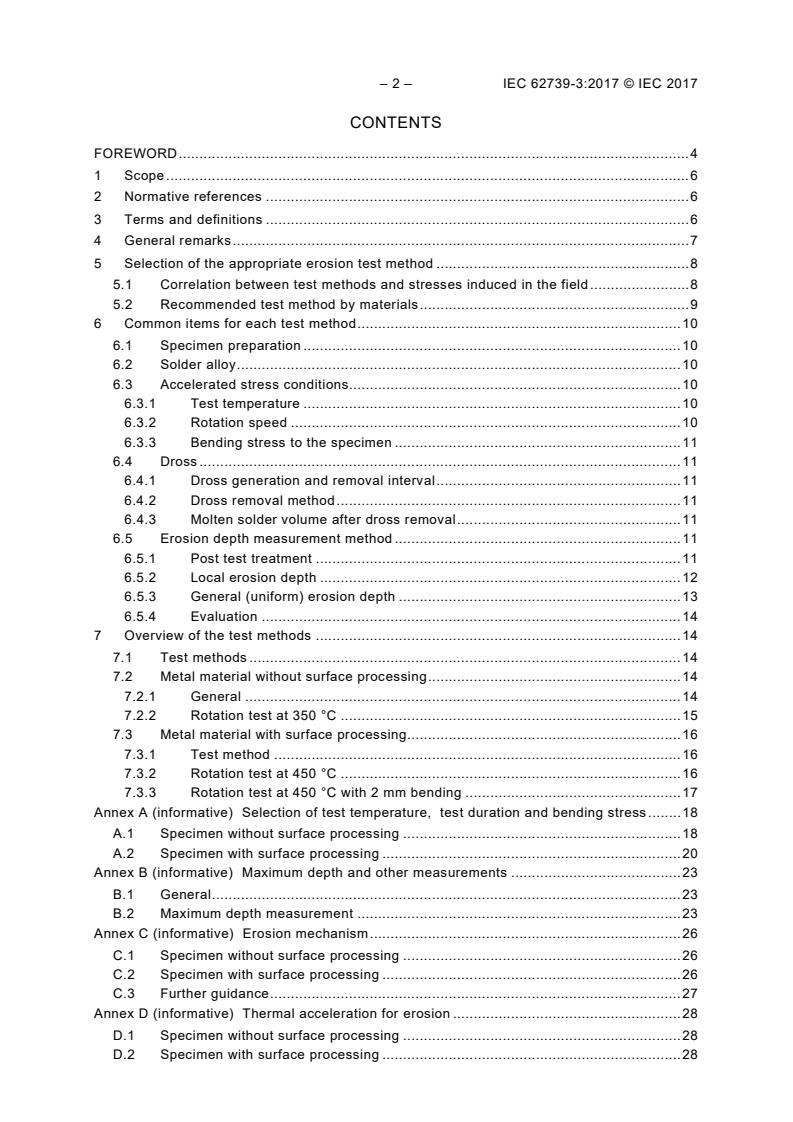

– 2 – IEC 62739-3:2017 © IEC 2017
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 General remarks .............................................................................................................. 7

5 Selection of the appropriate erosion test method ............................................................. 8

5.1 Correlation between test methods and stresses induced in the field ........................ 8

5.2 Recommended test method by materials ................................................................. 9

6 Common items for each test method .............................................................................. 10

6.1 Specimen preparation ........................................................................................... 10

6.2 Solder alloy ........................................................................................................... 10

6.3 Accelerated stress conditions................................................................................ 10

6.3.1 Test temperature ........................................................................................... 10

6.3.2 Rotation speed .............................................................................................. 10

6.3.3 Bending stress to the specimen ..................................................................... 11

6.4 Dross .................................................................................................................... 11

6.4.1 Dross generation and removal interval ........................................................... 11

6.4.2 Dross removal method ................................................................................... 11

6.4.3 Molten solder volume after dross removal ...................................................... 11

6.5 Erosion depth measurement method ..................................................................... 11

6.5.1 Post test treatment ........................................................................................ 11

6.5.2 Local erosion depth ....................................................................................... 12

6.5.3 General (uniform) erosion depth .................................................................... 13

6.5.4 Evaluation ..................................................................................................... 14

7 Overview of the test methods ........................................................................................ 14

7.1 Test methods ........................................................................................................ 14

7.2 Metal material without surface processing ............................................................. 14

7.2.1 General ......................................................................................................... 14

7.2.2 Rotation test at 350 °C .................................................................................. 15

7.3 Metal material with surface processing.................................................................. 16

7.3.1 Test method .................................................................................................. 16

7.3.2 Rotation test at 450 °C .................................................................................. 16

7.3.3 Rotation test at 450 °C with 2 mm bending .................................................... 17

Annex A (informative) Selection of test temperature, test duration and bending stress ........ 18

A.1 Specimen without surface processing ................................................................... 18

A.2 Specimen with surface processing ........................................................................ 20

Annex B (informative) Maximum depth and other measurements ......................................... 23

B.1 General ................................................................................................................. 23

B.2 Maximum depth measurement .............................................................................. 23

Annex C (informative) Erosion mechanism ........................................................................... 26

C.1 Specimen without surface processing ................................................................... 26

C.2 Specimen with surface processing ........................................................................ 26

C.3 Further guidance ................................................................................................... 27

Annex D (informative) Thermal acceleration for erosion ....................................................... 28

D.1 Specimen without surface processing ................................................................... 28

D.2 Specimen with surface processing ........................................................................ 28

---------------------- Page: 4 ----------------------
IEC 62739-3:2017 © IEC 2017 – 3 –

D.3 Further guidance document .................................................................................. 30

Bibliography .......................................................................................................................... 31

Figure 1 – Schematic example of wave soldering equipment ................................................... 8

Figure 2 – Example of dross removal tool ............................................................................. 11

Figure 3 – Schematic general definition of erosion depth ...................................................... 12

Figure 4 – Schematic definition of erosion depth by focal depth method ................................ 12

Figure 5 – Examples of local erosion .................................................................................... 13

Figure 6 – Example of evaluation region ............................................................................... 13

Figure 7 – Examples with non-erosion area .......................................................................... 14

Figure 8 – Examples without a non-erosion area and an example of a cross section ............. 14

Figure 9 – Configuration example of test equipment.............................................................. 15

Figure 10 – Configuration example of test equipment for rotation test at 450 °C with 2

mm bending .......................................................................................................................... 17

Figure A.1 – Specimen configuration for preliminary test ....................................................... 18

Figure A.2 – Erosion depth against molten solder temperature ............................................. 19

Figure A.3 – Erosion depth against rotation speed ................................................................ 19

Figure A.4 – Erosion depth against immersion time ............................................................... 20

Figure C.1 – Erosion mechanism for material with nitriding ................................................... 27

Figure D.1 – Tin (Sn) diffusion layer growth in the plasma nitriding layer for various

stainless steel ....................................................................................................................... 29

Table 1 – Location of erosion in the field and examples of problems ...................................... 8

Table 2 – Correlation between test methods and stresses induced in the field ........................ 9

Table 3 – Applicable test method depending on the materials ................................................. 9

Table 4 – Test conditions for rotation test at 350 °C .............................................................. 16

Table 5 – Test conditions for rotation test at 350 °C .............................................................. 16

Table A.1 – Erosion test results for the materials of gas nitriding and nitrocarburizing ......... 21

Table A.2 – Erosion test results for the materials of coating type surface processing ........... 22

Table B.1 – Measurement methods, features and accuracy................................................... 24

Table B.2 – Example of measurement equipment.................................................................. 25

Table D.1 – Plasma nitriding layer peeling off period (incubation period in Figure D.1) ........ 29

Table D.2 – Initial growth rate for tin (Sn) diffusion layer ....................................................... 30

---------------------- Page: 5 ----------------------
– 4 – IEC 62739-3:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TEST METHOD FOR EROSION OF WAVE SOLDERING
EQUIPMENT USING MOLTEN LEAD-FREE SOLDER ALLOY –
Part 3: Selection guidance of erosion test methods
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62739-3 has been prepared by IEC technical committee 91:

Electronics assembly technology.
The text of this International Standard is based on the following documents:
CDV Report on voting
91/1368/CDV 91/1400/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 6 ----------------------
IEC 62739-3:2017 © IEC 2017 – 5 –

A list of all the parts in the IEC 62739 series, under the general title Test method for erosion

of wave soldering equipment using molten lead-free solder alloy, can be found on the IEC

website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 62739-3:2017 © IEC 2017
TEST METHOD FOR EROSION OF WAVE SOLDERING
EQUIPMENT USING MOLTEN LEAD-FREE SOLDER ALLOY –
Part 3: Selection guidance of erosion test methods
1 Scope

This part of IEC 62739 describes the selection methodology of an appropriate evaluating test

method for the erosion of the metal materials without or with surface processing intended to

be used for lead-free wave soldering equipment as a solder bath and other components which

are in contact with the molten solder.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60068-2-20:2008, Environmental testing – Part 2-20: Tests – Test T: Test methods for

solderability and resistance to soldering heat of devices with leads

IEC 61190-1-3, Attachment materials for electronic assembly – Part 1-3: Requirements for

electronic grade solder alloys and fluxed and non-fluxed solid solder for electronic soldering

applications

IEC 62739-1:2013, Test method for erosion of wave soldering equipment using molten lead-

free solder alloy – Part 1: Erosion test method for metal materials without surface processing

IEC 62739-2, Test method for erosion of wave soldering equipment using molten lead-free

solder alloy – Part 2: Erosion test method for metal materials with surface processing

3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
erosion

phenomenon where a base material is dissolved and made thinner by coming into contact with

molten solder
[SOURCE: IEC 62739-1:2013, 3.1]
---------------------- Page: 8 ----------------------
IEC 62739-3:2017 © IEC 2017 – 7 –
3.2
lead-free solder

alloy that does not contain more than 0,1 % mass fraction of lead (Pb) as its constituent and

used for joining components to substrates or for coating surfaces

[SOURCE: IEC 60194:2015, 75.1904 modified – "mass fraction" is used instead of "weight"

and "as its constituent" has been added]
3.3
dross
oxide and other contaminants that form on the surface of molten solder
[SOURCE: IEC 60194:2015, 75.0410]
4 General remarks

Figure 1 shows a schematic example of wave soldering equipment showing a solder bath and

auxiliaries which are subjected to evaluation. Table 1 shows the location of the erosion in the

field, and an example of the problems. The tests specified in IEC 62739-1 and IEC 62739-2

are intended to provide an appropriate maintenance inspection cycle and replacement period

of a solder bath and other metal components, by assessing the anti-erosion capability of

material and other metal components, including surface processing, subjected to solder baths.

Except for the duration, test conditions such as molten solder temperature and rotation speed,

specified in IEC 62739-1 and IEC 6273-2, are predetermined. Thus, the erosion occurrence

durations vary depending upon the type of metal and the surface processing employed. For

this reason, an adequate test duration needs to be pre-set so as to clearly identify the non-

erosion which is used as the baseline of the erosion depth by the focal depth method and

which is also used to discriminate the type of metal and surface processing employed by

erosion depth on the specimen.
---------------------- Page: 9 ----------------------
– 8 – IEC 62739-3:2017 © IEC 2017
3 4
5 IEC
Key
1 Jet stream nozzle 6 Impeller shaft
2 Drive belt 7 Molten solder pump
3 Temperature sensor 8 Impeller
4 Motor 9 Heater
5 Molten solder 10 Solder bath
Molten solder flow directions are indicated by an arrow.
Figure 1 – Schematic example of wave soldering equipment
Table 1 – Location of erosion in the field
and examples of problems
Location of erosion in the field Example of problems
Solder bath inner wall Hole, molten solder leaking
Impeller shaft Thinning, impeller shaft breaking

Molten solder pump components such as impeller Soldering defects due to molten solder jet stream

disturbance
Jet stream nozzle Soldering defects due to molten solder jet stream
disturbance
Temperature sensor tube Hole, unintentional molten solder temperature,
insulation failure
Throw-in heater Hole insulation failure, electricity leak
5 Selection of the appropriate erosion test method
5.1 Correlation between test methods and stresses induced in the field

Table 2 shows the correlation between test methods and stresses induced in the field,

indicating the applicable material.
---------------------- Page: 10 ----------------------
IEC 62739-3:2017 © IEC 2017 – 9 –
Table 2 – Correlation between test methods and stresses induced in the field
Test method Accelerated stress Applicable material Stress induced in the
(Applicable standard) conditions field

Rotation test at 350 °C High temperature (350 °C) Metal material without Assuming encroach due to

(IEC 62739-1) surface processing solid metal fusion by high
Molten lead-free solder
temperature molten lead-
flow
free solder.
Flux application
Assuming encroach due to
chemical erosion by flux.

Rotation test at 450 °C High temperature (450 °C) Metal material with surface Assuming encroach due to

(IEC 62739-2) processing solid metal fusion by high
Molten lead-free solder
temperature molten lead-
flow
free solder.

Rotation test at 450 °C High temperature (450 °C) Metal material with surface Assuming encroach due to

with 2 mm bending processing solid metal fusion by high
Molten lead-free solder
(IEC 62739-2) temperature molten lead-
flow
free solder.
Bent stress (2 mm)
Assuming encroach
acceleration by bending
stress on the metal surface
with surface processing.

This test method is conducted at a suitable temperature for metal material without surface processing to

produce appropriate erosion depth measurements. However, a sufficient test duration for each metal material

shall be predefined. For metal material with surface processing, erosion occurrence duration becomes too

long. Thus, this test method is not applicable for metal material with surface processing.

This test method is conducted at a suitable temperature for metal material with surface processing to enable

an appropriate erosion depth measurement. However, a sufficient test duration for each surface processing

shall be predefined. For metal material without surface processing, erosion progresses so fast that a non-

erosion area which is used for the baseline of the erosion depth cannot be obtained. Thus, this test method is

not applicable for metal material without surface processing.

This test method is suitable for metal material with surface processing when the rotation test at 450 °C takes

too long and additional acceleration is required. However, a sufficient test duration for each surface

processing shall be predefined. For metal material without surface processing, erosion progresses so fast that

a non-erosion area which is used for the baseline of the erosion depth cannot be obtained. Thus, this test

method is not applicable for metal material without surface processing.
5.2 Recommended test method by materials

Table 3 shows an appropriate test method depending on the material used with respect to

solder baths and auxiliaries.
Table 3 – Applicable test method depending on the materials
Metal materials and surface processing Applicable acceleration test method

Metal material Surface processing Rotation test at Rotation test at Rotation test at

350 °C 450 °C 450 °C with 2 mm
bending
SUS304 None A B B
SUS316 None A B B
Titan None A B B
Cast iron None A B B
SUS304, SUS316 Surface diffusion type B A A
SUS304, SUS316 Coating type B A A
“A” denotes recommended. “B” denotes not applicable.
---------------------- Page: 11 ----------------------
– 10 – IEC 62739-3:2017 © IEC 2017

Surface processing is classified as surface diffusion type which is forming a surface process

layer by diffusing nitrogen (for example) into material and coating type which is forming a

coating layer on the surface of the mater material. Examples of each type are given below.

a) Surface diffusion type: nitrogen supersaturated solid solution diffusion treatment, diffusion

penetration nitriding, gas nitriding, nitrocarburizing, plasma nitriding

b) Coating type: fine ceramic coating by chemical densified process, CrN coating by a

Physical Vapor Deposition (PVD) method, and alumina coating by thermal spray.
NOTE The erosion mechanism of the test is explained in Annex C.
6 Common items for each test method
6.1 Specimen preparation
The specimens shall be prepared as indicated below.

a) Basically, specimen shaping shall be carried out by punching, using a press machine.

However, for high hardness materials such as titan and cast iron which are not suitable for

punching, shaving shall be used.

b) Specimen edge burrs, etc., which are produced during specimen shaping and may cause

erosion, shall be removed by chamfering and such;
c) if necessary, surface processing shall be done after processes a) and b).

d) Care shall be taken to handle the specimen after fabrication, so as not to contaminate the

specimen by oil, or other contaminants, since this could affect the test result.
6.2 Solde
...
