IEC TR 63225:2019

Incompatibility of connectors for DC-application in photovoltaic systems

IEC TR 63225:2019 highlights the problem of incompatibility of connectors for DC-application in photovoltaic systems (DC connectors) produced by different manufacturers. It addresses four particular issues in that context:
background information on incompatibility of DC connectors from different manufacturers;
observations and challenges concerning the handling of DC connectors from different manufacturers;
stakeholders concerned by the incompatibility of DC connectors;
recommendations for long-term standardization and interim measures to address incompatibility of DC connectors

General Information

• Status: Published
• Publication Date: 12-Nov-2019
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 27.160 - Solar energy engineering
• Technical Committee: TC 82 - Solar photovoltaic energy systems
• Current Stage: PPUB - Publication issued
• Start Date: 13-Nov-2019
• Completion Date: 14-Nov-2019

Overview

IEC TR 63225:2019 - Incompatibility of Connectors for DC-Application in Photovoltaic Systems is a technical report published by the International Electrotechnical Commission (IEC). This document addresses the significant issue of incompatibility between DC connectors used in photovoltaic (PV) systems when sourced from different manufacturers. It provides background insights into the causes of incompatibility, discusses associated risks and stakeholder concerns, and outlines both immediate and long-term strategies to enhance connector compatibility and overall PV system safety.

Key Topics

• Incompatibility of DC Connectors: The report highlights how DC connectors, despite similar appearances (e.g., commonly used MC4-type connectors), often lack true interoperability when produced by different manufacturers. Variations in materials, mechanical design, and manufacturing tolerances can compromise system safety.
• Safety and Reliability Issues: Mismatched connectors may increase electrical resistance, accelerate degradation, and can be a leading cause of fire hazards in PV installations. This is compounded by claims of “compatibility” by some manufacturers, which may be misleading.
• Stakeholders Affected: Key stakeholders include PV system owners, building residents, module manufacturers, inverter and cable producers, PV installers, and insurance companies. Each group faces unique risks and responsibilities due to the lack of uniform connector standards.
• Recommendations for Standardization: IEC TR 63225:2019 calls for the development of a common interface standard for DC connectors, emphasizing the need for standardization of critical features and quality management systems to ensure long-term compatibility and safety.
• Interim Measures: The document suggests practical steps for manufacturers, installers, and system owners to minimize risks until comprehensive standards are established. These include improved transparency, avoiding claims of “MC4 compatibility,” and facilitating access to compatible connectors.

Applications

The guidance and recommendations in IEC TR 63225:2019 are highly relevant for:

• PV System Design and Installation: Ensuring only fully compatible connectors are used enhances system safety, reliability, and lifespan, and helps prevent fire hazards.
• Procurement and Supply Chain Management: Decision makers should prioritize sourcing PV modules and connectors from trusted suppliers who provide transparent information about connector types and compatibility.
• Product Warranty and Risk Management: Manufacturers and owners should clarify connector warranties and liability to avoid disputes arising from mismatched connectors and system failures.
• Standards Development Participation: Manufacturers, installers, and other stakeholders are encouraged to engage in future PV connector standardization activities to foster a safer and more interoperable market.
• Insurance and Compliance: Insurance providers can use this standard to assess technical risks more effectively and tailor coverage to reward safer, standards-compliant installations.

Related Standards

For comprehensive PV system safety and connector compatibility, the following IEC standards are closely related:

• IEC 62852: Connectors for DC-application in photovoltaic systems - Safety requirements and tests.
• IEC 61730-1: Photovoltaic (PV) module safety qualification - Part 1: Requirements for construction.
• IEC 62548: Photovoltaic (PV) arrays - Design requirements.
• IEC 60364-7-712:2017: Low voltage electrical installations - Requirements for solar PV power supply systems.

IEC TR 63225:2019 serves as an essential reference for addressing the incompatibility of DC connectors in PV systems, promoting safety, reliability, and the long-term success of solar installations worldwide.

Standards Content (Sample)

IEC TR 63225 ®
Edition 1.0 2019-11
TECHNICAL
REPORT
Incompatibility of connectors for DC-application in photovoltaic systems
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
IEC TR 63225 ®
Edition 1.0 2019-11
TECHNICAL
REPORT
Incompatibility of connectors for DC-application in photovoltaic systems

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 27.160 ISBN 978-2-8322-7534-4

– 2 – IEC TR 63225:2019 © IEC 2019

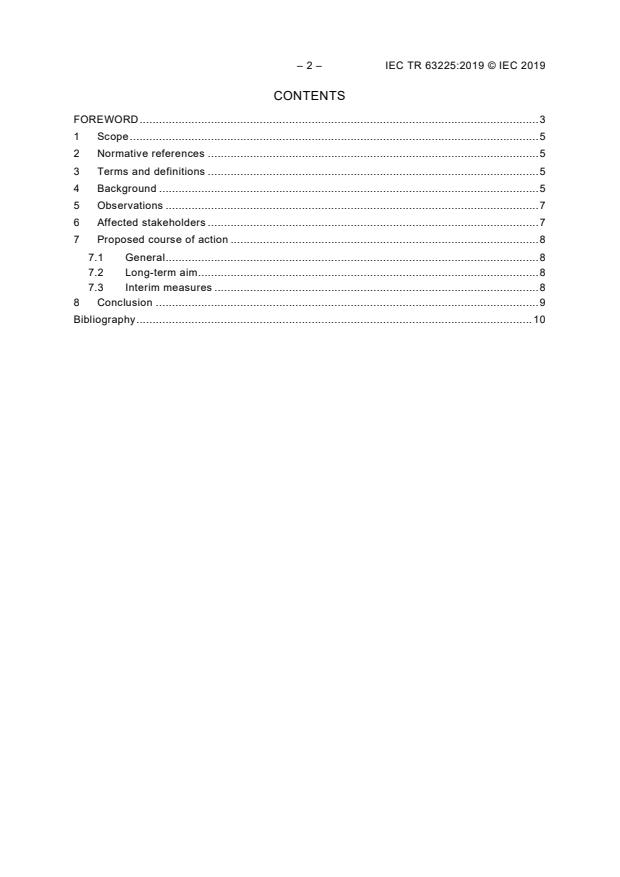

CONTENTS
