Standards Content (Sample)

IEC 61987-12 ®
Edition 1.0 2016-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial-process measurement and control – Data structures and elements
in process equipment catalogues –
Part 12: Lists of properties (LOPs) for flow measuring equipment for electronic
data exchange
Mesure et commande dans les processus industriels – Éléments et structures de
données dans les catalogues d'équipements de processus –
Partie 12: Listes de propriétés (LDP) pour les équipements de mesure de débit
pour l'échange électronique de données

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC 65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61987-12 ®
Edition 1.0 2016-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial-process measurement and control – Data structures and elements

in process equipment catalogues –

Part 12: Lists of properties (LOPs) for flow measuring equipment for electronic

data exchange
Mesure et commande dans les processus industriels – Éléments et structures

de données dans les catalogues d'équipements de processus –

Partie 12: Listes de propriétés (LDP) pour les équipements de mesure de débit

pour l'échange électronique de données

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100.20 ISBN 978-2-8322-3200-2

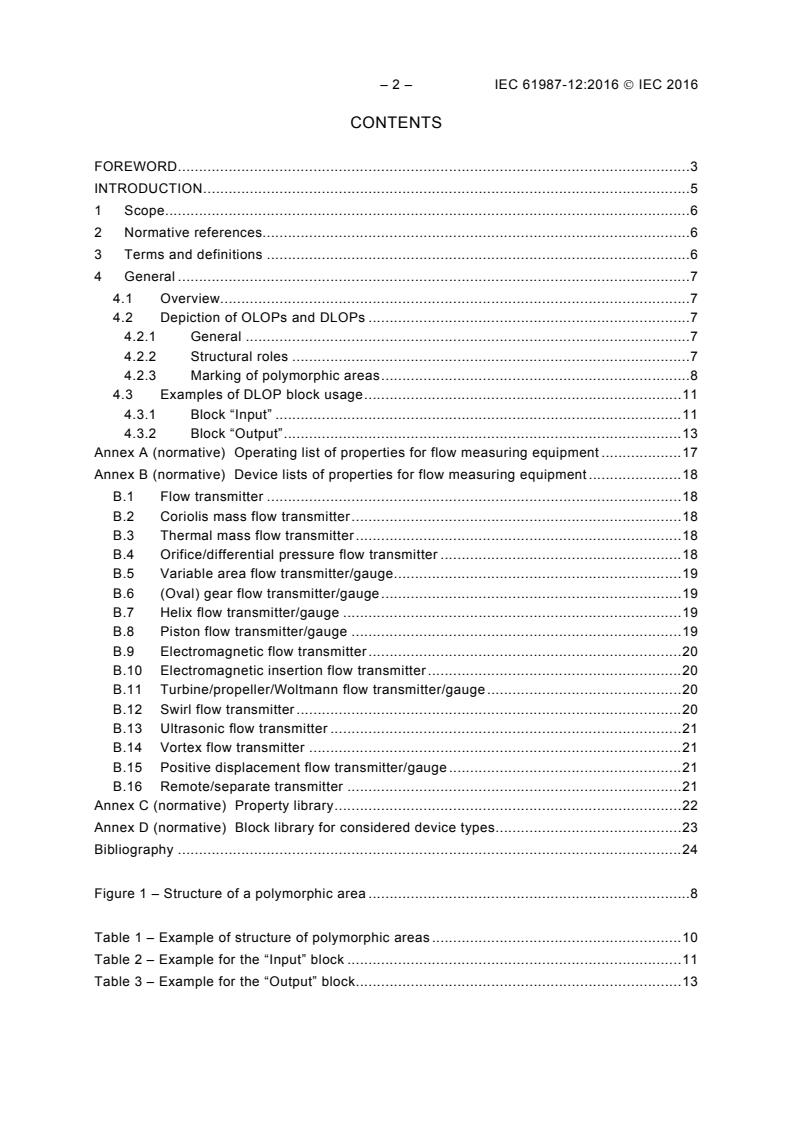

– 2 – IEC 61987-12:2016  IEC 2016
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references. 6
3 Terms and definitions . 6
4 General . 7
4.1 Overview. 7
4.2 Depiction of OLOPs and DLOPs . 7
4.2.1 General . 7
4.2.2 Structural roles . 7
4.2.3 Marking of polymorphic areas . 8
4.3 Examples of DLOP block usage . 11
4.3.1 Block “Input” . 11
4.3.2 Block “Output” . 13
Annex A (normative) Operating list of properties for flow measuring equipment . 17
Annex B (normative) Device lists of properties for flow measuring equipment . 18
B.1 Flow transmitter . 18
B.2 Coriolis mass flow transmitter . 18
B.3 Thermal mass flow transmitter . 18
B.4 Orifice/differential pressure flow transmitter . 18
B.5 Variable area flow transmitter/gauge . 19
B.6 (Oval) gear flow transmitter/gauge . 19
B.7 Helix flow transmitter/gauge . 19
B.8 Piston flow transmitter/gauge . 19
B.9 Electromagnetic flow transmitter . 20
B.10 Electromagnetic insertion flow transmitter . 20
B.11 Turbine/propeller/Woltmann flow transmitter/gauge . 20
B.12 Swirl flow transmitter . 20
B.13 Ultrasonic flow transmitter . 21
B.14 Vortex flow transmitter . 21
B.15 Positive displacement flow transmitter/gauge . 21
B.16 Remote/separate transmitter . 21
Annex C (normative) Property library . 22
Annex D (normative) Block library for considered device types . 23
Bibliography . 24

Figure 1 – Structure of a polymorphic area . 8

Table 1 – Example of structure of polymorphic areas . 10
Table 2 – Example for the “Input” block . 11
Table 3 – Example for the “Output” block . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL-PROCESS MEASUREMENT AND CONTROL –
DATA STRUCTURES AND ELEMENTS
IN PROCESS EQUIPMENT CATALOGUES –

Part 12: Lists of properties (LOPs) for flow measuring
equipment for electronic data exchange

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61987-12 has been prepared by subcommittee 65E: Devices and
integration in enterprise systems, of IEC technical committee 65: Industrial-process
measurement, control and automation.
The text of this standard is based on the following documents:
FDIS Report on voting
65E/490/FDIS 65E/494/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – IEC 61987-12:2016  IEC 2016
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 61987 series, published under the general title Industrial-process
measurement and control – Data structures and elements in process equipment catalogues,
can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
The exchange of product data between companies, business systems, engineering tools, data
systems within companies and, in the future, control systems (electrical, measuring and
control technology) can run smoothly only when both the information to be exchanged and the
use of this information has been clearly defined.
Prior to this standard, requirements on process control devices and systems were specified by
customers in various ways when suppliers or manufacturers were asked to quote for suitable
equipment. The suppliers in their turn described the devices according to their own
documentation schemes, often using different terms, structures and media (paper, databases,
CDs, e-catalogues, etc.). The situation was similar in the planning and development process,
with device information frequently being duplicated in a number of different information
technology (IT) systems.
Any method that is capable of recording all existing information only once during the planning
and ordering process and making it available for further processing, gives all parties involved
an opportunity to concentrate on the essentials. A precondition for this is the standardization
of both the descriptions of the objects and the exchange of information.
This standard series proposes a method for standardization which will help both suppliers and
users of measuring equipment to optimize workflows both within their own companies and in
their exchanges with other companies. Depending on their role in the process, engineering
firms may be considered here to be either users or suppliers.
The method specifies measuring equipment by means of blocks of properties. These blocks
are compiled into lists of properties (LOPs), each of which describes a specific equipment
(device) type. This standard series covers both properties that may be used in an inquiry or a
proposal and detailed properties required for integration of the equipment in computer
systems for other tasks.
IEC 61987-10 defines structure elements for constructing lists of properties for electrical and
process control equipment in order to facilitate automatic data exchange between any two
computer systems in any possible workflow, for example engineering, maintenance or
purchasing workflow and to allow both the customers and the suppliers of the equipment to
optimize their processes and workflows. IEC 61987-10 also provides the data model for
assembling the LOPs.
IEC 61987-11 specifies the generic structure for operating and device lists of properties
(OLOPs and DLOPs). It lays down the framework for further parts of IEC 61987 in which
complete LOPs for device types measuring a given physical quantity and using a particular
measuring principle will be specified. The generic structure may also serve as a basis for the
specification of LOPs for other industrial-process control instrument types such as control
valves and signal processing equipment.
IEC 61987-12 concerns flow measuring equipment. It provides one operating LOP for all types
of flow transmitter which can be used, for example, as a request for various sorts of quotation.
The DLOPs provided in this standard for a range of flow transmitter types can be used in very
different ways: in the computer systems of equipment manufacturers and suppliers; in CAE
and similar systems of EPC contractors and other engineering companies; and especially in
the various plant maintenance systems used by plant owners. The OLOP and the DLOPs
provided correspond to the guidelines specified in IEC 61987-10 and IEC 61987-11.

– 6 – IEC 61987-12:2016  IEC 2016
INDUSTRIAL-PROCESS MEASUREMENT AND CONTROL –
DATA STRUCTURES AND ELEMENTS
IN PROCESS EQUIPMENT CATALOGUES –

Part 12: Lists of properties (LOPs) for flow measuring
equipment for electronic data exchange

1 Scope
This part of IEC 61987 provides an
• operating list of properties (OLOP) for the description of the operating parameters and the
collection of requirements for a flow measuring equipment and
• device lists of properties (DLOP) for the description of a number of flow measuring
equipment types.
The structures of the OLOP and the DLOP correspond to the general structures defined in
IEC 61987-11 and agree with the fundamentals for the construction of LOPs defined in
IEC 61987-10.
Aspects other than the OLOP, needed in different electronic data exchange processes
described in IEC 61987-10, will be published in IEC 61987-92 .
Libraries of properties and of blocks used in the LOPs in this standard are listed in Annex C
and Annex D.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61360 (all parts), Standard data elements types with associated classification scheme for
electric components
IEC 61987-10:2009, Industrial-process measurement and control – Data structures and
elements in process equipment catalogues – Part 10: List of Properties (LOPs) for Industrial-
Process Measurement and Control for Electronic Data Exchange – Fundamentals
IEC 61987-11:2012, Industrial-process measurement and control – Data structures and
elements in process equipment catalogues – Part 11: Lists of Properties (LOP) of measuring
equipment for electronic data exchange – Generic structures
3 Terms and definitions
For the purpose of this document, the terms and definitions given in IEC 61987-10 and
IEC 61987-11 apply.
_______________
Under consideration
4 General
4.1 Overview
The LOPs provided by this document are intended for use in electronic data exchange
processes performed between any two computer systems. The computer systems can both
belong to the same company or they can belong to different companies as described in Annex
C of IEC 61987-10:2009.
The OLOP for the family of flow measuring equipment is to be found in Annex A while the
DLOPs of the individual flow device types are to be found in Annex B.
Structural elements such as LOP type, block and property defined in this standard are
available in electronic form in the “Automation equipment” domain of the IEC Common Data
Dictionary (CDD).
4.2 Depiction of OLOPs and DLOPs
4.2.1 General
The properties of the OLOPs and DLOPs used in this part of IEC 61987 have been created in
conformance to the requirements of the IEC 61360 series. As such, the structural elements,
properties and attributes to be found in the IEC Common Data Dictionary are normative.
4.2.2 Structural roles
The entities within a list of properties can have one of a number of structural roles.
a) Property
A property exists as a property only.
b) Ref. property + Block
A reference property connects a block to the superordinate block or LOP in which it is
embedded.
Properties and sub-blocks listed below a block name and placed one position to the right
are elements of the block. A block ends when another block name appears in the same
column as the block name or in any other column to its left.
The reference property has the same preferred name as the block to which it refers. All
attributes of these properties are available in the IEC Common Data Dictionary (CDD).
c) Cardinality property
A cardinality property is connected to the block which immediately follows it. The value of
the property (0 … n) in a transaction file determines the number of times the associated
block shall be repeated. It is identified by the identifier in the column “Property identifier”.
The preferred name of a cardinality property is “Number of “, where is
derived from name of the block with which it is associated.
In the transaction file (see examples in 4.3), it can be seen that a block has been repeated
twice:
– the cardinality property directly before the block has a value greater than 1,
– the name of the repeated block is extended by “_” followed by the repetition number.
Example:
If the block “Signal function” is repeated 3 times, the following construction occurs in the transaction file:
“number of signal function” has the value “3” - cardinality property
“Signal function_1” - first repeated block
…
“Signal function_2” - second repeated block
…
– 8 – IEC 61987-12:2016  IEC 2016
“Signal function_3” - third repeated block
…
d) Ref. property + Block
This role is similar to b) but the block concerned can be repeated according to value of the
cardinality property which precedes it.
e) Polymorphic control property
A polymorphic control property provides the means of introducing complete blocks of
properties describing different realizations of a particular device function, for instance
inputs and outputs. The property has a value list containing the designations of the blocks
that may be introduced. When in a transaction file a polymorphic control property is
assigned a value, the corresponding block follows (see examples in Tables 2 and 3).
A polymorphic control property is identified in the IEC Common Data Dictionary by the
identifier in the column “Property identifier”. The preferred name of a polymorphic property
is “ type“, where is normally the derived from name of the block with which
it is associated.
f) Ref. property + Polymorphic block
This role is similar to b) but the block concerned is created by polymorphism.
g) Polymorphic control property with the fixed value: “”
This property appears directly behind the polymorphic block property. It is the same
property as the polymorphic control property for the block, but with the fixed value used to
create the block (see IEC 61987-10).
4.2.3 Marking of polymorphic areas
To help identify the possible polymorphic blocks in a list of properties in a printable version of
this standard, a number with grey background has been added to the rightmost column of the
DLOP to indicate the properties associated with the block. It should be noted that in
transaction file, only the polymorphic block selected from value list of the polymorphic control
property would appear in the superordinate block.
Block Name (containing a polymorphic area)
Properties and sub-blocks
(of the common part, valid for all alternative cases)

Name of the polymorphic control property (which has a value list consisting
of exactly n values)
Block Name (for alternative case 1)
Properties and sub-blocks
(for alternative case 1)
Block Name (for alternative case 2)
Properties and sub-blocks
(for alternative case 2)
…
Block Name (for alternative case n)
Properties and sub-blocks
(for alternative case n)
IEC
Figure 1 – Structure of a polymorphic area

Every polymorphic area corresponds to a block, the structure of which is shown in Figure 1. A
polymorphic area begins with the name of this block containing this area.
The block name can be optionally followed by any number of additional properties or sub-
blocks, provided that they are valid for all alternative sub-blocks that can be generated by the
polymorphism.
The polymorphic control property follows, by means of which one of the alternative blocks can
be selected. The alternative sub-blocks with their properties and sub-blocks are now listed
one after the other.
The polymorphic area ends with the last property of the last sub-block that can be selected
using the value list of the polymorphic control property.
In order to facilitate the analysis of the LOPs the following non-normative numerical marking
system has been used. A polymorphic area can have one or more subordinate, polymorphic
areas embedded in it. Table 1 shows the structure of the polymorphic areas implemented in
the DLOPs of Annex B. In Table 1, each individual polymorphic area has been assigned a
unique number. The areas have been numbered in the sequence which they occur in the LOP,
not according to their level in the structure. The number of an embedded area has therefore a
marking number greater than the marking number of area in which it is embedded.
For example, the majority of the content of the “Output” block is generated from the
polymorphic area marked with the number 8, which starts at “Type of output” and can include
any of the specializations which also are marked with the number 8. Each specialization also
includes in this case a further polymorphic area, “Assigned variable” which is marked by its
own number (>8).
– 10 – IEC 61987-12:2016  IEC 2016
Table 1 – Example of structure of polymorphic areas
Marking Marking
number of number of
st
1 level nested
Block name
polymorphic polymorphic
area area
nd
(2 level)
Input
Measured variable
Type of measured variable
Auxiliary input
Type of auxiliary input
Analog current input
Assigned variable
2 3
Analog voltage input
Assigned variable
2 4
Frequency input
Assigned variable
2 5
Pulse input
Assigned variable
2 6
Manufacturer-specific input
Assigned variable
2 7
Output
Type of output
Analog current output
Assigned variable
8 9
Analog voltage output
Assigned variable
8 10
Frequency output
Assigned variable
8 11
Pulse output
Assigned variable
8 12
Manufacturer-specific
Assigned variable
8 13
Pneumatic/hydraulic output
Assigned variable
8 14
Performance
Performance variable
Type of performance variable
Mechanical and electrical construction

Structural design
Structural design of a thermal mass flow transmitter
In the OLOP for flow measuring equipment, there is only one polymorphic area. It appears in
the block “Phase”.
In order to make clear how the structural elements such as block, cardinality and
polymorphism can be implemented using the LOPs of this standard some examples are
provided in 4.3.
4.3 Examples of DLOP block usage
4.3.1 Block “Input”
A Coriolis mass flowmeter with DN25 process connections has three input variables: mass
flow, density and temperature. An additional binary voltage input can be configured to operate
a totalizer reset or to start/stop batching. The Input block in the DLOP is configured as shown
in Table 2 (… indicates a property or properties that have not been used; grey shading
indicates polymorphism).
Table 2 – Example for the “Input” block
2 Assigned value Unit
Name of LOP type, block or property
…
Input
Number of measured variables 3

Measured variable_1
…
Type of measured variable
measured variable type Mass flow measurement

Mass flow measurement
measured variable type Mass flow measurement

measuring principle Coriolis mass flow for liquids

Measuring range for mass flow
lower range-limit of mass flow 0 kg/h

upper range-limit of mass flow 18 000 kg/h

base density 1 000 kg/m3
…
Measured variable_2
…
measured variable type Density measurement

Density measurement
measured variable type Density measurement

measuring principle
Measuring range for density
lower range-limit of density 310 kg/m3

upper range-limit of density 8 000 kg/m3

…
Measured variable_3
…
_______________
In the CDD, block names start with a capital letter, property names with a lower case letter

– 12 – IEC 61987-12:2016  IEC 2016
2 Assigned value Unit
Name of LOP type, block or property

measured variable type Temperature measurement

Temperature measurement
measured variable type Temperature measurement

type of temperature measurement Temperature

measuring principle
Measuring range for temperature

lower range-limit of temperature 0 °C

upper range-limit of temperature 150 °C
number of auxiliary inputs 1
Auxiliary input
…
connected variable Status input

function of input/output Switch

Type of auxiliary input
auxiliary input type Binary input

Binary input
auxiliary input type Binary input
reference standard
number of signal functions 2
Signal function _1
purpose of signal Totalizer reset
state for "low" signal None
state for " high" signal Reset totalizer
…
Signal function_2
purpose of signal Batching start/stop
state for "low" signal Stop batching
state for " high" signal Start batching
…
…
minimum signal level for signal "0" 0 V
maximum signal level for signal "0" 0 V
minimum signal level for signal "1" 3 V
maximum signal level for signal "1" 30 V
…
electrical data for passive behaviour
…
number of galvanic isolations 1
Galvanic isolation
galvanic isolation from inputs 5 000  V
…
4.3.2 Block “Output”
A Coriolis mass flowmeter has three outputs: a current output, a pulse/frequency output and a
relay output, comprising an NC and an NO relay. The process variable assigned to the
outputs at the factory is mass flow, the default flow mass range being the measuring range.
The Output block in the DLOP is configured as shown in Table 3 (only the parameters used
are shown; grey shading indicates polymorphism).
Table 3 – Example for the “Output” block
3 Assigned value Unit
Name of LOP type, block or property
…
number of outputs 3
Output_1
…
displayed variable Mass flow
function of input/output Representation of measured value

Type of output
output type Analog current output

Analog current output
output type Analog current output

Assigned variable
assigned variable type Assigned mass flow range

Assigned mass flow range
assigned variable type Assigned mass flow range

lower range-value of mass flow 0 kg/h

upper range-value of mass flow 18 000 kg/h

Analog current output parameters

type of current output Configurable 0/4…20 mA

power source behaviour Active, passive

set power source behaviour Passive

lower range end-value of current output 4 mA

upper range end-value of current output 20 mA

lower current limit of the proportional range 3,8 mA

upper current limit of the proportional range 20,5

Current signal on alarm
current for lower signal on alarm 3,5 mA

current for upper signal on alarm 22 mA

configurability of signal on alarm MIN, MAX, HOLD, User value

set signal on alarm MIN
superimposed digital communication HART

current signal resolution 0,5 µA

Electrical data for passive behaviour
rated voltage 24 V
minimum voltage 18 VDC
_______________
In the CDD, block names start with a capital letter, property names with a lower case letter

– 14 – IEC 61987-12:2016  IEC 2016
3 Assigned value Unit
Name of LOP type, block or property
maximum voltage 30 VDC
…
minimum current 3,5 mA
maximum current 22 mA
…
minimum load at voltage input 150 Ω

…
number of galvanic isolations 1

Galvanic isolation_1
galvanic isolation from inputs 1 000 V

galvanic isolation from outputs 1 000 V

..
galvanic isolation from external power supplies 1 000 V

…
number of explosion protection parameters for intrinsic 1
safety
Explosion protection parameters for intrinsic safety

…
explosion protection concept N/A

type of intrinsically safe protection Ia

…
Safety related properties for passive behaviour

maximum input power (P ) 1,25 W
i
maximum input voltage (U ) 30 VDC
i
maximum input current (I ) 100 mA
i
maximum internal capacitance (C ) 6 nF
i
maximum internal inductance (L )
0 mH
i
…
Output_2
…
displayed variable Mass flow
function of input/output Representation of measured value

Type of output
output type Pulse output
Pulse output
output type Pulse output
Assigned variable
assigned variable type Assigned mass flow value

Assigned mass flow value
assigned variable type Assigned mass flow value

pulse value of mass 10 kg
…
Pulse/frequency output parameters

3 Assigned value Unit
Name of LOP type, block or property

Pulse input/output parameters
minimum adjustable pulse width 0,5 ms

maximum adjustable pulse width 2 000 ms

set pulse width 2 ms
…
Pulse signal on alarm
…
configurability of signal on alarm MIN, MAX, HOLD, User value, Ignore

set signal on alarm User value

…
power source behaviour Active, passive

set power source behaviour Passive

switching element for passive behaviour Open collector

…
Electrical data for passive behaviour

…
maximum voltage 30 VDC
…
maximum current 250 mA
…
number of galvanic isolations for passive behaviour 1

Galvanic isolation
galvanic isolation of electrical circuits galvanically isolated from all inputs,
outputs and power circuits
…
Output_3
…
displayed variable Mass flow
function of input/output Status indication

Type of output
output type Binary isolated output

Binary isolated output
output type Binary isolated output

…
number of signal functions 2
Signal function_1
purpose of signal Limit detection

state for "low" signal Measurement within limit

state for " high" signal Measurement out of limits

…
Signal function_2
purpose of signal Empty pipe detection

state for "low" signal Pipe full

state for " high" signal Pipe empty

– 16 – IEC 61987-12:2016  IEC 2016
3 Assigned value Unit
Name of LOP type, block or property

…
…
type of contact Normally open
Electromechanical contact parameters

…
AC rating
maximum voltage at inductive load (AC) 30 VAC

maximum current at inductive load (AC) 0,5 mA

cos (phi) 0,7
power VA 15 VA
DC rating
maximum voltage at ohmic load (DC) 60 VDC

maximum current at ohmic load (DC) 0,1 mA

power Watt 6 W
switching delay 5 ms
…
number of galvanic isolations 1

Galvanic isolation
galvanic isolation of electrical circuits Galvanically isolated from all inputs,
outputs and power circuits
…
Annex A
(normative)
Operating list of properties for flow measuring equipment

The considered OLOP has been created for for all types of flow measuring equipment. It is
assigned to three areas of flow measuring equipment in the classification scheme for process
measuring equipment (see Table A.1 in IEC 61987-11:2012):
• flow gauge IEC-ABA644
• flow switch IEC-ABA698
• flow transmitter IEC-ABA761
NOTE The OLOP is also to be found in the Properties Tree field and has the ID IEC-ABA003 .
The OLOP is available with all blocks and properties in the IEC CDD at:
http://std.iec.ch/cdd/iec61987/cdddev.nsf/TreeFrameset?OpenFrameSet

_______________
Website checked 2014.11.01
– 18 – IEC 61987-12:2016  IEC 2016
Annex B
(normative)
Device lists of properties for flow measuring equipment

B.1 Flow transmitter
The DLOPs of Annex B correspond to the classification scheme for measuring equipment
placed in Annex A of IEC 61987-11:2012.
The DLOP for a generic flow transmitter is assigned to the node of the classification:
• generic flow transmitter IEC-ABV010
NOTE The DLOP is also to be found in the Properties Tree field and has the ID IEC-ABA005.
The DLOP is available with all blocks and properties in the IEC CDD at:
http://std.iec.ch/cdd/iec61987/cdddev.nsf/TreeFrameset?OpenFrameSet.
B.2 Coriolis mass flow transmitter
The DLOP for a Coriolis mass flow transmitter is assigned to the following node of the
classification (Table A.1 of IEC 61987-11:2012):
• coriolis mass flow transmitter IEC-ABA763
NOTE The DLOP is also to be found in the Properties Tree field and has the ID IEC-ABA006.
The DLOP is available with all blocks and properties in the IEC CDD at:
http://std.iec.ch/cdd/iec61987/cdddev.nsf/TreeFrameset?OpenFrameSet.
B.3 Thermal mass flow transmitter
The DLOP for a thermal mass flow transmitter is assigned to the following node of the
classification (Table A.1 of IEC 61987-11:2012):
• thermal mass flow transmitter IEC-ABA764
NOTE The DLOP is also to be found in the Properties Tree field and has the ID IEC-ABA016.
The DLOP is available with all blocks and properties in the IEC CDD at:
http://std.iec.ch/cdd/iec61987/cdddev.nsf/TreeFrameset?OpenFrameSet.
B.4 Orifice/differential pressure flow transmitter
The DLOP for an orifice/differential pressure flow transmitter is assigned to the following node
of the classification (Table A.1 of IEC 61987-11:2012):
• Orifice plate flow meter IEC-ABA767
NOTE The DLOP is also to be found in the Properties Tree field and has the ID IEC-ABA010.
The DLOP is available with all blocks and properties in the IEC CDD at:
http://std.iec.ch/cdd/iec61987/cdddev.nsf/TreeFrameset?OpenFrameSet.
_______________
Website checked 2014.11.01
B.5 Variable area flow transmitter/gauge
The DLOP for a variable area flow transmitter/gauge is assigned to the following node of the
classification (Table A.1 of IEC 61987-11:2012):
• variable area flow transmitter/gauge IEC-ABA771
NOTE The DLOP is also to be found in the Properties Tree field and has the ID IEC-ABA020.
The DLOP is available with all blocks and properties in the IEC CDD at:
http://std.iec.ch/cdd/iec61987/cdddev.nsf/TreeFrameset?OpenFrameSet.
B.6 (Oval) gear flow transmitter/gauge
The DLOP for an (oval) gear flow transmitter/gauge is assigned to the following node of the
classification (Table A.1 of IEC 61987-11:2012):
• oval gear flow transmitter IEC-ABA785
NOTE The DLOP is also to be found in the Properties Tree field and has the ID IEC-ABA013.
The DLOP is available with all blocks and properties in the IEC CDD at:
.
http://std.iec.ch/cdd/iec61987/cdddev.nsf/TreeFrameset?OpenFrameSet
B.7 Helix flow transmitter/gauge
The DLOP for a helix flow transmitter/gauge is assigned to the following node of the
classificat
...
