Overview

IEC 62379-3:2015 is Part 3 of the IEC 62379 series defining the common control interface for networked digital audio and video products - specifically the video-related elements. It details how video formats, transports and metadata are identified and managed within the control framework introduced in IEC 62379-1. The standard enables interoperable control and monitoring of video functions on networked AV equipment using object identifiers (OIDs), management information (MIB) structures and defined managed objects.

Key topics and technical requirements

• Video format identification
  • Video formats are identified by object identifiers (OIDs). The standard permits using both standard and externally defined OIDs so proprietary or emerging formats can be integrated.
  • Format parameters (frame rate, vertical resolution, scan type, etc.) are encoded as sub-identifiers appended to the OID. Unspecified parameters are coded as zero and omitted per the OID rules.
• Frame rate encoding
  • Frame rates are represented as an integer ratio multiplied by 1000 (e.g., 23.976 Hz = 24000/1001 → stored as 23976).
• Source type enumeration
  • Defines source-type values (e.g., unspecified, SD, HD, UHD4K, UHD8K) for managed identification of video origin.
• MIB and managed objects for video blocks
  • Specifies MIB definitions and managed object types for common video blocks used in devices:
    • Video ports and generic port functionality
    • Video locked to reference (synchronization)
    • Video mixers, crosspoints, converters
    • Video level alarm blocks
  • Includes tables and figures listing managed objects and relationships (see Tables 1–6 and Figures 1–5).
• Metadata and transport definitions
  • Defines root locations and structures for video transport and video metadata to ensure consistent management of associated data.
• Machine-readable annexes
  • Informative annexes provide machine-readable video format and block definitions, example trees and worked examples to support implementation.

Applications and who uses it

• Broadcast manufacturers building networked video devices (encoders, routers, switchers).
• System integrators and AV network designers implementing unified device control and monitoring.
• Network engineers and software developers** creating management systems (SNMP/MIB-based) or control protocols compatible with IEC 62379.
• Broadcasters and facilities seeking interoperable control of multi-vendor equipment for routing, format conversion, monitoring and automation.

Related standards

• IEC 62379-1:2007 (General) - normative reference providing the core common control interface.
• Other parts of IEC 62379 series cover audio (Part 2), data, and network transmission (Part 5) for complete AV system control.

Keywords: IEC 62379-3:2015, common control interface, networked digital audio and video, video format definitions, OID, MIB, video ports, video mixer, crosspoint, converter, metadata, frame rate, HD, UHD.

Standards Content (Sample)

IEC 62379-3 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
Common control interface for networked digital audio and video products –
Part 3: Video
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 62379-3 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
Common control interface for networked digital audio and video products –

Part 3: Video
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.160; 35.100 ISBN 978-2-8322-2687-2

– 2 – IEC 62379-3:2015 © IEC 2015

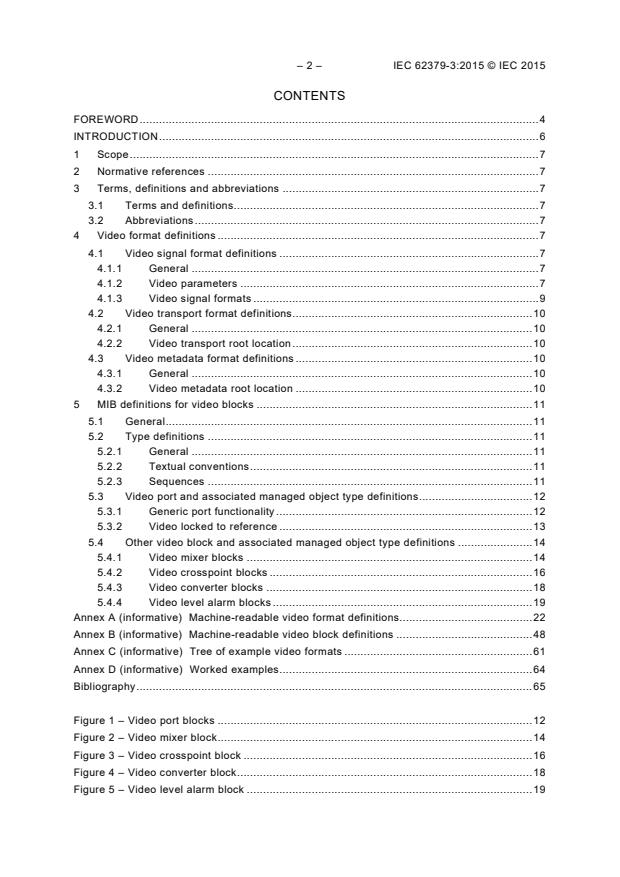

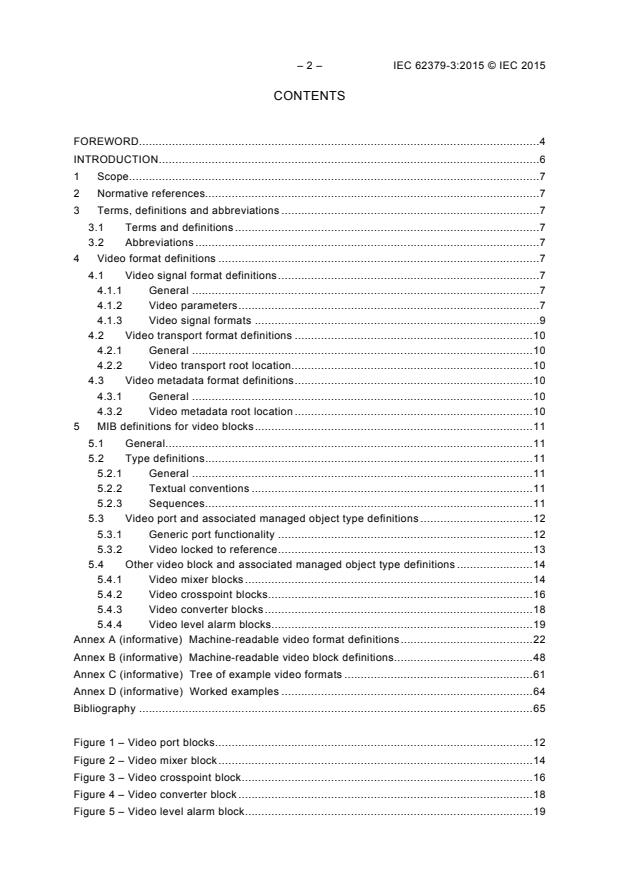

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references. 7
3 Terms, definitions and abbreviations . 7
3.1 Terms and definitions . 7
3.2 Abbreviations . 7
4 Video format definitions . 7
4.1 Video signal format definitions . 7
4.1.1 General . 7
4.1.2 Video parameters . 7
4.1.3 Video signal formats . 9
4.2 Video transport format definitions . 10
4.2.1 General . 10
4.2.2 Video transport root location. 10
4.3 Video metadata format definitions . 10
4.3.1 General . 10
4.3.2 Video metadata root location . 10
5 MIB definitions for video blocks . 11
5.1 General . 11
5.2 Type definitions . 11
5.2.1 General . 11
5.2.2 Textual conventions . 11
5.2.3 Sequences . 11
5.3 Video port and associated managed object type definitions . 12
5.3.1 Generic port functionality . 12
5.3.2 Video locked to reference . 13
5.4 Other video block and associated managed object type definitions . 14
5.4.1 Video mixer blocks . 14
5.4.2 Video crosspoint blocks . 16
5.4.3 Video converter blocks . 18
5.4.4 Video level alarm blocks . 19
Annex A (informative) Machine-readable video format definitions . 22
Annex B (informative) Machine-readable video block definitions . 48
Annex C (informative) Tree of example video formats . 61
Annex D (informative) Worked examples . 64
Bibliography . 65

Figure 1 – Video port blocks . 12
Figure 2 – Video mixer block . 14
Figure 3 – Video crosspoint block . 16
Figure 4 – Video converter block . 18
Figure 5 – Video level alarm block . 19

Table 1 – Managed objects for video ports . 13
Table 2 – Managed objects for video locked . 13
Table 3 – Managed objects for video mixer blocks . 14
Table 4 – Managed objects for video crosspoint blocks . 17
Table 5 – Managed objects for video converter blocks . 18
Table 6 – Managed objects for video level alarm blocks . 20

– 4 – IEC 62379-3:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –

Part 3: Video
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62379-3 has been prepared by technical area 4: Digital system
interfaces and protocols of IEC technical committee 100: Audio, video and multimedia
systems and equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
100/2465/FDIS 100/2495/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62379 series, published under the general title Common control
interface for networked digital audio and video products, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

– 6 – IEC 62379-3:2015 © IEC 2015
INTRODUCTION
The IEC 62379 series specifies the common control interface, a protocol for managing
equipment which conveys audio and/or video across digital networks.
The following parts exist or are planned:
1) General
2) Audio
3) Video
4) Data
5) Transmission over networks
6) Packet transfer service
7) Measurement for EBU ECN-IPM
IEC 62379-1:2007, specifies aspects which are common to all equipment, and it includes an
introduction to the common control interface.
IEC 62379-2:2008, IEC 62379-3 (this standard) and IEC 62379-4 (under consideration)
specify control of internal functions specific to equipment carrying particular types of live
media. IEC 62379-4 refers to time-critical data such as commands to automation equipment,
but not to packet data such as the control messages themselves.
IEC 62379-5 specifies control of transmission of these media over each individual network
technology. It includes network specific management interfaces along with network specific
control elements that integrate into the control framework.
IEC 62379-5-1 specifies management of aspects which are common to all network
technologies.
IEC 62379-5-2 specifies protocols which can be used between networking equipment to
enable the setting up of calls which are routed across different networking technologies.
IEC 62379-5-3, onwards, specify management of aspects which are particular to individual
networking technologies.
IEC 62379-6, specifies carriage of control and status messages and non-audiovisual data
over transports that do not support audio and video, such as RS232 serial links, with (as for
IEC 62379-5) a separate subpart for each technology.
IEC 62379-7 specifies aspects that are specific to the measurement of the service
experienced by audio and video streams and in particular to the requirements of EBU ECN-
IPM Measurements Group.
COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –

Part 3: Video
1 Scope
This part of IEC 62379 details aspects of the common control interface specified in
IEC 62379-1 that are specific to video.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 62379-1:2007, Common control interface for networked audio and video products –
Part 1: General
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62379-1 apply.
3.2 Abbreviations
EBU ECN-IPM European Broadcasting Union Expert Community Network and
Infrastructure Internet Protocol Measurement
HD High Definition
OID Object Identifier
PSF Progressive Segmented Frame
SD Standard Definition
UHD Ultra High Definition
4 Video format definitions
4.1 Video signal format definitions
4.1.1 General
At any point in the video signal chain, the video data will be in a particular format. For
management purposes, the format shall be identified by an object identifier, either a “Common
control interface standard” object identifier as defined in this standard or an object identifier
defined elsewhere.
NOTE Permitting video format identifiers to be defined outside this standard allows use of proprietary formats
within the standard protocol and also allows industry standard formats to emerge that may eventually be
incorporated into future revisions of this standard.
4.1.2 Video parameters
4.1.2.1 General
The definitions in 4.1.3 make reference to "parameters" which provide additional information
about the format. These parameters shall be mapped to "sub-identifier" values as specified in
the other subclauses of 4.1.2. Any parameter may be "unspecified".
The "sub-identifier" values shall be appended to the object identifiers as additional arcs, in the
order in which the parameters are listed in the relevant subclause of 4.1.3; except that if a

– 8 – IEC 62379-3:2015 © IEC 2015
parameter is unspecified, and either is the last parameter or all subsequent parameters are
also unspecified, then it shall be omitted.
For all parameters, "unspecified" is coded as zero, so this rule ensures that the OID does not
end with a zero arc.
EXAMPLE If the last two parameters are vertical resolution and scan type, then 1080P would be coded as .1080.1,
1080P (with scan type unspecified) as .1080, and P (with vertical resolution unspecified) as .0.1.
4.1.2.2 Frame rate
The sub-identifier for frame rate shall be a value of the following type:
FrameRate::= Unsigned32 (0. 2147483647)
-- An integer representing the calculated frame rate ratio of the encoded
-- video signal.
-- A value of zero shall indicate unspecified.

-- This is computed by calculating the frame rate ratio,
-- such as 24000/1001 = 23.976Hz and multiplying by 1000
-- to convert the value to an integer; in this case 23976.

-- For display purposes the value needs to be divided by
-- 1000 and a decimal point inserted as shown in the
-- Display-Hint.
4.1.2.3 Source type
The sub-identifier for the source type of the video shall be a value of the following type:
SourceType::= INTEGER {
unspecified (0),
sd      (1),
hd      (2),
uhd4k    (3),
uhd8k    (4)
} (unspecified. uhd8k)
-- An integer representing the source type of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.4 Vertical resolution
The sub-identifier for the vertical resolution shall be a value of the following type:
LineResolution::= INTEGER
-- An integer representing the vertical
-- resolution of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.5 Scan type
The sub-identifier for the video scan type shall be a value of the following type:
ScanType::= INTEGER {
unspecified (0),
progressive (1),
interlaced  (2),
psf     (3)
} (unspecified.psf)
-- An integer representing the scan type of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.6 Coding type
The sub-identifier for the video coding type shall be a value of the following type:
CodingType::= INTEGER {
unspecified  (0),
uncompressed (1),
mpeg2     (2),
h264     (3),
jpeg2000   (4),
smptevc2   (5),
vp8      (6),
h264ScaleExtn (7),
h265HEVC   (8)
} (unspecified. h265HEVC)
-- An integer representing the coding type of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.7 Source aspect ratio
The sub-identifier for the source aspect ratio shall be a value of the following type:
SourceAspectRatio::= INTEGER {
Unspecified  (0),
fourByThree  (43),
sixteenByNine (169),
twoPointTwoOne (221)
} (unspecified.twoPointTwoOne)

-- An integer representing the source aspect ratio of the encoded
-- video signal.
-- A value of zero shall indicate unspecified.

4.1.2.8 Active format description codes
The sub-identifier for the active format description codes shall be a value of the following type:
ActiveFormatDescriptionCodes::= INTEGER
-- An integer representing the active format description codes for
-- video used with the range of source aspect ratios.
-- The codes are from 0000-1111
-- See SMPTE ST 2016-1:2009 for code descriptions.

4.1.3 Video signal formats
4.1.3.1 Video signal format root location
Video signal formats shall be rooted at the following location in the MIB tree:
iec62379       OBJECT IDENTIFIER::= { iso(1) standard(0) 62379 }

videoFormat     OBJECT IDENTIFIER::= { iec62379 video(3) format(2) }

videoSignalFormat OBJECT IDENTIFIER::= { videoFormat Signal(1) }

The following definitions shall be used to identify the specified formats.
NOTE Annex C contains an example of set of formats defined by this standard.
4.1.3.2 Unspecified video
unspecifiedVideo   OBJECT IDENTIFIER::=
{ videoSignalFormat unspecified(0) }
-- wildcard – any supported format allowed

4.1.3.3 No video
noVideo       OBJECT IDENTIFIER::= { videoSignalFormat none(1) }
-- indicates the output is non-existent

4.1.3.4 Invalid video
invalidVideo    OBJECT IDENTIFIER::= { videoSignalFormat invalid(2) }

– 10 – IEC 62379-3:2015 © IEC 2015
-- indicates an error, such as inability to decode a signal earlier in
-- the chain
4.1.3.5 Video source
videoSource     OBJECT IDENTIFIER::= { videoSignalFormat source(3) }
-- video source
The video source identifier shall have four parameters. The first shall be the frame rate, the
second shall be the video source type, the third shall be the vertical resolution and the fourth
shall be the scan type.
4.1.3.6 Video coding type
videoCodingType   OBJECT IDENTIFIER::= { videoSignalFormat coding(4) }
-- video coding type
The video coding type identifier shall have one parameter. This shall be either the coding type
or uncompressed, if not coded.
4.1.3.7 Aspect ratio
aspectRatio   OBJECT IDENTIFIER::=
{ videoSignalFormat aspectRatio (5) }
-- aspect ratio of the video
The video aspect ratio identifier shall have two parameters. The first shall be the source
aspect ratio, the second shall be the active format description code for the source aspect ratio.
4.2 Video transport format definitions
4.2.1 General
For management purposes, the transport format shall be identified by an object identifier,
either a “Common control interface standard” object identifier as defined in this standard or an
object identifier defined elsewhere.
NOTE Permitting video transport format identifiers to be defined outside this standard allows use of proprietary
formats within the standard protocol and also allows industry standard formats to emerge that may eventually be
incorporated into future revisions of this standard.
4.2.2 Video transport root location
Video transport formats shall be rooted at the following location in the MIB tree:
videoTransportFormat OBJECT IDENTIFIER::= { videoFormat transport(2) }
The following definitions shall be used to identify the specified transport formats.
unspecifiedTransport OBJECT IDENTIFIER::=
{ videoTransportFormat unspecified(0) }

analogue  OBJECT IDENTIFIER::= { videoTransportFormat analogue(1) }

4.3 Video metadata format definitions
4.3.1 General
For management purposes, the metadata format shall be identified by an object identifier,
either a “Common control interface standard” object identifier as defined in this standard or an
object identifier defined elsewhere.
NOTE Permitting video metadata format identifiers to be defined outside this standard allows use of proprietary
formats within the standard protocol and also allows industry standard formats to emerge that may eventually be
incorporated into future revisions of this standard.
4.3.2 Video metadata root location
Video metadata formats shall be rooted at the following location in the MIB tree:
videoMetadataFormat OBJECT IDENTIFIER::= { videoFormat metadata(3) }

The following definitions shall be used to identify the specified metadata formats.
unspecifiedMetadata OBJECT IDENTIFIER::=
{ videoMetadataFormat unspecified(0) }

5 MIB definitions for video blocks
5.1 General
This clause defines a set of managed object types for representing control functions in
network controlled video equipment. The format of the definitions is as specified in
IEC 62379-1.
For management purposes, a piece of video equipment shall be modelled as a number of
discrete video blocks and video connectors, as specified in IEC 62379-1. Each video block
may have zero or more inputs and zero or more outputs, and each input or output may carry
one or more channels. Each video connector shall connect one video block output to one
video block input with a one-to-one mapping of channels between the blocks.
NOTE 1 A piece of equipment may be fixed-function, in which case the number of video blocks present and the
connections between them will be immutable, or it may be programmable, in which case the number of video blocks
present and/or the connections between them may be changed by the user.
Each video block shall be modelled either by one of the standard video block types defined in
this standard or by a video block type defined elsewhere. Associated with each defined block
type shall be a (possibly empty) group of managed object types that represent the control
functions for that block. A block type shall be identified by the node in the object identifier tree
that is the root node for the group of managed object types associated with that block type.
NOTE 2 Permitting video block types to be defined outside this standard allows control of proprietary functions
using the standard protocol and also allows industry standard block types to emerge that may eventually be
incorporated into future revisions of this standard.
NOTE 3 An empty group of managed object types is permitted to allow for blocks that have no associated control
functions.
NOTE 4 Annex D contains worked examples of the block structure.
5.2 Type definitions
5.2.1 General
In addition to the types defined in IEC 62379-1, the following types are used to specify the
syntax of the abstract data structures representing managed object values.
5.2.2 Textual conventions
VideoTransportType::= OBJECT IDENTIFIER
-- A reference to the transport used for a video connection.
-- The value may be defined in 4.2, or in a subpart of IEC 62379-5, or
-- elsewhere.
5.2.3 Sequences
VPortEntry::= SEQUENCE {
vPortBlockId  BlockId,
vPortDirection PortDirection,
vPortFormat   MediaFormat,
vPortTransport VideoTransportType,
vPortName    Utf8String
}
VLockedEntry::= SEQUENCE {
vLockedBlockId     BlockId,
vLockedTime       CardinalNumber,
}
VMixerBlockEntry::= SEQUENCE {
vMixerBlockId    BlockId,
vMixerFadeDuration CardinalNumber,

– 12 – IEC 62379-3:2015 © IEC 2015
vMixerFadeNow    TruthValue
}
VMixerInputEntry::= SEQUENCE {
vMixerInputBlockId   BlockId,
vMixerInputNumber    IndexNumber,
vMixerInputLevel    VideoLevel,
vMixerInputFadeToLevel VideoLevel,
vMixerInputDelay    CardinalNumber
}
VCrosspointBlockEntry::= SEQUENCE {
vCrosspointBlockId  BlockId,
vCrosspointConfigure TruthValue,
vCrosspointCopy    BlockId
}
VCrosspointPathEntry::= SEQUENCE {
vCrosspointPathBlockId  BlockId,
vCrosspointPathSrc    VideoChannel,
vCrosspointPathDst    VideoChannel,
vCrosspointPathGain   VideoLevel,
vCrosspointPathNewGain  VideoLevel,
}
VConverterBlockEntry::= SEQUENCE {
vConverterBlockId    BlockId,
vConverterQuality    VideoQuality,
vConverterEnabled    TruthValue,
vConverterOutputFormat MediaFormat,
vConverterError     TruthValue
}
VLevelAlarmBlockEntry::= SEQUENCE {
vlaBlockId    BlockId,
vlaType     VideoLevelAlarmType,
vlaThreshold   VideoLevel,
vlaWarningTime  CardinalNumber,
vlaFailureTime  CardinalNumber,
vlaCounter    CardinalNumber,
vlaEnabled    TruthValue,
vlaStatus    VideoAlarmStatus
}
5.3 Video port and associated managed object type definitions
5.3.1 Generic port functionality
5.3.1.1 Video port block structure
All video inputs to and outputs from the unit shall be represented using a video port block. A
base table of managed objects provides control common to all ports. Extension tables provide
functionality specific to certain types of port.
A video port block, as shown in Figure 1, shall have the following structure:
Input Output
Output 1 Input 1
port c c port
IEC
Key
c = number of channels on the input or output
Figure 1 – Video port blocks
The group of objects in Table 1 shall be implemented by all compliant video equipment that
contains one or more video ports. The root node for these objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoPort(1) }

This node shall be used as the video block type identifier for video port blocks.
Table 1 – Managed objects for video ports
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF VPortEntry
none none no m
vPortTable(1)
│
VPortEntry
none none no m
└vPortEntry(1)
BlockId
yes none none no m
├vPortBlockId(1)
PortDirection
listener none no m
├vPortDirection(2)
MediaFormat
listener none yes m
├vPortFormat(3)
VideoTransportType
listener none no o
├vPortTransport(4)
Utf8String
listener supervisor no o
└vPortName(5)
5.3.1.2 vPortTable
A table of video port descriptors for this unit. Each video port on the unit has a corresponding
entry in this table.
5.3.1.3 vPortEntry
An entry in the video port table.
5.3.1.4 vPortBlockId
The block identifier for this port. Used as an index when accessing the video port table.
5.3.1.5 vPortDirection
The direction (input or output) of this port.
5.3.1.6 vPortFormat
The format of the video data currently being received or transmitted via this port. If the port is
not active, the value noVideo shall be returned.
5.3.1.7 vPortTransport
The type of transport used by the port.
5.3.1.8 vPortName
The name assigned to this port. This is an arbitrary text string assigned by the system
manager.
5.3.2 Video locked to reference
5.3.2.1 Video lock objects
The group of objects in Table 2 shall be implemented by all compliant video equipment that
provides statistics for video signals being locked to a reference signal. The root node for
these objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoPort(1) }
Table 2 – Managed objects for video locked
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF
none none no m
vLockedTable(2)
VLockedEntry
|
VLockedEntry
none none no m
└vLockedEntry(1)
BlockId
yes none none no m
├vLockedBlockId(1)
CardinalNumber
listener none yes m
└vLockedTime(2)
– 14 – IEC 62379-3:2015 © IEC 2015
5.3.2.2 vLockedTable
A table of video port locked descriptors for this unit. Each video port on the unit that supports
measurement of lock against the reference has a corresponding entry in this table.
5.3.2.3 vLockedEntry
An entry in the locked table.
5.3.2.4 vLockedBlockId
The block identifier of the associated video port. Used as an index when accessing the locked
table.
5.3.2.5 vLockedTime
The time (in seconds) that the video signal on this port has been locked to the unit’s reference
clock.
5.4 Other video block and associated managed object type definitions
5.4.1 Video mixer blocks
5.4.1.1 Video mixer block structure
A video mixer block, shown in Figure 2, shall have the following structure:
Fader
Input 1 Delay
c
Output 1
c
Input N Delay
c
Fader
IEC
Key
c = number of channels on a connection
Figure 2 – Video mixer block
A video mixer block may be used to represent a simple switched selector or combiner, by
limiting the permitted values for the fader level controls to mInfinity or fullScale.
The delay function permits video streams that have passed through various processing or
transport paths to be brought back into time alignment, either with other video streams or with
associated audio streams. Equipment that doesn't support this functionality is represented as
having a fixed zero delay.
5.4.1.2 Video mixer objects
The group of objects in Table 3 shall be implemented by all compliant video equipment that
has a management model that incorporates one or more video mixer blocks. The root node for
these objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoMixer(2) }
This node shall be used as the block type identifier for video mixer blocks.
Table 3 – Managed objects for video mixer blocks
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF
none none no m
vMixerBlockTable(1)     │
VMixerBlockEntry
VMixerBlockEntry
none none no m
└vMixerBlockEntry(1)
BlockId
yes none none no m
├vMixerBlockId(1)
Identifier Syntax Index Readable Writable Volatile Status
CardinalNumber
listener operator no o
├vMixerFadeDuration(2)
TruthValue
listener operator yes o
└vMixerFadeNow(3)
SEQUENCE OF
none none no m
vMixerInputTable(2)     │
VMixerInputEntry
VMixerInputEntry
none none no m
└vMixerInputEntry(1)
BlockId
yes none none no m
├vMixerInputBlockId(1)
IndexNumber
yes none none no m
├vMixerInputNumber(2)
VideoLevel
listener operator no m
├vMixerInputLevel(3)
VideoLevel
listener operator no o
├vMixerInputFadeToLevel(4)
CardinalNumber
listener operator no o
└vMixerInputDelay(5)
5.4.1.3 vMixerBlockTable
A table of video mixer block descriptors for this unit. Each video mixer block in the unit has a
corresponding entry in this table.
5.4.1.4 vMixerBlockEntry
An entry in the video mixer block table.
5.4.1.5 vMixerBlockId
The block identifier for this block. Used as an index when accessing the video mixer block
table.
5.4.1.6 vMixerFadeDuration
The transition time (in milliseconds) for a smooth fade or cross-fade operation performed by
this block. A value of zero indicates a hard switchover.
5.4.1.7 vMixerFadeNow
When set to true, causes the block to perform a smooth fade or cross-fade operation. Using
values taken from this block's entries in the mixer input table, the unit shall simultaneously
ramp the fader level for each input in vMixerInputEntry from its current value to the value
specified by vMixerInputFadeToLevel. Automatically reset to false when the operation is
complete.
5.4.1.8 vMixerInputTable
A table of video mixer input descriptors for this unit. Each input of each video mixer block in
the unit has a corresponding entry in this table.
5.4.1.9 vMixerInputEntry
An entry in the video mixer input table.
5.4.1.10 vMixerInputBlockId
The block identifier of the associated block. Used as an index when accessing the video mixer
input table.
5.4.1.11 vMixerInputNumber
The block input number for this input. Used as an index when accessing the video mixer input
table.
5.4.1.12 vMixerInputLevel
The fader level for this input. When a level is set, the fader immediately changes to the level
specified, over the duration in vMixerFadeDuration. For blocks that only support switching
between inputs, the only permitted values are mInfinity and fullScale. Blocks that
automatically switch between inputs may reject SET operations on this object.

– 16 – IEC 62379-3:2015 © IEC 2015
5.4.1.13 vMixerInputFadeToLevel
The fader level for this input that will be applied when vMixerFadeNow is set to true. For
blocks that only support switching between inputs, the only permitted values are mInfinity
and fullScale. Blocks that automatically switch between inputs may reject SET operations on
this object.
5.4.1.14 vMixerInputDelay
The delay (in microseconds) applied to samples arriving at this input.
5.4.2 Video crosspoint blocks
5.4.2.1 Video crosspoint block structure
A video crosspoint block, shown in Figure 3, shall have the following structure:
Phase
Gain
ch 1
ch 1
c
ch c
Phase Gain
Input 1 Output 1
c d
Phase Gain
ch 1
c
ch d
ch c
Phase Gain
IEC
Key
c = number of input channels
d = number of output channels
Figure 3 – Video crosspoint block
5.4.2.2 Video crosspoint objects
The group of objects in Table 4 shall be implemented by all compliant video equipment that
has a management model that incorporates one or more video crosspoint blocks. The root
node for these objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoCrosspoint(3) }
This node shall be used as the block type identifier for video crosspoint blocks.

Table 4 – Managed objects for video crosspoint blocks
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF
none none no m
vCrosspointBlockTable(1)
VCrosspointBlockEntry
│
VCrosspointBlockEntry
none none no m
└vCrosspointBlockEntry(1)
BlockId
yes none none no m
├vCrosspointBlockId(1)
TruthValue
listener operator yes m
├vCrosspointConfigure(2)
BlockId
none operator yes o
└vCrosspointCopy(3)
SEQUENCE OF
none none no m
vCrosspointPathTable(2)
VCrosspointPathEntry
│
VCrosspointPathEntry
none none no m
└vCrosspointPathEntry(1)
BlockId
yes none none no m
├vCrosspointPathBlockId(1)
VideoChannel
yes none none no m
├vCrosspointPathSrc(2)
VideoChannel
yes none none no m
├vCrosspointPathDst(3)
VideoLevel
listener operator no m
├vCrosspointPathGain(4)
VideoLevel
listener operator no o
└vCrosspointPathNewGain(5)
5.4.2.3 vCrosspointBlockTable
A table of video crosspoint block descriptors for this unit. Each video crosspoint block in the
unit has a corresponding entry in this table.
5.4.2.4 vCrosspointBlockEntry
An entry in the video crosspoint block table.
5.4.2.5 vCrosspointBlockId
The block identifier for this block. Used as an index when accessing the video crosspoint
block table.
5.4.2.6 vCrosspointConfigure
When set to true, causes this block to be configured as specified by the corresponding
vCrosspointPathNewGain and vCrosspointPathNewPhase entries in the crosspoint path
table. Automatically reset to false if the block supports delayed configuration and any of the
corresponding entries in the crosspoint path table are modified. Permanently true if the block
does not support delayed configuration.
5.4.2.7 vCrosspointCopy
When set to a block identifier that identifies another video crosspoint block in the unit with an
identical structure to this block, copies the values of vCrosspointPathGain and
vCrosspointPathPhase for each path in the crosspoint from the identified block to this block.
If set to a block identifier that does not identify a video crosspoint block in the unit with an
identical structure to this block, the SET operation shall be rejected.
NOTE A possible application is the ability to have some common configurations available as presets by creating
'dummy' crosspoint blocks with the required settings which are referenced in the block table but which aren't
actually part of the video path.
5.4.2.8 vCrosspointPathTable
A table of video crosspoint path descriptors for this unit. Each path in each video crosspoint
block in the unit has a corresponding entry in this table.
5.4.2.9 vCrosspointPathEntry
An entry in the video crosspoint path table.

– 18 – IEC 62379-3:2015 © IEC 2015
5.4.2.10 vCrosspointPathBlockId
The block identifier of the associated block. Used as an index when accessing the video
crosspoint path table.
5.4.2.11 vCrosspointPathSrc
The source video channel associated with this path. Used as an index when accessing the
video crosspoint path table.
5.4.2.12 vCrosspointPathDst
The destination video channel associated with this path. Used as an index when accessing
the video crosspoint path table.
5.4.2.13 vCrosspointPathGain
The signal gain from source to destination of this path. If this value is set, the change occurs
immediately.
5.4.2.14 vCrosspointPathNewGain
The signal gain from source to destination of this path that will be applied when
vCrosspointConfigure is set to true.
5.4.3 Video converter blocks
5.4.3.1 Video converter block structure
A video converter block, shown in Figure 4, shall have the following structure:
Input 1 Converter
Output 1
c
c
IEC
Key
c = number of channels on a connection
Figure 4 – Video converter block
A converter block converts an incoming video signal in one video format to an outgoing video
signal in a different video format.
NOTE This block may be used for any kind of conversion including the encoding and decoding of compressed
formats.
The block's mode table shall be used to determine what format the converter should output. If
only one mode is enabled then the converter block is forced to perform that conversion, if it is
able. If more than one mode is enabled the block should pick the output format according to
its own implementation rules. If the block does not support any of the output formats that are
enabled it shall set vConverterError to true.
5.4.3.2 Video converter objects
The group of objects in Table 5 shall be implemented by all compliant video equipment that
has a management model that incorporates one or more video converter blocks. The root
node for these objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoConverter(4) }
This node shall be used as the block type identifier for video converter blocks.
Table 5 – Managed objects for video converter blocks
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF
none none no m
vConverterBlockTable(1)
VConverterBlockEntry
│
VConverterBlockEntry
none none no m
└vConverterBlockEntry(1)
Identifier Syntax Index Readable Writable Volatile Status
BlockId
yes none none no m
├vConverterBlockId(1)
VideoQuality
listener supervisor no o
├vConverterQuality(2)
TruthValue
listener supervisor no o
├vConverterEnabled(3)
MediaFormat
listener none no m
├vConverterOutputFormat(4)
TruthValue
listener none no o
└vConverterError(5)
5.4.3.3 vConverterBlockTable
A table of video converter block descriptors for this unit. Each video converter block in the
unit h
...

IEC 62379-3 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Common control interface for networked digital audio and video products –
Part 3: Video
Interface de commande commune pour produits audio et vidéo numériques
connectés en réseaux –
Partie 3: Vidéo
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 62379-3 ®
Edition 1.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Common control interface for networked digital audio and video products –

Part 3: Video
Interface de commande commune pour produits audio et vidéo numériques

connectés en réseaux –
Partie 3: Vidéo
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160; 35.100 ISBN 978-2-8322-1042-0

– 2 – IEC 62379-3:2015 © IEC 2015
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviations . 7
3.1 Terms and definitions . 7
3.2 Abbreviations . 7
4 Video format definitions . 7
4.1 Video signal format definitions . 7
4.1.1 General . 7
4.1.2 Video parameters . 7
4.1.3 Video signal formats . 9
4.2 Video transport format definitions. 10
4.2.1 General . 10
4.2.2 Video transport root location . 10
4.3 Video metadata format definitions . 10
4.3.1 General . 10
4.3.2 Video metadata root location . 10
5 MIB definitions for video blocks . 11
5.1 General . 11
5.2 Type definitions . 11
5.2.1 General . 11
5.2.2 Textual conventions . 11
5.2.3 Sequences . 11
5.3 Video port and associated managed object type definitions . 12
5.3.1 Generic port functionality . 12
5.3.2 Video locked to reference . 13
5.4 Other video block and associated managed object type definitions . 14
5.4.1 Video mixer blocks . 14
5.4.2 Video crosspoint blocks . 16
5.4.3 Video converter blocks . 18
5.4.4 Video level alarm blocks . 19
Annex A (informative) Machine-readable video format definitions. 22
Annex B (informative) Machine-readable video block definitions . 48
Annex C (informative) Tree of example video formats . 61
Annex D (informative) Worked examples. 64
Bibliography . 65

Figure 1 – Video port blocks . 12
Figure 2 – Video mixer block . 14
Figure 3 – Video crosspoint block . 16
Figure 4 – Video converter block . 18
Figure 5 – Video level alarm block . 19

Table 1 – Managed objects for video ports . 13
Table 2 – Managed objects for video locked . 13
Table 3 – Managed objects for video mixer blocks . 14
Table 4 – Managed objects for video crosspoint blocks . 17
Table 5 – Managed objects for video converter blocks . 18
Table 6 – Managed objects for video level alarm blocks . 20

– 4 – IEC 62379-3:2015 © IEC 2015
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –

Part 3: Video
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62379-3 has been prepared by technical area 4: Digital system
interfaces and protocols of IEC technical committee 100: Audio, video and multimedia systems
and equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
100/2465/FDIS 100/2495/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62379 series, published under the general title Common control
interface for networked digital audio and video products, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 62379-3:2015 © IEC 2015
INTRODUCTION
The IEC 62379 series specifies the common control interface, a protocol for managing
equipment which conveys audio and/or video across digital networks.
The following parts exist or are planned:
1) General
2) Audio
3) Video
4) Data
5) Transmission over networks
6) Packet transfer service
7) Measurement for EBU ECN-IPM
IEC 62379-1:2007, specifies aspects which are common to all equipment, and it includes an
introduction to the common control interface.
IEC 62379-2:2008, IEC 62379-3 (this standard) and IEC 62379-4 (under consideration) specify
control of internal functions specific to equipment carrying particular types of live media.
IEC 62379-4 refers to time-critical data such as commands to automation equipment, but not to
packet data such as the control messages themselves.
IEC 62379-5 specifies control of transmission of these media over each individual network
technology. It includes network specific management interfaces along with network specific
control elements that integrate into the control framework.
IEC 62379-5-1 specifies management of aspects which are common to all network technologies.
IEC 62379-5-2 specifies protocols which can be used between networking equipment to enable
the setting up of calls which are routed across different networking technologies.
IEC 62379-5-3, onwards, specify management of aspects which are particular to individual
networking technologies.
IEC 62379-6, specifies carriage of control and status messages and non-audiovisual data over
transports that do not support audio and video, such as RS232 serial links, with (as for
IEC 62379-5) a separate subpart for each technology.
IEC 62379-7 specifies aspects that are specific to the measurement of the service experienced
by audio and video streams and in particular to the requirements of EBU ECN-IPM
Measurements Group.
COMMON CONTROL INTERFACE FOR NETWORKED
DIGITAL AUDIO AND VIDEO PRODUCTS –

Part 3: Video
1 Scope
This part of IEC 62379 details aspects of the common control interface specified in IEC 62379-
1 that are specific to video.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 62379-1:2007, Common control interface for networked audio and video products – Part 1:
General
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62379-1 apply.
3.2 Abbreviations
EBU ECN-IPM European Broadcasting Union Expert Community Network and
Infrastructure Internet Protocol Measurement
HD High Definition
OID Object Identifier
PSF Progressive Segmented Frame
SD Standard Definition
UHD Ultra High Definition
4 Video format definitions
4.1 Video signal format definitions
4.1.1 General
At any point in the video signal chain, the video data will be in a particular format. For
management purposes, the format shall be identified by an object identifier, either a “Common
control interface standard” object identifier as defined in this standard or an object identifier
defined elsewhere.
NOTE Permitting video format identifiers to be defined outside this standard allows use of proprietary formats within
the standard protocol and also allows industry standard formats to emerge that may eventually be incorporated into
future revisions of this standard.
4.1.2 Video parameters
4.1.2.1 General
The definitions in 4.1.3 make reference to "parameters" which provide additional information
about the format. These parameters shall be mapped to "sub-identifier" values as specified in
the other subclauses of 4.1.2. Any parameter may be "unspecified".
The "sub-identifier" values shall be appended to the object identifiers as additional arcs, in the
order in which the parameters are listed in the relevant subclause of 4.1.3; except that if a

– 8 – IEC 62379-3:2015 © IEC 2015
parameter is unspecified, and either is the last parameter or all subsequent parameters are also
unspecified, then it shall be omitted.
For all parameters, "unspecified" is coded as zero, so this rule ensures that the OID does not
end with a zero arc.
EXAMPLE If the last two parameters are vertical resolution and scan type, then 1080P would be coded as .1080.1,
1080P (with scan type unspecified) as .1080, and P (with vertical resolution unspecified) as .0.1.
4.1.2.2 Frame rate
The sub-identifier for frame rate shall be a value of the following type:
FrameRate::= Unsigned32 (0. 2147483647)
-- An integer representing the calculated frame rate ratio of the encoded
-- video signal.
-- A value of zero shall indicate unspecified.

-- This is computed by calculating the frame rate ratio,
-- such as 24000/1001 = 23.976Hz and multiplying by 1000
-- to convert the value to an integer; in this case 23976.

-- For display purposes the value needs to be divided by
-- 1000 and a decimal point inserted as shown in the
-- Display-Hint.
4.1.2.3 Source type
The sub-identifier for the source type of the video shall be a value of the following type:
SourceType::= INTEGER {
unspecified (0),
sd      (1),
hd      (2),
uhd4k    (3),
uhd8k    (4)
} (unspecified. uhd8k)
-- An integer representing the source type of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.4 Vertical resolution
The sub-identifier for the vertical resolution shall be a value of the following type:
LineResolution::= INTEGER
-- An integer representing the vertical
-- resolution of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.5 Scan type
The sub-identifier for the video scan type shall be a value of the following type:
ScanType::= INTEGER {
unspecified (0),
progressive (1),
interlaced  (2),
psf     (3)
} (unspecified.psf)
-- An integer representing the scan type of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.6 Coding type
The sub-identifier for the video coding type shall be a value of the following type:
CodingType::= INTEGER {
unspecified  (0),
uncompressed (1),
mpeg2     (2),
h264     (3),
jpeg2000   (4),
smptevc2   (5),
vp8      (6),
h264ScaleExtn (7),
h265HEVC   (8)
} (unspecified. h265HEVC)
-- An integer representing the coding type of the encoded video signal.
-- A value of zero shall indicate unspecified.

4.1.2.7 Source aspect ratio
The sub-identifier for the source aspect ratio shall be a value of the following type:
SourceAspectRatio::= INTEGER {
Unspecified  (0),
fourByThree  (43),
sixteenByNine (169),
twoPointTwoOne (221)
} (unspecified.twoPointTwoOne)

-- An integer representing the source aspect ratio of the encoded
-- video signal.
-- A value of zero shall indicate unspecified.

4.1.2.8 Active format description codes
The sub-identifier for the active format description codes shall be a value of the following type:
ActiveFormatDescriptionCodes::= INTEGER
-- An integer representing the active format description codes for
-- video used with the range of source aspect ratios.
-- The codes are from 0000-1111
-- See SMPTE ST 2016-1:2009 for code descriptions.

4.1.3 Video signal formats
4.1.3.1 Video signal format root location
Video signal formats shall be rooted at the following location in the MIB tree:
iec62379       OBJECT IDENTIFIER::= { iso(1) standard(0) 62379 }

videoFormat     OBJECT IDENTIFIER::= { iec62379 video(3) format(2) }

videoSignalFormat OBJECT IDENTIFIER::= { videoFormat Signal(1) }

The following definitions shall be used to identify the specified formats.
NOTE Annex C contains an example of set of formats defined by this standard.
4.1.3.2 Unspecified video
unspecifiedVideo   OBJECT IDENTIFIER::=
{ videoSignalFormat unspecified(0) }
-- wildcard – any supported format allowed

4.1.3.3 No video
noVideo       OBJECT IDENTIFIER::= { videoSignalFormat none(1) }
-- indicates the output is non-existent

4.1.3.4 Invalid video
invalidVideo    OBJECT IDENTIFIER::= { videoSignalFormat invalid(2) }

– 10 – IEC 62379-3:2015 © IEC 2015
-- indicates an error, such as inability to decode a signal earlier in
-- the chain
4.1.3.5 Video source
videoSource     OBJECT IDENTIFIER::= { videoSignalFormat source(3) }
-- video source
The video source identifier shall have four parameters. The first shall be the frame rate, the
second shall be the video source type, the third shall be the vertical resolution and the fourth
shall be the scan type.
4.1.3.6 Video coding type
videoCodingType   OBJECT IDENTIFIER::= { videoSignalFormat coding(4) }
-- video coding type
The video coding type identifier shall have one parameter. This shall be either the coding type
or uncompressed, if not coded.
4.1.3.7 Aspect ratio
aspectRatio   OBJECT IDENTIFIER::=
{ videoSignalFormat aspectRatio (5) }
-- aspect ratio of the video
The video aspect ratio identifier shall have two parameters. The first shall be the source aspect
ratio, the second shall be the active format description code for the source aspect ratio.
4.2 Video transport format definitions
4.2.1 General
For management purposes, the transport format shall be identified by an object identifier, either
a “Common control interface standard” object identifier as defined in this standard or an object
identifier defined elsewhere.
NOTE Permitting video transport format identifiers to be defined outside this standard allows use of proprietary
formats within the standard protocol and also allows industry standard formats to emerge that may eventually be
incorporated into future revisions of this standard.
4.2.2 Video transport root location
Video transport formats shall be rooted at the following location in the MIB tree:
videoTransportFormat OBJECT IDENTIFIER::= { videoFormat transport(2) }
The following definitions shall be used to identify the specified transport formats.
unspecifiedTransport OBJECT IDENTIFIER::=
{ videoTransportFormat unspecified(0) }

analogue  OBJECT IDENTIFIER::= { videoTransportFormat analogue(1) }

4.3 Video metadata format definitions
4.3.1 General
For management purposes, the metadata format shall be identified by an object identifier, either
a “Common control interface standard” object identifier as defined in this standard or an object
identifier defined elsewhere.
NOTE Permitting video metadata format identifiers to be defined outside this standard allows use of proprietary
formats within the standard protocol and also allows industry standard formats to emerge that may eventually be
incorporated into future revisions of this standard.
4.3.2 Video metadata root location
Video metadata formats shall be rooted at the following location in the MIB tree:
videoMetadataFormat OBJECT IDENTIFIER::= { videoFormat metadata(3) }

The following definitions shall be used to identify the specified metadata formats.
unspecifiedMetadata OBJECT IDENTIFIER::=
{ videoMetadataFormat unspecified(0) }

5 MIB definitions for video blocks
5.1 General
This clause defines a set of managed object types for representing control functions in network
controlled video equipment. The format of the definitions is as specified in IEC 62379-1.
For management purposes, a piece of video equipment shall be modelled as a number of
discrete video blocks and video connectors, as specified in IEC 62379-1. Each video block may
have zero or more inputs and zero or more outputs, and each input or output may carry one or
more channels. Each video connector shall connect one video block output to one video block
input with a one-to-one mapping of channels between the blocks.
NOTE 1 A piece of equipment may be fixed-function, in which case the number of video blocks present and the
connections between them will be immutable, or it may be programmable, in which case the number of video blocks
present and/or the connections between them may be changed by the user.
Each video block shall be modelled either by one of the standard video block types defined in
this standard or by a video block type defined elsewhere. Associated with each defined block
type shall be a (possibly empty) group of managed object types that represent the control
functions for that block. A block type shall be identified by the node in the object identifier tree
that is the root node for the group of managed object types associated with that block type.
NOTE 2 Permitting video block types to be defined outside this standard allows control of proprietary functions
using the standard protocol and also allows industry standard block types to emerge that may eventually be
incorporated into future revisions of this standard.
NOTE 3 An empty group of managed object types is permitted to allow for blocks that have no associated control
functions.
NOTE 4 Annex D contains worked examples of the block structure.
5.2 Type definitions
5.2.1 General
In addition to the types defined in IEC 62379-1, the following types are used to specify the
syntax of the abstract data structures representing managed object values.
5.2.2 Textual conventions
VideoTransportType::= OBJECT IDENTIFIER
-- A reference to the transport used for a video connection.
-- The value may be defined in 4.2, or in a subpart of IEC 62379-5, or
-- elsewhere.
5.2.3 Sequences
VPortEntry::= SEQUENCE {
vPortBlockId  BlockId,
vPortDirection PortDirection,
vPortFormat   MediaFormat,
vPortTransport VideoTransportType,
vPortName    Utf8String
}
VLockedEntry::= SEQUENCE {
vLockedBlockId     BlockId,
vLockedTime       CardinalNumber,
}
VMixerBlockEntry::= SEQUENCE {
vMixerBlockId    BlockId,
vMixerFadeDuration CardinalNumber,
vMixerFadeNow    TruthValue

– 12 – IEC 62379-3:2015 © IEC 2015
}
VMixerInputEntry::= SEQUENCE {
vMixerInputBlockId   BlockId,
vMixerInputNumber    IndexNumber,
vMixerInputLevel    VideoLevel,
vMixerInputFadeToLevel VideoLevel,
vMixerInputDelay    CardinalNumber
}
VCrosspointBlockEntry::= SEQUENCE {
vCrosspointBlockId  BlockId,
vCrosspointConfigure TruthValue,
vCrosspointCopy    BlockId
}
VCrosspointPathEntry::= SEQUENCE {
vCrosspointPathBlockId  BlockId,
vCrosspointPathSrc    VideoChannel,
vCrosspointPathDst    VideoChannel,
vCrosspointPathGain   VideoLevel,
vCrosspointPathNewGain  VideoLevel,
}
VConverterBlockEntry::= SEQUENCE {
vConverterBlockId    BlockId,
vConverterQuality    VideoQuality,
vConverterEnabled    TruthValue,
vConverterOutputFormat MediaFormat,
vConverterError     TruthValue
}
VLevelAlarmBlockEntry::= SEQUENCE {
vlaBlockId    BlockId,
vlaType     VideoLevelAlarmType,
vlaThreshold   VideoLevel,
vlaWarningTime  CardinalNumber,
vlaFailureTime  CardinalNumber,
vlaCounter    CardinalNumber,
vlaEnabled    TruthValue,
vlaStatus    VideoAlarmStatus
}
5.3 Video port and associated managed object type definitions
5.3.1 Generic port functionality
5.3.1.1 Video port block structure
All video inputs to and outputs from the unit shall be represented using a video port block. A
base table of managed objects provides control common to all ports. Extension tables provide
functionality specific to certain types of port.
A video port block, as shown in Figure 1, shall have the following structure:
Input Output
Output 1 Input 1
port c c port
IEC
Key
c = number of channels on the input or output
Figure 1 – Video port blocks
The group of objects in Table 1 shall be implemented by all compliant video equipment that
contains one or more video ports. The root node for these objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoPort(1) }

This node shall be used as the video block type identifier for video port blocks.
Table 1 – Managed objects for video ports
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF VPortEntry
none none no m
vPortTable(1)
│
VPortEntry
none none no m
└vPortEntry(1)
BlockId
yes none none no m
├vPortBlockId(1)
PortDirection
listener none no m
├vPortDirection(2)
MediaFormat
listener none yes m
├vPortFormat(3)
VideoTransportType
listener none no o
├vPortTransport(4)
Utf8String
listener supervisor no o
└vPortName(5)
5.3.1.2 vPortTable
A table of video port descriptors for this unit. Each video port on the unit has a corresponding
entry in this table.
5.3.1.3 vPortEntry
An entry in the video port table.
5.3.1.4 vPortBlockId
The block identifier for this port. Used as an index when accessing the video port table.
5.3.1.5 vPortDirection
The direction (input or output) of this port.
5.3.1.6 vPortFormat
The format of the video data currently being received or transmitted via this port. If the port is
not active, the value noVideo shall be returned.
5.3.1.7 vPortTransport
The type of transport used by the port.
5.3.1.8 vPortName
The name assigned to this port. This is an arbitrary text string assigned by the system manager.
5.3.2 Video locked to reference
5.3.2.1 Video lock objects
The group of objects in Table 2 shall be implemented by all compliant video equipment that
provides statistics for video signals being locked to a reference signal. The root node for these
objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoPort(1) }
Table 2 – Managed objects for video locked
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF
none none no m
vLockedTable(2)
VLockedEntry
|
VLockedEntry
none none no m
└vLockedEntry(1)
BlockId
yes none none no m
├vLockedBlockId(1)
CardinalNumber
listener none yes m
└vLockedTime(2)
– 14 – IEC 62379-3:2015 © IEC 2015
5.3.2.2 vLockedTable
A table of video port locked descriptors for this unit. Each video port on the unit that supports
measurement of lock against the reference has a corresponding entry in this table.
5.3.2.3 vLockedEntry
An entry in the locked table.
5.3.2.4 vLockedBlockId
The block identifier of the associated video port. Used as an index when accessing the locked
table.
5.3.2.5 vLockedTime
The time (in seconds) that the video signal on this port has been locked to the unit’s reference
clock.
5.4 Other video block and associated managed object type definitions
5.4.1 Video mixer blocks
5.4.1.1 Video mixer block structure
A video mixer block, shown in Figure 2, shall have the following structure:
Fader
Input 1 Delay
c
Output 1
c
Input N Delay
c
Fader
IEC
Key
c = number of channels on a connection
Figure 2 – Video mixer block
A video mixer block may be used to represent a simple switched selector or combiner, by
limiting the permitted values for the fader level controls to mInfinity or fullScale.
The delay function permits video streams that have passed through various processing or
transport paths to be brought back into time alignment, either with other video streams or with
associated audio streams. Equipment that doesn't support this functionality is represented as
having a fixed zero delay.
5.4.1.2 Video mixer objects
The group of objects in Table 3 shall be implemented by all compliant video equipment that has
a management model that incorporates one or more video mixer blocks. The root node for these
objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoMixer(2) }
This node shall be used as the block type identifier for video mixer blocks.
Table 3 – Managed objects for video mixer blocks
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF
none none no m
vMixerBlockTable(1)     │
VMixerBlockEntry
VMixerBlockEntry
none none no m
└vMixerBlockEntry(1)
BlockId
yes none none no m
├vMixerBlockId(1)
Identifier Syntax Index Readable Writable Volatile Status
CardinalNumber
listener operator no o
├vMixerFadeDuration(2)
TruthValue
listener operator yes o
└vMixerFadeNow(3)
SEQUENCE OF
none none no m
vMixerInputTable(2)     │
VMixerInputEntry
VMixerInputEntry
none none no m
└vMixerInputEntry(1)
BlockId
yes none none no m
├vMixerInputBlockId(1)
IndexNumber
yes none none no m
├vMixerInputNumber(2)
VideoLevel
listener operator no m
├vMixerInputLevel(3)
VideoLevel
listener operator no o
├vMixerInputFadeToLevel(4)
CardinalNumber
listener operator no o
└vMixerInputDelay(5)
5.4.1.3 vMixerBlockTable
A table of video mixer block descriptors for this unit. Each video mixer block in the unit has a
corresponding entry in this table.
5.4.1.4 vMixerBlockEntry
An entry in the video mixer block table.
5.4.1.5 vMixerBlockId
The block identifier for this block. Used as an index when accessing the video mixer block table.
5.4.1.6 vMixerFadeDuration
The transition time (in milliseconds) for a smooth fade or cross-fade operation performed by
this block. A value of zero indicates a hard switchover.
5.4.1.7 vMixerFadeNow
When set to true, causes the block to perform a smooth fade or cross-fade operation. Using
values taken from this block's entries in the mixer input table, the unit shall simultaneously ramp
the fader level for each input in vMixerInputEntry from its current value to the value specified
by vMixerInputFadeToLevel. Automatically reset to false when the operation is complete.
5.4.1.8 vMixerInputTable
A table of video mixer input descriptors for this unit. Each input of each video mixer block in the
unit has a corresponding entry in this table.
5.4.1.9 vMixerInputEntry
An entry in the video mixer input table.
5.4.1.10 vMixerInputBlockId
The block identifier of the associated block. Used as an index when accessing the video mixer
input table.
5.4.1.11 vMixerInputNumber
The block input number for this input. Used as an index when accessing the video mixer input
table.
5.4.1.12 vMixerInputLevel
The fader level for this input. When a level is set, the fader immediately changes to the level
specified, over the duration in vMixerFadeDuration. For blocks that only support switching
between inputs, the only permitted values are mInfinity and fullScale. Blocks that
automatically switch between inputs may reject SET operations on this object.

– 16 – IEC 62379-3:2015 © IEC 2015
5.4.1.13 vMixerInputFadeToLevel
The fader level for this input that will be applied when vMixerFadeNow is set to true. For blocks
that only support switching between inputs, the only permitted values are mInfinity and
fullScale. Blocks that automatically switch between inputs may reject SET operations on this
object.
5.4.1.14 vMixerInputDelay
The delay (in microseconds) applied to samples arriving at this input.
5.4.2 Video crosspoint blocks
5.4.2.1 Video crosspoint block structure
A video crosspoint block, shown in Figure 3, shall have the following structure:
Phase
Gain
ch 1
ch 1
c
ch c
Phase Gain
Input 1 Output 1
d
c
Phase Gain
ch 1
c
ch d
ch c
Phase Gain
IEC
Key
c = number of input channels
d = number of output channels
Figure 3 – Video crosspoint block
5.4.2.2 Video crosspoint objects
The group of objects in Table 4 shall be implemented by all compliant video equipment that has
a management model that incorporates one or more video crosspoint blocks. The root node for
these objects shall be
{ iso(1) standard(0) iec62379 video(3) videoMIB(1) videoCrosspoint(3) }
This node shall be used as the block type identifier for video crosspoint blocks.

Table 4 – Managed objects for video crosspoint blocks
Identifier Syntax Index Readable Writable Volatile Status
SEQUENCE OF
none none no m
vCrosspointBlockTable(1)
VCrosspointBlockEntry
│
VCrosspointBlockEntry
none none no m
└vCrosspointBlockEntry(1)
BlockId
yes none none no m
├vCrosspointBlockId(1)
TruthValue
listener operator yes m
├vCrosspointConfigure(2)
BlockId
none operator yes o
└vCrosspointCopy(3)
SEQUENCE OF
none none no m
vCrosspointPathTable(2)
VCrosspointPathEntry
│
VCrosspointPathEntry
none none no m
└vCrosspointPathEntry(1)
BlockId
yes none none no m
├vCrosspointPathBlockId(1)
VideoChannel
yes none none no m
├vCrosspointPathSrc(2)
VideoChannel
yes none none no m
├vCrosspointPathDst(3)
VideoLevel
listener operator no m
├vCrosspointPathGain(4)
VideoLevel
listener operator no o
└vCrosspointPathNewGain(5)
5.4.2.3 vCrosspointBlockTable
A table of video crosspoint block descriptors for this unit. Each video crosspoint block in the
unit has a corresponding entry in this table.
5.4.2.4 vCrosspointBlockEntry
An entry in the video crosspoint block table.
5.4.2.5 vCrosspointBlockId
The block identifier for this block. Used as an index when accessing the video crosspoint block
table.
5.4.2.6 vCrosspointConfigure
When set to true, causes this block to be configured as specified by the corresponding
vCrosspointPathNewGain and vCrosspointPathNewPhase entries in the crosspoint path table.
Automatically reset to false if the block supports delayed configuration and any of the
corresponding entries in the crosspoint path table are modified. Permanently true if the block
does not support delayed configuration.
5.4.2.7 vCrosspointCopy
When set to a block identifier that identifies another video crosspoint block in the unit with an
identical structure to this block, copies the values of vCrosspointPathGain and
vCrosspointPathPhase for each path in the crosspoint from the identified block to this block.
If set to a block identifier that does not identify a video crosspoint block in the unit with an
identical structure to this block, the SET operation shall be rejected.
NOTE A possible application is the ability to have some common configurations available as presets by creating
'dummy' crosspoint blocks with the required settings which are referenced in the block table but which aren't actually
part of the video path.
5.4.2.8 vCrosspointPathTable
A table of video crosspoint path descriptors for this unit. Each path in each video crosspoint
block in the unit has a corresponding entry in this table.
5.4.2.9 vCrosspointPathEntry
An entry in the video crosspoint path table.

– 18 – IEC 62379-3:2015 © IEC 2015
5.4.2.10 vCrosspointPathBlockId
The block identifier of the associated block. Used as an index when accessing the video
crosspoint path table.
5.4.2.11 vCrosspointPathSrc
The source video channel associated with this path. Used as an index when accessing the video
crosspoint path table.
5.4.2.12 vCrosspointPathDst
The destination video channel associated with this path. Used as an index when accessing the
video crosspoint path table.
5.4.2.13 vCrosspointPathGain
The signal gain from source to destination of this path. If this value is set
...
