Environmental testing - Part 2-82: Tests - Test Xw1: Whisker test methods for components and parts used in electronic assemblies

IEC 60068-2-82:2019 specifies tests for the whiskering propensity of surface finishes of electric or electronic components and mechanical parts such as punched/stamped parts (for example, jumpers, electrostatic discharge protection shields, mechanical fixations, press‑fit pins and other mechanical parts used in electronic assemblies) representing the finished stage, with tin or tin-alloy finish. Changes of the physical dimensions of mould compounds, plastics and the like during the required test flow are not considered or assessed. The test methods have been developed by using a knowledge-based approach.
This edition includes the following significant technical changes with respect to the previous edition:
– extension of the scope of the test standard from electronic to electromechanic components and press-fit pins, which are used for assembly and interconnect technology;
– significant reduction of the testing effort by a knowledge-based selection of test conditions i.e. tests not relevant for a given materials system can be omitted (see Annex D);
– harmonization with JESD 201A by omission of severities M, N for temperature cycling tests;
– highly reduced test duration (1 000 h instead of 4 000 h) for damp-heat test by introducing test condition at elevated humidity of 85 % R.H. and a temperature of 85 °C providing increased severity.

Essais d'environnement - Partie 2-82: Essais - Essai Xw1: Méthodes de vérification des trichites pour les composants et les pièces utilisés dans les ensembles électroniques

L'IEC 60068-2-82:2019 spécifie des essais de vérification de la propension au développement des trichites pour les finis de surface des composants électriques ou électroniques et des pièces mécaniques comme les pièces embouties/estampées (par exemple cavaliers, écrans de protection contre les décharges électrostatiques, fixations mécaniques, contacts insérés à force et autres pièces mécaniques utilisées dans les ensembles électroniques) qui représentent la phase de finition, avec un fini en étain ou en alliage d'étain. Les modifications des dimensions physiques des composants moulés, des plastiques et autres pendant le flux d'essai exigé ne sont pas prises en compte ni évaluées. Les méthodes d'essai ont été mises au point en utilisant une approche fondée sur la connaissance.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
– extension du domaine d'application de la norme d'essai des composants électroniques aux composants électromécaniques et aux contacts insérés à force qui sont utilisés pour la technologie d'assemblage et d'interconnexion;
– réduction significative de l'effort d'essai par une sélection de conditions d'essai fondée sur la connaissance, c'est-à-dire que les essais non applicables à un système de matériaux donné peuvent être omis (voir Annexe D);
– harmonisation avec la JESD 201A par omission des sévérités M et N pour les essais de cycle thermique;
– réduction considérable de la durée d'essai (1 000 h au lieu de 4 000 h) pour l'essai de chaleur humide par l'introduction d'une condition d'essai à humidité élevée de 85 % H.R. et d'une température de 85 °C assurant une plus grande sévérité.

General Information

Status
Published
Publication Date
13-May-2019
Current Stage
PPUB - Publication issued
Completion Date
14-May-2019
Ref Project

Buy Standard

Standard
IEC 60068-2-82:2019 - Environmental testing - Part 2-82: Tests - Test Xw1: Whisker test methods for components and parts used in electronic assemblies
English and French language
68 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60068-2-82
Edition 2.0 2019-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Environmental testing –
Part 2-82: Tests – Test Xw1: Whisker test methods for components and parts
used in electronic assemblies
Essais d'environnement –
Partie 2-82: Essais – Essai Xw1: Méthodes de vérification des trichites
pour les composants et les pièces utilisés dans les ensembles électroniques
IEC 60068-2-82:2019-05(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

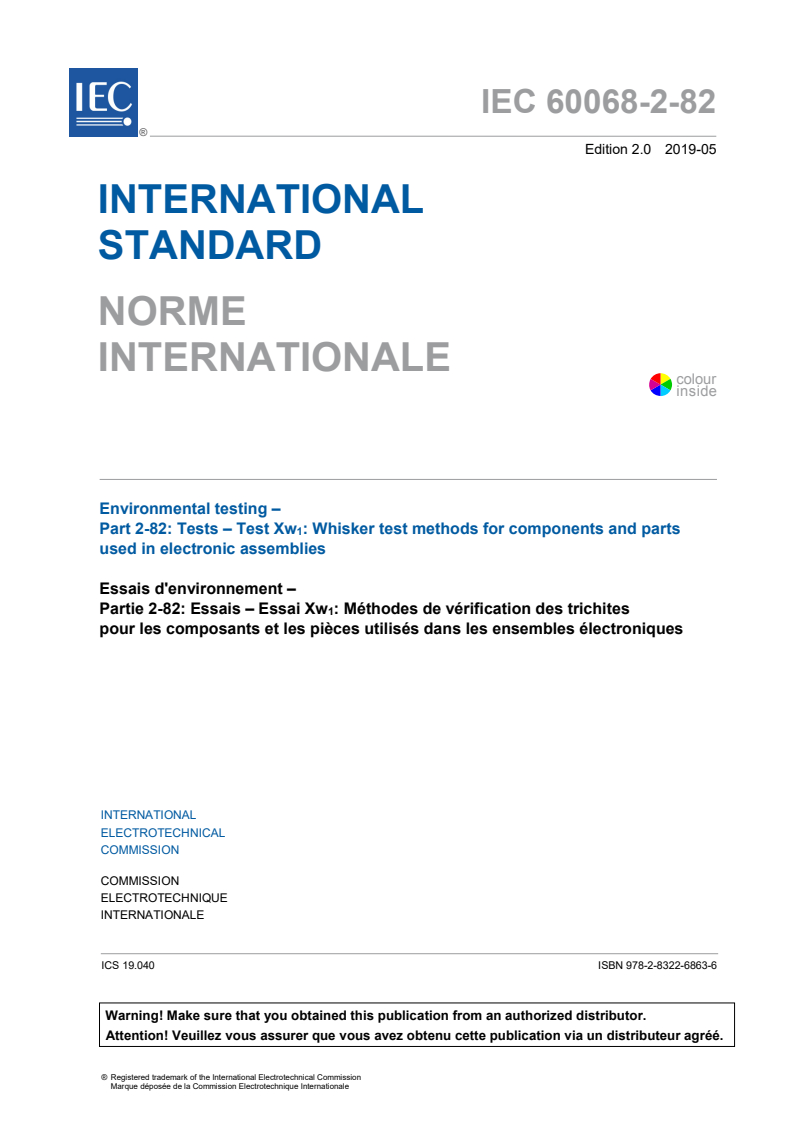

IEC 60068-2-82
Edition 2.0 2019-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Environmental testing –
Part 2-82: Tests – Test Xw : Whisker test methods for components and parts
used in electronic assemblies
Essais d'environnement –
Partie 2-82: Essais – Essai Xw : Méthodes de vérification des trichites
pour les composants et les pièces utilisés dans les ensembles électroniques
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 19.040 ISBN 978-2-8322-6863-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

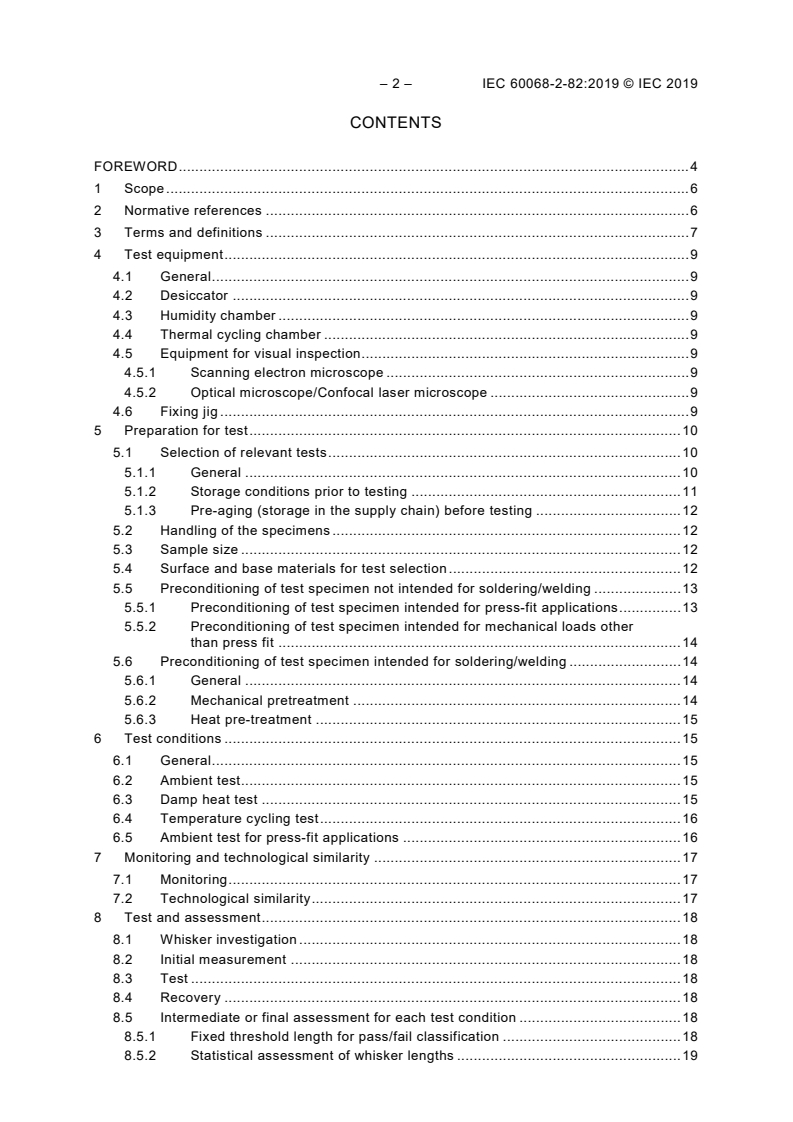

– 2 – IEC 60068-2-82:2019 © IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 7

4 Test equipment ................................................................................................................ 9

4.1 General ................................................................................................................... 9

4.2 Desiccator .............................................................................................................. 9

4.3 Humidity chamber ................................................................................................... 9

4.4 Thermal cycling chamber ........................................................................................ 9

4.5 Equipment for visual inspection ............................................................................... 9

4.5.1 Scanning electron microscope ......................................................................... 9

4.5.2 Optical microscope/Confocal laser microscope ................................................ 9

4.6 Fixing jig ................................................................................................................. 9

5 Preparation for test ........................................................................................................ 10

5.1 Selection of relevant tests ..................................................................................... 10

5.1.1 General ......................................................................................................... 10

5.1.2 Storage conditions prior to testing ................................................................. 11

5.1.3 Pre-aging (storage in the supply chain) before testing ................................... 12

5.2 Handling of the specimens .................................................................................... 12

5.3 Sample size .......................................................................................................... 12

5.4 Surface and base materials for test selection ........................................................ 12

5.5 Preconditioning of test specimen not intended for soldering/welding ..................... 13

5.5.1 Preconditioning of test specimen intended for press-fit applications ............... 13

5.5.2 Preconditioning of test specimen intended for mechanical loads other

than press fit ................................................................................................. 14

5.6 Preconditioning of test specimen intended for soldering/welding ........................... 14

5.6.1 General ......................................................................................................... 14

5.6.2 Mechanical pretreatment ............................................................................... 14

5.6.3 Heat pre-treatment ........................................................................................ 15

6 Test conditions .............................................................................................................. 15

6.1 General ................................................................................................................. 15

6.2 Ambient test .......................................................................................................... 15

6.3 Damp heat test ..................................................................................................... 15

6.4 Temperature cycling test ....................................................................................... 16

6.5 Ambient test for press-fit applications ................................................................... 16

7 Monitoring and technological similarity .......................................................................... 17

7.1 Monitoring ............................................................................................................. 17

7.2 Technological similarity ......................................................................................... 17

8 Test and assessment ..................................................................................................... 18

8.1 Whisker investigation ............................................................................................ 18

8.2 Initial measurement .............................................................................................. 18

8.3 Test ...................................................................................................................... 18

8.4 Recovery .............................................................................................................. 18

8.5 Intermediate or final assessment for each test condition ....................................... 18

8.5.1 Fixed threshold length for pass/fail classification ........................................... 18

8.5.2 Statistical assessment of whisker lengths ...................................................... 19

---------------------- Page: 4 ----------------------
IEC 60068-2-82:2019 © IEC 2019 – 3 –

9 Technology or manufacturing process changes ............................................................. 19

10 Content of final report .................................................................................................... 20

Annex A (normative) Measurement of whisker length ........................................................... 22

Annex B (informative) Examples of whiskers ........................................................................ 23

Annex C (informative) Guidance on acceptance criteria ....................................................... 25

C.1 Risks attributed to whiskers .................................................................................. 25

C.2 Acceptance criteria for whisker length ................................................................... 25

C.3 Acceptance criteria for whisker density ................................................................. 26

C.4 Statistical evaluation of number and length of whiskers......................................... 26

C.5 Example of statistic evaluation .............................................................................. 26

Annex D (informative) Technical background of whisker growth ........................................... 29

Annex E (normative) Transition scenarios for the changeover of the damp-heat test

conditions ............................................................................................................................. 30

Bibliography .......................................................................................................................... 32

Figure 1 – Cross-sectional views of component termination surface finishes ........................... 8

Figure 2 – Selection of test methods ..................................................................................... 11

Figure 3 – .......................................... 14
Flow for treatment and/or bending and heat treatment

Figure A.1 – Estimation of whisker length ............................................................................. 22

Figure A.2 – Example for whisker length measurement ......................................................... 22

Figure B.1 – Nodule .............................................................................................................. 23

Figure B.2 – Column whisker ................................................................................................ 23

Figure B.3 – Filament whisker ............................................................................................... 24

Figure B.4 – Kinked whisker ................................................................................................. 24

Figure B.5 – Spiral whisker ................................................................................................... 24

Figure C.1 – Smallest distance of components and circuit boards ......................................... 25

Figure C.2 – Histogram of whisker lengths and fitted log-normal distribution ......................... 27

Figure C.3 – Histogram of whisker lengths and fitted log-normal distribution ......................... 28

Figure C.4 – Histogram of whisker lengths and fitted log-normal distribution ......................... 28

Figure E.1 –Transition paths for damp-heat testing of components ....................................... 30

Table 1 – Material systems recognized for effective whisker mitigation ................................. 13

Table 2 –
Preconditioning conditions and test legs for components for different

............................................................................................................. 15

assembly processes

Table 3 – Conditions for the ambient test .............................................................................. 15

Table 4 – Conditions for the damp heat test .......................................................................... 16

Table 5 – Conditions for the ambient test .............................................................................. 16

Table 6 – Conditions for the ambient test applicable to press-fit terminations ........................ 17

Table 7 – Classification for measured whisker length ............................................................ 19

Table 8 – Surface finish technology and manufacturing process change acceptance

parameters ........................................................................................................................... 19

Table 9 – Final report ............................................................................................................ 21

Table C.1 – Classification for measured whisker length ........................................................ 27

Table E.1 – Conclusion matrix for parallel damp heat testing ................................................ 31

---------------------- Page: 5 ----------------------
– 4 – IEC 60068-2-82:2019 © IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ENVIRONMENTAL TESTING –
Part 2-82: Tests – Test Xw1: Whisker test methods for components
and parts used in electronic assemblies
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60068-2-82 has been prepared by IEC technical committee 91:

Electronics assembly technology.

This second edition cancels and replaces the first edition published in 2007. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

– extension of the scope of the test standard from electronic to electromechanic components

and press-fit pins, which are used for assembly and interconnect technology;

– significant reduction of the testing effort by a knowledge-based selection of test conditions

i.e. tests not relevant for a given materials system can be omitted (see Annex D);

– harmonization with JESD 201A by omission of severities M, N for temperature cycling

tests;
---------------------- Page: 6 ----------------------
IEC 60068-2-82:2019 © IEC 2019 – 5 –

– highly reduced test duration (1 000 h instead of 4 000 h) for damp-heat test by introducing

test condition at elevated humidity of 85 % R.H. and a temperature of 85 °C providing

increased severity.
The text of this International Standard is based on the following documents:
FDIS Report on voting
91/1562/FDIS 91/1573/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

A list of all parts in the IEC 60068 series, published under the general title Environmental

testing, can be found on the IEC website.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC 60068-2-82:2019 © IEC 2019
ENVIRONMENTAL TESTING –
Part 2-82: Tests – Test Xw1: Whisker test methods for components
and parts used in electronic assemblies
1 Scope

This part of IEC 60068 specifies tests for the whiskering propensity of surface finishes of

electric or electronic components and mechanical parts such as punched/stamped parts (for

example, jumpers, electrostatic discharge protection shields, mechanical fixations, press-fit

pins and other mechanical parts used in electronic assemblies) representing the finished

stage, with tin or tin-alloy finish. Changes of the physical dimensions of mould compounds,

plastics and the like during the required test flow are not considered or assessed. The test

methods have been developed by using a knowledge-based approach.

This document can also be used at sub-suppliers, like plating shops, stamping shops or other

service providers to ensure a consistent surface quality within the supply chain.

These test methods are employed with defined acceptance criteria by a relevant component

or application specification.

The tests described in this document are applicable for initial qualification, for periodic

monitoring in accordance with Clause 7, and for changes of technology or manufacturing

processes of existing surfaces in accordance with Clause 9.

The mating area of connectors is not covered by this test method. IEC 60512-16-21 applies

for the mating areas of connectors.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
IEC 60068-1:2013, Environmental testing – Part 1: General and guidance

IEC 60068-2-14:2009, Environmental testing – Part 2-14: Tests – Test N: Change of

temperature

IEC 60068-2-20, Environmental testing – Part 2-20: Tests – Test T: Test methods for

solderability and resistance to soldering heat of devices with leads

IEC 60068-2-58, Environmental testing – Part 2-58: Tests – Test Td: Test methods for

solderability, resistance to dissolution of metallization and to soldering heat of surface

mounting devices (SMD)

IEC 60068-2-67, Environmental testing – Part 2-67: Tests – Test Cy: Damp heat, steady state,

accelerated test primarily intended for components

IEC 60068-2-78, Environmental testing – Part 2-78: Tests – Test Cab: Damp heat, steady

state
---------------------- Page: 8 ----------------------
IEC 60068-2-82:2019 © IEC 2019 – 7 –

IEC 61192-3:2002, Workmanship requirements for soldered electronic assemblies – Part 3:

Through-hole mount assemblies

IEC 60512-16-21:2012, Connectors for electronic equipment – Tests and measurements –

Part 16-21: Mechanical tests on contacts and terminations – Test 16u: Whisker test via the

application of external mechanical stresses
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
whisker
metallic protrusion that grows spontaneously during storage or use

Note 1 to entry: Whiskers typically do not require any electrical field for their growth and are not to be confused

with products of electrochemical migration. Signs of whiskers include:
– striations in growth direction;
– typically no branching;
– typically constant diameters.
Exceptions are known, but are rare and can require detailed investigation.
For the purposes of this document, whiskers are considered if:
– they have an aspect ratio (length/width) greater than 2;
– they have a length of 10 µm or more.

Note 2 to entry: For the purposes of this document, whiskers have the following characteristics

(see also Annex B):

– they can be kinked, bent, or twisted; they usually have a uniform cross-sectional shape;

– they may have rings around the circumference of the column.

Note 3 to entry: Whiskers are not to be confused with dendrites, which are fern-like growths on the surface of a

material, which can be formed as a result of electro(chemical)-migration of an ionic species or produced during

solidification.

Note 4 to entry: Whiskers are not to be confused with slivers as generated by mechanical metal processing.

Whiskers are not to be confused with tubular SnO structures, which may develop under damp-heat test conditions.

These structures are hollow and are typically lacking striations occurring on Sn whiskers.

3.2
termination
solderable element of a component consisting of the following elements
– base material;

– underlayer (or underlayer system, if more than one underlayer is present), if any, located

under the final plating;
– final tin or tin alloy finish
___________
Withdrawn publication.
---------------------- Page: 9 ----------------------
– 8 – IEC 60068-2-82:2019 © IEC 2019
SEE: Figure 1
a) Gull wing termination b) Chip termination
Key
a base material

b underlayer (or underlayer system, if more than one underlayer is present), if any, located under the final plating

c final tin or tin alloy finish
Figure 1 – Cross-sectional views of component termination surface finishes
3.3
ΔCTE
CTE mismatch
coefficient of thermal expansion mismatch

coefficient calculated by taking the absolute after subtracting the CTE of the base material

from the CTE of the surface finish layer:
∆CTE = | CTE − CTE |
finish base material

Note 1 to entry: No underlayer system (e.g. Ni, Cu) has any influence on the CTE mismatch.

3.4
mechanical load

load related to the intended mounting/assembly condition of a particular specimen (e.g. press-

fit application: stress exerted by the plated through-hole on the press-fit pin), or as a

transitional load related to a mechanical process in a trim and form operation to adapt the

shape of the specimen to the intended use condition (e.g. bending of a connector pin)

Note 1 to entry: Mechanical load in the context of these test methods is not related to external factors, e.g.

thermo-mechanical loads arising from the mismatch of the coefficients of thermal expansion of the various

constituents of a particular test specimen upon temperature change.
3.5
classification
3.5.1
level A

consumer products, some computer and computer peripherals,

and hardware suitable for applications where the major requirement is function of the

completed assembly
3.5.2
level B

communications equipment, sophisticated business

machines, and instruments where high performance and extended life is required, and for

which uninterrupted service is desired but not mandatory
Note 1 to entry: Typically, the end-use environment would not cause failures.
---------------------- Page: 10 ----------------------
IEC 60068-2-82:2019 © IEC 2019 – 9 –
3.5.3
level C
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
