Radiation protection instrumentation - Spectrometric radiation portal monitors (SRPMs) used for the detection and identification of illicit trafficking of radioactive material

IEC 62484:2020 defines the performance requirements of installed monitors used for the detection and identification of gamma emitters and the detection of neutron radiation emitters. These monitors are commonly known as spectrometric radiation portal monitors or SRPMs. They are used to monitor vehicles, cargo containers, people, or packages and are typically used at national and international border crossings and ports of entry. SRPMs may be used at any location where there is a need for this type of monitoring.
This document establishes the general, radiological, climatic, mechanical, electric and electromagnetic and documentation requirements and associated test methods. A summary of the performance requirements and informative listing of environmental requirements from IEC 62706 is provided.
This edition includes the following significant technical changes with respect to the previous edition:
- title modified;
- making the standard consistent with the new standards for detection of illicit trafficking of radioactive material (see the Introduction);
- creating unformed functionality test for all environmental, electromagnetic and mechanical tests and a requirement for the coefficient of variation of each nominal mean reading;
- reference to IEC 62706 for the environmental, electromagnetic and mechanical test conditions;
- adding information regarding climatic exposures.

Instrumentation pour la radioprotection - Portiques spectrométriques de détection des rayonnements (SRPMs) utilisés pour la détection et l'identification du trafic illicite des matières radioactives

IEC 62484:2020 définit les exigences de performances des moniteurs installés, qui sont utilisés pour la détection et l'identification des émetteurs de rayonnements gamma et pour la détection des émetteurs de rayonnements neutroniques. Ces moniteurs sont souvent appelés portiques spectrométriques de détection des rayonnements ou SRPMs (Spectrometric Radiation Portal Monitors). Ils sont utilisés pour surveiller des véhicules, des conteneurs de fret, des personnes ou des colis et généralement employés aux frontières nationales et internationales, ainsi qu'aux ports d'entrée. Les SRPMs peuvent être utilisés à tous les emplacements, où ce type de surveillance est nécessaire.
Le présent document établit les exigences générales, radiologiques, climatiques, mécaniques, électriques et électromagnétiques, ainsi que les exigences de documentation et les méthodes d'essai associées. Le Tableau 11 fournit un récapitulatif des exigences de performances. Une liste informative des exigences d'environnement de l'IEC 62706 est fournie.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- modification du titre;
- cohérence de la norme avec les nouvelles normes relatives à la détection du trafic illicite de matières radioactives (voir l'Introduction);
- création d'un essai de fonctionnalité brut pour tous les essais environnementaux, électromagnétiques et mécaniques, et d'une exigence relative au coefficient de variation de chaque relevé de moyenne nominal;
- référence à l'IEC 62706 pour les conditions d'essais environnementaux, électromagnétiques et mécaniques;
- ajout d'informations concernant l'exposition aux conditions climatiques.

General Information

Status
Published
Publication Date
13-Oct-2020
Current Stage
PPUB - Publication issued
Completion Date
14-Oct-2020
Ref Project

Buy Standard

Standard
IEC 62484:2020 - Radiation protection instrumentation - Spectrometric radiation portal monitors (SRPMs) used for the detection and identification of illicit trafficking of radioactive material
English language
38 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
IEC 62484:2020 - Radiation protection instrumentation - Spectrometric radiation portal monitors (SRPMs) used for the detection and identification of illicit trafficking of radioactive material
English and French language
79 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62484
Edition 2.0 2020-10
INTERNATIONAL
STANDARD
Radiation protection instrumentation – Spectrometric radiation portal monitors
(SRPMs) used for the detection and identification of illicit trafficking of
radioactive material
IEC 62484:2020-10(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62484
Edition 2.0 2020-10
INTERNATIONAL
STANDARD
Radiation protection instrumentation – Spectrometric radiation portal monitors
(SRPMs) used for the detection and identification of illicit trafficking of
radioactive material
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.280 ISBN 978-2-8322-8873-3

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

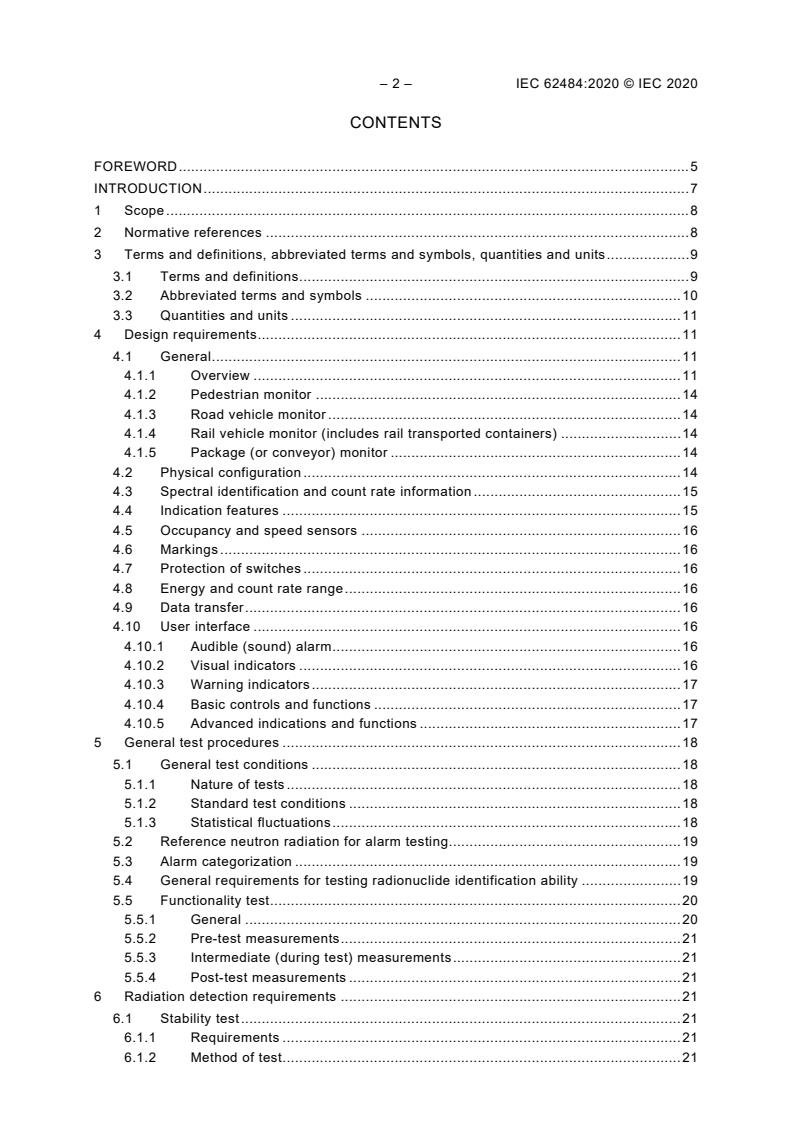

– 2 – IEC 62484:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms and definitions, abbreviated terms and symbols, quantities and units .................... 9

3.1 Terms and definitions .............................................................................................. 9

3.2 Abbreviated terms and symbols ............................................................................ 10

3.3 Quantities and units .............................................................................................. 11

4 Design requirements ...................................................................................................... 11

4.1 General ................................................................................................................. 11

4.1.1 Overview ....................................................................................................... 11

4.1.2 Pedestrian monitor ........................................................................................ 14

4.1.3 Road vehicle monitor ..................................................................................... 14

4.1.4 Rail vehicle monitor (includes rail transported containers) ............................. 14

4.1.5 Package (or conveyor) monitor ...................................................................... 14

4.2 Physical configuration ........................................................................................... 14

4.3 Spectral identification and count rate information .................................................. 15

4.4 Indication features ................................................................................................ 15

4.5 Occupancy and speed sensors ............................................................................. 16

4.6 Markings ............................................................................................................... 16

4.7 Protection of switches ........................................................................................... 16

4.8 Energy and count rate range ................................................................................. 16

4.9 Data transfer ......................................................................................................... 16

4.10 User interface ....................................................................................................... 16

4.10.1 Audible (sound) alarm .................................................................................... 16

4.10.2 Visual indicators ............................................................................................ 16

4.10.3 Warning indicators ......................................................................................... 17

4.10.4 Basic controls and functions .......................................................................... 17

4.10.5 Advanced indications and functions ............................................................... 17

5 General test procedures ................................................................................................ 18

5.1 General test conditions ......................................................................................... 18

5.1.1 Nature of tests ............................................................................................... 18

5.1.2 Standard test conditions ................................................................................ 18

5.1.3 Statistical fluctuations .................................................................................... 18

5.2 Reference neutron radiation for alarm testing........................................................ 19

5.3 Alarm categorization ............................................................................................. 19

5.4 General requirements for testing radionuclide identification ability ........................ 19

5.5 Functionality test ................................................................................................... 20

5.5.1 General ......................................................................................................... 20

5.5.2 Pre-test measurements .................................................................................. 21

5.5.3 Intermediate (during test) measurements ....................................................... 21

5.5.4 Post-test measurements ................................................................................ 21

6 Radiation detection requirements .................................................................................. 21

6.1 Stability test .......................................................................................................... 21

6.1.1 Requirements ................................................................................................ 21

6.1.2 Method of test................................................................................................ 21

---------------------- Page: 4 ----------------------
IEC 62484:2020 © IEC 2020 – 3 –

6.2 Neutron radiation detection, if provided ................................................................. 22

6.2.1 Requirements ................................................................................................ 22

6.2.2 Method of test................................................................................................ 22

6.3 Gamma over-range indication ............................................................................... 22

6.3.1 Requirements ................................................................................................ 22

6.3.2 Method of test................................................................................................ 22

6.4 Detection of neutron radiation in a high gamma field ............................................. 23

6.4.1 Requirements ................................................................................................ 23

6.4.2 Method of test – large road vehicle and multiple-sided rail vehicle

monitors ........................................................................................................ 23

6.4.3 Method of test – all other types of monitors ................................................... 23

6.5 Background effects ............................................................................................... 23

6.5.1 Requirements ................................................................................................ 23

6.5.2 Method of test................................................................................................ 24

6.6 Radionuclide identification .................................................................................... 24

6.6.1 Radionuclide library and identification categorization ..................................... 24

6.6.2 Radionuclide identification qualification ......................................................... 25

6.6.3 Single radionuclide identification ................................................................... 25

6.6.4 Simultaneous radionuclide identification ........................................................ 26

6.6.5 Alarm without identification ............................................................................ 27

7 Climatic requirements .................................................................................................... 27

7.1 General ................................................................................................................. 27

7.2 Ambient temperature............................................................................................. 27

7.2.1 Requirements ................................................................................................ 27

7.2.2 Method of test................................................................................................ 27

7.3 Relative humidity .................................................................................................. 28

7.3.1 Requirements ................................................................................................ 28

7.3.2 Method of test................................................................................................ 28

7.4 Dust and moisture protection ................................................................................ 28

7.4.1 Requirements ................................................................................................ 28

7.4.2 Method of test – Dust .................................................................................... 28

7.4.3 Test method – Moisture ................................................................................. 28

7.5 Climatic exposure type test ................................................................................... 29

7.5.1 Requirements ................................................................................................ 29

7.5.2 Method of test................................................................................................ 29

8 Mechanical requirements ............................................................................................... 29

8.1 Vibration ............................................................................................................... 29

8.1.1 Requirements ................................................................................................ 29

8.1.2 Method of test................................................................................................ 29

8.2 Microphonics/Impact ............................................................................................. 30

8.2.1 Requirements ................................................................................................ 30

8.2.2 Method of test................................................................................................ 30

9 Electric and electromagnetic requirements .................................................................... 30

9.1 Electrostatic discharge (ESD) ............................................................................... 30

9.1.1 Requirements ................................................................................................ 30

9.1.2 Method of test................................................................................................ 30

9.2 Radio frequency (RF) ............................................................................................ 30

9.2.1 Requirements ................................................................................................ 30

9.2.2 Method of test................................................................................................ 30

---------------------- Page: 5 ----------------------
– 4 – IEC 62484:2020 © IEC 2020

9.3 Radiated RF emissions ......................................................................................... 31

9.3.1 Requirements ................................................................................................ 31

9.3.2 Method of test................................................................................................ 31

9.4 Conducted disturbances........................................................................................ 31

9.4.1 Requirements ................................................................................................ 31

9.4.2 Method of test................................................................................................ 31

9.5 Surges and oscillatory waves ................................................................................ 31

9.5.1 Requirements ................................................................................................ 31

9.5.2 Method of test................................................................................................ 31

9.6 Line voltage and frequency fluctuations ................................................................ 32

9.6.1 Requirements ................................................................................................ 32

9.6.2 Method of test................................................................................................ 32

10 Documentation .............................................................................................................. 32

10.1 Operation and maintenance manual ...................................................................... 32

10.2 Test certificate ...................................................................................................... 33

10.3 Declaration of conformity ...................................................................................... 33

Annex A (informative) Identification of uranium and plutonium ............................................. 36

Bibliography .......................................................................................................................... 37

Figure 1 – Example of a two-sided system ............................................................................ 12

Table 1 – Standards for instrumentation used to detect illicit trafficking of radioactive

and nuclear materials ............................................................................................................. 7

Table 2 – Speed of moving sources ...................................................................................... 13

Table 3 – Evaluation distances for different applications ....................................................... 13

Table 4 – Standard test conditions ........................................................................................ 18

Table 5 – Test radionuclides ................................................................................................. 20

Table 6 – Test materials ...................................................................................................... 20

Table 7 – Test result analysis ............................................................................................... 21

Table 8 – Radionuclide library ............................................................................................... 24

Table 9 – Radionuclide categorisation .................................................................................. 24

1,2

Table 10 – Identification acceptance criteria ..................................................................... 25

Table 11 – Summary of performance requirements – Informative .......................................... 33

Table 12 – Environmental requirements – Informative ......................................................... 35

Table A.1 – Uranium and plutonium detection and identification guidance ............................. 36

---------------------- Page: 6 ----------------------
IEC 62484:2020 © IEC 2020 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIATION PROTECTION INSTRUMENTATION –
SPECTROMETRIC RADIATION PORTAL MONITORS (SRPMS) USED
FOR THE DETECTION AND IDENTIFICATION OF ILLICIT
TRAFFICKING OF RADIOACTIVE MATERIAL
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62484 has been prepared by subcommittee 45B: Radiation

protection instrumentation, of IEC technical committee 45: Nuclear instrumentation.

This second edition cancels and replaces the first edition of IEC 62484 issued in 2010. This

edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
a) title modified;

b) making the standard consistent with the new standards for detection of illicit trafficking of

radioactive material (see the Introduction);

c) creating unformed functionality test for all environmental, electromagnetic and mechanical

tests and a requirement for the coefficient of variation of each nominal mean reading;

---------------------- Page: 7 ----------------------
– 6 – IEC 62484:2020 © IEC 2020

d) reference to IEC 62706 for the environmental, electromagnetic and mechanical test

conditions;
e) adding information regarding climatic exposures.
The text of this International Standard is based on the following documents:
FDIS Report on voting
45B/969/FDIS 45B/971/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 8 ----------------------
IEC 62484:2020 © IEC 2020 – 7 –
INTRODUCTION

Illicit and inadvertent movement of radioactive materials has become a problem of increasing

importance. Radioactive sources out of regulatory control, so-called "orphan sources", have

frequently caused serious radiation exposures and widespread contamination. Although illicit

trafficking of nuclear and other radioactive materials is not a new phenomenon, concern about

a nuclear "black market" has increased in the last few years particularly in view of its terrorist

potential.

In response to the technical policy of the International Atomic Energy Agency (IAEA), the

World Customs Organization (WCO) and the International Criminal Police Organization

(Interpol) related to the detection and identification of special nuclear materials and security

trends, nuclear instrumentation companies are developing and manufacturing radiation

instrumentation to assist in the detection of illicit movement of radioactive and special nuclear

materials. This type of instrumentation is widely used for security purposes at nuclear

facilities, border control checkpoints, and international seaports and airports.

However, to ensure that measurement results made at different locations are consistent, it is

imperative that radiation instrumentation be designed to rigorous specifications based upon

agreed performance requirements stated in international standards. Several IEC standards

have been developed to address body-worn, hand-held and portal instruments, see Table 1.

Table 1 – Standards for instrumentation used to detect illicit
trafficking of radioactive and nuclear materials
Type of IEC
Title of the standard
instrumentation number
Radiation protection instrumentation – Alarming Personal Radiation Devices (PRD)
62401
for detection of illicit trafficking of radioactive material
Radiation protection instrumentation – Spectroscopy-Based Alarming Personal
Body-worn 62618

Radiation Devices (SPRD) for detection of illicit trafficking of radioactive material

Radiation protection instrumentation – Backpack-type radiation detector (BRD) for

62694
detection of illicit trafficking of radioactive material

Radiation protection instrumentation – Hand-held instruments for the detection and

62327 identification of radionuclides and for the estimation of ambient dose equivalent

rate from photon radiation
Portable or

Radiation protection instrumentation – Highly sensitive hand-held instruments for

hand-held 62533
photon detection of radioactive material

Radiation protection instrumentation – Highly sensitive hand-held instruments for

62534
neutron detection of radioactive material

Radiation protection instrumentation – Installed radiation portal monitors (RPMs)

62244
for the detection of illicit trafficking of radioactive and nuclear materials
Portal
Radiation protection instrumentation – Spectrometric radiation portal monitors

62484 (SRPMs) used for the detection and identification of illicit trafficking of radioactive

material
Radiation protection instrumentation – Vehicle-mounted mobile systems for the
Mobile 63121
detection of illicit trafficking of radioactive materials

Radiation protection instrumentation – Data format for radiation instruments used

Data format 62755
in the detection of illicit trafficking of radioactive materials
---------------------- Page: 9 ----------------------
– 8 – IEC 62484:2020 © IEC 2020
RADIATION PROTECTION INSTRUMENTATION –
SPECTROMETRIC RADIATION PORTAL MONITORS (SRPMS) USED
FOR THE DETECTION AND IDENTIFICATION OF ILLICIT
TRAFFICKING OF RADIOACTIVE MATERIAL
1 Scope

This document defines the performance requirements of installed monitors used for the

detection and identification of gamma emitters and the detection of neutron radiation emitters.

These monitors are commonly known as spectrometric radiation portal monitors or SRPMs.

They are used to monitor vehicles, cargo containers, people, or packages and are typically

used at national and international border crossings and ports of entry. SRPMs may be used at

any location where there is a need for this type of monitoring.

This document establishes the general, radiological, climatic, mechanical, electric and

electromagnetic and documentation requirements and associated test methods. A summary of

the performance requirements is provided in Table 11. An informative listing of environmental

requirements from IEC 62706 is provided in Table 12.

This document does not apply to the performance of non-spectroscopic portal monitors

covered in IEC 62244.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60050-395, International Electrotechnical Vocabulary (IEV) – Part 395: Nuclear

instrumentation: Physical phenomena, basic concepts, instruments, systems, equipment and

detectors

IEC 60068-2-5, Environmental testing – Part 2-5: Tests – Test S: Simulated solar radiation at

ground level and guidance for solar radiation testing and weathering

IEC 62706, Radiation protection instrumentation – Recommended climatic, electromagnetic

and mechanical performance requirements and methods of tests

IEC 62755, Radiation protection instrumentation – Data format for radiation instruments used

in the detection of illicit trafficking of radioactive materials
IAEA-TECDOC-1311: Sept
...

IEC 62484
Edition 2.0 2020-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radiation protection instrumentation – Spectrometric radiation portal monitors
(SRPMs) used for the detection and identification of illicit trafficking of
radioactive material
Instrumentation pour la radioprotection – Portiques spectrométriques de

détection des rayonnements (SRPMs) utilisés pour la détection et l'identification

du trafic illicite des matières radioactives
IEC 62484:2020-10(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62484
Edition 2.0 2020-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radiation protection instrumentation – Spectrometric radiation portal monitors
(SRPMs) used for the detection and identification of illicit trafficking of
radioactive material
Instrumentation pour la radioprotection – Portiques spectrométriques de

détection des rayonnements (SRPMs) utilisés pour la détection et l'identification

du trafic illicite des matières radioactives
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.280 ISBN 978-2-8322-1016-4

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62484:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms and definitions, abbreviated terms and symbols, quantities and units .................... 9

3.1 Terms and definitions .............................................................................................. 9

3.2 Abbreviated terms and symbols ............................................................................ 10

3.3 Quantities and units .............................................................................................. 11

4 Design requirements ...................................................................................................... 11

4.1 General ................................................................................................................. 11

4.1.1 Overview ....................................................................................................... 11

4.1.2 Pedestrian monitor ........................................................................................ 14

4.1.3 Road vehicle monitor ..................................................................................... 14

4.1.4 Rail vehicle monitor (includes rail transported containers) ............................. 14

4.1.5 Package (or conveyor) monitor ...................................................................... 14

4.2 Physical configuration ........................................................................................... 14

4.3 Spectral identification and count rate information .................................................. 15

4.4 Indication features ................................................................................................ 15

4.5 Occupancy and speed sensors ............................................................................. 16

4.6 Markings ............................................................................................................... 16

4.7 Protection of switches ........................................................................................... 16

4.8 Energy and count rate range ................................................................................. 16

4.9 Data transfer ......................................................................................................... 16

4.10 User interface ....................................................................................................... 16

4.10.1 Audible (sound) alarm .................................................................................... 16

4.10.2 Visual indicators ............................................................................................ 16

4.10.3 Warning indicators ......................................................................................... 17

4.10.4 Basic controls and functions .......................................................................... 17

4.10.5 Advanced indications and functions ............................................................... 17

5 General test procedures ................................................................................................ 18

5.1 General test conditions ......................................................................................... 18

5.1.1 Nature of tests ............................................................................................... 18

5.1.2 Standard test conditions ................................................................................ 18

5.1.3 Statistical fluctuations .................................................................................... 18

5.2 Reference neutron radiation for alarm testing........................................................ 19

5.3 Alarm categorization ............................................................................................. 19

5.4 General requirements for testing radionuclide identification ability ........................ 19

5.5 Functionality test ................................................................................................... 20

5.5.1 General ......................................................................................................... 20

5.5.2 Pre-test measurements .................................................................................. 21

5.5.3 Intermediate (during test) measurements ....................................................... 21

5.5.4 Post-test measurements ................................................................................ 21

6 Radiation detection requirements .................................................................................. 21

6.1 Stability test .......................................................................................................... 21

6.1.1 Requirements ................................................................................................ 21

6.1.2 Method of test................................................................................................ 21

---------------------- Page: 4 ----------------------
IEC 62484:2020 © IEC 2020 – 3 –

6.2 Neutron radiation detection, if provided ................................................................. 22

6.2.1 Requirements ................................................................................................ 22

6.2.2 Method of test................................................................................................ 22

6.3 Gamma over-range indication ............................................................................... 22

6.3.1 Requirements ................................................................................................ 22

6.3.2 Method of test................................................................................................ 22

6.4 Detection of neutron radiation in a high gamma field ............................................. 23

6.4.1 Requirements ................................................................................................ 23

6.4.2 Method of test – large road vehicle and multiple-sided rail vehicle

monitors ........................................................................................................ 23

6.4.3 Method of test – all other types of monitors ................................................... 23

6.5 Background effects ............................................................................................... 23

6.5.1 Requirements ................................................................................................ 23

6.5.2 Method of test................................................................................................ 24

6.6 Radionuclide identification .................................................................................... 24

6.6.1 Radionuclide library and identification categorization ..................................... 24

6.6.2 Radionuclide identification qualification ......................................................... 25

6.6.3 Single radionuclide identification ................................................................... 25

6.6.4 Simultaneous radionuclide identification ........................................................ 26

6.6.5 Alarm without identification ............................................................................ 27

7 Climatic requirements .................................................................................................... 27

7.1 General ................................................................................................................. 27

7.2 Ambient temperature............................................................................................. 27

7.2.1 Requirements ................................................................................................ 27

7.2.2 Method of test................................................................................................ 27

7.3 Relative humidity .................................................................................................. 28

7.3.1 Requirements ................................................................................................ 28

7.3.2 Method of test................................................................................................ 28

7.4 Dust and moisture protection ................................................................................ 28

7.4.1 Requirements ................................................................................................ 28

7.4.2 Method of test – Dust .................................................................................... 28

7.4.3 Test method – Moisture ................................................................................. 28

7.5 Climatic exposure type test ................................................................................... 29

7.5.1 Requirements ................................................................................................ 29

7.5.2 Method of test................................................................................................ 29

8 Mechanical requirements ............................................................................................... 29

8.1 Vibration ............................................................................................................... 29

8.1.1 Requirements ................................................................................................ 29

8.1.2 Method of test................................................................................................ 29

8.2 Microphonics/Impact ............................................................................................. 30

8.2.1 Requirements ................................................................................................ 30

8.2.2 Method of test................................................................................................ 30

9 Electric and electromagnetic requirements .................................................................... 30

9.1 Electrostatic discharge (ESD) ............................................................................... 30

9.1.1 Requirements ................................................................................................ 30

9.1.2 Method of test................................................................................................ 30

9.2 Radio frequency (RF) ............................................................................................ 30

9.2.1 Requirements ................................................................................................ 30

9.2.2 Method of test................................................................................................ 30

---------------------- Page: 5 ----------------------
– 4 – IEC 62484:2020 © IEC 2020

9.3 Radiated RF emissions ......................................................................................... 31

9.3.1 Requirements ................................................................................................ 31

9.3.2 Method of test................................................................................................ 31

9.4 Conducted disturbances........................................................................................ 31

9.4.1 Requirements ................................................................................................ 31

9.4.2 Method of test................................................................................................ 31

9.5 Surges and oscillatory waves ................................................................................ 31

9.5.1 Requirements ................................................................................................ 31

9.5.2 Method of test................................................................................................ 31

9.6 Line voltage and frequency fluctuations ................................................................ 32

9.6.1 Requirements ................................................................................................ 32

9.6.2 Method of test................................................................................................ 32

10 Documentation .............................................................................................................. 32

10.1 Operation and maintenance manual ...................................................................... 32

10.2 Test certificate ...................................................................................................... 33

10.3 Declaration of conformity ...................................................................................... 33

Annex A (informative) Identification of uranium and plutonium ............................................. 36

Bibliography .......................................................................................................................... 37

Figure 1 – Example of a two-sided system ............................................................................ 12

Table 1 – Standards for instrumentation used to detect illicit trafficking of radioactive

and nuclear materials ............................................................................................................. 7

Table 2 – Speed of moving sources ...................................................................................... 13

Table 3 – Evaluation distances for different applications ....................................................... 13

Table 4 – Standard test conditions ........................................................................................ 18

Table 5 – Test radionuclides ................................................................................................. 20

Table 6 – Test materials ...................................................................................................... 20

Table 7 – Test result analysis ............................................................................................... 21

Table 8 – Radionuclide library ............................................................................................... 24

Table 9 – Radionuclide categorisation .................................................................................. 24

1,2

Table 10 – Identification acceptance criteria ..................................................................... 25

Table 11 – Summary of performance requirements – Informative .......................................... 33

Table 12 – Environmental requirements – Informative ......................................................... 35

Table A.1 – Uranium and plutonium detection and identification guidance ............................. 36

---------------------- Page: 6 ----------------------
IEC 62484:2020 © IEC 2020 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIATION PROTECTION INSTRUMENTATION –
SPECTROMETRIC RADIATION PORTAL MONITORS (SRPMS) USED
FOR THE DETECTION AND IDENTIFICATION OF ILLICIT
TRAFFICKING OF RADIOACTIVE MATERIAL
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62484 has been prepared by subcommittee 45B: Radiation

protection instrumentation, of IEC technical committee 45: Nuclear instrumentation.

This second edition cancels and replaces the first edition of IEC 62484 issued in 2010. This

edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
a) title modified;

b) making the standard consistent with the new standards for detection of illicit trafficking of

radioactive material (see the Introduction);

c) creating unformed functionality test for all environmental, electromagnetic and mechanical

tests and a requirement for the coefficient of variation of each nominal mean reading;

---------------------- Page: 7 ----------------------
– 6 – IEC 62484:2020 © IEC 2020

d) reference to IEC 62706 for the environmental, electromagnetic and mechanical test

conditions;
e) adding information regarding climatic exposures.
The text of this International Standard is based on the following documents:
FDIS Report on voting
45B/969/FDIS 45B/971/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 8 ----------------------
IEC 62484:2020 © IEC 2020 – 7 –
INTRODUCTION

Illicit and inadvertent movement of radioactive materials has become a problem of increasing

importance. Radioactive sources out of regulatory control, so-called "orphan sources", have

frequently caused serious radiation exposures and widespread contamination. Although illicit

trafficking of nuclear and other radioactive materials is not a new phenomenon, concern about

a nuclear "black market" has increased in the last few years particularly in view of its terrorist

potential.

In response to the technical policy of the International Atomic Energy Agency (IAEA), the

World Customs Organization (WCO) and the International Criminal Police Organization

(Interpol) related to the detection and identification of special nuclear materials and security

trends, nuclear instrumentation companies are developing and manufacturing radiation

instrumentation to assist in the detection of illicit movement of radioactive and special nuclear

materials. This type of instrumentation is widely used for security purposes at nuclear

facilities, border control checkpoints, and international seaports and airports.

However, to ensure that measurement results made at different locations are consistent, it is

imperative that radiation instrumentation be designed to rigorous specifications based upon

agreed performance requirements stated in international standards. Several IEC standards

have been developed to address body-worn, hand-held and portal instruments, see Table 1.

Table 1 – Standards for instrumentation used to detect illicit
trafficking of radioactive and nuclear materials
Type of IEC
Title of the standard
instrumentation number
Radiation protection instrumentation – Alarming Personal Radiation Devices (PRD)
62401
for detection of illicit trafficking of radioactive material
Radiation protection instrumentation – Spectroscopy-Based Alarming Personal
Body-worn 62618

Radiation Devices (SPRD) for detection of illicit trafficking of radioactive material

Radiation protection instrumentation – Backpack-type radiation detector (BRD) for

62694
detection of illicit trafficking of radioactive material

Radiation protection instrumentation – Hand-held instruments for the detection and

62327 identification of radionuclides and for the estimation of ambient dose equivalent

rate from photon radiation
Portable or

Radiation protection instrumentation – Highly sensitive hand-held instruments for

hand-held 62533
photon detection of radioactive material

Radiation protection instrumentation – Highly sensitive hand-held instruments for

62534
neutron detection of radioactive material
Radiation protection instrumentation – Installed radiation p
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
