Packaging of components for automatic handling - Part 3: Packaging of surface mount components on continuous tapes

IEC 60286-3:2019 is available as IEC 60286-3:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60286-3:2019 is applicable to the tape packaging of electronic components without leads or with lead stumps, intended to be connected to electronic circuits. It includes only those dimensions that are essential for the taping of components intended for the above-mentioned purposes. This document also includes requirements related to the packaging of singulated die products including bare die and bumped die (flip chips). This edition includes the following significant technical changes with respect to the previous edition:
- addition of a table of the classification to symbols concerning tape, reel and common symbols;
- additions of a figure of example of polarity and orientation and a figure of example of dot seal;
- revision of requirements for camber;
- addition of a definition of design value with regard to tilt.

Emballage de composants pour opérations automatisées - Partie 3: Emballage des composants pour montage en surface en bandes continues

IEC 60286-3:2019 est disponible sous forme de IEC 60286-3:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 60286-3:2019 est applicable à la mise en bande des composants électroniques sans fils de sortie ou avec tronçons de sortie destinés à être connectés à des circuits électroniques. Elle fournit uniquement les dimensions essentielles pour la mise en bande des composants destinés aux opérations susmentionnées. Le présent document inclut également des exigences relatives à l'emballage de produits à puce isolée incluant puces nues et puces à contact (puces retournées). Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- ajout d'un tableau de classification des symboles concernant les bandes, les bobines et les symboles courants;
- ajout d'une figure représentant un exemple de polarité et d'orientation et d'une figure représentant un exemple de collage ponctuel;
- révision des exigences de cambrage;
- ajout d'une définition de la valeur de conception concernant l'inclinaison.

General Information

Status
Published
Publication Date
15-Jan-2019
Current Stage
PPUB - Publication issued
Completion Date
16-Jan-2019
Ref Project

Buy Standard

Standard
IEC 60286-3:2019 - Packaging of components for automatic handling - Part 3: Packaging of surface mount components on continuous tapes
English and French language
84 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60286-3
Edition 6.0 2019-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Packaging of components for automatic handling –
Part 3: Packaging of surface mount components on continuous tapes
Emballage de composants pour opérations automatisées –
Partie 3: Emballage des composants pour montage en surface en bandes
continues
IEC 60286-3:2019-01(en-fr)
---------------------- Page: 1 ----------------------

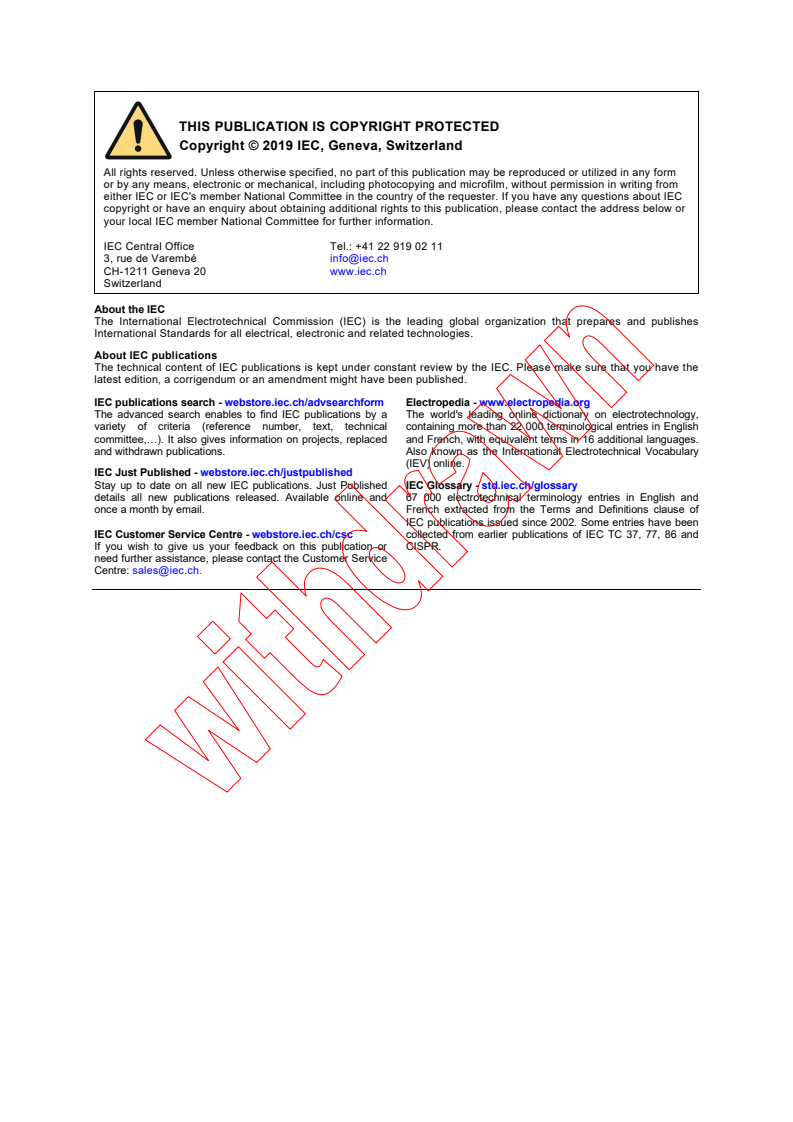

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

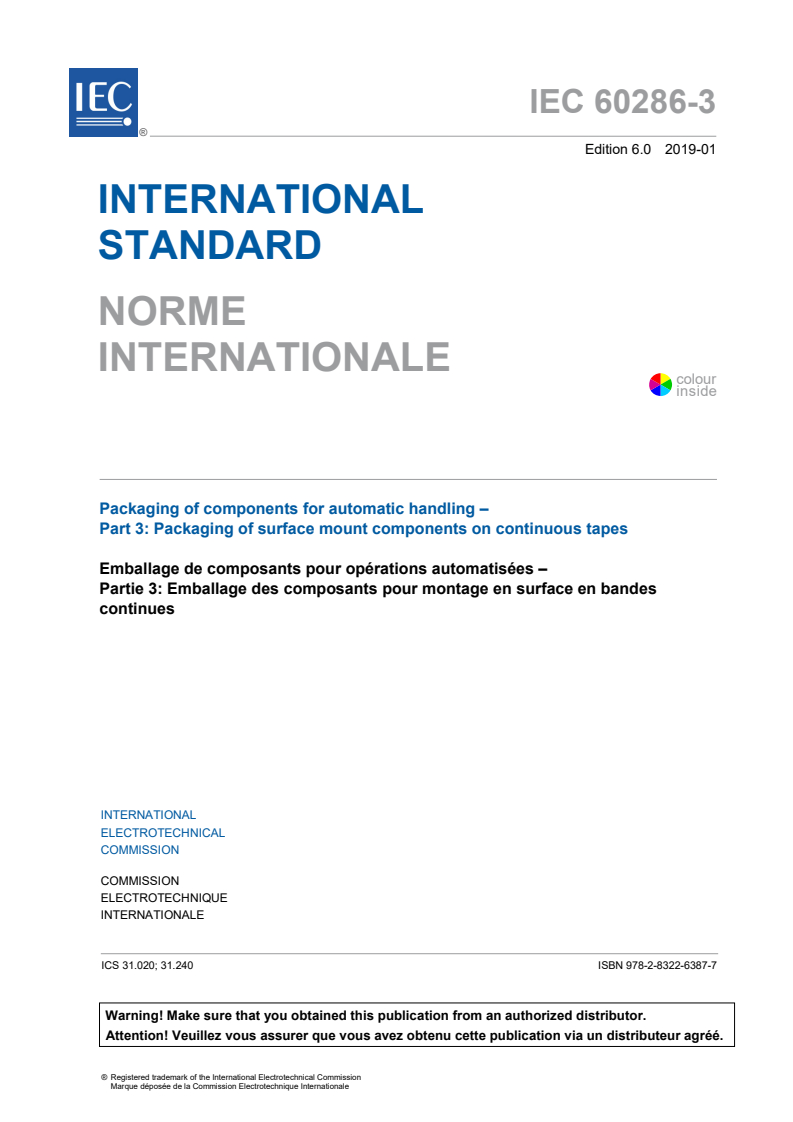

IEC 60286-3
Edition 6.0 2019-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Packaging of components for automatic handling –
Part 3: Packaging of surface mount components on continuous tapes
Emballage de composants pour opérations automatisées –
Partie 3: Emballage des composants pour montage en surface en bandes
continues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.020; 31.240 ISBN 978-2-8322-6387-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60286-3:2019 © IEC 2019

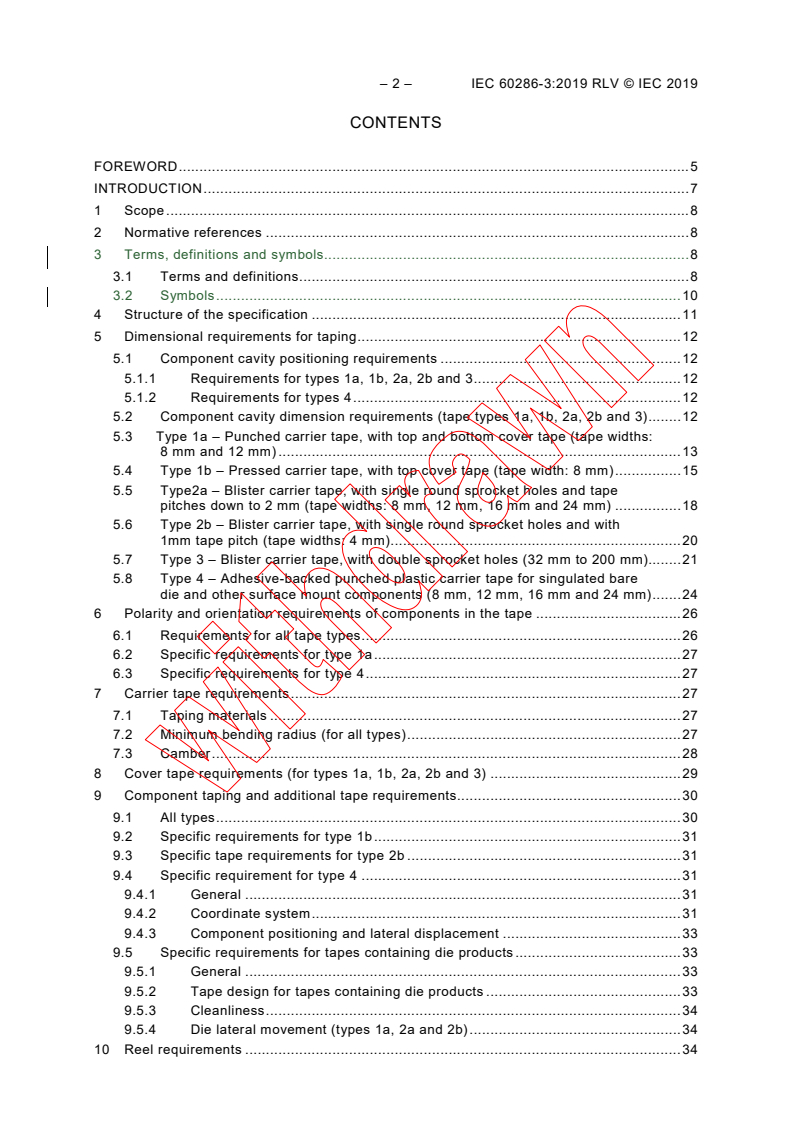

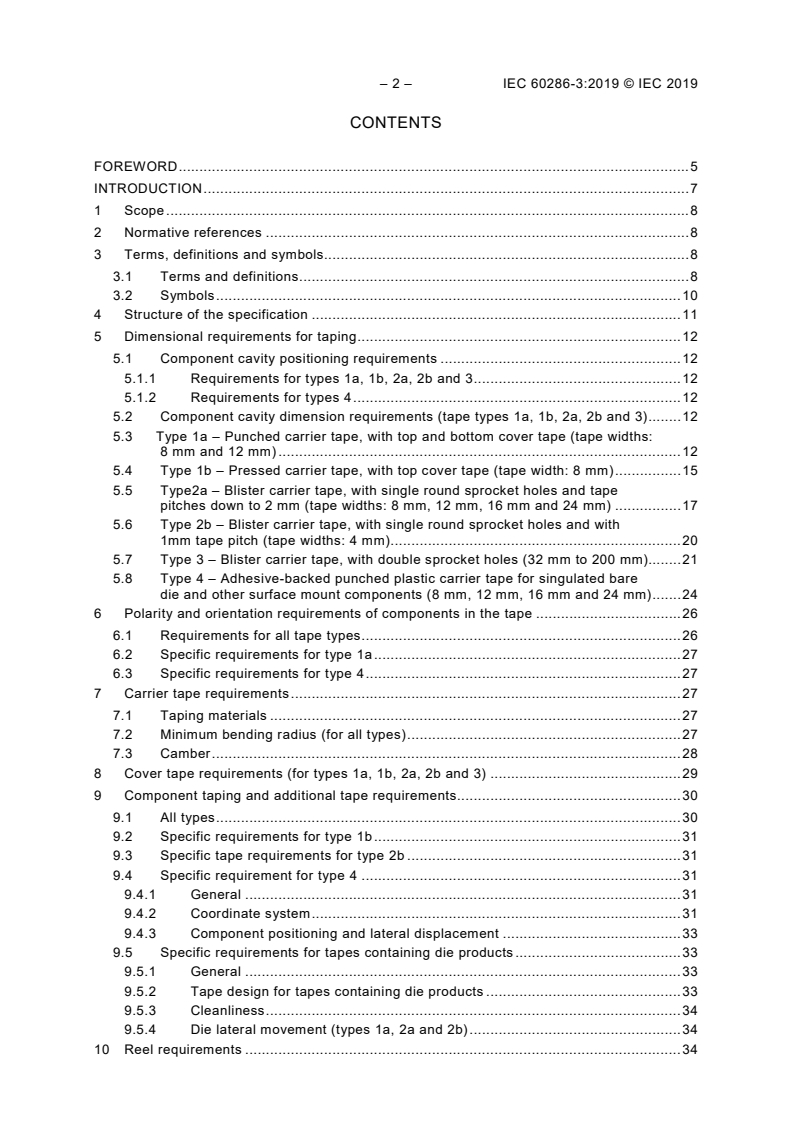

CONTENTS

FOREWORD ........................................................................................................................... 5

INTRODUCTION ..................................................................................................................... 7

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms, definitions and symbols........................................................................................ 8

3.1 Terms and definitions .............................................................................................. 8

3.2 Symbols ................................................................................................................ 10

4 Structure of the specification ......................................................................................... 11

5 Dimensional requirements for taping .............................................................................. 12

5.1 Component cavity positioning requirements .......................................................... 12

5.1.1 Requirements for types 1a, 1b, 2a, 2b and 3 .................................................. 12

5.1.2 Requirements for types 4 ............................................................................... 12

5.2 Component cavity dimension requirements (tape types 1a, 1b, 2a, 2b and 3) ........ 12

5.3 Type 1a – Punched carrier tape, with top and bottom cover tape (tape widths:

8 mm and 12 mm) ................................................................................................. 12

5.4 Type 1b – Pressed carrier tape, with top cover tape (tape width: 8 mm) ................ 15

5.5 Type2a – Blister carrier tape, with single round sprocket holes and tape

pitches down to 2 mm (tape widths: 8 mm, 12 mm, 16 mm and 24 mm) ................ 17

5.6 Type 2b – Blister carrier tape, with single round sprocket holes and with

1mm tape pitch (tape widths: 4 mm) ...................................................................... 20

5.7 Type 3 – Blister carrier tape, with double sprocket holes (32 mm to 200 mm)........ 21

5.8 Type 4 – Adhesive-backed punched plastic carrier tape for singulated bare
die and other surface mount components (8 mm, 12 mm, 16 mm and 24 mm) ....... 24

6 Polarity and orientation requirements of components in the tape ................................... 26

6.1 Requirements for all tape types ............................................................................. 26

6.2 Specific requirements for type 1a .......................................................................... 27

6.3 Specific requirements for type 4 ............................................................................ 27

7 Carrier tape requirements .............................................................................................. 27

7.1 Taping materials ................................................................................................... 27

7.2 Minimum bending radius (for all types) .................................................................. 27

7.3 Camber ................................................................................................................. 28

8 Cover tape requirements (for types 1a, 1b, 2a, 2b and 3) .............................................. 29

9 Component taping and additional tape requirements...................................................... 30

9.1 All types ................................................................................................................ 30

9.2 Specific requirements for type 1b .......................................................................... 31

9.3 Specific tape requirements for type 2b .................................................................. 31

9.4 Specific requirement for type 4 ............................................................................. 31

9.4.1 General ......................................................................................................... 31

9.4.2 Coordinate system ......................................................................................... 31

9.4.3 Component positioning and lateral displacement ........................................... 33

9.5 Specific requirements for tapes containing die products ........................................ 33

9.5.1 General ......................................................................................................... 33

9.5.2 Tape design for tapes containing die products ............................................... 33

9.5.3 Cleanliness .................................................................................................... 34

9.5.4 Die lateral movement (types 1a, 2a and 2b) ................................................... 34

10 Reel requirements ......................................................................................................... 34

---------------------- Page: 4 ----------------------
IEC 60286-3:2019 © IEC 2019 – 3 –

10.1 Dimensions ........................................................................................................... 34

10.1.1 General ......................................................................................................... 34

10.1.2 Reel dimensions ............................................................................................ 34

10.1.3 Reel hole dimensions .................................................................................... 36

10.2 Marking ................................................................................................................. 36

11 Tape reeling requirements ............................................................................................. 37

11.1 All types ................................................................................................................ 37

11.2 Specific requirements for type 1a .......................................................................... 37

11.3 Specific requirements for type 4 ............................................................................ 37

11.4 Leader and trailer tape .......................................................................................... 37

11.4.1 General ......................................................................................................... 37

11.4.2 Leader ........................................................................................................... 38

11.4.3 Trailer ............................................................................................................ 38

11.5 Recycling .............................................................................................................. 38

11.6 Missing components ............................................................................................. 38

Annex A (normative) Recommended measuring methods for type 1b ................................... 39

A.1 Measurement method for carrier tape thickness (T and T ) ................................... 39

A.2 Measurement method for cavity (A and B ) ......................................................... 39

0 0

A.3 Measurement method for cavity depth (dimension K ) .......................................... 40

Bibliography .......................................................................................................................... 41

Figure 1 – Sectional view of component cavity (type 1b) ......................................................... 9

Figure 2 – 8 mm and 12 mm punched carrier-tape dimensions (4 mm cavity pitch) ............... 13

Figure 3 – Illustration of 2 mm and 1 mm cavity pitch and maximum pocket offset ................ 13

Figure 4 – Maximum component tilt, rotation and lateral movement ...................................... 13

Figure 5 – Dimensions (P = 4 mm/P = 2 mm) and (P = 4 mm/P = 1 mm) ........................ 15

0 1 0 1

Figure 6 – Illustration of 2 mm and 1 mm cavity pitch and maximum pocket offset ................ 16

Figure 7 – Maximum component tilt, rotation and lateral movement ...................................... 16

Figure 8 – Blister carrier tape dimensions (8 mm, 12 mm, 16 mm and 24 mm) ...................... 18

Figure 9 – Illustration of 2 mm cavity pitch and pocket offset ................................................ 18

Figure 10 – Maximum component tilt, rotation and lateral movement .................................... 18

Figure 11 – Type 2b carrier tape ........................................................................................... 20

Figure 12 – Maximum pocket offset ....................................................................................... 20

Figure 13 – Maximum component tilt, rotation and lateral movement .................................... 20

Figure 14 – Blister carrier tape .............................................................................................. 22

Figure 15 – Elongated sprocket hole skew ............................................................................ 22

Figure 16 – Maximum component tilt, rotation and lateral movement .................................... 22

Figure 17 – Adhesive-backed punched carrier-tape dimensions (4 mm compartment

pitch) .................................................................................................................................... 24

Figure 18 – Illustration of 2 mm compartment pitch ............................................................... 24

Figure 19 – Maximum component planar rotation and lateral displacement ........................... 25

Figure 20 – Example of polarity and orientation .................................................................... 27

Figure 21 – Bending radius ................................................................................................... 28

Figure 22 – Measuring method and camber .......................................................................... 29

Figure 23 – Dot seals for thin components (as exceptions) ................................................... 30

---------------------- Page: 5 ----------------------
– 4 – IEC 60286-3:2019 © IEC 2019

Figure 24 – Type 4 coordinate system .................................................................................. 32

Figure 25 – Component clearance and positioning method ................................................... 33

Figure 26 – Reel ................................................................................................................... 35

Figure 27 – Reel hole presentation ....................................................................................... 36

Figure 28 – Tape reeling and label area on the reel .............................................................. 37

Figure 29 – Leader and trailer ............................................................................................... 38

Figure A.1 – Carrier tape thickness measurement points ...................................................... 39

Figure A.2 – Cavity cross-section .......................................................................................... 40

Figure A.3 – Cavity depth dimension ..................................................................................... 40

Table 1 – Component size codes ............................................................................................ 9

Table 2 – Classification to symbols concerning tape, reel and common symbols ................... 10

Table 3 – Constant dimensions of 8 mm and 12 mm punched carrier tape ............................ 14

Table 4 – Variable dimensions of 8 mm and 12 mm punched carrier tape ............................. 14

Table 5 – Component tilt, planar rotation and lateral movement ............................................ 15

Table 6 – Constant dimensions of 8 mm pressed carrier tape ............................................... 16

Table 7 – Variable dimensions of 8 mm pressed carrier tape ................................................ 17

Table 8 – Component tilt, planar rotation and lateral movement ............................................ 17

Table 9 – Constant dimensions of 8 mm to 24 mm blister carrier tape ................................... 19

Table 10 – Variable dimensions of 8 mm to 24 mm blister carrier tape .................................. 19

Table 11 – Component tilt, rotation and lateral movement ..................................................... 19

Table 12 – Constant dimensions of 4 mm carrier tape ........................................................... 21

Table 13 – Variable dimensions of 4 mm carrier tape ............................................................ 21

Table 14 – Component tilt, planar rotation and lateral movements ........................................ 21

Table 15 – Constant dimensions of 32 mm to 200 mm blister carrier tape ............................. 23

Table 16 – Variable dimensions of 32 mm to 200 mm blister carrier tape .............................. 23

Table 17 – Component tilt, planar rotation and lateral movements ........................................ 24

Table 18 – Dimensions of adhesive backed punched carrier tape ......................................... 25

Table 19 – Variable dimensions of adhesive-backed punched carrier tape ............................ 26

Table 20 – Component planar rotation and lateral displacement ........................................... 26

Table 21 – Minimum bending radius ...................................................................................... 28

Table 22 – Peel force ............................................................................................................ 30

Table 23 – Absolute referencing data for component target position ..................................... 32

Table 24 – Reel dimensions .................................................................................................. 35

Table 25 – Reel hole dimensions .......................................................................................... 36

---------------------- Page: 6 ----------------------
IEC 60286-3:2019 © IEC 2019 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –
Part 3: Packaging of surface mount components
on continuous tapes
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60286-3 has been prepared by IEC technical committee 40:

Capacitors and resistors for electronic equipment.

This sixth edition cancels and replaces the fifth edition published in 2013. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) addition of a table of the classification to symbols concerning tape, reel and common

symbols;

b) additions of a figure of example of polarity and orientation and a figure of example of dot

seal;
c) revision of requirements for camber;
---------------------- Page: 7 ----------------------
– 6 – IEC 60286-3:2019 © IEC 2019
d) addition of a definition of design value with regard to tilt.
The text of this International Standard is based on the following documents:
FDIS Report on voting
40/2643/FDIS 40/2649/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60286 series, published under the general title Packaging of

components for automatic handling, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 8 ----------------------
IEC 60286-3:2019 © IEC 2019 – 7 –
INTRODUCTION

Tape packaging meets the requirements of automatic component placement machines and

also covers the use of tape packaging for components and singulated dies for test purposes

and other operations.
---------------------- Page: 9 ----------------------
– 8 – IEC 60286-3:2019 © IEC 2019
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –
Part 3: Packaging of surface mount components
on continuous tapes
1 Scope

This part of IEC 60286 is applicable to the tape packaging of electronic components without

leads or with lead stumps, intended to be connected to electronic circuits. It includes only

those dimensions that are essential for the taping of components intended for the above-

mentioned purposes.

This document also includes requirements related to the packaging of singulated die products

including bare die and bumped die (flip chips).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60191-2, Mechanical standardization of semiconductor devices – Part 2: Dimensions

3 Terms, definitions and symbols
3.1 Terms and definitions

For the purposes of this document, the following terms and definitions apply. Definitions apply

to all tape types, unless specifically mentioned.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
components

electronic part of a product that cannot be physically divided into smaller parts without losing

its particular function
Note 1 to entry: This includes singulated die product.

Note 2 to entry: This is applied to all packaging-types for bare die products unless specifically mentioned

otherwise.
3.1.2
component sizes
size of component that are identified with their metric size code
Note 1 to entry: This size code is followed by a capital M.

Note 2 to entry: To avoid possible confusion with inch-based size codes, an equivalency table is shown in Table 1.

---------------------- Page: 10 ----------------------
IEC 60286-3:2019 © IEC 2019 – 9 –
Table 1 – Component size codes
Metric size code Inch size code
0402M 01005
0603M 0201
1005M 0402
1608M 0603
2012M 0805
3.1.3
packaging

product made of any material of any nature to be used for the containment, protection,

structured alignment for automatic assembly, handling and delivery
3.1.4
pressed carrier tape

carrier tape with concave cavities formed by compression of the base material

3.1.5
fluff
fibre from the base material attached inside the cavity
Note 1 to entry: See Figure 1.
3.1.6
burr

surface projection of tape unintentially produced when cavity is formed

Note 1 to entry: See Figure 1.
3.1.7
deformation
bulge on the inner wall of the cavity
Note 1 to entry: See Figure 1.
3.1.8
puff
bulge on the reverse side of the cavity
Note 1 to entry: See Figure 1.
Figure 1 – Sectional view of component cavity (type 1b)
---------------------- Page: 11 ----------------------
– 10 – IEC 60286-3:2019 © IEC 2019
3.1.9
blister carrier tape
carrier tape which is identified as tape belonging to types 2a, 2b and 3

Note 1 to entry These types of carriers are also known as "embossed" carrier types.

3.2 Symbols
The symbols used in this document are listed in Table 2.
Table 2 – Classific
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
