IEC 62442-3:2014

Energy performance of lamp controlgear - Part 3: Controlgear for halogen lamps and LED modules - Method of measurement to determine the efficiency of the controlgear

IEC 62442-3:2014 defines a measurement method for the power losses of magnetic transformers and the power losses with the standby power of electronic convertor for halogen lamps and LED modules. Also a calculation method of the efficiency for the mentioned controlgear for halogen lamps and LED modules is defined.

Performance énergétique des appareillages de lampes - Partie 3: Appareillage de lampes à halogène et modules de DEL - Méthode de mesure pour la détermination du rendement de l'appareillage

L'IEC 62442-3:2014 définit une méthode pour mesurer les pertes de puissances rencontrées par les transformateurs magnétiques et les convertisseurs électroniques en veille sur les lampes à halogène et les modules de DEL. Une méthode de calcul du rendement des appareillages mentionnés pour les lampes à halogène et les modules DEL est également définie.

General Information

• Status: Published
• Publication Date: 23-Apr-2014
• ICS: 29.140.99 - Other standards related to lamps
• Technical Committee: SC 34C - Auxiliaries for lamps
• Drafting Committee: WG 1 - TC 34/SC 34C/WG 1
• Current Stage: DELPUB - Deleted Publication
• Start Date: 03-May-2018
• Completion Date: 26-Oct-2025

Relations

• Revised: IEC 62442-3:2018 - Energy performance of lamp controlgear - Part 3: Controlgear for tungsten-halogen lamps and LED light sources - Method of measurement to determine the efficiency of controlgear
• Effective Date: 05-Sep-2023

Standards Content (Sample)

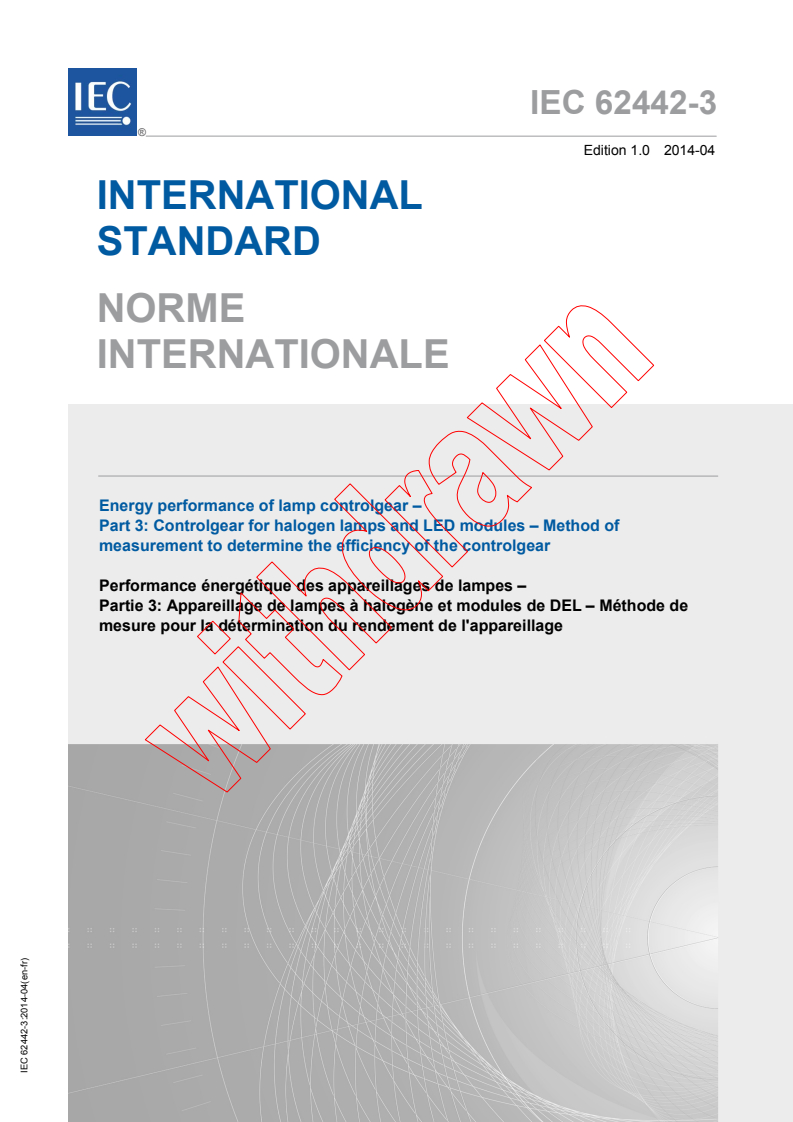

IEC 62442-3 ®
Edition 1.0 2014-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Energy performance of lamp controlgear –
Part 3: Controlgear for halogen lamps and LED modules – Method of
measurement to determine the efficiency of the controlgear

Performance énergétique des appareillages de lampes –
Partie 3: Appareillage de lampes à halogène et modules de DEL – Méthode de
mesure pour la détermination du rendement de l'appareillage

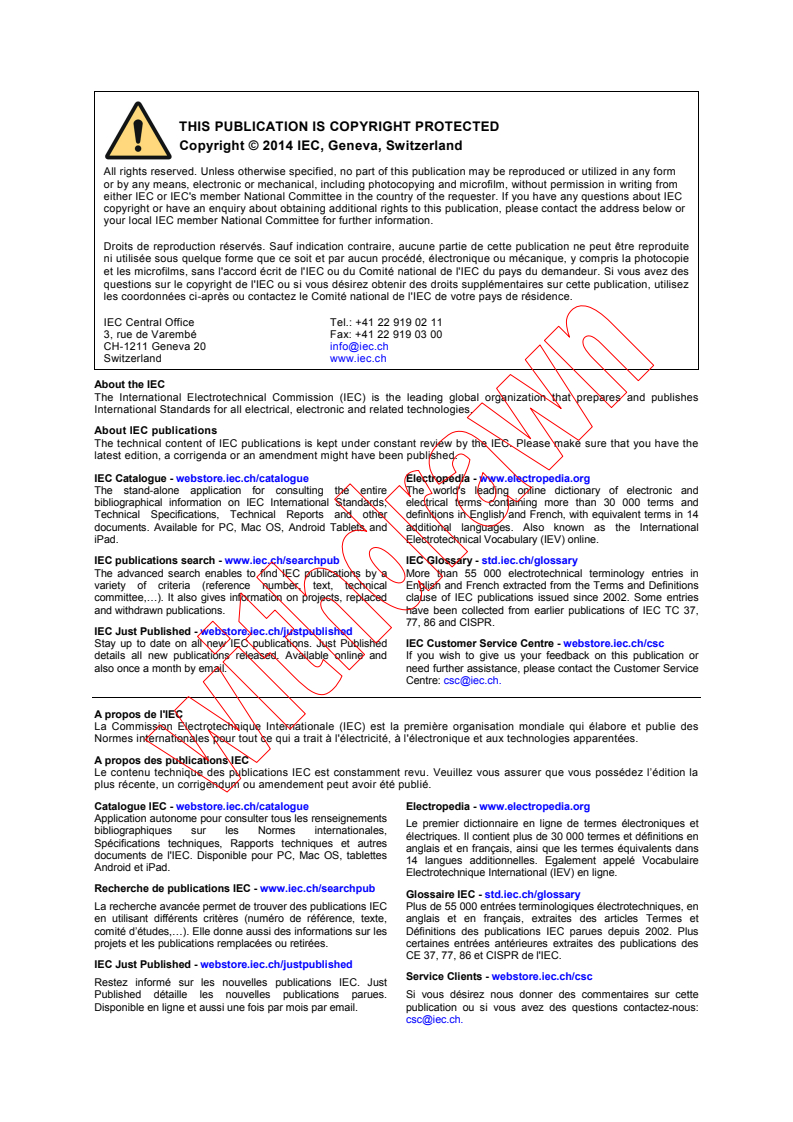

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

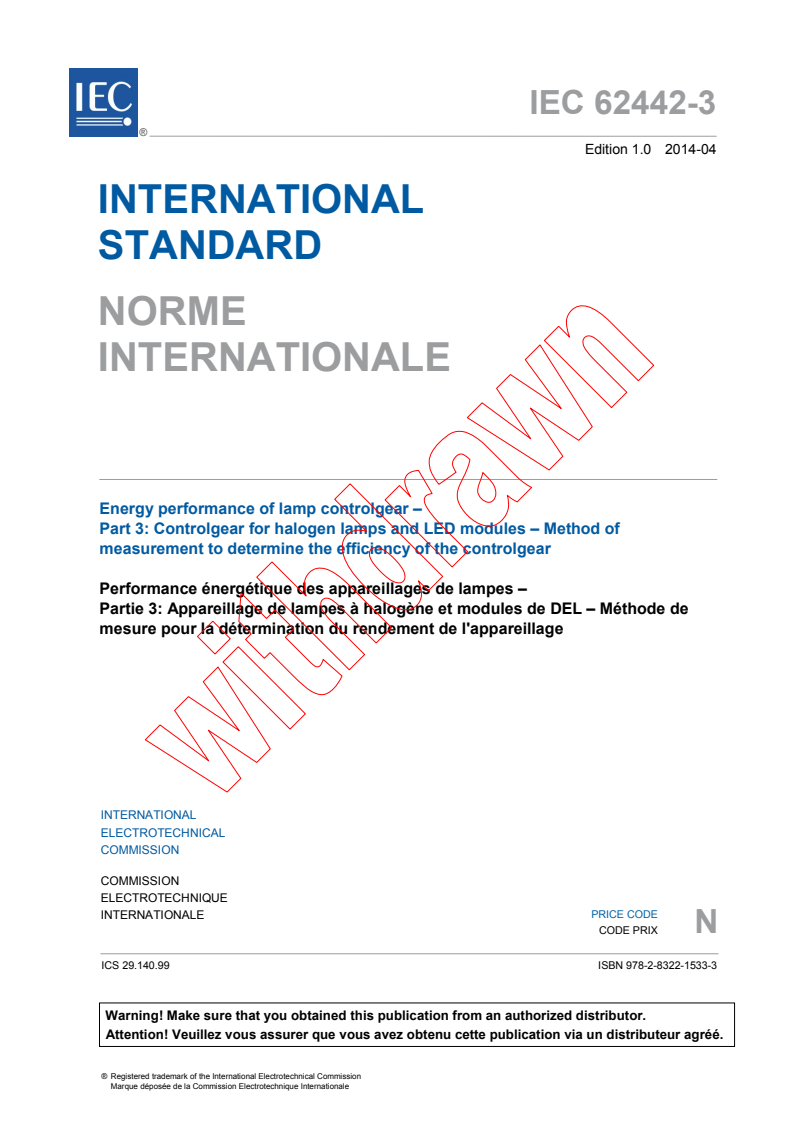

IEC 62442-3 ®
Edition 1.0 2014-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Energy performance of lamp controlgear –

Part 3: Controlgear for halogen lamps and LED modules – Method of

measurement to determine the efficiency of the controlgear

Performance énergétique des appareillages de lampes –

Partie 3: Appareillage de lampes à halogène et modules de DEL – Méthode de

mesure pour la détermination du rendement de l'appareillage

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX N
ICS 29.140.99 ISBN 978-2-8322-1533-3

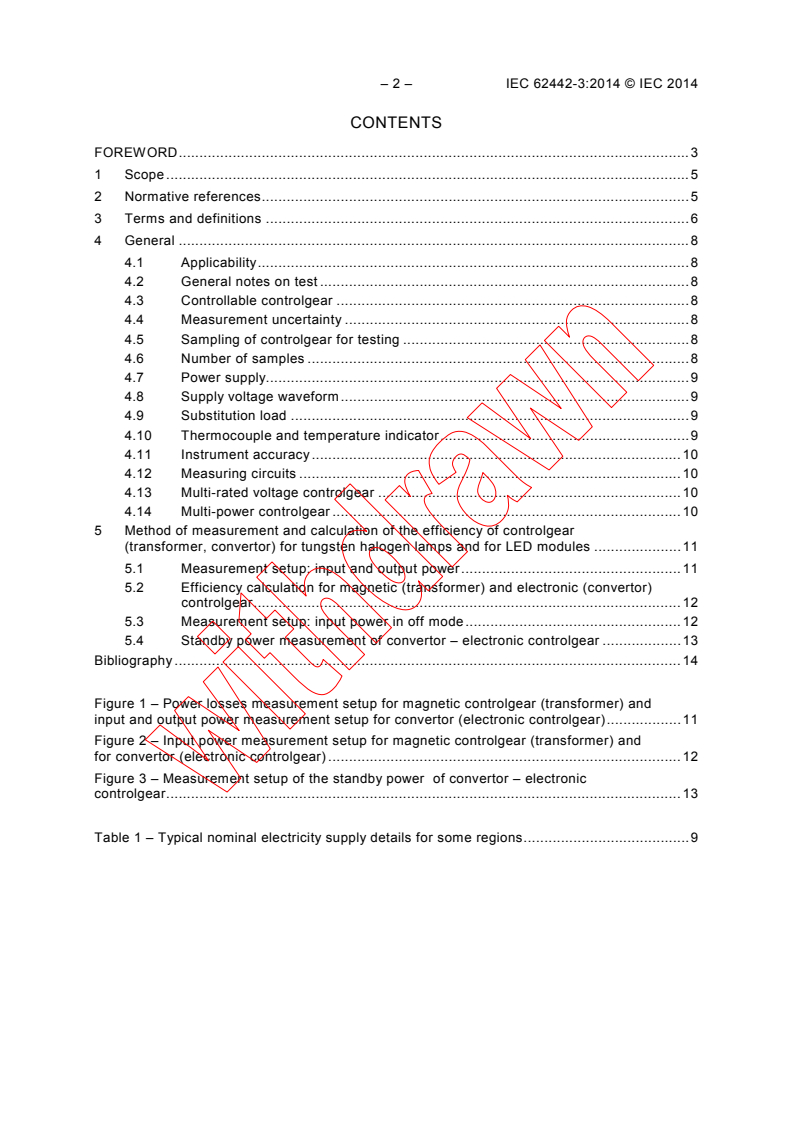

– 2 – IEC 62442-3:2014 © IEC 2014

CONTENTS
FOREWORD . 3

1 Scope . 5

2 Normative references . 5

3 Terms and definitions . 6

4 General . 8

4.1 Applicability . 8

4.2 General notes on test . 8

4.3 Controllable controlgear . 8
4.4 Measurement uncertainty . 8
4.5 Sampling of controlgear for testing . 8
4.6 Number of samples . 8
4.7 Power supply. 9
4.8 Supply voltage waveform . 9
4.9 Substitution load . 9
4.10 Thermocouple and temperature indicator . 9
4.11 Instrument accuracy . 10
4.12 Measuring circuits . 10
4.13 Multi-rated voltage controlgear . 10
4.14 Multi-power controlgear . 10
5 Method of measurement and calculation of the efficiency of controlgear
(transformer, convertor) for tungsten halogen lamps and for LED modules . 11
5.1 Measurement setup: input and output power . 11
5.2 Efficiency calculation for magnetic (transformer) and electronic (convertor)
controlgear . 12
5.3 Measurement setup: input power in off mode . 12
5.4 Standby power measurement of convertor – electronic controlgear . 13
Bibliography . 14

Figure 1 – Power losses measurement setup for magnetic controlgear (transformer) and
input and output power measurement setup for convertor (electronic controlgear) . 11
Figure 2 – Input power measurement setup for magnetic controlgear (transformer) and
for convertor (electronic controlgear) . 12
Figure 3 – Measurement setup of the standby power of convertor – electronic

controlgear . 13

Table 1 – Typical nominal electricity supply details for some regions . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
ENERGY PERFORMANCE OF LAMP CONTROLGEAR –

Part 3: Controlgear for halogen lamps and LED modules –

Method of measurement to determine the efficiency of the controlgear

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62442-3 has been prepared by subcommittee 34C: Auxiliaries for
lamps, of IEC technical committee 34: Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/1077/FDIS 34C/1088/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 62442-3:2014 © IEC 2014

A list of all parts of the IEC 62442 series, published under the general title Energy performance

of lamp controlgear, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until the

stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to

the specific publication. At this date, the publication will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or

• amended.
ENERGY PERFORMANCE OF LAMP CONTROLGEAR –

Part 3: Controlgear for halogen lamps and LED modules –

Method of measurement to determine the efficiency of the controlgear

1 Scope
This part of the IEC 62442 series defines a measurement method for the power losses of
magnetic transformers and the power losses with the standby power of electronic convertor for
halogen lamps and LED modules.
Also a calculation method of the efficiency for the mentioned controlgear for halogen lamps
and LED modules is defined.
This part of IEC 62442 applies to electrical controlgear – lamp circuits comprised solely of the
controlgear and of the lamp(s).
For multipurpose power supplies only the lighting part will be considered.
NOTE 1 Requirements for testing individual controlgear during production are not included.
It specifies the measurement method for the total input power, the standby power and the
calculation method of the controlgear efficiency for all controlgear sold for domestic and normal
commercial purposes operating with halogen lamps and LED modules.
This part of IEC 62442 does not apply to:
– controlgear which form an integral part of lamps;
– controlgear circuits with capacitors connected in series;
– controllable wire-wound electromagnetic controlgear.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 61047:2004, DC or AC. supplied electronic step-down convertors for filament lamps –
Performance requirements
IEC 61347-1:2007, Lamp controlgear – Part 1: General and safety requirements
Amendment 1:2010
Amendment 2:2012
IEC 61347-2-2, Lamp controlgear – Part 2-2: Particular requirements for d.c. or a.c. supplied
electronic step-down convertors for filament lamps
IEC 61347-2-13, Lamp controlgear – Part 2-13: Particular requirements for d.c. or a.c. supplied
electronic controlgear for LED modules
IEC 61558-1, Safety of power transformers, power supplies, reactors and similar products –
Part 1: General requirements and tests

– 6 – IEC 62442-3:2014 © IEC 2014

IEC 61558-2-6, Safety of transformers, reactors, power supply units and similar products for

supply voltages up to 1 100 V – Part 2-6: Particular requirements and tests for safety isolating

transformers and power supply units incorporating safety isolating transformers

IEC Guide 115:2007, Application of uncertainty of measurement to conformity assessment

activities in the electrotechnical sector

3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.

3.1
nominal value
suitable approximate quantity value used to designate or identify a component, device or
equipment
[SOURCE: IEC 62442-1:2011, 3.1]
3.2
rated value
quantity value for specified operating conditions of a component, device or equipment
The value and conditions are specified in the relevant standard or assigned by the
manufacturer or responsible vendor
[SOURCE: IEC 62442-1:2011, 3.3, modified – The note has been removed.]
3.3
controlgear
one or more component between supply and one or more lamps which may serve to transform
the supply voltage, limit the current of lamp(s) to the required value, provide starting voltage
and preheating current, prevent cold starting, correct power factor or reduce radio interference
[SOURCE: IEC 62442-1:2011,3.4]
3.4
electromagnetic controlgear
controlgear which by means of inductance, or a combination of inductance and capacitance,
serves mainly to limit the current of lamp(s) to the required value
Frequency of the lamp controlgear is the same as supply frequency

[SOURCE: IEC 62442-1:2011, 3.5]
3.5
magnetic transformer
transformer
magnetic controlgear which transform the supply voltage to operate lamp(s) with the same
frequency as supply frequency at the lamps rated voltage
3.6
electronic controlgear,
A.C. and/or D.C. supplied electronic circuit including stabilizing elements for operating one or
more filament lamp(s) or one or more LED module(s)

3.7
electronic step-down convertor

convertor
unit inserted between the supply and one or more tungsten-halogen or other filament lamps

which serves to supply the lamp(s) with its (their) rated voltage, generally at high frequency

Note 1 to entry: The unit may consist of one or more separate components and may include means for dimming,
correcting the power factor and suppressing radio interference.

[SOURCE: IEC 61347-2-2:2011, 3.1, modified – Additional information has been transferred to

a note to entry.]
3.8
electronic controlgear for LED modules
convertor
unit inserted between the supply and one or more LED modules which serves to supply the
LED module(s) with its (their) rated voltage or rated current. The unit may consist of one or
more separate components and may include means for dimming, correcting the power factor
and suppressing radio interference
3.9
LED module
unit supplied as a light source, which in addition to one or more LEDs may contain further
components, e.g. optical, electrical, mechanical and/or electronic
3.10
controlgear – lamp circuit
electrical circuit, or part thereof, normally built in a luminaire, consisting of the controlgear and
lamp(s)
[SOURCE: IEC 62242-1:2011,3.8]
3.11
standby power
average power consumption of a controlgear when subjected to standby mode
Note 1 to entry: Unit: W.
3.12
standby mode
mode relevant for those controlgear which are permanently connected to the mains, where the
lamp(s) are switched off via a control signal, not including failed lamp(s)

[SOURCE: IEC 62242-2:—, 3.8, modified – The note has been removed.]
3.13
total input power
total power supplied to the controlgear – lamp circuit measured at rated input voltage
[SOURCE: IEC 62242-1:2011, 3.14, modified – The sentence "The rated power specified is
related to a specific ballast lumen factor (BLF)." has been removed.]
3.14
off mode
mode relevant for those controlgear which are permanently connected to the mains, where the
lamp(s) are switched off via a switch on the output circuit of the controlgear, not including failed
lamp(s)
– 8 – IEC 62442-3:2014 © IEC 2014

3.15
controlgear efficiency,

η
(CG)
ratio between the lamp power (controlgear output power) and the input power of the

controlgear – lamp circuit with possible sensors, network connections and other auxiliary loads

disconnected
4 General
4.1 Applicability
The measurement and calculation methods of this standard shall only be used for magnetic
transformer which conforms to IEC 61558-1 and IEC 61558-2-6 or for electronic convertor
which conforms to IEC 61347-1 and IEC 61347-2-2 or for electronic controlgear for LED
modules which conforms to IEC 61347-1 and IEC 61347-2-13.
4.2 General notes on test
The measurement conditions are specified in IEC 61347-1:2010; Annex H: H.1, H.2, H.4, H.8
and H.11; unless otherwise specified in this standard. The device under test (DUT) shall be
placed according to IEC 61347-1:2010; Figure H.1.
An A.C. reference source shall be used to provide input voltage to the DUT. During the tests,
the supply voltage and the frequency shall be maintained constant within ± 0,5 % during the
warm-up period. However, during the actual measurement, the voltage shall be adjusted to
within ± 0,2 % of the specified testing value.
The input voltage source shall be capable of delivering at least three times the input power of
the DUT.
4.3 Controllable controlgear
In case of controllable controlgear the test shall be carried out with the maximum output power.
Requirements of the efficiency during the dimming condition of controllable controlgear are
under consideration.
4.4 Measurement uncertainty
Measurement uncertainty shall be managed in accordance with the accuracy method in 4.4.3 of
the IEC Guide 115:2007.
4.5 Sampling of controlgear for testing
Tests in this part of IEC 62442 are type tests. The requirements and tolerances specified in
this part of IEC 62442 are based on the testing of a type test sample submitted by the
manufacturer for that purpose. This sample should consist of units having characteristics
typical of the manufacturer’s production and be as close to the production centre point values
as possible.
4.6 Number of samples
One specimen shall be tested.
4.7 Power supply
Where the test voltage and frequency are not defined by national or regional requirements, the

controlgear manufacturer shall declare the nominal voltage(s) at which the given efficiency is

valid.
Test voltage(s) and test frequency(ies) shall be the nominal voltage and the nominal frequency

of the country for which the measurement is being determined (refer to Table 1).

Table 1 – Typical nominal electricity supply details for some regions

a
Country Nominal voltage and frequency
Europe 230 V; 50 Hz
North America 120 V, 277 V; 60 Hz
b
Japan 100 V, 200 V; 50/60 Hz
China 220 V; 50 Hz
Australia and New Zealand 230 V; 50 Hz

a
Values are for single phase only. Some single phase supply voltages can be double the nominal voltage
above (centre transformer tap). The voltage between two phases of a three-phase system is 1,73 times single
phase values. (e.g. 400 V for Europe).
b
50 Hz is applicable for the Eastern part and 60 Hz for the Western part, respectively.

4.8 Supply voltage waveform
The total harmonic content of the supply voltage when supplying the DUT shall not exceed 3 %;
harmonic content is defined as the root-mean-square (r.m.s.) summation of the individual
components using the fundament as 100 %.
The ratio of peak value to r.m.s. value of the test voltage (i.e. crest factor) shall be between
1,34 and 1,49.
4.9 Substitution load
To give reproducible measurement results, a resistor (R ) shall be used as a replacement
load
for the lamp(s). R is determined from the rated output power and the rated output voltage or
load
rated output current of the controlgear.
The resistor R shall be selected so that the value of the resistance shall not deviate by
load
more than 1 % during the test.

For electronic controlgear for LED lamps/modules a pure resistive load may cause malfunction
of the DUT. In these cases a combination of diodes and variable resistor equivalent to the LED
lamp/module shall be used, which should ensure the maximum rated output current at the rated
output voltage.
NOTE When a special starting procedure is used to allow the constant current controlgear to function properly, the
method with the equivalent resistor can be used.
In case of controlgear with an output frequency higher than 70 Hz for halogen lamps, the load
shall always be a lamp as indicated in 4.2 of IEC 61047:2004.
4.10 Thermocouple and temperature indicator
The resolution of the temperature indicator shall be at least 0,1 °C, when used with the
appropriate thermocouple.
– 10 – IEC 62442-3:2014 © IEC 2014

4.11 Instrument accuracy
For magnetic transformers, calibrated and traceable a.c. power meters, power analysers or

digital power meters shall be used.

For electronic step-down convertors, all output power measurements shall be made with a

calibrated and traceable wideband power analyser or digital power meter.

For measurements made under the scope of this standard, measurement instruments with the

following minimum accuracies are to be used.

a) For frequencies up to and including 1 kHz:
– voltage: 0,5 %
– current: 0,5 %
– power: 1,0 %
– frequency: 0,1 %
b) For frequencies above 1 kHz:
– voltage: 1,0 %
– current: 1,0 %
– power: 2,0 %
Stability of the measurement values (V, A or W) is given if the data does not differ by more
than 1 % in a time frame of 15 min.
Measurement shall be done in such a way that the line losses are limited (for example with a
four wire measurement system).
Additional tests will be required using an oscilloscope with at least 20 MHz bandwidth or a
spectrum analyser/receiver. This will be required for determination of convertor output
fundamental frequency and harmonics. The power analyser or digital power meter shall have
specified accuracies to within 200 kHz.
4.12 Measuring circuits
In case of controlgear with supplementary connection to the output circuit or sensors (e.g. to
detect fault or temperatures), all sensors and circuits have to be connected as in normal use.
4.13 Multi-rated voltage controlgear

If a controlgear is designed for more than one rated voltages, the controlgear manufacturer
shall declare the rated voltage(s) at which the given efficiency and the standby power are valid.
4.14 Multi-power controlgear
If a controlgear is designed for more than one output power the test shall be carried out with
the maximum output power.
5 Method of measurement and calculation of the efficiency of controlgear

(transformer, convertor) for tungsten halogen lamps and for LED modules

5.1 Measurement setup: input and output power

Figure 1 shows the measurement setup for the measurement of the power losses of magnetic

wire wound controlgear and the input and output power of convertor – electronic controlgear.

U, I, P U, I, P
DUT
Supply
R
load
voltage
IEC  1183/14
Key
DUT Device under test
U Voltage
I Current
P Power
R Substitution load
load
Figure 1 – Power losses measurement setup for magnetic controlgear (transformer) and
input and output power measurement setup for convertor (electronic controlgear)
The measurement setup circuit for constant power controlgear shall be used in suitable way
also with the current defined in the data sheets of the lamp(s).
The information regarding the substitution load is given under 4.9. The measurements are
carried out with power meters connected to measure the total input power into and the output
power (lamp power) of the DUT.
The value of the total input power (P ) is recorded when a steady state has been
.
tot.meas
reached (temperature of the DUT).
The supply voltage for the measurement according Figure 1 is defined in 4.7 and 4.13 of this
standard.
Measurement sequence:
1) Connect the DUT according to Figure 1.
2) Switch on the mains voltage.
3) Await the thermal equilibrium.
4) Measure the input and the output power.
The total input power (P ) of a DUT is measured on one DUT.
.
tot.meas
P is the measured total input power into the DUT (in Watt)
.
tot.meas
P is the measured output power of the DUT (lamp power – power on the substitution
Lamp
resistor) in the test circuit (in Watt)
In case of multi output controlgear P is the sum of all the power measured in each

Lamp
channel.
– 12 – IEC 62442-3:2014 © IEC 2014

5.2 Efficiency calculation for magnetic (transformer) and electronic (convertor)

controlgear
For the calculation of the efficiency of a DUT (η ), Equation (1) should be used:
(CG)
Plamp
 
η =  (1)
(CG)
Ptot.meas
 
5.3 Measurement setup: input power in off mode

Figure 2 shows the measurement setup for the measurement of the input power losses in off
mode for magnetic wire wound controlgear and for convertor (electronic controlgear).

U, I, P
DUT
Supply
voltage
IEC  1184/14
Key
DUT Device under test
U Voltage
I Current
P Power
Figure 2 – Input power measurement setup for magnetic
controlgear (transformer) and for convertor (electronic controlgear)
The measurement setup circuit for constant power controlgear shall be used in suitable way
also with the current defined in the data sheets of the lamp(s).
The substitution load is disconnected from the DUT – open output circuit (see Figure 2). The
measurements are carried out with a power meter connected to measure the total input power
into the DUT.
The value of the total input power in off-mode (P ) is recorded when a steady state
tot.meas.off
has been reached (temperature of the DUT).
The supply voltage for the measurement according to Figure 2 is defined in 4.7 and 4.13 of this
standard.
Measurement sequence:
1) Connect the DUT according to Figure 2.
2) Switch on the mains voltage.
3) Await the thermal equilibrium.
4) Measure the input power.
The measured total input power in off mode (P ) of a DUT is measured on one DUT.
tot.meas.off
P is the measured total input power into the DUT (in Watt) in off mode
tot.meas.off
5.4 Standby power measurement of convertor – electronic controlgear

Figure 3 shows the measurement setup of the standby power of convertor – electronic

controlgear.
Interface port
U, I, P
DUT
Supply
R
load
voltage
IEC  1185/14
Key
DUT Device under test
U Voltage
I Current
P Power
R Substitution load
load
Figure 3 – Measurement setup of the standby power
of convertor – electronic controlgear
The measurement setup circuit for constant power controlgear shall be used in suitable way
also with the current defined in the data sheets of the lamp(s).
Information regarding the substitution load is given under 4.9.
The measurements are carried out with power meters connected to measure the total input
power into the convertor – electronic controlgear.
The value of the standby power (P ) (total input power) is recorded when a steady
(CG)standby
state has been reached (temperature of the convertor – electronic controlgear).
The supply voltage for the measurement according to Figure 3 is defined in 4.7 and 4.13 of this
standard.
Measurement sequence:
1) Connect the DUT according to Figure 3.
2) Switch on the mains voltage.
3) Set the controlgear via the interface port (for example “digital addressable lighting
interface”) to the standby mode.
4) Await the thermal equilibrium.
5) Measure the standby power (total input power).
The standby power (P ) (total input power) of a convertor – controlgear is measured
(CG)standby
with one electronic lamp controlgear.

– 14 – IEC 62442-3:2014 © IEC 2014

Bibliography
IEC 60357, Tungsten halogen lamps (non-vehicle) – Performance specifications

IEC 62384, DC or AC supplied electronic control gear for LED modules – Performance
requirements
IEC 62442-1:2011, Energy performance of lamp controlgear – Part 1: Controlgear for
fluorescent lamps – Method of measurement to determine the total input power of controlgear

circuits and the efficiency of the controlgear

IEC 62442-2:— , Energy performance of lamp controlgear – Part 2: Controlgear for high
intensity discharge lamps (excluding fluorescent lamps) – Method of measurement to
determine the efficiency of the controlgear

_____________
_______________
To be published.
