Photovoltaic devices - Part 1-2: Measurement of current-voltage characteristics of bifacial photovoltaic (PV) devices

IEC TS 60904-1-2:2019 describes procedures for the measurement of the current-voltage (I-V) characteristics of bifacial photovoltaic devices in natural or simulated sunlight. It is applicable to single PV cells, sub-assemblies of such cells or entire PV modules.
This document may be applicable to PV devices designed for use under concentrated irradiation if they are measured without the optics for concentration, and irradiated using direct normal irradiance and a mismatch correction with respect to a direct normal reference spectrum is performed. This document describes the additional requirements for the measurement of I-V characteristics of bifacial PV devices.

General Information

Status
Published
Publication Date
28-Jan-2019
Current Stage
PPUB - Publication issued
Completion Date
29-Jan-2019
Ref Project

Buy Standard

Technical specification
IEC TS 60904-1-2:2019 - Photovoltaic devices - Part 1-2: Measurement of current-voltage characteristics of bifacial photovoltaic (PV) devices
English language
18 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC TS 60904-1-2
Edition 1.0 2019-01
TECHNICAL
SPECIFICATION
colour
inside
Photovoltaic devices –

Part 1-2: Measurement of current-voltage characteristics of bifacial photovoltaic

(PV) devices
IEC TS 60904-1-2:2019-01(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------

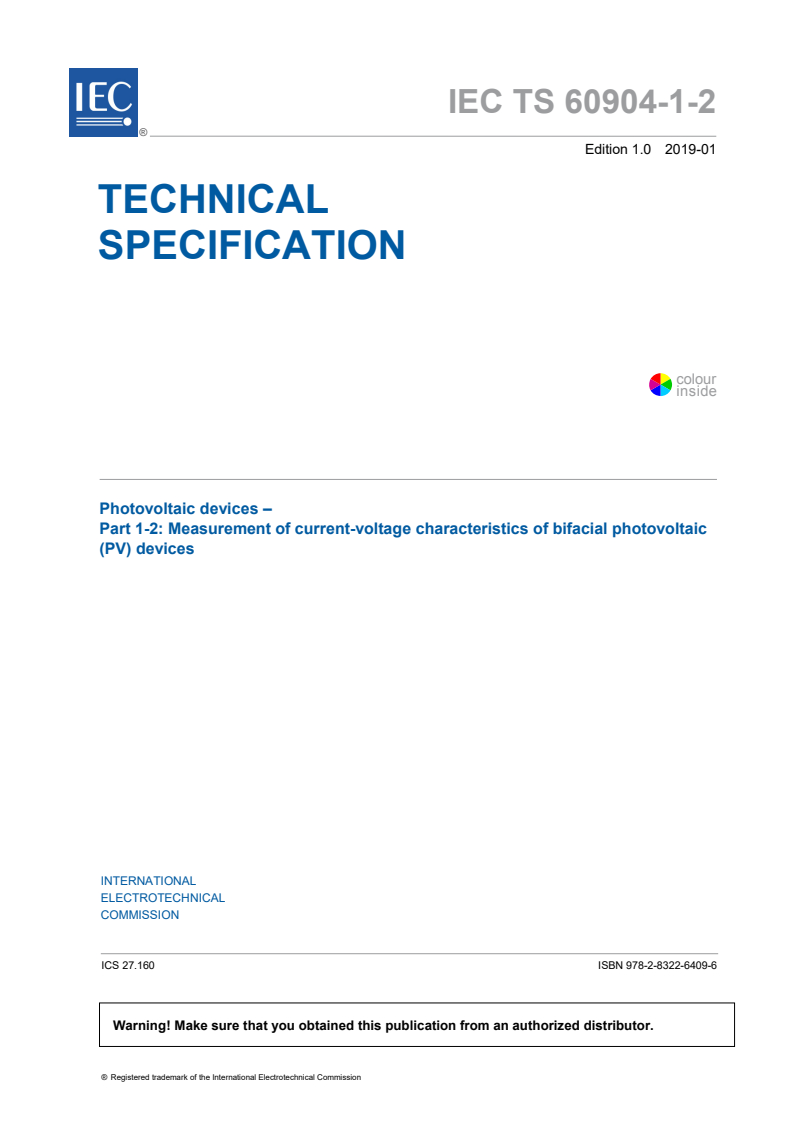

IEC TS 60904-1-2
Edition 1.0 2019-01
TECHNICAL
SPECIFICATION
colour
inside
Photovoltaic devices –

Part 1-2: Measurement of current-voltage characteristics of bifacial photovoltaic

(PV) devices
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 27.160 ISBN 978-2-8322-6409-6

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

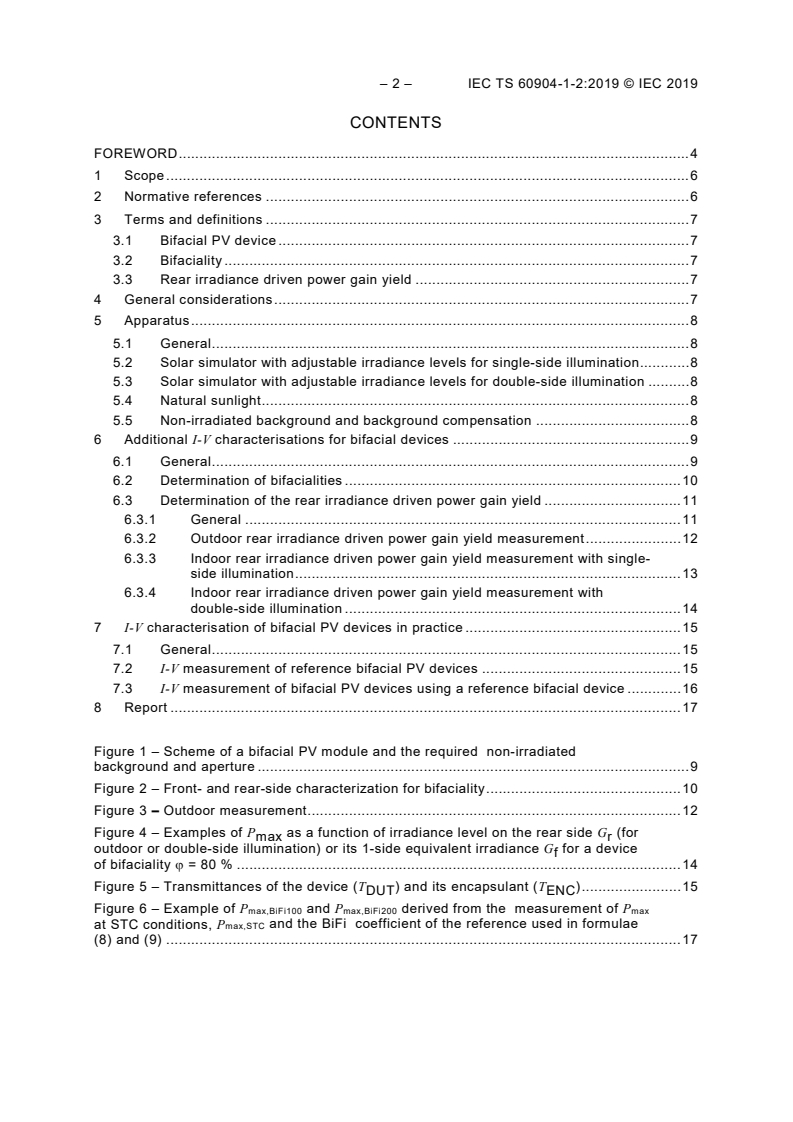

– 2 – IEC TS 60904-1-2:2019 © IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 7

3.1 Bifacial PV device ................................................................................................... 7

3.2 Bifaciality ................................................................................................................ 7

3.3 Rear irradiance driven power gain yield .................................................................. 7

4 General considerations .................................................................................................... 7

5 Apparatus ........................................................................................................................ 8

5.1 General ................................................................................................................... 8

5.2 Solar simulator with adjustable irradiance levels for single-side illumination ............ 8

5.3 Solar simulator with adjustable irradiance levels for double-side illumination .......... 8

5.4 Natural sunlight ....................................................................................................... 8

5.5 Non-irradiated background and background compensation ..................................... 8

6 Additional I-V characterisations for bifacial devices ......................................................... 9

6.1 General ................................................................................................................... 9

6.2 Determination of bifacialities ................................................................................. 10

6.3 Determination of the rear irradiance driven power gain yield ................................. 11

6.3.1 General ......................................................................................................... 11

6.3.2 Outdoor rear irradiance driven power gain yield measurement ....................... 12

6.3.3 Indoor rear irradiance driven power gain yield measurement with single-

side illumination ............................................................................................. 13

6.3.4 Indoor rear irradiance driven power gain yield measurement with

double-side illumination ................................................................................. 14

7 I-V characterisation of bifacial PV devices in practice .................................................... 15

7.1 General ................................................................................................................. 15

7.2 I-V measurement of reference bifacial PV devices ................................................ 15

7.3 I-V measurement of bifacial PV devices using a reference bifacial device ............. 16

8 Report ........................................................................................................................... 17

Figure 1 – Scheme of a bifacial PV module and the required non-irradiated

background and aperture ........................................................................................................ 9

Figure 2 – Front- and rear-side characterization for bifaciality ............................................... 10

Figure 3 – Outdoor measurement .......................................................................................... 12

Figure 4 – Examples of P as a function of irradiance level on the rear side G (for

max r

outdoor or double-side illumination) or its 1-side equivalent irradiance G for a device

of bifaciality ϕ = 80 % ........................................................................................................... 14

Figure 5 – Transmittances of the device (T ) and its encapsulant (T ) ........................ 15

DUT ENC

Figure 6 – Example of Pmax,BiFi100 and Pmax,BiFi200 derived from the measurement of Pmax

at STC conditions, P and the BiFi coefficient of the reference used in formulae
max,STC

(8) and (9) ............................................................................................................................ 17

---------------------- Page: 4 ----------------------
IEC TS 60904-1-2:2019 © IEC 2019 – 3 –
Table 1 – Maximum peak power, P , measured at different rear irradiances, G ,
max r

(double-side with Gf = 1 000) or alternatively equivalent front irradiances, GE, and the

rear irradiance driven power gain yield, BiFi, derived from the slope of the linear fit on

Pmax(G ). Also calculated values Pmax,BiFi100 and Pmax,BiFi200. .................................................... 14

Table 2 – Example of P and P derived from the measurement at STC
max,BiFi100 max,BiFi200

conditions (Gr = 0 and Gf = 1 000) and the rear irradiance driven power gain obtained

from the bifacial reference device, BiFi,ref. ........................................................................... 17

---------------------- Page: 5 ----------------------
– 4 – IEC TS 60904-1-2:2019 © IEC 2019
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PHOTOVOLTAIC DEVICES –
Part 1-2: Measurement of current-voltage characteristics of
bifacial photovoltaic (PV) devices
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a Technical

Specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical Specification are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC TS 60904-1-2, which is a Technical Specification, has been prepared by IEC technical

committee 82: Solar photovoltaic energy systems.
---------------------- Page: 6 ----------------------
IEC TS 60904-1-2:2019 © IEC 2019 – 5 –
The text of this Technical Specification is based on the following documents:
Draft TS Report on voting
82/1403/DTS 82/1508/RVDTS

Full information on the voting for the approval of this Technical Specification can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60904 series, published under the general title Photovoltaic

devices, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC TS 60904-1-2:2019 © IEC 2019
PHOTOVOLTAIC DEVICES –
Part 1-2: Measurement of current-voltage characteristics of
bifacial photovoltaic (PV) devices
1 Scope

This part of IEC 60904 describes procedures for the measurement of the current-voltage (I-V)

characteristics of bifacial photovoltaic devices in natural or simulated sunlight. It is applicable

to single PV cells, sub-assemblies of such cells or entire PV modules.

The requirements for measurement of I-V characteristics of standard (monofacial) PV devices

are covered by IEC 60904-1, whereas this document describes the additional requirements for

the measurement of I-V characteristics of bifacial PV devices.

This document may be applicable to PV devices designed for use under concentrated

irradiation if they are measured without the optics for concentration, and irradiated using

direct normal irradiance and a mismatch correction with respect to a direct normal reference

spectrum is performed.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60891, Photovoltaic devices – Procedures for temperature and irradiance corrections to

measured I-V characteristics

IEC 60904-1, Photovoltaic devices – Part 1: Measurement of photovoltaic current-voltage

characteristics
IEC 60904-2, Photovoltaic devices – Part 2: Requirements for reference devices

IEC 60904-3, Photovoltaic devices – Part 3: Measurement principles for terrestrial

photovoltaic (PV) solar devices with reference spectral irradiance data

IEC 60904-4, Photovoltaic devices – Part 4: Reference solar devices – Procedures for

establishing calibration traceability

IEC 60904-5, Photovoltaic devices – Part 5: Determination of the equivalent cell temperature

(ECT) of photovoltaic (PV) devices by the open-circuit voltage method

IEC 60904-7, Photovoltaic devices – Part 7: Computation of the spectral mismatch correction

for measurements of photovoltaic devices

IEC 60904-8, Photovoltaic devices – Part 8: Measurement of spectral responsivity of a

photovoltaic (PV) device

IEC 60904-9, Photovoltaic devices – Part 9: Solar simulator performance requirements

---------------------- Page: 8 ----------------------
IEC TS 60904-1-2:2019 © IEC 2019 – 7 –
IEC TS 61836, Solar photovoltaic energy systems – Terms, definitions and symbols

IEC TS 62446-3, Photovoltaic (PV) systems - Requirements for testing, documentation and

maintenance - Part 3: Photovoltaic modules and plants - Outdoor infrared thermography

IEC 62788-1-4, Measurement procedures for materials used in photovoltaic modules –

Part 1-4: Encapsulants – Measurement of optical transmittance and calculation of the

solar-weighted photon transmittance, yellowness index, and UV cut-off wavelength
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC TS 61836 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 bifacial PV device

PV device, both surfaces of which (front and rear sides) are used for power generation

3.2 bifaciality

property expressing the ratio between the main characteristics of the rear side and the front

side of a bifacial PV device quantified by specific bifaciality coefficients

Note 1 to entry: Unless otherwise specified, the bifacialities are typically referred to Standard Test Conditions

STC. The main bifacialities are:
Short-circuit current bifaciality: ϕ
ISC
– Open-circuit voltage bifaciality: ϕ
VOC
Maximum power bifaciality: ϕ
Pmax.
3.3 rear irradiance driven power gain yield
BiFi

quantity which indicates the power gain, in addition to that obtained at STC conditions, per

unit of rear irradiance
Note 1 to entry: It is expressed in W/(Wm ).
4 General considerations

The final performance of bifacial PV devices in a power plant depends not only on the spatial

distribution of the irradiance incident onto the front surface, but additionally on that incident

onto rear surface of the device, which is strongly affected by site-specific conditions, such as

albedo, reflective surface size, the racking system, the device’s elevation and its tilt angle.

Due to these dependences and in order to obtain comparable measurement results, I-V

characterisation is extended to quantify the bifaciality of the device and the rear irradiance

driven power gain yield it can yield. Bifaciality is an intrinsic property of the device, unlike the

site-specific conditions such as albedo. The measurement conditions for bifacial devices

should strive to generate extra photocurrent proportional to their bifaciality. In general, this

can be achieved with a test spectrum close to the reference spectrum such as provided by

natural sunlight under suitable conditions or with a solar simulator whose irradiance level is

---------------------- Page: 9 ----------------------
– 8 – IEC TS 60904-1-2:2019 © IEC 2019

adjustable. However, measurement conditions will never be perfect and will deviate from the

reference conditions. This document sets limits on the permissible deviations for obtaining

valid measurements. Smaller deviations are preferable, but may not be achievable in all

cases. In any case, the deviations of the measurement conditions from the reference

conditions shall be accounted for in the analysis of measurement uncertainty.
5 Apparatus
5.1 General

In addition to the apparatus requirements described in IEC 60904-1, one of the equipment

sets described in 5.2, 5.3 and 5.4 and that described in 5.5 is necessary for the

characterisation of bifacial devices.

5.2 Solar simulator with adjustable irradiance levels for single-side illumination

A solar simulator, as defined in IEC 60904-9, with adjustable irradiance level shall be used for

the I-V characterisation of bifacial devices. Simulators shall be able to provide irradiance

-2 -2

levels above 1 000 Wm (typically up to 1 200 Wm ). The simulator’s non-uniformity of

irradiance shall be below 5 % and shall remain below this value at irradiance levels used for

the characterisation of bifacial devices. The non-uniformity of irradiance, the spectral

distribution and the temporal instabilities of irradiance shall be measured at the irradiance

levels used for the characterisation of bifacial devices and those values used for corrections

(such as spectral mismatch correction) and uncertainty evaluation.

For irradiances used above STC (>1 000 Wm ), the spatial uniformity, spectral distribution

-2 -2
and temporal instability at 1 100 Wm and 1 200 Wm shall be measured.
5.3 Solar simulator with adjus
...
