Multimedia systems and equipment for vehicles - Surround view system - Part 3: Measurement methods

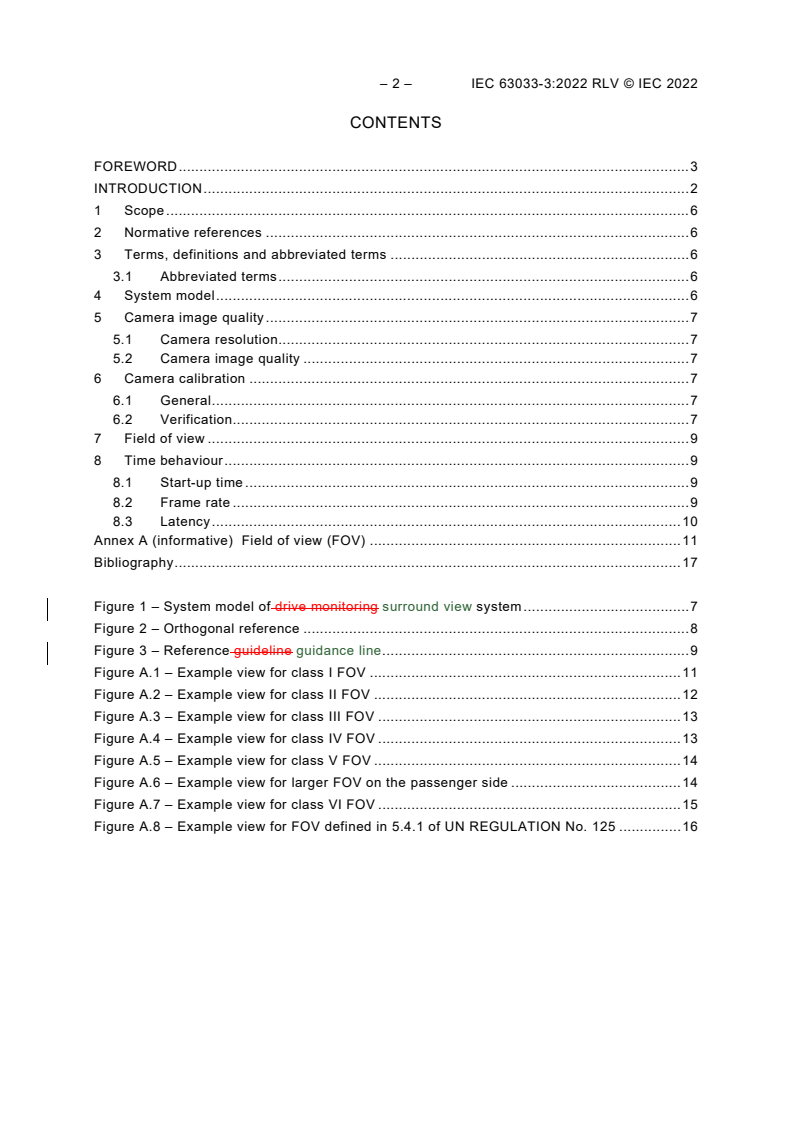

IEC 63033-3:2022 is available as IEC 63033-3:2022 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 63033-3:2022 specifies measurement methods for the surround view system specified in IEC 63033-1. IEC 63033-3:2022 cancels and replaces the first edition published in 2019. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) updates to the text and the title to reflect the change of the scope of the IEC 63033 series.

Systèmes et équipements multimédias pour véhicules - Système de vision panoramique - Partie 3: Méthodes de mesurage

IEC 63033-3:2022 est disponible sous forme de IEC 63033-3:2022 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.L'IEC 63033-3:2022 spécifie les méthodes de mesurage pour le système de vision panoramique spécifié dans l'IEC 63033-1. L'IEC 63033-3:2022 annule et remplace la première édition parue en 2019. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) mises à jour du texte et du titre afin de refléter la modification du domaine d'application de la série IEC 63033.

General Information

Status
Published
Publication Date
19-Apr-2022
Current Stage
PPUB - Publication issued
Completion Date
20-Apr-2022
Ref Project

Buy Standard

Standard
IEC 63033-3:2022 - Multimedia systems and equipment for vehicles - Surround view system - Part 3: Measurement methods
English and French language
33 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 63033-3
Edition 2.0 2022-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Multimedia systems and equipment for vehicles – Surround view system –
Part 3: Measurement methods
Systèmes et équipements multimédias pour véhicules – Système de vision
panoramique –
Partie 3: Méthodes de mesurage
IEC 63033-3:2022-04(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always have

committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez

webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un

La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour

en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.

comité d’études, …). Elle donne aussi des informations sur les

projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch
---------------------- Page: 2 ----------------------
IEC 63033-3
Edition 2.0 2022-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Multimedia systems and equipment for vehicles – Surround view system –
Part 3: Measurement methods
Systèmes et équipements multimédias pour véhicules – Système de vision
panoramique –
Partie 3: Méthodes de mesurage
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160.60; 43.040.10; 43.040.15 ISBN 978-2-8322-1095-2

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 63033-3:2022 © IEC 2022

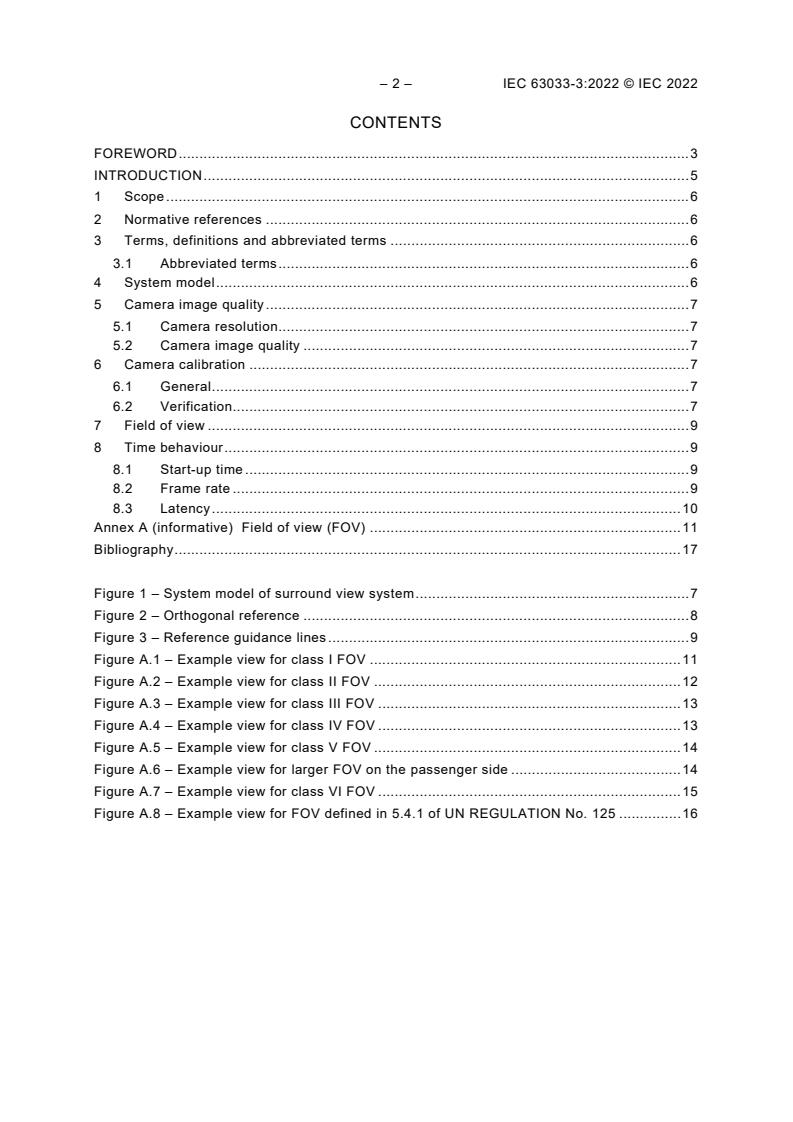

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and abbreviated terms ........................................................................ 6

3.1 Abbreviated terms ................................................................................................... 6

4 System model .................................................................................................................. 6

5 Camera image quality ...................................................................................................... 7

5.1 Camera resolution................................................................................................... 7

5.2 Camera image quality ............................................................................................. 7

6 Camera calibration .......................................................................................................... 7

6.1 General ................................................................................................................... 7

6.2 Verification.............................................................................................................. 7

7 Field of view .................................................................................................................... 9

8 Time behaviour ................................................................................................................ 9

8.1 Start-up time ........................................................................................................... 9

8.2 Frame rate .............................................................................................................. 9

8.3 Latency ................................................................................................................. 10

Annex A (informative) Field of view (FOV) ........................................................................... 11

Bibliography .......................................................................................................................... 17

Figure 1 – System model of surround view system .................................................................. 7

Figure 2 – Orthogonal reference ............................................................................................. 8

Figure 3 – Reference guidance lines ....................................................................................... 9

Figure A.1 – Example view for class I FOV ........................................................................... 11

Figure A.2 – Example view for class II FOV .......................................................................... 12

Figure A.3 – Example view for class III FOV ......................................................................... 13

Figure A.4 – Example view for class IV FOV ......................................................................... 13

Figure A.5 – Example view for class V FOV .......................................................................... 14

Figure A.6 – Example view for larger FOV on the passenger side ......................................... 14

Figure A.7 – Example view for class VI FOV ......................................................................... 15

Figure A.8 – Example view for FOV defined in 5.4.1 of UN REGULATION No. 125 ............... 16

---------------------- Page: 4 ----------------------
IEC 63033-3:2022 © IEC 2022 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MULTIMEDIA SYSTEMS AND EQUIPMENT FOR VEHICLES –
SURROUND VIEW SYSTEM –
Part 3: Measurement methods
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 63033-3 has been prepared by technical area 17: Multimedia systems and equipment for

vehicles, of IEC technical committee 100: Audio, video and multimedia systems and equipment.

It is an International Standard.

This second edition cancels and replaces the first edition published in 2019. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) updates to the text and the title to reflect the change of the scope of the IEC 63033 series.

---------------------- Page: 5 ----------------------
– 4 – IEC 63033-3:2022 © IEC 2022
The text of this International Standard is based on the following documents:
Draft Report on voting
100/3734/FDIS 100/3753/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.

A list of all parts in the IEC 63033 series, published under the general title Multimedia systems

and equipment for vehicles – Surround view system, can be found on the IEC website.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 6 ----------------------
IEC 63033-3:2022 © IEC 2022 – 5 –
INTRODUCTION

This document specifies measurement methods for the surround view system specified in

IEC 63033-1, which also specifies the model for generating the surrounding visual image of a

surround view system. The system allows drivers to monitor the car’s perimeter in real time by

using “free eye point” technology, which allows drivers to dynamically change the viewing

perspective to obtain the most appropriate views according to the driving situation.

---------------------- Page: 7 ----------------------
– 6 – IEC 63033-3:2022 © IEC 2022
MULTIMEDIA SYSTEMS AND EQUIPMENT FOR VEHICLES –
SURROUND VIEW SYSTEM –
Part 3: Measurement methods
1 Scope

This document specifies measurement methods for the surround view system specified in

IEC 63033-1.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 63033-1:2022, Multimedia systems and equipment for vehicles – Surround view system –

Part 1: General

ISO 16505:2019, Road vehicles – Ergonomic and performance aspects of Camera Monitor

Systems – Requirements and test procedures

UN Regulation No. 46, Uniform provisions concerning the approval of devices for indirect vision

and of motor vehicles with regards to the installation of these devices

UN Regulation No. 125, Uniform provisions concerning the approval of motor vehicles with

regards to the forward field of vision of the motor vehicle driver
3 Terms, definitions and abbreviated terms
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Abbreviated terms
FOV field of view
4 System model

A surround view system shall generate multiple camera composite images and/or single camera

images, using cameras that are mounted on the outside the car. The system model of the

surround view system is described in Figure 1. The views to be generated by this system shall

capture the fields of view specified in Clause 7. This system shall generate multiple views

according to the fields of view to be secured. For measurement methods, the system shall refer

to ISO 16505 and UN Regulation No. 46. However, the system itself does not need to comply

with ISO 16505 and UN Regulation No. 46.
---------------------- Page: 8 ----------------------
IEC 63033-3:2022 © IEC 2022 – 7 –
Figure 1 – System model of surround view system
5 Camera image quality
5.1 Camera resolution
The resolution of the camera shall be 300 000 pixels or more.
5.2 Camera image quality

The camera's image quality shall comply with ISO 16505:2019, 6.7, and shall be measured as

specified in ISO 16505:2019, 7.8. The monitor's image quality shall comply with

ISO 16505:2019, 6.7, and shall be measured as specified in ISO 16505:2019, 7.8, as well. For

the measurement of the camera's image quality, a monitor satisfying the requirements in the

previous sentence shall be used.
6 Camera calibration
6.1 General

The calibration of the camera shall be performed as specified in IEC 63033-1:2022, Annex C.

6.2 Verification

Draw an orthogonal frame at a distance of 1,5 m from the outline of the vehicle; this frame is to

be captured within the camera's image. This frame is shown in Figure 2 and can be seen on the

captured camera image. The guidance lines shown in Figure 3 representing the frame 1,5 m

around the car's body that is later drawn on the composite video shall match up within a

tolerance of 10 cm.
---------------------- Page: 9 ----------------------
– 8 – IEC 63033-3:2022 © IEC 2022
Dimension in metres
Figure 2 – Orthogonal reference
---------------------- Page: 10 ----------------------
IEC 63033-3:2022 © IEC 2022 – 9 –
Dimension in metres
Figure 3 – Reference guidance lines
7 Field of view

The field of view of the system is the visible area displayed by composite images (i.e. from the

multiple cameras composing the system) or the image captured by any single camera that is

then converted and displayed. If the target of the application of this system is to replace an

existing type approval that is required for vehicular equipment, it shall follow the respective

regulation. For example, the FOV shall capture the respective FOV defined in UN Regulations

No. 46 and No. 125 (Class I to VI) if the system is intended to be used in such an application.

The details are described in Annex A. The compulsory or optional FOV shall follow the

requirement specified in the table under paragraph 15.2.1.1.1. in UN Regulation No. 46.

8 Time behaviour
8.1 Start-up time

The manufacturer of the camera ECU shall provide information of the start-up time of the system.

The start-up time means the time from powering on the ignition to the initial composite view

being displayed on the monitor. The start-up time shall be 7 s or less. The start-up time shall

be measured as specified in ISO 16505:2019, 7.3.
8.2 Frame rate

The manufacturer of the camera ECU shall provide information on the frame rate of the system.

The frame rate shall be more than 15 fps. The frame rate shall be measured as specified in

ISO 16505:2019, 7.9.1.
---------------------- Page: 11 ----------------------
– 10 – IEC 63033-3:2022 © IEC 2022
8.3 Latency

The camera's ECU should have a sufficiently short latency to render the image to display at

nearly the same time as the camera image is captured. The latency is the time difference from

when a light is captured by the camera until the time it becomes visible to the display. The

latency shall be lower than 200 ms and shall be measured as specified in ISO 16505:2019,

7.9.3.
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
