IEC 60598-2-22:2021
(Main)Luminaires - Part 2-22: Particular requirements - Luminaires for emergency lighting
Luminaires - Part 2-22: Particular requirements - Luminaires for emergency lighting
IEC 60598-2-22:2021 specifies requirements for emergency luminaires for use with electrical lamps on emergency power supplies not exceeding 1 000 V. This fifth edition cancels and replaces the fourth edition published in 2014 and Amendment 1:2017. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- update of requirements for rest mode and inhibiting mode;
- clarification of high temperature operation tests;
- introduction of new requirements for lithium batteries;
- introduction of new requirements for electric double layer capacitors (EDLCs);
- clarification of resistance to heat, fire and tracking;
- clarification of test facilities for self-contained luminaires;
- clarification of the test method for contrast measurements of exit signs.
Luminaires - Partie 2-22: Exigences particulières - Luminaires pour éclairage de secours
L'IEC 60598-2-22:2021 spécifie les exigences applicables aux luminaires d'éclairage de secours à utiliser avec des lampes électriques sur des alimentations de secours qui ne dépassent pas 1 000 V. Cette cinquième édition annule et remplace la quatrième édition parue en 2014 et l'Amendement 1:2017. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- mise à jour des exigences relatives à l'état de repos et l'état de neutralisation;
- clarification des essais de fonctionnement à température élevée;
- introduction de nouvelles exigences pour les batteries au lithium;
- introduction de nouvelles exigences pour les condensateurs électriques à double couche (EDLC);
- clarification de la résistance à la chaleur, au feu et aux courants de cheminement;
- clarification des dispositifs d'essai pour les blocs autonomes;
- clarification de la méthode d'essai pour les mesures du contraste des signaux de sortie.
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 60598-2-22 ®
Edition 5.0 2021-12
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Luminaires –
Part 2-22: Particular requirements – Luminaires for emergency lighting
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60598-2-22 ®
Edition 5.0 2021-12
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Luminaires –
Part 2-22: Particular requirements – Luminaires for emergency lighting
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.140.40 ISBN 978-2-8322-4256-8
– 2 – IEC 60598-2-22:2021 RLV © IEC 2021

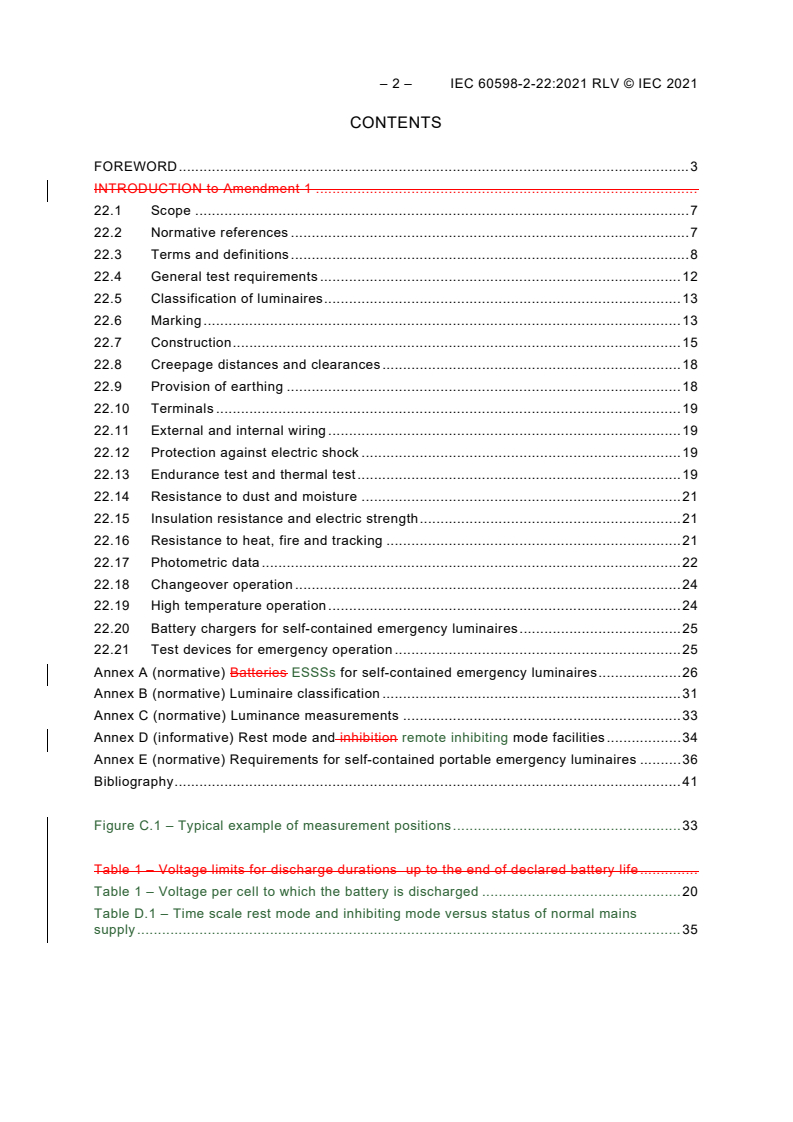

CONTENTS
FOREWORD . 3
INTRODUCTION to Amendment 1 .
22.1 Scope . 7
22.2 Normative references . 7
22.3 Terms and definitions . 8
22.4 General test requirements . 12
22.5 Classification of luminaires . 13
22.6 Marking . 13
22.7 Construction . 15
22.8 Creepage distances and clearances . 18
22.9 Provision of earthing . 18
22.10 Terminals . 19
22.11 External and internal wiring . 19
22.12 Protection against electric shock . 19
22.13 Endurance test and thermal test . 19
22.14 Resistance to dust and moisture . 21
22.15 Insulation resistance and electric strength . 21
22.16 Resistance to heat, fire and tracking . 21
22.17 Photometric data . 22
22.18 Changeover operation . 24
22.19 High temperature operation . 24
22.20 Battery chargers for self-contained emergency luminaires . 25
22.21 Test devices for emergency operation . 25
Annex A (normative) Batteries ESSSs for self-contained emergency luminaires . 26
Annex B (normative) Luminaire classification . 31
Annex C (normative) Luminance measurements . 33
Annex D (informative) Rest mode and inhibition remote inhibiting mode facilities . 34
Annex E (normative) Requirements for self-contained portable emergency luminaires . 36
Bibliography . 41
Figure C.1 – Typical example of measurement positions . 33
Table 1 – Voltage limits for discharge durations up to the end of declared battery life .
Table 1 – Voltage per cell to which the battery is discharged . 20
Table D.1 – Time scale rest mode and inhibiting mode versus status of normal mains
supply . 35
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-22: Particular requirements –
Luminaires for emergency lighting
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes made to
the previous edition IEC 60598-2-22:2014+AMD1:2017 CSV. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in strikethrough
red text.
– 4 – IEC 60598-2-22:2021 RLV © IEC 2021
IEC 60598-2-22 has been prepared by subcommittee 34D: Luminaires of IEC technical
committee 34: Lighting. It is an International Standard.
This fifth edition cancels and replaces the fourth edition published in 2014 and
Amendment 1:2017. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) update of requirements for rest mode and inhibiting mode;
b) clarification of high temperature operation tests;
c) introduction of new requirements for lithium batteries;
d) introduction of new requirements for electric double layer capacitors (EDLCs);
e) clarification of resistance to heat, fire and tracking;
f) clarification of test facilities for self-contained luminaires;
g) clarification of the test method for contrast measurements of exit signs.
The text of this International Standard is based on the following documents:
Draft Report on voting
34D/1635/FDIS 34D/1642/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.ch/standardsdev/publications.
This Part 2-22 is to be used in conjunction with the latest edition of IEC 60598-1 and its
amendment(s). It was established on the basis of the ninth edition (2020) of that standard.
NOTE 1 When "Part 1" is mentioned in this document, it refers to IEC 60598-1.
NOTE 2 In this document, the following print type is used:
– compliance statements: in italic type.
A list of all parts in the IEC 60598 series, published under the general title Luminaires, can be
found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.
– 6 – IEC 60598-2-22:2021 RLV © IEC 2021
INTRODUCTION to Amendment 1
The light output of LED light sources depends also on the temperature at which it is operated.
Typically the temperature is controlled by a heat sink on which it is mounted (e.g. luminaire
surface).
For this reason, the calculation of the ratio of the electrical parameter (EOF ) will be
x
introduced in the LED controlgear standards IEC 61347-2-13 and IEC 61347-2-7, as the direct
measurement of EBLF is not practicable.
In particular EOF is defined as the ratio of the current in emergency mode from constant
I
current controlgear divided by the nominal current of LED (I ):
normal mode
EOF = I / I
I emergency normal mode
Knowing that the light output of an LED light source is nearly directly proportional with the
foreward current flowing through it, it is possible to calculate the luminous flux of the luminaire
in emergency mode by using the EOF or I from constant current controlgear
.
I emergency
This document contains a
...
IEC 60598-2-22 ®
Edition 5.0 2021-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-22: Particular requirements – Luminaires for emergency lighting
Luminaires –
Partie 2-22: Exigences particulières – Luminaires pour éclairage de secours
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 60598-2-22 ®
Edition 5.0 2021-12
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaires –
Part 2-22: Particular requirements – Luminaires for emergency lighting
Luminaires –
Partie 2-22: Exigences particulières – Luminaires pour éclairage de secours
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.40 ISBN 978-2-8322-1053-8
– 2 – IEC 60598-2-22:2021 © IEC 2021
CONTENTS
FOREWORD . 3
22.1 Scope . 5
22.2 Normative references . 5
22.3 Terms and definitions . 6
22.4 General test requirements . 10
22.5 Classification of luminaires . 11
22.6 Marking . 11
22.7 Construction . 13
22.8 Creepage distances and clearances . 16
22.9 Provision of earthing . 16
22.10 Terminals . 16
22.11 External and internal wiring . 16
22.12 Protection against electric shock . 17
22.13 Endurance test and thermal test . 17
22.14 Resistance to dust and moisture . 19
22.15 Insulation resistance and electric strength . 19
22.16 Resistance to heat, fire and tracking . 19
22.17 Photometric data . 20
22.18 Changeover operation . 21
22.19 High temperature operation . 21
22.20 Battery chargers for self-contained emergency luminaires . 22
22.21 Test devices for emergency operation . 22
Annex A (normative) ESSSs for self-contained emergency luminaires . 23
Annex B (normative) Luminaire classification . 28
Annex C (normative) Luminance measurements . 30
Annex D (informative) Rest mode and remote inhibiting mode facilities . 31
Annex E (normative) Requirements for self-contained portable emergency luminaires . 33
Bibliography . 38
Figure C.1 – Typical example of measurement positions . 30
Table 1 – Voltage per cell to which the battery is discharged . 18
Table D.1 – Time scale rest mode and inhibiting mode versus status of normal mains
supply . 31
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRES –
Part 2-22: Particular requirements –
Luminaires for emergency lighting
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60598-2-22 has been prepared by subcommittee 34D: Luminaires of IEC technical
committee 34: Lighting. It is an International Standard.
This fifth edition cancels and replaces the fourth edition published in 2014 and
Amendment 1:2017. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) update of requirements for rest mode and inhibiting mode;
b) clarification of high temperature operation tests;
c) introduction of new requirements for lithium batteries;
d) introduction of new requirements for electric double layer capacitors (EDLCs);
– 4 – IEC 60598-2-22:2021 © IEC 2021
e) clarification of resistance to heat, fire and tracking;
f) clarification of test facilities for self-contained luminaires;
g) clarification of the test method for contrast measurements of exit signs.
The text of this International Standard is based on the following documents:
Draft Report on voting
34D/1635/FDIS 34D/1642/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement,
available at www.iec.ch/members_experts/refdocs. The main document types developed by
IEC are described in greater detail at www.iec.c
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
