IEC 61784-5-19:2024

Industrial networks - Profiles - Part 5-19: Installation of fieldbuses - Installation profiles for CPF 19

IEC 61784-5-19:2024 specifies the installation profile for CPF 19 (MECHATROLINKTM[1]). The installation profiles are specified in the annexes. These annexes are read in conjunction with IEC 61918:2018, IEC 61918:2018/AMD1:2022 and IEC 61918:2018/AMD2:2024.
[1] MECHATROLINKTM and Σ-LINKTM II are trade names of YASKAWA ELECTRIC CORPORATION. This information is given for the convenience of users of this document and does not constitute an endorsement by IEC of the trade names holder or any of its products. Compliance to this profile does not require use of the trade names. Use of the trade name requires permission of the trade name holder.

Réseaux industriels - Profils - Partie 5-19: Installation des bus de terrain - Profils d'installation pour CPF 19

L’IEC 61784-5-19:2024 définit les profils d’installation pour la CPF 19 (MECHATROLINKTM[1]). Les profils d’installation sont spécifiés dans les annexes. Ces annexes doivent être utilisées conjointement avec l’IEC 61918:2018, l’IEC 61918:2018/AMD1:2022 et l’IEC 61918:2018/AMD2:2024.
[1] MECHATROLINKTM et Σ-LINKTM II sont des appellations commerciales de YASKAWA ELECTRIC CORPORATION. Cette information est donnée à l’intention des utilisateurs du présent document et ne signifie nullement que l’IEC approuve ou recommande l’organisation détentrice de l’appellation commerciale, ni un quelconque de ses produits. La conformité n’exige pas l’utilisation des appellations commerciales. L’utilisation de l’appellation commerciale exige l’autorisation du détenteur de celle-ci.

General Information

• Status: Published
• Publication Date: 02-Apr-2024
• ICS: 25.040.40 - Industrial process measurement and control
• ICS: 35.100.40 - Transport layer
• Technical Committee: SC 65C - Industrial networks
• Drafting Committee: JWG 10 - TC 65/SC 65C/JWG 10
• Current Stage: PPUB - Publication issued
• Start Date: 03-Apr-2024
• Completion Date: 22-Mar-2024

Relations

• Revises: IEC 61784-5-19:2013 - Industrial communication networks - Profiles - Part 5-19: Installation of fieldbuses - Installation profiles for CPF 19
• Effective Date: 05-Sep-2023

Overview - IEC 61784-5-19:2024 (CPF 19 | MECHATROLINK)

IEC 61784-5-19:2024 specifies installation profiles for CPF 19, covering fieldbus installation requirements for MECHATROLINK™ technologies (CPF 19). The standard organizes detailed guidance in normative annexes and is to be read in conjunction with IEC 61918:2018 and its amendments (AMD1:2022, AMD2:2024). It focuses on practical, on‑site topics such as cabling selection, connector and terminator installation, earthing, verification and acceptance testing, and ongoing maintenance.

Note: MECHATROLINK™ and Σ‑LINK™ II are trade names of YASKAWA ELECTRIC CORPORATION; use of the trade name requires permission from the trade name holder. Compliance to this profile does not require use of those trade names.

Key topics and technical requirements

• Installation planning: network topology options (including repeaters), planning requirements and documentation needed for CPF 19 deployments.
• Cabling and components: selection and use of cable types, cable structure considerations, shielded cabling, and recommended cabling practices.
• Connectors and terminators: installation requirements for single‑ and dual‑port device connectors, cable connectors with/without inductors, and correct terminator placement.
• Device installation: mechanical and electrical installation guidance for field devices and ports.
• Earthing and bonding: grounding practices for equipment, devices and cable shields to minimize interference and ensure reliable communications.
• Verification and acceptance testing: procedures for installation verification and installation acceptance tests to validate cabling, connectivity and network capability.
• Documentation and administration: requirements for cabling planning records, “as‑implemented” documentation, coding/labeling and installation administration.
• Maintenance and troubleshooting: recommended maintenance practices and specific troubleshooting steps for CPF 19 networks.

Practical applications - who uses this standard

• System integrators and automation engineers deploying MECHATROLINK fieldbus networks.
• OEMs and machine builders specifying reliable fieldbus installations and acceptance criteria.
• Installation technicians and electrical contractors implementing cabling, connectors and terminators.
• Maintenance teams and technical support staff performing verification, diagnostics and long‑term upkeep.
• Procurement and compliance teams referencing installation profiles for conformance and quality assurance.

Related standards

• IEC 61918:2018 (and AMD1:2022, AMD2:2024) - normative references providing protocol and electrical details for CPF 19 implementations.
• Other parts of the IEC 61784 series - for additional industrial network profiles and communication-system requirements.

By following IEC 61784-5-19:2024, organizations ensure consistent, tested installation practices for CPF 19 fieldbuses, improving network reliability, ease of maintenance and interoperability across industrial automation systems.

Standards Content (Sample)

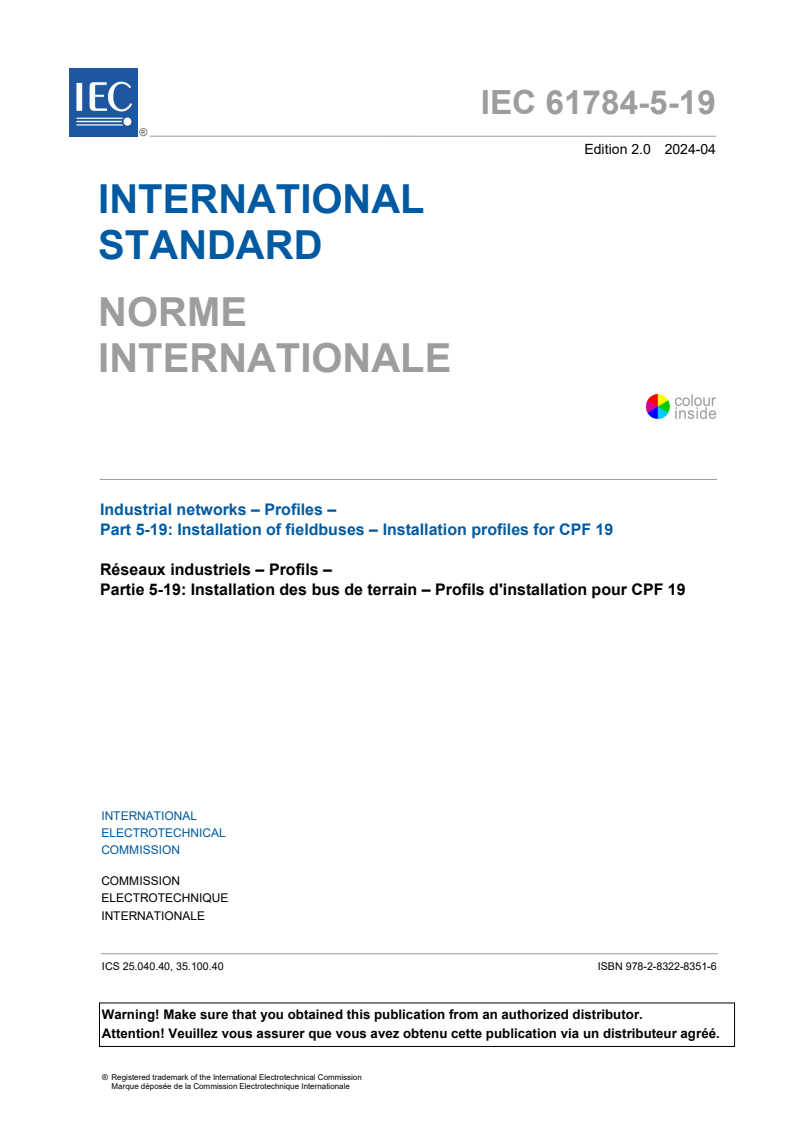

IEC 61784-5-19 ®
Edition 2.0 2024-04
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Profiles –
Part 5-19: Installation of fieldbuses – Installation profiles for CPF 19

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61784-5-19 ®
Edition 2.0 2024-04
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Profiles –
Part 5-19: Installation of fieldbuses – Installation profiles for CPF 19
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.100.40 ISBN 978-2-8322-8697-5
– 2 – IEC 61784-5-19:2024 RLV © IEC 2024

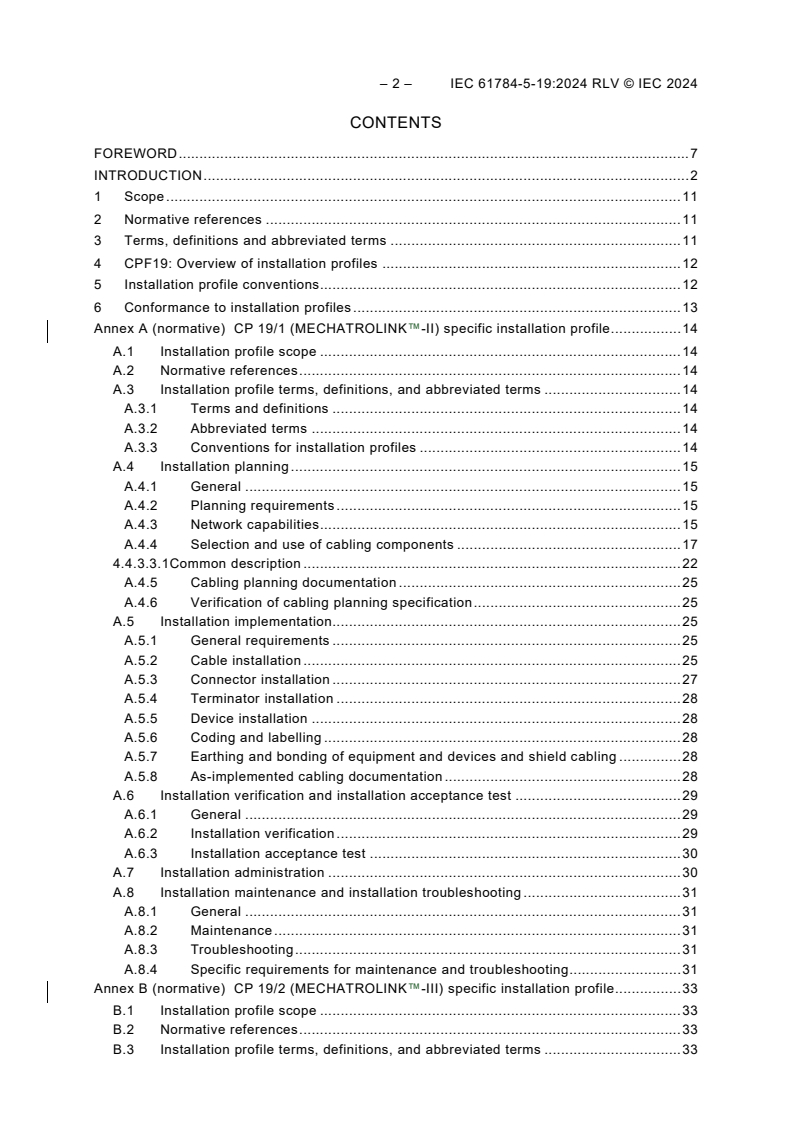

CONTENTS
