IEC TR 60286-3-4
Edition 1.0 2021-10
TECHNICAL
REPORT
colour
inside
Packaging of components for automatic handling –
Part 3-4: Packaging of surface mount components on continuous embossed
tapes for Auto Loading Feeder
IEC TR 60286-3-4:2021-10(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC TR 60286-3-4
Edition 1.0 2021-10
TECHNICAL
REPORT
colour
inside
Packaging of components for automatic handling –
Part 3-4: Packaging of surface mount components on continuous embossed
tapes for Auto Loading Feeder
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.020; 31.240 ISBN 978-2-8322-1041-4

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

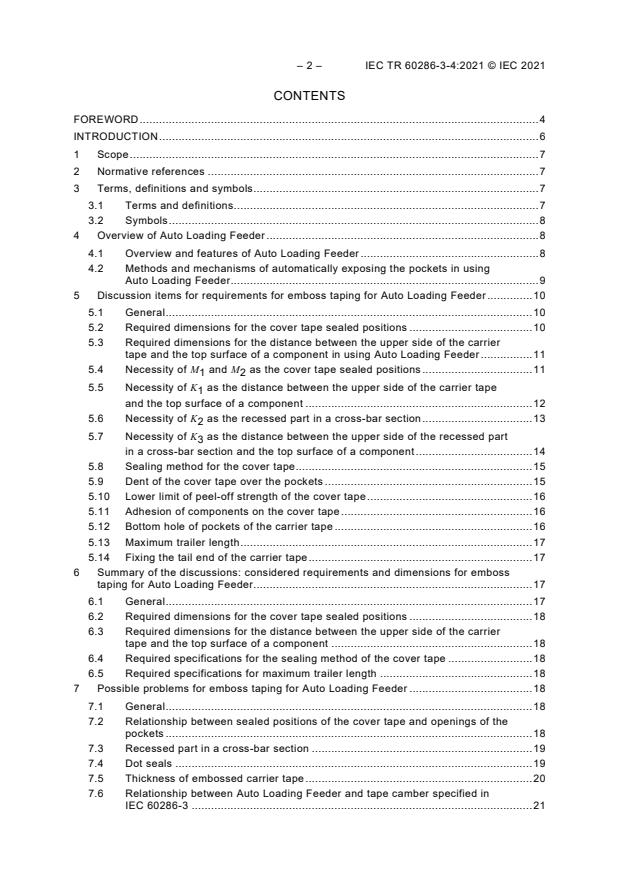

– 2 – IEC TR 60286-3-4:2021 © IEC 2021
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms, definitions and symbols........................................................................................ 7

3.1 Terms and definitions .............................................................................................. 7

3.2 Symbols .................................................................................................................. 8

4 Overview of Auto Loading Feeder .................................................................................... 8

4.1 Overview and features of Auto Loading Feeder ....................................................... 8

4.2 Methods and mechanisms of automatically exposing the pockets in using

Auto Loading Feeder............................................................................................... 9

5 Discussion items for requirements for emboss taping for Auto Loading Feeder .............. 10

5.1 General ................................................................................................................. 10

5.2 Required dimensions for the cover tape sealed positions ...................................... 10

5.3 Required dimensions for the distance between the upper side of the carrier

tape and the top surface of a component in using Auto Loading Feeder ................ 11

5.4 Necessity of M and M as the cover tape sealed positions .................................. 11

1 2
5.5 Necessity of K as the distance between the upper side of the carrier tape

and the top surface of a component ...................................................................... 12

5.6 Necessity of K as the recessed part in a cross-bar section .................................. 13

5.7 Necessity of K as the distance between the upper side of the recessed part

in a cross-bar section and the top surface of a component .................................... 14

5.8 Sealing method for the cover tape ......................................................................... 15

5.9 Dent of the cover tape over the pockets ................................................................ 15

5.10 Lower limit of peel-off strength of the cover tape ................................................... 16

5.11 Adhesion of components on the cover tape ........................................................... 16

5.12 Bottom hole of pockets of the carrier tape ............................................................. 16

5.13 Maximum trailer length .......................................................................................... 17

5.14 Fixing the tail end of the carrier tape ..................................................................... 17

6 Summary of the discussions: considered requirements and dimensions for emboss

taping for Auto Loading Feeder...................................................................................... 17

6.1 General ................................................................................................................. 17

6.2 Required dimensions for the cover tape sealed positions ...................................... 18

6.3 Required dimensions for the distance between the upper side of the carrier

tape and the top surface of a component .............................................................. 18

6.4 Required specifications for the sealing method of the cover tape .......................... 18

6.5 Required specifications for maximum trailer length ............................................... 18

7 Possible problems for emboss taping for Auto Loading Feeder ...................................... 18

7.1 General ................................................................................................................. 18

7.2 Relationship between sealed positions of the cover tape and openings of the

pockets ................................................................................................................. 18

7.3 Recessed part in a cross-bar section .................................................................... 19

7.4 Dot seals .............................................................................................................. 19

7.5 Thickness of embossed carrier tape ...................................................................... 20

7.6 Relationship between Auto Loading Feeder and tape camber specified in

IEC 60286-3 ......................................................................................................... 21

---------------------- Page: 4 ----------------------
IEC TR 60286-3-4:2021 © IEC 2021 – 3 –

Annex A (informative) Methods and mechanisms of automatically exposing pockets

in using Auto Loading Feeder ............................................................................................... 22

A.1 General ................................................................................................................. 22

A.2 Single-door method ............................................................................................... 22

A.3 Double-door method ............................................................................................. 22

Annex B (informative) Glossary ........................................................................................... 24

Bibliography .......................................................................................................................... 26

Figure 1 – Specified dimensions for emboss taping for Auto Loading Feeder .......................... 8

Figure 2 – Operation and features when another tape is re-supplied automatically by

the Auto Loading Feeder ......................................................................................................... 9

Figure 3 – Example of a part of embossed carrier tape with a recessed part in a cross-

bar section ............................................................................................................................ 13

Figure 4 – Relationship between the cover tape and the exposure processing

mechanism of the pocket ...................................................................................................... 13

Figure 5 – Relationship between the exposure processing mechanism of the pocket

and convex of carrier tape .................................................................................................... 14

Figure 6 – Example dent of the cover tape over the pocket ................................................... 15

Figure 7 – Leader part and trailer part ................................................................................... 18

Figure 8 – Dimension B and sealed positions ...................................................................... 19

Figure 9 – Example of dot seal.............................................................................................. 20

Figure 10 – Relationship between embossed carrier tape thickness and component

exposure process ................................................................................................................. 21

Figure 11 – Tape camber (top view) ...................................................................................... 21

Figure A.1 – Overview of the single-door method .................................................................. 22

Figure A.2 – Overview of the double-door method ................................................................. 23

Table 1 – Symbols used in figures and tables ......................................................................... 8

Table 2 – The cover tape sealed positions required for emboss taping for Auto

Loading Feeder ..................................................................................................................... 11

Table 3 – Distance between the upper side of the carrier tape and the top surface of a

component required for emboss taping for Auto Loading Feeder ........................................... 11

Table B.1 – Glossary of mounter and feeder related terms .................................................... 24

---------------------- Page: 5 ----------------------
– 4 – IEC TR 60286-3-4:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –
Part 3-4: Packaging of surface mount components
on continuous embossed tapes for Auto Loading Feeder
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC TR 60286-3-4 has been prepared by IEC technical committee 40: Capacitors and resistors

for electronic equipment. It is a Technical Report.
The text of this Technical Report is based on the following documents:
Draft Report on voting
40/2844/DTR 40/2866/RVDTR

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this Technical Report is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

---------------------- Page: 6 ----------------------
IEC TR 60286-3-4:2021 © IEC 2021 – 5 –

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts in the IEC 60286 series, published under the general title Packaging of

components for automatic handling, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 7 ----------------------
– 6 – IEC TR 60286-3-4:2021 © IEC 2021
INTRODUCTION

This Technical Report was developed by the technical committee 40 working group 36 on

components packaging, in which the members, such as mounter manufacturers, component

manufacturers and packaging material manufacturers, had proposed, considered and discussed

the possible standardization of the application of Auto Loading Feeder to enable automatically

exchange SMD continuous tapes, using paper carrier tape during mounter operation, aiming to

support IEC 60286-3, Edition 6, issued in 2019.

This document includes data expressed in the form of provisions, such as requirements or

recommendations. These data, however, do not claim to be provisions and are just suggested

as the results of the discussion.

The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed

that compliance with this document may involve the use of a trademark concerning Auto Loading

Feeder given in 3.1.1.
• Trademark ... AUTO LOADING FEEDER™
• Trademark registration number ... No.5983611 (Japan)

IEC takes no position concerning the evidence, validity and scope of this trademark right.

The holder of this trademark right has assured the IEC that he/she is willing to negotiate

licences under reasonable and non-discriminatory terms and conditions with applicants

throughout the world. In this respect, the statement of the holder of this trademark right is

registered with IEC. Information may be obtained from:
• Name of holder of trademark right ... Yamaha Motor Co., Ltd.
Address ... 2500 Shingai, Iwata, Shizuoka, Japan
• Name of holder of trademark right ... FUJI CORPORATION
Address ... 19 Chausuyama., Yamamachi, Chiryu, Aichi, Japan
• Name of holder of trademark right ... Panasonic Corporation
Address ... 2-7, Matsuba-cho, Kadoma, Osaka, Japan

Attention is drawn to the possibility that some of the elements of this document may be the

subject of trademark rights other than those identified above. IEC shall not be held responsible

for identifying any or all such trademark rights.
---------------------- Page: 8 ----------------------
IEC TR 60286-3-4:2021 © IEC 2021 – 7 –
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –
Part 3-4: Packaging of surface mount components
on continuous embossed tapes for Auto Loading Feeder
1 Scope

This part of IEC 60286 considers the proposed requirements for emboss taping for the Auto

Loading Feeder mechanism to mount electric components without leads or with stump type

leads used for electric circuits. This document is applicable to the embossed carrier tape, with

single round sprocket holes, with tape pitches of 2 mm or more (nominal tape width: 8 mm only)

among the tapes of Type 2a in IEC 60286-3.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes the statement of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60286-3:2019, Packaging of components for automatic handling – Part 3: Packaging of

surface mount components on continuous tapes
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
NOTE Annex B features a Glossary of mounter and feeder related terms.
3.1.1
Auto Loading Feeder
AUTO LOADING FEEDER™

tape feeder that can keep supplying components by automatically carrying a tape of re-supplied

SMD at the filling-in position into the components supply position, just after the components in

the tape of previously supplied SMD are fed up during the assembly production

Note 1 to entry: Auto Loading Feeder has the mechanism that the cover tape of a SMD tape is automatically cut or

peeled off to expose the pockets during the operation to supply components.
3.1.2
seal
bonding of a part of the top cover tape and a part of the carrier tape

Note 1 to entry: The top cover tapes are classified as heat welding type and adhesive type by the way to bond itself

on the carrier tape.
---------------------- Page: 9 ----------------------
– 8 – IEC TR 60286-3-4:2021 © IEC 2021
3.1.3
cross-bar

section between openings of the pockets adjacent to each other in the direction of pulling out

an embossed carrier tape
3.2 Symbols
The symbols used in this document are shown in Table 1 and Figure 1.
Table 1 – Symbols used in figures and tables
Figures and tables
Symbol Description
using the symbol
B Cross-tape dimension of the bottom surface of a pocket Figure 1, Table 2,
Table 3 and Figure 8
B Cross-tape dimension of the opening of a pocket Figure 1 and Figure 8

M Distance between the reference point of the sprocket holes (centre) and Figure 1 and Table 2

the inner side of the seal on the upper end side, which is near the
sprocket holes, of the carrier tape

M Distance between the reference point of the sprocket holes (centre) and Figure 1 and Table 2

the inner side of the seal on the lower end side, which is far from the
sprocket holes, of carrier tape

K Distance between the upper side of the carrier tape and the top surface Figure 1 and Table 3

of a component

K Distance between the upper side of the carrier tape and the upper side of Figure 1, Figure 3 and

the recessed part in a cross-bar section Table 3

K Distance between the upper side of the recessed part in a cross-bar Figure 1, Figure 3 and

section and the top surface of a component Table 3
Figure 1 – Specified dimensions for emboss taping for Auto Loading Feeder
4 Overview of Auto Loading Feeder
4.1 Overview and features of Auto Loading Feeder

A characteristic example for operation of an Auto Loading Feeder is shown in Figure 2. Just

after the components in a SMD tape get used up in the mounting process, another tape for re-

supply set at the filling-in position is automatically carried to the components supply position

and the pockets are automatically exposed. That results in re-supplying the components

automatically. That is to say, this mechanism enables to keep supplying components without

the conventional splicing work using a connection tape, which requires man-hours and specific

---------------------- Page: 10 ----------------------
IEC TR 60286-3-4:2021 © IEC 2021 – 9 –

skills. In addition, it enables to largely reduce work hours during the work at offline setup,

because just inserting the top end of the tape in the re-supply position enables to supply the

tape automatically in the same way as during supplying components in the mounting process.

Auto Loading Feeder enables to boost up operating rate of mounters, save man-power and

resource in the components mounting field of electrical and electronic manufactures, and is

expected to get more popularization as the next generation supply system.

NOTE The splicing work is to connect the cut-off end of the trailer part of an in-use SMD tape and the cut-off tip of

the leader part of a SMD tape for re-supply, by using a connection tape.
a) Supplying components during the assemble production
b) Supplying tape at offline setup
Figure 2 – Operation and features when another tape is
re-supplied automatically by the Auto Loading Feeder
4.2 Methods and mechanisms of automatically exposing the pockets in using Auto
Loading Feeder

The methods and mechanisms of automatically exposing the pockets in using Auto Loading

Feeder are classified as follows. See Annex A for details.

a) The single-door method with which only one sealed side of the cover tape is peeled off to

expose the pockets (see Clause A.2);

b) The double-door method with which the centre of the cover tape is cut in to expose the

pockets (see Clause A.3).
---------------------- Page: 11 ----------------------
– 10 – IEC TR 60286-3-4:2021 © IEC 2021

IEC 60286-3 describes some requirements provided that the cover tape should be peeled off

and removed. Auto Loading Feeder mechanism, however, needs other requirements about the

sealed position of the cover tape on the carrier tape in order to maintain its stable operation

since the mechanism leaves the cover tape on the carrier tape.
5 Discussion items for requirements for emboss taping for Auto Loading
Feeder
5.1 General

New requirements for emboss taping for Auto Loading Feeder are to be considered in addition

to the requirements for the embossed carrier tape, with single round sprocket holes, with tape

pitches of 2 mm or more (nominal tape width: 8 mm only) among the tapes of Type 2a in

IEC 60286-3:
a) Required dimensions for the cover tape sealed positions (see 5.2);

b) Required dimensions for the distance between the upper side of the carrier tape and the top

surface of a component (see 5.3);
c) Necessity of M and M as the cover tape sealed positions (see 5.4);
1 2

d) Necessity of K as the distance between the upper side of the carrier tape and the top

surface of a component (see 5.5);
e) Necessity of K as the recessed part in a cross-bar section (see 5.6);

f) Necessity of K as the distance between the upper side of the recessed part in a cross-bar

section and the top surface of a component (see 5.7);
g) Sealing method for the cover tape (see 5.8);
h) Dent of the cover tape over the pockets (see 5.9);
i) Lower limit of the cover tape peel-off strength (see 5.10);
j) Adhesion of components on the cover tape (see 5.11);
k) Hole of the bottom of the pockets of the carrier tape (see 5.12);
l) Maximum length of the trailer (see 5.13);
m) Fixing the tail end of the carrier tape (see 5.14).
5.2 Required dimensions for the cover tape sealed positions

Required dimensions for the cover tape sealed positions for Auto Loading Feeder are shown in

Table 2.
---------------------- Page: 12 ----------------------
IEC TR 60286-3-4:2021 © IEC 2021 – 11 –
Table 2 – The cover tape sealed positions required
for emboss taping for Auto Loading Feeder
Dimensions in millimetres
Typical Required dimension (design value)
nominal component
M M
dimension
1 2
> 0 0,5 or less 0402M 2,9 or less 4,1 or more
Over 0,5 0,8 or less 0603M 2,9 or less 4,1 or more
Over 0,8 1,3 or less 1005M 2,6 or less 4,4 or more
Over 1,3 2,1 or less 1608M 2,2 or less 4,8 or more
a a
Over 2,1 2,6 or less 2012M
(2,0 or less) (5,0 or more)
a a
Over 2,6 3,5 or less 3216M
(1,5 or less) (5,5 or more)
NOTE 1 The symbols are shown in Table 1 and Figure 1.
NOTE 2 SMD tapes with sealed pockets are not applicable to Auto Loading Feeder.
NOTE 3 Sealing tape should be attached symmetric to the centre of the pocket.

Since the components can be inverted in the pockets and there are some restrictions in the assembly

manufacturing, the dimensions are shown as reference values in brackets. If the tapes do not meet these

dimensions, persons involved are suggested to discuss in advance whether it is possible to use Auto Loading

Feeder or not.

5.3 Required dimensions for the distance between the upper side of the carrier tape

and the top surface of a component in using Auto Loading Feeder

Required dimensions for the distance between the upper side of the carrier tape and the top

surface of a component for Auto Loading Feeder are shown in Table 3.
Table 3 – Distance between the upper side of the carrier tape and the top
surface of a component required for emboss taping for Auto Loading Feeder
Dimensions in millimetres
Typical Required dimension (design value)
nominal component
K K K
dimension 1 2 3
a a a
> 0 0,5 or less 0402M
(0,03 or more) (0,02 or less) (0,03 or more)
a a a
Over 0,5 0,8 or less 0603 M
(0,03 or more) (0,02 or less) (0,03 or more)
a a
Over 0,8 1,3 or less 1005 M 0,03 or more
(0,02 or less) (0,03 or more)
a a
Over 1,3 2,1 or less 1608 M 0,03 or more
(0,02 or less) (0,03 or more)
a a
Over 2,1 2,6 or less 2012 M 0,03 or more
(0,02 or less) (0,03 or more)
a a
Over 2,6 3,5 or less 3216 M 0,03 or more
(0,02 or less) (0,03 or more)
NOTE The symbols are shown in Table 1 and Figure 1.

Since the components can be inverted in the pockets and there are some restrictions in the assembly

manufacturing, the dimensions are sho
...
