IEC 63267-2-1:2024

Fibre optic interconnecting devices and passive components - Connector optical interfaces for enhanced macro bend multimode fibres - Part 2-1: Connection parameters of physically contacting 50 µm core diameter fibres - Non-angled

IEC 63267-2-1:2024 defines a set of specified conditions for an enhanced macro bend of 50/125 µm, graded index multimode fibre optic connection that is maintained in order to satisfy the requirements of attenuation and return loss performance in a randomly mated pair of polished physically contacting (PC) fibres.
An encircled flux (EF) compliant launch condition in accordance with IEC 61300-1, at an operational wavelength of 850 nm, is used for determination of performance grades, based on lateral fibre core offset, numerical aperture (NA) mismatch, and fibre core diameter (CD) variation.
Fibre core angular offset is considered insignificant given the state-of-the-art and is excluded as a factor for attenuation estimation. Attenuation and return loss performance grades are defined in IEC 63267-1.

Dispositifs d'interconnexion et composants passifs fibroniques - Interfaces optiques de connecteurs pour fibres multimodales améliorées en macrocourbures - Partie 2-1 : Paramètres de connexion des fibres d'un diamètre de cœur de 50 µm en contact physique - Sans angle

IEC 63267-2-1:2024 définit un ensemble de conditions spécifiées pour les connexions fibroniques multimodales à gradient d’indice, de 50/125 µm améliorées en macrocourbures, afin de satisfaire aux exigences de performance d'affaiblissement et d'affaiblissement de réflexion dans une paire à accouplement sans choix préalable de fibres polies à contact physique (PC).
Une condition d’injection conforme au flux inscrit (EF, encircled flux) selon l’IEC 61300‑1, à une longueur d’onde de fonctionnement de 850 nm, est utilisée en vue de déterminer les classes de performances, fondées sur le décalage latéral du cœur de la fibre, la désadaptation de l'ouverture numérique (NA, numerical aperture) et la variation du diamètre du cœur de la fibre (CD, core diameter).
Le décalage angulaire du cœur de la fibre est considéré comme négligeable compte tenu de l'état de l’art et il est exclu à titre de facteur pour l'estimation de l'affaiblissement. Les classes d'affaiblissement et d'affaiblissement de réflexion sont définies dans l’IEC 63267‑1.

Dimensions and output series for rotating electrical machines - Part 1: Frame numbers 56 to 400 and flange numbers 55 to 1080

General Information

• Status: Published
• Publication Date: 14-Mar-2024
• ICS: 29.160 - Rotating machinery
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: SC 86B - Fibre optic interconnecting devices and passive components
• Current Stage: PPUB - Publication issued
• Start Date: 29-Mar-2024
• Completion Date: 15-Mar-2024
• Ref Project: SIST IEC 60072-1:2001 - Dimensions and output series for rotating electrical machines - Part 1: Frame numbers 56 to 400 and flange numbers 55 to 1080

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2001
Dimensions and output series for rotating electrical machines - Part 1: Frame
numbers 56 to 400 and flange numbers 55 to 1080
Dimensions and output series for rotating electrical machines - Part 1: Frame numbers
56 to 400 and flange numbers 55 to 1080
Dimensions et séries de puissances des machines électriques tournantes - Partie 1:
Désignation des carcasses entre 56 et 400 et des brides entre 55 et 1080
Ta slovenski standard je istoveten z: IEC 60072-1
ICS:
29.160.01 Rotacijski stroji na splošno Rotating machinery in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

NORME CEI
INTERNATIONALE IEC
72-1
INTERNATIONAL
Sixième édition
STANDARD Sixth edition
1991-02
Dimensions et séries de puissances
des machines électriques tournantes
Partie 1:
Désignation des carcasses entre 56 et 400
et des brides entre 55 et 1080
Dimensions and output series for
rotating electrical machines
Part 1:
Frame numbers 56 to 400 and
flange numbers 55 to 1080
© CEI 1991 Droits de reproduction réservés — Copyright — all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun pro- any form or by any means, electronic or mechanical,
cédé, électronique ou mécanique, y compris la photocopie et includng photocopying and microfilm, without permissioni
les microfilms, sans l'accord écrit de l'éditeur. in writing from the publisher.
Bureau Central de la Commission Electrotechnique Inte rnationale 3, rue de Varembé Genève, Suisse
Commission Electrotechnique Internationale
CODE PRIX "^
International Electrotechnical Commission
PRICE CODEPRICE CODE
IEC MemityliapoAHaa 3ne,rpoTexiimecHaR
KoMNCCNA
Pour prix, voir catalogue en vigueur
For price, see current catalogue

72-1 © CEI — 3 —

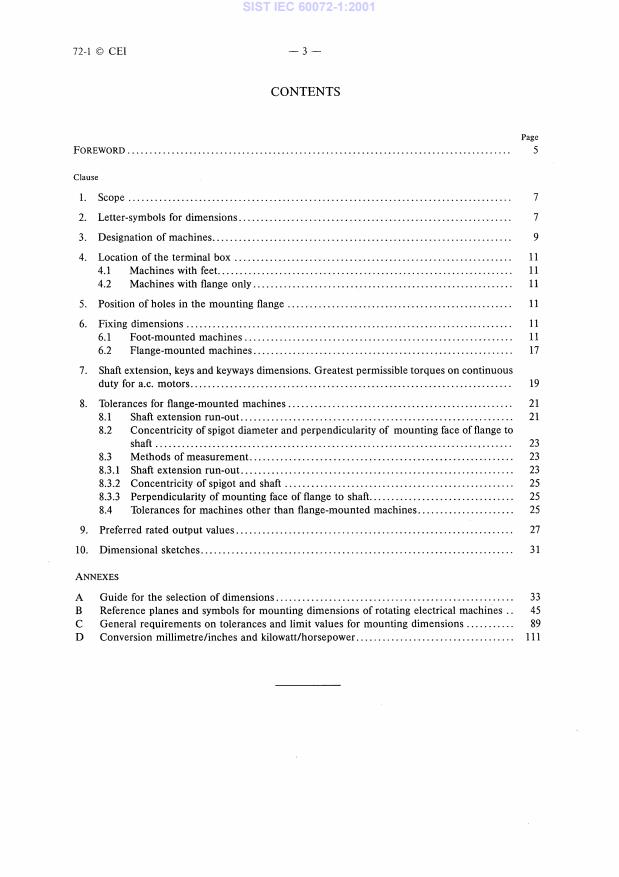

CONTENTS
Page
FOREWORD 5
Clause
1. Scope 7
2. Letter-symbols for dimensions 7
3. Designation of machines
4. Location of the terminal box
4.1 Machines with feet
4.2 Machines with flange only 11
Position of holes in the mounting flange 11
5.
6. Fixing dimensions
6.1 Foot-mounted machines 11
6.2 Flange-mounted machines 17
Shaft extension, keys and keyways dimensions. Greatest permissible torques on continuous
7.
duty for a.c. motors 19
8. Tolerances for flange-mounted machines 21
8.1 Shaft extension run-out 21
8.2 Concentricity of spigot diameter and perpendicularity of mounting face of flange to
shaft 23
Methods of measurement 23
8.3
8.3.1 Shaft extension run-out 23
8.3.2 Concentricity of spigot and shaft 25
8.3.3 Perpendicularity of mounting face of flange to shaft
Tolerances for machines other than flange-mounted machines 25
8.4
9. Preferred rated output values
10. Dimensional sketches
ANNEXES
A Guide for the selection of dimensions 33
B Reference planes and symbols for mounting dimensions of rotating electrical machines 45
C General requirements on tolerances and limit values for mounting dimensions 89
D Conversion millimetre/inches and kilowatt/horsepower

— 5 —
72-1 © IEC
INTERNATIONAL ELECTROTECHNICAL COMMISSION
DIMENSIONS AND OUTPUT SERIES
FOR ROTATING ELECTRICAL MACHINES
Part 1: Frame numbers 56 to 400 and flange numbers 55 to 1080
FOREWORD
1) The formal decisions or agreements of the IEC on technical matters, prepared by Technical Committees on which all the
National Committees having a special interest therein are represented, express, as nearly as possible, an international
consensus of opinion on the subjets dealt with.
2) They have the form of recommendations for international use and they are accepted by the National Committees in that sense.
3) In order to promote international unification, the IEC expresses the wish that all National Committees should adopt the text of
the IEC recommendation for their national rules in so far as national conditions will permit. Any divergence between the IEC
recomendation and the corresponding national rules should, as far as possible, be clearly indicated in the latter.
This part of the International Standard IEC 72 has been prepared by Sub-Committee 2B: Mounting
dimensions and output series, of IEC Technical Committee No. 2 : Rotating machinery.
This sixth edition of IEC 72-1 replaces the fifth edition of IEC 72 (1971) and its Amendments Nos. 1
and 2, issued in 1977 and 1981 respectively.
The text of this part is based on the following documents:
Two Months' Procedure Reports on Voting
Six Months' Rule Reports on Voting
2B(CO)65
2B(CO)51 2B(CO)56 2B(CO)60
2B(CO)52 2B(CO)57 . — —
2B(CO)68A 2B(CO)71
2B(CO)61 2B(CO)66
2B(CO)62 2B(CO)67 — —
2B(CO)70 2B(CO)73 — —
Full information on the voting for the approval of this can be found in the Voting Reports indicated in
the above table.
Annexes A, B and C have the status of a report; annex is informative.
The following publications are quoted in this part of IEC 72:
IEC 34-1: 1983, Rotating electrical machines — Part 1: Rating and performance.
IEC 34-8: 1972, Rotating electrical machines — Part 8: Terminal markings and direction of rotation machines.
IEC 50(411): 1973 , International Electrotechnical Vocabulary (IEV) — Chapter 411: Rotating machines.
Fasteners — Clearance holes for bolts and screws.
ISO 273: 1979,
Driving and driven machines — Shaft heights.
ISO 496: 1973,
Rectangular or square parallel keys and their corresponding keyways (dimensions in millimetres).
ISO/R 773: 1969,
ISO/R 775: 1969, Cylindrical and 1/10 conical shaft ends.
ISO 1101: 1983, Technical drawings — geometrical tolerancing — tolerancing of form, orientation, location and run-out —
Generalities, definitions, symbols, indications on drawings.
ISO 2768: 1973, Permissible machining variations in dimensions without tolerance indication.

72-1 © IEC — 7 —
DIMENSIONS AND OUTPUT SERIES
FOR ROTATING ELECTRICAL MACHINES
Part 1: Frame numbers 56 to 400 and flange numbers 55 to 1080
1. Scope
This part of IEC 72 covers the majority of rotating electrical machines for industrial purposes
within the dimension range :
Foot-
mounted : — shaft-heights: 56 mm to 400 mm
Flange-
mounted : — pitch circle diameter of flange : 55 mm to 1080 mm
It gives tables of fixing dimensions, shaft extension dimensions and output powers. Maximum
permissible torques for continuous duty on a.c. motors are listed for various shaft diameters.
NOTE — The dimensions for machines with shaft heights 355 mm and 400 mm, given in this standard, are included among
the values given in IEC 72-2.
2. Letter-symbols for dimensions
The symbols defined below are illustrated by the dimensional sketches in clause 10.
A — distance between centre-lines of fixing holes (end view).
AA — width of the end of the foot (end view).
AB — over-all dimension across the feet (end view).
AC — diameter of the machine.
AD —
distance from the centre-line of the machine to extreme outside of the terminal box or other
most salient part mounted on the side of the machine.
B —
distance between the centre-lines of the fixing holes (side view).
BA — length of the foot (side view).
BB —
over-all dimension across the feet (side view).
C —
distance from the shoulder on the shaft at D-end to the centre-line of the mounting holes in
the nearest feet.
CA — distance from the shoulder on the shaft at N-end to the centre-line of the mounting holes in
the nearest feet.
D — diameter of the shaft extension at D-end.
DA —
diameter of the shaft extension at N-end.
E — length of the shaft extension from the shoulder at D-end.
EA — length of the shaft extension from the shoulder at N-end.
F — width of the keyway of the shaft extension at D-end.
FA — width of the keyway of the shaft extension at N-end.
G — distance from the bottom of the keyway to the opposite surface of the shaft extension
at D-end.
GA — distance from the top of the key to the opposite surface of the shaft extension at D-end.
GB — distance from the bottom of the keyway to the opposite surface of the shaft extension
at N-end.
72-1 © IEC — 9 —
GC — distance from the top of the key to the opposite surface of the shaft extension at N-end.
GD —
thickness of the key of the shaft extension at D-end.
GE — depth of the keyway at the crown of the shaft extension at D-end.
GF — thickness of the key of the shaft extension at N-end.
GH — depth of the keyway at the crown of the shaft extension at N-end.
H —
distance from the centre-line of the shaft to the bottom of the feet (basic dimension).
H' — distance from the centre-line of the shaft to the mounting surface — e.g. the bottom of the
feet in the feet-up version.
thickness of the feet.
HA —
HC — distance from the top of the horizontal machine to the bottom of the feet.
HD —
distance from the top of the lifting eye, the terminal box or other most salient part mounted
on the top of the machine to the bottom of the feet.
HE — distance from the mounting surface to the lowest part of the machine in the feet-up version.
K — diameter of the holes or width of the slots in the feet of the machine.
L — overall length of the machine with a single shaft extension.
LA — thickness of the flange.
LB — distance from the mounting surface of the flange to the end of the machine.
LC — overall length of the machine when there is a shaft extension at N-end.
M — pitch circle diameter of the fixing holes.
N —
diameter of the spigot.
P —
outside diameter of the flange, or in the case of a non-circular outline twice the maximum
radial dimension.
R — distance from the mounting surface of the flange to the shoulder on the shaft.
S — diameter of the fixing holes in the mounting flange or nominal diameter of thread.
T —
depth of the spigot.
NOTE — The definition of D-end and N-end of a machine is given in IEC 34-8.
3. Designation of machines
Foot-mounted machines may be designated by the frame number followed immediately by the
diameter of the shaft extension.
Examples: 112 M 28
Flange-mounted machines may be of three different designs:
—
Flange with free holes (clearances holes), denoted: FF flange;
—
Flange with tapped holes and with spigot diameter Nsmaller than the pitch circle diameter of the
fixing holes M, denoted: FT flange;
—Flange with tapped holes and with spigot diameter Ngreater than the pitch circle diameter of the
fixing holes M, denoted: FI flange.
These symbols shall form part of the respective flange numbers. Machines having only flange
mounting may be designated by the diameter of the shaft extension immediately followed by the
letters FF, FT or FI and the flange number.

Examples: with free holes: 28FF215

with tapped holes: 28 FT 165
or 28 FI 165 as applied
72-1 ©IEC — 11 —
When a foot-mounted machine is also provided with a flange at the drive end (D-end) the letters
FF, FT or FI and the flange number may be added immediately after the shaft diameter.
Examples: Flange with free holes: 112M28FF215
Flange with tapped holes: 112 M28 FT 165
or 112 M28 FI 165 as applied
4. Location of the terminal box
4.1 Machines with feet
The terminal box on a motor shall be situated with its centre-line within a sector ranging from the
top to 10° below the horizontal centre-line of the motor on the right-hand side, when looking at the
D-end of the motor. No recommendation is decided upon for generators.
It is recommended that unless the terminal box is on the top, motors be so constructed that the
terminal box may be located on the left-hand side by the manufacturer, if requested by the user at
the time when the motor is ordered.
NOTE — Provision should preferably be made so as to enable the cable entry to the terminal box to be in any one of four
directions at right angles.
4.2 Machines with flange onty
No recommendation.
5. Position of holes in the mounting flange
When a flange-mounted machine also has feet, the holes in the flange shall be spaced from the
diameter of the flange perpendicular to the mounting plane of the feet as follows.
45 ° for 4 holes
22,5 ° and 67,5 ° for 8 holes (see clause 10)
6. Fixing dimensions
6.1 Foot-mounted machines
72-1 © IEC - 13 -
Table 1 - Dimensions for machines with shaft-heights from 56 mm to 400 mm
K2)
H A B°) C
Bolt or
Frame
Nominal Tolerance3^
number '> Nominal Maximum
screw
deviation
mm µm µm
mm mm mm mm mm
+ 300 0 M5
56 M 56 - 0,5 90 71 36 5,8
7 + 360 0 M6
63 M 63 - 0,5 100 80 40
90 45 7 + 360 0 M6
71 M 71 - 0,5 112
100 50 10 + 360 0 M8
80 M 80 - 0,5 125
+ 0 M8
90 S 90 - 0,5 140 100 56 10 360
+ 360 0 M8
90 L 90 - 0,5 140 125 56 10
12 + 430 0 M10
100 S 100 - 0,5 160 112 63
63 12 + 430 0 M10
100 L 100 - 0,5 160 140
M10
112 S 112 - 0,5 190 114 70 12 + 430 0
0 M10
112 M 112 - 0,5 190 140 70 12 + 430
+ 0 M10
(112 L) 112 - 0,5 190 159 70 12 430
140 12 + 430 0 M10
132 S 132 - 0,5 216 89
12 + 430 0 M10
132 M 132 - 0,5 216 178 89
89 12 + 430 0 M10
(132 L) 132 - 0,5 216 203
- 0,5 254 178 108 14,5 + 430 0 M12
160 S 160
M12
- 0,5 254 210 108 14,5 + 430 0
160 M 160
+ 0 M12
160 L 160 - 0,5 254 254 108 14,5 430
14,5 + 430 0 M12
180 S 180 - 0,5 279 203 121
14,5 + 430 0 M12
180 M 180 - 0,5 279 241 121
279 121 14,5 + 430 0 M12
180 L 180 - 0,5 279
- 0,5 318 228 133 18,5 + 520 0 M16
200 S 200
M16
200 M 200 - 0,5 318 267 133 18,5 + 520 0
200 L 200 - 0,5 318 305 133 18,5 + 520 0 M16
+ 520 0 M16
225 S 225 - 0,5 356 286 149 18,5
149 18,5 + 520 0 M16
225 M 225 - 0,5 356 311
+ 520 0 M16
(225 L) 225 - 0,5 356 356 149 18,5
- 0,5 406 311 168 24 + 520 0 M20
250 S 250
M20
250 M 250 - 0,5 406 349 168 24 + 520 0
- 0,5 406 406 168 24 + 520 0 M20
(250 L) 250
+ 0 M20
280 S 280 - 1 457 368 190 24 520
24 + 520 0 M20
280 M 280 - 1 457 419 190
+ 520 0 M20
(280 L) 280 - 1 457 457 190 24
406 216 28 + 520 0 M24
315 S 315 - 1 508
508 457 216 28 + 520 0 M24
315 M 315 - 1
508 216 28 + 520 0 M24
(315 L) 315 - 1 508
+ 0 M24
355 S 355 - 1 610 500 254 28 520
M24
355 M 355 - 1 610 560 254 28 + 520 0
+ 0 M24
355 L 355 - 1 610 630 254 28 520
280 35 + 620 0 M30
400 S 400 - 1 686 560
35 + 620 0 M30
400 M 400 - 1 686 630 280
710 280 35 + 620 0 M30
400 L 400 - 1 686
Frame numbers within brackets should be regarded as non-preferred for a.c. induction machines.
1)
2)Open-ended slots are not permitted.
3) These tolerances are those given in coarses series H14 of ISO 2768.
4)Those dimensions are preferred-Additional recommended
...

IEC 63267-2-1 ®
Edition 1.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Connector optical
interfaces for enhanced macro bend multimode fibres –
Part 2-1: Connection parameters of physically contacting 50 µm core diameter
fibres – Non-angled
Dispositifs d'interconnexion et composants passifs fibroniques – Interfaces
optiques de connecteurs pour fibres multimodales améliorées en
macrocourbures –
Partie 2-1 : Paramètres de connexion des fibres d'un diamètre de cœur de 50 µm
en contact physique – Sans angle
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.
IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.
Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 63267-2-1 ®
Edition 1.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic interconnecting devices and passive components – Connector optical
interfaces for enhanced macro bend multimode fibres –
Part 2-1: Connection parameters of physically contacting 50 µm core diameter
fibres – Non-angled
Dispositifs d'interconnexion et composants passifs fibroniques – Interfaces
optiques de connecteurs pour fibres multimodales améliorées en
macrocourbures –
Partie 2-1 : Paramètres de connexion des fibres d'un diamètre de cœur de 50 µm
en contact physique – Sans angle
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-8423-0
– 2 – IEC 63267-2-1:2024 © IEC 2024

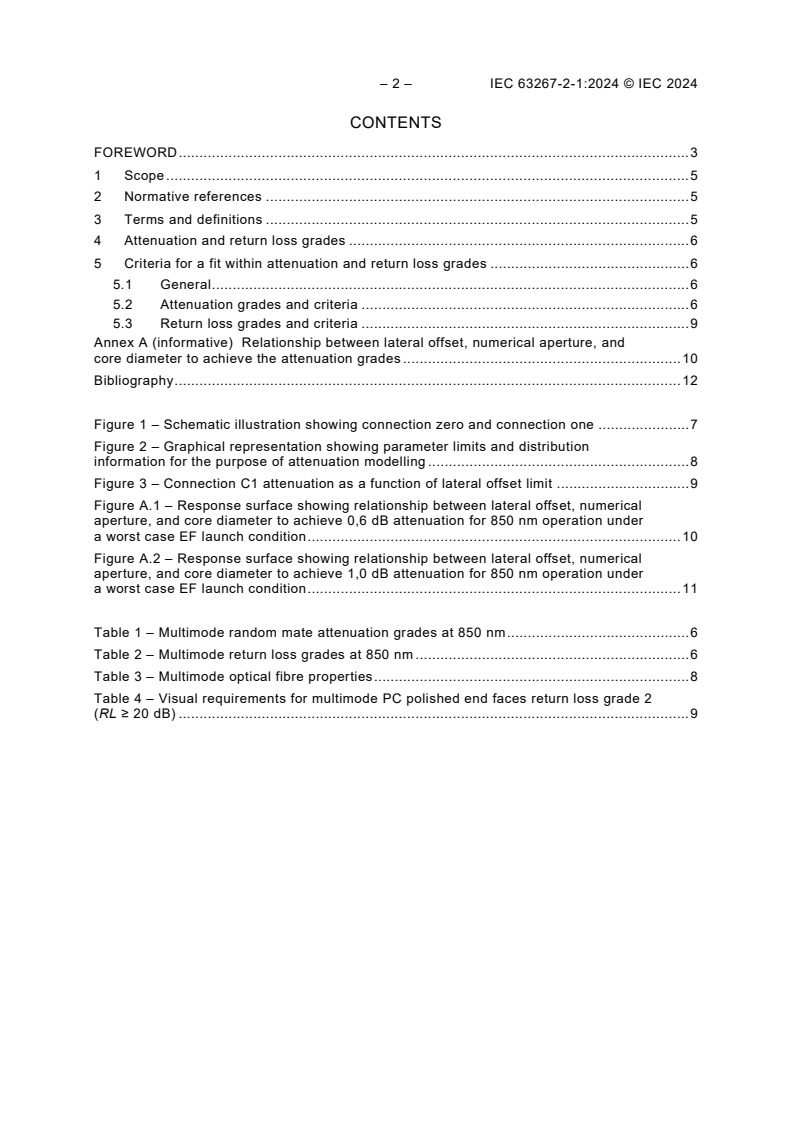

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Attenuation and return loss grades . 6
5 Criteria for a fit within attenuation and return loss grades . 6
5.1 General . 6
5.2 Attenuation grades and criteria . 6
5.3 Return loss grades and criteria . 9
Annex A (informative) Relationship between lateral offset, numerical aperture, and
core diameter to achieve the attenuation grades . 10
Bibliography . 12

Figure 1 – Schematic illustration showing connection zero and connection one . 7
Figure 2 – Graphical representation showing parameter limits and distribution
information for the purpose of attenuation modelling . 8
Figure 3 – Connection C1 attenuation as a function of lateral offset limit . 9
Figure A.1 – Response surface showing relationship between lateral offset, numerical
aperture, and core diameter to achieve 0,6 dB attenuation for 850 nm operation under
a worst case EF launch condition . 10
Figure A.2 – Response surface showing relationship between lateral offset, numerical
aperture, and core diameter to achieve 1,0 dB attenuation for 850 nm operation under
a worst case EF launch condition . 11

Table 1 – Multimode random mate attenuation grades at 850 nm . 6
Table 2 – Multimode return loss grades at 850 nm . 6
Table 3 – Multimode optical fibre properties . 8
Table 4 – Visual requirements for multimode PC polished end faces return loss grade 2
(RL ≥ 20 dB) . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
CONNECTOR OPTICAL INTERFACES FOR
ENHANCED MACRO BEND MULTIMODE FIBRES –

Part 2-1: Connection parameters of physically
contacting 50 µm core diameter fibres – Non-angled

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 63267-2-1 has been prepared by subcommittee 86B: Fibre optic interconnecting devices
and passive components, of IEC technical committee 86: Fibre optics. It is an International
Standard.
– 4 – IEC 63267-2-1:2024 © IEC 2024
The text of this International Standard is based on the following documents:
Draft Report on voting
86B/4858/FDIS 86B/4877/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 63267 series, under the general title Fibre optic interconnecting
devices and passive components – Connector optical interfaces for enhanced macro bend
multimode fibre, can be found on the IEC website.
Future documents in this series will carry the new general title as cited
...
