IEC 61196-1-108:2025

Coaxial communication cables - Part 1-108: Electrical test methods - Test for phase, phase constant, phase and group delay, propagation velocity, electrical length, and mean characteristic impedance

IEC 61196-1-108:2025 applies to coaxial communications cables. It specifies test methods for determining the phase, phase constant, phase and group delay, propagation velocity, electrical length, and mean characteristic impedance of coaxial cables for use in communications systems.
A procedure to measure phase dispersion of coaxial cable is included as Annex A.
This third edition cancels and replaces the second edition published in 2011. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) Change of title, "phase and phase constant" was added.
b) Clause 6, "Preparation of test sample (TS)" was added.
c) Clause 7, "Test procedure" was added.
d) Clause 8, "Failure criterion" was added.
e) Clause 9, "Information to be given in the relevant specification" was added.

General Information

• Status: Published
• Publication Date: 08-Jan-2025
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: SC 46A - Coaxial cables
• Drafting Committee: WG 3 - TC 46/SC 46A/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 09-Jan-2025
• Completion Date: 31-Jan-2025

Relations

• Revises: IEC 61196-1-108:2011 - Coaxial communication cables - Part 1-108: Electrical test methods - Test for characteristic impedance, phase and group delay, electrical length and propagation velocity
• Effective Date: 10-Nov-2023

Overview

IEC 61196-1-108:2025 is the 2025 third edition of an IEC standard for coaxial communication cables. It specifies electrical test methods to determine phase, phase constant, phase and group delay, propagation velocity, electrical length, and mean characteristic impedance of coaxial cables used in communications systems. Annex A provides an informative procedure to measure phase dispersion. This edition is a technical revision that replaces the 2011 edition and adds new clauses on sample preparation, test procedure, failure criteria and specification information.

Key topics and requirements

• Scope: Test methods for coaxial communication cables covering phase-related and impedance/velocity parameters.
• Parameters defined: Phase constant (β), phase and group delay, propagation velocity, electrical length and mean characteristic impedance - with relationships and formulas provided for conversions between them.
• Test equipment: Requires a capacitance meter/bridge (per IEC 61196-1-103) and a vector network analyser (VNA) capable of S21 and expanded phase measurements.
• Sample preparation: Two methods:
  • Method 1 (long cables): single sufficiently long cable assembly with connectors.
  • Method 2 (short cables): two assemblies of different lengths (typically one double the other) from the same product - or produce the short sample from the long one after testing.
• Test procedure: VNA-based expanded-phase measurements, calibration procedures and calculation methods for deriving phase constant, phase delay, group delay, propagation velocity, electrical length and characteristic impedance.
• Annex A: Measurement and interpretation of phase dispersion for cables with higher dispersive behavior.
• Quality controls: Clause on failure criterion and clause listing required information to be included in relevant product specifications and test reports.

Applications and users

This standard is practical for:

• Cable manufacturers validating product electrical performance and producing standardized test reports.
• Independent test laboratories performing compliance testing and acceptance checks.
• RF and telecom system integrators assessing cable suitability for high-frequency links (broadcast, mobile backhaul, microwave, satellite and RF test setups).
• Design engineers needing reliable data on delay, velocity and characteristic impedance for system timing, phase-matching and impedance-matching tasks.

Related standards

• IEC 61196-1:2005 - generic specification, definitions and requirements for coaxial communication cables.
• IEC 61196-1-103 - capacitance test methods referenced for sample preparation and impedance calculations.

Keywords: IEC 61196-1-108:2025, coaxial communication cables, phase constant, group delay, propagation velocity, electrical length, characteristic impedance, phase dispersion, VNA, cable testing.

Standards Content (Sample)

IEC 61196-1-108 ®
Edition 3.0 2025-01
INTERNATIONAL
STANDARD
colour
inside
Coaxial communication cables –
Part 1-108: Electrical test methods – Test for phase, phase constant, phase and
group delay, propagation velocity, electrical length, and mean characteristic
impedance
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61196-1-108 ®
Edition 3.0 2025-01
INTERNATIONAL
STANDARD
colour
inside
Coaxial communication cables –

Part 1-108: Electrical test methods – Test for phase, phase constant, phase and

group delay, propagation velocity, electrical length, and mean characteristic

impedance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10  ISBN 978-2-8327-0135-5

– 2 – IEC 61196-1-108:2025 © IEC 2025

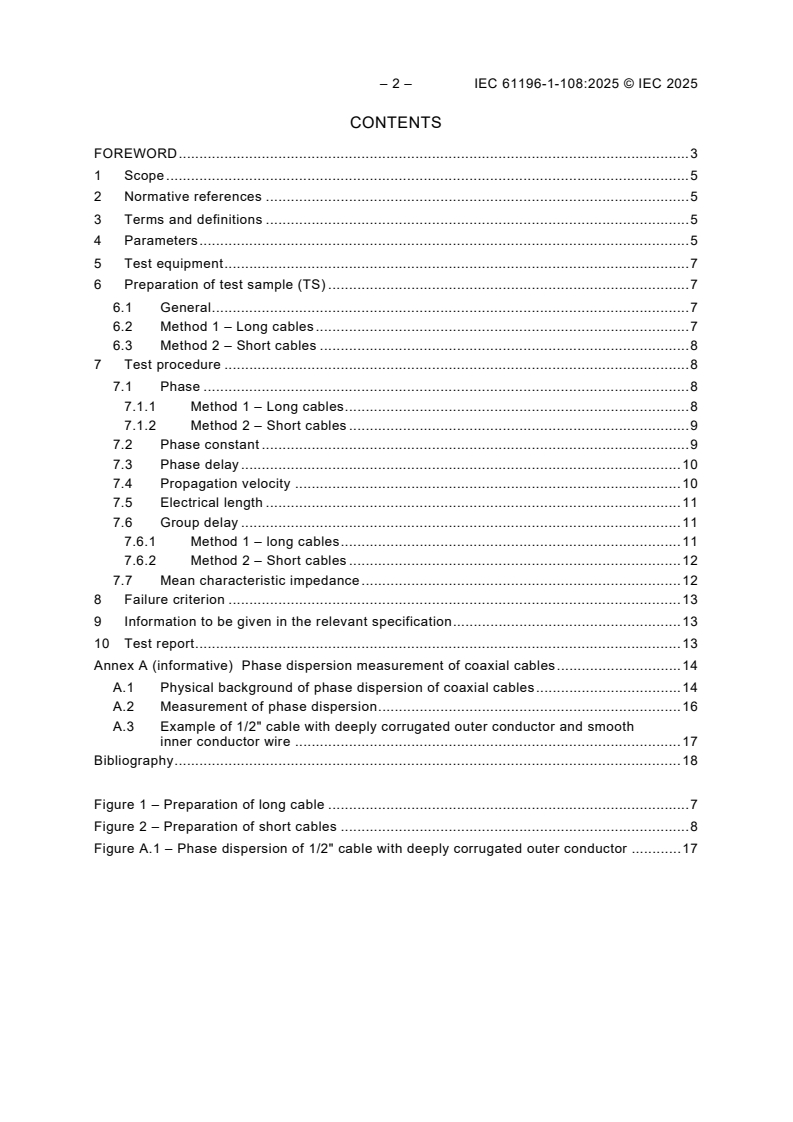

CONTENTS
