Optical circuit boards - Part 4-214: Interface standards - Terminated waveguide OCB assembly using a single-row thirty-two-channel symmetric PMT connector

IEC 62496-4-214:2020 defines the standard interface dimensions for a terminated waveguide optical circuit board (OCB) assembly (referred to simply as "assembly") using single-row thirty-two-channel connectors for polymer waveguides connected with a symmetric PMT connector.

Cartes à circuits optiques - Partie 4-214: Normes d'interface - Terminaison d'un ensemble de cartes à circuits optiques à guides d'ondes utilisant un connecteur PMT symétrique de trente-deux canaux sur une seule rangée

IEC 62496-2-214:2020 définit les dimensions d’interface normalisées pour la terminaison d'un ensemble de cartes à circuits optiques (OCB: optical circuit board) à guides d'ondes (désigné plus simplement sous le terme "ensemble") qui utilise des connecteurs de trente-deux canaux sur une seule rangée pour des guides d’ondes en polymère connectés par un connecteur PMT symétrique.

General Information

Status
Published
Publication Date
12-May-2020
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
13-May-2020
Ref Project

Buy Standard

Standard
IEC 62496-4-214:2020 - Optical circuit boards - Part 4-214: Interface standards - Terminated waveguide OCB assembly using a single-row thirty-two-channel symmetric PMT connector
English language
16 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
IEC 62496-4-214:2020 - Optical circuit boards - Part 4-214: Interface standards - Terminated waveguide OCB assembly using a single-row thirty-two-channel symmetric PMT connector
English and French language
32 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62496-4-214
Edition 1.0 2020-05
INTERNATIONAL
STANDARD
Optical circuit boards –
Part 4-214: Interface standards – Terminated waveguide OCB assembly using
a single-row thirty-two-channel symmetric PMT connector
IEC 62496-4-214:2020-05(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and

a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or need CISPR.
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62496-4-214
Edition 1.0 2020-05
INTERNATIONAL
STANDARD
Optical circuit boards –
Part 4-214: Interface standards – Terminated waveguide OCB assembly using
a single-row thirty-two-channel symmetric PMT connector
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.01 ISBN 978-2-8322-8307-3

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC 62496-4-214:2020 © IEC 2020

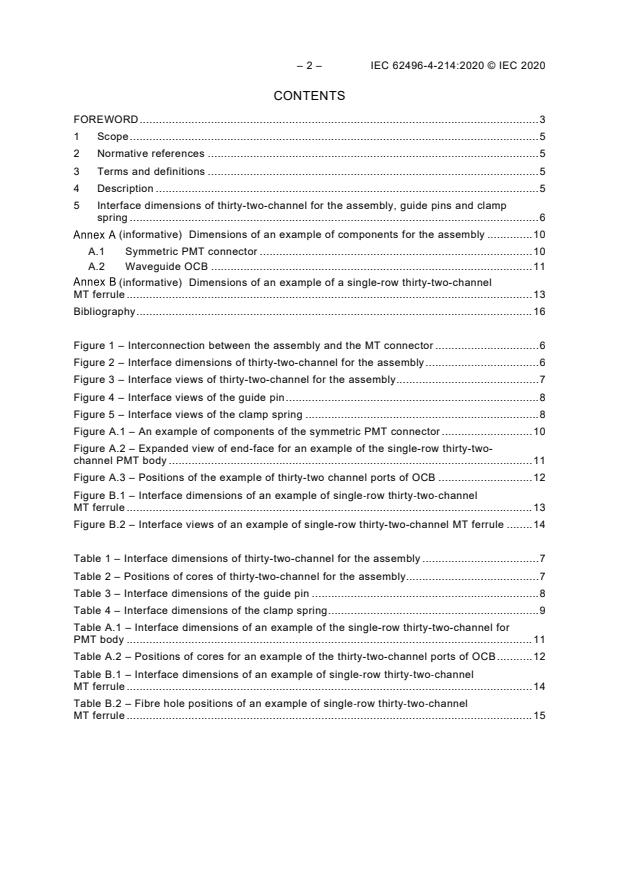

CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 Description ...................................................................................................................... 5

5 Interface dimensions of thirty-two-channel for the assembly, guide pins and clamp

spring .............................................................................................................................. 6

(informative) Dimensions of an example of components for the assembly .............. 10

A.1 Symmetric PMT connector .................................................................................... 10

A.2 Waveguide OCB ................................................................................................... 11

(informative) Dimensions of an example of a single-row thirty-two-channel

MT ferrule ............................................................................................................................. 13

Bibliography .......................................................................................................................... 16

Figure 1 – Interconnection between the assembly and the MT connector ................................ 6

Figure 2 – Interface dimensions of thirty-two-channel for the assembly ................................... 6

Figure 3 – Interface views of thirty-two-channel for the assembly ............................................ 7

Figure 4 – Interface views of the guide pin .............................................................................. 8

Figure 5 – Interface views of the clamp spring ........................................................................ 8

Figure A.1 – An example of components of the symmetric PMT connector ............................ 10

Figure A.2 – Expanded view of end-face for an example of the single-row thirty-two-

channel PMT body ................................................................................................................ 11

Figure A.3 – Positions of the example of thirty-two channel ports of OCB ............................. 12

Figure B.1 – Interface dimensions of an example of single‑row thirty‑two‑channel

MT ferrule ............................................................................................................................. 13

Figure B.2 – Interface views of an example of single-row thirty-two-channel MT ferrule ........ 14

Table 1 – Interface dimensions of thirty-two-channel for the assembly .................................... 7

Table 2 – Positions of cores of thirty-two-channel for the assembly......................................... 7

Table 3 – Interface dimensions of the guide pin ...................................................................... 8

Table 4 – Interface dimensions of the clamp spring ................................................................. 9

Table A.1 – Interface dimensions of an example of the single-row thirty-two-channel for

PMT body ............................................................................................................................. 11

Table A.2 – Positions of cores for an example of the thirty-two-channel ports of OCB ........... 12

Table B.1 – Interface dimensions of an example of single‑row thirty‑two‑channel

MT ferrule ............................................................................................................................. 14

Table B.2 – Fibre hole positions of an example of single‑row thirty‑two‑channel

MT ferrule ............................................................................................................................. 15

---------------------- Page: 4 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL CIRCUIT BOARDS –
Part 4-214: Interface standards – Terminated waveguide OCB assembly
using a single-row thirty-two-channel symmetric PMT connector
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifyi
...

IEC 62496-4-214
Edition 1.0 2020-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical circuit boards –
Part 4-214: Interface standards – Terminated waveguide OCB assembly using
a single-row thirty-two-channel symmetric PMT connector
Cartes à circuits optiques –
Partie 4-214: Normes d'interface – Terminaison d'un ensemble de cartes à
circuits optiques à guides d'ondes utilisant un connecteur PMT symétrique
de trente-deux canaux sur une seule rangée
IEC 62496-4-214:2020-05(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62496-4-214
Edition 1.0 2020-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Optical circuit boards –
Part 4-214: Interface standards – Terminated waveguide OCB assembly using
a single-row thirty-two-channel symmetric PMT connector
Cartes à circuits optiques –
Partie 4-214: Normes d'interface – Terminaison d'un ensemble de cartes à
circuits optiques à guides d'ondes utilisant un connecteur PMT symétrique
de trente-deux canaux sur une seule rangée
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.01 ISBN 978-2-8322-9167-2

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62496-4-214:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 Description ...................................................................................................................... 5

5 Interface dimensions of thirty-two-channel for the assembly, guide pins and clamp

spring .............................................................................................................................. 6

(informative) Dimensions of an example of components for the assembly .............. 10

A.1 Symmetric PMT connector .................................................................................... 10

A.2 Waveguide OCB ................................................................................................... 11

(informative) Dimensions of an example of a single-row thirty-two-channel

MT ferrule ............................................................................................................................. 13

Bibliography .......................................................................................................................... 16

Figure 1 – Interconnection between the assembly and the MT connector ................................ 6

Figure 2 – Interface dimensions of thirty-two-channel for the assembly ................................... 6

Figure 3 – Interface views of thirty-two-channel for the assembly ............................................ 7

Figure 4 – Interface views of the guide pin .............................................................................. 8

Figure 5 – Interface views of the clamp spring ........................................................................ 8

Figure A.1 – An example of components of the symmetric PMT connector ............................ 10

Figure A.2 – Expanded view of end-face for an example of the single-row thirty-two-

channel PMT body ................................................................................................................ 11

Figure A.3 – Positions of the example of thirty-two channel ports of OCB ............................. 12

Figure B.1 – Interface dimensions of an example of single‑row thirty‑two‑channel

MT ferrule ............................................................................................................................. 13

Figure B.2 – Interface views of an example of single-row thirty-two-channel MT ferrule ........ 14

Table 1 – Interface dimensions of thirty-two-channel for the assembly .................................... 7

Table 2 – Positions of cores of thirty-two-channel for the assembly......................................... 7

Table 3 – Interface dimensions of the guide pin ...................................................................... 8

Table 4 – Interface dimensions of the clamp spring ................................................................. 9

Table A.1 – Interface dimensions of an example of the single-row thirty-two-channel for

PMT body ............................................................................................................................. 11

Table A.2 – Positions of cores for an example of the thirty-two-channel ports of OCB ........... 12

Table B.1 – Interface dimensions of an example of single‑row thirty‑two‑channel

MT ferrule ............................................................................................................................. 14

Table B.2 – Fibre hole positions of an example of single‑row thirty‑two‑channel

MT ferrule ............................................................................................................................. 15

---------------------- Page: 4 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL CIRCUIT BOARDS –
Part 4-214: Interface standards – Terminated waveguide OCB assembly
using a single-row thirty-two-channel symmetric PMT connector
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62496-4-214 has been prepared by IEC technical committee 86:

Fibre optics.
The text of this International Standard is based on the following documents:
CDV Report on voting
86/563/CDV 86/564/RVC

Full information on the voting for the approval of this International Standard can be found in the

report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62496 series, published under the general title Optical circuit boards,

can be found on the IEC website.
---------------------- Page: 5 ----------------------
– 4 – IEC 62496-4-214:2020 © IEC 2020

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 5 –
OPTICAL CIRCUIT BOARDS –
Part 4-214: Interface standards – Terminated waveguide OCB assembly
using a single-row thirty-two-channel symmetric PMT connector
1 Scope

This part of IEC 62496 defines the standard interface dimensions for a terminated waveguide

optical circuit board (OCB) assembly (referred to simply as "assembly") using single-row thirty-

two-channel connectors for polymer waveguides connected with a symmetric PMT connector.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.
IEC 62496-1, Optical circuit boards – Part 1: General

IEC 62496-4, Optical circuit boards – Part 4: Interface standards – General and guidance

3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 62496-1 and

IEC 62496-4 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Description

The assembly is an assembly comprised of a symmetric PMT connector and a thirty-two-

channel waveguide OCB. The symmetric PMT connector is a rectangular connector having the

same outer dimensions as the type MT connector specified in IEC 61754-5. The symmetric PMT

connector is aligned using alignment pins and is normally secured by the use of a latching

spring and mates with the type MT connector as shown in Figure 1. Dimensions of components

for the assembly are shown in Annex A. The waveguide OCB comprises a planar light-guide

consisting of a core and cladding material appropriate to transmit light as the operational

wavelengths require, the light-guide being supported on a substrate. Preferably, the substrate

will be flexible in order to accommodate compliance to the MT connector. The cores of the

waveguide OCB are aligned with the optical fibres of the MT connector after mating using two

guide pins and a clamp spring. Dimensions of a single-row thirty-two-channel MT ferrule are

shown in Annex B. This symmetric PMT connector is not intermateable with the standard 16

channel MT ferrules.
---------------------- Page: 7 ----------------------
– 6 – IEC 62496-4-214:2020 © IEC 2020
Figure 1 – Interconnection between the assembly and the MT connector
5 Interface dimensions of thirty-two-channel for the assembly, guide pins and
clamp spring

Figure 2 and Figure 3 and Table 1 show interface dimensions for the assembly. Table 2 shows

positions of the cores for the assembly. The origin point of the assembly is the midpoint of the

centres of two guide-holes. Figure 4 and Table 3 show the interface dimensions for a guide pin.

Figure 5 and Table 4 show the interface dimensions for a clamp spring.
Figure 2 – Interface dimensions of thirty-two-channel for the assembly
---------------------- Page: 8 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 7 –

NOTE The X-axis is defined as the line connecting the two centres of two guide pin holes. The Y axis is defined as

the line orthogonal to the X axis intersecting the midpoint of the centres of the two guide pin holes. X shows the zero

point of the X-axis and Y shows the zero point of the Y-axis.
Figure 3 – Interface views of thirty-two-channel for the assembly
Table 1 – Interface dimensions of thirty-two-channel for the assembly
Dimensions
Reference mm
Minimum Maximum
AB 5,297 5,303
AC 6,300 6,500
AD 6,900 7,100
AE 2,400 2,500
AF 2,900 3,100
AG 7,900 8,100
AH 0,549 0,551
Table 2 – Positions of cores of thirty-two-channel for the assembly
Reference X Y Reference X Y
mm mm mm mm
a −1,937 5 0,000 q 0,062 5 0,000
b −1,812 5 0,000 r 0,187 5 0,000
c −1,687 5 0,000 s 0,312 5 0,000
d −1,562 5 0,000 t 0,437 5 0,000
e −1,437 5 0,000 u 0,562 5 0,000
f −1,312 5 0,000 v 0,687 5 0,000
g −1,187 5 0,000 w 0,812 5 0,000
h −1,062 5 0,000 x 0.937 5 0,000
i −0,937 5 0,000 y 1,062 5 0,000
j −0,812 5 0,000 z 1,187 5 0,000
k −0,687 5 0,000 aa 1,312 5 0,000
l −0,562 5 0,000 ab 1,437 5 0,000
m −0,437 5 0,000 ac 1,562 5 0,000
n −0,312 5 0,000 ad 1,687 5 0,000
o −0,187 5 0,000 ae 1,812 5 0,000
P −0,062 5 0,000 af 1,937 5 0,000
---------------------- Page: 9 ----------------------
– 8 – IEC 62496-4-214:2020 © IEC 2020
Figure 4 – Interface views of the guide pin
Table 3 – Interface dimensions of the guide pin
Dimensions
References mm
Minimum Maximum
A 0,547 0,549
B 0,1 0,2
C 0,15 0,35
D 10,8 11,2
Figure 5 – Interface views of the clamp spring
---------------------- Page: 10 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 9 –
Table 4 – Interface dimensions of the clamp spring
Dimensions
References mm
Minimum Maximum
14,8 15,2
15,8 16,2
JA 4,55 4,65
Length in free condition.
Compression force for clamping condition shall be 6,8 N to 12,8 N when
dimension M2 is between 15,8 mm and 16,2 mm.
---------------------- Page: 11 ----------------------
– 10 – IEC 62496-4-214:2020 © IEC 2020
(informative)
Dimensions of an example of components for the assembly
A.1 Symmetric PMT connector

The example of a symmetric PMT connector is composed of a PMT body, a PMT cover and a

PMT boot, as shown in Figure A.1. The waveguide OCB is embedded and terminated between

the PMT body and the PMT cover.
Figure A.1 – An example of components of the symmetric PMT connector

Figure A.2 and Table A.1 show the dimensions of an example of the thirty-two-channel PMT

body.
---------------------- Page: 12 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 11 –
Figure A.2 – Expanded view of end-face for an example of the single-row
thirty-two-channel PMT body
Table A.1 – Interface dimensions of an example of the single-row
thirty-two-channel for PMT body
Dimensions
Reference mm
Minimum Maximum
AI 4,000 4,003
AJ1
AJ2 0,047 0,053
AJ3
AK 1,875
0 0,003
Gap of midpoint between two pin-hole centres and midpoint of trench.
A.2 Waveguide OCB

Figure A.3 shows the positions of the channel ports at the end-face of an example of the

waveguide OCB. The origin point of the waveguide OCB is located at the midpoint of the bottom

of the outline of the waveguide OCB, as shown in Figure A.3. Table A.2 gives dimensions of

the positions of the example of thirty-two channel ports.
---------------------- Page: 13 ----------------------
– 12 – IEC 62496-4-214:2020 © IEC 2020
Figure A.3 – Positions of the example of thirty-two channel ports of OCB

Table A.2 – Positions of cores for an example of the thirty-two-channel ports of OCB

Reference X Y Reference X Y
mm mm mm mm
a −1,937 5 0,050 q 0,062 5 0,050
b −1,812 5 0,050 r 0,187 5 0,050
c −1,687 5 0,050 s 0,312 5 0,050
d −1,562 5 0,050 t 0,437 5 0,050
e −1,437 5 0,050 u 0,562 5 0,050
f −1,312 5 0,050 v 0,687 5 0,050
g −1,187 5 0,050 w 0,812 5 0,050
h −1,062 5 0,050 x 0.937 5 0,050
i −0,937 5 0,050 y 1,062 5 0,050
j −0,812 5 0,050 z 1,187 5 0,050
k −0,687 5 0,050 aa 1,312 5 0,050
l −0,562 5 0,050 ab 1,437 5 0,050
m −0,437 5 0,050 ac 1,562 5 0,050
n −0,312 5 0,050 ad 1,687 5 0,050
o −0,187 5 0,050 ae 1,812 5 0,050
p −0,062 5 0,050 af 1,937 5 0,050
w1 −2,000 0,050 w2 2,000 0,050
t1 0,100
---------------------- Page: 14 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 13 –
(informative)
Dimensions of an example of a single-row thirty-two-channel MT ferrule

The MT connector intermateable with a single-row thirty-two-channel symmetric PMT connector

is not defined yet. Figure B.1 and Table B.1 show an example of a single-row thirty-two-channel

MT ferrule used for the customized MT connector. Figure B.2 and Table B.2 show an example

of the interface view and fibre hole positions, respectively. Fibre types for the customized MT

connector are those with a cladding, for example, of Φ80 µm and a coating of Φ125 µm.

Figure B.1 – Interface dimensions of an example of single‑row
thirty‑two‑channel MT ferrule
---------------------- Page: 15 ----------------------
– 14 – IEC 62496-4-214:2020 © IEC 2020

Figure B.2 – Interface views of an example of single-row thirty-two-channel MT ferrule

Table B.1 – Interface dimensions of an example of single‑row
thirty‑two‑channel MT ferrule
Dimensions
Reference mm
Minimum Maximum
AB 5,297 5,303
AC 6,300 6,500
AD 6,900 7,100
AE 2,400 2,500
AF 2,900 3,100
AG 7,900 8,100
AH 0,549 0,551
AI 0,080 0 0,081 5
---------------------- Page: 16 ----------------------
IEC 62496-4-214:2020 © IEC 2020 – 15 –
Table B.2 – Fibre hole positions of an example of single‑row
thirty‑two‑channel MT ferrule
Reference X Y Reference X Y
mm mm mm mm
a −1,937 5 0,000 q 0,062 5 0,000
b −1,812 5 0,000 r 0,187 5 0,000
c −1,687 5 0,000 s 0,312 5 0,000
d −1,562 5 0,000 t 0,437 5 0,000
e −1,437 5 0,000 u 0,562 5 0,000
f −1,312 5 0,000 v 0,687 5 0,000
g −1,187 5 0,000 w 0,812 5 0,000
h −1,062 5 0,000 x 0.937 5 0,000
i −0,937 5 0,000 y 1,062 5 0,000
j −0,812 5 0,000 z 1,187 5 0,000
k −0,687 5 0,000 aa 1,312 5 0,000
l −0,562 5 0,000 ab 1,437 5 0,000
m −0,437 5 0,000 ac 1,562 5 0,000
n −0,312 5 0,000 ad 1,687 5 0,000
o −0,187 5 0,000 ae 1,812 5 0,000
p −0,062 5 0,000 af 1,937 5 0,000
---------------------- Page: 17 ----------------------
– 16 – IEC 62496-4-214:2020 © IEC 2020
Bibliography
IEC 61754-5, Fibre optic connector interfaces – Part 5: Type MT connector family
___________
---------------------- Page: 18 ----------------------
– 18 – IEC 62496-4-214:2020 © IEC 2020
SOMMAIRE

AVANT-PROPOS .................................................................................................................. 19

1 Domaine d'application ................................................................................................... 21

2 Références normatives .................................................................................................. 21

3 Termes et définitions ..................................................................................................... 21

4 Description .................................................................................................................... 21

5 Dimensions d'interface des trente-deux canaux pour l'ensemble, les broches de

guidage et la connexion à ressort .................................................................................. 22

Annexe A (informative) Dimensions d'un exemple de composants pour l'ensemble .............. 26

A.1 Connecteur PMT symétrique ................................................................................. 26

A.2 Carte à circuits optiques à guides d'ondes ............................................................ 27

Annexe B (informative) Dimensions d'un exemple de férule MT de trente-deux canaux

sur une seule rangée ............................................................................................................ 29

Bibliographie ......................................................................................................................... 32

Figure 1 – Interconnexion entre l'ensemble et le connecteur MT ........................................... 22

Figure 2 – Dimensions d'interface des trente-deux canaux pour l'ensemble .......................... 23

Figure 3 – Vue d'interface des trente-deux canaux pour l'ensemble ...................................... 23

Figure 4 – Vue d'interface de la broche de guidage............................................................... 24

Figure 5 – Vue d'interface de la connexion à ressort ............................................................. 25

Figure A.1 – Exemple de composants du connecteur PMT symétrique .................................. 26

Figure A.2 – Vue agrandie d'une face d'extrémité d'un exemple de corps PMT de

trente-deux canaux sur une seule rangée ............................................................................. 27

Figure A.3 – Positions de l'exemple des ports de 32 canaux d'une carte à circuits

optiques ................................................................................................................................ 28

Figure B.1 – Dimensions d'interface d'un exemple de férule MT de trente-deux canaux

sur une seule rangée ............................................................................................................ 29

Figure B.2 – Vue d'interface d'un exemple de férule MT de trente-deux canaux sur

une seule rangée .................................................................................................................. 30

Tableau 1 – Dimensions d'interface des trente-deux canaux de l'ensemble ........................... 24

Tableau 2 – Positions des cœurs des trente-deux canaux de l'ensemble .............................. 24

Tableau 3 – Dimensions d'interface de la broche de guidage ................................................ 25

Tableau 4 – Dimensions d'interface de la connexion à ressort .............................................. 25

Tableau A.1 – Dimensions d'interface d'un exemple de corps PMT de trente-deux

canaux sur une seule rangée ................................................................................................ 27

Tableau A.2 – Positions des cœurs de l'exemple des ports de 32 canaux d'une carte à

circuits optiques .................................................................................................................... 28

Tableau B.1 – Dimensions d'interface d'un exemple de férule MT de trente-deux

canaux sur une seule rangée ................................................................................................ 30

Tableau B.2 – Positions des alésages pour les fibres d'un exemple de férule MT de

trente-deux canaux sur une seule rangée ............................................................................. 31

---------------------- Page: 19 ----------------------
– 19 – IEC 62496-4-214:2020 © IEC 2020
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
CARTES À CIRCUITS OPTIQUES –
Partie 4-214: Normes d'interface – Terminaison d'un ensemble de cartes
à circuits optiques à guides d'ondes utilisant un connecteur PMT
symétrique de trente-deux canaux sur une seule rangée
AVANT-PROPOS
...
