Printed board assemblies - Part 2: Sectional specification - Requirements for surface mount soldered assemblies

IEC 61191-2:2017 gives the requirements for surface mount solder connections. The requirements pertain to those assemblies that are totally surface mounted or to the surface mounted portions of those assemblies that include other related technologies (e.g. through-hole, chip mounting, terminal mounting, etc.).
This edition includes the following significant technical changes with respect to the previous edition:
a) the requirements have been updated to be compliant with the acceptance criteria in IPC‑A-610F;
b) some of the terminology used in the document has been updated;
c) references to IEC standards have been corrected;
d) five termination styles have been added.
The contents of the corrigendum of September 2019 have been included in this copy.

Ensembles de cartes imprimées - Partie 2: Spécification intermédiaire - Exigences relatives à l'assemblage par brasage pour montage en surface

L’IEC 61191-2:2017 spécifie les exigences relatives aux connexions brasées pour montage en surface. Les exigences se rapportent aux ensembles intégrant uniquement le montage en surface ou aux portions d’ensembles pour montage en surface incluant d’autres technologies associées (par exemple montage par trous traversants, montage à puce, à borne, etc.).
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) mise à jour des exigences pour qu’elles soient conformes aux critères d’acceptation de l’IPC‑A-610F;
b) mise à jour d’une partie de la terminologie utilisée dans le présent document;
c) correction des références aux normes IEC;
d) ajout de cinq styles de terminaisons.

General Information

Status
Published
Publication Date
22-May-2017
Current Stage
PPUB - Publication issued
Start Date
23-May-2017
Completion Date
23-May-2017
Ref Project

Buy Standard

Standard
IEC 61191-2:2017 - Printed board assemblies - Part 2: Sectional specification - Requirements for surface mount soldered assemblies
English and French language
66 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

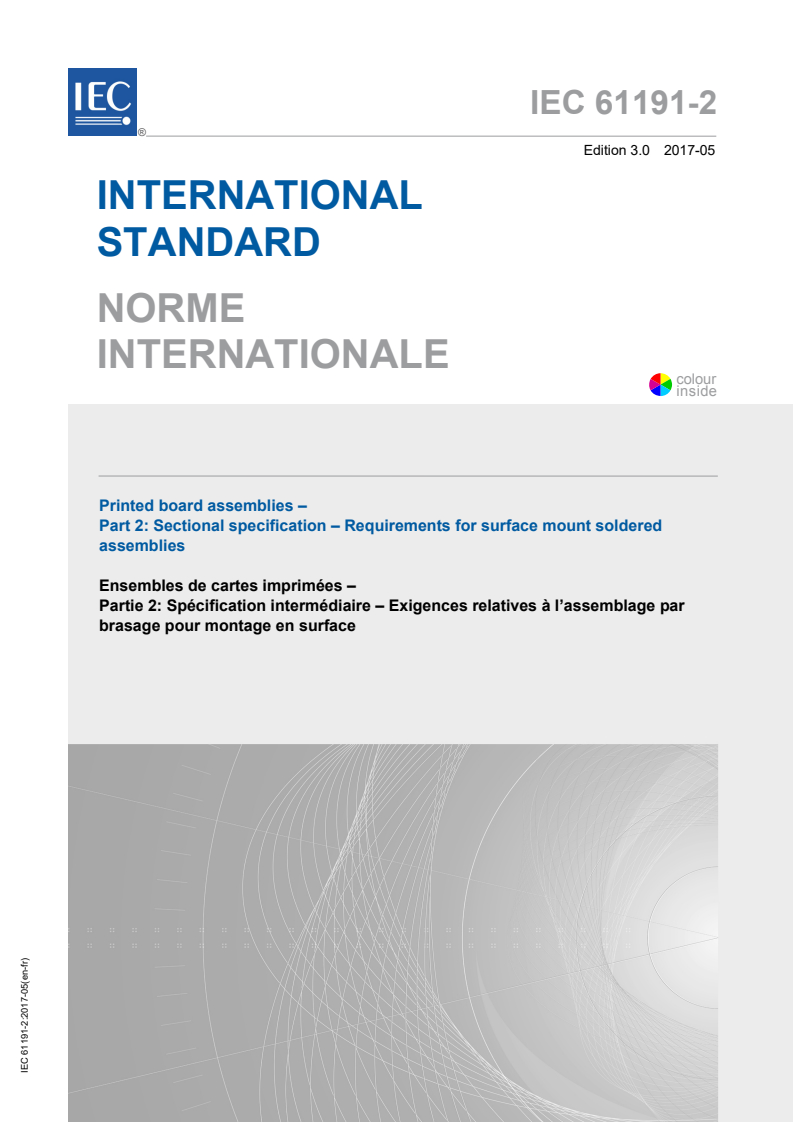

IEC 61191-2
Edition 3.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Printed board assemblies –
Part 2: Sectional specification – Requirements for surface mount soldered
assemblies
Ensembles de cartes imprimées –
Partie 2: Spécification intermédiaire – Exigences relatives à l’assemblage par
brasage pour montage en surface
IEC 61191-2:2017-05(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

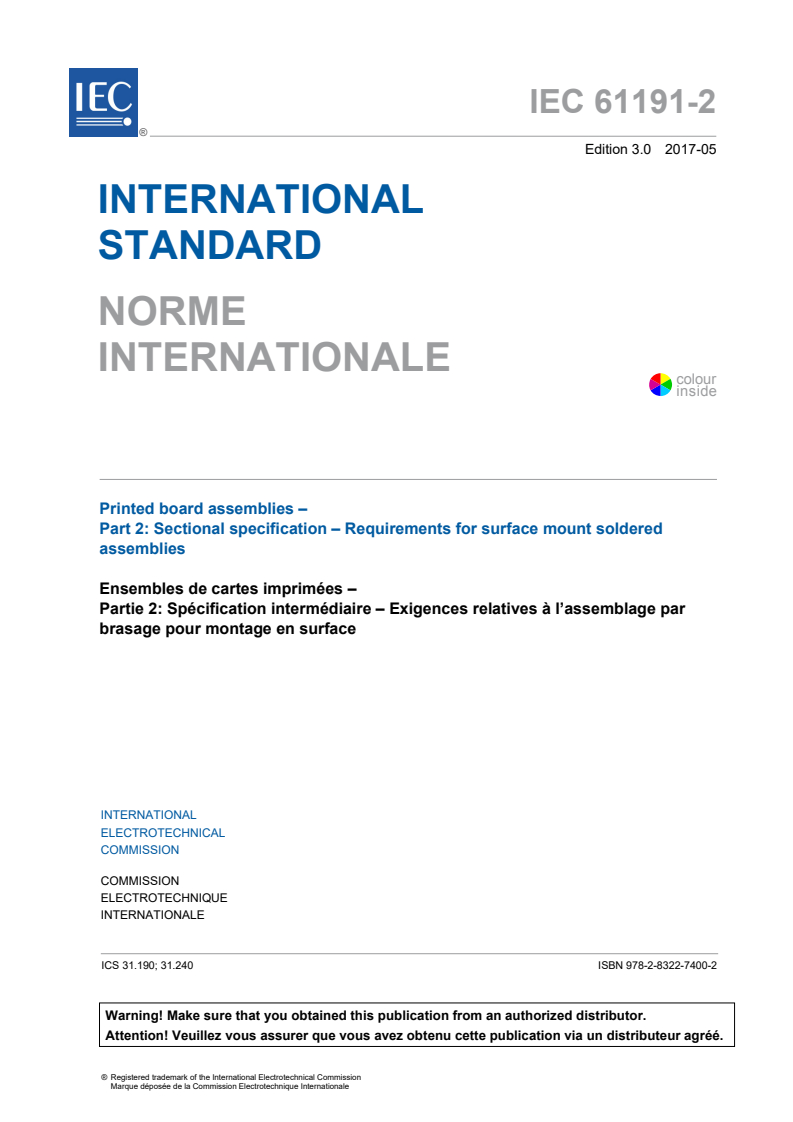

IEC 61191-2
Edition 3.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Printed board assemblies –
Part 2: Sectional specification – Requirements for surface mount soldered
assemblies
Ensembles de cartes imprimées –
Partie 2: Spécification intermédiaire – Exigences relatives à l’assemblage par
brasage pour montage en surface
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.190; 31.240 ISBN 978-2-8322-7400-2

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

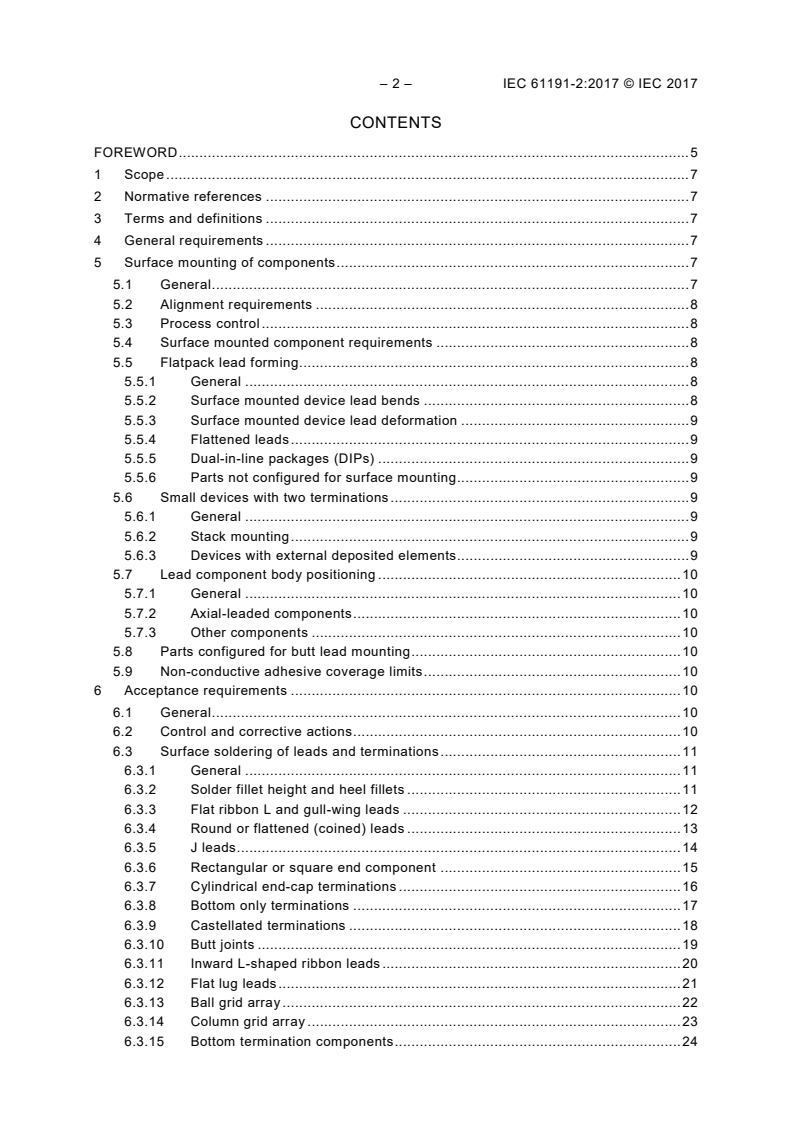

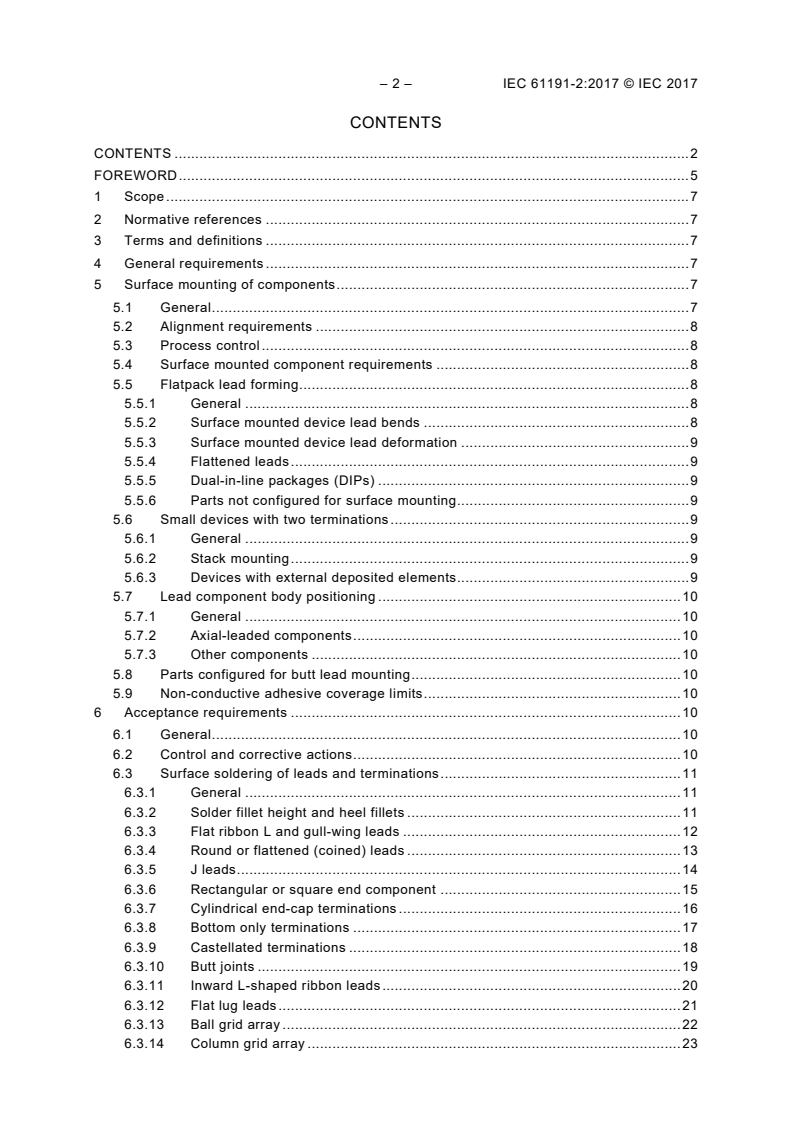

– 2 – IEC 61191-2:2017 © IEC 2017
CONTENTS

CONTENTS ............................................................................................................................ 2

FOREWORD ........................................................................................................................... 5

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 7

4 General requirements ...................................................................................................... 7

5 Surface mounting of components ..................................................................................... 7

5.1 General ................................................................................................................... 7

5.2 Alignment requirements .......................................................................................... 8

5.3 Process control ....................................................................................................... 8

5.4 Surface mounted component requirements ............................................................. 8

5.5 Flatpack lead forming .............................................................................................. 8

5.5.1 General ........................................................................................................... 8

5.5.2 Surface mounted device lead bends ................................................................ 8

5.5.3 Surface mounted device lead deformation ....................................................... 9

5.5.4 Flattened leads ................................................................................................ 9

5.5.5 Dual-in-line packages (DIPs) ........................................................................... 9

5.5.6 Parts not configured for surface mounting ........................................................ 9

5.6 Small devices with two terminations ........................................................................ 9

5.6.1 General ........................................................................................................... 9

5.6.2 Stack mounting ................................................................................................ 9

5.6.3 Devices with external deposited elements ........................................................ 9

5.7 Lead component body positioning ......................................................................... 10

5.7.1 General ......................................................................................................... 10

5.7.2 Axial-leaded components ............................................................................... 10

5.7.3 Other components ......................................................................................... 10

5.8 Parts configured for butt lead mounting ................................................................. 10

5.9 Non-conductive adhesive coverage limits .............................................................. 10

6 Acceptance requirements .............................................................................................. 10

6.1 General ................................................................................................................. 10

6.2 Control and corrective actions ............................................................................... 10

6.3 Surface soldering of leads and terminations .......................................................... 11

6.3.1 General ......................................................................................................... 11

6.3.2 Solder fillet height and heel fillets .................................................................. 11

6.3.3 Flat ribbon L and gull-wing leads ................................................................... 12

6.3.4 Round or flattened (coined) leads .................................................................. 13

6.3.5 J leads ........................................................................................................... 14

6.3.6 Rectangular or square end component .......................................................... 15

6.3.7 Cylindrical end-cap terminations .................................................................... 16

6.3.8 Bottom only terminations ............................................................................... 17

6.3.9 Castellated terminations ................................................................................ 18

6.3.10 Butt joints ...................................................................................................... 19

6.3.11 Inward L-shaped ribbon leads ........................................................................ 20

6.3.12 Flat lug leads ................................................................................................. 21

6.3.13 Ball grid array ................................................................................................ 22

6.3.14 Column grid array .......................................................................................... 23

---------------------- Page: 4 ----------------------
IEC 61191-2:2017 © IEC 2017 – 3 –

6.3.15 Bottom termination components ..................................................................... 24

6.3.16 Components with bottom thermal plane terminations (D-Pak) ........................ 24

6.3.17 P-style terminations ....................................................................................... 26

6.4 General post-soldering requirements applicable to all surface-mounted

assemblies ............................................................................................................ 26

6.4.1 Dewetting ...................................................................................................... 26

6.4.2 Leaching ........................................................................................................ 26

6.4.3 Pits, voids, blowholes, and cavities ................................................................ 26

6.4.4 Solder wicking ............................................................................................... 27

6.4.5 Solder webs and skins ................................................................................... 27

6.4.6 Bridging ......................................................................................................... 27

6.4.7 Degradation of marking ................................................................................. 27

6.4.8 Solder spikes ................................................................................................. 27

6.4.9 Disturbed joint ............................................................................................... 27

6.4.10 Component damage....................................................................................... 27

6.4.11 Open circuit, non-wetting ............................................................................... 27

6.4.12 Component tilting........................................................................................... 27

6.4.13 Non-conducting adhesive encroachment ........................................................ 28

6.4.14 Open circuit, no solder available .................................................................... 28

6.4.15 Component on edge ...................................................................................... 28

7 Rework and repair ......................................................................................................... 28

Annex A (normative) Placement requirements for surface mounted devices ......................... 30

A.1 General ................................................................................................................. 30

A.2 Component positioning ......................................................................................... 30

A.3 Small devices incorporating two terminations ........................................................ 30

A.3.1 Metallization coverage over the land (side-to-side) ........................................ 30

A.3.2 Metallization coverage over the land (end) ..................................................... 30

A.4 Mounting of cylindrical end-cap devices (MELFs) .................................................. 30

A.5 Registration of castellated chip carriers ................................................................ 30

A.6 Surface mounted device lead and land contact ..................................................... 30

A.7 Surface mounted device lead side overhang ......................................................... 30

A.8 Surface mounted device lead toe overhang ........................................................... 31

A.9 Surface mounted device lead height off land (prior to soldering) ........................... 31

A.10 Positioning of J lead devices ................................................................................. 31

A.11 Positioning gull-wing lead devices ......................................................................... 31

A.12 External connections to packaging and interconnect structures ............................. 31

Bibliography .......................................................................................................................... 32

Figure 1 – Lead formation for surface mounted device ............................................................ 8

Figure 2 – Fillet height .......................................................................................................... 12

Figure 3 – Flat ribbon and gull-wing leads ............................................................................. 13

Figure 4 – Round or flattened (coined) lead joint ................................................................... 14

Figure 5 – J lead joint ........................................................................................................... 15

Figure 6 – Rectangular or square end components ............................................................... 16

Figure 7 – Cylindrical end-cap terminations .......................................................................... 17

Figure 8 – Bottom only terminations ...................................................................................... 18

Figure 9 – Leadless chip carriers with castellated terminations ............................................. 19

---------------------- Page: 5 ----------------------
– 4 – IEC 61191-2:2017 © IEC 2017

Figure 10 – Butt joints ........................................................................................................... 20

Figure 11 – Inward L-shaped ribbon leads ............................................................................ 21

Figure 12 – Flat lug leads ..................................................................................................... 22

Figure 13 – BGA with collapsing balls ................................................................................... 23

Figure 14 – Bottom termination components ......................................................................... 24

Figure 15 – Bottom thermal plane terminations ..................................................................... 25

Figure 16 – P-style terminations ........................................................................................... 26

Table 1 – BGA with non-collapsing balls ............................................................................... 23

Table 2 – Column grid array .................................................................................................. 23

Table 3 – Reworkable defects ............................................................................................... 29

---------------------- Page: 6 ----------------------
IEC 61191-2:2017 © IEC 2017 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PRINTED BOARD ASSEMBLIES –
Part 2: Sectional specification –
Requirements for surface mount soldered assemblies
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61191-2 has been prepared by IEC technical committee 91:

Electronics assembly technology.

This bilingual version (2019-09) corresponds to the monolingual English version, published in

2017-05.

This third edition cancels and replaces the second edition published in 2013. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) the requirements have been updated to be compliant with the acceptance criteria in

IPC-A-610F;
b) some of the terminology used in the document has been updated;
---------------------- Page: 7 ----------------------
– 6 – IEC 61191-2:2017 © IEC 2017
c) references to IEC standards have been corrected;
d) five termination styles have been added.
The text of this International Standard is based on the following documents:
CDV Report on voting
91/1386/CDV 91/1429/RVC

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.
The French version of this standard has not been voted upon.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts of IEC 61191 under the general title Printed board assemblies can be found

in the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 8 ----------------------
IEC 61191-2:2017 © IEC 2017 – 7 –
PRINTED BOARD ASSEMBLIES –
Part 2: Sectional specification –
Requirements for surface mount soldered assemblies
1 Scope

This part of IEC 61191 gives the requirements for surface mount solder connections. The

requirements pertain to those assemblies that are totally surface mounted or to the surface

mounted portions of those assemblies that include other related technologies (e.g. through-

hole, chip mounting, terminal mounting, etc.).
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60194, Printed board design, manufacture and assembly – Terms and definitions

IEC 61191-1, Printed board assemblies – Part 1: Generic specification – Requirements for

soldered electrical and electronic assemblies using surface mount and related assembly

technologies
IPC-A-610, Acceptability of Electronic Assemblies
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60194 apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 General requirements
The requirements of IEC 61191-1 are a mandatory part of this specification.

Workmanship shall meet the requirements of IPC-A-610 in accordance with the classification

requirements of this document.
5 Surface mounting of components
5.1 General

This clause covers assembly of components that are placed on the surface to be manually or

machine soldered and includes components designed for surface mounting as well as

through-hole components that have been adapted for surface mounting technology.
---------------------- Page: 9 ----------------------
– 8 – IEC 61191-2:2017 © IEC 2017
5.2 Alignment requirements

Sufficient process control at all stages of design and assembly shall be in place to enable the

post-soldering alignments and solder joint fillet controls specified in 6.3 to be achieved.

Relevant factors affecting the requirements include land and conductor design, component

proximities, component and land solderability, solder paste/adhesive quantity and alignment

and component placement accuracy.
5.3 Process control

If suitable process controls are not in place to ensure compliance with 5.2 and the intent of

Annex A, the detailed requirements of Annex A shall be mandatory.
5.4 Surface mounted component requirements

The leads of lead surface mounted components shall be formed to their final configuration

prior to mounting. Leads shall be formed in such a manner that the lead-to-body seal is not

damaged or degraded and that they may be soldered into place by subsequent processes

which do not result in residual stresses decreasing reliability. When the leads of dual-in-line

packages, flatpacks, and other multilead devices become misaligned during processing or

handling, they may be straightened to ensure parallelism and alignment prior to mounting,

while maintaining the lead-to-body seal integrity.
5.5 Flatpack lead forming
5.5.1 General

Leads on opposite sides of surface mounted flatpacks shall be formed such that the

non-parallelism between the base surface of the component and the surface of the printed

board (i.e. component cant) is minimal. Component cant is permissible provided the final

configuration does not exceed the maximum spacing limit of 2,0 mm (see Figure 1).

No bend
into the seal
45° – 90° R
≤ 2,0 mm
IEC
Key
R lead-bend radius
T nominal lead thickness
Figure 1 – Lead formation for surface mounted device
5.5.2 Surface mounted device lead bends

Leads shall be supported during forming to protect the lead-to-body seal. Bends shall not

extend into the seal (see Figure 1). The lead-bend radius (R) shall be > 1 T (T = nominal lead

---------------------- Page: 10 ----------------------
IEC 61191-2:2017 © IEC 2017 – 9 –

thickness). The angle of that part of the lead between the upper and lower bends in relation to

the mounting land shall be 45° minimum and 90° maximum.
5.5.3 Surface mounted device lead deformation
Lead deformation (unintentional bending) may be allowed when
a) no evidence of a short circuit or potential short circuit exists,
b) lead-to-body seal or weld is not damaged by the deformation,
c) does not violate minimum electrical spacing requirement,

d) top of lead does not extend beyond the top of body; preformed stress loops may extend

above the top of the body; however, stand-off height limit shall not be exceeded,

e) toe curl, if present on bends, shall not exceed two times the thickness of the lead (2 T),

f) coplanarity limits are not exceeded.
5.5.4 Flattened leads

Components with axial leads of round cross-section may be flattened (coined) for positive

seating in surface mounting. If flattening is used, the flattened thickness shall be not less than

40 % of the original diameter. Flattened areas of leads shall be excluded from the 10 %

deformation requirement in 6.5.3 of IEC 61191-1:2013.

Flattened leads on opposite sides of a surface mount part shall be formed such that the non-

parallelism between the base surface of the component and the surface of the printed board

(e.g. component cant) is minimal.
5.5.5 Dual-in-line packages (DIPs)

Dual-in-line packages may be surface mounted provided the leads are configured to meet the

mounting requirements for surface mounted loaded parts. The lead preparation operation

shall be performed using
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
