Standards Content (sample)

IEC 62911
Edition 1.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Audio, video and information technology equipment – Routine electrical safety
testing in production
Appareils audio, vidéo et matériel de traitement de l'information – Essais

individuels de série, en production, pour la vérification de la sécurité électrique

IEC 62911:2016-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2016 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62911
Edition 1.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Audio, video and information technology equipment – Routine electrical safety
testing in production
Appareils audio, vidéo et matériel de traitement de l'information – Essais

individuels de série, en production, pour la vérification de la sécurité électrique

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160, 35.020 ISBN 978-2-8322-3094-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

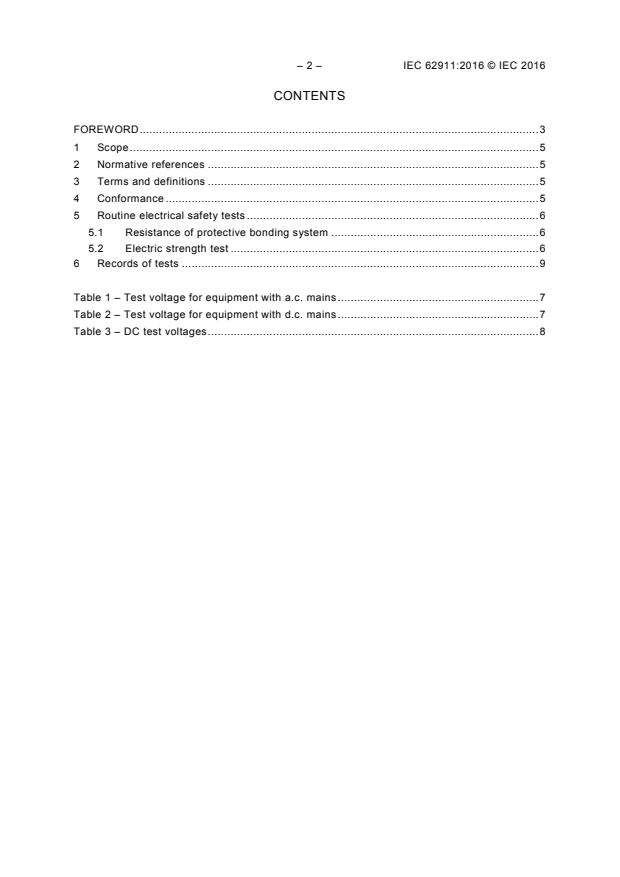

– 2 – IEC 62911:2016 © IEC 2016
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 Conformance ................................................................................................................... 5

5 Routine electrical safety tests .......................................................................................... 6

5.1 Resistance of protective bonding system ................................................................ 6

5.2 Electric strength test ............................................................................................... 6

6 Records of tests .............................................................................................................. 9

Table 1 – Test voltage for equipment with a.c. mains .............................................................. 7

Table 2 – Test voltage for equipment with d.c. mains .............................................................. 7

Table 3 – DC test voltages ...................................................................................................... 8

---------------------- Page: 4 ----------------------
IEC 62911:2016 © IEC 2016 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
AUDIO, VIDEO AND INFORMATION TECHNOLOGY EQUIPMENT –
ROUTINE ELECTRICAL SAFETY TESTING IN PRODUCTION
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62911 has been prepared by TC108: Safety of electronic

equipment within the field of audio/video, information technology and communication

technology
The text of this standard is based on the following documents:
FDIS Report on voting
108/616/FDIS 108/635/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

In this standard, the following print types or formats are used:
– requirements proper and normative annexes: in roman type;
---------------------- Page: 5 ----------------------
– 4 – IEC 62911:2016 © IEC 2016
– compliance statements and test specifications: in italic type;
– notes/explanatory matter: in smaller roman type;
– normative conditions within tables: in smaller roman type;
– terms that are defined in Clause 3: bold.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 62911:2016 © IEC 2016 – 5 –
AUDIO, VIDEO AND INFORMATION TECHNOLOGY EQUIPMENT –
ROUTINE ELECTRICAL SAFETY TESTING IN PRODUCTION
1 Scope

This International Standard defines routine electrical safety test procedures for use during

or after manufacturing of complete equipment, sub-assemblies or components, complying with

IEC 60065, IEC 60950-1 or IEC 62368-1 and powered by an a.c. mains supply or d.c. mains

supply, to detect manufacturing failures and unacceptable tolerances in manufacturing and

materials.

NOTE All the tests defined in this standard do not necessarily have to be performed at the end product

manufacturing location. The optimal location for the routine electrical safety tests can be defined by the

equipment manufacturer and reviewed under the conformity assessment scheme.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60065, Audio, video and similar electronic apparatus – Safety requirements

IEC 60950-1, Information technology equipment – Safety – Part 1: General requirements

IEC 62368-1, Audio/video, information and communication technology equipment – Part 1:

Safety requirements
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 60065, IEC 60950-1

and IEC 62368-1, as well as the following apply.
3.1
routine electrical safety test

electrical safety test to which each individual equipment is subjected during or at the end of

manufacture
4 Conformance

Equipment shall pass the routine electrical safety tests of Clause 5 where applicable and

the results of these tests shall be recorded according to Clause 6 prior to shipment from the

manufacturing site.

NOTE Practical measures can be used to conduct the test, such as finding an appropriate way to make the

connections necessary to perform the relevant test.
---------------------- Page: 7 ----------------------
– 6 – IEC 62911:2016 © IEC 2016
5 Routine electrical safety tests
5.1 Resistance of protective bonding system

For class I equipment, the continuity of the protective bonding system shall be checked

between the protective earth contact of the mains plug or appliance inlet, or the protective

earthing terminal in case of a permanently connected equipment, and

– the accessible conductive parts that need to be connected to the protective earthing

terminal for compliance with the requirements of the standard, and

– the protective earth contact of the socket-outlets respectively, if provided to deliver mains

power to other equipment.

NOTE 1 Functional earth is not considered a part of the protective bonding system and as a consequence, it does

not need to be tested.

The minimum test current is 150 % of the rating of the overcurrent device protecting the

protective bonding conductor (the protective current rating), but not less than 10 A and

not more than 25 A (a.c. or d.c.), applied for any duration between 1 s and 4 s. The source

shall have a no-load voltage not exceeding 12 V.
The resistance, calculated from the voltage drop, shall not exceed 0,1 Ω.

It is permitted to include the power cord (if any) in the resistance measurement and, if the

result exceeds 0,1 Ω, to subtract the resistance of the protective earthing conductor of the

power cord.

NOTE 2 Ensure that the contact resistance between the tip of the measuring probe and the conductive part under

test does not influence the test result.
5.2 Electric strength test

Routine tests for electric strength shall be carried out between circuits connected to the

mains (primary circuits) and accessible conductive parts. For accessible circuits not

connected to the mains (secondary circuits), it is permitted to test separately, before final

assembly, subassemblies and components, such as transformers, if the relevant insulation

cannot be tested in the complete equipment, provided that the complete equipment complies

with IEC 60065, IEC 60950-1 or IEC 62368-1 as appropriate.
The insulation of the equipment shall be checked by the following test:

– for equipment supplied by an a.c. mains, an a.c. test voltage of substantially sine-wave

form, having mains frequency, or a d.c. test voltage or a combination of both with a peak

value as specified in Table 1 is applied;

– for equipment supplied by a d.c. mains, a d.c. voltage according to Table 2 is applied;

– for equipment supplied by either an a.c. mains or a d.c. mains, the test can be applied at

either a.c. or d.c., making sure that the test voltage is the equivalent of the highest of the

two required test voltages as given in the above two dashes.

The test voltages given are the minimum test voltages to be applied. Higher voltages are

allowed at the discretion of the manufacturer provided the insulation is not damaged due to

overstress by the voltage applied.

NOTE 1 Applying an electrical strength test voltage that is too high can result in deterioration or partial damage of

the insulation.
The test voltage is applied between the supply terminals connected together and
– terminals regarded as accessible, and
– accessible conductive parts respectively,
---------------------- Page: 8 ----------------------
IEC 62911:2016 © IEC 2016 – 7 –

that may become hazardous live (ES3) in the event of an insulation fault as a result of

incorrect assembly.

NOTE 2 Terminals regarded as accessible and accessible conductive parts can be connected together during

the electric strength test.
Table 1 – Test voltage for equipment with a.c. mains
Test voltage
V (peak) a.c or d.c.
Application of test voltage
Rated mains voltage Rated mains voltage
≤ 150 > 150
1 130 2 120
Accessible parts connected to protective earth
(800 r.m.s.) (1 500 r.m.s.)
2 120 3 540
Accessible parts not connected to protective earth
(1 500 r.m.s.) (2 500 r.m.s.)

Functional earth is not considered to be protective earth. Accessible parts connected to functional earth have to

be tested as not being connected to protective earth.
Table 2 – Test voltage for equipment with d.c. mains
Test voltage
V d.c.
Application of test voltage
Up to and including Over 60 V up to and
60 V including 10 kV
Accessible parts connected to protective earth No test see V in Table 3
Accessible parts not connected to protective earth No test see V in Table 3

Functional earth is not considered to be protective earth. Accessible parts connected to functional earth have to

be tested as not being connected to protective earth.
---------------------- Page: 9 ----------------------
– 8 – IEC 62911:2016 © IEC 2016
Table 3 – DC test voltages
DC mains supply voltage V d.c. V d.c.
a b
> 60 921 1 472
62 935 1 495
64 947 1 517
66 962 1 538
68 976 1 560
70 988 1 581
72 1 001 1 602
74 1 014 1 622
76 1 027 1 643
78 1 039 1 663
80 1 052 1 683
85 1 082 1 731
90 1 110 1 777
95 1 138 1 821
100 1 167 1 865
105 1 193 1 909
110 1 219 1 950
115 1 244 1 991
120 1 268 2 031
125 1 294 2 069
130 1 316 2 107
135 1 340 2 145
140 1 363 2 180
145 1 386 2 217
150 1 407 2 253
152 1 414 2 262
155 1 414 2 286
160 1 414 2 320
165 1 414 2 353
170 1 414 2 387
175 1 414 2 419
180 1 414 2 450
184 1 414 2 476
185 1 551 2 482
190 1 571 2 513
200 1 608 2 573
210 1 644 2 631
220 1 681 2 689
230 1 717 2 746
240 1 751 2 800
250 1 783 2 853
260 1 817 2 906
270 1 848 2 958
280 1 881 3 008
290 1 910 3 057
300 1 941 3 105
310 1 971 3 153
320 1 999 3 200
330 2 029 3 247
340 2 057 3 292
350 2 084 3 336
---------------------- Page: 10 ----------------------
IEC 62911:2016 © IEC 2016 – 9 –
DC mains supply voltage V d.c. V d.c.
a b
360 2 113 3 379
380 2 166 3 466
400 2 219 3 549
420 2 269 3 630
440 2 319 3 709
460 2 367 3 787
480 2 414 3 862
500 2 460 3 937
520 2 506 4 009
540 2 549 4 079
560 2 593 4 149
580 2 636 4 217
588 2 651 4 242
600 2 677 4 242
Linear interpolation is permitted between the nearest two points.
a 0,463 8

At these voltages, the values of V are determined by the general curve V = 155,86 U and are not

b b
1,6 V .

Before the test voltage is applied, contact shall be made between the equipment and the

connection devices.

The voltage applied to the insulation under test may be gradually raised from zero to the

prescribed voltage and maintained at that value for 1 s to 4 s.

During the test, mains switches and functional switches conductively connected to the mains,

if any, shall be in the on-position and it shall be ensured by suitable means that the test

voltage is effectively connected to the equipment.

No flash-over or breakdown shall occur during the test. The test voltage source shall be

provided with a current sensing (over-current) device which, when activat
...
