INTERNATIONAL IEC
STANDARD
CEI
61628-2
NORME
Edition 1.1
INTERNATIONALE
2007-07
Edition 1:1998 consolidated with amendment 1:2007
Edition 1:1998 consolidée par l'amendement 1:2007
Corrugated pressboard and presspaper
for electrical purposes –
Part 2:
Methods of test
Cartons et papiers comprimés ondulés
à usages électriques –
Partie 2:
Méthodes d’essais
Reference number
Numéro de référence
IEC/CEI 61628-2:1998+A1:2007
---------------------- Page: 1 ----------------------

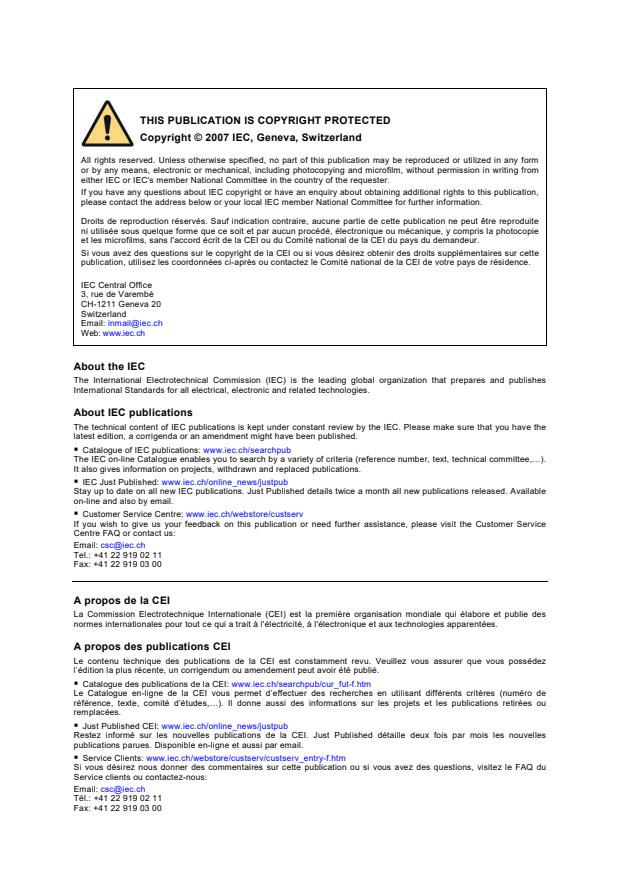

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2007 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de
référence, texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou
remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
---------------------- Page: 2 ----------------------
INTERNATIONAL IEC
STANDARD
CEI
61628-2
NORME
Edition 1.1
INTERNATIONALE
2007-07
Edition 1:1998 consolidated with amendment 1:2007
Edition 1:1998 consolidée par l'amendement 1:2007
Corrugated pressboard and presspaper
for electrical purposes –
Part 2:
Methods of test
Cartons et papiers comprimés ondulés
à usages électriques –
Partie 2:
Méthodes d’essais
PRICE CODE
CD
Commission Electrotechnique Internationale CODE PRIX
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue
Pour prix, voir catalogue en vigueur
---------------------- Page: 3 ----------------------
– 2 – 61628-2 © IEC:1998+A1:2007

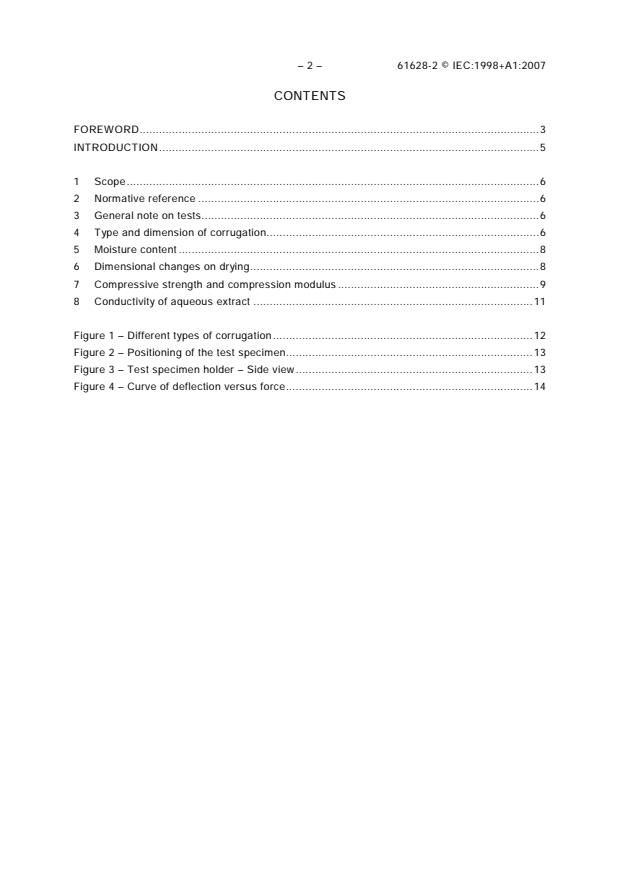

CONTENTS
FOREWORD.3
INTRODUCTION.5
1 Scope.6
2 Normative reference .6
3 General note on tests.6
4 Type and dimension of corrugation.6
5 Moisture content .8
6 Dimensional changes on drying.8
7 Compressive strength and compression modulus .9
8 Conductivity of aqueous extract .11
Figure 1 – Different types of corrugation.12
Figure 2 – Positioning of the test specimen.13
Figure 3 – Test specimen holder – Side view.13
Figure 4 – Curve of deflection versus force.14
---------------------- Page: 4 ----------------------
61628-2 © IEC:1998+A1:2007 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
________
CORRUGATED PRESSBOARD AND PRESSPAPER
FOR ELECTRICAL PURPOSES –
Part 2: Methods of test
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61628-2 has been prepared by subcommittee 15C: Specifications,
of IEC technical committee 15: Insulating materials.
This consolidated version of IEC 61628-2 consists of the first edition (1998) [documents
15C/992/FDIS and 15C/1008/RVD] and its amendment 1 (2007) [documents 15/293/CDV and
15/340/RVC].
The technical content is therefore identical to the base edition and its amendment(s) and has
been prepared for user convenience.
It bears the edition number 1.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
---------------------- Page: 5 ----------------------
– 4 – 61628-2 © IEC:1998+A1:2007
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
61628-2 © IEC:1998+A1:2007 – 5 –
INTRODUCTION
This part of IEC 61628 is one of a series which deals with corrugated pressboard and
presspaper for electrical purposes.
This series consists of three parts:
– IEC 61628-1:1997, Corrugated pressboard and presspaper for electrical purposes – Part 1:
Definitions, designations and general requirements
– IEC 61628-2:1998, Corrugated pressboard and presspaper for electrical purposes – Part 2:
Methods of test
– IEC 61628-3,— Corrugated pressboard and presspaper for electrical purposes – Part 3:
Specification for individual materials (under consideration)
---------------------- Page: 7 ----------------------
– 6 – 61628-2 © IEC:1998+A1:2007
CORRUGATED PRESSBOARD AND PRESSPAPER
FOR ELECTRICAL PURPOSES –
Part 2: Methods of test
1 Scope
This part of IEC 61628 gives methods of test applicable for the materials classified in
IEC 61628-1.
2 Normative reference
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
IEC 60641-2:2004, Pressboard and presspaper for electrical purposes – Part 2: Methods of
test
3 General note on tests
It is recommended to use a high-speed band saw with a cut width less than 1 mm to make the
test specimens. The burrs made by cutting should be carefully removed.
Unless otherwise specified, the test specimens after being cut, shall be conditioned according
to IEC 60641-2.
4 Type and dimension of corrugation
The shape and type of corrugation are defined by wavelength, maximum amplitude, the length
of horizontal parts, angle of slope and the board thickness out of which the corrugated material
is made (see figures 1a and 1b).
The following tests are made on the material as received.
4.1 Wavelength
4.1.1 Procedure
Cut at least three test samples, each test sample having a length greater than three complete
wavelengths.
With a pencil, mark the starting line of the first wavelength and the end line of the last
wavelength (minimum three wavelengths).
(The best starting and end line of a wavelength is the line of maximum amplitude for a sine
type corrugation and the centre of a horizontal part in an angular type corrugation.)
Lay the test sample on a flat surface with no strain applied.
---------------------- Page: 8 ----------------------
61628-2 © IEC:1998+A1:2007 – 7 –
Measure with a ruler (precise to 0,5 mm) the distance between the pencil lines.
Divide the measured value by the number of wavelengths between the lines.
4.1.2 Results
Report the mean, minimum and maximum values of the measurements.
4.2 Amplitude
4.2.1 Procedure
Cut at least nine specimens, each being (100 ± 10) mm wide, and one-and-a-half to two
wavelengths in length, so that two full bottom peaks are included.
Lay the test specimens on a flat surface with no strain applied.
With a gauge (precise to 0,1 mm), measure the distance between the highest point and the
lowest point.
4.2.2 Results
Report the mean, minimum and maximum values of the measurements.
4.3 Length of horizontal parts of corrugation
4.3.1 Procedure
On at least three different corrugations, mark with a pencil the vertical projections of the
theoretical points where the oblique parts of the corrugation meet the horizontal part. The
pencil marks shall be positioned on a line in the direction of the corrugation wavelength.
Measure the distance between the pencil marks with a calliper precise to 0,1 mm (distance E in
figure 1b).
Repeat the measurements at the opposite side of the sheet to measure the distance D in
figure 1b.
Because D and E may be intentionally different, both measurements shall be reported.
4.3.2 Results
Report for D and E the mean, minimum and maximum values of the measurements.
4.4 Angle of slope
4.4.1 Procedure
Cut at least three specimens, each being (100 ± 10) mm wide, and one-and-a-half to two
wavelengths in length, so that two full bottom peaks are included.
Lay the test sample on a flat surface with no strain applied.
α of the central
With an adequate protractor (precise to 0,5°), measure the two angles
corrugation.
---------------------- Page: 9 ----------------------
– 8 – 61628-2 © IEC:1998+A1:2007
4.4.2 Results
Report the mean, minimum and maximum values of the measurements.
4.5 Thickness of board
4.5.1 Procedure
With an external screw type micrometer as described in IEC 60641-2, make at least nine
different measurements of the board thickness with an accuracy of ± 0,01 mm at points where
the corrugation curve is flat, or in the area of the inflection point for a sine type corrugation.
NOTE Measures on the horizontal flat part should be avoided as the board thickness may have been affected by
the direct action of the forming press when mechanical pressure has been used to manufacture the corrugated
material.
4.5.2 Results
Report the mean, minimum and maximum values of the measurements.
5 Moisture content
Moisture content shall be determined according to IEC 60641-2.
6 Dimensional changes on drying
6.1 Change of amplitude
6.1.1 Procedure (see figure 2)
Cut three specimens (50 ± 5) mm wide and five wavelengths long and condition them
according to IEC 60641-2.
Place the specimens on a flat steel plate the dimensions of which shall exceed the dimensions
of the specimen by at least 50 mm. Place a second flat rigid plate of calibrated thickness T,
50 mm wide and of sufficient length to cover all the corrugations, on top of the specimen. The
weight of this plate shall guarantee that all the corrugations are in flat contact with both top and
bottom plate and shall be defined in the specification sheets of IEC 61628-3.
NOTE The weight of the plate can be adjusted by additional weights added on top of it.
If all the corrugations of any specimen are not in contact with top and bottom plate under this
pre-load, the specimen shall be discarded.
The amplitude of the corrugation of the specimen is measured by means of a gauge precise to
0,1 mm with a semi-spherical sensor in the following way:
– lower the sensor of the gauge on to the bottom steel plate and adjust the pointer to zero;
– set the sensor on the top plate and read the measured values at three different points near
the centre of the plate and form the mean of these three measures.
Record this value as value B for each specimen.
Remove and dry the test specimens in a ventilated oven at 105 °C ± 5 K for (48 ± 1) h. After
cooling at room temperature in a desiccator, repeat the measurements as above.
Record for each specimen the new value as C.
---------------------- Page: 10 ----------------------
61628-2 © IEC:1998+A1:2007 – 9 –
6.1.2 Calculation
The change of amplitude is calculated as a percentage of the original amplitude and is given by
the formula:
CB−
change of amplitude = × 100
BT−
There is normally an increase of amplitude after drying.
6.1.3 Results
Report the mean value obtained. Minimum and maximum values should also be reported.
6.2 Lengthwise and crosswise dimensional changes
6.2.1 Procedure
Cut three specimens (250 ± 0,5) mm × (250 ± 0,5) mm and condition them according to
IEC 60641-2. Place the specimen on a flat steel plate of at least 300 mm × 300 mm. A second
flat rigid plate of the same dimension is placed on top of the specimen. Its mass, which will be
defined in the specification sheets of IEC 61628-3, shall guarantee that all corrugations are in
contact with both top and bottom plates.
Measure the lengthwise and crosswise dimensions with a calliper precise to 0,1 mm (or
equivalent) at two different positions.
Record the mean value of the two measurements as the initial dimensions of the specimen.
Remove and dry the test specimens in a ventilated oven at 105 °C ± 5 K for (48 ± 1) h. After
cooling at room temperature in a desiccator, repeat the measurements as above.
6.2.2 Results
The dimensional changes lengthwise and crosswise are calculated for each specimen as the
per cent change in dimensions from those of the original conditioned specimen. Report all
calculated values and the means of the lengthwise and crosswise values.
7 Compressive strength and compression modulus
7.1 Purpose and principle of the test
The purpose of the test is to calculate the compressive strength and the compression modulus
of the material when the corrugation is submitted to a force applied on the corrugation and
perpendicular to the original plane of the corrugated material.
The perpendicular force is applied with the ends of the test specimens subjected to total
restraint (see figure 3).
---------------------- Page: 11 ----------------------
– 10 – 61628-2 © IEC:1998+A1:2007
7.2 Test specimens
Cut five test specimens (50 ± 0,5) mm wide and five full wavelengths long unless the
wavelength is <10 mm, in which case a number of wavelengths to give a total length ≥50 mm
shall be used. If the wavelength is >60 mm, it is permitted to use three full wavelengths instead
of five. The ends of the test specimens are cut within 1 mm of the crest of a corrugation, or in
case of a angular type corrugation, within 1 mm of the centre line of a flat horizontal part.
The two end cuts shall be parallel to the corrugation and to each other within 0,1 mm.
Condition the test specimens in accordance with IEC 60641-2.
7.3 Test apparatus
The test apparatus shall consist of:
– a compression tester which will measure and record graphically the applied force with an
accuracy of ±1 % and the crosshead movement with a magnification of at least 10 times.
The crosshead speed shall be such that the end point of the test is reached within 10 s
to 30 s;
– a test specimen holder, (an example is shown in figure 3);
– a pressure plate whose dimensions cover completely all the crests of the specimen's
corrugations.
7.4 Procedure
– Place the test specimen in the test holder.
– Adjust the mobile end of the holder so that both ends touch evenly the ends of the test
specimen without exerting any lateral force.
– Place the pressure plate on the test specimen.
– With a calliper precise to 0,1 mm, measure the distance L between the pressure plate and
the bottom end part of the holder. Six measurements shall be made: three on each side of
the test specimen, one at each end and one at the centre of each side. L shall be recorded
as the mean value of these six measurements.
NOTE The pressure plate should be centred approximately on the test specimen and the pressure foot applied
centrally to the pressure plate. The offset of the axis of the load application from the centre of the test specimen
should be less than 5 mm.
– Record the force and the crosshead movement up to the point when the force increases
sharply after collapse (see figure 4).
7.5 Calculation
The force of failure is the value of the force at the first turning point (maximum or point of
inflection) at each force/movement graph.
The compressive strength of the test specimen is the force at failure divided by the projected
area of the test specimen and is usually expressed in megapascals (MPa).
The compression modulus is calculated as follows:
On the graph (see figure 4) mark the points A and B where the force reaches 25 % and 50 % of
the force at failure. Draw a straight line through A and B. This line crosses the deflection axis
at point C, at a distance λ from the origin.
---------------------- Page: 12 ----------------------
61628-2 © IEC:1998+A1:2007 – 11 –
This value λ represents the settling of the test specimen when applying the force and is due to
the unevenness of the corrugation.
Δl is the difference between the deflection of the test specimen at point B and the deflection at
point A.
ΔF is the variation of the force between point B and point A.
The compression modulus is given by the formula:
Δ F
compression modulus =
Δ I
× S
L − λ
The value is expressed in megapascals (MPa).
In this formula:
ΔF is the force at point B minus force at point A expressed in newtons (N);
Δl is the deflection at point B minus deflection at point A expressed in millimetres (mm);
λ is the deflection at point C expressed in millimetres (mm);
L is the mean corrugation height measured as stated above, expressed in millimetres (mm);
2
S is the projected area of the test piece, expressed in square millimetres (mm ).
7.6 Results
7.6.1 Compressive strength
Report the mean value as the result; the highest and lowest values are reported.
7.6.2 Compression modulus
Report the mean value as the result; the highest and lowest values are reported.
8 Conductivity of aqueous extract
The conductivity of aqueous extract shall be measured according to IEC 60641-2.
---------------------- Page: 13 ----------------------
S
– 12 – 61628-2 © IEC:1998+A1:2007
α
H
α
W
IEC 1 501/98
Figure 1a – Sine type corrugation
E
α
H
α
D
W
IEC 1 502/98
Figure 1b – Angular type corrugation
W wavelength
H amplitude
D, E distance between vertical projections (see 4.3.1)
S board thickness
α angle of slope
Figure 1 – Different types of corrugation
S
---------------------- Page: 14 ----------------------
61628-2 © IEC:1998+A1:2007 – 13 –
Upper plate
Bottom steel plate
IEC 1 503/98
T thickness
B, C amplitude values before and after test
Figure 2 – Positioning of the test specimen
F
L
Adjustable from 0 to 300 mm,
width 60 mm minimum
IEC 1 504/98
L mean corrugation height
F applied force
Figure 3 – Test specimen holder – Side view
T
B or C
---------------------- Page: 15 ----------------------
– 14 – 61628-2 © IEC:1998+A1:2007
F (N)
100 %
50 %
B
ΔF
25 %
A
C
L (mm)
λ Δl
IEC 1 505/98
L mean corrugation height
F force
Δl difference of deflection between point B and point A
λ deflection at point C
ΔF variation of the force between point B and point A
Figure 4 – Curve of deflection versus force
___________
---------------------- Page: 16 ----------------------
– 16 – 61628-2 © CEI:1998+A1:2007
SOMMAIRE
AVANT-PROPOS .17
INTRODUCTION.19
1 Domaine d'application .20
2 Référence normative.20
3 Note générale sur les essais .20
4 Type et dimension de l'ondulation .20
5 Teneur en humidité.22
6 Variation dimensionnelle au séchage.22
7 Résistance à la compression et module de compression.23
8 Conductivité de l'extrait aqueux.25
Figure 1 – Différents types d'ondulation .26
Figure 2 – Mise en place de l'éprouvette.27
Figure 3 – Porte éprouvette – Vue latérale.27
Figure 4 – Courbe de la flèche en fonction de la force.28
---------------------- Page: 17 ----------------------
61628-2 © CEI:1998+A1:2007 – 17 –
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
________
CARTONS ET PAPIERS COMPRIMÉS ONDULÉS
À USAGES ÉLECTRIQUES –
Partie 2: Méthodes d'essais
AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes internationales,
des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au public (PAS) et des
Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des comités d'études,
aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les organisations
internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent également aux
travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO), selon des
conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable de
l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de la CEI s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de la CEI dans leurs publications
nationales et régionales. Toutes divergences entre toutes Publications de la CEI et toutes publications
nationales ou régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) La CEI n’a
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
