IEC 61883-4:2004

Consumer audio/video equipment - Digital interface - Part 4: MPEG2-TS data transmission

IEC 61883-4:2004 describes the packetization and the transmission timing for MPEG2 transport streams for the IEEE 1394 digital interface. It describes the specifications for the IEEE 1394 packet, the CIP header and the transmission timing for use with the transport stream as specified in prETS 300 468. This explanation is based on the transport stream as specified in DVB. This second edition of cancels and replaces the first edition published in 1998. It contains the following significant technical changes: Updated IEC 61834-9, IEC 61834-10 and added IEC 61834-1 in Bibliography. This bilingual version (2013-02) corresponds to the monolingual English version, published in 2004-08.

Matériel audio/vidéo grand public - interface numérique - Partie 4: Transmission de données MPEG2-TS

La CEI 61883-4:2004 décrit le groupage par paquets et la durée de transmission pour les suites de transport MPEG2 pour l'interface numérique IEEE 1394. Elle décrit les spécifications pour le paquet IEEE 1394, l'en-tête CIP et la durée de transmission applicables aux suites de transport spécifiées dans le prETS 300 468. Cette description est basée sur la suite de transport telle qu'elle est spécifiée dans le DVB. Cette deuxième édition annule et remplace la première parue en 1998. Elle contient les modifications techniques significatives suivantes: CEI 61834-10 et ajout de la CEI 61834-1 dans la Bibliographie. La présente version bilingue (2013-02) correspond à la version anglaise monolingue publiée en 2004-08.

General Information

• Status: Published
• Publication Date: 26-Aug-2004
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 33.160.01 - Audio, video and audiovisual systems in general
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: TC 100 - Audio, video and multimedia systems and equipment
• Drafting Committee: MT 61883-4 - TC 100/TA 4/MT 61883-4
• Current Stage: PPUB - Publication issued
• Start Date: 31-Mar-2005
• Completion Date: 27-Aug-2004

Relations

• Revises: IEC 61883-4:1998 - Consumer audio/video equipment - Digital interface - Part 4: MPEG2-TS data transmission
• Effective Date: 05-Sep-2023

Standards Content (Sample)

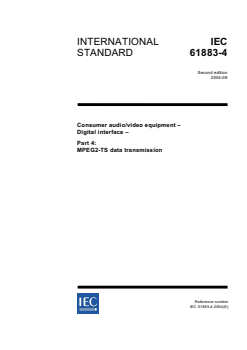

INTERNATIONAL IEC
STANDARD 61883-4
Second edition
2004-08
Consumer audio/video equipment –
Digital interface –
Part 4:
MPEG2-TS data transmission
Reference number

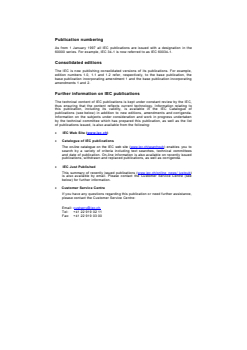

Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: [e-mail]
Tel: [phone]
Fax: [phone]

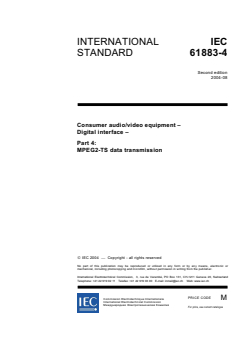

INTERNATIONAL IEC
STANDARD 61883-4
Second edition
2004-08
Consumer audio/video equipment –
Digital interface –
Part 4:
MPEG2-TS data transmission
” IEC 2004  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
M
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
For price, see current catalogue

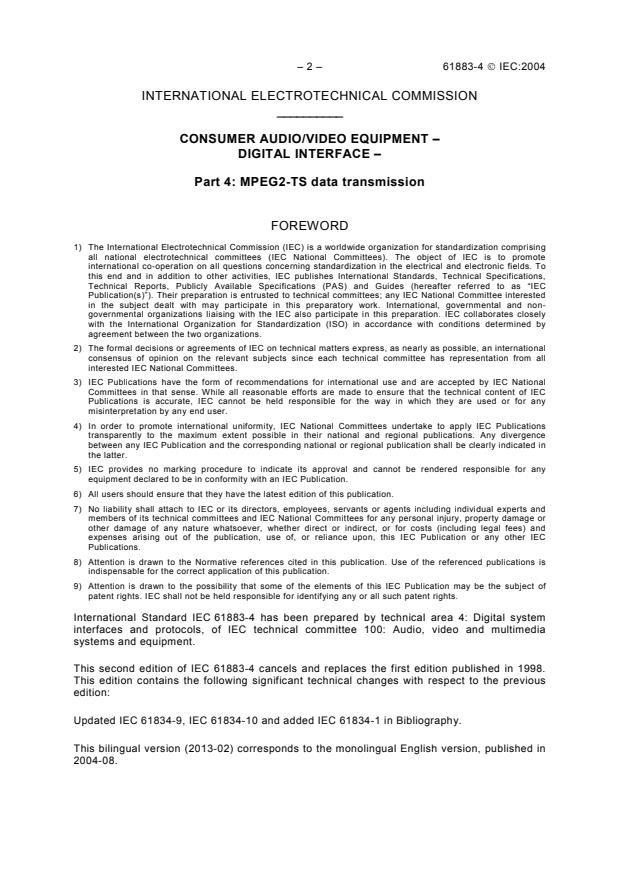

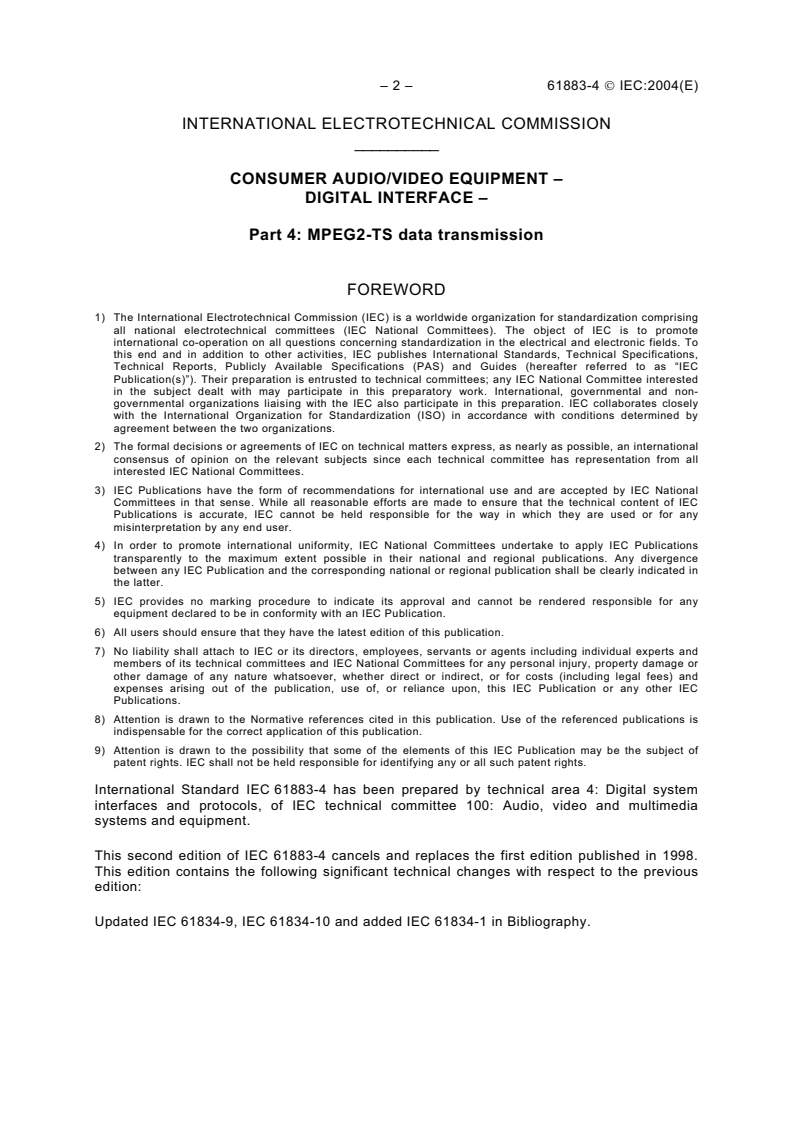

– 2 – 61883-4 ” IEC:2004(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
__________
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 4: MPEG2-TS data transmission
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61883-4 has been prepared by technical area 4: Digital system
interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia
systems and equipment.
This second edition of IEC 61883-4 cancels and replaces the first edition published in 1998.
This edition contains the following significant technical changes with respect to the previous
edition:
Updated IEC 61834-9, IEC 61834-10 and added IEC 61834-1 in Bibliography.

61883-4 ” IEC:2004(E) – 3 –
The text of this standard is based on the following documents:
CDV Report on voting
100/729/CDV 100/818/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 61883 consists of the following parts under the general title Consumer audio/video
equipment – Digital interface:
Part 1: General
Part 2: SD-DVCR data transmission
Part 3: HD-DVCR data transmission
Part 4: MPEG2-TS data transmission
Part 5: SDL-DVCR data transmission
Part 6: Audio and music data transmission protocol
Part 7: Transmission of ITU-R BO.1294 System B
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
 reconfirmed;
 withdrawn;
 replaced by a revised edition, or
 amended.
A bilingual version of this document may be issued at a later date.

– 4 – 61883-4 ” IEC:2004(E)
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 4: MPEG2-TS data transmission
1 Scope
This part of IEC 61883 describes the packetization and the transmission timing for MPEG2
transport streams for the IEEE 1394 digital interface. It describes the specifications for the
IEEE 1394 packet, the CIP header and the transmission timing for use with the transport
stream as specified in prETS 300 468. This explanation is based on the transport stream as
specified in DVB.
2 Normative reference
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61883-1, Consumer audio/video equipment – Digital interface – Part 1: General
ISO/IEC 13818-1, Information technology – Generic coding of moving pictures and associated
audio information: Systems
ISO/IEC 13818-2, Information technology – Generic coding of moving pictures and associated
audio information: Video
ISO/IEC 13818-3, Information technology – Generic coding of moving pictures and associated
audio information – Part 3: Audio
ISO/IEC 13818-9, Information technology – Generic coding of moving pictures and associated
audio information – Part 9: Extension for real time interface for system decoders
prETS 300 468, Digital broadcasting systems for television, sound and data services –
Specification for Service Information (SI) in digital video broadcasting (DVB) systems
3 Terms, definitions, and abbreviations
For the purposes of this document, the following abbreviations apply:
CIP  Common Isochronous Packet
CTR  Cycle Time Register
DVB  Digital Video Broadcasting (in Europe)
SI  Service Information
ETS  European Telecommunication Standard
MPEG  Moving Picture Experts Group
RTI  Real Time Interface
TS  Transport Stream
TSP  Transport Stream Packet
IEEE 1394 packet IEEE 1394 isochronous packet defined in IEC 61883-1

61883-4 ” IEC:2004(E) – 5 –
4 Construction of IEEE 1394 packet
4.1 Structure of the MPEG2-TS data stream
The length of the source packet is 192 bytes (see Figure 1). The source packet consists of
one MPEG2-TSP with a length of 188 bytes and a source packet header of 4 bytes. The
source packet header contains a time stamp.
MPEG2-TS packets shall comply with ISO/IEC 13818 series.
4.2 Packetization of source packet of the MPEG2-TS data stream
A source packet is split into 8 data blocks with a length of 6 quadlets. Zero or more data
blocks are packed in an IEEE 1394 isochronous packet. A receiver of the isochronous packets
shall collect the data blocks of one source packet and combine them in order to reconstruct
the source packet before sending this source packet to the application. There are restrictions
on the transmission of fractions (see 5.2).
Active transmitters shall send an isochronous packet in every cycle. If not enough data is
available to transmit in the isochronous packet, then an empty packet shall be transmitted.
4.3 Time stamp
The time stamp in the source packet header is used by isochronous data receivers for
reconstructing a correct timing of the TSPs at their output. The time stamp indicates the
intended delivery time of the first bit/byte of the TSP from the receiver output to the transport
stream target decoder. The time stamp represents the 25 bits of the IEEE 1394 CYCLE_TIME
register (CTR) at the moment the first bit/byte of the TSP arrives from the application, plus
some offset. The offset is equal to the constant overall delay of the TSP between the moment
of arriving (of the first bit) and the moment the TSP (first bit) is delivered by the receiver to the
application.
5 CIP header
5.1 Structure of CIP header
The structure of the CIP header (see Figure 2) for the MPEG2-TS is compliant with the two
quadlet CIP header format explained in IEC 61883-1, 6.2.1. The static values of the CIP
header components are as follows.
SID . (depends on configuration)
DBS 00000110 (6 quadlets)
FN 112 (8 data blocks in one source packet)
QPC 000 (no padding)
SPH 1 (source packet header is present)
DBC 0 . 255 (see 5.2)
FMT 100000 (format type of MPEG2-TS)
FDF . (see 5.3)
– 6 – 61883-4 ” IEC:2004(E)
5.2 DBC values
The first data block of a source packet (data block containing the source packet header)
corresponds to a DBC value from which the three LSBs are ‘000’.
An isochronous packet contains 0, 1, 2 or 4 data blocks or an integer number of source
packets.
Where the isochronous packet contains
 one data block, then the DBC value increments with 1;
 two data blocks, then the DBC value is a multiple of 2, the LSB is ‘0’;
 four data blocks, then the DBC value is a multiple of 4, the two LSBs are ’00’.
Where the isochronous packet contains n source packets (n is an integer) then the DBC value
is a multiple of 8. The three LSBs are ‘000’.
5.3 FDF area
The structure of the FDF area is shown in Figure 3. The definitions of the fields are as follows:
 TSF (time shift flag) indicates a time-shifted data stream:
0 = the stream is not time-shifted.
1 = the stream is time-shifted.
 Res: reserved for future extension and shall be zeros.
6 Transmission of isochronous packets
6.1 Steps in transmission
An MPEG2-TS consists of TSPs with a length of 188 bytes. In Figure 4, an example is given
of a TS which consists of several programmes. Very often only one or a few programs have to
be transmitted. If a programme selection is carried out, then only those TSPs from that
particular TS are transmitted. In this situation, the occupied bandwidth on the 1394 interface
can be reduced. Reduction of the bit rate is carried out in a smoothing buffer. As a result of
the smoothing operation, the TSPs will be shifted in time.
The TSPs at the output of the smoothing buffer are transmitted over the interface. During
transmission this interface will introduce some jitter on the arrival time of the TSPs in the
receiver.
In the MPEG2-TS there are strong requirements on the timing of the TSPs. The jitter
introduced by the smoothing buffer and the transmitter of the interface shall be compensated.
To do this, a time stamp is added to the TSP at the moment it arrives at the input of the
smoothing buffer or, if smoothing is not applied, at the input of the digital interface. The
receiver of the interface contains a receiver buffer. In this receiver buffer, the jitter introduced
is compensated.
61883-4 ” IEC:2004(E) – 7 –
6.2 Late packets
The time stamp in the transmitted source packet header shall point to a value in future. If for
some reason the delay in the tr
...

IEC 61883-4 ®
Edition 2.0 2004-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Consumer audio/video equipment – Digital interface –
Part 4: MPEG2-TS data transmission

Matériel audio/vidéo grand public – Interface numérique –
Partie 4: Transmission de données MPEG2-TS

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 61883-4 ®
Edition 2.0 2004-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Consumer audio/video equipment – Digital interface –

Part 4: MPEG2-TS data transmission

Matériel audio/vidéo grand public – Interface numérique –

Partie 4: Transmission de données MPEG2-TS

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 33.160.01; 35.200 ISBN 978-2-83220-598-3

– 2 – 61883-4  IEC:2004
INTERNATIONAL ELECTROTECHNICAL COMMISSION
__________
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 4: MPEG2-TS data transmission

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61883-4 has been prepared by technical area 4: Digital system
interfaces and protocols, of IEC technical committee 100: Audio, video and multimedia
systems and equipment.
This second edition of IEC 61883-4 cancels and replaces the first edition published in 1998.
This edition contains the following significant technical changes with respect to the previous
edition:
Updated IEC 61834-9, IEC 61834-10 and added IEC 61834-1 in Bibliography.
This bilingual version (2013-02) corresponds to the monolingual English version, published in
2004-08.
61883-4  IEC:2004 – 3 –
The text of this standard is based on the following documents:
CDV Report on voting
100/729/CDV 100/818/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 61883 consists of the following parts under the general title Consumer audio/video
equipment – Digital interface:
Part 1: General
Part 2: SD-DVCR data transmission
Part 3: HD-DVCR data transmission
Part 4: MPEG2-TS data transmission
Part 5: SDL-DVCR data transmission
Part 6: Audio and music data transmission protocol
Part 7: Transmission of ITU-R BO.1294 System B
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
– 4 – 61883-4  IEC:2004
CONSUMER AUDIO/VIDEO EQUIPMENT –
DIGITAL INTERFACE –
Part 4: MPEG2-TS data transmission

1 Scope
This part of IEC 61883 describes the packetization and the transmission timing for MPEG2
transport streams for the IEEE 1394 digital interface. It describes the specifications for the
IEEE 1394 packet, the CIP header and the transmission timing for use with the transport
stream as specified in prETS 300 468. This explanation is based on the transport stream as
specified in DVB.
2 Normative reference
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61883-1, Consumer audio/video equipment – Digital interface – Part 1: General
ISO/IEC 13818-1, Information technology – Generic coding of moving pictures and associated
audio information: Systems
ISO/IEC 13818-2, Information technology – Generic coding of moving pictures and associated
audio information: Video
ISO/IEC 13818-3, Information technology – Generic coding of moving pictures and associated
audio information – Part 3: Audio
ISO/IEC 13818-9, Information technology – Generic coding of moving pictures and associated
audio information – Part 9: Extension for real time interface for system decoders
prETS 300 468, Digital broadcasting systems for television, sound and data services –
Specification for Service Information (SI) in digital video broadcasting (DVB) systems
3 Terms, definitions, and abbreviations
For the purposes of this document, the following abbreviations apply:
CIP  Common Isochronous Packet
CTR  Cycle Time Register
DVB  Digital Video Broadcasting (in Europe)
SI  Service Information
ETS  European Telecommunication Standard
MPEG  Moving Picture Experts Group
RTI  Real Time Interface
TS  Transport Stream
TSP  Transport Stream Packet
IEEE 1394 packet IEEE 1394 isochronous packet defined in IEC 61883-1

61883-4  IEC:2004 – 5 –
4 Construction of IEEE 1394 packet
4.1 Structure of the MPEG2-TS data stream
The length of the source packet is 192 bytes (see Figure 1). The source packet consists of
one MPEG2-TSP with a length of 188 bytes and a source packet header of 4 bytes. The
source packet header contains a time stamp.
MPEG2-TS packets shall comply with ISO/IEC 13818 series.
4.2 Packetization of source packet of the MPEG2-TS data stream
A source packet is split into 8 data blocks with a length of 6 quadlets. Zero or more data
blocks are packed in an IEEE 1394 isochronous packet. A receiver of the isochronous packets
shall collect the data blocks of one source packet and combine them in order to reconstruct
the source packet before sending this source packet to the application. There are restrictions
on the transmission of fractions (see 5.2).
Active transmitters shall send an isochronous packet in every cycle. If not enough data is
available to transmit in the isochronous packet, then an empty packet shall be transmitted.
4.3 Time stamp
The time stamp in the source packet header is used by isochronous data receivers for
reconstructing a correct timing of the TSPs at their output. The time stamp indicates the
intended delivery time of the first bit/byte of the TSP from the receiver output to the transport
stream target decoder. The time stamp represents the 25 bits of the IEEE 1394 CYCLE_TIME
register (CTR) at the moment the first bit/byte of the TSP arrives from the application, plus
some offset. The offset is equal to the constant overall delay of the TSP between the moment
of arriving (of the first bit) and the moment the TSP (first bit) is delivered by the receiver to the
application.
5 CIP header
5.1 Structure of CIP header
The structure of the CIP header (see Figure 2) for the MPEG2-TS is compliant with the two
quadlet CIP header format explained in IEC 61883-1, 6.2.1. The static values of the CIP
header components are as follows.
SID . (depends on configuration)
DBS 00000110 (6 quadle
...
