IEC 60331-3:2018
(Main)Tests for electric cables under fire conditions - Circuit integrity - Part 3: Test method for fire with shock at a temperature of at least 830 °C for cables of rated voltage up to and including 0,6/1,0 kV tested in a metal enclosure
Tests for electric cables under fire conditions - Circuit integrity - Part 3: Test method for fire with shock at a temperature of at least 830 °C for cables of rated voltage up to and including 0,6/1,0 kV tested in a metal enclosure
IEC 60331-3:2018 specifies the test method for cables which are required to maintain circuit integrity when tested in a metal enclosure and when subject to fire and mechanical shock under specified conditions. This document is applicable to cables of rated voltage not exceeding 600 V/1 000 V, including those of rated voltage below 80 V, metallic data and telecom cables and optical fibre cables. It is intended for use when testing cables not greater than 20 mm overall diameter. This document includes details for the specific point of failure, continuity checking arrangement, test sample, test procedure and test report relevant to electric power and control cables with rated voltage up to and including 600 V/1 000 V. Details for the specific point of failure, continuity checking arrangement, test sample, test procedure and test report relevant to metallic data and telecom cables and optical fibre cables are not given by IEC 60331-3. Although the scope is restricted to cables with rated voltage up to and including 0,6/1,0 kV, the procedure can be used, with the agreement of the manufacturer and the purchaser, for cables with rated voltage up to and including 1,8/3 (3,3) kV, provided that suitable fuses are used. It is not assumed that cables successfully assessed by this method, will also pass requirements for either IEC 60331-1 or IEC 60331-2. Testing to either of these two standards is to be carried out separately. Such additional performance can be recognised by the marking in accordance with IEC 60331-1:2018 Clause 11 or IEC 60331 2:2018 Clause 11. This second edition cancels and replaces the first edition published in 2009. It constitutes a technical revision. The significant technical changes with respect to the previous edition are as follows:
– extension of the scope to include metallic data and telecom cables and optical fibre cables, although details for the specific point of failure, continuity checking arrangement, test sample, test procedure and test report relevant to metallic data and telecom cables and optical fibre cables are not given by IEC 60331-3;
– improved description of the test environment;
– mandatory use of mass flow meter/controllers as the means of controlling accurately the input flow rates of fuel and air to the burner;
– improved description of the information to be included in the test report.
Essais pour câbles électriques soumis au feu – Intégrité des circuits – Partie 3: Méthode d’essai au feu pour les câbles de tension assignée au plus égale à 0,6/1,0 kV, soumis à essai sous conduit métallique avec chocs, à une température d’au moins 830 °C
L'IEC 60331-3:2018 spécifie la méthode d'essai pour les câbles nécessaires afin de conserver l'intégrité du circuit quand ils sont soumis à l'essai sous conduit métallique et exposés à un feu et à des chocs mécaniques dans des conditions spécifiées.
La présente norme s'applique aux câbles de tension assignée au plus égale à 600 V/1000 V, y compris ceux dont la tension assignée est inférieure à 80 V, aux câbles métalliques de données et de télécommunications ainsi qu'aux câbles à fibres optiques.
Elle est destinée à être utilisée pour soumettre à l'essai des câbles de diamètre externe inférieur ou égal à 20 mm.
La présente norme inclut des informations concernant le point spécifique de défaillance, le dispositif de contrôle de la continuité, l'échantillon d'essai, la procédure d'essai et le rapport d'essai pertinents pour les câbles électriques de puissance et de commande de tension assignée au plus égale à 600 V/1000 V. Les informations concernant le point spécifique de défaillance, le dispositif de contrôle de la continuité, l'échantillon d'essai, la procédure d'essai et le rapport d'essai pertinents pour les câbles métalliques de données et de télécommunications et les câbles à fibres optiques ne sont pas données dans l'IEC 60331-3.
Bien que le domaine d'application soit limité aux câbles de tension assignée au plus égale à 0,6/1,0 kV, cette procédure peut être utilisée, après accord entre le fabricant et l'acheteur, pour les câbles de tension assignée au plus égale à 1,8/3 (3,3) kV, à condition d'utiliser des fusibles appropriés.
Rien ne présume qu'un câble évalué avec succès par cette méthode satisfera également aux exigences de l'IEC 60331-1 ou l'IEC 60331-2. Les essais de ces deux normes doivent être réalisés séparément. Ces performances supplémentaires peuvent être reconnues par marquage conformément à l'Article 11 de l'IEC 60331-1 ou l'Article 11 de l'IEC 60331-2.
L'Annexe A donne la méthode de vérification du brûleur et le système de contrôle utilisé pour l'essai.
Cette deuxième édition annule et remplace la première édition parue en 2009. Elle constitue une révision technique.
Les modifications techniques majeures par rapport à l'édition précédente sont les suivantes:
– extension du domaine d'application aux câbles métalliques de données et de télécommunications et aux câbles à fibres optiques, bien que les informations concernant le point spécifique de défaillance, le dispositif de contrôle de la continuité, l'échantillon d'essai, la procédure d'essai et le rapport d'essai pour les câbles métalliques de données et de télécommunications et pour les câbles à fibres optiques ne soient pas données dans l'IEC 60331-3;
– amélioration de la description de l'environnement d'essai;
– utilisation obligatoire des débitmètres/régulateurs massiques comme moyens précis de contrôle exact des débits d'entrée de combustible et d'air au brûleur;
– amélioration de la description des informations à inclure dans le rapport d'essai.
General Information
Relations
Standards Content (Sample)
IEC 60331-3 ®
Edition 2.0 2018-03
INTERNATIONAL
STANDARD
GROUP SAFETY PUBLICATION
Tests for electric cables under fire conditions – Circuit integrity –
Part 3: Test method for fire with shock at a temperature of at least 830 °C for
cables of rated voltage up to and including 0,6/1,0 kV tested in a metal enclosure
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 60331-3 ®
Edition 2.0 2018-03
INTERNATIONAL
STANDARD
GROUP SAFETY PUBLICATION
Tests for electric cables under fire conditions – Circuit integrity –
Part 3: Test method for fire with shock at a temperature of at least 830 °C for
cables of rated voltage up to and including 0,6/1,0 kV tested in a metal enclosure
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.220.40; 29.020; 29.060.20 ISBN 978-2-8322-5492-9
– 2 – IEC 60331-3:2018 © IEC 2018

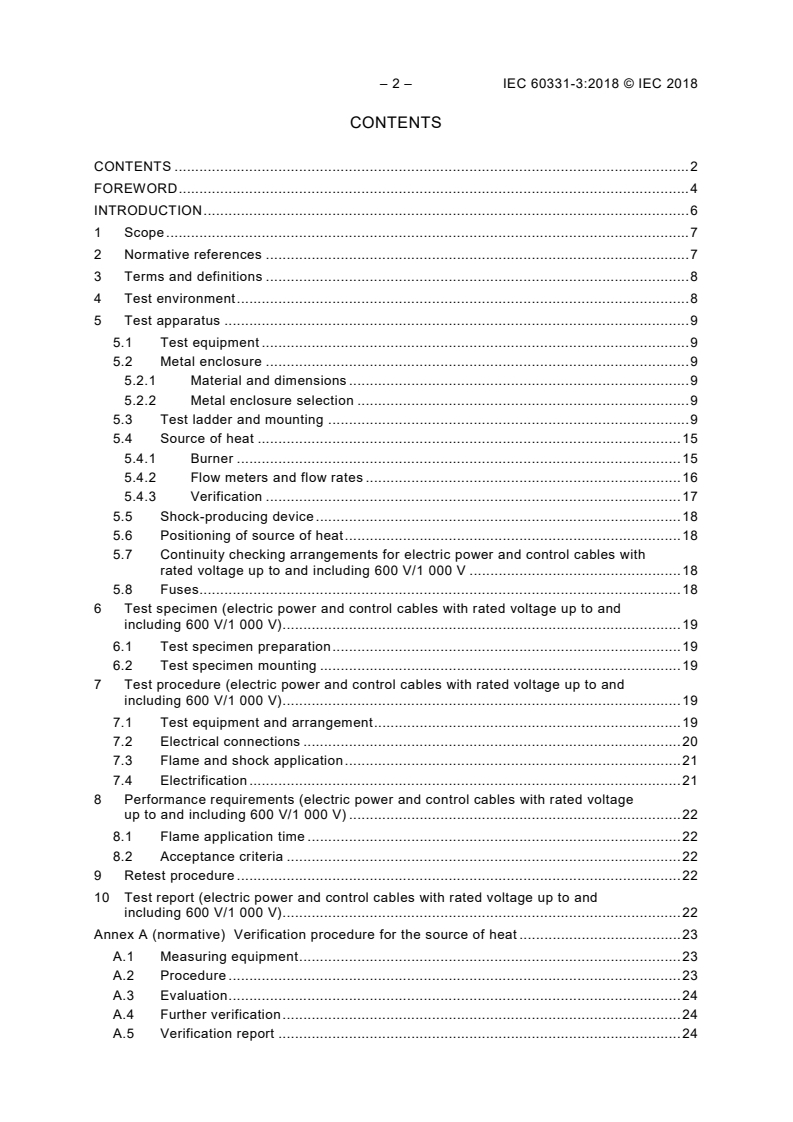

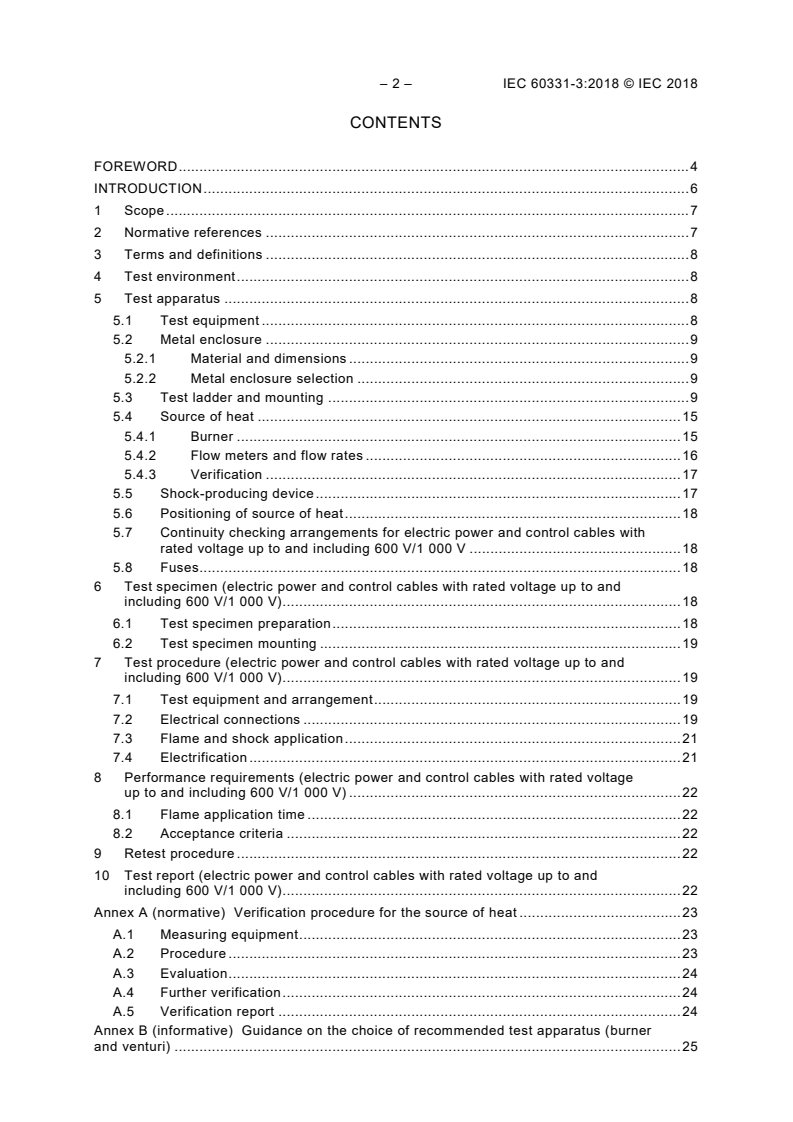

CONTENTS

FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Test environment . 8
5 Test apparatus . 8
5.1 Test equipment . 8
5.2 Metal enclosure . 9
5.2.1 Material and dimensions . 9
5.2.2 Metal enclosure selection . 9
5.3 Test ladder and mounting . 9
5.4 Source of heat . 15
5.4.1 Burner . 15
5.4.2 Flow meters and flow rates . 16
5.4.3 Verification . 17
5.5 Shock-producing device . 17
5.6 Positioning of source of heat . 18
5.7 Continuity checking arrangements for electric power and control cables with
rated voltage up to and including 600 V/1 000 V . 18
5.8 Fuses. 18
6 Test specimen (electric power and control cables with rated voltage up to and
including 600 V/1 000 V) . 18
6.1 Test specimen preparation . 18
6.2 Test specimen mounting . 19
7 Test procedure (electric power and control cables with rated voltage up to and
including 600 V/1 000 V) . 19
7.1 Test equipment and arrangement . 19
7.2 Electrical connections . 19
7.3 Flame and shock application . 21
7.4 Electrification . 21
8 Performance requirements (electric power and control cables with rated voltage
up to and including 600 V/1 000 V) . 22
8.1 Flame application time . 22
8.2 Acceptance criteria . 22
9 Retest procedure . 22
10 Test report (electric power and control cables with rated voltage up to and
including 600 V/1 000 V) . 22
Annex A (normative) Verification procedure for the source of heat . 23
A.1 Measuring equipment . 23
A.2 Procedure . 23
A.3 Evaluation . 24
A.4 Further verification . 24
A.5 Verification report . 24
Annex B (informative) Guidance on the choice of recommended test apparatus (burner
and venturi) . 25
Bibliography . 26
Figure 1 – Schematic diagram of test configuration . 11
Figure 2 – Recommended method of mounting the metal enclosure to the test ladder . 12
Figure 3 – Plan view of fire test equipment . 13
Figure 4 – End elevation of fire test equipment (not to scale) . 14
Figure 5 – Typical rubber bush for supporting the test ladder . 15
Figure 6 – Burner face . 16
Figure 7 – Schematic diagram of an example of a burner control system . 17
Figure 8 – Basic circuit diagram . 21
Figure A.1 – Temperature measuring arrangement . 23
Table 1 – Enclosure dimensions . 9
Table 2 – Multicore sheathed cable . 19
Table 3 – Single core unsheathed or sheathed cable . 19
– 4 – IEC 60331-3:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TESTS FOR ELECTRIC CABLES UNDER FIRE CONDITIONS –
CIRCUIT INTEGRITY –
Part 3: Test method for fire with shock at a temperature of at least 830 °C
for cables of rated voltage up to and including 0,6/1,0 kV tested
in a metal enclosure
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60331-3 has been prepared by IEC technical committee 20:
Electric cables.
This second edition cancels and replaces the first edition published in 2009. It constitutes a
technical revision.
The significant technical changes with respect to the previous edition are as follows:
– extension of the scope to include metallic data and telecom cables and optical fibre
cables, although details for the specific point of failure, continuity checking arrangement,
test sample, test procedure and test report relevant to metallic data and telecom cables
and optical fibre cables are not given by IEC 60331-3;
– improved description of the test environment;
– mandatory use of mass flow meter/controllers as the means of controlling accurately the
input flow rates of fuel and air to the burner;
– improved description of the information to be included in the test report.
The text of this International Standard is based on the following documents:
FDIS Report on voting
20/1782A/FDIS 20/1794/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
It has the status of a group safety publication in accordance with IEC Guide 104.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
– 6 – IEC 60331-3:2018 © IEC 2018
INTRODUCTION
IEC 60331 consists of the following parts under the general title: Tests for electric cables
under fire conditions – Circuit integrity:
Part 1: Test method for fire with shock at a temperature of at least 830 °C for cables of rated
voltage up to and including 0,6/1,0 kV and with an overall diameter exceeding 20 mm
Part 2: Test method for fire with shock at a temperature of at least 830 °C for cables of rated
voltage up to and including 0,6/1,0 kV and with an overall diameter not exceeding 20 mm
Part 3: Test method for fire with shock at a temperature of at least 830 °C for cables of rated
voltage up to and including 0,6/1,0 kV tested in a metal enclosure
Part 11: Apparatus – Fire alone at a flame temperature of at least 750 °C
Part 21: Procedures and requirements – Cables of rated voltage up to and including
0,6/1,0 kV
Part 23: Procedures and requirements – Electric data cables
Part 25: Procedures and requirements – Optical fibre cables
NOTE 1 Parts 21, 23 and 25 relate to fire-only conditions at a flame temperature of at least 750 °C.
NOTE 2 Parts 11, 21, 23 and 25 are no longer subject to maintenance. IEC 60331 Parts 1 and 2 are the
recommended test procedures
Since its first edition (1970), IEC 60331 has been extended and has introduced a range of test
apparatus in order that a test may be carried out on large and small power, control, data and
optical fibre cables.
IEC 60331-3 introduces apparatus and a procedure to allow cables to be tested in a metal
enclosure under conditions of mechanical shock as well as fire at temperature of at least
830 °C.
TESTS FOR ELECTRIC CABLES UNDER FIRE CONDITIONS –
CIRCUIT INTEGRITY –
Part 3: Test method for fire with shock at a temperature of at least 830 °C
for cables of rated voltage up to and including 0,6/1,0 kV tested
in a metal enclosure
1 Scope
This part of IEC 60331 specifies the test method for cables which are required to maintain
circuit integrity when tested in a metal enclosure and when subject to fire and mechanical
shock under specified conditions.
This document is applicable to cables of rated voltage not exceeding 600 V/1 000 V, including
those of rated voltage below 80 V, metallic data and telecom cables and optical fibre cables.
It is intended for use when testing cables not greater than 20 mm overall diameter.
This document includes details for the specific point of failure, continuity checking
arrangement, test sample, test procedure and test report relevant to electric power and
control cables with rated voltage up to and including 600 V/1 000 V. Details for the specific
point of failure, continuity checking arrangement, test sample, test procedure and test report
relevant to metallic data and telecom cables and optical fibre cables are not given by
IEC 60331-3.
Although the scope is restricted to cables with rated voltage up to and including 0,6/1,0 kV,
the procedure can be used, with the agreement of the manufacturer and the purchaser, for
cables with rated voltage up to and including 1,8/3 (3,3) kV, provided that suitable fuses are
used.
It is not assumed that cables successfully assessed by this method, will also pass
requirements for either IEC 60331-1 or IEC 60331-2. Testing to either of these two standards
is to be carried out separately. Such additional performance can be recognised by the
marking in accordance with IEC 60331-1:2018 Clause 11 or IEC 60331-2:2018 Clause 11.
Annex A provides the method of verification of the burner and control system used for the
test.
CAUTION – The test given in this standard may involve the use of dangerous voltages
and temperatures. Suitable precautions should be taken against the risk of shock,
burning, fire and explosion that may be involved, and against any noxious fumes that
may be produced.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60269-3, Low-voltage fuses – Part 3: Supplementary requirements for fuses for use by
unskilled persons (fuses mainly for household and similar applications) – Examples of
standardized systems of fuses A to F
– 8 – IEC 60331-3:2018 © IEC 2018
IEC 60331-1:2018, Test for electric cables under fire conditions – Circuit integrity – Part 1:
Test for circuit integrity under conditions of fire with shock at a temperature of at least 830 °C
for cables of rated voltage up to and including 0,6/1,0kV and with an overall diameter
exceeding 20 mm
IEC 60331-2:2018, Test for electric cables under fire conditions – Circuit integrity – Part 2:
Test for circuit integrity under conditions of fire with shock at a temperature of at least 830 °C
for cables of rated voltage up to and including 0,6/1,0kV and with an overall diameter not
exceeding 20 mm
IEC 60584-1, Thermocouples – Part 1: EMF specifications and tolerances
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
circuit integrity
ability of an electric cable to continue to operate in a designated manner whilst subjected to a
specified flame source for a specified period of time under specified conditions
3.2
draught-free environment
space in which the results of tests are not significantly affected by the local air speed
4 Test environment
The test shall be carried out in a draught-free environment within a suitable chamber, of
minimum volume 20 m , with facilities for disposing of any noxious gases resulting from the
burning. Sufficient ventilation shall be available to sustain the flame for the duration of the
test. Air inlets and the exhaust chimney should be located in such a way that the burner flame
remains stable during the verification procedure and test. If necessary, the burner shall be
shielded from any draughts by the use of draught shields. Windows may be installed in the
walls of the chamber in order to observe the behaviour of the cable during the test. Fume
exhaust should be achieved by means of natural draught through a chimney located at least
1 m from the burner. A damper may be used for adjustment of ventilation conditions.
NOTE Experience has shown a chamber similar to the “3 m cube” specified in IEC 61034-1 to be suitable.
The chamber and test apparatus shall be at a temperature of between 10 °C and 40 °C at the
start of each test.
The same ventilation and shielding conditions shall be used in the chamber during both the
verification and cable test procedures.
5 Test apparatus
5.1 Test equipment
The test equipment shall consist of the following:
a) a metal enclosure, through which the test specimen(s) are drawn, constructed from a
straight
...
