IEC 61347-2-13:2014
(Main)Lamp controlgear - Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
Lamp controlgear - Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear for LED modules
IEC 61347-2-13:2014 specifies particular safety requirements for electronic controlgear for use on d.c. or a.c. supplies up to 1 000 V (a.c. at 50 Hz or 60 Hz) and at an output frequency which can deviate from the supply frequency, associated with LED modules. Controlgear for LED modules specified in this standard are designed to provide constant voltage or current at SELV or higher voltages. Deviations from the pure voltage and current types do not exclude the gear from this standard. This second edition cancels and replaces the first edition published in 2006. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition.
a) Replacement of the SELV-equivalent requirements by SELV requirements and reference to the SELV requirements of Annex L in IEC 61347-1:2007/AMD2:2012.
b) Reference to IEC 61347-1 for the protection against accidental contact with live parts, moisture resistance and insulation and electric strength.
c) New Annex J for emergency lighting requirements.
This publication shall be read in conjunction with IEC 61347-1:2012.
Appareillage de lampes - Partie 2-13: Exigences particulières pour les appareillages électroniques alimentés en courant continu ou en courant alternatif pour modules de LED
L'IEC 61347-2-13:2014 spécifie les exigences particulières de sécurité pour les appareillages électroniques pour l'utilisation sur des alimentations en courant continu ou en courant alternatif jusqu'à 1 000 V (en courant alternatif à 50 Hz ou 60 Hz) et avec une fréquence de sortie qui peut être différente de la fréquence d'alimentation, en association avec des modules de LED. Les appareillages pour les modules de LED spécifiés dans cette norme sont conçus pour fournir une tension ou un courant constant à une tension correspondant à une TBTS ou à des tensions supérieures. Des déviations par rapport aux types de tension et courant purs n'excluent pas l'appareillage de la présente norme. Cette deuxième édition annule et remplace la première édition parue en 2006. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente.
a) Remplacement des exigences relatives aux équivalents TBTS par des exigences relatives aux TBTS et référence aux exigences relatives aux TBTS de l'Annexe L de l'IEC 61347 1:2007/AMD2:2012.
b) Référence à l'IEC 61347-1 en ce qui concerne la protection contre le contact accidentel avec des parties actives, la résistance à l'humidité et l'isolement et la rigidité diélectrique.
c) Nouvelle Annexe J relative aux exigences s'appliquant aux éclairages de secours.
Cette publication doit être lue conjointement avec la CEI 61347-1:2012.
General Information
Relations
Standards Content (Sample)

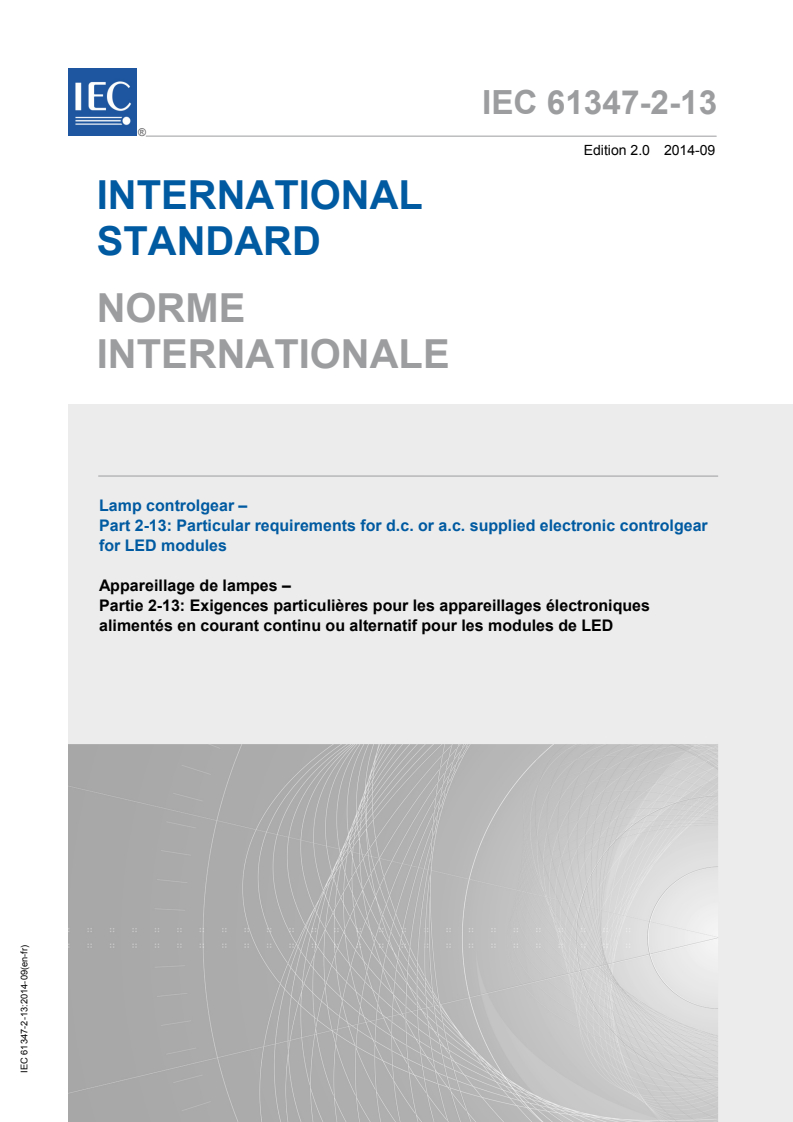

IEC 61347-2-13 ®
Edition 2.0 2014-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lamp controlgear –
Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear
for LED modules
Appareillage de lampes –
Partie 2-13: Exigences particulières pour les appareillages électroniques
alimentés en courant continu ou alternatif pour les modules de LED
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des
CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

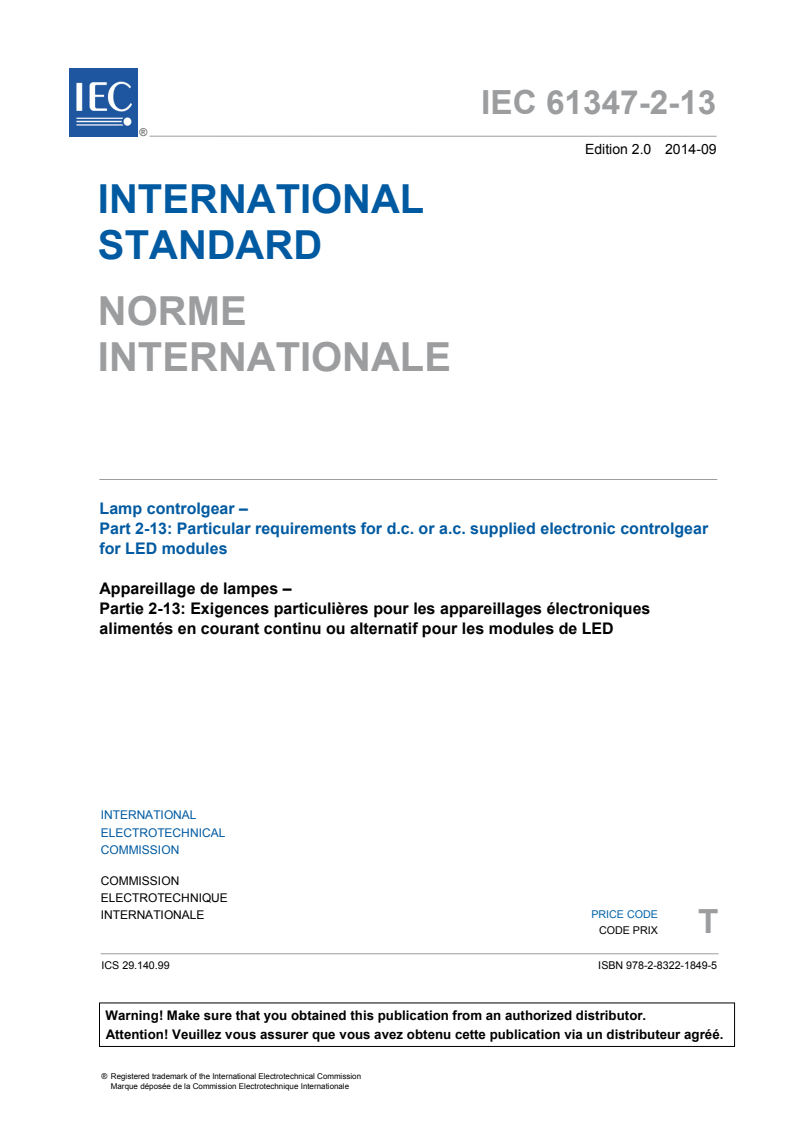

IEC 61347-2-13 ®
Edition 2.0 2014-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lamp controlgear –
Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear
for LED modules
Appareillage de lampes –
Partie 2-13: Exigences particulières pour les appareillages électroniques
alimentés en courant continu ou alternatif pour les modules de LED
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX T
ICS 29.140.99 ISBN 978-2-8322-1849-5
– 2 – IEC 61347-2-13:2014 © IEC 2014

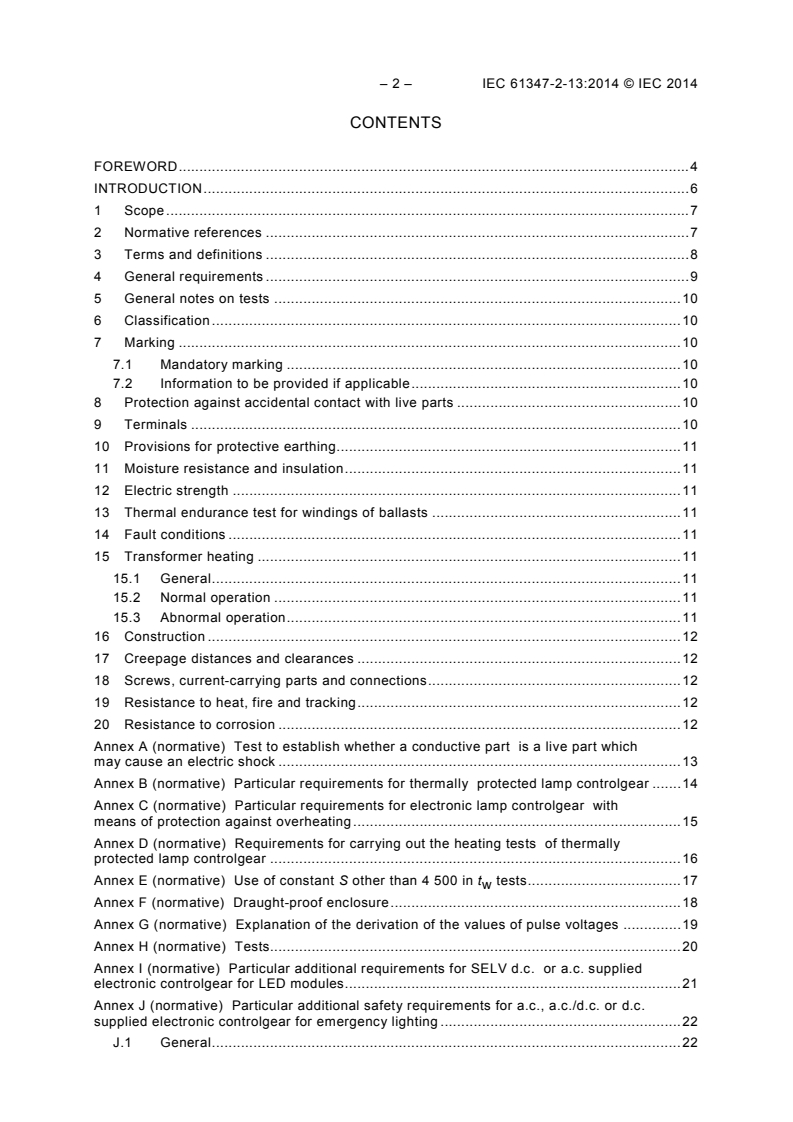

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirements . 9
5 General notes on tests . 10
6 Classification . 10
7 Marking . 10
7.1 Mandatory marking . 10
7.2 Information to be provided if applicable . 10
8 Protection against accidental contact with live parts . 10
9 Terminals . 10
10 Provisions for protective earthing. 11
11 Moisture resistance and insulation . 11
12 Electric strength . 11
13 Thermal endurance test for windings of ballasts . 11
14 Fault conditions . 11
15 Transformer heating . 11
15.1 General . 11
15.2 Normal operation . 11
15.3 Abnormal operation . 11
16 Construction . 12
17 Creepage distances and clearances . 12
18 Screws, current-carrying parts and connections . 12
19 Resistance to heat, fire and tracking . 12
20 Resistance to corrosion . 12
Annex A (normative) Test to establish whether a conductive part is a live part which
may cause an electric shock . 13
Annex B (normative) Particular requirements for thermally protected lamp controlgear . 14
Annex C (normative) Particular requirements for electronic lamp controlgear with
means of protection against overheating . 15
Annex D (normative) Requirements for carrying out the heating tests of thermally
protected lamp controlgear . 16
Annex E (normative) Use of constant S other than 4 500 in t tests . 17
w
Annex F (normative) Draught-proof enclosure . 18
Annex G (normative) Explanation of the derivation of the values of pulse voltages . 19
Annex H (normative) Tests. 20
Annex I (normative) Particular additional requirements for SELV d.c. or a.c. supplied
electronic controlgear for LED modules . 21
Annex J (normative) Particular additional safety requirements for a.c., a.c./d.c. or d.c.
supplied electronic controlgear for emergency lighting . 22
J.1 General . 22
J.2 Marking . 22
J.2.1 Mandatory markings . 22
J.2.2 Information to be provided if applicable . 22
J.3 General notes on tests . 22
J.4 Starting conditions . 23
J.5 Operating condition . 23
J.6 Emergency supply current . 23
J.7 EMC immunity. 23
J.8 Pulse voltage from central battery systems . 23
J.9 Tests for abnormal conditions . 24
J.10 Temperature cycling test and endurance test . 24
J.11 Functional safety (EOF ) . 24
x
Bibliography . 25
Table J.1 – Pulse voltages . 23
– 4 – IEC 61347-2-13:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROLGEAR –
Part 2-13: Particular requirements for d.c. or
a.c. supplied electronic controlgear for LED modules
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61347-2-13 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
This second edition cancels and replaces the first edition published in 2006. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition.
a) Replacement of the SELV-equivalent requirements by SELV requirements and reference
to the SELV requirements of Annex L in IEC 61347-1:2007/AMD2:2012.
b) Reference to IEC 61347-1 for the protection against accidental contact with live parts,
moisture resistance and insulation and electric strength.
c) New Annex J for emergency lighting requirements.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/1092/FDIS 34C/1106/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This standard shall be used in conjunction with IEC 61347-1.Where the requirements of any
of the clauses of IEC 61347-1 are referred to in this standard by the phrase "The
requirements of Clause n of IEC 61347-1:2007/AMD1:2010/AMD2:2012, apply", this phrase is
interpreted as meaning that all requirements of the clause in question of Part 1 apply, except
any which are clearly inapplicable to the specific type of lamp controlgear covered by this
particular part of IEC 61347-2.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this standard, the following print types are used:
– requirements: in roman type,
– test specifications: in italic type,
– notes: in small roman type.
A list of all parts in the IEC 61347, published under the general title Lamp controlgear can be
found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 61347-2-13:2014 © IEC 2014
INTRODUCTION
This second edition of IEC 61347-2-13 is published in conjunction with IEC 61347-1. The
formatting into separately published parts provides for ease of future amendments and
revisions. Additional requirements will be added as and when a need for them is recognized.
This standard and the parts which make up IEC 61347-2, in referring to any of the clauses of
IEC 61347-1 specify the extent to which such a clause is applicable and the order in which the
tests are to be performed; they also include additional requirements as necessary. All parts
which make up IEC 61347-2 are self-contained and therefore do not include references to
each other.
LAMP CONTROLGEAR –
Part 2-13: Particular requirements for d.c. or
a.c. supplied electronic controlgear for LED modules
1 Scope
This part of IEC 61347 specifies particular safety requirements for electronic controlgear for
use on d.c. or a.c. supplies up to 1 000 V (a.c. at 50 Hz or 60 Hz) and at an output frequency
which can deviate from the supply frequency, associated with LED modules.
Controlgear for LED modules specified in this standard are designed to provide constant
voltage or current at SELV or higher voltages. Deviations from the pure voltage and current
types do not exclude the gear from this standard.
The annexes of IEC 61347-1 which are applicable according to this Part 2-13 and using the
word “lamp” are understood to also comprise LED modules.
Particular requirements for SELV controlgear are given in Annex I.
Performance requirements are covered by IEC 62384.
Plug-in controlgear, being part of the luminaire, are covered as for built-in controlgear by the
additional requirements of the luminaire standard.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61347-1:2007, Lamp controlgear – Part 1: General and safety requirements
Amendment 1:2010
Amendment 2:2012
IEC 61347-2-7:2011, Lamp controlgear – Part 2-7: Particular requirements for battery
supplied electronic controlgear for emergency lighting (self-contained)
IEC 61547, Equipment for general lighting purposes – EMC immunity requirements
IEC 61558 (all parts), Safety of power transformers, power supplies, reactors and similar
products
IEC 61558-2-6:2009, Safety of transformers, reactors, power supply units and similar products
for supply voltages up to 1 100 V – Part 2-6: Particular requirements and tests for safety
isolating transformers and power supply units incorporating safety isolating transformers
IEC 61558-2-16:2009, Safety of transformers, reactors, power supply units and similar
products for supply voltages up to 1 100 V – Part 2-16: Particular requirements and tests for
switch mode power supply units and transformers for switch mode power supply units
– 8 – IEC 61347-2-13:2014 © IEC 2014
IEC 62384:2006, DC or AC supplied electronic controlgear for LED modules – Performance
requirements
3 Terms and definitions
For the purpose of this document, the terms and definitions given in IEC 61347-1, as well as
the following apply.
3.1
electronic controlgear for LED modules
unit inserted between the supply and one or more LED modules which serves to supply the
LED module(s) with its (their) rated voltage or rated current
Note 1 to entry: The unit may consist of one or more separate components and may include means for dimming,
correcting the power factor and suppressing radio interference, and futher control functions.
Note 2 to entry: The controlgear consists of a power supply and a control unit.
Note 3 to entry: The controlgear may be partly or totally integrated in the LED module.
3.2
d.c. or a.c. supplied controlgear
controlgear that includes stabilising elements for operating one or more LED module(s)
3.3
SELV controlgear
controlgear providing an SELV output isolated from the supply mains by means such as a
safety isolating transformer, as specified in IEC 61558-2-6 and IEC 61558-2-16
3.4
associated controlgear
controlgear designed to supply specific appliance(s) or equipment, incorporated or not
incorporated
EXAMPLE: An electronic controlgear within an emergency unit where it is assigned in a one-to-one relation to a
battery driven ballast.
3.5
plug-in controlgear
controlgear incorporated in an enclosure provided with an integral plug as the means of
connection of the electrical supply
3.6
rated output voltage for constant voltage controlgear
output voltage, at rated supply voltage, rated frequency and at rated output power, assigned
to the controlgear
3.7
rated output current for constant current controlgear
output current, at rated supply voltage, rated frequency and at rated output power, assigned
to the controlgear
3.8
light emitting diode
LED
solid state device embodying a p-n junction, emitting optical radiation when excited by an
electric current
Note 1 to entry: This definition is independent from the existence of enclosure(s) and of terminals.
[SOURCE: IEC 60050-845:1987, 845.04.40]
3.9
LED module
light source having no cap, incorporating one or more LED package(s) on a printed circuit
board, and possibly including one or more of the following:
electrical, optical, mechanical, and thermal components, interfaces and controlgear
Note 1 to entry: A LED module may be integrated (LEDi module, Type 1) or semi-integrated (LEDsi module,
Type 2) or nonintegrated (LEDni module, Type 3).
Note 2 to entry: The LED module is usually designed to be part of a LED lamp or LED luminaire.
3.10
maximum output voltage
maximum voltage which can occur between the output terminals for constant current
controlgear in any load condition
3.11
emergency lighting
lighting provided for use when the supply to the normal lighting fails; it includes escape
lighting and standby lighting
3.12
rated emergency supply voltage or voltage range
rated voltage or voltage range claimed by the manufacturer where the controlgear will operate
according specification
3.13
emergency output factor
EOF
x
ratio of the electrical output parameter when the control gear under test is operated in
emergency mode to the output electrical parameter when the control gear is operated with the
normal lighting conditions
Note 1 to entry: The electrical output parameter can be current (EOF ), voltage (EOF ) or power (EOF ) at the
I V W
output(s) of the control gear (depending on the module it could be constant current, constant voltage or constant
power).
Note 2 to entry: The emergency output factor is the minimum of the values measured at the appropriate time after
failure of the normal supply and continuously.
3.14
emergency supply current
rated supply current of the control gear operating in the emergency mode
4 General requirements
The requirements of Clause 4 of IEC 61347-1:2007/AMD2:2012 apply, together with the
following additional requirements.
– Controlgear providing SELV shall comply with the requirements of Annex I. This includes
insulation resistance, electric strength, creepage distances and clearance between
primary and secondary circuits.
– If a separating, isolating or autotransformer is used, it shall comply with the relevant parts
of IEC 61558. If, however, insulated winding wires are used for controlgear with an input
voltage of up to 300 V, the dielectric strength test voltage is limited to 3 kV for raw
material.
– 10 – IEC 61347-2-13:2014 © IEC 2014
5 General notes on tests
The requirements of Clause 5 of IEC 61347-1:2007/AMD2:2012 apply, with the following
additional requirement.
The following number of specimens shall be submitted for testing:
– one unit for the tests of Clauses 6 to 12 and 15 to 20;
– one unit for the tests of Clause 14 (additional units or components, where necessary, may
be required in consultation with the manufacturer).
6 Classification
Controlgear are classified according to the method of installation given in Clause 6 of
IEC 61347-1:2007 and according to protection against electric shock as:
– auto-wound controlgear;
– separating controlgear;
– isolating controlgear;
– SELV controlgear.
7 Marking
7.1 Mandatory marking
Controlgear, other than integral controlgear, shall be clearly and durably marked, in
accordance with the requirements of 7.2 of IEC 61347-1:2007, with the following mandatory
markings:
– items a), b), c), d), e), f), k), l), m), t) and u) of 7.1 of IEC 61347-1:2007/AMD2:2012
together with:
– for constant voltage types: P rated output power and U rated output voltage;
rated rated
– for constant current types: P rated output power and I rated output current;
rated rated
– if applicable: an indication that the controlgear is suitable for operation with LED modules
only.
7.2 Information to be provided if applicable
In addition to the above mandatory markings, the following information, if applicable, shall be
given either on the controlgear, or be made available in the manufacturer’s catalogue or
similar:
– items h), i), j) and s) of 7.1 of IEC 61347-1:2007/AMD2:2012together with
– a mention of whether the controlgear has mains-connected windings of transformer.
Windings do not apply to ferrite inductors and ferrite line filters.
8 Protection against accidental contact with live parts
The requirements of Clause 10 of IEC 61347-1:2007/AMD2:2012 apply.
9 Terminals
The requirements of Clause 8 of IEC 61347-1:2007 apply.
10 Provisions for protective earthing
The requirements of Clause 9 of IEC 61347-1:2007/AMD2:2012 apply.
11 Moisture resistance and insulation
The requirements of Clause 11 of IEC 61347-1:2007/AMD1:2010/AMD2:2012 apply.
12 Electric strength
The requirements of Clause 12 of IEC 61347-1:2007/AMD2:2012 apply.
13 Thermal endurance test for windings of ballasts
The requirements of Clause 13 of IEC 61347-1:2007/AMD2:2012 are not applicable.
14 Fault conditions
The requirements of Clause 14 of IEC 61347-1:2007/AMD1:2010/AMD2:2012 apply, together
with the following additional requirements.
In the case of controlgear provided with the marking , the requirements specified in
Annex C shall be fulfilled.
15 Transformer heating
15.1 General
If a controlgear contains an SELV, isolating and separating transformer, the controlgear shall
be tested according to Clauses L.6 and L.7 of IEC 61347-1:2007/AMD2:2012, where the
requirements for controlgear providing SELV are valid also for separating and isolating
controlgear.
For SELV controlgear, the output voltage shall not exceed the limits given in 10.4 of
IEC 61347-1:2007/AMD2:2012, during the tests of 15.1 and 15.2 of this standard.
15.2 Normal operation
The requirements of Clause L.6 of IEC 61347-1:2007/AMD2:2012 apply, together with the
following additional requirement.
For built-in and integral controlgear, tests shall be made under conditions such that the
, as reached under normal operation at rated supply voltage.
convertor is brought to t
c
15.3 Abnormal operation
The requirements of Clause L.7 of IEC 61347-1:2007/AMD2:2012 apply.
In addition, the following test at any voltage between 90 % and 110 % of the rated supply
voltage shall be performed if relevant, with the controlgear operating according to the
manufacturer’s instructions (including heatsinks, if specified) for 1 h.
Connect double the LED modules or equivalent load for which the controlgear is designed:
– 12 – IEC 61347-2-13:2014 © IEC 2014
– in parallel to the output terminals, for constant voltage output types;
– in series to the output terminals, for the constant current output types.
During and at the end of the tests specified above, the controlgear shall show no defect
impairing safety, nor shall any smoke or flammable gases be produced.
16 Construction
The requirements of Clause 15 of IEC 61347-1:2007/AMD2:2012 apply.
17 Creepage distances and clearances
Unless otherwise specified in Clause 14 of this standard, the requirements of Clause 16 of
IEC 61347-1:2007 apply.
18 Screws, current-carrying parts and connections
The requirements of Clause 17 of IEC 61347-1:2007 apply.
19 Resistance to heat, fire and tracking
The requirements of Clause 18 of IEC 61347-1:2007 apply.
20 Resistance to corrosion
The requirements of Clause 19 of IEC 61347-1:2007 apply.
Annex A
(normative)
Test to establish whether a conductive part
is a live part which may cause an electric shock
The requirements of Annex A of IEC 61347-1:2007/AMD2:2012 apply.
– 14 – IEC 61347-2-13:2014 © IEC 2014
Annex B
(normative)
Particular requirements for thermally
protected lamp controlgear
The requirements of Annex B of IEC 61347-1:2007/AMD1:2010/AMD2:2012 are not
applicable.
Annex C
(normative)
Particular requirements for electronic lamp controlgear
with means of protection against overheating
The requirements of Annex C of IEC 61347-1:2007 apply.
– 16 – IEC 61347-2-13:2014 © IEC 2014
Annex D
(normative)
Requirements for carrying out the heating tests
of thermally protected lamp controlgear
The requirements of Annex D of IEC 61347-1:2007 apply.
Annex E
(normative)
Use of constant S other than 4 500 in t tests
w
The requirements of Annex E of IEC 61347-1:2007 apply only for windings of 50 Hz/60 Hz.
– 18 – IEC 61347-2-13:2014 © IEC 2014
Annex F
(normative)
Draught-proof enclosure
The requirements of Annex F of IEC 61347-1:2007 apply.
Annex G
(normative)
Explanation of the derivation of the values of pulse voltages
The requirements of Annex G of IEC 61347-1:2007 are not applicable.
– 20 – IEC 61347-2-13:2014 © IEC 2014
Annex H
(normative)
Tests
The requirements of Annex H of IEC 61347-1:2007 apply.
Annex I
(normative)
Particular additional requirements for SELV d.c.
or a.c. supplied electronic controlgear for LED modules
The requirements of Annex L in IEC 61347-1:2007/AMD2:2012 apply.
– 22 – IEC 61347-2-13:2014 © IEC 2014
Annex J
(normative)
Particular additional safety requirements for a.c., a.c./d.c. or d.c.
supplied electronic controlgear for emergency lighting
J.1 General
This annex specifies particular safety requirements of a.c., a.c./d.c. or d.c. supplied electronic
controlgear for emergency lighting purposes intended for connection to a centralized
emergency power supply, as, for example, central battery supply system. It does not apply to
electronic controlgear used in self-contained emergency lighting luminaires as this is covered
by IEC 61347-2-7.
J.2 Marking
J.2.1 Mandatory markings
The controlgear shall, in addition to the requirements of 7.1, be clearly marked with the
following mandatory marking:
a) a.c., a.c./d.c. or d.c maintained emergency electronic controlgear shall be marked with the
symbol:
[SOURCE: IEC 61347-2-7:2011]
b) rated emergency power supply voltage or voltage range.
J.2.2 Information to be provided if applicable
In addition to the above mandatory markings and the requirements of 7.2, the following
information shall either be given on the control gear or be made available in the
manufacturer’s catalogue or similar.
a) Limits of the ambient temperature range within which an independent control gear will
operate satisfactorily at the declared voltage (range).
b) Emergency output factor (EOF ). In case of settable electrical output parameter, a range
x
shall be provided.
c) Information on whether the control gear is intended for use in luminaires for high-risk task
area lighting.
J.3 General notes on tests
One specimen shall be submitted to all the tests.
The tests shall be carried out with the length of the output cable of both 20 cm and 200 cm
unless otherwise declared by the manufacturer.
To give reproducible measurement results, one or more resistors (R ) shall be used as
load
replacement for the LED lamps/module(s). R is determined from the rated output power
load
and the rated output voltage or rated output current of the controlgear. The resistor (R )
load
shall be selected so that the value of the resistance shall not deviate by more than 1 % during
the test. For electronic controlgear for LED lamps/modules a pure resistive load may cause
malfunction of the DUT. In these cases a combination of diodes and variable resistor
equivalent to the LED lamp/module shall be used, which should ensure the maximum rated
output current at the rated output voltage.
NOTE When a special starting procedure is used to allow the constant current controlgear to function properly,
the method with the equivalent resistor can be used.
J.4 Starting conditions
Control gears shall start rated load(s) without adversely affecting the performance when
operated in emergency mode.
Compliance is under consideration.
J.5 Operating condition
The provisions of 7.2 of IEC 62384:2006 apply at 90 % and 110 % of the rated emergency
supply voltage.
Compliance is checked by measurement.
J.6 Emergency supply current
At the rated emergency supply voltage or voltage range, the emergency supply current shall
not differ by more than ±15 % from the declared value when the control gear is operated in
emergency mode with maximum load power.
The supply shall be of low impedance and low inductance.
Compliance is checked by measurement.
J.7 EMC immunity
For emergency supplied electronic controlgear the requirements of IEC 61547 apply.
J.8 Pulse voltage from central battery systems
The d.c. supplied emergency controlgear shall withstand, without failure, any pulses caused
by switching other equipment in the same circuit.
Compliance is checked by operating the controlgear at the maximum voltage of the rated
voltage range in association with the rated load(s). The controlgear shall withstand, without
failure, the number of pulse voltages given in Table J.1 superimposed, with the same polarity,
on the supply voltage.
Table J.1 – Pulse voltages
Pulse voltage
Period between each
Number of voltage
pulse
Peak value Pulse width at half peak
pulses
V ms s
3 Equal to design 10 2
NOTE A suitable measuring circuit is shown in Figure G.2 of IEC 61347-1:2007.
– 24 – IEC 61347-2-13:2014 © IEC 2014
J.9 Tests for abnormal conditions
The provisions of Clause 12 of IEC 62384:2006 apply.
J.10 Temperature cycling test and endurance test
The provisions of Clause 13 of IEC 62384:2006 apply.
J.11 Functional safety (EOF )
x
The controlgear associated to the rated load shall provide the necessary output electric
parameter in emergency mode. This is verified if the declared emergency output factor (EOF )
x
is achieved during emergency operation.
is measured 5 s and 60 s after switch on of the control gear in emergency mode at
EOF
x
maximum emergency supply voltage and at minimum emergency supply voltage.
Compliance is checked by the following test set-up.
Measurement of EOF shall be made using rated load(s).
x
Reference setting to measure the EOF
x
The emergency output factor (EOF ) is measured with the appropriate reference setting
x
(depending on the module, it could be constant current, constant voltage or constant power).
Set-up to measure the EOF under emergency conditions
x
The EOF is measured 5 s and 60 s after energizing the control gear. Afterwards it is
x
measured in steady state conditions operated with the minimum supply voltage.
For the calculation of EOF the lower value of the measurements below is used:
x
a) electrical output parameter measured after 60 s at maximum voltage/electrical output
parameter measured in reference setting;
b) electrical output parameter measured in steady state conditions at minimum supply
voltage/electrical output parameter measured in reference setting.
After 5 s of operation with maximum emergency supply voltage at least 50 % of the declared
EOF shall be reached).
x
The lowest value of the values measured at 60 s with maximum emergency supply voltage or
in steady conditions at minimum emergency supply voltage shall be retained and compared
with the one measured with the same rated load(s) operating with the appropriate reference
.
setting. The ratio shall reach at least the declared EOF
x
Replace 60 s by 0,5 s for controlgears declared suitable for high-risk task area lighting.
In case of settable EOF, requirements are under consideration.
Bibliography
IEC 60050 (all parts), International Electrotechnical Vocabulary (available at
)
IEC 60051 (all parts), Direct acting indicating analogue electrical measuring instruments and
their accessories
IEC 60083:2004, Plugs and socket-outlets for domestic and similar general use standardized
in member countries of IEC
IEC 60085:2004, Electrical insulation – Thermal classification
IEC 60364-4-41:2005, Low voltage electrical installations – Part 4-41: Protection for safety –
Protection against electric shock
IEC 60384-14:2005, Fixed capacitors for use in electronic equipment – Part 14: Sectional
specification: Fixed capacitors for electromagnetic interference suppression and connection to
the supply mains
IEC 60417, Graphical symbols for use on equipment Available at http://www.graphical-
symbols.info/equipment
IEC 60449:1973, Voltage bands for electrical installations of buildings
Amendment 1 (1979)
IEC 60906 (all parts), IEC system of plugs and socket-outlets for household and similar
purposes
IEC 60950-1:2005, Information technology equipment – Safety – Part 1: General requirements
IEC 61558-1:2005, Safety of power transformers, power supplies, reactors and similar
products – Part 1: General requirements and tests
IEC 61558-2-1:2007, Safety of power transformers, power supplies, reactors and similar
products – Part 2-1: Particular requirements and tests for separating transformers and power
supplies incorporating separating transformers for general applications
IEC 61558-2-4:2009, Safety of transformers, reactors, power supply units and similar products
for supply voltages up to 1 100 V – Part 2-4: Particular requirements and tests for isolating
transformers and power supply units incorporating isolating transformers
IEC 61558-2-13:2009, Safety of transformers, reactors, power supply units and similar
products for supply voltages up to 1 100 V – Part 2-13: Particular requirements and tests for
auto transformers and power supply units incorporating auto transformers
IEC 62505, General lighting – Light emitting diode (LED) products and related equipment –
Terms and definitions
_____________
– 26 – IEC 61347-2-13:2014 © IEC 2014
SOMMAIRE
AVANT-PROPOS . 28
INTRODUCTION . 30
1 Domaine d'application . 31
2 Références normatives . 31
3 Termes et définitions . 32
4 Exigences générales .
...

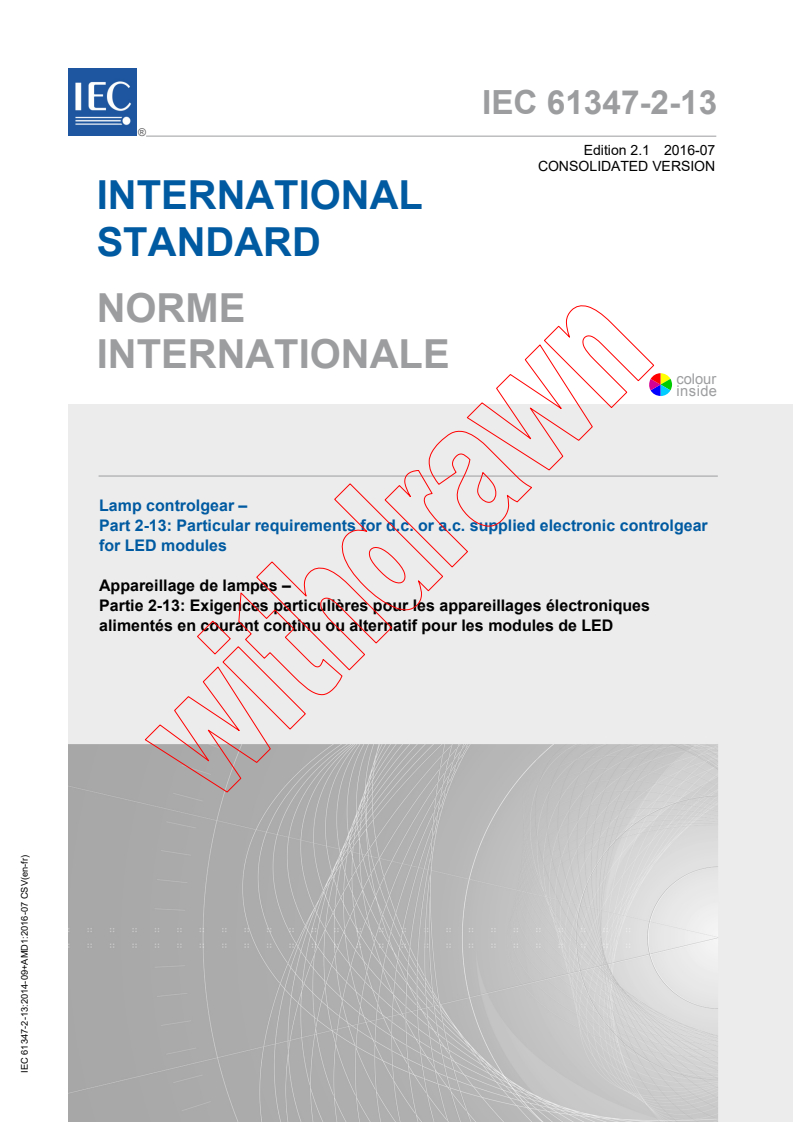

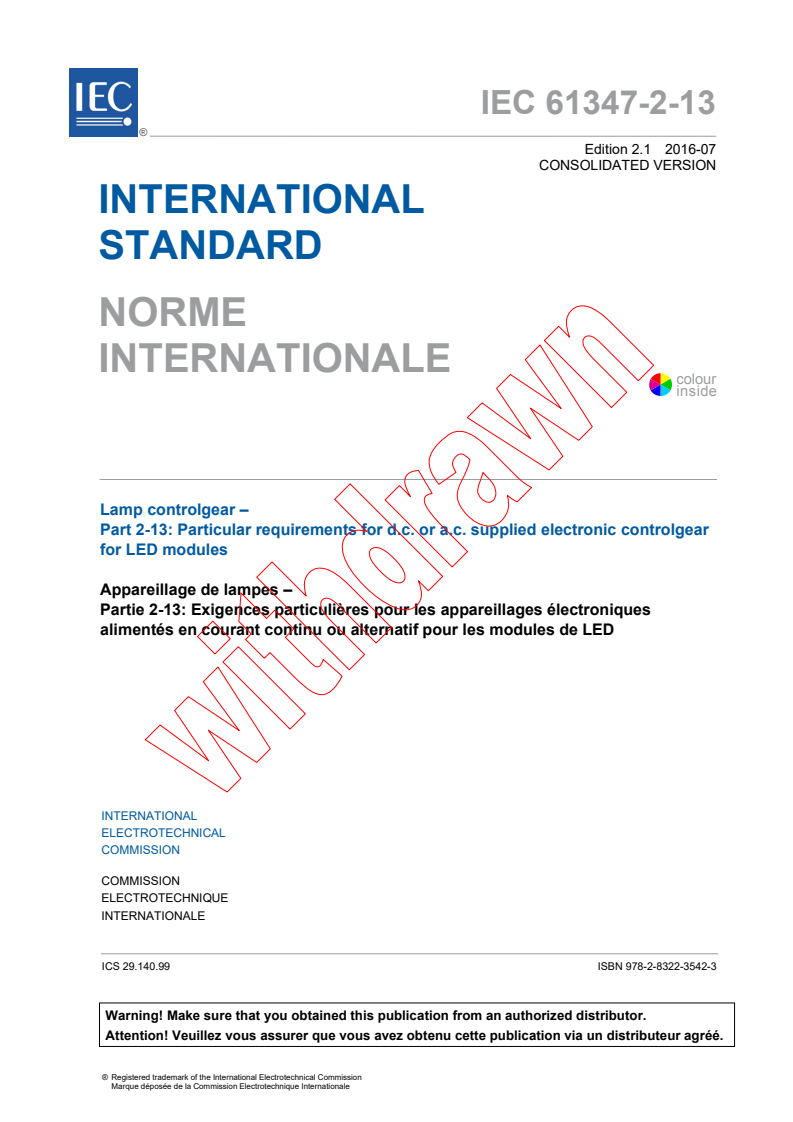

IEC 61347-2-13 ®
Edition 2.1 2016-07
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamp controlgear –
Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear
for LED modules
Appareillage de lampes –
Partie 2-13: Exigences particulières pour les appareillages électroniques
alimentés en courant continu ou alternatif pour les modules de LED
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61347-2-13 ®
Edition 2.1 2016-07
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamp controlgear –
Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear
for LED modules
Appareillage de lampes –
Partie 2-13: Exigences particulières pour les appareillages électroniques
alimentés en courant continu ou alternatif pour les modules de LED
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-3542-3
IEC 61347-2-13 ®
Edition 2.1 2016-07
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Lamp controlgear –
Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear
for LED modules
Appareillage de lampes –
Partie 2-13: Exigences particulières pour les appareillages électroniques
alimentés en courant continu ou alternatif pour les modules de LED
– 2 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
INTRODUCTION TO AMENDMENT 1 . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirements . 9
5 General notes on tests . 10
6 Classification . 10
7 Marking . 10
7.1 Mandatory marking . 10
7.2 Information to be provided if applicable . 10
8 Protection against accidental contact with live parts . 10
9 Terminals . 10
10 Provisions for protective earthing. 11
11 Moisture resistance and insulation . 11
12 Electric strength . 11
13 Thermal endurance test for windings of ballasts . 11
14 Fault conditions . 11
15 Transformer heating . 11
15.1 General . 11
15.2 Normal operation . 11
15.3 Abnormal operation . 11
16 Construction . 12
17 Creepage distances and clearances . 12
18 Screws, current-carrying parts and connections . 12
19 Resistance to heat, fire and tracking . 12
20 Resistance to corrosion . 12
21 Maximum working voltage (U ) in any load condition . 12
out
Annex A (normative) Test to establish whether a conductive part is a live part which
may cause an electric shock . 13
Annex B (normative) Particular requirements for thermally protected lamp controlgear . 14
Annex C (normative) Particular requirements for electronic lamp controlgear with
means of protection against overheating . 15
Annex D (normative) Requirements for carrying out the heating tests of thermally
protected lamp controlgear . 16
Annex E (normative) Use of constant S other than 4 500 in t tests . 17
w
Annex F (normative) Draught-proof enclosure . 18
Annex G (normative) Explanation of the derivation of the values of pulse voltages . 19
Annex H (normative) Tests. 20
Annex I (normative) Particular additional requirements for SELV d.c. or a.c. supplied
electronic controlgear for LED modules . 21
© IEC 2016
Annex J (normative) Particular additional safety requirements for a.c., a.c./d.c. or d.c.
supplied electronic controlgear for emergency lighting . 22
J.1 General . 22
J.2 Marking . 22
J.2.1 Mandatory markings . 22
J.2.2 Information to be provided if applicable . 22
J.3 General notes on tests . 22
J.4 Starting conditions . 23
J.5 Operating condition . 23
J.6 Emergency supply current . 23
J.7 EMC immunity . 23
J.8 Pulse voltage from central battery systems . 23
J.9 Tests for abnormal conditions . 24
J.10 Temperature cycling test and endurance test . 24
J.11 Functional safety (EOF ) . 24
x
Bibliography . 25
Table J.1 – Pulse voltages . 23
– 4 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROLGEAR –
Part 2-13: Particular requirements for d.c. or
a.c. supplied electronic controlgear for LED modules
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been prepared
for user convenience.
IEC 61347-2-13 edition 2.1 contains the second edition (2014-09) [documents 34C/1092/FDIS
and 34C/1106/RVD] and its amendment 1 (2016-07) [documents 34C/1199/FDIS and 34C/1211/
RVD].
In this Redline version, a vertical line in the margin shows where the technical content is
modified by amendment 1. Additions are in green text, deletions are in strikethrough red text.
A separate Final version with all changes accepted is available in this publication.
© IEC 2016
International Standard IEC 61347-2-13 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
This edition includes the following significant technical changes with respect to the previous
edition.
a) Replacement of the SELV-equivalent requirements by SELV requirements and reference
to the SELV requirements of Annex L in IEC 61347-1:2007/AMD2:2012.
b) Reference to IEC 61347-1 for the protection against accidental contact with live parts,
moisture resistance and insulation and electric strength.
c) New Annex J for emergency lighting requirements.
This standard shall be used in conjunction with IEC 61347-1.Where the requirements of any
of the clauses of IEC 61347-1 are referred to in this standard by the phrase "The
requirements of Clause n of IEC 61347-1:2007/AMD1:2010/AMD2:2012, apply", this phrase is
interpreted as meaning that all requirements of the clause in question of Part 1 apply, except
any which are clearly inapplicable to the specific type of lamp controlgear covered by this
particular part of IEC 61347-2.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this standard, the following print types are used:
– requirements: in roman type,
– test specifications: in italic type,
– notes: in small roman type.
A list of all parts in the IEC 61347, published under the general title Lamp controlgear can be
found on the IEC website.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
INTRODUCTION
This second edition of IEC 61347-2-13 is published in conjunction with IEC 61347-1. The
formatting into separately published parts provides for ease of future amendments and
revisions. Additional requirements will be added as and when a need for them is recognized.
This standard and the parts which make up IEC 61347-2, in referring to any of the clauses of
IEC 61347-1 specify the extent to which such a clause is applicable and the order in which the
tests are to be performed; they also include additional requirements as necessary. All parts
which make up IEC 61347-2 are self-contained and therefore do not include references to
each other.
INTRODUCTION TO AMENDMENT 1
This Amendment 1 to IEC 61347-2-13: 2014 has been developed by SC 34C to include the
following significant technical changes:
a) Dated reference to Part 1 has been deleted to allow the use of this Part 2 in conjunction
with the latest updated version of IEC 61347-1.
This Part 2-13 is intended to be used in conjunction with the latest edition of IEC 61347-1
and its amendments.
b) Clause 21 has been introduced to verify the U as the maximum output voltage in any
out
load conditions. This clause has been circulated in SC 34C as Fragment 3 of
34C/1038/DC, but was not included in the 34C/1092/FDIS.
© IEC 2016
LAMP CONTROLGEAR –
Part 2-13: Particular requirements for d.c. or
a.c. supplied electronic controlgear for LED modules
1 Scope
This part of IEC 61347 specifies particular safety requirements for electronic controlgear for
use on d.c. or a.c. supplies up to 1 000 V (a.c. at 50 Hz or 60 Hz) and at an output frequency
which can deviate from the supply frequency, associated with LED modules.
Controlgear for LED modules specified in this standard are designed to provide constant
voltage or current at SELV or higher voltages. Deviations from the pure voltage and current
types do not exclude the gear from this standard.
The annexes of IEC 61347-1 which are applicable according to this Part 2-13 and using the
word “lamp” are understood to also comprise LED modules.
Particular requirements for SELV controlgear are given in Annex I.
Performance requirements are covered by IEC 62384.
Plug-in controlgear, being part of the luminaire, are covered as for built-in controlgear by the
additional requirements of the luminaire standard.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61347-1:2007, Lamp controlgear – Part 1: General and safety requirements
Amendment 1:2010
Amendment 2:2012
IEC 61347-2-7:2011, Lamp controlgear – Part 2-7: Particular requirements for battery
supplied electronic controlgear for emergency lighting (self-contained)
IEC 61547, Equipment for general lighting purposes – EMC immunity requirements
IEC 61558 (all parts), Safety of power transformers, power supplies, reactors and similar
products
IEC 61558-2-6:2009, Safety of transformers, reactors, power supply units and similar products
for supply voltages up to 1 100 V – Part 2-6: Particular requirements and tests for safety
isolating transformers and power supply units incorporating safety isolating transformers
IEC 61558-2-16:2009, Safety of transformers, reactors, power supply units and similar
products for supply voltages up to 1 100 V – Part 2-16: Particular requirements and tests for
switch mode power supply units and transformers for switch mode power supply units
– 8 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
IEC 62384:2006, DC or AC supplied electronic controlgear for LED modules – Performance
requirements
3 Terms and definitions
For the purpose of this document, the terms and definitions given in IEC 61347-1, as well as
the following apply.
3.1
electronic controlgear for LED modules
unit inserted between the supply and one or more LED modules which serves to supply the
LED module(s) with its (their) rated voltage or rated current
Note 1 to entry: The unit may consist of one or more separate components and may include means for dimming,
correcting the power factor and suppressing radio interference, and futher control functions.
Note 2 to entry: The controlgear consists of a power supply and a control unit.
Note 3 to entry: The controlgear may be partly or totally integrated in the LED module.
3.2
d.c. or a.c. supplied controlgear
controlgear that includes stabilising elements for operating one or more LED module(s)
3.3
SELV controlgear
controlgear providing an SELV output isolated from the supply mains by means such as a
safety isolating transformer, as specified in IEC 61558-2-6 and IEC 61558-2-16
3.4
associated controlgear
controlgear designed to supply specific appliance(s) or equipment, incorporated or not
incorporated
EXAMPLE: An electronic controlgear within an emergency unit where it is assigned in a one-to-one relation to a
battery driven ballast.
3.5
plug-in controlgear
controlgear incorporated in an enclosure provided with an integral plug as the means of
connection of the electrical supply
3.6
rated output voltage for constant voltage controlgear
output voltage, at rated supply voltage, rated frequency and at rated output power, assigned
to the controlgear
3.7
rated output current for constant current controlgear
output current, at rated supply voltage, rated frequency and at rated output power, assigned
to the controlgear
3.8
light emitting diode
LED
solid state device embodying a p-n junction, emitting optical radiation when excited by an
electric current
Note 1 to entry: This definition is independent from the existence of enclosure(s) and of terminals.
© IEC 2016
[SOURCE: IEC 60050-845:1987, 845.04.40]
3.9
LED module
light source having no cap, incorporating one or more LED package(s) on a printed circuit
board, and possibly including one or more of the following:
electrical, optical, mechanical, and thermal components, interfaces and controlgear
Note 1 to entry: A LED module may be integrated (LEDi module, Type 1) or semi-integrated (LEDsi module,
Type 2) or nonintegrated (LEDni module, Type 3).
Note 2 to entry: The LED module is usually designed to be part of a LED lamp or LED luminaire.
3.10
maximum output voltage
maximum voltage which can occur between the output terminals for constant current
controlgear in any load condition
3.11
emergency lighting
lighting provided for use when the supply to the normal lighting fails; it includes escape
lighting and standby lighting
3.12
rated emergency supply voltage or voltage range
rated voltage or voltage range claimed by the manufacturer where the controlgear will operate
according specification
3.13
emergency output factor
EOF
x
ratio of the electrical output parameter when the control gear under test is operated in
emergency mode to the output electrical parameter when the control gear is operated with the
normal lighting conditions
Note 1 to entry: The electrical output parameter can be current (EOF ), voltage (EOF ) or power (EOF ) at the
I V W
output(s) of the control gear (depending on the module it could be constant current, constant voltage or constant
power).
Note 2 to entry: The emergency output factor is the minimum of the values measured at the appropriate time after
failure of the normal supply and continuously.
3.14
emergency supply current
rated supply current of the control gear operating in the emergency mode
4 General requirements
The requirements of Clause 4 of IEC 61347-1:2007/AMD2:2012 apply, together with the
following additional requirements.
– Controlgear providing SELV shall comply with the requirements of Annex I. This includes
insulation resistance, electric strength, creepage distances and clearance between
primary and secondary circuits.
– If a separating, isolating or autotransformer is used, it shall comply with the relevant parts
of IEC 61558. If, however, insulated winding wires are used for controlgear with an input
voltage of up to 300 V, the dielectric strength test voltage is limited to 3 kV for raw
material.
– 10 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
5 General notes on tests
The requirements of Clause 5 of IEC 61347-1:2007/AMD2:2012 apply, with the following
additional requirement.
The following number of specimens shall be submitted for testing:
– one unit for the tests of Clauses 6 to 12 and 15 to 20;
– one unit for the tests of Clause 14 (additional units or components, where necessary, may
be required in consultation with the manufacturer).
6 Classification
Controlgear are classified according to the method of installation given in Clause 6 of
IEC 61347-1:2007 and according to protection against electric shock as:
– auto-wound controlgear;
– separating controlgear;
– isolating controlgear;
– SELV controlgear.
7 Marking
7.1 Mandatory marking
Controlgear, other than integral controlgear, shall be clearly and durably marked, in
accordance with the requirements of 7.2 of IEC 61347-1:2007, with the following mandatory
markings:
– items a), b), c), d), e), f), k), l), m), t) and u) of 7.1 of IEC 61347-1:2007/AMD2:2012,
together with:
– for constant voltage types: P rated output power and U rated output voltage;
rated rated
– for constant current types: P rated output power and I rated output current;
rated rated
– if applicable: an indication that the controlgear is suitable for operation with LED modules
only.
7.2 Information to be provided if applicable
In addition to the above mandatory markings, the following information, if applicable, shall be
given either on the controlgear, or be made available in the manufacturer’s catalogue or
similar:
– items h), i), j) and s) of 7.1 of IEC 61347-1:2007/AMD2:2012 together with
– a mention of whether the controlgear has mains-connected windings of transformer.
Windings do not apply to ferrite inductors and ferrite line filters.
8 Protection against accidental contact with live parts
The requirements of Clause 10 of IEC 61347-1:2007/AMD2:2012 apply.
9 Terminals
The requirements of Clause 8 of IEC 61347-1:2007 apply.
© IEC 2016
10 Provisions for protective earthing
The requirements of Clause 9 of IEC 61347-1:2007/AMD2:2012 apply.
11 Moisture resistance and insulation
The requirements of Clause 11 of IEC 61347-1:2007/AMD1:2010/AMD2:2012 apply.
12 Electric strength
The requirements of Clause 12 of IEC 61347-1:2007/AMD2:2012 apply.
13 Thermal endurance test for windings of ballasts
The requirements of Clause 13 of IEC 61347-1:2007/AMD2:2012 are not applicable.
14 Fault conditions
The requirements of Clause 14 of IEC 61347-1:2007/AMD1:2010/AMD2:2012 apply, together
with the following additional requirements.
In the case of controlgear provided with the marking , the requirements specified in
Annex C shall be fulfilled.
15 Transformer heating
15.1 General
If a controlgear contains an SELV, isolating and separating transformer, the controlgear shall
be tested according to Clauses L.6 and L.7 of IEC 61347-1:2007/AMD2:2012, where the
requirements for controlgear providing SELV are valid also for separating and isolating
controlgear.
For SELV controlgear, the output voltage shall not exceed the limits given in 10.4 of
IEC 61347-1:2007/AMD2:2012, during the tests of 15.1 and 15.2 of this standard.
15.2 Normal operation
The requirements of Clause L.6 of IEC 61347-1:2007/AMD2:2012 apply, together with the
following additional requirement.
For built-in and integral controlgear, tests shall be made under conditions such that the
convertor is brought to t , as reached under normal operation at rated supply voltage.
c
15.3 Abnormal operation
The requirements of Clause L.7 of IEC 61347-1:2007/AMD2:2012 apply.
In addition, the following test at any voltage between 90 % and 110 % of the rated supply
voltage shall be performed if relevant, with the controlgear operating according to the
manufacturer’s instructions (including heatsinks, if specified) for 1 h.
Connect double the LED modules or equivalent load for which the controlgear is designed:
– 12 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
– in parallel to the output terminals, for constant voltage output types;
– in series to the output terminals, for the constant current output types.
During and at the end of the tests specified above, the controlgear shall show no defect
impairing safety, nor shall any smoke or flammable gases be produced.
16 Construction
The requirements of Clause 15 of IEC 61347-1:2007/AMD2:2012 apply.
17 Creepage distances and clearances
Unless otherwise specified in Clause 14 of this standard, the requirements of Clause 16 of
IEC 61347-1:2007 apply.
18 Screws, current-carrying parts and connections
The requirements of Clause 17 of IEC 61347-1:2007 apply.
19 Resistance to heat, fire and tracking
The requirements of Clause 18 of IEC 61347-1:2007 apply.
20 Resistance to corrosion
The requirements of Clause 19 of IEC 61347-1:2007 apply.
21 Maximum working voltage (U ) in any load condition
out
Under normal operating conditions and any other load conditions, which means including the
abnormal condition, the voltage at the output terminals shall not exceed the maximum working
voltage for which the controlgear is declared (U ).
out
The test shall be carried out with the controlgear supplied at rated supply voltage and loaded
in maximum load condition with LED modules. The number of LED modules is dependent on
the maximum of the declared electrical parameters. Then the load is modified in order to find
the load condition where the voltage between terminals gives the maximum values.
NOTE 1 The load may be modified by connecting other LED modules (or resistor if the result is not affected by
the type of load) in series or in parallel to modify the total load impedance. Normally the voltage rises by adding
LEDs in series. In most cases the highest voltage is reached in no-load condition.
Compliance is checked by measuring the maximum output voltage between the terminals and
the maximum output voltage between the terminals and earth in any load condition.
NOTE 2 The voltage between terminals and earth does not need to be measured in case of controlgears providing
insulation between PRI and SEC.
© IEC 2016
Annex A
(normative)
Test to establish whether a conductive part
is a live part which may cause an electric shock
The requirements of Annex A of IEC 61347-1:2007/AMD2:2012 apply.
– 14 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
Annex B
(normative)
Particular requirements for thermally
protected lamp controlgear
The requirements of Annex B of IEC 61347-1:2007/AMD1:2010/AMD2:2012 are not
applicable.
© IEC 2016
Annex C
(normative)
Particular requirements for electronic lamp controlgear
with means of protection against overheating
The requirements of Annex C of IEC 61347-1:2007 apply.
– 16 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
Annex D
(normative)
Requirements for carrying out the heating tests
of thermally protected lamp controlgear
The requirements of Annex D of IEC 61347-1:2007 apply.
© IEC 2016
Annex E
(normative)
Use of constant S other than 4 500 in t tests
w
The requirements of Annex E of IEC 61347-1:2007 apply only for windings of 50 Hz/60 Hz.
– 18 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
Annex F
(normative)
Draught-proof enclosure
The requirements of Annex F of IEC 61347-1:2007 apply.
© IEC 2016
Annex G
(normative)
Explanation of the derivation of the values of pulse voltages
The requirements of Annex G of IEC 61347-1:2007 are not applicable.
– 20 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
Annex H
(normative)
Tests
The requirements of Annex H of IEC 61347-1:2007 apply.
© IEC 2016
Annex I
(normative)
Particular additional requirements for SELV d.c.
or a.c. supplied electronic controlgear for LED modules
The requirements of Annex L in IEC 61347-1:2007/AMD2:2012 apply.
– 22 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
Annex J
(normative)
Particular additional safety requirements for a.c., a.c./d.c. or d.c.
supplied electronic controlgear for emergency lighting
J.1 General
This annex specifies particular safety requirements of a.c., a.c./d.c. or d.c. supplied electronic
controlgear for emergency lighting purposes intended for connection to a centralized
emergency power supply, as, for example, central battery supply system. It does not apply to
electronic controlgear used in self-contained emergency lighting luminaires as this is covered
by IEC 61347-2-7.
J.2 Marking
J.2.1 Mandatory markings
The controlgear shall, in addition to the requirements of 7.1, be clearly marked with the
following mandatory marking:
a) a.c., a.c./d.c. or d.c maintained emergency electronic controlgear shall be marked with the
symbol:
[SOURCE: IEC 61347-2-7:2011]
b) rated emergency power supply voltage or voltage range.
J.2.2 Information to be provided if applicable
In addition to the above mandatory markings and the requirements of 7.2, the following
information shall either be given on the control gear or be made available in the
manufacturer’s catalogue or similar.
a) Limits of the ambient temperature range within which an independent control gear will
operate satisfactorily at the declared voltage (range).
b) Emergency output factor (EOF ). In case of settable electrical output parameter, a range
x
shall be provided.
c) Information on whether the control gear is intended for use in luminaires for high-risk task
area lighting.
J.3 General notes on tests
One specimen shall be submitted to all the tests.
The tests shall be carried out with the length of the output cable of both 20 cm and 200 cm
unless otherwise declared by the manufacturer.
To give reproducible measurement results, one or more resistors (R ) shall be used as
load
replacement for the LED lamps/module(s). R is determined from the rated output power
load
and the rated output voltage or rated output current of the controlgear. The resistor (R )
load
shall be selected so that the value of the resistance shall not deviate by more than 1 % during
the test. For electronic controlgear for LED lamps/modules a pure resistive load may cause
© IEC 2016
malfunction of the DUT. In these cases a combination of diodes and variable resistor
equivalent to the LED lamp/module shall be used, which should ensure the maximum rated
output current at the rated output voltage.
NOTE When a special starting procedure is used to allow the constant current controlgear to function properly,
the method with the equivalent resistor can be used.
J.4 Starting conditions
Control gears shall start rated load(s) without adversely affecting the performance when
operated in emergency mode.
Compliance is under consideration.
J.5 Operating condition
The provisions of 7.2 of IEC 62384:2006 apply at 90 % and 110 % of the rated emergency
supply voltage.
Compliance is checked by measurement.
J.6 Emergency supply current
At the rated emergency supply voltage or voltage range, the emergency supply current shall
not differ by more than ±15 % from the declared value when the control gear is operated in
emergency mode with maximum load power.
The supply shall be of low impedance and low inductance.
Compliance is checked by measurement.
J.7 EMC immunity
For emergency supplied electronic controlgear the requirements of IEC 61547 apply.
J.8 Pulse voltage from central battery systems
The d.c. supplied emergency controlgear shall withstand, without failure, any pulses caused
by switching other equipment in the same circuit.
Compliance is checked by operating the controlgear at the maximum voltage of the rated
voltage range in association with the rated load(s). The controlgear shall withstand, without
failure, the number of pulse voltages given in Table J.1 superimposed, with the same polarity,
on the supply voltage.
Table J.1 – Pulse voltages
Pulse voltage
Period between each
Number of voltage
pulse
Peak value Pulse width at half peak
pulses
V ms s
3 Equal to design 10 2
NOTE A suitable measuring circuit is shown in Figure G.2 of IEC 61347-1:2007.
– 24 – IEC 61347-2-13:2014+AMD1:2016 CSV
© IEC 2016
J.9 Tests for abnormal conditions
The provisions of Clause 12 of IEC 62384:2006 apply.
J.10 Temperature cycling test and endurance test
The provisions of Clause 13 of IEC 62384:2006 apply.
J.11 Functional safety (EOF )
x
The controlgear associated to the rated load shall provide the necessary output electric
parameter in emergency mode. This is verified if the declared emergency output factor (EOF )
x
is achieved during emergency operation.
is measured 5 s and 60 s after switch on of the control gear in emergency mode at
EOF
x
maximum emergency supply voltage and at minimum emergency supply voltage.
Compliance is checked by the following test set-up.
Measurement of EOF shall be made using rated load(s).
x
Reference setting to measure the EOF
x
The emergency output factor (EOF ) is measured with the appropriate reference setting
x
(depending on the module, it could be constant current, constant voltage or constant power).
Set-up to measure the EOF under emergency conditions
x
The EOF is measured 5 s and 60 s after energizing the control gear. Afterwards it is
x
measured in steady state conditions operated with the min
...
