IEC 62884-2:2017

Measurement techniques of piezoelectric, dielectric and electrostatic oscillators - Part 2: Phase jitter measurement method

IEC 62884-2:2017 specifies the methods for the measurement and evaluation of the phase jitter measurement of piezoelectric, dielectric and electrostatic oscillators, including dielectric resonator oscillators (DROs) and oscillators using a thin-film bulk acoustic resonator (FBAR) (hereinafter referred to as an "Oscillator") and gives guidance for phase jitter that allows the accurate measurement of RMS jitter.
In the measurement method, phase noise measurement equipment or a phase noise measurement system is used.
NOTE Dielectric resonator oscillators (DROs) and oscillators using FBAR are under consideration.

Techniques de mesure des oscillateurs piézoélectriques, diélectriques et électrostatiques - Partie 2 : Méthode de mesure de la gigue de phase

L'IEC 62884-2:2017 spécifie les méthodes de mesure et d'évaluation du mesurage de la gigue de phase des oscillateurs piézoélectriques, diélectriques et électrostatiques, y compris les oscillateurs à résonateur diélectrique (DRO - dielectric resonator oscillators) et les oscillateurs utilisant un résonateur à ondes acoustiques de volume à couches fines (FBAR - film bulk acoustic resonator) (appelés ici « oscillateur ») et donne des recommandations relatives à la gigue de phase permettant de mesurer avec exactitude la gigue efficace.
Dans la méthode de mesure, un matériel ou système de mesure du bruit de phase est utilisé.
NOTE Les oscillateurs à résonateur diélectrique (DRO - dielectric resonator oscillator) et les oscillateurs utilisant un FBAR sont à l'étude.

General Information

• Status: Published
• Publication Date: 29-Aug-2017
• ICS: 31.140 - Piezoelectric devices
• Technical Committee: TC 49 - Piezoelectric, dielectric and electrostatic devices and associated materials for frequency control, selection and detection
• Drafting Committee: WG 7 - TC 49/WG 7
• Current Stage: PPUB - Publication issued
• Start Date: 29-Sep-2017
• Completion Date: 30-Aug-2017

Overview

IEC 62884-2:2017 - Measurement techniques of piezoelectric, dielectric and electrostatic oscillators: Part 2: Phase jitter measurement method - defines standard methods to measure and evaluate phase jitter of oscillators (including crystal, dielectric resonator oscillators (DROs) and FBAR-based oscillators). The standard prescribes using phase noise measurement equipment or a phase-noise measurement system and gives guidance to obtain accurate RMS jitter values and other jitter metrics.

Key topics

• Scope and targets
  • Measurement procedures specifically for piezoelectric, dielectric and electrostatic oscillators, with guidance for DROs and thin-film bulk acoustic resonator (FBAR) oscillators.
• Measurement domains
  • Procedures for measuring phase jitter in the time domain, data domain, and frequency domain (phase-noise-based methods).
• Equipment and setup
  • Use of phase noise analyzers, sampling oscilloscopes, and jitter/wander analysers (e.g., block diagrams referenced to ITU-T practices).
  • Requirements on input/output impedances, output waveform, output voltage, and jitter floor of measurement systems.
• Test procedures and environment
  • Pre-test setup and configuration, measurement under reference temperature, temperature-characteristics testing, measurement under vibration, impact, and accelerated ageing.
• Calculation and analysis
  • Normative Annex A: calculation methods linking phase noise (SSB phase noise) to phase jitter metrics - RMS jitter, peak-to-peak, random vs deterministic jitter, and total jitter.
• Measurement integrity
  • Guidance on test fixtures, cables, instruments, error sources, and factors affecting measurement uncertainty.
• Document structure
  • Normative references and terminology aligned with related IEC and ISO vocabularies.

Applications

IEC 62884-2:2017 is useful for:

• Oscillator manufacturers validating phase jitter performance for product datasheets and customer delivery.
• Test laboratories standardizing measurement procedures and reporting reproducible RMS jitter and phase-noise-derived metrics.
• RF and system engineers designing communications, satellite, automotive, EV control and timing systems where low jitter/phase noise is critical.
• Quality and compliance teams performing environmental and ageing tests (temperature, vibration, impact, accelerated ageing) to assess long-term oscillator stability.

Related standards

• IEC 62884-1:2017 - Basic measurement methods for oscillators
• IEC 60679-1:2017 - Generic specifications for oscillators of assessed quality
• IEC 60027, IEC 60050-561, IEC 60469, ISO 80000-1 - referenced terminology and units

Keywords: IEC 62884-2:2017, phase jitter measurement, phase noise, oscillator testing, DRO, FBAR, RMS jitter, jitter measurement methods.

Standards Content (Sample)

IEC 62884-2 ®
Edition 1.0 2017-08
INTERNATIONAL
STANDARD
colour
inside
Measurement techniques of piezoelectric, dielectric and electrostatic
oscillators –
Part 2: Phase jitter measurement method

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 62884-2 ®
Edition 1.0 2017-08
INTERNATIONAL
STANDARD
colour
inside
Measurement techniques of piezoelectric, dielectric and electrostatic

oscillators –
Part 2: Phase jitter measurement method

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.140 ISBN 978-2-8322-4762-4

– 2 – IEC 62884-2:2017 © IEC 2017

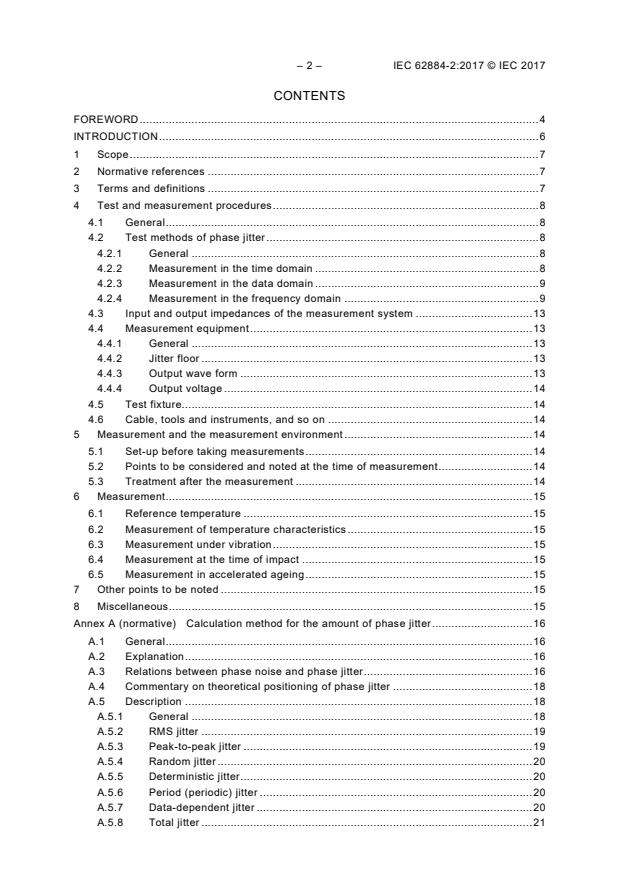

CONTENTS

FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 Test and measurement procedures . 8
4.1 General . 8
4.2 Test methods of phase jitter . 8
4.2.1 General . 8
4.2.2 Measurement in the time domain . 8
4.2.3 Measurement in the data domain . 9
4.2.4 Measurement in the frequency domain . 9
4.3 Input and output impedances of the measurement system . 13
4.4 Measurement equipment . 13
4.4.1 General . 13
4.4.2 Jitter floor . 13
4.4.3 Output wave form . 13
4.4.4 Output voltage . 14
4.5 Test fixture. 14
4.6 Cable, tools and instruments, and so on . 14
5 Measurement and the measurement environment . 14
5.1 Set-up before taking measurements . 14
5.2 Points to be considered and noted at the time of measurement . 14
5.3 Treatment after the measurement . 14
6 Measurement . 15
6.1 Reference temperature . 15
6.2 Measurement of temperature characteristics . 15
6.3 Measurement under vibration . 15
6.4 Measurement at the time of impact . 15
6.5 Measurement in accelerated ageing . 15
7 Other points to be noted . 15
8 Miscellaneous . 15
Annex A (normative)  Calculation method for the amount of phase jitter . 16
A.1 General . 16
A.2 Explanation . 16
A.3 Relations between phase noise and phase jitter . 16
A.4 Commentary on theoretical positioning of phase jitter . 18
A.5 Description . 18
A.5.1 General . 18
A.5.2 RMS jitter . 19
A.5.3 Peak-to-peak jitter . 19
A.5.4 Random jitter . 20
A.5.5 Deterministic jitter . 20
A.5.6 Period (periodic) jitter . 20
A.5.7 Data-dependent jitter . 20
A.5.8 Total jitter . 21

A.6 Points to be considered for measurement . 21
A.6.1 Measurement equipment . 21
A.6.2 Factors of measurement errors . 22
Bibliography . 24

Figure 1 – Phase jitter measurement with sampling oscilloscope . 9
Figure 2 – Block diagram of a jitter and wander analyser according to ITU-T O.172 . 11
Figure 3 – Equivalent block diagram . 13
Figure A.1 – Concept diagram of SSB phase noise . 18
Figure A.2 – Voltage versus time . 19
Figure A.3 – Explanatory diagram of the amount of jitter applied to RMS jitter . 21
Figure A.4 – Explanatory diagrams of random jitter, deterministic jitter, and total jitter . 22

Table 1 – Fourier frequency range for phase noise test . 10
Table 2 – Standard bit rates for various applications . 12

– 4 – IEC 62884-2:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MEASUREMENT TECHNIQUES OF PIEZOELECTRIC,
DIELECTRIC AND ELECTROSTATIC OSCILLATORS –

Part 2: Phase jitter measurement method

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62884-2 has been prepared by IEC technical committee 49:
Piezoelectric, dielectric and electrostatic devices and associated materials for frequency
control, selection and detection.
The text of this International Standard is based on the following documents:
CDV Report on voting
49/1212/CDV 49/1243/RVC
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62884 series, published under the general title Measurement
techniques of piezoelectric, dielectric and electrostatic oscillators, can be found on the IEC
website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 62884-2:2017 © IEC 2017
INTRODUCTION
A crystal oscillator as a highly efficient and highly precise source of a frequency oscillation is
widely used for fields such as the electronic equipment, communication equipment,
measurement equipment and a clock. Also recently, digitalization of these equipments is
advancing rapidly. In this situation, the frequency of crystal oscillator requires high precision
and high stability and reduction of noise with oscillating phenomenon. A phase jitter is one of
the noise characteristic in oscillation characteristic and precise measurement which is needed
when shipping a component to a customer.
For advance application in electronic information and communication technology,
(e.g. advanced satellite communications, control circuits for electric vehicle (EV)), necessity
arises for the measurement method for common guidelines of phase jitter. In these days,
measurement method of phase jitter also becomes more important from the electromagnetic
influence (EMI) point of view.
This document has been restructured from IEC 60679-1:2007 (third edition) and
IEC 60679-6:2011 (first edition). The test methods for oscillators have been separated from
IEC 60679-6:2011 into IEC 62884 (all parts). This document covers the phase jitter
measurement.
MEASUREMENT TECHNIQUES OF PIEZOELECTRIC,
DIELECTRIC AND ELECTROSTATIC OSCILLATORS –

Part 2: Phase jitter measurement method

1 Scope
This part of IEC 62884 specifies the methods for the measurement and evaluation of the
phase jitter measurement of piezoelectric, dielectric and electrostatic oscillators, including
dielectric resonator oscillators (DROs) and oscillators using a thin-film bulk acoustic resonator
(FBAR) (hereinafter referred to as an "Oscillator") and gives guidance for phase jitter that
allows the accurate measurement of RMS jitter.
In the measurement method, phase noise measurement equipment or a phase noise
measurement system is used.
NOTE Dielectric resonator oscillators (DROs) and oscillators using FBAR are under consideration.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60027 (all parts), Letter symbols to be used in electrical technology
IEC 60050-561, International Electrotechnical Vocabulary – Part 561: Piezoelectric, dielectric
and electrostatic devices and associated materials for frequency control, selection and
detection
IEC 60679-1:2017, Piezoelectric, dielectric and electrostatic oscillators of assessed quality –
Part 1: Generic specification
IEC 60469, Transitions, pulses and related waveforms – Terms, definitions and algorithms
IEC 60617, Graphical symbols for diagrams (available at http://std.iec.ch/iec60617)
IEC 62884-1:2017, Measurement techniques of piezoelectric, dielectric and electrostatic
oscillators – Part 1: Basic methods for the measurement
ISO 80000-1, Quantities and units – Part 1: General
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60027 (all parts),
IEC 60050-561, IEC 60469, IEC 60617, IEC 60679-1 and ISO 80000-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/

– 8 – IEC 62884-2:2017 © IEC 2017
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Test and measurement procedures
4.1 General
The test and measurement procedures are given in Clause 4 of IEC 62884-1:2017 and shall
be applied as indicated in 4.2 to Clause 8.
4.2 Test methods of phase jitter
4.2.1 General
As the measurement method, the phase noise measurement equipment (system) or the
specially designed phase jitter measurement equipment shall be used.
Three basic methods are described:
a) measurement in the time domain by use of a digital real-time or sampling oscilloscope;
b) measurement in the data domain (BER test set);
c) measurement in the frequency domain using
1) a phase noise test set, or
2) a jitter and wander test set.
Method c) 1) using a phase noise test set is the recommended measurement method because
it allows sufficient accuracy for arbitrary oscillator output frequencies.
– In the measurement of phase jitter and wander of oscillator circuits, attention should be
paid to relative measurement reproducibility.
– A user and a manufacturer should deepen understanding through discussion about
relative measurement reproducibility.
– Measurement equipment (including software program) should be made clear between a
manufacturer and a user through a contract.
– When phase jitter and wander is calculated from phase noise, the range of frequency
deviation should be made clear between a user and a manufacturer through a contract.
4.2.2 Measurement in the time domain
Digital real-time or sampling oscilloscopes with wide bandwidth, fast sampling rates, and large
data memories are commercially available (see Figure 1), in some cases with special jitter
evaluation software.
Sampling
Delay line
scope
スコープ
Trigger
Input
Power
Oscillator
splitter
IEC
Figure 1 – Phase jitter measurement with sampling oscilloscope
The time variation of the edges of the clock signal relative to the trigger edge is displayed and
stored over a large number (typically thousands) of cycles. Instrument software allows the
determination of the peak-to-peak jitter value and a statistical evaluation of its distribution.
The sampling oscilloscope method does not allow an accurate evaluation of the spectral
content of the jitter. Also, jitter larger than one unit interval (UI) cannot be distinguished.
The measured jitter value is worse than the jitter of the device under test due to the internal
jitter of the instrument’s clock.
2 2
J = (J ) − (J )
DUT meas int
where
J is the measured jitter;
DUT
J is the jitter of the device under test;
meas
J is the internal jitter of the instrument’s clock.
int
High stability/low noise Oscillator exhibits a significantly lower jitter than the instrument’s
clock jitter and trigger stability. Therefore, this technology is currently not suitable for accurate
jitter measurement of such Oscillator.
4.2.3 Measurement in the data domain
Bit-error rate (BER) test sets are used for measuring bit-error rate to characterise the overall
system performance of a communication subsystem. It is difficult to deduct the contribution of
the Oscillator jitter to the system BER. This method also does not yield quantitative jitter
performance values for the Oscillator.
4.2.4 Measurement in the frequency domain
4.2.4.1 Methods of phase noise test set
Phase jitter can be tested in the frequency domain using the well-established phase noise test
method with a phase locked loop as described in 4.5.25 of IEC 62884-1:2017.
The range of detuned frequency shall be determined by contracts between customers and
suppliers after discussion between them. The formula for calculating the RMS jitter from a
phase noise is based on the calculation method for the amount of phase jitter shown in
Annex A.
– 10 – IEC 62884-2:2017 © IEC 2017
For given SDH/SONET applications, the Fourier frequency range (f . f ) may be
min max
selected as described in 3.2.53 of IEC 60679-1:2017. If not specified in the relevant data
sheet, the recommended Fourier frequency range is as given by f to f in Table 1.
3 4
Table 1 – Fourier frequency range for phase noise test
Oscillator output frequency f = f f = f
f
0 min 4 max
1 MHz to < 10 MHz 10 Hz 10 kHz 100 kHz
10 MHz to < 50 MHz 20 Hz 20 kHz 500 kHz
50 MHz to < 200 MHz 100 Hz 50 kHz 1,5 MHz
200 MHz to < 1 000 MHz 1,0 kHz 200 kHz 5,0 MHz
1 000 MHz to < 5 000 MHz 5,0 kHz 500 kHz 15 MHz
≥ 5 000 MHz 20 kHz 2 MHz 80 MHz

From Table 1, it can be seen that the most stringent requirement applies over the range f to
f .
Jitter performance over a frequency-band other than f to f may also be defined.
3 4
To compute the phase jitter, the phase noise data L(f) have to be integrated in the considered
frequency ranges and evaluated as follows.
Compute the spectral density of phase fluctuations S (f) from the single-sideband phase noise
φ
plot 10 log L (f):
S( f)= 2L( f)
φ
Integrate S (f) over the specified Fourier frequency range f to f to get the mean squared
φ min max
phase jitter in that bandwidth:
f
max
( ) ( )
∆ϕ f = S f df
ϕ
∫
f
min
The mean square phase jitter can be approximated by stepwise integration over the specified
Fourier frequency range f to f segmented by n, for example:
min max
∆φ( f) ≈ S( f)∆f
∑ φ i i
where
Δf = f – f (i = 1.n - 1)
i i+1 i
with
f = f and f = f
1 min n max
The square root Δφ(f) of the integral is the effective or RMS phase jitter in radians. It can be
converted into degrees, fractions of unit interval (UI), or time (in seconds) by multiplication
with the following factor k:
Degree Unit interval Time
UI s
°
k = 1/(2πf )
360/2π 1/(2π)
c
For random jitter, the peak-to-peak value is assumed to be 7 times the value computed above
(see 3.2.53 of IEC 60679-1:2017).
Accuracy:
A 1 dB error of the phase noise data 10 log L(f) over the full Fourier frequency range causes
a jitter inaccuracy of approximately 10 %.
4.2.4.2 Methods of communication analyser
Commercially available communication analyser may be used to measure jitter and wander of
clock sources with the method described in ITU-T Recommendation O.172 (see Figure 2). The
working principle is similar to the phase noise measurement technique using the quadrature
method. Softwares supplied with the test sets deliver directly all characteristic values for jitter
and wander in numeric and graphical presentation.
Jitter free
Clock with Demodulator
reference clock
output
jitter and generation
wander
ψ U ~ Δψ
Digital signal
UI
Pattern
pp
Ext.
HP
LP
U
(with jitter UI
Clock
Jitter RMS
and wander) Int. Weighting
Phase detector
filters Result
Peak-peak
evaluation
RMS
and
display
External clock
TIE
PLL
PLL LP
(wander
10 Hz
measurement)
MTIE
Internal reference
Lowpass
clock generation
IEC
Figure 2 – Block diagram of a jitter and wander analyser
according to ITU-T O.172
The advantage of these systems over the phase noise test is that a measurement of both
RMS and peak-to-peak jitter is possible. The disadvantage is that these systems require an
input signal (Oscillator frequency) according to the standard data bit rates for optical
communication systems (SONET, SDH) – see Table 2.

– 12 – IEC 62884-2:2017 © IEC 2017
Table 2 – Standard bit rates for various applications
SDH SONET Bit rate Allowed oscillator frequencies

Mbit/s
- OC-1 51,84 25,92 MHz，51,84 MHz
STM-1 OC-3 155,52 77,76 MHz，155,52 MHz
STM-4 OC-12 622,08 311,04 MHz，622,08 MHz
STM-16 OC-48 2488,32 1 244,16 MHz，2 488,32 MHz
STM-64 OC-192 9953,28 4 976,64 MHz，9 953,28 MHz

An Oscillator with other output frequencies cannot be tested, which limits the area of
application.
NOTE Other applications can have different requirements.
4.2.4.3 Methods of the specially designed measurement equipment
4.2.4.3.1 General
The measurement equipment and system shall be the specially designed SONET/SDH
measurement equipment using a time interval analyser.
4.2.4.3.2 Measurement items
The measurement items shall be the RMS jitter and the period (periodic) jitter.
4.2.4.3.3 Number of measurements
The measurement times shall be determined by contracts between customers and suppliers
after discussion between them. The target measurement times shall be 20 000 times or more.
Attention is needed because this device may not meet the requirements of the Oscillator for
the follo
...
