C-Si photovoltaic (PV) modules - Light and elevated temperature induced degradation (LETID) test - Detection

IEC TS 63342:2022 is designed to assess the effect of light induced degradation at elevated temperatures (LETID) by application of electrical current at higher temperatures. In this document, only the current injection approach for the detection of LETID is addressed.
This document does not address the B-O and Iron Boron (Fe-B) related degradation phenomena, which already occur at room temperatures under the presence of light and on much faster time scales. The proposed test procedure can reveal sample sensitivity to LETID degradation mechanisms, but it does not provide an exact measure of field observable degradation.

General Information

Status
Published
Publication Date
19-Jul-2022
Current Stage
PPUB - Publication issued
Completion Date
20-Jul-2022
Ref Project

Buy Standard

Technical specification
IEC TS 63342:2022 - C-Si photovoltaic (PV) modules - Light and elevated temperature induced degradation (LETID) test - Detection
English language
13 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

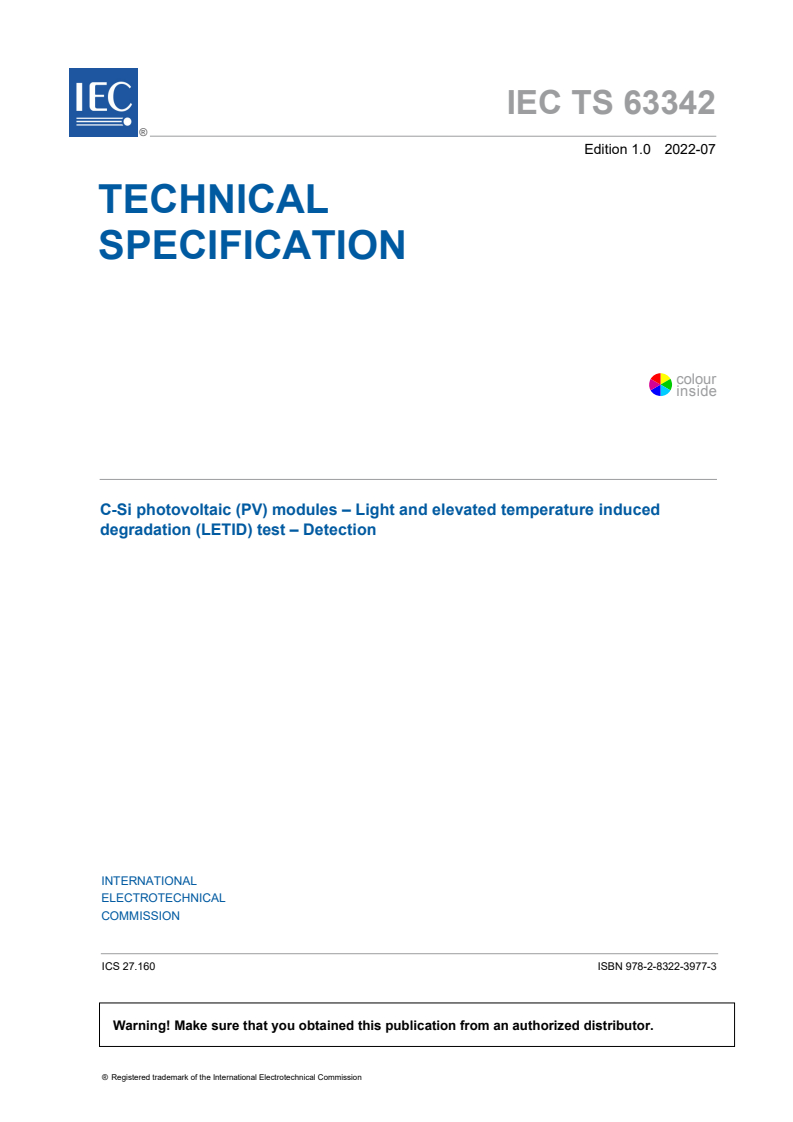

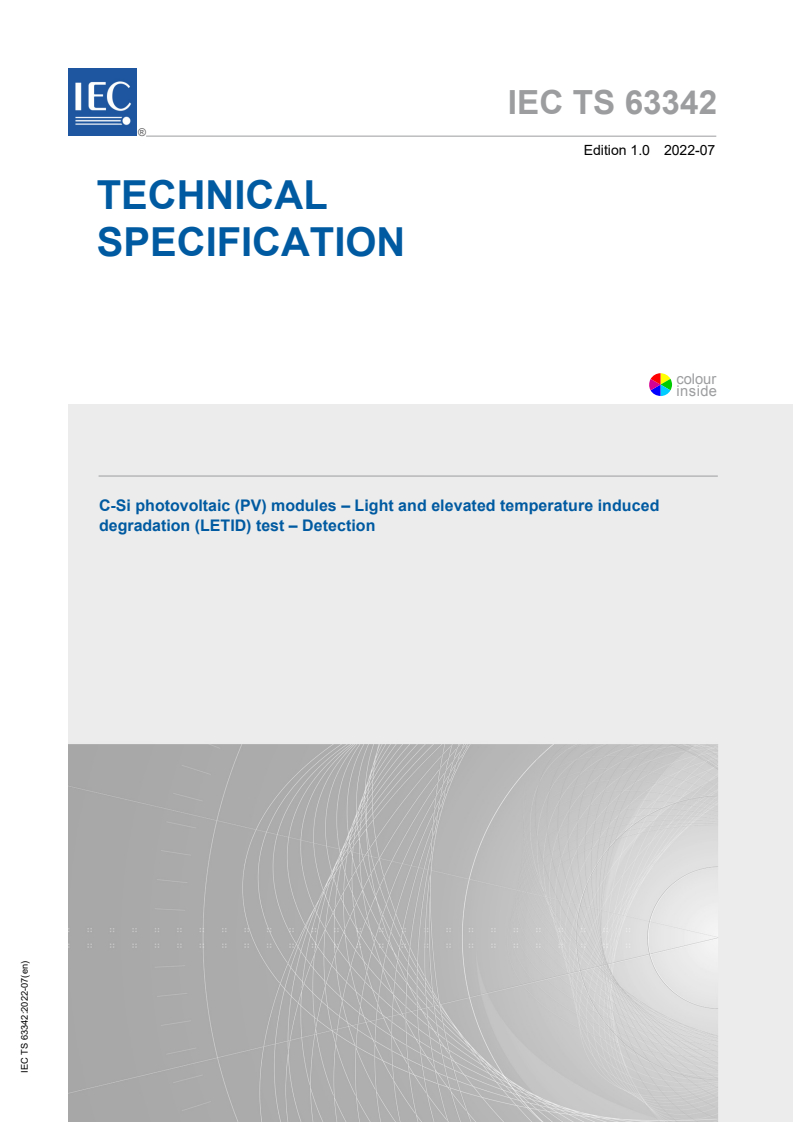

IEC TS 63342
Edition 1.0 2022-07
TECHNICAL
SPECIFICATION
colour
inside
C-Si photovoltaic (PV) modules – Light and elevated temperature induced
degradation (LETID) test – Detection
IEC TS 63342:2022-07(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always have

committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC TS 63342
Edition 1.0 2022-07
TECHNICAL
SPECIFICATION
colour
inside
C-Si photovoltaic (PV) modules – Light and elevated temperature induced
degradation (LETID) test – Detection
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 27.160 ISBN 978-2-8322-3977-3

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------
– 2 – IEC TS 63342:2022  IEC 2022

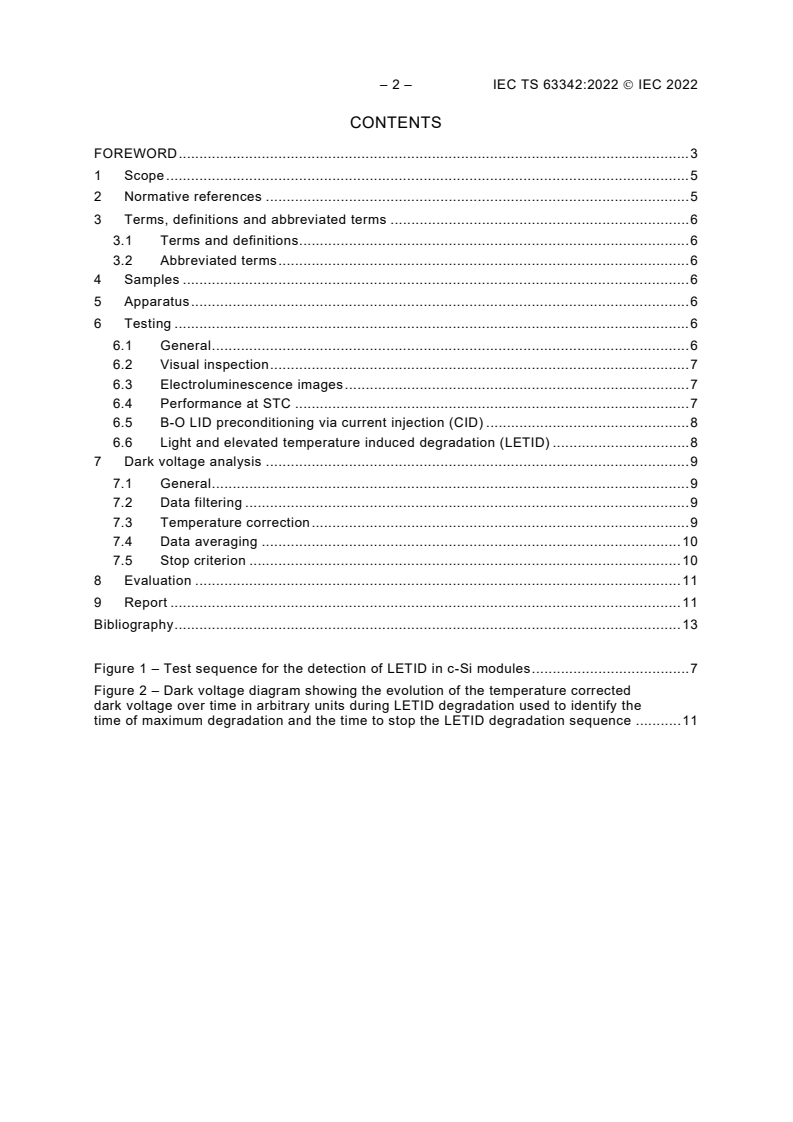

CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms, definitions and abbreviated terms ........................................................................ 6

3.1 Terms and definitions .............................................................................................. 6

3.2 Abbreviated terms ................................................................................................... 6

4 Samples .......................................................................................................................... 6

5 Apparatus ........................................................................................................................ 6

6 Testing ............................................................................................................................ 6

6.1 General ................................................................................................................... 6

6.2 Visual inspection ..................................................................................................... 7

6.3 Electroluminescence images ................................................................................... 7

6.4 Performance at STC ............................................................................................... 7

6.5 B-O LID preconditioning via current injection (CID) ................................................. 8

6.6 Light and elevated temperature induced degradation (LETID) ................................. 8

7 Dark voltage analysis ...................................................................................................... 9

7.1 General ................................................................................................................... 9

7.2 Data filtering ........................................................................................................... 9

7.3 Temperature correction ........................................................................................... 9

7.4 Data averaging ..................................................................................................... 10

7.5 Stop criterion ........................................................................................................ 10

8 Evaluation ..................................................................................................................... 11

9 Report ........................................................................................................................... 11

Bibliography .......................................................................................................................... 13

Figure 1 – Test sequence for the detection of LETID in c-Si modules ...................................... 7

Figure 2 – Dark voltage diagram showing the evolution of the temperature corrected

dark voltage over time in arbitrary units during LETID degradation used to identify the

time of maximum degradation and the time to stop the LETID degradation sequence ........... 11

---------------------- Page: 4 ----------------------
IEC TS 63342:2022  IEC 2022 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
C-SI PHOTOVOLTAIC (PV) MODULES – LIGHT AND ELEVATED
TEMPERATURE INDUCED DEGRADATION (LETID) TEST – DETECTION
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC TS 63342 has been prepared by IEC technical committee 82: Solar photovoltaic energy

systems. It is a Technical Specification.
The text of this Technical Specification is based on the following documents:
Draft Report on voting
82/2008/DTS 82/2044/RVDTS

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.

The language used for the development of this Technical Specification is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.
---------------------- Page: 5 ----------------------
– 4 – IEC TS 63342:2022  IEC 2022

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it

contains colours which are considered to be useful for the correct understanding of its

contents. Users should therefore print this document using a colour printer.
---------------------- Page: 6 ----------------------
IEC TS 63342:2022  IEC 2022 – 5 –
C-SI PHOTOVOLTAIC (PV) MODULES – LIGHT AND ELEVATED
TEMPERATURE INDUCED DEGRADATION (LETID) TEST – DETECTION
1 Scope

This document is designed to assess the effect of light induced degradation at elevated

temperatures (LETID) by application of electrical current at higher temperatures. LETID is

activated by excess carriers caused either through illumination or injection of electrical current

at temperatures above 50 °C. In fielded conditions, LETID develops over the course of several

months up to years as opposed to days for Boron Oxygen (B-O) degradation. The degradation

phase is followed by an even slower recovery phase that develops over a significantly longer

time scale. In this document, only the current injection approach for the detection of LETID is

addressed.

This document does not address the B-O and Iron Boron (Fe-B) related degradation phenomena,

which already occur at room temperatures under the presence of light and on much faster time

scales. B-O defects may influence the results, and this document attempts to separate them by

application of certain procedures. However, it is noted that the separation may not be perfect.

Fe-B effects are excluded by introduction of waiting times before power determination.

The proposed test procedure can reveal sample sensitivity to LETID degradation mechanisms,

but it does not provide an exact measure of field observable degradation. The magnitude and

time scale of degradation seen in the field depends on climate and the module technology.

In this document LETID testing is done via current injection as this is a simple method in terms

of the test equipment required. This allows for better control over conditions compared to

application of light and thus ensures comparability between different labs. Application of light

with equivalent conditions (i.e. same temperature and excess carrier density/ injection level)

will yield comparable results.

The stress conditions in this document differ in injection level from the test method for cells

described in IEC TS 63202-4. Whereas IEC TS 63202-4 aims at providing a quick quality check

for a known cell that can be used in outgoing or incoming inspection of a specific product, the

procedures in this document aim at providing a general product independent test method for

LETID detection in a module that can be applied without prior knowledge about the cells inside

a module and will yield reproducible results.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC TS 60904-13, Photovoltaic devices – Part 13: Electroluminescence of photovoltaic modules

IEC 61215-1:2021, Terrestrial photovoltaic (PV) modules – Design qualification and type

approval – Part 1: Test requirements

IEC 61215-2:2021, Terrestrial photovoltaic (PV) modules – Design qualification and type

approval – Part 2: Test procedures
IEC TS 61836, Solar photovoltaic energy systems – Terms, definitions and symbols
---------------------- Page: 7 ----------------------
– 6 – IEC TS 63342:2022  IEC 2022

ISO/IEC Guide 98-3:2008, Uncertainty of measurement – Part 3: Guide to the expression of

uncertainty in measurement (GUM:1995)
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC TS 61836,

IEC 61215-1, IEC 61215-2 apply, as well as the following.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 Abbreviated terms
LETID Light and Elevated Temperature Induced Degradation
4 Samples

Three samples are required, one is used as a control and the other two are for testing. The

purpose of the control module is to track a possible
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
