Tests for electric cables under fire conditions - Circuit integrity - Part 1: Test method for fire with shock at a temperature of at least 830 °C for cables of rated voltage up to and including 0,6/1,0 kV and with an overall diameter exceeding 20 mm

IEC 60331-1:2018 specifies the test method for cables which are required to maintain circuit integrity when subject to fire and mechanical shock under specified conditions.
This document is applicable to cables of rated voltage not exceeding 600 V/1 000 V, including those of rated voltage below 80 V, metallic data and telecom cables and optical fibre cables.
It is intended for use when testing cables of greater than 20 mm overall diameter.
Cables of smaller diameter are intended to be tested using the apparatus, procedure and requirements of IEC 60331-2.
This document includes details for the specific point of failure, continuity checking arrangement, test sample, test procedure and test report relevant to electric power and control cables with rated voltage up to and including 600 V/1 000 V. Details for the specific point of failure, continuity checking arrangement, test sample, test procedure and test report relevant to metallic data and telecom cables and optical fibre cables are not given by IEC 60331-1.
Although the scope is restricted to cables with rated voltage up to and including 0,6/1,0 kV, the procedure can be used, with the agreement of the manufacturer and the purchaser, for cables with rated voltage up to and including 1,8/3 (3,3) kV, provided that suitable fuses are used.
Annex A provides the method of verification of the burner and control system used for the test.
Requirements are stated for an identification that may optionally be marked on the cable to signify compliance with this document.
This second edition cancels and replaces the first edition published in 2009. It constitutes a technical revision.
The significant technical changes with respect to the previous edition are as follows:
– extension of the scope to include metallic data and telecom cables and optical fibre cables, although details for the specific point of failure, continuity checking arrangement, test sample, test procedure and test report relevant to metallic data and telecom cables and optical fibre cables are not given by IEC 60331-1;
– improved description of the test environment;
– modified steel test ladder with two extra vertical elements to accommodate the modified testing of single core cables without concentric metal layer and the testing of cables with a bending radius in normal use larger than approximately 400 mm;
– mandatory use of mass flow meters/controllers as the means of controlling accurately the input flow rates of fuel and air to the burner;
– improved description of the information to be included in the test report.
This document has the status of a group safety publication in accordance with IEC Guide 104.

Essais pour câbles électriques soumis au feu - Intégrité des circuits - Partie 1: Méthode d’essai au feu avec chocs pour les câbles de tension assignée au plus égale à 0,6/1,0 kV et de diamètre externe supérieur à 20 mm, à une température d’au moins 830 °C

L'IEC 60331-1:2018 spécifie la méthode d'essai pour les câbles nécessaires afin de conserver l'intégrité du circuit quand ils sont soumis à un feu et à des chocs mécaniques dans des conditions spécifiées.
Le présent document s'applique aux câbles de tension assignée au plus égale à 600 V/1 000 V, y compris les câbles de tension assignée inférieure à 80 V, les câbles métalliques de données et de télécommunications ainsi que les câbles à fibres optiques.
Elle est prévue pour être utilisée pour soumettre à l'essai des câbles de diamètre externe supérieur à 20 mm.
Pour les câbles de diamètre plus petit, l'appareillage, la procédure et les exigences de l'IEC 60331-2 sont utilisés.
Le présent document comprend des détails concernant le point spécifique de défaillance, le dispositif de contrôle de la continuité, l'échantillon d'essai, la procédure d'essai et le rapport d'essai pertinents pour les câbles électriques de puissance et de commande de tension assignée au plus égale à 600 V/1 000 V. Les détails concernant le point spécifique de défaillance, le dispositif de contrôle de la continuité, l'échantillon d'essai, la procédure d'essai et le rapport d'essai pertinents pour les câbles métalliques de données et de télécommunications ainsi que les câbles à fibres optiques ne sont pas fournis dans l'IEC 60331-1.
Bien que le domaine d'application soit limité aux câbles de tension assignée au plus égale à 0,6/1,0 kV, par accord entre le fabricant et l'acheteur, la procédure peut être utilisée pour des câbles de tension assignée au plus égale à 1,8/3 (3,3) kV à condition d'utiliser des fusibles appropriés.
L'Annexe A fournit la méthode de vérification du brûleur et le système de contrôle utilisé pour l'essai.
Les exigences sont indiquées pour une identification pouvant être éventuellement apposée par marquage sur le câble pour signifier sa conformité à la présente norme.
Cette deuxième édition annule et remplace la première édition parue en 2009. Elle constitue une révision technique.
Les modifications techniques majeures par rapport à l'édition précédente sont les suivantes:
– extension du domaine d'application aux câbles métalliques de données et de télécommunications et aux câbles à fibres optiques, bien que les informations concernant le point spécifique de défaillance, le dispositif de contrôle de la continuité, l'échantillon d'essai, la procédure d'essai et le rapport d'essai pertinents pour les câbles métalliques de données et de télécommunications et pour les câbles à fibres optiques ne soient pas fournis dans l'IEC 60331-1;
– amélioration de la description de l'environnement d'essai;
– modification de l'échelle d'essai en acier avec deux éléments verticaux supplémentaires afin d'effectuer les essais modifiés sur des câbles unipolaires sans couche de métal concentrique et les essais sur des câbles de rayon de courbure en utilisation normale supérieur à environ 400 mm;
– utilisation obligatoire de débitmètres massiques/régulateurs comme moyens précis de contrôle des débits d'entrée de combustible et d'air au brûleur;
– amélioration de la description des informations à inclure dans le rapport d'essai.

General Information

Status
Published
Publication Date
27-Mar-2018
Technical Committee
Current Stage
PPUB - Publication issued
Start Date
28-Mar-2018
Completion Date
28-Mar-2018
Ref Project

Buy Standard

Standard
IEC 60331-1:2018 - Tests for electric cables under fire conditions - Circuit integrity - Part 1: Test method for fire with shock at a temperature of at least 830 °C for cables of rated voltage up to and including 0,6/1,0 kV and with an overall diameter exceeding 20 mm
English and French language
55 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

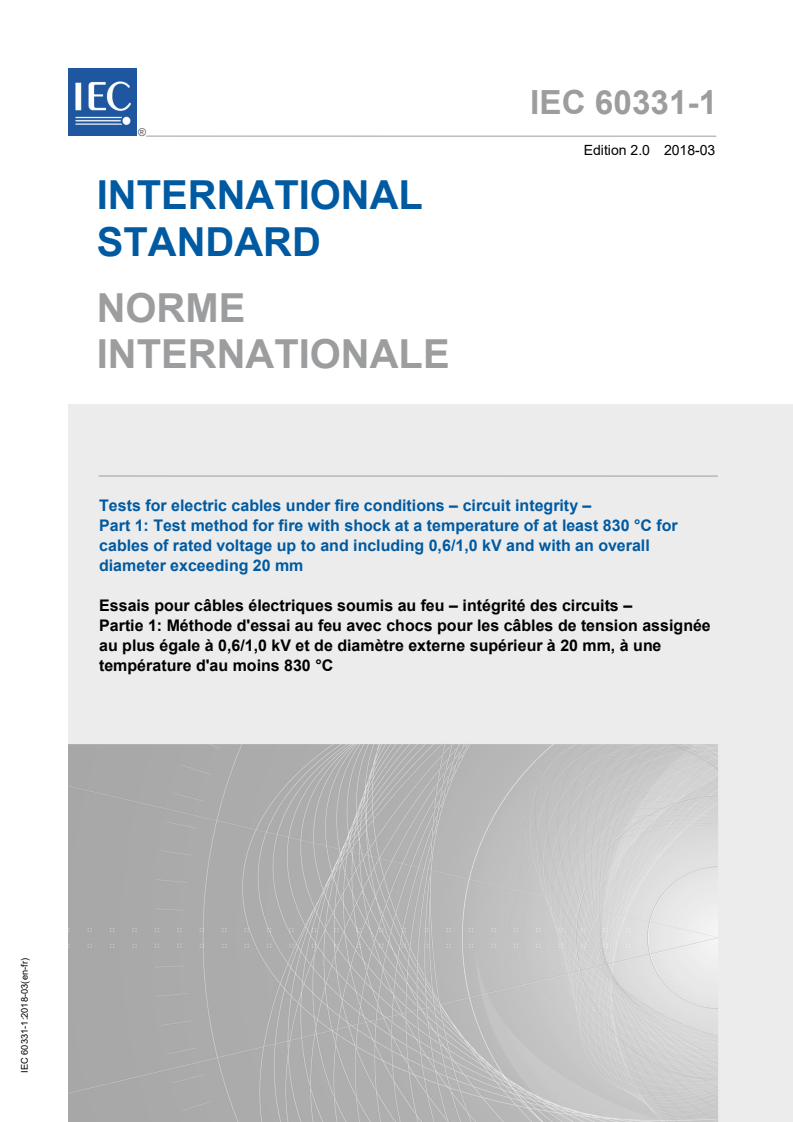

IEC 60331-1
Edition 2.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Tests for electric cables under fire conditions – circuit integrity –
Part 1: Test method for fire with shock at a temperature of at least 830 °C for
cables of rated voltage up to and including 0,6/1,0 kV and with an overall
diameter exceeding 20 mm
Essais pour câbles électriques soumis au feu – intégrité des circuits –
Partie 1: Méthode d'essai au feu avec chocs pour les câbles de tension assignée
au plus égale à 0,6/1,0 kV et de diamètre externe supérieur à 20 mm, à une
température d'au moins 830 °C
IEC 60331-1:2018-03(en-fr)
---------------------- Page: 1 ----------------------

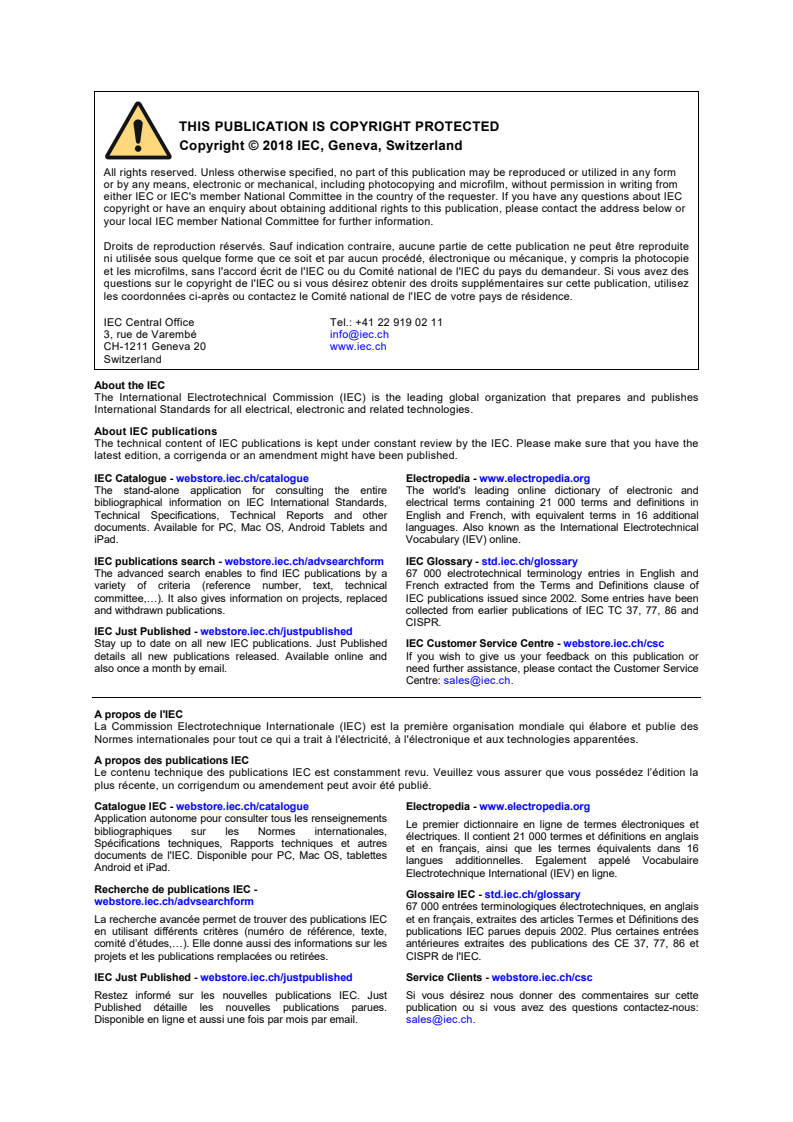

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------

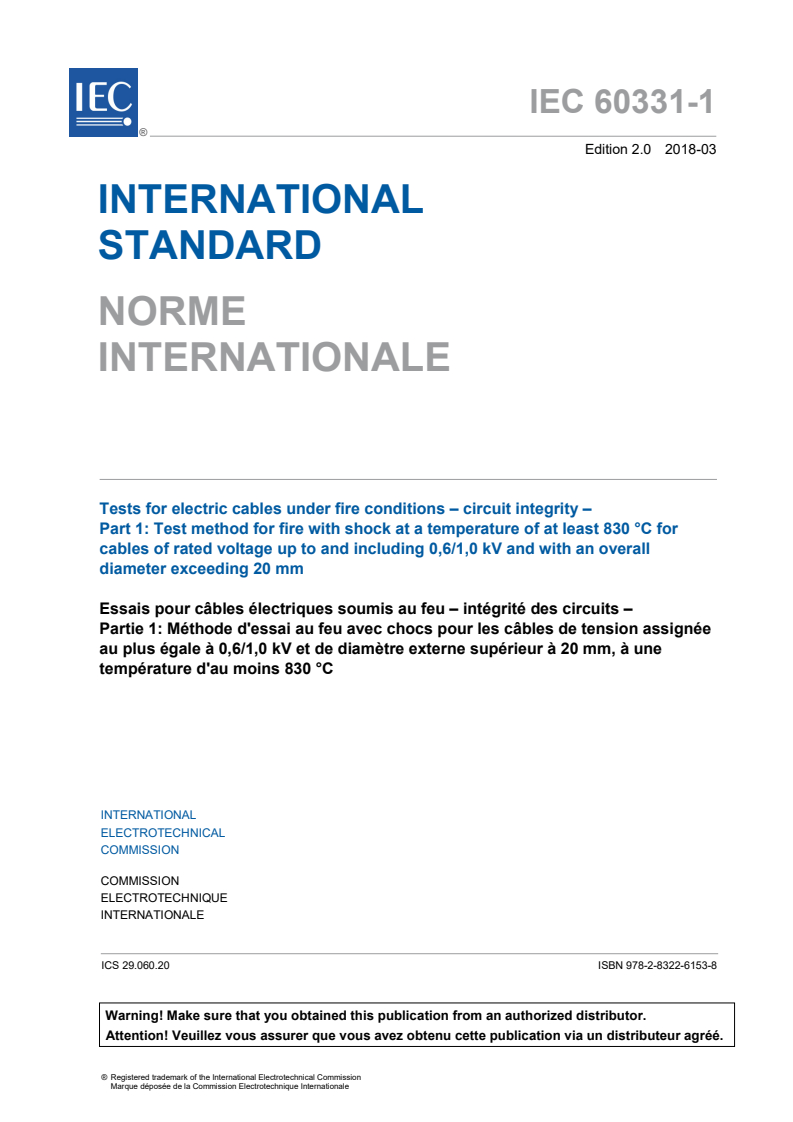

IEC 60331-1
Edition 2.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Tests for electric cables under fire conditions – circuit integrity –
Part 1: Test method for fire with shock at a temperature of at least 830 °C for
cables of rated voltage up to and including 0,6/1,0 kV and with an overall
diameter exceeding 20 mm
Essais pour câbles électriques soumis au feu – intégrité des circuits –
Partie 1: Méthode d'essai au feu avec chocs pour les câbles de tension assignée
au plus égale à 0,6/1,0 kV et de diamètre externe supérieur à 20 mm, à une
température d'au moins 830 °C
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.20 ISBN 978-2-8322-6153-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

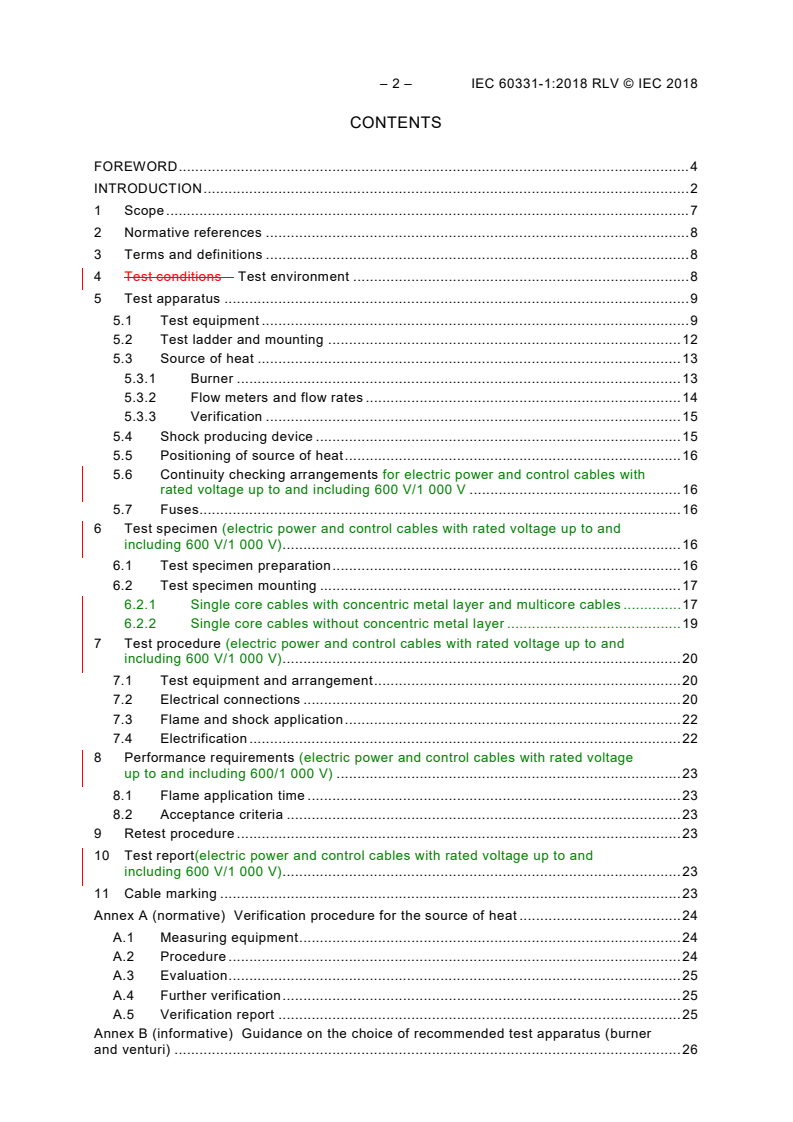

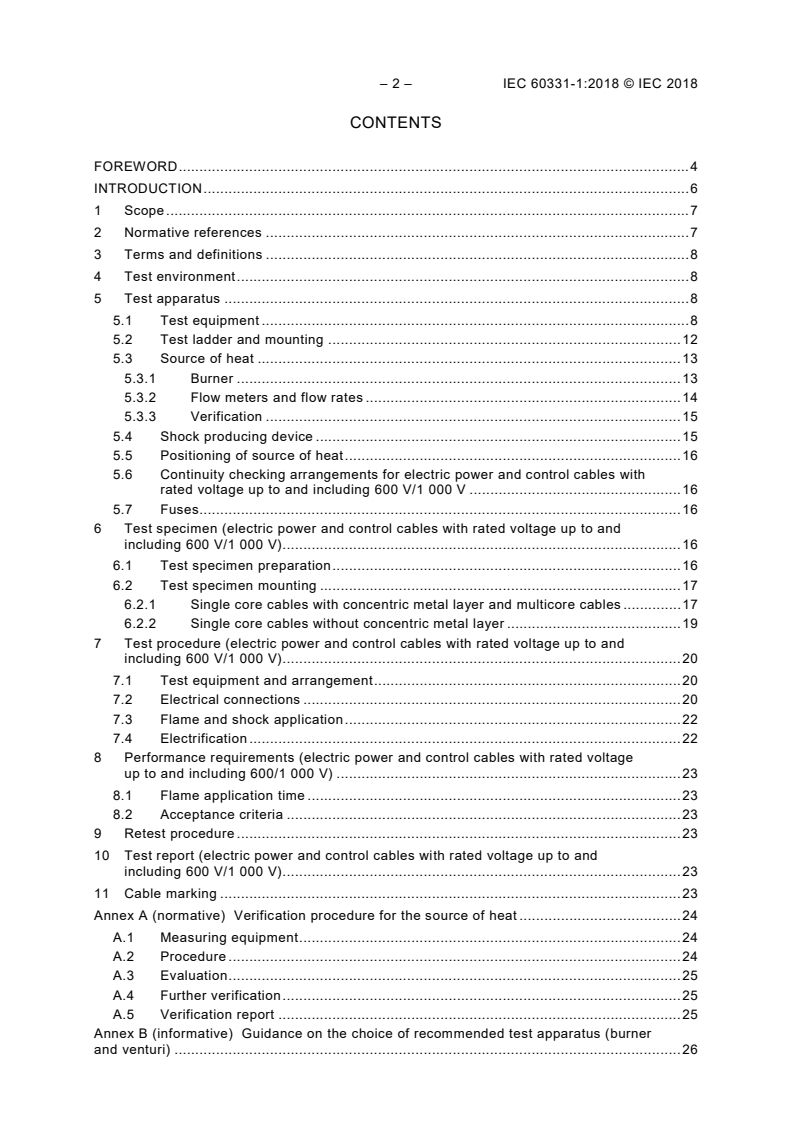

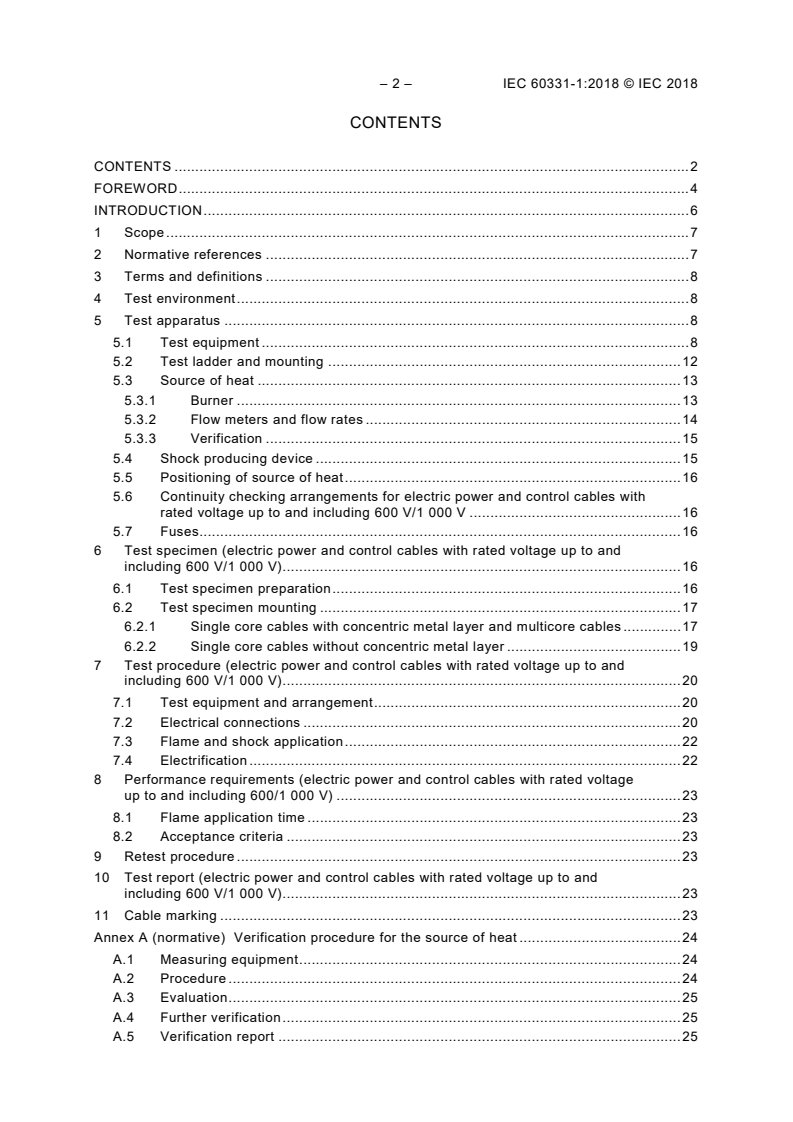

– 2 – IEC 60331-1:2018 © IEC 2018
CONTENTS

CONTENTS ............................................................................................................................ 2

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 8

4 Test environment ............................................................................................................. 8

5 Test apparatus ................................................................................................................ 8

5.1 Test equipment ....................................................................................................... 8

5.2 Test ladder and mounting ..................................................................................... 12

5.3 Source of heat ...................................................................................................... 13

5.3.1 Burner ........................................................................................................... 13

5.3.2 Flow meters and flow rates ............................................................................ 14

5.3.3 Verification .................................................................................................... 15

5.4 Shock producing device ........................................................................................ 15

5.5 Positioning of source of heat ................................................................................. 16

5.6 Continuity checking arrangements for electric power and control cables with

rated voltage up to and including 600 V/1 000 V ................................................... 16

5.7 Fuses.................................................................................................................... 16

6 Test specimen (electric power and control cables with rated voltage up to and

including 600 V/1 000 V) ................................................................................................ 16

6.1 Test specimen preparation .................................................................................... 16

6.2 Test specimen mounting ....................................................................................... 17

6.2.1 Single core cables with concentric metal layer and multicore cables .............. 17

6.2.2 Single core cables without concentric metal layer .......................................... 19

7 Test procedure (electric power and control cables with rated voltage up to and

including 600 V/1 000 V) ................................................................................................ 20

7.1 Test equipment and arrangement .......................................................................... 20

7.2 Electrical connections ........................................................................................... 20

7.3 Flame and shock application ................................................................................. 22

7.4 Electrification ........................................................................................................ 22

8 Performance requirements (electric power and control cables with rated voltage

up to and including 600/1 000 V) ................................................................................... 23

8.1 Flame application time .......................................................................................... 23

8.2 Acceptance criteria ............................................................................................... 23

9 Retest procedure ........................................................................................................... 23

10 Test report (electric power and control cables with rated voltage up to and

including 600 V/1 000 V) ................................................................................................ 23

11 Cable marking ............................................................................................................... 23

Annex A (normative) Verification procedure for the source of heat ....................................... 24

A.1 Measuring equipment ............................................................................................ 24

A.2 Procedure ............................................................................................................. 24

A.3 Evaluation ............................................................................................................. 25

A.4 Further verification ................................................................................................ 25

A.5 Verification report ................................................................................................. 25

---------------------- Page: 4 ----------------------
IEC 60331-1:2018 © IEC 2018 – 3 –

Annex B (informative) Guidance on the choice of recommended test apparatus (burner

and venturi) ................................................................................................................... 26

Bibliography .......................................................................................................................... 27

Figure 1 – Schematic diagram of test configuration ............................................................... 10

Figure 2 – Plan view of fire test equipment ........................................................................... 11

Figure 3 – End elevation of fire test equipment (not to scale) ................................................ 12

Figure 4 – Typical rubber bush for supporting the test ladder ................................................ 13

Figure 5 – Burner face .......................................................................................................... 14

Figure 6 – Schematic diagram of an example of a burner control system ............................. 15

Figure 7 – Example of method of mounting a larger diameter test specimen for test

(with a bending radius between approximately 200 and 400 mm) .......................................... 17

Figure 8 – Detailed section of adjustable position of vertical ladder elements for

mounting a smaller diameter test specimen for test (with a maximum bending radius of

approximately 200 mm) ......................................................................................................... 18

Figure 9 – Example of method of mounting test specimen with a bending radius in

normal use larger than approximately 400 mm ...................................................................... 19

Figure 10 – Method of mounting test specimen of a single core cable without

concentric metal layer ........................................................................................................... 20

Figure 11 – Basic circuit diagram – Electric power and control cables with rated

voltage up to and including 600 V/1 000 V ............................................................................ 22

Figure A.1 – Temperature measuring arrangement ............................................................... 24

---------------------- Page: 5 ----------------------
– 4 – IEC 60331-1:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TESTS FOR ELECTRIC CABLES UNDER FIRE CONDITIONS –
CIRCUIT INTEGRITY –
Part 1: Test method for fire with shock at a temperature of at least
830 °C for cables of rated voltage up to and including 0,6/1,0 kV
and with an overall diameter exceeding 20 mm
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60331-1 has been prepared by IEC technical committee 20:

Electric cables.

This bilingual version (2018-11) corresponds to the monolingual English version, published in

2018-03.

This second edition cancels and replaces the first edition published in 2009. It constitutes a

technical revision.
---------------------- Page: 6 ----------------------
IEC 60331-1:2018 © IEC 2018 – 5 –

The significant technical changes with respect to the previous edition are as follows:

– extension of the scope to include metallic data and telecom cables and optical fibre

cables, although details for the specific point of failure, continuity checking arrangement,

test sample, test procedure and test report relevant to metallic data and telecom cables

and optical fibre cables are not given by IEC 60331-1;
– improved description of the test environment;

– modified steel test ladder with two extra vertical elements to accommodate the modified

testing of single core cables without concentric metal layer and the testing of cables with a

bending radius in normal use larger than approximately 400 mm;

– mandatory use of mass flow meters/controllers as the means of controlling accurately the

input flow rates of fuel and air to the burner;
– improved description of the information to be included in the test report.
The text of this International Standard is based on the following documents:
FDIS Report on voting
20/1781A/FDIS 20/1792/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.
The French version of this document has not been voted upon.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

It has the status of a group safety publication in accordance with IEC Guide 104.

A list of all parts of the IEC 60331 series, published under the title: Tests for electric cables

under fire conditions – Circuit integrity, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 60331-1:2018 © IEC 2018
INTRODUCTION

IEC 60331 consists of the following parts under the general title: Tests for electric cables

under fire conditions – Circuit integrity:

Part 1: Test method for fire with shock at a temperature of at least 830 °C for cables of rated

voltage up to and including 0,6/1,0 kV and with an overall diameter exceeding 20 mm

Part 2: Test method for fire with shock at a temperature of at least 830 °C for cables of rated

voltage up to and including 0,6/1,0 kV and with an overall diameter not exceeding 20 mm

Part 3: Test method for fire with shock at a temperature of at least 830 °C for cables of rated

voltage up to and including 0,6/1,0 kV tested in a metal enclosure
Part 11: Apparatus – Fire alone at a flame temperature of at least 750 °C

Part 21: Procedures and requirements – Cables of rated voltage up to and including 0,6/1,0 kV

Part 23: Procedures and requirements – Electric data cables
Part 25: Procedures and requirements – Optical fibre cables

NOTE 1 Parts 21, 23 and 25 relate to fire-only conditions at a flame temperature of at least 750 °C.

NOTE 2 Parts 11, 21, 23 and 25 are no longer subject to maintenance. IEC 60331 Parts 1 and 2 are the

recommended test procedures.

Since its first edition (1970), IEC 60331 has been extended and has introduced a range of test

apparatus in order that a test may be carried out on large and small power, control, data and

optical fibre cables.

Successful tests carried out in accordance with this standard will enable an identification to be

marked on the product.
---------------------- Page: 8 ----------------------
IEC 60331-1:2018 © IEC 2018 – 7 –
TESTS FOR ELECTRIC CABLES UNDER FIRE CONDITIONS –
CIRCUIT INTEGRITY –
Part 1: Test method for fire with shock at a temperature of at least
830 °C for cables of rated voltage up to and including 0,6/1,0 kV
and with an overall diameter exceeding 20 mm
1 Scope

This part of IEC 60331 specifies the test method for cables which are required to maintain

circuit integrity when subject to fire and mechanical shock under specified conditions.

This document is applicable to cables of rated voltage not exceeding 600 V/1 000 V, including

those of rated voltage below 80 V, metallic data and telecom cables and optical fibre cables.

It is intended for use when testing cables of greater than 20 mm overall diameter.

Cables of smaller diameter are intended to be tested using the apparatus, procedure and

requirements of IEC 60331-2.

This document includes details for the specific point of failure, continuity checking

arrangement, test sample, test procedure and test report relevant to electric power and

control cables with rated voltage up to and including 600 V/1 000 V. Details for the specific

point of failure, continuity checking arrangement, test sample, test procedure and test report

relevant to metallic data and telecom cables and optical fibre cables are not given by

IEC 60331-1.

Although the scope is restricted to cables with rated voltage up to and including 0,6/1,0 kV,

the procedure can be used, with the agreement of the manufacturer and the purchaser, for

cables with rated voltage up to and including 1,8/3 (3,3) kV, provided that suitable fuses are

used.

Annex A provides the method of verification of the burner and control system used for the

test.

Requirements are stated for an identification that may optionally be marked on the cable to

signify compliance with this document.

CAUTION – The test given in this standard may involve the use of dangerous voltages

and temperatures. Suitable precautions should be taken against the risk of shock,

burning, fire and explosion that may be involved, and against any noxious fumes that

may be produced.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
IEC 60584-1, Thermocouples – Part 1: EMF specifications and tolerances
---------------------- Page: 9 ----------------------
– 8 – IEC 60331-1:2018 © IEC 2018

IEC 60269-3, Low-voltage fuses – Part 3: Supplementary requirements for fuses for use by

unskilled persons (fuses mainly for household and similar applications) – Examples of

standardized systems of fuses A to F
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
circuit integrity

ability of an electric cable to continue to operate in a designated manner whilst subjected to a

specified flame source for a specified period of time under specified conditions
3.2
draught-free environment

space in which the results of tests are not significantly affected by the local air speed

4 Test environment

The test shall be carried out in a draught-free environment within a suitable chamber, of

minimum volume 20 m , with facilities for disposing of any noxious gases resulting from the

burning. Sufficient ventilation shall be available to sustain the flame for the duration of the

test. Air inlets and the exhaust chimney should be located in such a way that the burner flame

remains stable during the verification procedure and test. If necessary, the burner shall be

shielded from any draughts by the use of draught shields. Windows may be installed in the

walls of the chamber in order to observe the behaviour of the cable during the test. Fume

exhaust should be achieved by means of natural draught through a chimney located at least

1 m from the burner. A damper may be used for adjustment of ventilation conditions.

NOTE Experience has shown a chamber similar to the "3 m cube" specified in IEC 61034-1 to be suitable.

The chamber and test apparatus shall be at a temperature of between 10 °C and 40 °C at the

start of each test.

The same ventilation and shielding conditions shall be used in the chamber during both the

verification and cable test procedures.
5 Test apparatus
5.1 Test equipment
The test equipment shall consist of the following:

a) a test ladder, on to which the test specimen is mounted, comprising a steel framework

fastened to a rigid support as described in 5.2;

b) a source of heat comprising a horizontally mounted ribbon burner as described in 5.3;

c) a shock-producing device as described in 5.4;

d) a test wall equipped with thermocouples for verification of the source of heat as described

in Annex A;
---------------------- Page: 10 ----------------------
IEC 60331-1:2018 © IEC 2018 – 9 –
e) a continuity checking arrangement as described in 5.6;
f) fuses as described in 5.7.

A general arrangement of the test equipment is shown in Figure 1, Figure 2 and Figure 3.

---------------------- Page: 11 ----------------------
– 10 – IEC 60331-1:2018 © IEC 2018
Dimensions in millimetres
1 200 ±100
≈ 400
≈ 400
≈ 400
IEC
Key
1 shock producing device 5 fixed vertical elements of test ladder
2 steel test ladder 6 adjustable vertical elements of test ladder
3 rubber bush 7 rigid support framework
4 ribbon gas burner P plane of adjustment
Figure 1 – Schematic diagram of test configuration
600 ±50
---------------------- Page: 12 ----------------------
IEC 60331-1:2018 © IEC 2018 – 11 –
Dimensions in millimetres
IEC
Key
1 entry for air 4 horizontal steel test ladder
2 rubber bush 5 entry for propane gas
3 rigid support framework
Figure 2 – Plan view of fire test equipment
1 200 ±100
---------------------- Page: 13 ----------------------
– 12 – IEC 60331-1:2018 © IEC 2018
Dimensions in millimetres
+5
60° 0
200 ±5
400 ±5
600 ±5
H ±2
IEC
Key

1 shock producing device H horizontal distance from burner face to the centre of the test specimen

2 steel test ladder V vertical distance from centre line of burner to the centre of the test

specimen
3 gas burner
4 centre line of burner face
Figure 3 – End elevation of fire test equipment (not to scale)
5.2 Test ladder and mounting

The test ladder shall consist of a steel framework as shown in Figure 1. The four central

vertical elements of the ladder shall be adjustable in order to accommodate different sizes of

cable under test. The test ladder shall be (1 200 ± 100) mm long and (600 ± 50) mm high, and

the tot
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
