Standards Content (Sample)

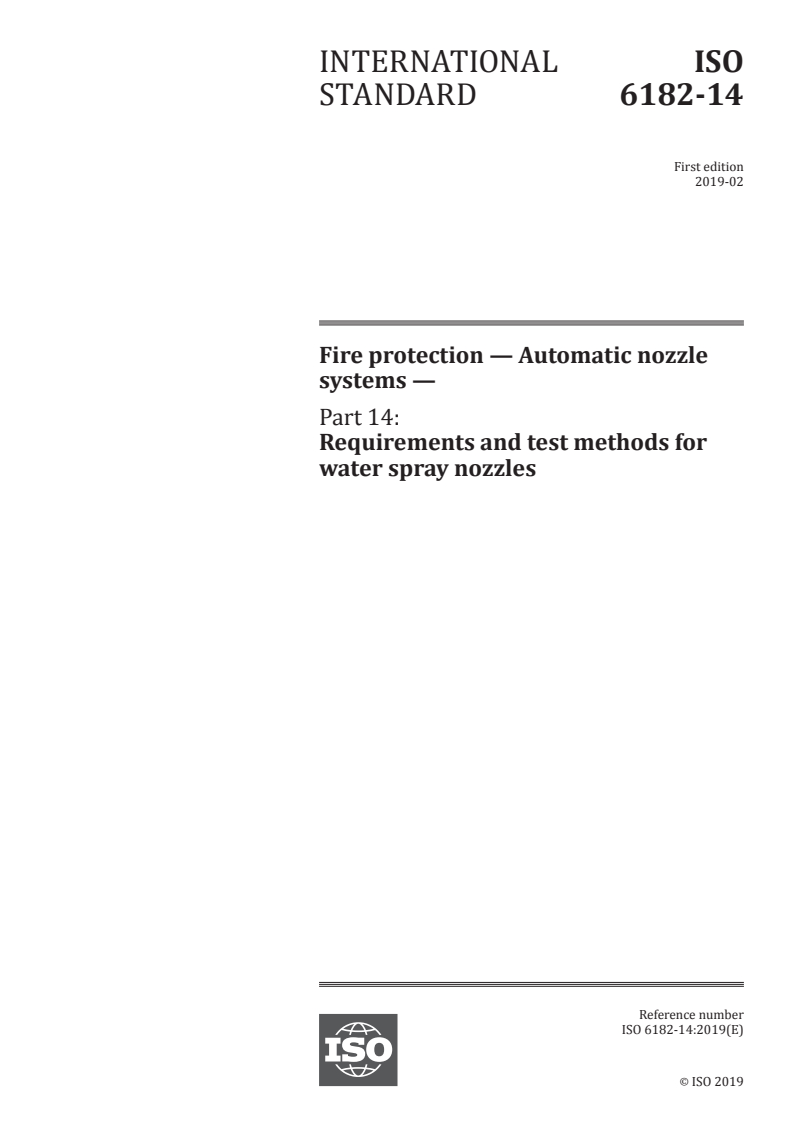

INTERNATIONAL ISO
STANDARD 6182-14
First edition
2019-02
Fire protection — Automatic nozzle
systems —
Part 14:
Requirements and test methods for
water spray nozzles
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

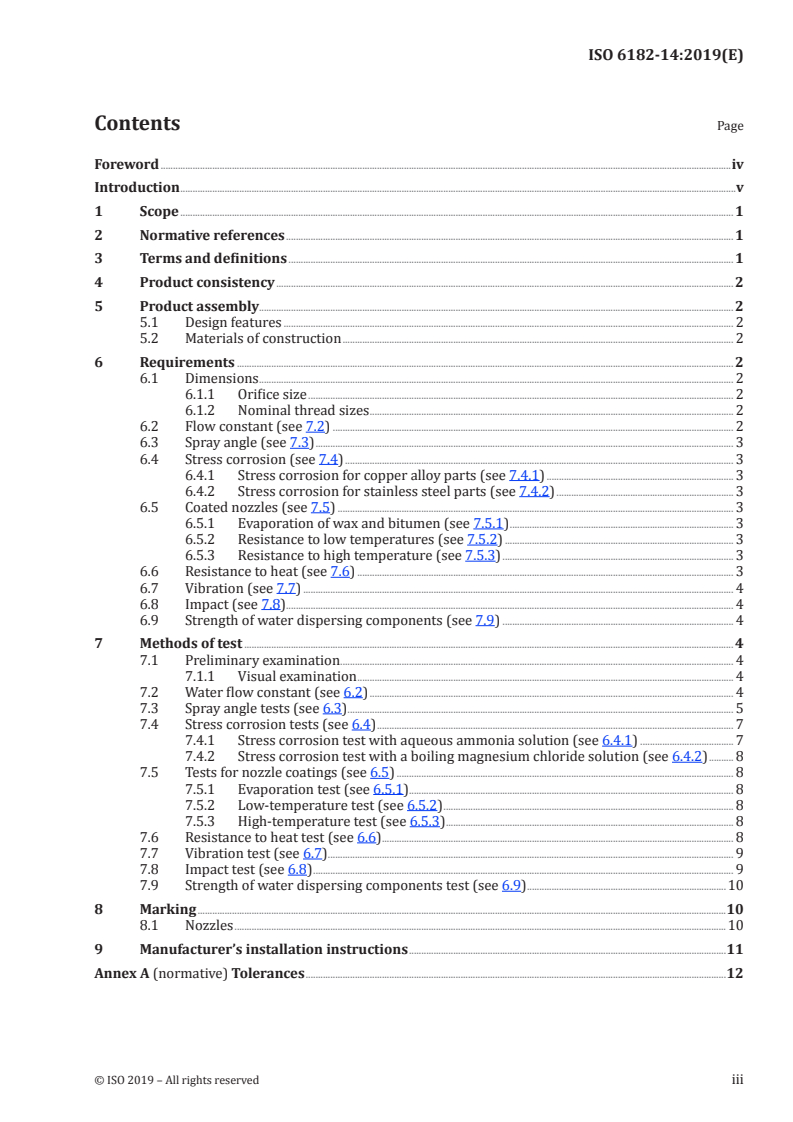

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Product consistency . 2
5 Product assembly. 2
5.1 Design features . 2
5.2 Materials of construction . 2
6 Requirements . 2
6.1 Dimensions . 2
6.1.1 Orifice size . 2
6.1.2 Nominal thread sizes . 2
6.2 Flow constant (see 7.2) . 2
6.3 Spray angle (see 7.3) . 3
6.4 Stress corrosion (see 7.4) . 3
6.4.1 Stress corrosion for copper alloy parts (see 7.4.1) . 3
6.4.2 Stress corrosion for stainless steel parts (see 7.4.2) . 3
6.5 Coated nozzles (see 7.5) . 3
6.5.1 Evaporation of wax and bitumen (see 7.5.1) . 3
6.5.2 Resistance to low temperatures (see 7.5.2) . 3
6.5.3 Resistance to high temperature (see 7.5.3) . 3
6.6 Resistance to heat (see 7.6) . 3
6.7 Vibration (see 7.7) . 4
6.8 Impact (see 7.8) . . 4
6.9 Strength of water dispersing components (see 7.9) . 4
7 Methods of test . 4
7.1 Preliminary examination . . 4
7.1.1 Visual examination . 4
7.2 Water flow constant (see 6.2) . 4
7.3 Spray angle tests (see 6.3) . 5
7.4 Stress corrosion tests (see 6.4) . 7
7.4.1 Stress corrosion test with aqueous ammonia solution (see 6.4.1) . 7
7.4.2 Stress corrosion test with a boiling magnesium chloride solution (see 6.4.2) . 8
7.5 Tests for nozzle coatings (see 6.5) . 8
7.5.1 Evaporation test (see 6.5.1). 8
7.5.2 Low-temperature test (see 6.5.2) . 8
7.5.3 High-temperature test (see 6.5.3) . 8
7.6 Resistance to heat test (see 6.6) . 8
7.7 Vibration test (see 6.7) . 9
7.8 Impact test (see 6.8) . 9
7.9 Strength of water dispersing components test (see 6.9) .10
8 Marking .10
8.1 Nozzles .10
9 Manufacturer’s installation instructions .11
Annex A (normative) Tolerances .12

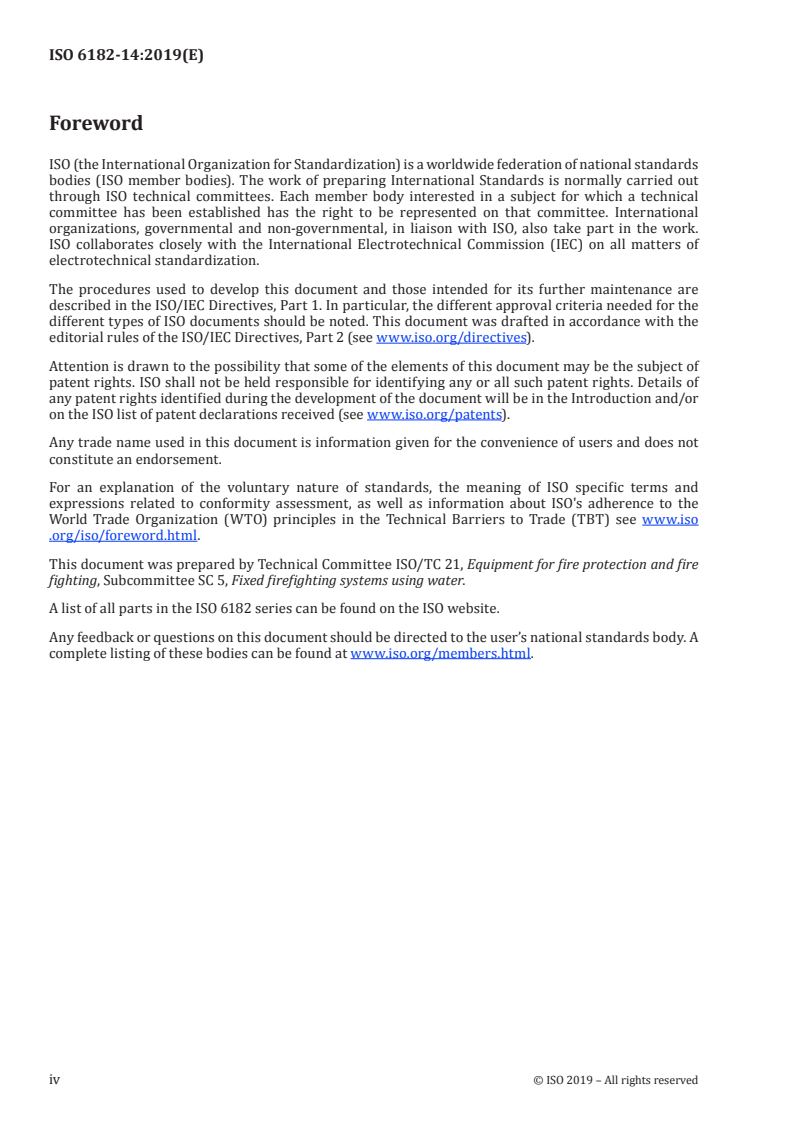

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire
fighting, Subcommittee SC 5, Fixed firefighting systems using water.
A list of all parts in the ISO 6182 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
Introduction
These nozzles are intended for application of hazards involving: exposure protection; the
extinguishment or control of fires including flammable liquids hazards; conveyor openings; oil cooled
transformers; dryers; and other hazards.
INTERNATIONAL STANDARD ISO 6182-14:2019(E)
Fire protection — Automatic nozzle systems —
Part 14:
Requirements and test methods for water spray nozzles
1 Scope
This document specifies performance requirements, methods of test, and marking requirements
for open water spray nozzles. This document is not applicable to open sprinklers or open water mist
nozzles.
Factors of installation, such as nozzle spacing, design densities, wind and hot gas velocities, are not
intended to be addressed by this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 7-1, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances
and designation
ISO 49, Malleable cast iron fittings threaded to ISO 7-1
ISO 65, Carbon steel tubes suitable for screwing in accordance with ISO 7-1
ASTM G36, Standard Practice for Evaluating Stress-Corrosion-Cracking Resistance of Metals and Alloys in
a Boiling Magnesium Chloride Solution
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp
3.1
water spray nozzle
water discharge device that, when discharging water under pressure, will distribute the water in a
specific directional pattern
Note 1 to entry: Some devices utilize deflector plates or swirl chambers.
3.2
open water spray nozzle
water spray nozzle (3.1) that has no heat responsive element and discharges water after the water spray
system is actuated
3.3
coated nozzle
water spray nozzle (3.1) that has a factory-applied coating for corrosion protection
Note 1 to entry: For the purposes of this document, the term 'coated nozzle' does not include coatings intended
for aesthetic purposes.
4 Product consistency
It shall be the responsibility of the manufacturer to implement a quality control programme to ensure
tha
...
