ISO 23316-1:2022
(Main)Tractors and machinery for agriculture and forestry — Electrical high-power interface 700 V DC / 480 V AC — Part 1: General
Tractors and machinery for agriculture and forestry — Electrical high-power interface 700 V DC / 480 V AC — Part 1: General
This document describes the general purpose and structure of the ISO 23316 series and common elements of the ISO 23316 series. The following topics are not within the scope of this document: — service, maintenance, and related diagnostics; — functional safety; — control strategies for high-power supplies and loads; — application-specific strategies and operational modes; — component design; — energy storage systems, e. g. supercapacitors or batteries; — multiple electrical power supplies to a common DC-link.
Tracteurs et matériels agricoles et forestiers — Interface électrique haute puissance 700VDC/480VAC — Partie 1: Généralités
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 23316-1
First edition
2022-10
Tractors and machinery for
agriculture and forestry — Electrical
high-power interface 700 V DC / 480 V
AC —
Part 1:
General
Reference number
ISO 23316-1:2022(E)
© ISO 2022
---------------------- Page: 1 ----------------------
ISO 23316-1:2022(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2022
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
© ISO 2022 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 23316-1:2022(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Voltage classes .6
5 System voltage thresholds . .7
Bibliography . 9
iii
© ISO 2022 – All rights reserved
---------------------- Page: 3 ----------------------
ISO 23316-1:2022(E)

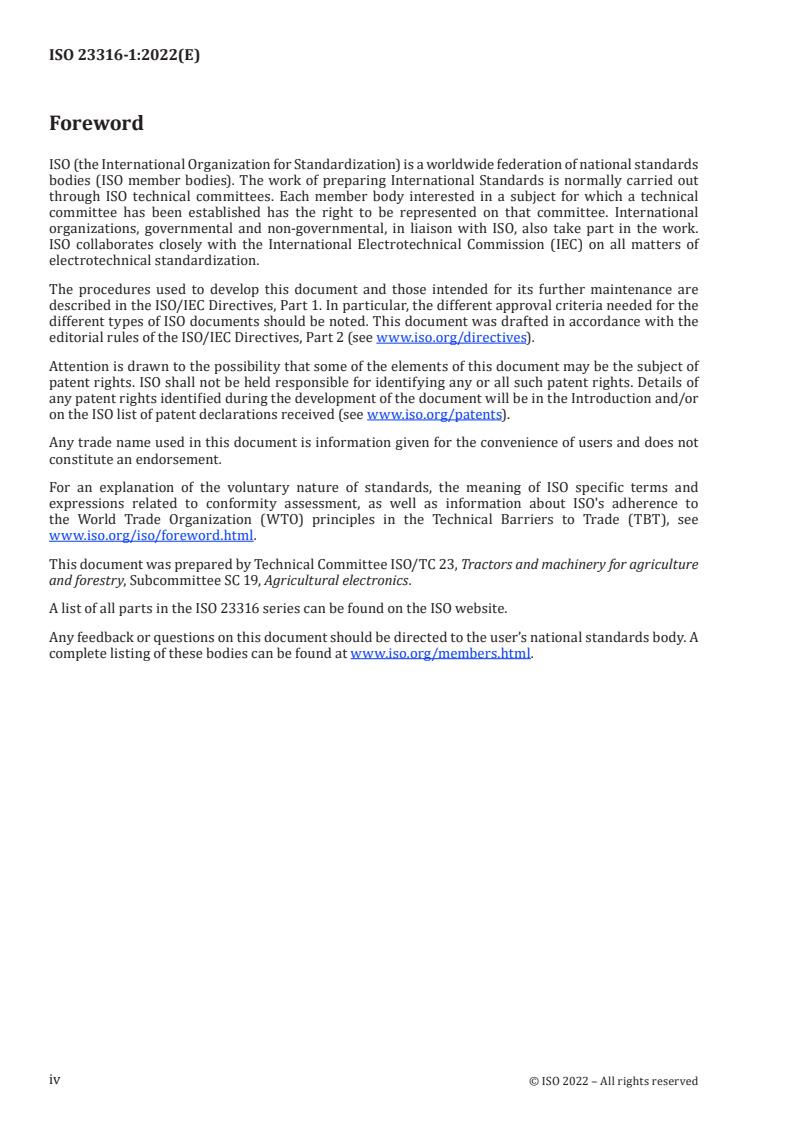

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 23, Tractors and machinery for agriculture
and forestry, Subcommittee SC 19, Agricultural electronics.
A list of all parts in the ISO 23316 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
© ISO 2022 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 23316-1:2022(E)
Introduction
0.1 General
Due to the requirements of modern agriculture, the precise control of implement functions is a key issue
in agricultural technology. The required precision is difficult to achieve with mechanical or hydraulic
devices; it is more efficient to provide control with electric and electronic means, i.e. electric power
and ISOBUS. The use of electric power allows implement manufacturers to offer farmers improved
implements that provide a higher degree of automation and navigation, resulting in greater precision,
better power distribution, and better controllability.
The purpose of the ISO 23316 series is to provide a design and application standard covering
implementation of electrical high-power interfaces operating at up to 700 V DC/480 V AC for
manufacturers of agricultural machinery.
The ISO 23316 series specifies the physical and logical interface requirements that provide
interoperability and cross compatibility for systems and equipment.
Conformance to the ISO23316 series means all applicable requirements from ISO 23316-1 to ISO 23316-7
are met.
It is permitted for partial systems or components to conform to the ISO 23316 series by applying all
applicable requirements, for example, for the plug, receptacle or inverters, on a tractor or implement.
NOTE If a DC-mode only HPI is provided, it is not necessary to conform with ISO 23316-4 which describes AC-
mode, as it is not applicable. If an AC-mode only HPI is provided, it is not necessary to conform with ISO 23316-5
which describes DC-mode, as it is not applicable.
The ISO 23316 series defines an interface between a power providing device (supply system) and a
power consuming device (consumer system), used within an automated electrified system in the
agricultural industry. This series deals with electrical, mechanical and bus communication objectives
and is used in conjunction with the relevant part of ISO 11783, which defines the ISOBUS. Figure 1
portrays the elements of typical equipment that involve the high-power interface.
v
© ISO 2022 – All rights reserved
---------------------- Page: 5 ----------------------
ISO 23316-1:2022(E)
Key
1 high-power interface APP application
2 ISOBUS connector PC/S power converter / switch
3 power lines HPI-C high-power interface - control
4 ISOBUS HPI-MC high-power interface - master control
power connection VT virtual terminal (user interface)
signal connection
I supply system
II consumer system
Figure 1 — Typical elements of system incorporating a high-power interface
0.2 Patent
The International Organization for Standardization (ISO) draws attention to the fact that it is claimed
that compliance with this document may involve the use of a patent.
ISO takes no position concerning the evidence, validity and scope of this patent right.
The holder of this patent right has assured ISO that he/she is willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world. In
this respect, the statement of the holder of this patent right is registered with ISO. Information may be
obtained from the patent database available at www.iso.org/patents.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights other than those in the patent database. ISO shall not be held responsible for identifying
any or all such patent rights.
vi
© ISO 2022 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 23316-1:2022(E)
Tractors and machinery for agriculture and forestry —
Electrical high-power interface 700 V DC / 480 V AC —
Part 1:
General
1 Scope
This document describes the general purpose and structure of the ISO 23316 series and common
elements of the ISO 23316 series.
The following topics are not within the scope of this document:
— service, maintenance, and related diagnostics;
— functional safety;
— control strategies for high-power supplies and loads;
— application-specific strategies and operational modes;
— component design;
— energy storage systems, e. g. supercapacitors or batteries;
— multiple electrical power supplies to a common DC-link.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
alternating current
AC
alternating electric quantities such as voltage or current, to devices operated with these, or to quantities
associated with these devices
[SOURCE: IEC 60050-151:2001, 151-15-01]
3.2
application
APP
system of load and optional load logical box located on a consumer system
1
© ISO 2022 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 23316-1:2022(E)
3.3
controller area network
CAN
protocol originally defined for use as a communication network for control application in vehicles
[SOURCE: ISO 17356-1:2005, 2.17]
3.4
connector
receptacle or plug assembly containing socket, plug, pins or contact sockets
3.5
consumer system
CS
physical unit consisting of one or more applications and its control instances (e.g. implement) to be
connected via HPI to a supply system
3.6
electric energy converter
CNV
device for changing one or more characteristics associated with electric energy
Note 1 to entry: Characteristics associated with energy are for example voltage, number of phases and frequency
including zero frequency.
[SOURCE: IEC 60050-151-13-36]
3.7
direct current
DC
time-independent electric quantities such as voltage or current, to devices operated with direct voltage
and current, or to quantities associated with these devices
[SOURCE: IEC 60050-151:2001, 151-15]
3.8
DC link
DCLNK
DC connection between devices (e.g. power converter) to distribute electric power
Note 1 to entry: Refers to tractors, implements, or both.
3.9
electronic control unit
ECU
electronic item consisting of a combination of basic parts, subassemblies and assemblies packaged
together as a physically independent entity (e.g. ISOBUS job controller)
3.10
electrical high-power interface
HPI
logical and power gateway between a power providing supply system and a power consumer system
used within an electrified system in the agricultural industry
3.11
electromagnetic compatibility
EMC
ability of equipment or a system to function satisfactorily in its electromagnetic environment without
introducing intolerable electromagnetic disturbances to anything in that environment
[SOURCE: IEC 60050-161-01-07/-01-06]
2
© ISO 2022 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 23316-1:2022(E)
3.12
fieldbus
TM 1)
industrial computer network protocol used for real-time distributed control (e.g. EtherCAT using
Ethernet – combined with optimized communication functions between a main fieldbus controller and
a segment of fieldbus sub devices)
[SOURCE: ISO/IEC/IEEE 24765:2017, 3.1593]
3.13
HPI control
HPI-C
control instance of a consumer system, unambiguously assigned to one HPI connected to a PS of the VC-
B2 network providing communication client function to a supply system and, optionally, communication
server function, if it is possible to connect another consumer system
3.14
HPI master control
HPI-MC
control instance, assigned to at least one but not more than 15 HPIs of the VC-B2 network of one
supply system, providing communication server functionality for the communication to the related
HPIs, managing the interlock loop, and providing the network management functions (e.g. topology
determination) to all consumer systems connected to the supply system
3.15
interlock loop
IL
means to detect the status of each socket/plug-combination
3.16
inverter/switch control
PC/SC
control for AC mode, a power converter; for DC mode, a switch such as a contactor or solid-state switch,
typically an integral part of the PC/SC
3.17
inverter
INV
electric energy converter that changes direct electric current to single-phase or polyphase alternating
currents (3.1)
[SOURCE: IEC 60050-151-13-46]
3.18
ISOBUS
CAN bus system according to ISO 11783
Note 1 to entry: ISOBUS is a SAE J1939 based CAN communication bus system, usually used in agriculture and
forestry between, such as a tractor, as power supply and at least one implement as load. The communication bus
system consists at least of one tractor ECU and one implement ECU. One tractor ECU shall fulfil the functions
of a master controller. The tractor ECU (TECU) is a gateway between the ISOBUS and tractor internal bus(es)
including the attached controls; thus it exchanges communication objects between both buses, but fulfils also
further functions. On-board the implement at least one ECU (also known as Job Controller or Task Controller)
interconnects the ISOBUS with the implement application specific controls, optionally via implement internal
bus(es);
...
