Geotechnical investigation and testing — Identification and classification of soil — Part 1: Identification and description

ISO 14688-1:2017 specifies the rules for the identification and description of soils and is intended to be read in conjunction with ISO 14688‑2, which outlines the basis of classification of those material characteristics most commonly used for soils for engineering purposes. The relevant characteristics could vary and therefore, for particular projects or materials, more detailed subdivisions of the descriptive and classification terms could be appropriate. ISO 14688-1:2017 specifies procedures for the identification and description of soils based on a flexible system for use by experienced persons, covering both material and mass characteristics by visual and manual techniques. Details are given of the individual characteristics for identifying soils and the descriptive terms in regular use, including those related to the results of hand tests carried out in the field as part of the descriptive process. ISO 14688-1:2017 is applicable to the description of soils for engineering purposes which can be those laid by natural processes, those laid by man or comprise synthetic materials. NOTE 1 The identification and description of rocks are covered by ISO 14689-1. Identification and description of materials intermediate between soil and rocks are carried out using the procedures in this document, ISO 14688‑2 and ISO 14689-1 as appropriate. NOTE 2 The identification and classification of soil for pedological purposes, as well as in the framework of measurements for soil protection and for remediation of contaminated areas, is covered by ISO 25177.

Reconnaissance et essais géotechniques — Identification et classification des sols — Partie 1: Identification et description

Ce document spécifie les règles pour l'identification et la description des sols. Il est prévu pour être lu en même temps que l'ISO 14688‑2, qui décrit la base de la classification des sols selon les caractéristiques propres les plus couramment utilisées dans des projets d'ingénierie. Les caractéristiques appropriées peuvent varier, c'est pourquoi, pour des projets ou des matériaux particuliers, des subdivisions plus détaillées des termes descriptifs et de classification pourraient être pertinents. Ce document spécifie les procédures pour l'identification et la description des sols basées sur un système souple à l'usage de personnes expérimentées, qui porte à la fois sur les caractéristiques des constituants et de leur ensemble recueillies grâce à des techniques visuelles et manuelles. Des détails sont donnés sur les caractéristiques propres permettant de dénommer les sols et sur les termes descriptifs régulièrement usités, y compris ceux qui se rapportent aux résultats des essais manuels sur site en tant qu'élément du processus de description. Ce document s'applique à la description des sols pour les projets d'ingénierie, sols mis en place par des processus naturels, par l'homme ou qui contiennent des matériaux synthétiques. NOTE 1 L'identification et la description des roches sont couvertes par l'ISO 14689‑1. L'identification et la description des matériaux intermédiaires entre le sol et les roches sont effectuées suivant les procédures les plus adaptées parmi celles de ce présent document, de l'ISO 14688‑2 et de l'ISO 14689‑1. NOTE 2 L'identification et la classification des sols à des fins pédologiques, ainsi que dans le cadre de mesures pour la protection des sols ou pour la remédiation des secteurs pollués, sont traitées par l'ISO 25177.

General Information

Status
Published
Publication Date
11-Dec-2017
Technical Committee
Drafting Committee
Current Stage
9093 - International Standard confirmed
Start Date
08-Mar-2023
Completion Date
19-Apr-2025
Ref Project

Relations

Standard
ISO 14688-1:2017 - Geotechnical investigation and testing -- Identification and classification of soil
English language
23 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 14688-1:2017 - Reconnaissance et essais géotechniques -- Identification et classification des sols
French language
22 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

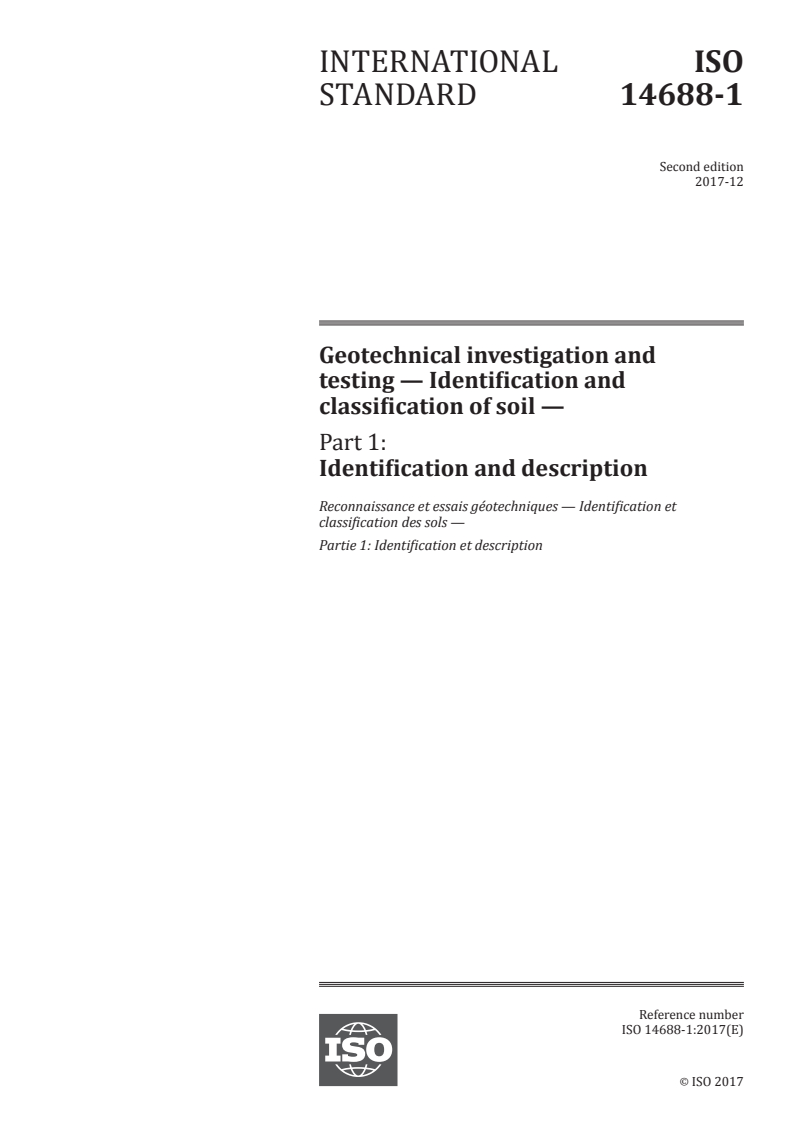

INTERNATIONAL ISO
STANDARD 14688-1
Second edition
2017-12
Geotechnical investigation and
testing — Identification and
classification of soil —
Part 1:
Identification and description
Reconnaissance et essais géotechniques — Identification et
classification des sols —
Partie 1: Identification et description
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

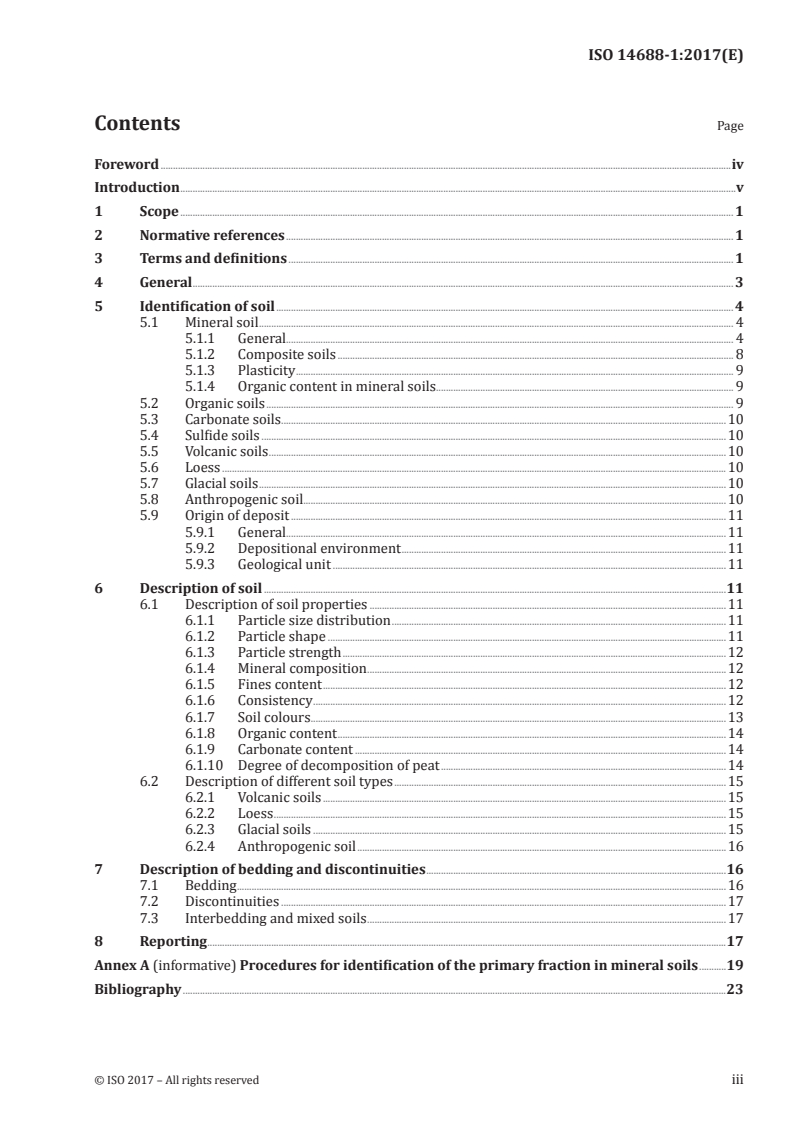

Contents Page
Foreword .iv
Introduction .v
1  Scope . 1
2  Normative references . 1
3  Terms and definitions . 1
4  General . 3
5  Identification of soil . 4
5.1 Mineral soil . 4
5.1.1 General. 4
5.1.2 Composite soils . 8
5.1.3 Plasticity . 9
5.1.4 Organic content in mineral soils . 9
5.2 Organic soils . 9
5.3 Carbonate soils .10
5.4 Sulfide soils .10
5.5 Volcanic soils .10
5.6 Loess .10
5.7 Glacial soils .10
5.8 Anthropogenic soil . .10
5.9 Origin of deposit .11
5.9.1 General.11
5.9.2 Depositional environment .11
5.9.3 Geological unit .11
6  Description of soil .11
6.1 Description of soil properties .11
6.1.1 Particle size distribution .11
6.1.2 Particle shape .11
6.1.3 Particle strength .12
6.1.4 Mineral composition . .12
6.1.5 Fines content .12
6.1.6 Consistency .12
6.1.7 Soil colours .13
6.1.8 Organic content .14
6.1.9 Carbonate content .14
6.1.10 Degree of decomposition of peat .14
6.2 Description of different soil types .15
6.2.1 Volcanic soils .15
6.2.2 Loess .15
6.2.3 Glacial soils .15
6.2.4 Anthropogenic soil .16
7  Description of bedding and discontinuities .16
7.1 Bedding .16
7.2 Discontinuities .17
7.3 Interbedding and mixed soils .17
8  Reporting .17
Annex A (informative) Procedures for identification of the primary fraction in mineral soils .19
Bibliography .23
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 182, Geotechnics.
This second edition cancels and replaces the first edition (ISO 14688-1:2002), which has been
technically revised. It also incorporates the Amendment ISO 14688-1:2002/Amd 1:2013.
A list of all parts in the ISO 14688 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

Introduction
This document gives details of the procedures to be followed in the identification and description of
soils. Clauses 4 and 5 provide the rules for soil identification which are used at all stages of ground
investigation and geotechnical design. Clauses 6 and 7 give details of the procedures to be followed
by those actually describing soils in the field or laboratory. This comprises the description of the soil
material in all aspects and the description of the soil mass characteristics in terms of the bedding and
discontinuities.
The level of detail in a description will depend on the characteristics of the soil, the size and quality of
the soil exposure or sample, and the needs of the particular project. The person carrying out the field
identification and description should be suitably qualified, skilled and experienced to make a correct
and appropriate description and experienced in the geological materials involved in the investigation.
Practice in soil identification and description varies from country to country, in part reflecting
significant differences in geological conditions. In addition, the quality of samples available for
description vary due to the investigation methods employed, as methods of investigation have been
developed in response to the ground conditions present.
Following identification and description, ISO 14688-2 gives the means by which soils can be classified
into groups of similar composition and geotechnical properties based on the results of field and
laboratory tests with respect to their suitability for geotechnical engineering purposes. Test results
provide a means of checking the accuracy of the field or laboratory descriptions.
INTERNATIONAL STANDARD ISO 14688-1:2017(E)
Geotechnical investigation and testing — Identification and
classification of soil —
Part 1:
Identification and description
1  Scope
This document specifies the rules for the identification and description of soils and is intended to
be read in conjunction with ISO 14
...


NORME ISO
INTERNATIONALE 14688-1
Deuxième édition
2017-12
Reconnaissance et essais
géotechniques — Identification et
classification des sols —
Partie 1:
Identification et description
Geotechnical investigation and testing — Identification and
classification of soil —
Part 1: Identification and description
Numéro de référence
©
ISO 2017
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2017, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – Tous droits réservés

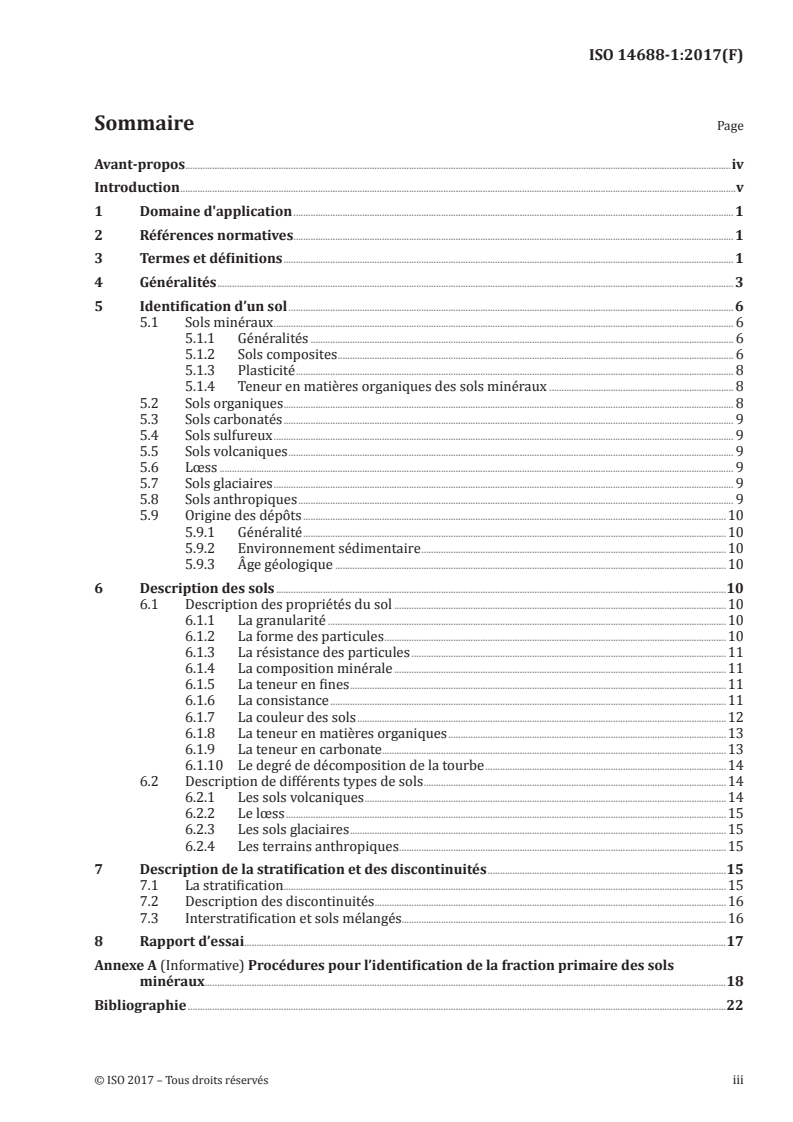

Sommaire  Page
Avant-propos .iv
Introduction .v
1  Domaine d'application . 1
2  Références normatives . 1
3  Termes et définitions . 1
4  Généralités . 3
5  Identification d’un sol . 6
5.1 Sols minéraux . 6
5.1.1 Généralités . 6
5.1.2 Sols composites . 6
5.1.3 Plasticité . 8
5.1.4 Teneur en matières organiques des sols minéraux . 8
5.2 Sols organiques . 8
5.3 Sols carbonatés . 9
5.4 Sols sulfureux . 9
5.5 Sols volcaniques . 9
5.6 Lœss . 9
5.7 Sols glaciaires . 9
5.8 Sols anthropiques . 9
5.9 Origine des dépôts .10
5.9.1 Généralité .10
5.9.2 Environnement sédimentaire .10
5.9.3 Âge géologique .10
6  Description des sols .10
6.1 Description des propriétés du sol .10
6.1.1 La granularité .10
6.1.2 La forme des particules .10
6.1.3 La résistance des particules .11
6.1.4 La composition minérale .11
6.1.5 La teneur en fines .11
6.1.6 La consistance .11
6.1.7 La couleur des sols .12
6.1.8 La teneur en matières organiques .13
6.1.9 La teneur en carbonate.13
6.1.10 Le degré de décomposition de la tourbe .14
6.2 Description de différents types de sols .14
6.2.1 Les sols volcaniques .14
6.2.2 Le lœss .15
6.2.3 Les sols glaciaires .15
6.2.4 Les terrains anthropiques .15
7  Description de la stratification et des discontinuités .15
7.1 La stratification .15
7.2 Description des discontinuités .16
7.3 Interstratification et sols mélangés.16
8  Rapport d’essai .17
Annexe A (Informative) Procédures pour l’identification de la fraction primaire des sols
minéraux .18
Bibliographie .22

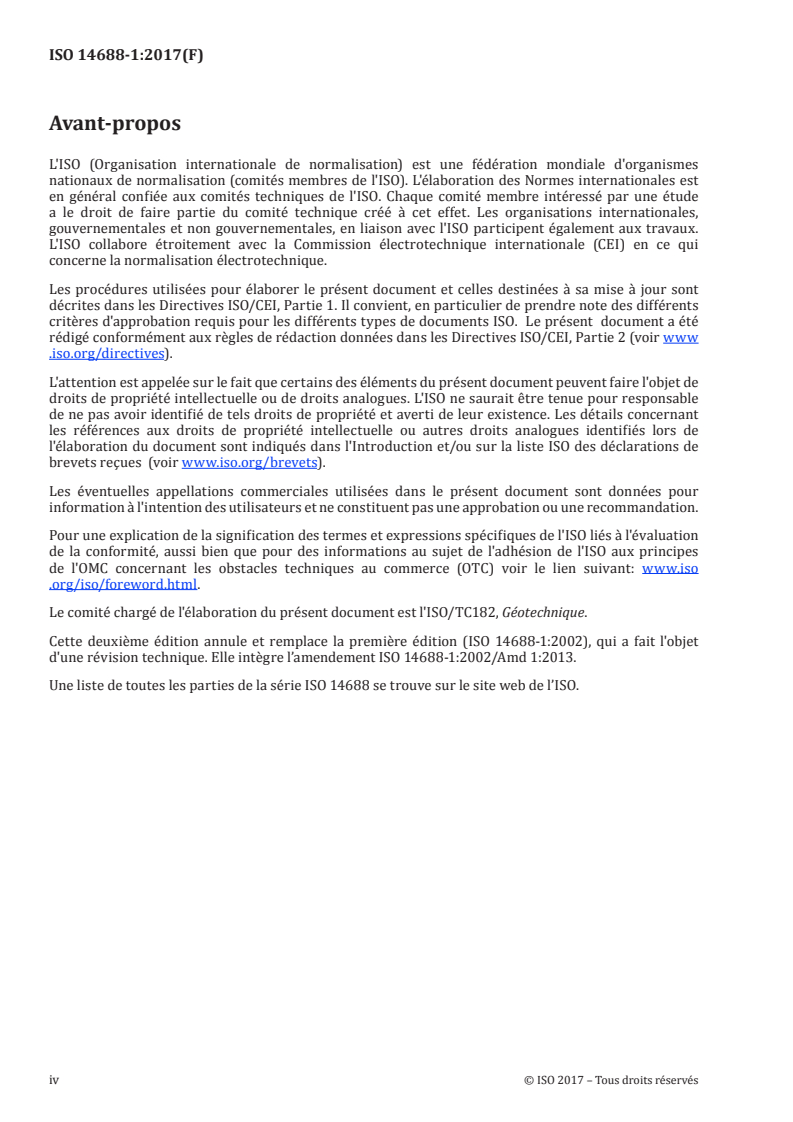

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes
nationaux de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est
en général confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l'ISO participent également aux travaux.
L'ISO collabore étroitement avec la Commission électrotechnique internationale (CEI) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/CEI, Partie 1. Il convient, en particulier de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/CEI, Partie 2 (voir www
.iso .org/directives).
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l'élaboration du document sont indiqués dans l'Introduction et/ou sur la liste ISO des déclarations de
brevets reçues (voir www .iso .org/brevets).
Les éventuelles appellations commerciales utilisées dans le présent document sont données pour
information à l'intention des utilisateurs et ne constituent pas une approbation ou une recommandation.
Pour une explication de la signification des termes et expressions spécifiques de l'ISO liés à l'évaluation
de la conformité, aussi bien que pour des informations au sujet de l'adhésion de l'ISO aux principes
de l'OMC concernant les obstacles techniques au commerce (OTC) voir le lien suivant: www .iso
.org/iso/foreword .html.
Le comité chargé de l'élaboration du présent document est l'ISO/TC182, Géotechnique.
Cette deuxième édition annule et remplace la première édition (ISO 14688-1:2002), qui a fait l'objet
d'une révision technique. Elle intègre l’amendement ISO 14688-1:2002/Amd 1:2013.
Une liste de toutes les parties de la série ISO 14688 se trouve sur le site web de l’ISO.
iv © ISO 2017 – Tous droits réservés

Introduction
Ce document fournit des détails sur les procédures à suivre dans l'identification et la description des
sols. Les clauses 4 et 5 fournissent les règles d'identification des sols à utiliser à toutes les étapes de
la reconnaissance de terrain et du calcul géotechnique. Les clauses 6 et 7 donnent des détails sur les
procédures à suivre par les personnes chargées de la description des sols in situ ou en laboratoire.
Cela comprend la description des constituants du sol sous tous ses aspects et la description des
caractéristiques de la masse de sol en termes de stratification et discontinuités
Le niveau de précision dans une description dépendra des caractéristiques du sol, de la taille et de la
qualité de l’affleurement ou de l'échantillon de sol, et des besoins propres au projet. Il convient que
la personne effectuant l'identification et la description de terrain possède les qualifications requises
pour faire une description correcte et appropriée, et soit expérimentée dans les formations géologiques
rencontrées lors de la reconnaissance
La pratique dans l'identification et la description des sols varie d'un pays à l'autre, du fait notamment
des différences significatives de géologie. En outre, la qualité des échantillons disponibles pour la
description varient en fonction des méthodes d’investigations utilisées, celles-ci ayant été développées
en réponse aux divers sols rencontrés
Après l’identification et la description, l’ISO 14688-2 permet de classer les sols en groupes présentant
des compositions et des propriétés géotechniques similaires, à partir des résultats d’essais in situ et
en laboratoire caractérisant leurs aptitudes pour les projets d’ingénierie géotechnique. Les résultats
d'essai fournissent des moyens de vérifier la précision des descriptions faites sur le terrai
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
