INTERNATIONAL ISO
STANDARD 16711
Second edition
2021-03
Requirements for seismic assessment
and retrofit of concrete structures
Exigences relatives à l'évaluation sismique et à la réhabilitation des
structures en béton
Reference number
ISO 16711:2021(E)
©
ISO 2021
---------------------- Page: 1 ----------------------
ISO 16711:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 16711:2021(E)

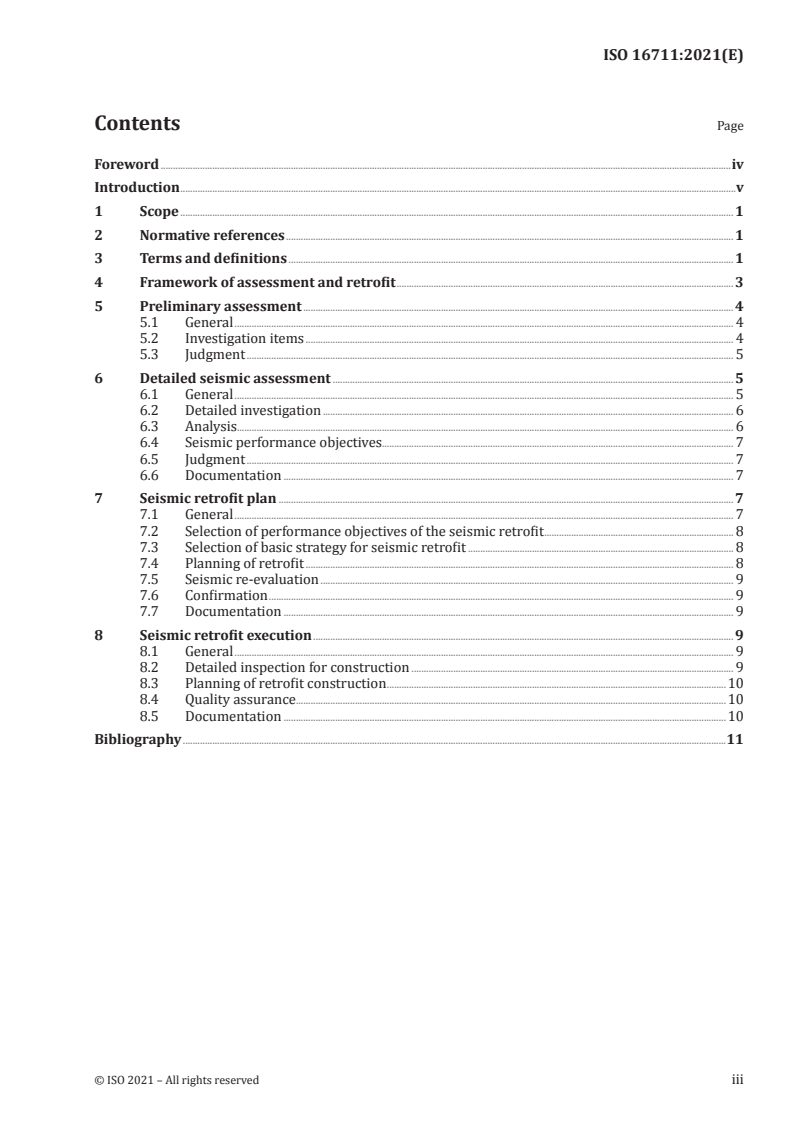

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Framework of assessment and retrofit . 3
5 Preliminary assessment . 4
5.1 General . 4
5.2 Investigation items . 4
5.3 Judgment . 5
6 Detailed seismic assessment . 5
6.1 General . 5
6.2 Detailed investigation . 6
6.3 Analysis. 6
6.4 Seismic performance objectives. 7
6.5 Judgment . 7
6.6 Documentation . 7
7 Seismic retrofit plan . 7
7.1 General . 7
7.2 Selection of performance objectives of the seismic retrofit . 8
7.3 Selection of basic strategy for seismic retrofit . 8
7.4 Planning of retrofit . 8
7.5 Seismic re-evaluation . 9
7.6 Confirmation . 9
7.7 Documentation . 9
8 Seismic retrofit execution . 9
8.1 General . 9
8.2 Detailed inspection for construction . 9
8.3 Planning of retrofit construction .10
8.4 Quality assurance.10
8.5 Documentation .10
Bibliography .11
© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 16711:2021(E)

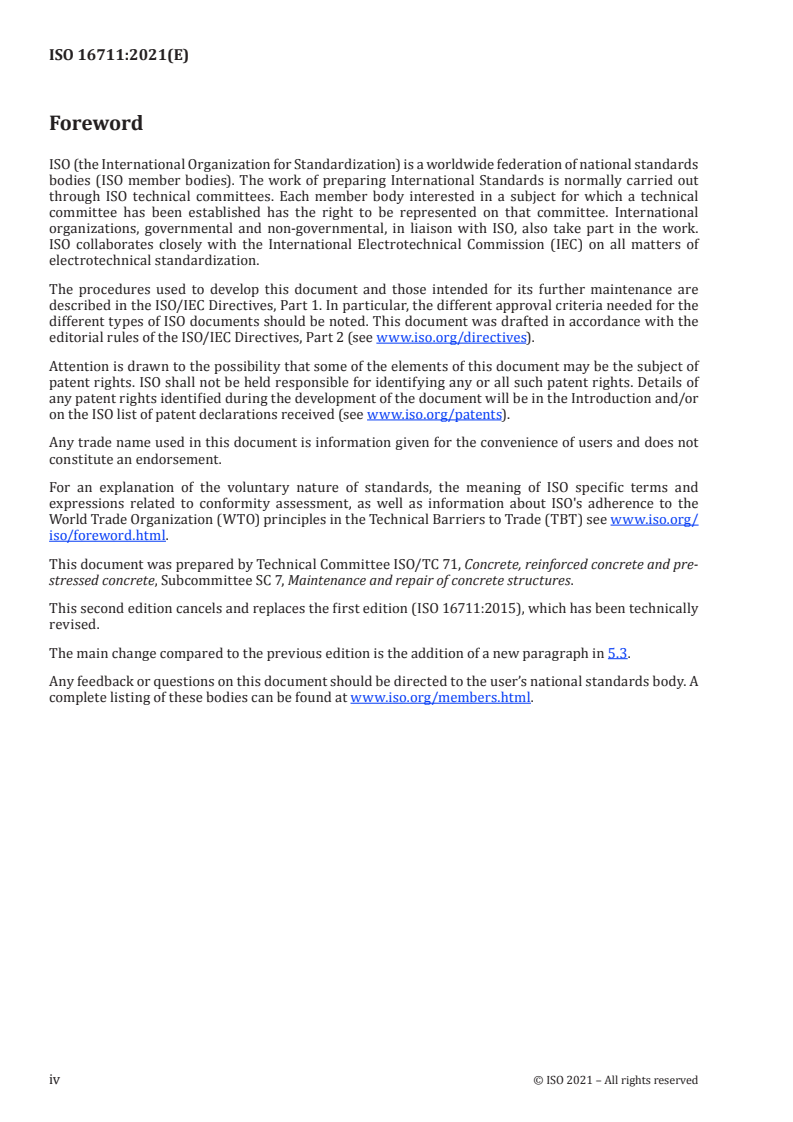

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 71, Concrete, reinforced concrete and pre-
stressed concrete, Subcommittee SC 7, Maintenance and repair of concrete structures.
This second edition cancels and replaces the first edition (ISO 16711:2015), which has been technically
revised.
The main change compared to the previous edition is the addition of a new paragraph in 5.3.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 16711:2021(E)
Introduction
Earthquakes bringing damage to structures have occurred frequently in many areas of the world. Heavy
damage caused by earthquakes are concentrated on vulnerable structures. Due to these damaging
earthquakes, human lives are likely to be lost. Confusion in everyday life and stagnation of economic
activities also occur.
As the result of the direct action of earthquakes, structures can collapse or overturn in earthquake-
prone areas. However, given a main shock occurs, it is expected that through seismic assessment and
retrofit of concrete structures, human life losses, economical losses and structural collapses can be
mitigated and/or prevented and quick recovery can be attained.
In some countries, such as Japan and the USA, the framework for the identification of vulnerable
structures before and after an earthquake, seismic retrofit decision-making and construction exists.
In addition, the standards for seismic assessment technology and for seismic retrofit technology have
already been established in these countries. Furthermore, technical manuals have been established in
order to apply the standards to practical work. Therefore, based on these standards, the social system
is built where a country, a district and a local administrative agency (authorities), the owner of the
structure, a user, a retrofit designer, a retrofit work supervisor, a retrofit work supplier and other
people concerned by this matter share a purpose of the seismic retrofit and the information about the
effect of seismic retrofit. Also, the owner of the structure can judge the necessity of appropriate retrofit
and a seismic retrofit execution is carried out smoothly.
However, it is not so frequent that a huge earthquake disaster occurs in a specific country or an area.
These conditions disturb conducting seismic assessment, seismic retrofit work and smooth social
decision making to conduct seismic retrofit. As a result, it is feared that the earthquake disaster
expands and the recovery from the disaster is delayed when a large earthquake disaster happens once.
Therefore, it is necessary to establish a principle of the seismic assessment, decision making of the
seismic retrofit, the framework of the procedure for screening the vulnerable structures, seismic
retrofit execution. This document provides the requirements of standards for comprehensive evaluation
of the seismic damage/expected damage of existing reinforced concrete structures and repair/retrofit.
In other words, this document provides the standard work items related to seismic assessment and
retrofit and standard procedures in each stage. It clarifies the contents and the scope of each duty.
In this document, the seismic performance of an existing reinforced concrete structure is expressed
1)
in terms of the intensity of earthquake motions that lead the structures to the safety limit state
in principle. As the result, whether the existing reinforced concrete (referred to as RC, hereafter)
structures fulfil the provisions of the design standard in the specific country or area does not matter.
That is the feature of this document.
The retrofit can be also conducted based on seismic performance, not on whether the seismic retrofit
meets an existing standard. Because this document sets such rational performance requirements, the
vulnerable parts which should be reinforced are clearly identified.
National and regional standards are generally more prescriptive in nature than International Standards
and vary somewhat from region to region.
1) Ultimate limit state is mainly considered. However, other limit states can be considered such as seismic damage
control limit state when time history analysis is used.
© ISO 2021 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 16711:2021(E)
Requirements for seismic assessment and retrofit of
concrete structures
1 Scope
This document provides requirements for seismic assessment and retrofit of concrete structures.
It can be used to reduce the risk of seismic damage by structural collapse or turnover during a
seismic event.
This document provides the framework and principles of methods of detailed seismic assessment and
the judgment, seismic retrofit plan and design, seismic retrofit execution of existing reinforced concrete
structures before the occurrence of a severe earthquake and of the structures struck by an earthquake.
It is an umbrella-type document with general provisions intended to provide wide latitude of choice in
terms of comprehensive principle on the evaluation of the seismic damage/expected damage of existing
reinforced concrete structures and repair/retrofit. Therefore, it is intended to be used in conjunction
with sound engineering judgment.
This document is applicable to reinforced concrete structures and pre-stressed concrete structures
that have been designed on the basis of the structural design criteria set in a specific country or region.
It is not applicable to unreinforced concrete and masonry structures.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1920-4:2020, Testing of concrete — Part 4: Strength of hardened concrete
ISO 15630-1:2019, Steel for the reinforcement and prestressing of concrete — Test methods — Part 1:
Reinforcing bars, rods and wire
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
assessment
set of activities performed in order to verify the reliability of an existing structure for future use
[SOURCE: ISO 13822:2010, 3.1]
3.2
design document
document resulting from structural calculation and design drawings
© ISO 2021 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 16711:2021(E)
3.3
inspection
conformity evaluation by observation and judgment accompanied as appropriate by measurement,
testing or gauging.
Note 1 to entry: For structures, this evaluation consists of actions collecting information on the current state
of a structure through observation and simplified non-destructive or destructive testing supplemented with
materials and structural testing, as required.
[SOURCE: ISO 16311-2:2014, 3.15]
3.4
investigation
collection of information through inspection (3.3), document search, load testing and other testing
[SOURCE: ISO 16311-1:2014, 3.7]
3.5
limit state
critical state specified using a performance index, beyond which the structure no longer satisfies a
design performance requirement
[SOURCE: ISO 19338:2014, 3.9]
3.6
maintenance
set of activities taken to check, evaluate the performance of a structure, and preserve/restore it so as to
satisfy performance requirements in service
[SOURCE: ISO 16311-1:2014, 3.8]
3.7
seismic capacity
force or displacement defined for the limit states (3.5)
Note 1 to entry: Multiple limit states can be selected besides the life safety limit state, such as acceptable
economic loss limit state, reparability limit state, immediate occupancy limit state or functionality limit state.
3.8
performance objective
required performance level (e.g. life safety) for a given earthquake hazard level (e.g. an earthquake
with a 10 % probability of exceedance in 50 years)
3.9
seismic damage
physical evidence of inelastic deformation, cracks or spalling of a structural component caused by an
earthquake
3.10
seismic retrofit
restoring or improving the seismic performance of a pre- or post-earthquake existing structure to meet
the seismic performance objective (3.8), including “structural repair” and “strengthening”
Note 1 to entry: Repair is adopted to restore structural performance and to mitigate safety risks up to the
initially required design level and to achieve the intended service life.
Note 2 to entry: Strengthening relates to the measures taken to improve structural performance relating to load
bearing capacity and deformation of an existing structure and/or its members.
2 © ISO 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 16711:2021(E)
4 Framework of assessment and retrofit
The seismic assessment and retrofit of an existing structure shall obey the following procedures after
identifying the performance requirements and drafting an overall plan from investigation through
detailed seismic assessment, construction and documentation. The schematic of the process is shown
in Figure 1. Details of each item are described in Clause 5. All these items are not necessarily executed.
The procedure should be initiated in order from 1) but it may be finished at any stage according to the
specific situation under consideration.
1) Preliminary assessment: The possibility of a structure’s collapse or turnover under severe
earthquakes shall be assessed based on the comprehensive information of the structure, such as
design documents at the time of design, history of usage and the construction’s compliance with
the design standard. The inspection of the seismic performance shall be carried out in consultation
...
INTERNATIONAL ISO
STANDARD 16711
Second edition
Requirements for seismic assessment
and retrofit of concrete structures
PROOF/ÉPREUVE
Reference number
ISO 16711:2021(E)
©
ISO 2021
---------------------- Page: 1 ----------------------
ISO 16711:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 16711:2021(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Framework of assessment and retrofit . 3
5 Preliminary assessment . 4
5.1 General . 4
5.2 Investigation items . 4
5.3 Judgment . 5
6 Detailed seismic assessment . 5
6.1 General . 5
6.2 Detailed investigation . 6
6.3 Analysis. 6
6.4 Seismic performance objectives. 7
6.5 Judgment . 7
6.6 Documentation . 7
7 Seismic retrofit plan . 7
7.1 General . 7
7.2 Selection of performance objectives of the seismic retrofit . 8
7.3 Selection of basic strategy for seismic retrofit . 8
7.4 Planning of retrofit . 8
7.5 Seismic re-evaluation . 9
7.6 Confirmation . 9
7.7 Documentation . 9
8 Seismic retrofit execution . 9
8.1 General . 9
8.2 Detailed inspection for construction . 9
8.3 Planning of retrofit construction .10
8.4 Quality assurance.10
8.5 Documentation .10
Bibliography .11
© ISO 2021 – All rights reserved PROOF/ÉPREUVE iii
---------------------- Page: 3 ----------------------
ISO 16711:2021(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 71, Concrete, reinforced concrete and pre-
stressed concrete, Subcommittee SC 7, Maintenance and repair of concrete structures.
This second edition cancels and replaces the first edition (ISO 16711:2015), which has been technically
revised.
The main change compared to the previous edition is the addition of a new paragraph in 5.3.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 16711:2021(E)
Introduction
Earthquakes bringing damage to structures have occurred frequently in many areas of the world. Heavy
damage caused by earthquakes are concentrated on vulnerable structures. Due to these damaging
earthquakes, human lives are likely to be lost. Confusion in everyday life and stagnation of economic
activities also occur.
As the result of the direct action of earthquakes, structures can collapse or overturn in earthquake-
prone areas. However, given a main shock occurs, it is expected that through seismic assessment and
retrofit of concrete structures, human life losses, economical losses and structural collapses can be
mitigated and/or prevented and quick recovery can be attained.
In some countries, such as Japan and the USA, the framework for the identification of vulnerable
structures before and after an earthquake, seismic retrofit decision-making and construction exists.
In addition, the standards for seismic assessment technology and for seismic retrofit technology have
already been established in these countries. Furthermore, technical manuals have been established in
order to apply the standards to practical work. Therefore, based on these standards, the social system
is built where a country, a district and a local administrative agency (authorities), the owner of the
structure, a user, a retrofit designer, a retrofit work supervisor, a retrofit work supplier and other
people concerned by this matter share a purpose of the seismic retrofit and the information about the
effect of seismic retrofit. Also, the owner of the structure can judge the necessity of appropriate retrofit
and a seismic retrofit execution is carried out smoothly.
However, it is not so frequent that a huge earthquake disaster occurs in a specific country or an area.
These conditions disturb conducting seismic assessment, seismic retrofit work and smooth social
decision making to conduct seismic retrofit. As a result, it is feared that the earthquake disaster
expands and the recovery from the disaster is delayed when a large earthquake disaster happens once.
Therefore, it is necessary to establish a principle of the seismic assessment, decision making of the
seismic retrofit, the framework of the procedure for screening the vulnerable structures, seismic
retrofit execution. This document provides the requirements of standards for comprehensive evaluation
of the seismic damage/expected damage of existing reinforced concrete structures and repair/retrofit.
In other words, this document provides the standard work items related to seismic assessment and
retrofit and standard procedures in each stage. It clarifies the contents and the scope of each duty.
In this document, the seismic performance of an existing reinforced concrete structure is expressed
1)
in terms of the intensity of earthquake motions that lead the structures to the safety limit state
in principle. As the result, whether the existing reinforced concrete (referred to as RC, hereafter)
structures fulfil the provisions of the design standard in the specific country or area does not matter.
That is the feature of this document.
The retrofit can be also conducted based on seismic performance, not on whether the seismic retrofit
meets an existing standard. Because this document sets such rational performance requirements, the
vulnerable parts which should be reinforced are clearly identified.
National and regional standards are generally more prescriptive in nature than International Standards
and vary somewhat from region to region.
1) Ultimate limit state is mainly considered. However, other limit states can be considered such as seismic damage
control limit state when time history analysis is used.
© ISO 2021 – All rights reserved PROOF/ÉPREUVE v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 16711:2021(E)
Requirements for seismic assessment and retrofit of
concrete structures
1 Scope
This document provides requirements for seismic assessment and retrofit of concrete structures.
It can be used to reduce the risk of seismic damage by structural collapse or turnover during a
seismic event.
This document provides the framework and principles of methods of detailed seismic assessment and
the judgment, seismic retrofit plan and design, seismic retrofit execution of existing reinforced concrete
structures before the occurrence of a severe earthquake and of the structures struck by an earthquake.
It is an umbrella-type document with general provisions intended to provide wide latitude of choice in
terms of comprehensive principle on the evaluation of the seismic damage/expected damage of existing
reinforced concrete structures and repair/retrofit. Therefore, it is intended to be used in conjunction
with sound engineering judgment.
This document is applicable to reinforced concrete structures and pre-stressed concrete structures
that have been designed on the basis of the structural design criteria set in a specific country or region.
It is not applicable to unreinforced concrete and masonry structures.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1920-4:2020, Testing of concrete — Part 4: Strength of hardened concrete
ISO 15630-1:2019, Steel for the reinforcement and prestressing of concrete — Test methods — Part 1:
Reinforcing bars, rods and wire
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www. iso. org/o bp
— IEC Electropedia: available at http:// www.e lectropedia. org/
3.1
assessment
set of activities performed in order to verify the reliability of an existing structure for future use
[SOURCE: ISO 13822:2010, 3.1]
3.2
design document
document resulting from structural calculation and design drawings
© ISO 2021 – All rights reserved PROOF/ÉPREUVE 1
---------------------- Page: 6 ----------------------
ISO 16711:2021(E)
3.3
inspection
conformity evaluation by observation and judgment accompanied as appropriate by measurement,
testing or gauging.
Note 1 to entry: For structures, this evaluation consists of actions collecting information on the current state
of a structure through observation and simplified non-destructive or destructive testing supplemented with
materials and structural testing, as required.
[SOURCE: ISO 16311-2:2014, 3.15]
3.4
investigation
collection of information through inspection (3.3), document search, load testing and other testing
[SOURCE: ISO 16311-1:2014, 3.7]
3.5
limit state
critical state specified using a performance index, beyond which the structure no longer satisfies a
design performance requirement
[SOURCE: ISO 19338:2014, 3.9]
3.6
maintenance
set of activities taken to check, evaluate the performance of a structure, and preserve/restore it so as to
satisfy performance requirements in service
[SOURCE: ISO 16311-1:2014, 3.8]
3.7
seismic capacity
force or displacement defined for the limit states (3.5)
Note 1 to entry: Multiple limit states can be selected besides the life safety limit state, such as acceptable
economic loss limit state, reparability limit state, immediate occupancy limit state or functionality limit state.
3.8
performance objective
required performance level (e.g. life safety) for a given earthquake hazard level (e.g. an earthquake
with a 10 % probability of exceedance in 50 years)
3.9
seismic damage
physical evidence of inelastic deformation, cracks or spalling of a structural component caused by an
earthquake
3.10
seismic retrofit
restoring or improving the seismic performance of a pre- or post-earthquake existing structure to meet
the seismic performance objective (3.8), including “structural repair” and “strengthening”
Note 1 to entry: Repair is adopted to restore structural performance and to mitigate safety risks up to the
initially required design level and to achieve the intended service life.
Note 2 to entry: Strengthening relates to the measures taken to improve structural performance relating to load
bearing capacity and deformation of an existing structure and/or its members.
2 PROOF/ÉPREUVE © ISO 2021 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 16711:2021(E)
4 Framework of assessment and retrofit
The seismic assessment and retrofit of an existing structure shall obey the following procedures after
identifying the performance requirements and drafting an overall plan from investigation through
detailed seismic assessment, construction and documentation. The schematic of the process is shown
in Figure 1. Details of each item are described in Clause 5. All these items are not necessarily executed.
The procedure should be initiated in order from 1) but it may be finished at any stage according to the
specific situation under consideration.
1) Preliminary assessment: The possibility of a structure’s collapse or turnover under severe
earthquakes shall be assessed based on the comprehensive information of the structure, such as
design documents at the time of design, history of usage and the construction’s compliance with
the design standard. The inspection of the seismic performance shall be carried out in consultation
with the client (the owner, the authority, etc.), if the seismic per
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
