ISO/IEC/IEEE 8802-1Q:2024/Amd 38:2025
(Amendment)Telecommunications and exchange between information technology systems — Requirements for local and metropolitan area networks — Part 1Q: Bridges and bridged networks — Amendment 38: Configuration enhancements for time-sensitive networking
Telecommunications and exchange between information technology systems — Requirements for local and metropolitan area networks — Part 1Q: Bridges and bridged networks — Amendment 38: Configuration enhancements for time-sensitive networking
Télécommunications et échange entre systèmes informatiques — Exigences pour les réseaux locaux et métropolitains — Partie 1Q: Ponts et réseaux pontés — Amendement 38: Améliorations de la configuration pour les réseaux à temps critique
General Information
Relations
Standards Content (Sample)

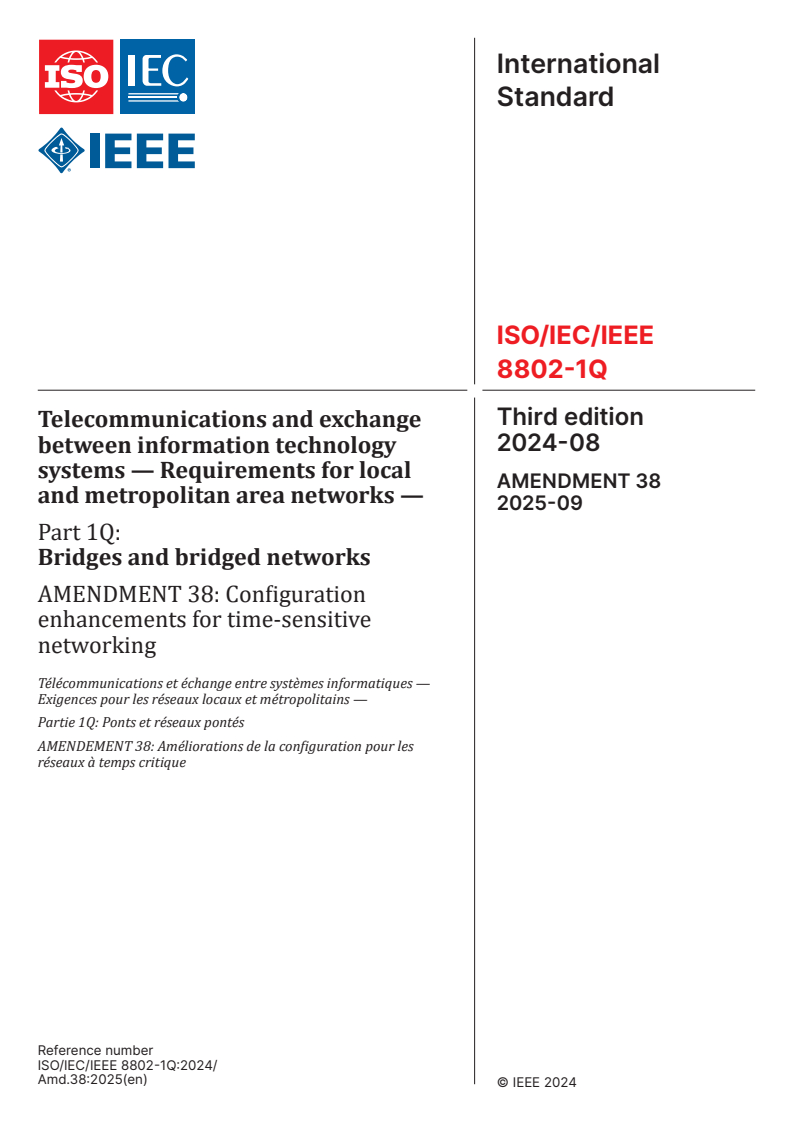

International
Standard
ISO/IEC/IEEE
8802-1Q
Third edition
Telecommunications and exchange
2024-08
between information technology
systems — Requirements for local
AMENDMENT 38
and metropolitan area networks —
2025-09
Part 1Q:
Bridges and bridged networks
AMENDMENT 38: Configuration
enhancements for time-sensitive
networking
Télécommunications et échange entre systèmes informatiques —
Exigences pour les réseaux locaux et métropolitains —
Partie 1Q: Ponts et réseaux pontés
AMENDEMENT 38: Améliorations de la configuration pour les
réseaux à temps critique
Reference number
ISO/IEC/IEEE 8802-1Q:2024/
Amd.38:2025(en)
© IEEE 2024

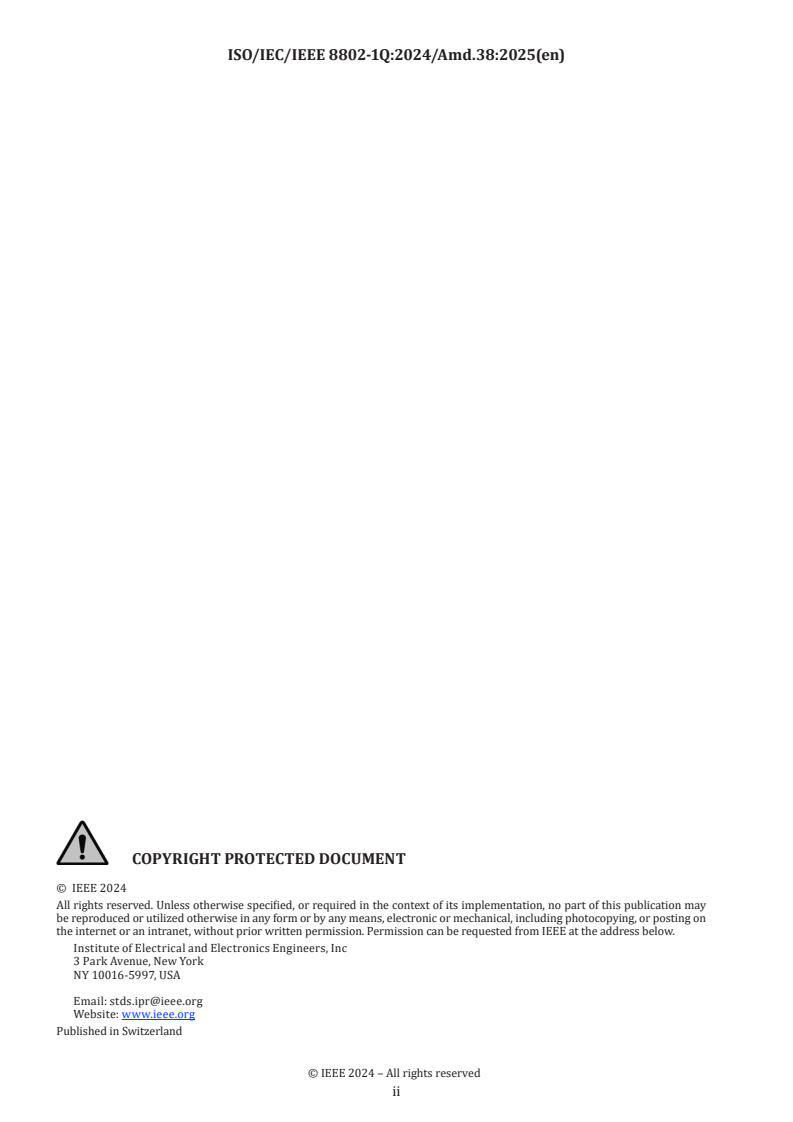

ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
© IEEE 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from IEEE at the address below.
Institute of Electrical and Electronics Engineers, Inc
3 Park Avenue, New York
NY 10016-5997, USA
Email: stds.ipr@ieee.org
Website: www.ieee.org
Published in Switzerland
© IEEE 2024 – All rights reserved
ii
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members
of ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
document should be noted.
IEEE Standards documents are developed within IEEE Societies and subcommittees of IEEE Standards
Association (IEEE SA) Board of Governors. IEEE develops its standards through an accredited consensus
development process, which brings together volunteers representing varied viewpoints and interests to
achieve the final product. IEEE standards are documents developed by volunteers with scientific, academic,
and industry-based expertise in technical working groups. Volunteers are not necessarily members of IEEE or
IEEE SA and participate without compensation from IEEE. While IEEE administers the process and establishes
rules to promote fairness in the consensus development process, IEEE does not independently evaluate, test,
or verify the accuracy of any of the information or the soundness of any judgments contained in its standards.
ISO and IEC draw attention to the possibility that the implementation of this document may involve the use of
(a) patent(s). ISO and IEC take no position concerning the evidence, validity or applicability of any claimed
patent rights in respect thereof. As of the date of publication of this document, ISO and IEC had not received
notice of (a) patent(s) which may be required to implement this document. However, implementers are
cautioned that this may not represent the latest information, which may be obtained from the patent database
available at www.iso.org/patents and https://patents.iec.ch. ISO and IEC shall not be held responsible for
identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
In the IEC, see www.iec.ch/understanding-standards.
ISO/IEC/IEEE 8802-1Q:2024/Amd 38 was prepared by the LAN/MAN of the IEEE Computer Society (as IEEE
Std 802.1Qdj-2024) and drafted in accordance with its editorial rules. It was adopted, under the “fast-track
procedure” defined in the Partner Standards Development Organization cooperation agreement between ISO
and IEEE, by Joint Technical Committee ISO/IEC JTC 1, Information technology, Subcommittee SC 6,
Telecommunications and information exchange between systems.
A list of all parts in the ISO/IEC/IEEE 8802 series can be found on the ISO and IEC websites.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html and www.iec.ch/national-
committees.
© IEEE 2024 – All rights reserved
© IEEE 2024 – All rights reserved
iii
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Standard for
Local and Metropolitan Area Networks—
Bridges and Bridged Networks
Amendment 38:
Configuration Enhancements for
Time-Sensitive Networking
(This amendment is based on IEEE Std 802.1Q™-2022 as amended by IEEE Std 802.1Qcz™-2023,
IEEE Std 802.1Qcw™-2023, and IEEE Std 802.1Qcj™-2023.)
NOTE—The editing instructions contained in this amendment define how to merge the material contained therein into
the existing base standard and its amendments to form the comprehensive standard.
The editing instructions are shown in bold italics. Four editing instructions are used: change, delete, insert, and replace.
Change is used to make corrections in existing text or tables. The editing instruction specifies the location of the change
and describes what is being changed by using strikethrough (to remove old material) and underscore (to add new
material). Delete removes existing material. Insert adds new material without disturbing the existing material. Deletions
and insertions may require renumbering. If so, renumbering instructions are given in the editing instruction. Replace is
used to make changes in figures or equations by removing the existing figure or equation and replacing it with a new
one. Editing instructions, change markings, and this note will not be carried over into future editions because the
changes will be incorporated into the base standard.
Notes in text, tables, and figures are given for information only and do not contain requirements needed to implement the standard.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
1. Overview
1.3 Introduction
Change the paragraph beginning “This standard specifies enhancements to protocols, procedures, and
managed objects for the configuration of network resources” (as amended by IEEE Std 802.1Qcw-2023)
as follows, and renumber the subsequent list items accordingly:
This standard specifies enhancements to protocols, procedures, and managed objects for the configuration of
network resources for time-sensitive (i.e., bounded latency) applications that require timely, high
probability, delivery of frames without end station retransmission. The enhancements address
Time-Sensitive Networking (TSN) application requirements beyond audio/video (AV) traffic. To this end, it:
cm) Specifies a software interface between the user (i.e., time-sensitive application) and network
components, such that the user provides Stream requirements (e.g., for bounded latency), and the
network configures resources from Talker to Listeners to meet those requirements. This
user/network interface (UNI) is specified as an information model that can be applied to any
protocol.
cm) Describes three approaches to network configuration: Specifies three models for the UNI: fully
distributed, centralized network/distributed user, and fully centralized.
co) Specifies enhancements to the Stream Reservation Protocol (SRP), using a new application version,
MSRPv1. MSRPv1 integrates the UNI TLVs for the benefits of enhanced configuration. For
compatibility, MSRPv1 translates to the previous version (MSRPv0).
cn) Specifies enhancements to the managed objects for forwarding and queuing enhancements for
time-sensitive streams (FQTSS).
cq) Specifies enhancements to the managed objects for SRP.
co) Describes Centralized User Configuration (CUC) and Centralized Network Configuration (CNC)
entities.
cp) Specifies managed objects for configuration of Bridges by a Centralized Network Configuration
(CNC) component.
cq) Define Specifies YANG configuration and operational state models (Clause 48) in support of
Scheduled Traffic, frame preemption, and Per-Stream Filtering and Policing, and CUC
configuration.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
3. Definitions
Insert the following definitions in the appropriate collating sequence, renumbering accordingly:
3.1 Configuration Domain: A set of stations that are under a common configuration and management
scheme, and a single administration.
3.2 TSN features: The protocols and mechanisms that constitute the set of tools available for building a
time-sensitive network.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
5. Conformance
5.29 TSN CNC station requirements
Change 5.29, as follows:
This subclause (5.29) defines the conformance requirements for a station that supports the Time-Sensitive
Networking (TSN) Centralized Network Configuration (CNC) requirements (46.1.3). The TSN CNC station
component is implemented within an end station or Bridge.
A TSN CNC station implementation that conforms to the provisions of this standard shall:
a) Support the use of a remote management protocol. The TSN CNC claiming to support remote
management shall state the following:
1) Which remote management protocol standard(s) or specification(s) are supported for the client
implementation.
2) Which standard(s) or specification(s) for managed object definitions and encodings are
supported for use by the remote management protocol.
b) Support the managed object definitions and encodings for Stream reservation remote management
(12.32).
c) Support the use of at least one protocol for User/network configuration information that complies
with the requirements for protocol integration defined in 46.2. The TSN CNC shall state which
User/network configuration information protocol standard(s) or specification(s) are supported.
d) If a YANG-based protocol is supported by the TSN CNC for the User/network configuration
information, that protocol shall use the YANG module specified in 46.3.
d) If SRP (Clause 35) is supported by the TSN CNC for the User/network configuration information,
the TSN CNC shall support MRP External Control (12.32.4).
A TSN CNC station implementation that conforms to the provisions of this standard may:
e) Use the YANG modules identified in 46.3.
© IEEE 2024 – All rights reserved
ISO/IEC/IEEE 8802-1Q:2024/Amd.38:2025(en)
IEEE Std 802.1Qdj™-2024
IEEE Standard for Local and Metropolitan Area Networks—Bridges and Bridged Networks
Amendment 38: Configuration Enhancements for Time-Sensitive Networking
46. Time-Sensitive Networking (TSN) configuration
46.1 Overview of TSN configuration
Change the title and text of 46.1.1 as follows:
46.1.1 User/Network Interface (UNI)Streams, Talkers, and Listeners
TSN configuration uses the concept of a Stream that is transmitted by a Talker to one or more Listeners. The
Talkers and Listeners are located within end stations.
This clause specifies configuration information that is exchanged over a User/Network Interface (UNI). The
user side of the interface represents for Streams requested by Talkers and Listeners, or by network
management entities acting on their behalf. The network side of the interface represents the Bridges that
transfer frames of the Stream from each Talker to its Listeners. Each user specifies Stream requirements for
its data, but are initially specified by, or for, Talker and Listener without detailed knowledge of the network.
The network Network entities or administrators obtains these requirements from users, analyzes the
topology and TSN capabilities of the Bridges, and configures the Bridges to meet user the requirements. The
network returns the success or failure of each Stream’s configuration to the user its Talker(s) and Listener(s).
Change the title and text of 46.1.2 as follows:
46.1.2 Modeling of user/networkTSN configuration information protocols
A variety of protocols can be used for the exchange of configuration information over the TSN UNI (e.g.,
signaling protocols, remote network management protocols). These protocols can exchange the
configuration information as text or as binary fields. To enable flexible integration of TSN configuration into
a variety of protocols, 46.2 specifies the TSN user/network configuration information in a manner that is
independent of schema, encoding, or protocol.
Specific TSN-capable products list the user/network protocol that is supported as part of their conformance
[e.g., 5.18.3, item c) in 5.29]. Each user/network protocol will specify a specific schema and/or encoding for
the configuration information in 46.2. Examples of these protocols are described for each of the TSN
configuration models in 46.1.3.
46.1.3 TSN configuration models
Change the introductory text of 46.1.3 as follows:
This subclause describes threeThree models for TSN user/network configuration are described. These
models provide an architectural context for subsequent specifications. Each model specification shows the
logical flow of user/network configuration information between various entities in the n
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
