Road vehicles -- Extended vehicle (ExVe) web services -- Result of the risk assessment on ISO 20078 series

This document presents the assessment of the safety, security, competition, responsibilities, and data protection risks that can originate from the ISO 20078 series. In particular, the following risks are outside the scope of this assessment, because they relate to elements that are excluded from the scope of the ISO 20078 series: — the risks associated with the implementation of the ISO 20078 series; — the risks associated with the process that the accessing parties or any other parties would later on use to communicate the information they obtained; — the risks associated with the process used by the resource owner to provide, modify, or revoke their authorization to pass information; — the risks associated with the mitigation of the risks, should such a mitigation be necessary.

Véhicules routiers -- Web services du véhicule étendu (ExVe) -- Résultats de l'évaluation des risques de la série de normes ISO 20078

General Information

Status
Published
Publication Date
03-Sep-2019
Current Stage
6060 - International Standard published
Start Date
07-Aug-2019
Completion Date
04-Sep-2019
Ref Project

Buy Standard

Technical report
ISO/TR 23791:2019 - Road vehicles -- Extended vehicle (ExVe) web services -- Result of the risk assessment on ISO 20078 series
English language
39 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

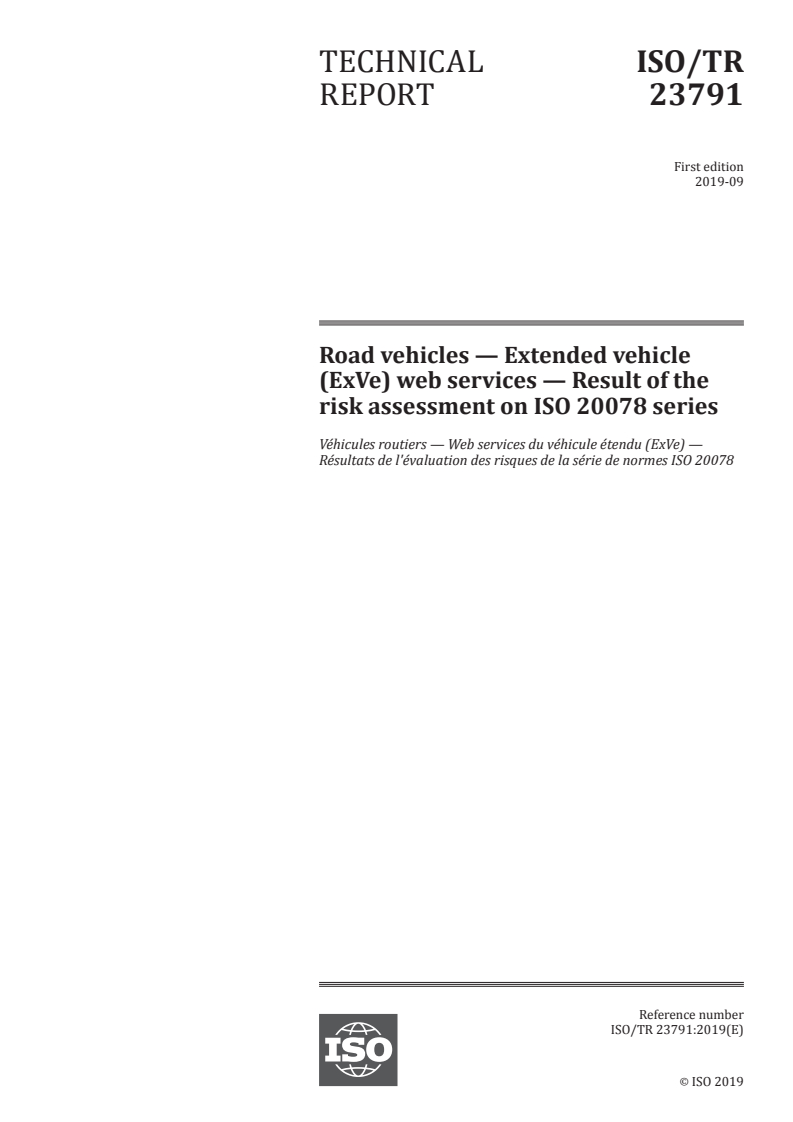

TECHNICAL ISO/TR
REPORT 23791
First edition
2019-09
Road vehicles — Extended vehicle
(ExVe) web services — Result of the
risk assessment on ISO 20078 series
Véhicules routiers — Web services du véhicule étendu (ExVe) —
Résultats de l'évaluation des risques de la série de normes ISO 20078
Reference number
ISO/TR 23791:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO/TR 23791:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 23791:2019(E)

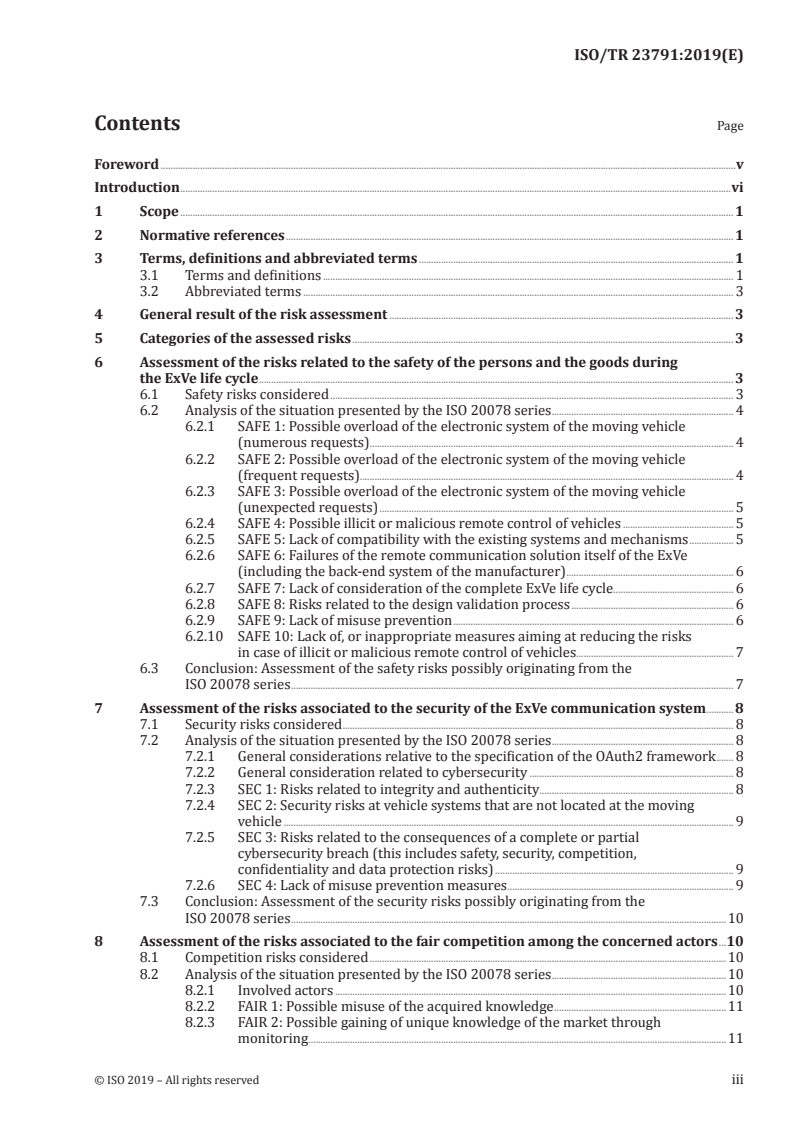

Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms, definitions and abbreviated terms ................................................................................................................................ 1

3.1 Terms and definitions ....................................................................................................................................................................... 1

3.2 Abbreviated terms ............................................................................................................................................................................... 3

4 General result of the risk assessment ............................................................................................................................................ 3

5 Categories of the assessed risks ........................................................................................................................................................... 3

6 Assessment of the risks r elated to the safety of the persons and the goods during

the ExVe life cycle ................................................................................................................................................................................................. 3

6.1 Safety risks considered .................................................................................................................................................................... 3

6.2 Analysis of the situation presented by the ISO 20078 series .......................................................................... 4

6.2.1 SAFE 1: Possible overload of the electronic system of the moving vehicle

(numerous requests) ........................................................................................................................................... ......... 4

6.2.2 SAFE 2: Possible overload of the electronic system of the moving vehicle

(frequent requests) .................. ......................................................................................................................... ............. 4

6.2.3 SAFE 3: Possible overload of the electronic system of the moving vehicle

(unexpected requests) ................................................................................................................................................ 5

6.2.4 SAFE 4: Possible illicit or malicious remote control of vehicles ............................................. 5

6.2.5 SAFE 5: Lack of compatibility with the existing systems and mechanisms .................. 5

6.2.6 SAFE 6: Failures of the remote communication solution itself of the ExVe

(including the back-end system of the manufacturer) .................................................................... 6

6.2.7 SAFE 7: Lack of consideration of the complete ExVe life cycle................................................. 6

6.2.8 SAFE 8: Risks related to the design validation process .................................................................. 6

6.2.9 SAFE 9: Lack of misuse prevention .................................................................................................................. 6

6.2.10 SAFE 10: Lack of, or inappropriate measures aiming at reducing the risks

in case of illicit or malicious remote control of vehicles................................................................ 7

6.3 Conclusion: Assessment of the safety risks possibly originating from the

ISO 20078 series .................................................................................................................................................................................... 7

7 Assessment of the risks associat ed to the security of the ExVe communication system ...........8

7.1 Security risks considered ............................................................................................................................................................... 8

7.2 Analysis of the situation presented by the ISO 20078 series .......................................................................... 8

7.2.1 General considerations relative to the specification of the OAuth2 framework ....... 8

7.2.2 General consideration related to cybersecurity ................................................................................... 8

7.2.3 SEC 1: Risks related to integrity and authenticity............................................................................... 8

7.2.4 SEC 2: Security risks at vehicle systems that are not located at the moving

vehicle ....................................................................................................................................................................................... 9

7.2.5 SEC 3: Risks related to the consequences of a complete or partial
cybersecurity breach (this includes safety, security, competition,

confidentiality and data protection risks) ................................................................................................. 9

7.2.6 SEC 4: Lack of misuse prevention measures ............................................................................................ 9

7.3 Conclusion: Assessment of the security risks possibly originating from the

ISO 20078 series .................................................................................................................................................................................10

8 Assessment of the risks associat ed to the fair competition among the concerned actors ...10

8.1 Competition risks considered .................................................................................................................................................10

8.2 Analysis of the situation presented by the ISO 20078 series .......................................................................10

8.2.1 Involved actors ...............................................................................................................................................................10

8.2.2 FAIR 1: Possible misuse of the acquired knowledge ......................................................................11

8.2.3 FAIR 2: Possible gaining of unique knowledge of the market through

monitoring ........................................................................................................................................... ...............................11

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 23791:2019(E)

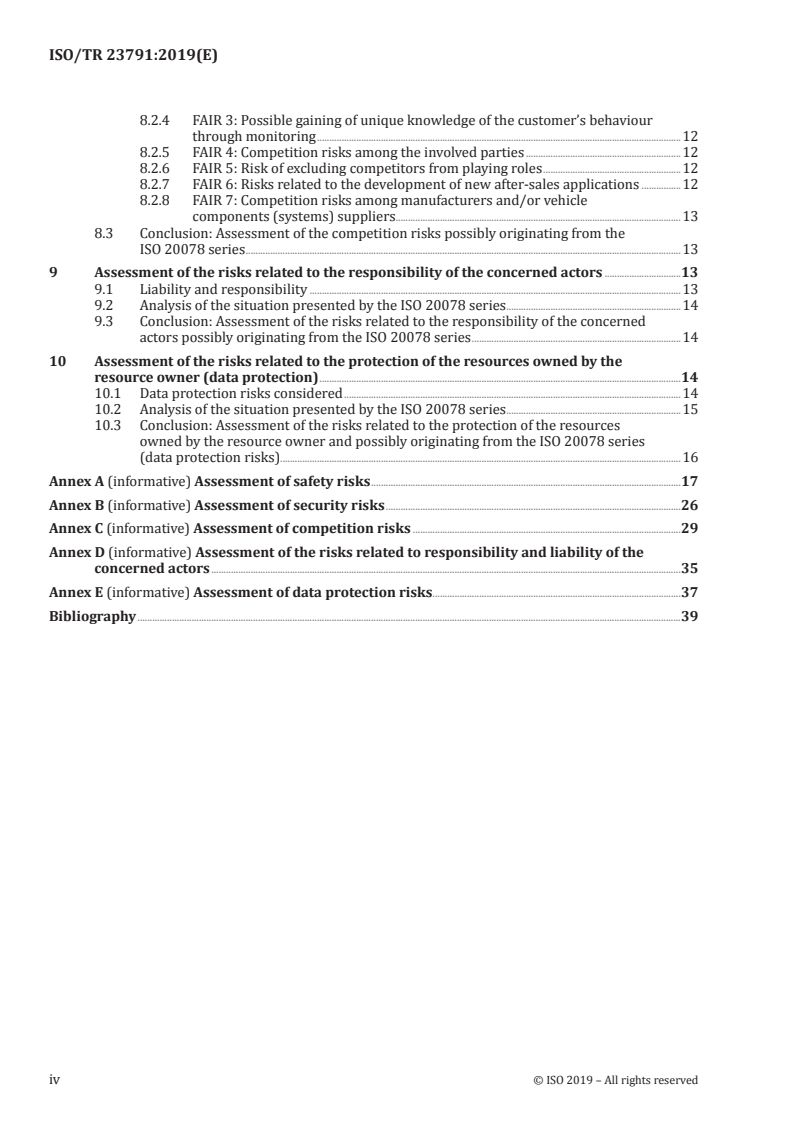

8.2.4 FAIR 3: Possible gaining of unique knowledge of the customer’s behaviour

through monitoring ....................................................................................................................................................12

8.2.5 FAIR 4: Competition risks among the involved parties ...............................................................12

8.2.6 FAIR 5: Risk of excluding competitors from playing roles ........................................................12

8.2.7 FAIR 6: Risks related to the development of new after-sales applications ................12

8.2.8 FAIR 7: Competition risks among manufacturers and/or vehicle

components (systems) suppliers .................. ..................................................................................................13

8.3 Conclusion: Assessment of the competition risks possibly originating from the

ISO 20078 series .................................................................................................................................................................................13

9 Assessment of the risks r elated to the responsibility of the concerned actors ...............................13

9.1 Liability and responsibility .......................................................................................................................................................13

9.2 Analysis of the situation presented by the ISO 20078 series .......................................................................14

9.3 Conclusion: Assessment of the risks related to the responsibility of the concerned

actors possibly originating from the ISO 20078 series .....................................................................................14

10 Assessment of the risks r elated to the protection of the resources owned by the

resource owner (data protection) ...................................................................................................................................................14

10.1 Data protection risks considered .........................................................................................................................................14

10.2 Analysis of the situation presented by the ISO 20078 series .......................................................................15

10.3 Conclusion: Assessment of the risks related to the protection of the resources

owned by the resource owner and possibly originating from the ISO 20078 series

(data protection risks)...................................................................................................................................................................16

Annex A (informative) Assessment of safety risks ..............................................................................................................................17

Annex B (informative) Assessment of security risks ........................................................................................................................26

Annex C (informative) Assessment of competition risks .............................................................................................................29

Annex D (informative) Assessment of the risks related to responsibility and liability of the

concerned actors ...............................................................................................................................................................................................35

Annex E (informative) Assessment of data protection risks.....................................................................................................37

Bibliography .............................................................................................................................................................................................................................39

iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/TR 23791:2019(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 31,

Data communication.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/TR 23791:2019(E)
Introduction

The ISO 20078 series specifies a possible web service to implement a certain web interface of the

Extended Vehicle, depending on the concerned use case.

The development of this series has revealed several fears about possible risks related to safety, security,

competition, liability, and data protection that may originate from that interface.

To address these fears, a list of criteria was first developed to be considered independently of the

considered interface. This list is the object of ISO/TR 23786.

This list was then used for assessing the risks originating from the ISO 20078 series and concept to

issue this document.

Finally, the risk assessment demonstrated that there are no risks resulting from the ISO 20078 series

itself, however, there may be risks resulting from an implementation of that series.

vi © ISO 2019 – All rights reserved
---------------------- Page: 6 ----------------------
TECHNICAL REPORT ISO/TR 23791:2019(E)
Road vehicles — Extended vehicle (ExVe) web services —
Result of the risk assessment on ISO 20078 series
1 Scope

This document presents the assessment of the safety, security, competition, responsibilities, and data

protection risks that can originate from the ISO 20078 series.

In particular, the following risks are outside the scope of this assessment, because they relate to

elements that are excluded from the scope of the ISO 20078 series:
— the risks associated with the implementation of the ISO 20078 series;

— the risks associated with the process that the accessing parties or any other parties would later on

use to communicate the information they obtained;

— the risks associated with the process used by the resource owner to provide, modify, or revoke their

authorization to pass information;

— the risks associated with the mitigation of the risks, should such a mitigation be necessary.

2 Normative references
There are no normative references in this document.
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at http: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1.1
accessing party
entity which accesses resources (3.1.8) via web services (3.1.11)
[SOURCE: ISO 20078-1:2019, 3.1.6, modified — Notes to entry have been deleted.]
3.1.2
authorization provider

entity at the offering party (3.1.7) that manages the access rights to resources and resource owner (3.1.9)

information
[SOURCE: ISO 20078-1:2019, 3.1.9, modified —Note 1 to entry has been deleted.]
© ISO 2019 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/TR 23791:2019(E)
3.1.3
extended vehicle
ExVe

entity, still in accordance with the specifications of the vehicle manufacturer, that extends beyond the

physical boundaries of the road vehicle and consists of the road vehicle, off-board systems, external

interfaces, and the data communication between the road-vehicle and the off-board systems

[SOURCE: ISO 20077-1:2017, 3.5, modified — Note 1 to entry has been deleted.]
3.1.4
ExVe manufacturer
vehicle manufacturer responsible for the extended vehicle (3.1.3)
[SOURCE: ISO 20077-1:2017, 3.6]
3.1.5
identity provider

entity responsible for authentication (identification) of users, through the use of credentials

Note 1 to entry: Offering party confirms the identity of the authenticated resource owner.

[SOURCE: ISO 20078-1:2019, 3.1.7, modified —Note 2 to entry has been deleted.]
3.1.6
intermediate body

party that manages the authorizations given by the resource owner (3.1.9) to communicate resources to

the accessing party (3.1.1) via web service (3.1.11)
3.1.7
offering party
entity who provides web services (3.1.11) access to resources (3.1.8)
[SOURCE: ISO 20078-1:2019, 3.1.3.]
3.1.8
resource
data, aggregated information or functionalities of the connected vehicle
[SOURCE: ISO 20078-1:201, 3.2.1, modified —Note 1 to entry has been deleted.]
3.1.9
resource owner
responsible party for the resource(s) (3.1.8)

Note 1 to entry: The resource owner is responsible for granting, denying, and revoking access to resource(s).

Note 2 to entry: The responsible resource owner is determined by the concrete resource.

[SOURCE: ISO 20078-1:2019, 3.1.4.]
3.1.10
resource provider

entity at the offering party (3.1.7) that protects and provides resources (3.1.8)

[SOURCE: ISO 20078-1:2019, 3.1.8.]
3.1.11
web service

software system, with an interface described in a machine-processable format, and designed to support

interoperable machine-to-machine interaction over a network
[SOURCE: ISO 20077-1:2017, 3.21.]
2 © ISO 2019 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/TR 23791:2019(E)
3.2 Abbreviated terms
ExVe Extended Vehicle
VM Vehicle Manufacturer
4 General result of the risk assessment

This document presents a risk assessment of the ISO 20078 series. This means it intends to answer

to the following question: “Does the ISO 20078 series generate any safety, security, competition,

responsibility, liability, or data protection risks?”

The answer is NO: The ISO 20078 series does not generate any safety, security, competition,

responsibility, liability, or data protection risks.

Nevertheless, the risk assessment did not consider the manner the ISO 20078 series is implemented.

Therefore, there may be safety, security, competition, responsibility, liability, or data protection risks

resulting from implementation.

It is therefore recommended to conduct a risk assessment by the vehicle manufacturer on safety,

security, competition, responsibility, liability, or data protection for the individual implemented

solution.
5 Categories of the assessed risks

In this document, the risks that have been assessed are the one listed in ISO/TR 23786. They are

regrouped as follows:

— safety risks: risks related to the safety of persons and goods during the vehicle life cycle;

— security risks: risks associated to the security of the vehicle communication system;

— competition risks: risks associated to the fair competition among the concerned actors;

— responsibility and liability risks: risks related to the responsibility and liability of the concerned

actors;

— data protection risks: risks related to the protection of the resources owned by the resource owner.

More precisely, the assessment results from the answer to the following question: “Can the ExVe web

service interface, when designed according to the ISO 20078 series for a certain use case, present safety,

security, competition, responsibility, liability, or data protection risks originating from that series?”

The risks resulting from the implementation of the ISO 20078 series are excluded from the assessment.

In particular, when implementing the ISO 20078 series, the ExVe manufacturer will design all the

arbitration mechanisms, including the mechanisms aiming at mitigating the risks. To address these

risks the ExVe manufacturer is invited to apply the design methodology specified in ISO 20077-2.

6 Assessment of the risks r elated to the safety of the persons and the goods
during the ExVe life cycle
6.1 Safety risks considered

“Can the ExVe web service interface, when designed according to the ISO 20078 series for a certain use

case, present safety risks originating from that series?”
© ISO 2019 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/TR 23791:2019(E)
The safety risks considered for this assessment are the following:

— overload safety risks that are not resulting from cybersecurity issues or problems:

— SAFE 1. Possible overload of the electronic system of the moving vehicle (numerous simultaneous

requests);

— SAFE 2. Possible overload of the electronic system of the moving vehicle (frequent requests);

— SAFE 3. Possible overload of the electronic system of the moving vehicle (unexpected requests);

— SAFE 4. Possible illicit or malicious remote control of vehicles;
— SAFE 5. Lack of compatibility with the existing systems and mechanisms;

— SAFE 6. Failures of the remote communication solution itself of the ExVe (including the VM

back-end server when applicable);
— SAFE 7. Lack of consideration of the complete vehicle life cycle;
— SAFE 8. Risks related to the design validation process;
— SAFE 9. Lack of misuse prevention;
— safety risks that are resulting from cybersecurity issues or problems:

— SAFE 10. Lack of, or inappropriate measures aiming at reducing the risks in case of illicit or

malicious remote control of vehicles;
— SAFE 11. Other safety risks resulting from cybersecurity issues or problems.

NOTE In these two lists the electronic system encompasses both the hardware and the software.

6.2 Analysis of the situation presented by the ISO 20078 series

6.2.1 SAFE 1: Possible overload of the electronic system of the moving vehicle (numerous

requests)
To the question:

“Does the ISO 20078 series generate safety risks related to a possible overload of the electronic system

of the moving vehicle in the case of several requests at the same time?”
The answer is NO.

The safety risks related to a possible overload of the electronic system of the moving vehicle in the case

of several requests at the same time are only related to the implementation of the ISO 20078 series.

The series reduces these risks because it introduces the interface at the backend server of the

manufacturer. However, the ISO 20078 series does not provide any recommendation regarding

that implementation. It is suggested that the ISO 20078 series could recommend designing this

implementation according to the methodology specified in ISO 20077-2.
The detailed analysis addressing this question can be found in Annex A.

6.2.2 SAFE 2: Possible overload of the electronic system of the moving vehicle (frequent

requests)
To the question:

“Does the ISO 20078 series generate risks related to highly frequently repeated requests?”

The answer is NO.
4 © ISO 2019 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/TR 23791:2019(E)

The safety risks related to a possible overload of the electronic system of the moving vehicle in the case

of frequently repeated requests are only related to the implementation of the ISO 20078 series.

The series reduces these risks because it introduces the interface at the backend server of the

manufacturer. However, the ISO 20078 series does not provide any recommendation regarding

that implementation. It is suggested that the ISO 20078 series could recommend designing this

implementation according to the methodology specified in ISO 20077-2.
The detailed analysis addressing this question can be found in Annex A.

6.2.3 SAFE 3: Possible overload of the electronic system of the moving vehicle (unexpected

requests)
To the question:
“Does the ISO 20078 series generate risks related to unexpected requests?”
The answer is NO.

The safety risks related to a possible overload of the electronic system of the moving vehicle in the case

of unexpected requests are only related to the implementation of the ISO 20078 series.

The ISO 20078 concept, by introducing the web-service communication via the back-end server of

the vehicle manufacturer, enables a possible substantial reduction of these risks, should the vehicle

manufacturer appropriately design this backend server.

It is recommended unexpected requests be denied. However, the ISO 20078 series does not provide

any such recommendation. It is suggested that the ISO 20078 series could recommend designing this

implementation according to the methodology specified in ISO 20077-2.
The detailed analysis addressing this question may be found in Annex A.
6.2.4 SAFE 4: Possible illicit or malicious remote control of vehicles
To the question:

“Does the ISO 20078 series prohibit illicit or malicious remote control of vehicles, or an illicit or

malicious remote activation of systems and components? Actively?”
The answer is NO.

The safety risks related to a possible illicit or malicious remote control of vehicles, or an illicit or

malicious remote activation of systems and components are only related to the implementation of the

ISO 20078 series.

The ISO 20078 concept, by introducing the web-service communication via the back-end server of

the vehicle manufacturer, enables a possible substantial reduction of these risks, should the vehicle

manufacturer appropriately design this backend server.

However, the ISO 20078 series introduces concepts that may facilitate the introduction of mechanisms

aiming at actively preventing or limiting uncontrolled or malicious remote take of control of vehicles, or

an uncontrolled or malicious remote activation of systems and components.
The detailed analysis addressing this question can be found in Annex A.
6.2.5 SAFE 5: Lack of compatibility with the existing systems and mechanisms
To the question:

“Does the ISO 20078 series generate risks related the lack of compatibility with the existing design of

the vehicle?”
© ISO 2019 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/TR 23791:2019(E)
The answer is NO.
To the question:

“Does the ISO 20078 concept address the risks related to the lack of compatibility with the existing

design of the vehicle?”
The answer is YES.

The ISO 20078 concept, by introducing the web-service communication via the back-end server of

the vehicle manufacturer, enables a possible substantial reduction of these risks, should the vehicle

manufacturer appropriately design this backend server.
The detailed analysis addressing this question can be found in Annex A.

6.2.6 SAFE 6: Failures of the remote communication solution itself of the ExVe (including the

back-end system of the manufacturer)
To the question:

“Does the ISO 20078 series generate safety risks in the case when e.g. the back-end server is down

(internal failures, hacking, etc…)?”
The answer is NO.
The detailed analysis addressing this question can be found in Annex A.
6.2.7 SAFE 7: Lack of consideration of the complete ExVe life cycle
To the question:

“Does the ISO 20078 series generate safety risks related to requests that are inappropriate in the actual

life cycle phase of the running vehicle?”
The answer is NO.

However, such safety issues may occur in the case of a dysfunction of the processes informing the

authorization provider of a change of the life cycle stage (manufacturing, sales, operation, maintenance

and repair, end of life).
The detailed analysis addressing this question can be found in Annex A.
6.2.8 SAFE 8: Risks related to the design validation process
To the question:

“Does the ISO 20078 series generate safety risks related to the validation of the design process and its

tracea
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
