ISO 7175-2:2019

Furniture - Children's cots and folding cots for domestic use - Part 2: Test methods

This document specifies test methods to assess the safety of children's cots and folding cots for domestic use with an internal length of between 900 mm and 1 400 mm.

Ameublement — Lits fixes et lits pliants pour enfants à usage domestique — Partie 2: Méthodes d'essai

General Information

• Status: Published
• Publication Date: 17-Jan-2019
• ICS: 97.140 - Furniture
• Technical Committee: ISO/TC 136 - Furniture
• Drafting Committee: ISO/TC 136/WG 6 - Children's and nursery furniture
• Current Stage: 9093 - International Standard confirmed
• Start Date: 11-Jun-2024
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 7175-2:1997 - Children's cots and folding cots for domestic use - Part 2: Test methods
• Effective Date: 04-Nov-2015

Overview

ISO 7175-2:2019 - Furniture - Children's cots and folding cots for domestic use - Part 2: Test methods specifies the laboratory test methods used to assess the safety and mechanical performance of children’s cots and folding cots with an internal length between 900 mm and 1 400 mm. It is the third edition (2019) and has been aligned with EN 716-2:2017. The document defines test conditions, required test apparatus, procedures and reporting rules so that results are repeatable and comparable.

Key topics and technical requirements

• Scope and general test conditions: Tests are carried out on fully assembled units under indoor ambient conditions (record extremes if outside 15 °C–25 °C). Fabrics intended to be removable are washed per manufacturer’s instructions before testing.
• Test sequence and tolerances: Tests are performed in the order given and on the same cot. Typical tolerances include forces ±5%, dimensions ±1 mm, positioning ±5 mm and specified durations for static and durability loads.
• Test apparatus: Detailed equipment specifications include measuring probes (multiple diameters and shapes), a 10 kg bottom impactor, a 2 kg side impactor with rubber face, a 60 mm polyurethane test mattress, a 100 mm loading pad and a ball-chain test mass for entanglement/snag assessment.
• Test procedures (Clause 6): Comprehensive tests cover
  • Assembly and inspection
  • Stability tests and prevention of unwanted movement
  • Foothold detection and testing
  • Measurement of holes, gaps and openings (inside and outside the cot)
  • Small parts assessment (torque and tension tests)
  • Bite test for coated/soft surfaces
  • Mattress base and cot base folding and impact strength
  • Strength tests for sides, slats, corners, mesh/flexible panels
  • Frame and fastenings: vertical static load, durability cycles
  • Snag points and locking mechanism durability/strength
• Reporting: Requirements for documenting deviations, environmental conditions, and all test results are specified.

Applications - who uses ISO 7175-2:2019

• Manufacturers and product designers - to validate cot designs and ensure compliance with safety test methods.
• Independent test laboratories and conformity assessors - to perform repeatable evaluations and generate test reports for certification.
• Regulators and retailers - to reference standardized test procedures when evaluating product safety claims and recall investigations.
• R&D teams - to benchmark materials, fastenings and mattress bases against recognized impact, durability and small‑parts criteria.

Related standards

• ISO 7175 series (other parts covering requirements and related topics) - see ISO website for full list.
• EN 716-2:2017 - alignment noted in this edition.
• Referenced standards for test materials and instrumentation: ISO 48‑5 (rubber hardness IRHD) and ISO 2439 (foam indentation hardness).

Keywords: ISO 7175-2:2019, children's cots test methods, folding cots safety, cot impact test, cot durability testing, small parts torque test.

Standards Content (Sample)

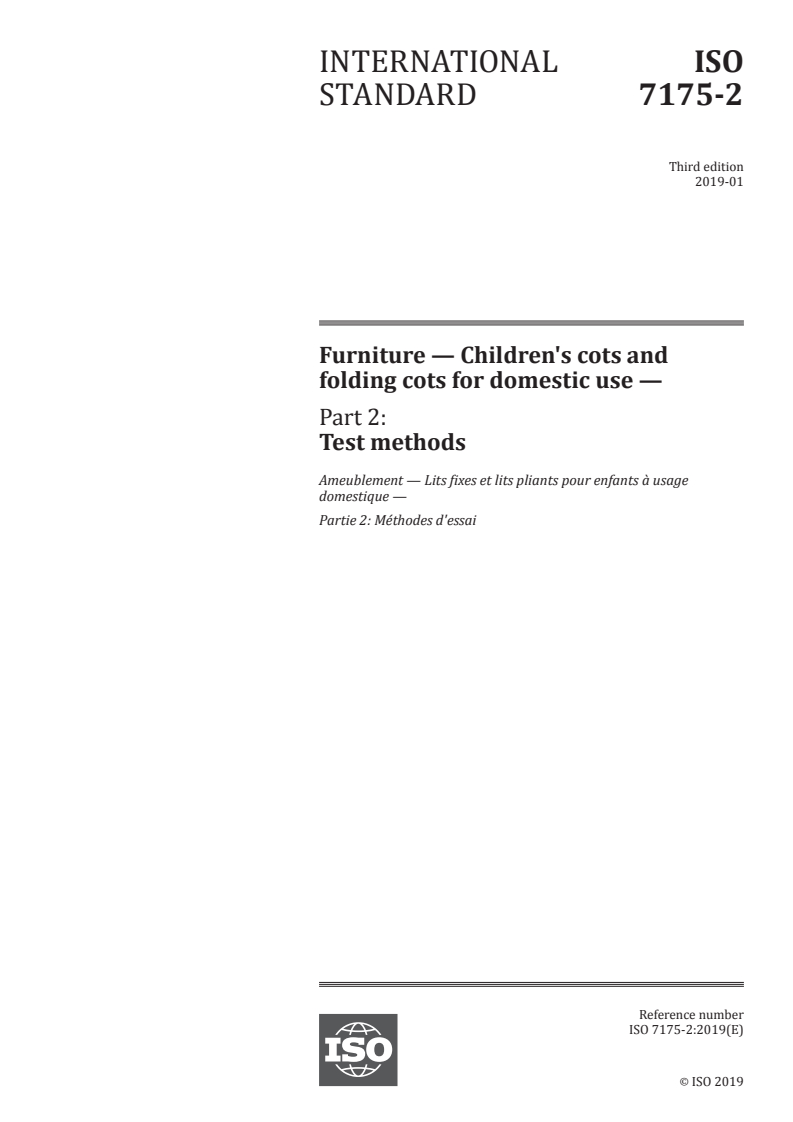

INTERNATIONAL ISO
STANDARD 7175-2
Third edition
2019-01
Furniture — Children's cots and
folding cots for domestic use —
Part 2:
Test methods
Ameublement — Lits fixes et lits pliants pour enfants à usage
domestique —
Partie 2: Méthodes d'essai
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

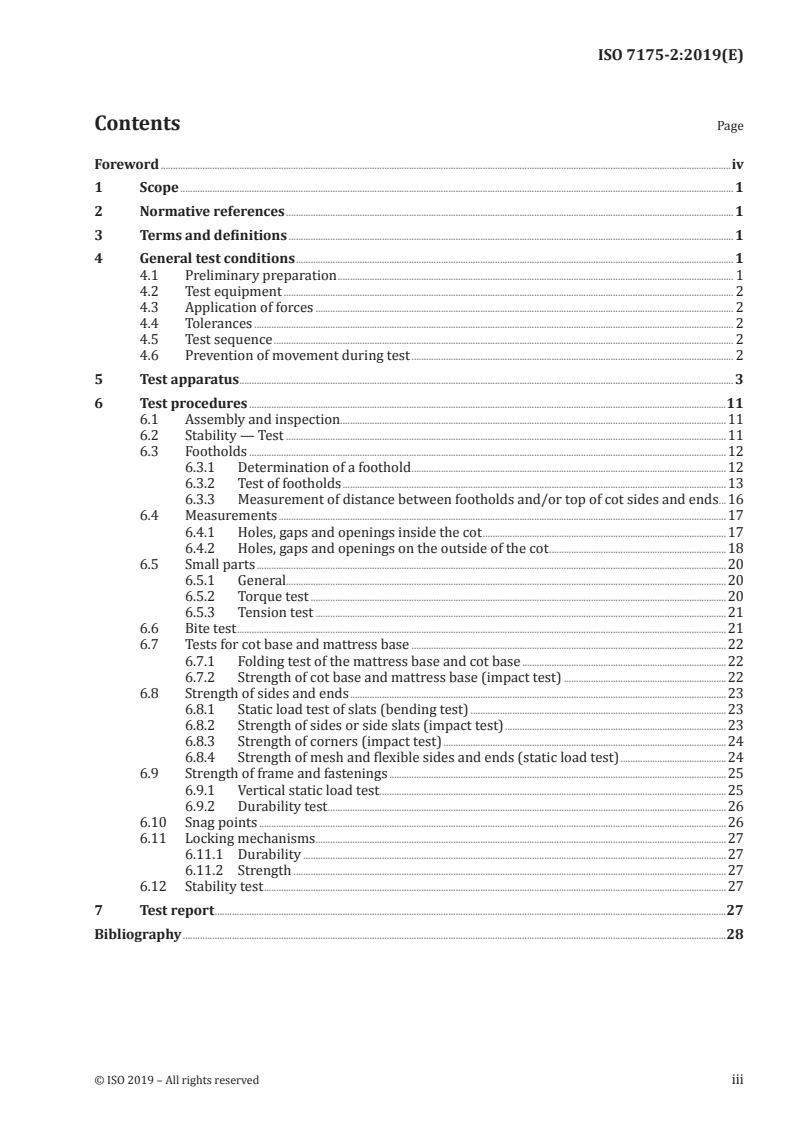

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General test conditions . 1
4.1 Preliminary preparation . 1
4.2 Test equipment . 2
4.3 Application of forces . 2
4.4 Tolerances . 2
4.5 Test sequence . 2
4.6 Prevention of movement during test . 2
5 Test apparatus . 3
6 Test procedures .11
6.1 Assembly and inspection.11
6.2 Stability — Test .11
6.3 Footholds .12
6.3.1 Determination of a foothold .12
6.3.2 Test of footholds .13
6.3.3 Measurement of distance between footholds and/or top of cot sides and ends .16
6.4 Measurements .17
6.4.1 Holes, gaps and openings inside the cot .17
6.4.2 Holes, gaps and openings on the outside of the cot .18
6.5 Small parts .20
6.5.1 General.20
6.5.2 Torque test .20
6.5.3 Tension test .21
6.6 Bite test .21
6.7 Tests for cot base and mattress base .22
6.7.1 Folding test of the mattress base and cot base .22
6.7.2 Strength of cot base and mattress base (impact test) .22
6.8 Strength of sides and ends .23
6.8.1 Static load test of slats (bending test) .23
6.8.2 Strength of sides or side slats (impact test) .23
6.8.3 Strength of corners (impact test) .24
6.8.4 Strength of mesh and flexible sides and ends (static load test) .24
6.9 Strength of frame and fastenings .25
6.9.1 Vertical static load test . .25
6.9.2 Durability test .26
6.10 Snag points .26
6.11 Locking mechanisms .27
6.11.1 Durability .27
6.11.2 Strength .27
6.12 Stability test .27
7 Test report .27
Bibliography .28

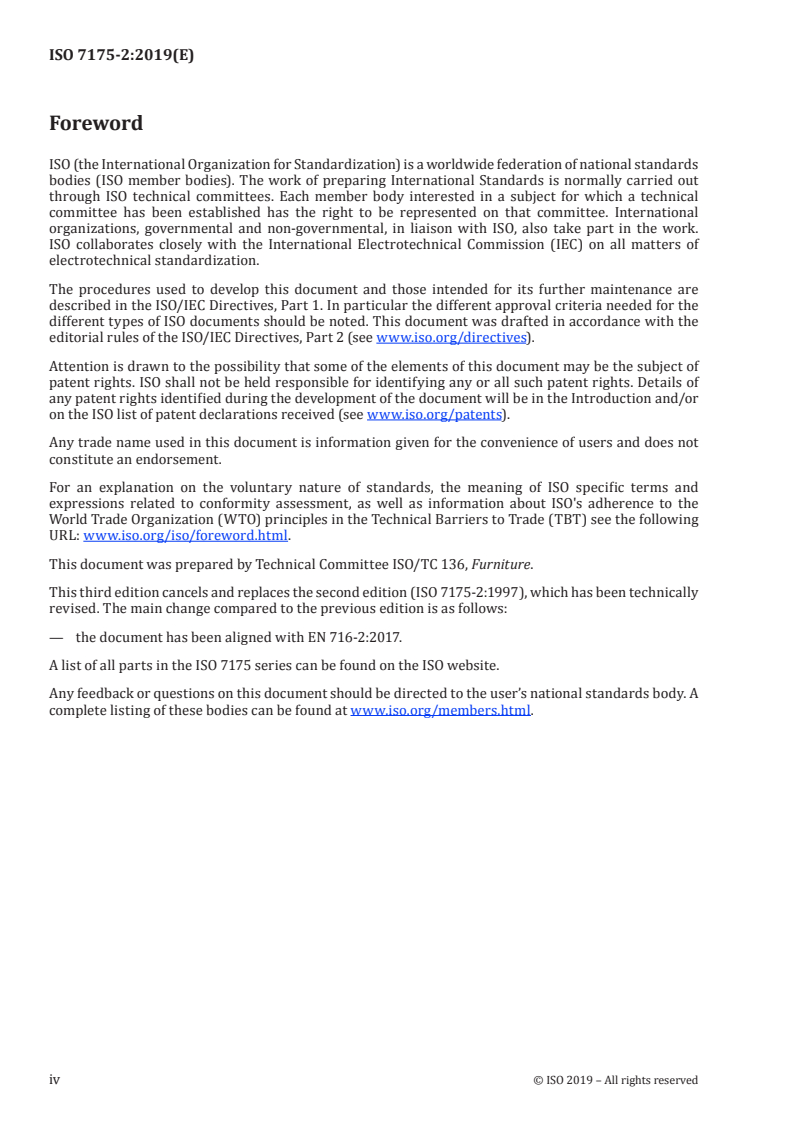

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 136, Furniture.
This third edition cancels and replaces the second edition (ISO 7175-2:1997), which has been technically
revised. The main change compared to the previous edition is as follows:
— the document has been aligned with EN 716-2:2017.
A list of all parts in the ISO 7175 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 7175-2:2019(E)
Furniture — Children's cots and folding cots for
domestic use —
Part 2:
Test methods
1 Scope
This document specifies test methods to assess the safety of children’s cots and folding cots for domestic
use with an internal length of between 900 mm and 1 400 mm.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 48-5, Rubber, vulcanized or thermoplastic — Determination of hardness — Part 5: Indentation
hardness by IRHD pocket meter method
ISO 2439, Flexible cellular polymeric materials — Determination of hardness (indentation technique)
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at https: //www .electropedia .org/
4 General test conditions
4.1 Preliminary preparation
The tests are designed to be applied to a cot that is fully assembled and ready for use.
The test unit shall be stored in indoor ambient conditions for at least one week immediately prior to
testing. Any deviation from this procedure shall be stated in the test report.
Before testing, any fabrics intended to be removable shall be cleaned or washed twice in accordance
with the manufacturer's instructions. If no instructions are supplied, the washing/cleaning shall be
described in the test report.
The tests shall be carried out under indoor ambient conditions but if, during a test, the atmospheric
temperature is outside the range 15 °C to 25 °C, the maximum and/or minimum temperature shall be
recorded in the test report.
The cot shall be tested as delivered. If the cot is a knock-down type, it shall be assembled according
to the manufacturer's instructions supplied with the cot. If the cot can be assembled, combined or
adjusted in different ways, the most adverse combination shall be used for each test.
Knock-down fittings shall be tightened before testing. Further re-tightening shall not take place unless
specifically required by the manufacturer.
In the case of designs not catered for in the test procedures, the tests shall be carried out as far as
possible as described, and a list of the deviations from the test procedures shall be made.
4.2 Test equipment
Unless otherwise specified, test forces may be applied by any suitable device, because results are
dependent only upon correctly applied forces and loads, and not upon the apparatus.
The equipment shall not inhibit the deformation of the cot during testing. It shall be able to move in
order to follow the deformation of the cot during testing, so that the loads are always applied at the
specified point and in the specified direction.
All loading pads shall be capable of pivoting in relation to the direction of the applied force. The pivot
point shall be as close as practically possible to the load surface.
4.3 Application of forces
The forces in the static load tests shall be applied slowly enough to ensure that negligible dynamic force
is applied.
The forces in durability tests shall be applied at a rate such that excessive heating does not occur.
4.4 Tolerances
Unless otherwise stated, the following tolerances apply:
—  Forces: ±5 % of the nominal force;
—  Masses: ±0,5 % of the nominal mass;
—  Dimensions: nominal dimension ±1,0 mm;
—  Angles: nominal angle ±2°;
—  Positioning of loading pads: ±5 mm;
—  Duration of forces: (2 ± 1) s for durability tests;
(10 ± 2) s for static load tests, including tension, torque and bite
tests.
The tests are described in terms of the application of forces. Masses can, however, be used. The
relationship 10 N = 1 kg shall be used for this purpose.
4.5 Test sequence
The tests shall be carried out in the order laid down in this document and on the same cot.
4.6 Prevention of movement during test
If the cot tends to slide or roll during the tests specified in Clause 6, it shall be restrained by stops (5.6).
2 © ISO 2019 – All rights reserved

5 Test apparatus
5.1 Measuring probes, made of plastics or other hard, smooth material mounted on a force-
measuring device.
There shall be one probe with a diameter of 7 mm; see Figure 1 a).
−01,
+01, +01, +01,
There shall be five probes with an angle of 30° ± 0,5° with diameters of 25 mm, 45 mm, 60 mm,
0 0 0
+01, +01,
65 mm and 85 mm with conical ends; see Figure 1 b).
0 0
0 0 +01, +01,
There shall be four cylindrical probes with diameters of 5 mm, 7 mm, 12 mm and 18 mm with
−01, −01, 0 0
hemispherical ends; see Figure 1 c).
Dimensions in millimetres
a) 7 mm probe
b) Conical probes
c) Cylindrical probes
Figure 1 — Measuring probes
5.2 Bottom impactor with a total mass of 10 kg, of hardwood or equivalent material, with dimensions
in accordance with Figure 2.
The impactor shall be guided so that it is kept vertical and always falls on the impact point.
Dimensions in millimetres
Figure 2 — Bottom impactor
5.3 Test mattress, consisting of a polyurethane foam sheet with a thickness of 60 mm, a bulk density
of 35 kg/m , with a tolerance of ±10 %, or an indentation hardness index of (170 ± 40) N, which shall be
in accordance with A of ISO 2439, and being at least 400 mm × 800 mm in area but not larger
(40 %/30 s)
than the mattress base of the cot under test. The test mattress shall have a light soft cotton cover with a
mass not greater than 120 g/m .
5.4 Side impactor, consisting of a pendulum with a cylindrical head made of steel (Figure 3). The head
of the pendulum shall be surrounded by a 10-mm thick layer of rubber of hardness 76 IRHD to 78 IRHD
in accordance with ISO 48-5. The total mass shall be 2 kg.
4 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
1 pivot point
2 centre of gravity
3 rubber 76 IRHD to 78 IRHD
Figure 3 — Side impactor
5.5 Loading pad, consisting of a rigid cylindrical object, 100 mm in diameter, having a smooth hard
surface and rounded edge with radius of 12 mm.
5.6 Stops which prevent the article from sliding but not tilting, not higher than 12 mm except in cases
where the design of the item necessitates the use of higher stops, in which case the lowest that will
prevent the item from sliding shall be used.
5.7 Floor surface, consisting of a rigid, horizontal and flat surface.
5.8 Test chain and mass, consisting of a ball chain with a ball diameter of (3,2 ± 0,2) mm and a
distance between ball centres of (4,0 ± 0,2) mm (Figure 4), fixed to a 2,5 kg spherical weight with a
diameter of 115 mm forming a loop in accordance with Figure 5.
Dimensions in millimetres
Figure 4 — Ball chain
Dimensions in millimetres
Key
1 ball chain
2 weight, mass 2,5 kg
3 fixing point
Figure 5 — Test chain and mass
5.9 Small parts cylinder for assessment of small components, having dimensions in accordance with
Figure 6.
NOTE The cylinder is identical to the one specified in ISO 8124-1.
6 © ISO 2019 – All rights reserved

Dimensions in millimetres
Figure 6 — Small parts cylinder
5.10 Test mass, consisting of a weight having a mass of 10 kg and a cross-section of 100 mm × 30 mm.
5.11 Bite tester, which is an apparatus (Figure 8), consisting of two sets of teeth (Figure 7), made from
H13 high chrome tool steel or equivalent and hardened to 45 Rockwell C to 50 Rockwell C. There shall
be two teeth at the top and two at the bottom of the bite tester, positioned so that the vertical centre line
of one pair of teeth is (1 ± 0,1) mm in front of the centre line of the other set of teeth. In the fully closed
position, the teeth shall overlap each other by (1 ± 0,1) mm. The outer most corners of the teeth shall
have a radius of (0,3 ± 0,1) mm.
The teeth shall be mounted so as to pivot about a point (50 ± 1) mm from the rear most pair of teeth
and positioned so that, when closed, the centre lines of the two pairs of teeth are parallel to each other.
The bite tester shall be equipped with a stop to prevent the distance between the teeth from exceeding
(28 ± 1) mm when fully opened. The closing force of the teeth shall be set at (50 ± 5) N.
The bite tester shall be provided with a guide to prevent items entering further into the fully opened
jaws by more than (17 ± 1) mm. The bite tester shall be equipped with a means whereby a force of
(50 ± 5) N can be applied along its centre line in a direction tending to pull the teeth off the sample.
Dimensions in millimetres
Figure 7 — Test teeth
Dimensions in millimetres
Key
1 position of guide
2 pivot point
Figure 8 — Bite tester
5.12 Two retaining blocks made of rigid material with a width of 50 mm and a radius of 5 mm at the
front edges.
5.13 Foothold template, consisting of a strip of 10 mm thick transparent material cut to the shape as
shown in Figure 9, marked on one face with the pattern as shown.
The sides of the template shall be at a right angle to the faces. All edges and corners shall be without
any radius.
8 © ISO 2019 – All rights reserved

Dimensions in millimetres
Key
1 triangular cells plotted on a 5 mm × 5 mm grid
Figure 9 — Template for foothold test (example of left hand template)
Two templates are required to provide a left and right hand template. The markings shown in Figure 9
shall be on the bottom face of each template to avoid parallax errors.
5.14 Head probes.
5.14.1 Small head probe.
The small head probe shall be made from plastics or other hard, smooth material with the dimensions
given in Figure 10. The radius shall be 53 mm.
NOTE The small head probe represents a child aged 6 months to 9 months.
Dimensions in millimetres
Key
a 106 mm
b 145 mm
c 126 mm
Figure 10 — Small head probes
5.14.2 Large head probe.
The large head probe shall be made from plastics or other hard, smooth material with the dimensions
given in Figure 11.
NOTE The large head probe represents a child aged up to 36 months.
Dimensions in millimetres
Key
a 223 mm
Figure 11 — Large head probe
5.15 Template for V-and irregularly shaped openings.
The template for V and irregularly shaped openings shall be made from plastics or other hard, smooth
material with the dimensions given in Figure 12. The tolerance for the angles shall be ±1°.
Dimensions in millimetres
Key
1 B portion
2 A portion
Figure 12 — V and irregularly shaped-openings template
10 © ISO 2019 – All rights reserv
...
