Light and lighting — Building information modelling properties for lighting — Lighting systems

This technical specification identifies and clarifies lighting properties for digital building design and maintenance. This document provides all the needed properties to design and to describe lighting systems. These properties are intended to be used for mapping between data providers and requesters. The mapping of the identifiers enables the exchange of luminaire and sensing device data within different databases. The unambiguous mapping and description of properties improves the data quality, reduces misinterpretations and the processing time in digital environments. Therefore, the properties listed in this document establish the essential description of lighting systems in BIM systems and databases. The listed properties in this document are used to structure the product data sheet which is complemented with real product information.

Lumière et éclairage — Propriétés de modélisation des informations de la construction pour l'éclairage — Systèmes d'éclairage

La présente spécification technique identifie et clarifie les propriétés de l’éclairage pour la conception et la maintenance numériques des bâtiments. Le présent document fournit toutes les propriétés nécessaires à la conception et à la description des systèmes d’éclairage. Ces propriétés sont destinées à être utilisées pour la mise en correspondance entre les fournisseurs et demandeurs de données. La mise en correspondance des identifiants permet l’échange de données concernant les luminaires et les capteurs entre différentes bases de données. La mise en correspondance et la description des propriétés, lorsqu’elles sont dépourvues d’ambiguïtés, améliorent la qualité des données, réduisent les erreurs d’interprétation et raccourcissent le temps de traitement dans les environnements numériques. Par conséquent, les propriétés énumérées dans le présent document établissent la description essentielle des systèmes d’éclairage dans les systèmes et bases de données BIM. Les propriétés énumérées dans le présent document servent à structurer la fiche technique du produit en la complétant d’informations réelles sur les produits.

General Information

Status
Published
Publication Date
23-Aug-2023
Current Stage
6060 - International Standard published
Start Date
24-Aug-2023
Due Date
02-Jun-2023
Completion Date
24-Aug-2023
Ref Project

Buy Standard

Technical specification
ISO/TS 7127:2023 - Light and lighting — Building information modelling properties for lighting — Lighting systems Released:24. 08. 2023
English language
61 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

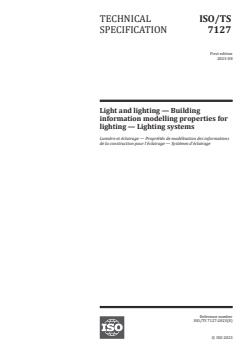

TECHNICAL ISO/TS
SPECIFICATION 7127
First edition
2023-08
Light and lighting — Building
information modelling properties for
lighting — Lighting systems
Lumière et éclairage — Propriétés de modélisation des informations
de la construction pour l'éclairage — Systèmes d'éclairage
Reference number
© ISO 2023
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii

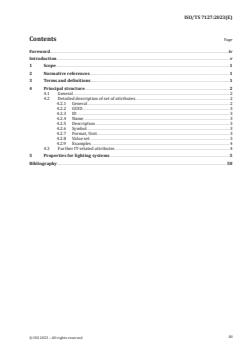

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principal structure . 2
4.1 General . 2
4.2 Detailed description of set of attributes . 2
4.2.1 General . 2
4.2.2 GUID . 3
4.2.3 ID . 3
4.2.4 Name . 3
4.2.5 Description . 3
4.2.6 Symbol . 3
4.2.7 Format, Unit . 3
4.2.8 Value set . 3
4.2.9 Examples . 4
4.3 Further IT-related attributes . 4
5 Properties for lighting systems . 5
Bibliography .58
iii

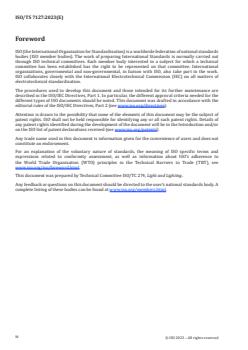

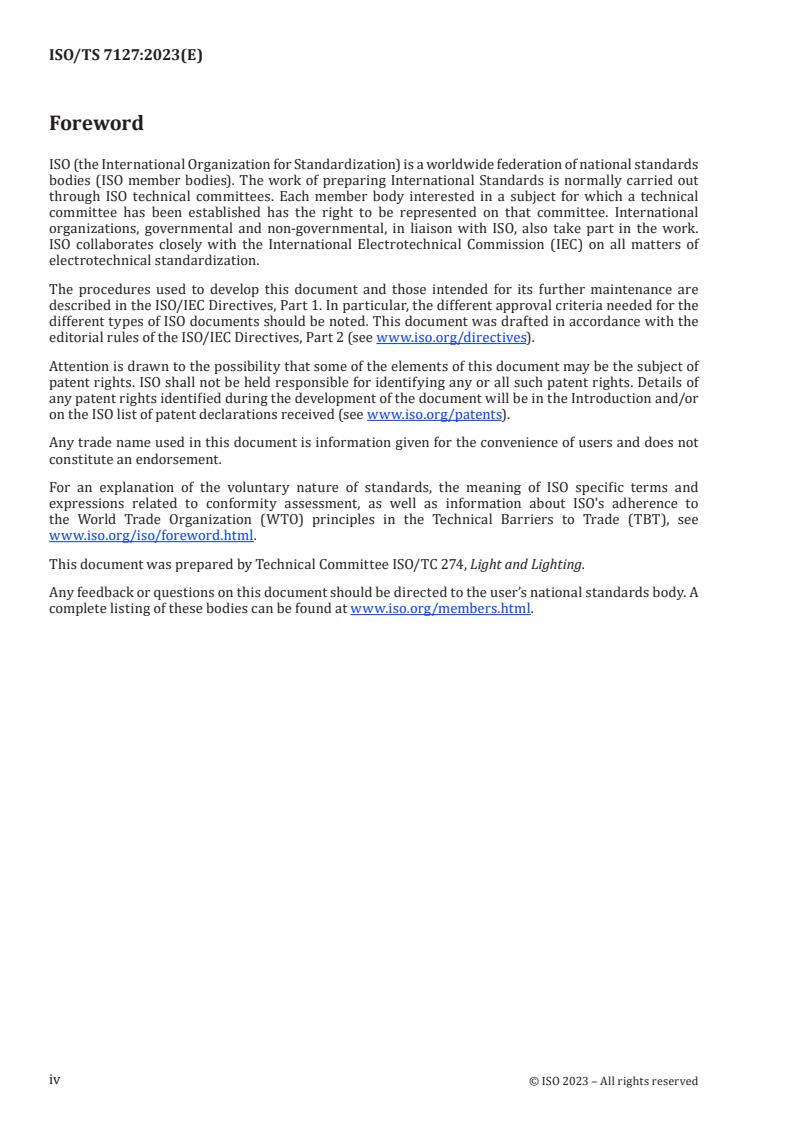

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to
the World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 274, Light and Lighting.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
Building information modelling (BIM) is a concurrent process that gives engineering and construction
professionals the tools to more efficiently plan, construct, and manage buildings and infrastructure.
Within standardisation committees much work is being performed to define the fundamental principles
of BIM that will allow this to happen in an effective and consistent manner.
For lighting applications, it is essential that this work is monitored and where required input is made to
ensure that the requirements for lighting applications are considered.
v
TECHNICAL SPECIFICATION ISO/TS 7127:2023(E)
Light and lighting — Building information modelling
properties for lighting — Lighting systems
1 Scope
This technical specification identifies and clarifies lighting properties for digital building design and
maintenance.
This document provides all the needed properties to design and to describe lighting systems. These
properties are intended to be used for mapping between data providers and requesters. The mapping
of the identifiers enables the exchange of luminaire and sensing device data within different databases.
The unambiguous mapping and description of properties improves the data quality, reduces
misinterpretations and the processing time in digital environments. Therefore, the properties listed
in this document establish the essential description of lighting systems in BIM systems and databases.
The listed properties in this document are used to structure the product data sheet which is
complemented with real product information.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 23386:2020, Building information modelling and other digital processes used in construction —
Methodology to describe, author and maintain properties in interconnected data dictionaries
CIE S 017:2020, ILV: International Lighting Vocabulary
ISO 80000-7, Quantities and units — Part 7: Light
3 Terms and definitions
For the purposes of this document, the following terms and definitions given in CIE S 017, ISO 80000-7
and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
building information modelling
BIM
use of a shared digital representation of a built object (including buildings, bridges, roads, process
plants, etc.) to facilitate design, construction and operation processes to form a reliable basis for
decisions
Note 1 to entry: The acronym BIM also stands for the shared digital representation of the physical and functional
characteristics of any construction works.
[SOURCE: ISO 29481-1:2016, 3.2]
3.2
data dictionary
database that contains metadata
[SOURCE: ISO/IEC 2382:2015, 2121501]
3.3
attribute
data element for the computer-sensible description of a property, group of properties, etc.
Note 1 to entry: An attribute describes only one single detail of a property or a group of properties.
EXAMPLE The GUID of a property, the name of a property, the definition of a group of properties.
[SOURCE: ISO 23386:2020, 3.4, modified – Example extended]
3.4
property
inherent or acquired feature of an item
EXAMPLE Thermal efficiency, heat flow, sound reduction index, sound power level, colour.
[SOURCE: ISO 23386:2020, 3.17]
4 Principal structure
4.1 General
A lighting system (for example a luminaire or a sensing device) is described by specific properties,
providing the possibility to communicate about it in an application or specification.
The properties for lighting systems have been organized in tables listed in Clause 5 according to
different disciplines. This sub-division is indicative only and not to be taken as exclusive:
— Mechanical properties – ID 01 (Table 1);
— Electrical properties – ID 02 (Table 2);
— Emergency lighting properties – ID 03 (Table 3);
— Photometric properties – ID 04 (Table 4);
— Sensing device properties – ID 05 (Table 5);
— Mounting & Accessory properties – ID 06 (Table 6);
— Marketing properties – ID 07 (Table 7);
— Operations & Maintenance properties – ID 08 (Table 8);
— Environmental properties – ID 09 (Table 9).
4.2 Detailed description of set of attributes
4.2.1 General
The structure of the attributes is according to ISO 23386:2020 and enhanced by the property ID.
The properties have no mandatory or optional aspect. All properties are equal in importance and
hierarchy. The use case and the application provide a structure and are mandatory to the properties.
4.2.2 GUID
In ISO 23386:2020, PA001 named “Globally unique identifier”.
Identifier given to a product that guarantees its uniqueness throughout its entire life (defined in
ISO 6707-2:2017, 3.2.46).
This attribute identifies the property unambiguously. A Globally Unique identifier GUID is generated
using an algorithm. This machine-readable code will allow matching across databases, lists and data
template.
In ISO 16739-1 (IFC) and ISO 12006-3 the compressed version of GUID is used. It can be uncompressed
to the standard GUID with open tools.
4.2.3 ID
This attribute identifies the property unambiguously. It is human-readable and corresponds to the
GUID.
Note The ID always starts with the table number from 4.1 followed by a dash and an individual serial
number with four digits.
4.2.4 Name
In ISO 23386:2020, PA016 named “Names in language en-EN”.
The name of the property.
4.2.5 Description
In ISO 23386:2020, PA018 named “Descriptions in language en-EN”.
This attribute is used to provide a plain language description of the property.
For some descriptions the name is enough. To avoid the repeating of the name, just “identical with
name.” is entered.
4.2.6 Symbol
In ISO 23386:2020, PA022 named “Symbols of the property in a given property group”.
Symbols for quantities are given in the ISO 80000 and IEC 80000 series. The symbols for quantities are
written in italics. A given symbol can indicate different quantities. (ISO 80000-1:2022).
4.2.7 Format, Unit
In ISO 23386:2020, PA037 named “Digital format”.
Precision is the maximum number of significant digits that can be represented in a format, or the
number of digits that a result is rounded to [ISO/IEC 60559:2020].
In ISO 23386:2020, PA033 named “Units”.
Concept type representing a scale that enables a value to be measured. Properties that do not have a
unit are to be designated as not applicable (n.a.).
4.2.8 Value set
In ISO 23386:2020, PA039 named “List of possible values in language en-EN”.
Collecti
...
