ISO/TR 22201-3:2016

Lifts (elevators), escalators and moving walks - Programmable electronic systems in safety related applications - Part 3: Life cycle guideline for programmable electronic systems related to PESSRAL and PESSRAE

ISO/TR 22201-3:2016 provides additional information and process for the development of the instruction manual required by ISO 22201‑1 (PESSRAL) and ISO 22201‑2 (PESSRAE) for programmable electronic systems for use by competent maintenance person(s) that carry out maintenance operations.

Ascenseurs, escaliers mécaniques et trottoirs roulants — Conception et mise au point des systèmes électroniques programmables dans les applications liées à la sécurité — Partie 3: Lignes directrices pour le cycle de vie des systèmes électroniques programmables liés à PESSRAL et PESSRAE

General Information

• Status: Published
• Publication Date: 16-Nov-2016
• ICS: 91.140.90 - Lifts. Escalators
• Technical Committee: ISO/TC 178 - Lifts, escalators and moving walks
• Drafting Committee: ISO/TC 178/WG 8 - Electrical requirements
• Current Stage: 6060 - International Standard published
• Start Date: 17-Nov-2016
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO/TR 22201-3:2013 - Lifts (elevators), escalators and moving walks - Programmable electronic systems in safety related applications - Part 3: Life cycle guideline for programmable electronic systems related to PESSRAL and PESSRAE
• Effective Date: 28-Jun-2014

Overview

ISO/TR 22201-3:2016 is a technical report that provides a life cycle guideline for programmable electronic systems (PE systems) used in lifts (elevators), escalators and moving walks. It supplements ISO 22201‑1 (PESSRAL) and ISO 22201‑2 (PESSRAE) by specifying the content and process for the instruction manual manufacturers must provide for competent maintenance person(s). The objective is to help maintain the required safety integrity level (SIL) throughout the post‑installation life cycle (maintenance, repair, replacement, modification).

Key topics and technical requirements

• Instruction manual content: guidance on safety precautions, markings, signs and pictograms, and a checklist of elements to include (specifications, intended use, environment, restrictions, risk assessment results).
• Maintenance procedure and records: identifies required control documents (functional and production specifications, version control) and mandates recording of maintenance activities (preventative tests, failures, modifications).
• Validation of replacements/modifications: process to validate that changes do not reduce the minimum required SIL; treats changes to non‑SIL functions that interface with SIL parts with the same rigor.
• Identification and configuration management: clear identification of physical and software elements, version and configuration control, and interface documentation.
• Diagnostics, proof testing and test precautions: guidance on diagnostics, clarity about performing proof tests, and precautions to avoid introducing unintended faults during testing or via software tools.
• Environmental and operational sensitivities: address ESD, EMI, temperature, humidity and other factors that affect PE system reliability and safety.
• Verification/certification categories: outlines application tests, system certification, and function tests (field/factory) as methods to confirm conformity and SIL allocation.

Practical applications and users

ISO/TR 22201-3 is intended for:

• Manufacturers of safety components and PE systems for lifts, escalators and moving walks (to produce compliant maintenance manuals).
• Maintenance organizations and competent maintenance persons (to follow safe procedures, record actions, and validate changes).
• Owners/operators (to retain control documents and maintenance records for the life of the installation).
• Certification bodies, test laboratories and professional engineers (for witness testing and certification activities).

This guideline is especially relevant for organizations managing elevator/escalator safety, life cycle maintenance programs, and anyone responsible for maintaining SIL ratings for programmable electronic safety systems.

Related standards

• ISO 22201‑1 (PESSRAL) - Lifts (elevators)
• ISO 22201‑2 (PESSRAE) - Escalators and moving walks
• ISO 14798 - Risk assessment and reduction methodology
• ISO 3864‑1 - Safety colours and safety signs

Keywords: ISO/TR 22201-3, PESSRAL, PESSRAE, programmable electronic systems, lift safety, elevator programmable systems, SIL, maintenance instruction manual, life cycle guideline.

Standards Content (Sample)

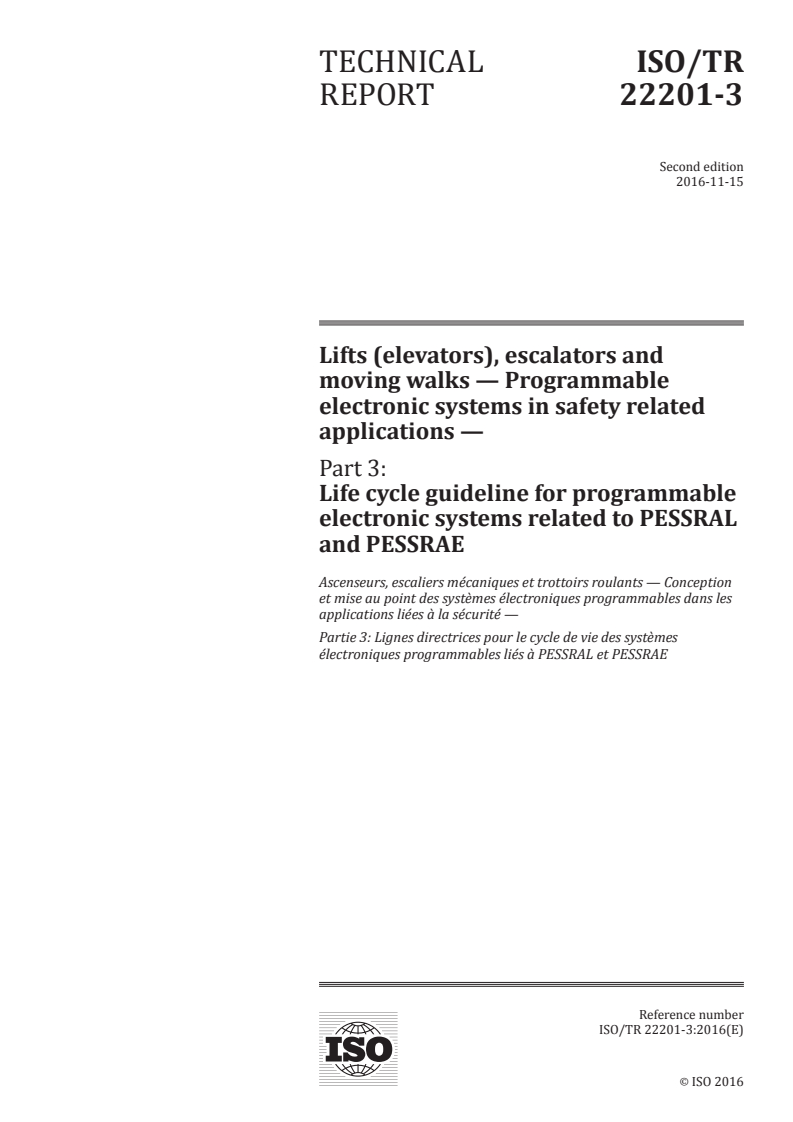

TECHNICAL ISO/TR
REPORT 22201-3
Second edition
2016-11-15
Lifts (elevators), escalators and
moving walks — Programmable
electronic systems in safety related
applications —
Part 3:
Life cycle guideline for programmable
electronic systems related to PESSRAL
and PESSRAE
Ascenseurs, escaliers mécaniques et trottoirs roulants — Conception
et mise au point des systèmes électroniques programmables dans les
applications liées à la sécurité —
Partie 3: Lignes directrices pour le cycle de vie des systèmes
électroniques programmables liés à PESSRAL et PESSRAE
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – All rights reserved

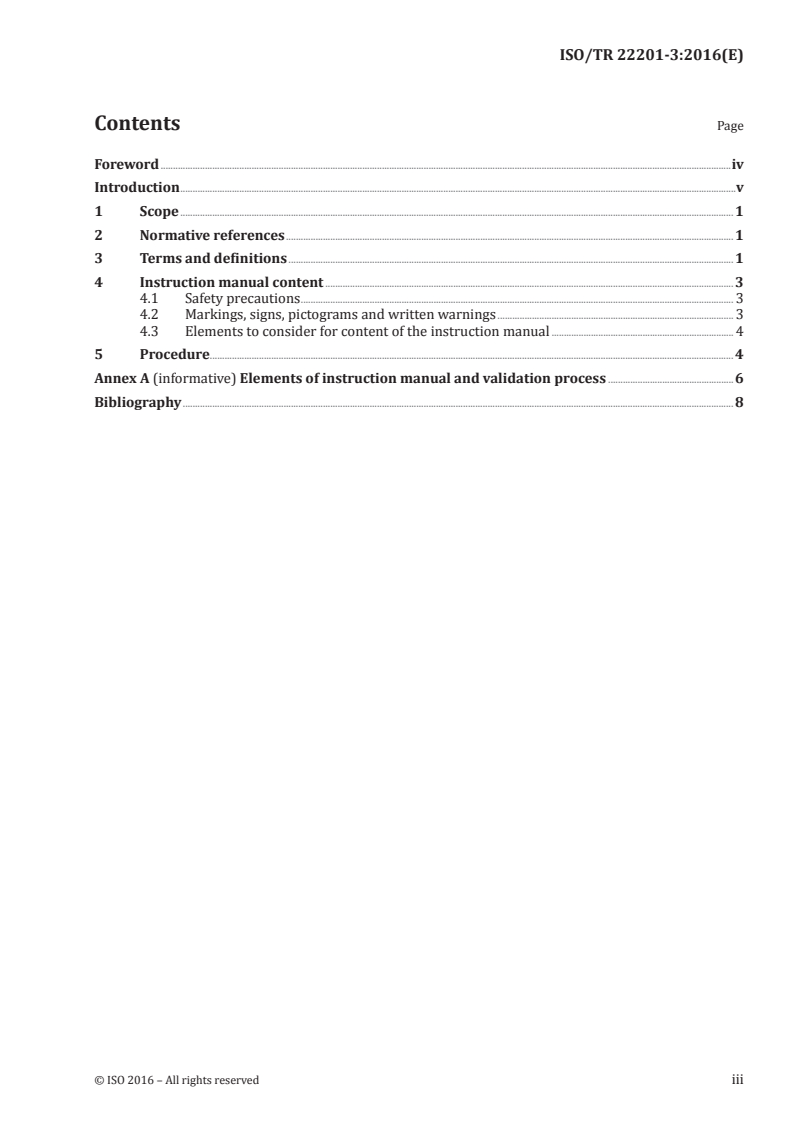

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Instruction manual content . 3
4.1 Safety precautions . 3
4.2 Markings, signs, pictograms and written warnings . 3
4.3 Elements to consider for content of the instruction manual . 4
5 Procedure. 4
Annex A (informative) Elements of instruction manual and validation process .6
Bibliography . 8

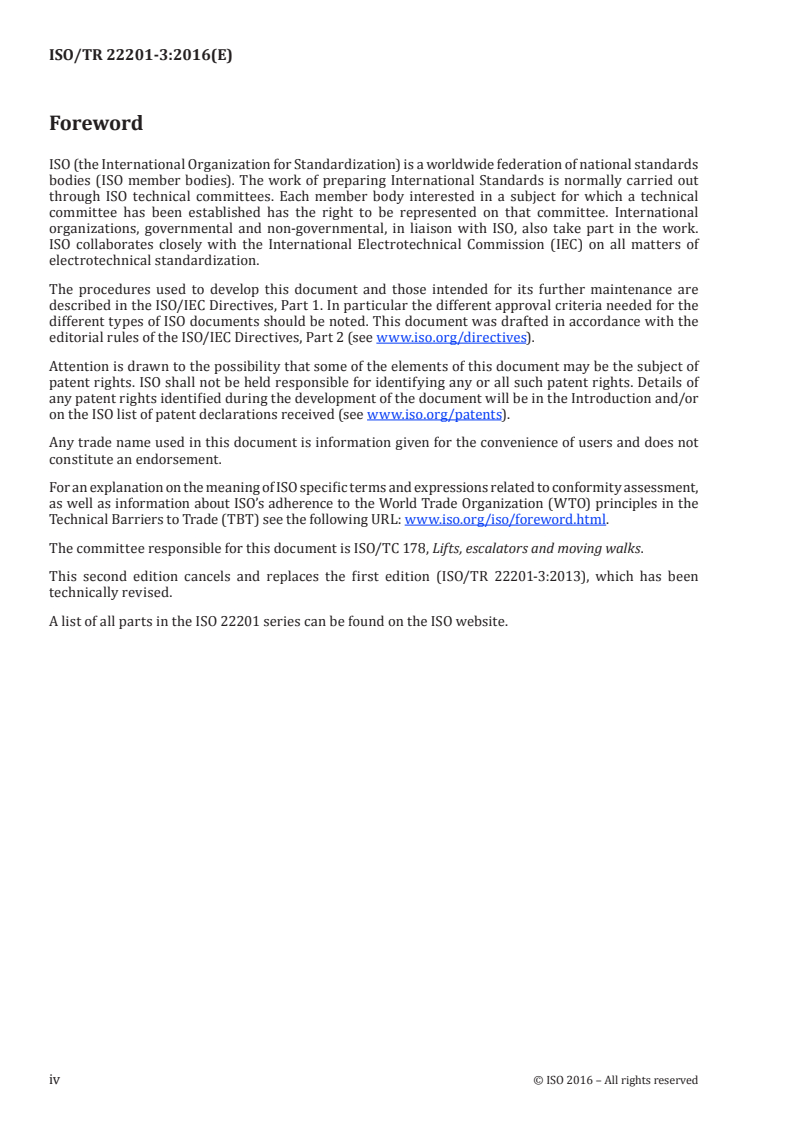

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 178, Lifts, escalators and moving walks.
This second edition cancels and replaces the first edition (ISO/TR 22201-3:2013), which has been
technically revised.
A list of all parts in the ISO 22201 series can be found on the ISO website.
iv © ISO 2016 – All rights reserved

Introduction
This document addresses phases in the life cycle planning and actions for post-installation activities
(e.g. maintenance, repair, and replacement and modification of interface) of PESSRAL and PESSRAE to
help ensure the safety integrity level (SIL) over the life cycle of the system.
TECHNICAL REPORT ISO/TR 22201-3:2016(E)
Lifts (elevators), escalators and moving walks —
Programmable electronic systems in safety related
applications —
Part 3:
Life cycle guideline for programmable electronic systems
related to PESSRAL and PESSRAE
1 Scope
This document provides additional information and process for the development of the instruction
manual required by ISO 22201-1 (PESSRAL) and ISO 22201-2 (PESSRAE) for programmable electronic
systems for use by competent maintenance person(s) that carry out maintenance operations.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 22201-1, ISO 22201-2 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
competent maintenance person
designated person, suitably trained, qualified by knowledge and practical experience, provided with
necessary instructions and supported within their maintenance organization (3.4) to enable the
required maintenance operations to be safely carried out
Note 1 to entry: The competence of the maintenance person within the maintenance organization (3.4) should be
continuously updated.
3.2
design equivalent
original equipment manufacturer, or third party certified product, which fulfils same SIL rated
element/subsystem design specifications but has different specifications for the non-SIL rated portion
of the PE system
3.3
functional equivalent
product which fulfils same functional requirements with different SIL rated element/subsystem design
specifications from that of the original certified product
3.4
maintenance organization
company or part of a company where competent maintenance person(s) (3.1) carry out maintenance
operations on behalf of the owner (3.7) of the installation
3.5
manufacturer
natural or legal person who takes responsibility for the design, manufacture and placing on the market
safety components for lifts or of machinery (escalator, passenger conveyor, service lift and accessible
goods only lift)
3.6
maintenance
post-installation life cycle activities, including preventative, replacement, repair, and alteration
(modifications)
3.7
owner
natural or legal person who has the power or disposal of the installation and takes the responsibility
for its operation and use
3.8
programmable electronic
PE
based on computer technology which may be comprised of hardware, software, and of input and/or
output units
Note 1 to entry: This term covers microelectronic devices based on one or more central processing units (CPUs)
together with associated memories, etc.
EXAMPLE The following are all programmable electronic devices:
— microprocessors;
— micro-controllers;
— programmable controllers;
— fie
...
