INTERNATIONAL STANDARD ISO 21125:2019(E)
Ships and marine technology — Marine cranes —
Manufacturing requirements
1 Scope
This document specifies the general technical manufacturing requirements for marine cranes of metal
construction.
This document is applicable to the following types of marine cranes:
— deck cranes mounted on ships for handling cargo or containers in harbour conditions;
— floating cranes or grab cranes mounted on barges or pontoons for operating in harbour conditions;
— engine room cranes and provision cranes, etc. mounted on ships (including floating docks) for
handling equipment and stores in harbour conditions.
NOTE Marine cranes in other types of crane can refer to this document.
This document does not apply to cranes manufactured to operate in:
— ambient operating temperatures below −20 °C;
— ambient operating temperatures above +45 °C;
— lifting operations below sea level;
— lifting operations involving more than one crane;
— emergency rescue operations;
— shore-side cargo handling cranes;
— lifting lifeboats, liferafts accommodation ladders, pilot ladders, gangways and their handling
appliances;
— launching appliances for survival craft and rescue boats.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3828, Shipbuilding and marine structures — Deck machinery — Vocabulary and symbols
ISO 4306-1, Cranes — Vocabulary — Part 1: General
ISO 19354:2016, Ships and marine technology — Marine cranes — General requirements
ISO 19355, Ships and marine technology — Marine cranes — Structural requirements
ISO 19356, Ships and marine technology — Marine cranes — Test specifications and procedures
ISO 19360, Ships and marine technology — Marine cranes — Technical requirements for rigging
applications
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4306-1, ISO 3828 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
oil sealing
process of coating the machining surface of metal components with anti-corrosion grease to prevent
corrosion
4 General requirements
The manufacturing of marine cranes shall be in accordance with ISO 19354, ISO 19355, ISO 19356 and
ISO 19360.
5 Fabrication standard
5.1 Materials
5.1.1 Materials of marine cranes shall meet the requirements of 4.3 in ISO 19354:2016.
5.1.2 Detailed test records shall be kept for all the specified materials requiring testing. Inspection
certificates shall be provided for the inspected materials required by a ship inspection institution.
5.2 Welded connection of steel plates
5.2.1 The connection of components of different thickness shall be in accordance with Table 1.
Table 1 — Requirements for the connection of components of different thickness
Butting form Transitional slope
a:b ≤ 1:3
a:b ≤ 1:3
NOTE  If the thickness difference is less than 4 mm, the connection can be done by its shape evenly within the welding width.
2 © ISO 2019 – All rights reserved

5.2.4 The mismatch allowable value of single-sided or double-sided butt welding bevel is given in
Table 2.
Table 2 — Allowable value for mismatch of different butting forms
Allowable value for mismatch
Butting form
(mm)
Double-sided welded seam for isopachous plates
Δa < 0,10 × s, maximum 2
(s is the plate thickness)
Single-sided welded seam for isopachous plates
Δa < 0,10 × s, maximum 2
(s is the plate thickness)
Butt welded seam of components with different thickness
Δa < 0,10 × s, maximum 3
(s is the smaller thickness )
Single-sided girth welding of tube Δa < 0,10 × s, maximum 2
D < 100
(s is the tube thickness)
Outer
diameter
Δa < 0,10 × s, maximum 3
D ≥ 100
(s is the tube thickness)
5.2.5 During the cold working and assembly of the metal structure, the parallel distance of butt welded
seams shall be no less than 200 mm, which shall also avoid the contact between sharp angles; the parallel
distance between butt welded seams and angle welded seams shall be no less than 50 mm.
5.2.6 The unnoted allowance of the assembly dimensions of the metal structure shall meet the
following requirements:
a) the unnoted allowance of dimensions shall comply with the requirements in Table 3;
b) the unnoted allowance of angles shall comply with the requirements in Table 4;
c) the unnoted allowance of aligning degree, planarity and parallelism shall comply with the
requirements in Table 5;
d) the unnoted allowance of circular degree for butt parts shall comply with the requirements in
Table 6.
Table 3 — Unnoted allowance of dimensions
Dimensions in millimetres
Nominal dimension >30~315 >315~1 000 >1 000~2 000 >2 000~4 000
Allowance ±2 ±3 ±4 ±6
Nominal dimension >4 000~8 000 >8 000~12 000 >12 000~16 000 >16 000~20 000 >20 000
Allowance ±8 ±10 ±12 ±14 ±16
Table 4 — Unnoted allowance of angles
Length of the short side(mm) ≤315 >315~1 000 >1 000
Allowance (′) ±45′ ±30′ ±20′
a
Allowance (mm/m) ±13 ±9 ±6
a
The allowance unit shall be given in ° or ’ if the angle unit in the technical document provided by the manufacturers
is given in ° or ’. The allowance unit shall be given in mm/m if only linear dimensions are given on the technical document
provided by the manufacturers without the angles marked.
Table 5 — Unnoted allowance of aligning degree, planarity and parallelism
Dimension in millimetres
Nominal
>30~120 >120~315 >315~1 000 >1 000~2 000 >2 000~4 000
dimension
Allowance 1 1,5 3 4,5 6
Nominal
>4 000~8 000 >8 000~12 000 >12 000~16 000 >16 000~20 000 >20 000
dimension
Allowance 8 10 12 14 16
Table 6 — Unnoted allowance of circular degree for butt parts
Dimension in millimetres
Cylindrical Coniform
Nominal diameter
Nominal diameter Allowance Allowance
of large diameter
<2 000 3 <2 000 4
≥2 000 4 ≥2 000 5
5.3 Machinery processing
5.3.1 The metal structure of marine cranes shall be processed according to the requirements of
technical document provided by the manufacturers. The corresponding inspection records shall be kept
for important dimensions for the shaft, holes, surface which ne
...

INTERNATIONAL ISO
STANDARD 21125
First edition
2019-06
Ships and marine technology —
Marine cranes — Manufacturing
requirements
Navires et technologie maritime — Grues marines — Exigences de
fabrication
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 General requirements . 2
5 Fabrication standard . 2
5.1 Materials . 2
5.2 Welded connection of steel plates . 2
5.3 Machinery processing . 4
5.4 Anticorrosion and oil seal . 5
6 Mechanical, hydraulic and electrical assembly . 5
6.1 Field requirements . 5
6.2 Mechanical assembly . 5
6.3 Hydraulic assembly . 6
6.4 Installation of electrical system. 6
6.4.1 General requirements . 6
6.4.2 Cable lay . 6
6.5 Other installations . 6
6.6 Shipboard installation . 7
7 Lubricating, oil sealing and coating . 7
8 Tests . 8
9 Markings and plates . 8
Bibliography . 9
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

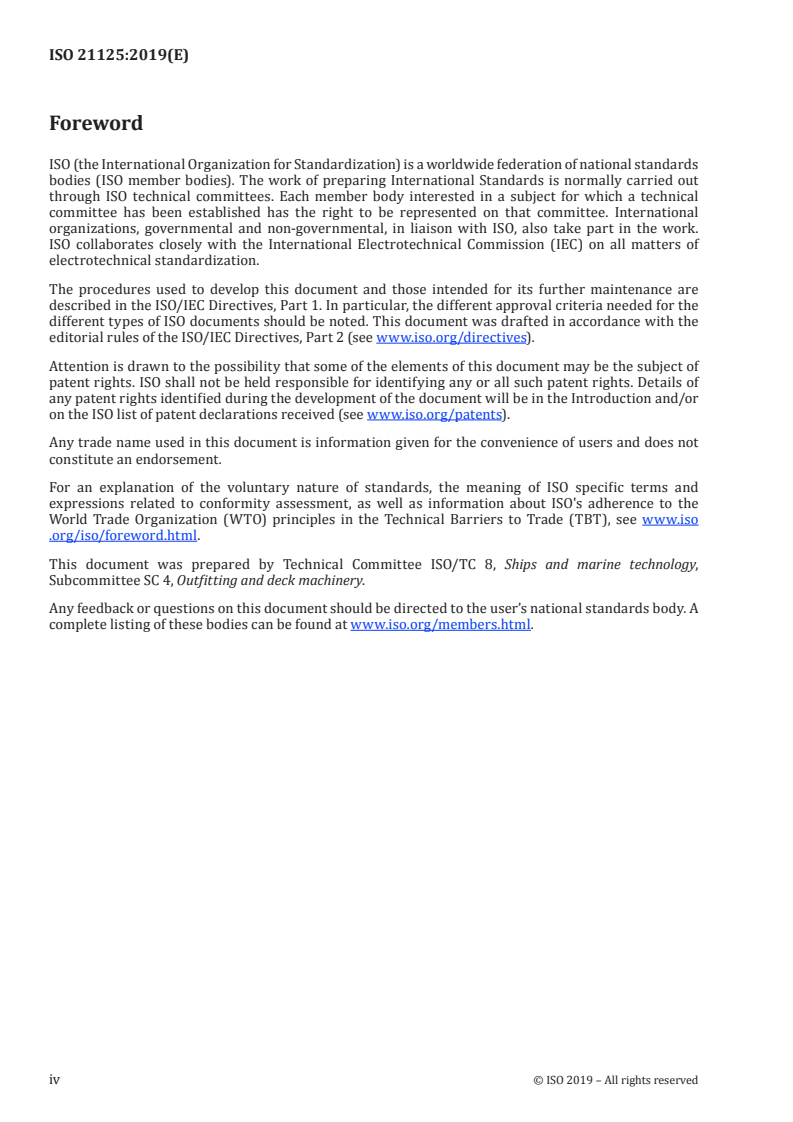

different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology,
Subcommittee SC 4, Outfitting and deck machinery.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved

INTERNATIONAL STANDARD ISO 21125:2019(E)
Ships and marine technology — Marine cranes —
Manufacturing requirements
1 Scope
This document specifies the general technical manufacturing requirements for marine cranes of metal
construction.
This document is applicable to the following types of marine cranes:
— deck cranes mounted on ships for handling cargo or containers in harbour conditions;
— floating cranes or grab cranes mounted on barges or pontoons for operating in harbour conditions;
— engine room cranes and provision cranes, etc. mounted on ships (including floating docks) for
handling equipment and stores in harbour conditions.
NOTE Marine cranes in other types of crane can refer to this document.
This document does not apply to cranes manufactured to operate in:
— ambient operating temperatures below −20 °C;
— ambient operating temperatures above +45 °C;
— lifting operations below sea level;
— lifting operations involving more than one crane;
— emergency rescue operations;
— shore-side cargo handling cranes;
— lifting lifeboats, liferafts accommodation ladders, pilot ladders, gangways and their handling
appliances;
— launching appliances for survival craft and rescue boats.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3828, Shipbuilding and marine structures — Deck machinery — Vocabulary and symbols
ISO 4306-1, Cranes — Vocabulary — Part 1: General
ISO 19354:2016, Ships and marine technology — Marine cranes — General requirements
ISO 19355, Ships and marine technology — Marine cranes — Structural requirements
ISO 19356, Ships and marine technology — Marine cranes — Test specifications and procedures
ISO 19360, Ships and marine technology — Marine cranes — Technical requirements for rigging
applications
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4306-1, ISO 3828 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
oil sealing
process of coating the machining surface of metal components with anti-corrosion grease to prevent
corrosion
4 General requirements
The manufacturing of marine cranes shall be in accordance with ISO 19354, ISO 19355, ISO 19356 and
ISO 19360.
5 Fabrication standard
5.1 Materials
5.1.1 Materials of marine cranes shall meet the requirements of 4.3 in ISO 19354:2016.
5.1.2 Detailed test records shall be kept for all the specified materials requiring testing. Inspection
certificates shall be provided for the inspected materials required by a ship inspection institution.
5.2 Welded connection of steel plates
5.2.1 The connection of components of different thickness shall be in accordance with Table 1.
Table 1 — Requirements for the connection of components of different thickness
Butting form Transitional slope
a:b ≤ 1:3
a:b ≤ 1:3
NOTE  If the thickness difference is less than 4 mm, the connection can be done by its shape evenly within the welding width.
2 © ISO 2019 – All rights reserved

5.2.4 The mismatch allowable value of single-sided or double-sided butt welding bevel is given in
Table 2.
Table 2 — Allowable value for mismatch of different butting forms
Allowable value for mismatch
Butting form
(mm)
Double-sided welded seam for isopachous plates
Δa < 0,10 × s, maximum 2
(s is the plate thickness)
Single-sided welded seam for isopachous plates
Δa < 0,10 × s, maximum 2
(s is the plate thickness)
Butt welded seam of components with different thickness
Δa < 0,10 × s, maximum 3
(s is the smaller thickness )
Single-sided girth welding of tube Δa < 0,10 × s, maximum 2
D < 100
(s is the tube thickness)
Outer
diameter
Δa < 0,10 × s, maximum 3
D ≥ 100
(s is the tube thickness)
5.2.5 During the cold working and assembly of the metal structure, the parallel distance of butt welded
seams shall be no less than 200 mm, which shall also avoid the contact between sharp angles; the parallel
distance between butt welded seams and angle welded seams shall be no less than 50 mm.
5.2.6 The unnoted allowance of the assembly dimensions of the metal structure shall meet the
following requirements:
a) the unnoted allowance of dimensions shall comply with the requirements in Table 3;
b) the unnoted allowance of angles shall comply with the requirements in Table 4;
c) the unnoted allowance of aligning degree, planarity and parallelism shall comply with the
requirements in Table 5;
d) the unnoted allowance of circular degree for butt parts shall comply with the requirements in
Table 6.
Table 3 — Unnoted allowance of dimensions
Dimensions in millimetres
Nominal dimension >30~315 >315~1 000 >1 000~2 000 >2 000~4 000
Allowance ±2 ±3 ±4 ±6
Nominal dimension >4 000~8 000 >8 000~12 000 >12 000~16 000 >16 000~20 000 >20 000
Allowance ±8 ±10 ±12 ±14 ±16
Table 4 — Unnoted allowance of angles
Length of the short side(mm) ≤315 >315~1 000 >1 000
Allowance (′) ±45′ ±30′ ±20′
a
Allowance (mm/m) ±13 ±9 ±6
a
The allowance unit shall be given in ° or ’ if the angle unit in the technical document provided by the manufacturers
is given in ° or ’. The allowance unit shall be given in mm/m if only linear dimensions are given on the technical document
provided by the manufacturers without the angles marked.
Table 5 — Unnoted allowance of aligning degree, planarity and parallelism
Dimension in millimetres
Nominal
>30~120 >120~315 >315~1 000 >1 000~2 000 >2 000~4 000
dimension
Allowance 1 1,5 3 4,5 6
Nominal
>4 000~8 000 >8 000~12 000 >12 000~16 000 >16 000~20 000 >20 000
dimension
Allowance 8 10 12 14 16
Table 6 — Unnoted allowance of circular degree for butt parts
Dimension in millimetres
Cylindrical Coniform
Nominal diameter
Nominal diameter Allowance Allowance
of large diameter
<2 000 3 <2 000 4
≥2 000 4 ≥2 000 5
5.3 Machinery processing
5.3.1 The metal structure of marine cranes shall be processed according to the requirements of
technical document provided by the manufacturers. The corresponding inspection records shall be kept
for important dimensions for the shaft, holes, surface which ne
...
