Fire resistance of timber door assemblies - Method of determining the efficacy of intumescent seals

ISO 12472:2002 specifies a test method for determining the effective sealing capability of intumescent materials or systems in the context of sealing door-to-frame clearances in timber door assemblies. The method is suitable for evaluating the efficacy of exposed intumescent sealing systems used in conjunction with timber fire resisting doors of up to 1 h fire resistance. It is not suitable for comparing concealed intumescent seals. The results can be applied to proven, single-acting, single-leaf, latched, timber door assemblies of sizes up to that given in the field of direct application.

Résistance au feu d'assemblages de portes en bois - Méthode de détermination de l'efficacité des joints en renflage

General Information

Status
Published
Publication Date
12-May-2003
Current Stage
9020 - International Standard under periodical review
Start Date
15-Jul-2020
Ref Project

Buy Standard

Standard
ISO 12472:2003 - Fire resistance of timber door assemblies - Method of determining the efficacy of intumescent seals
English language
11 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

INTERNATIONAL ISO
STANDARD 12472
First edition
2003-05-15
Fire resistance of timber door
assemblies — Method of determining
the efficacy of intumescent seals
Résistance au feu d'assemblages de portes en bois — Méthode de
détermination de l'efficacité des joints en renflage
Reference number
ISO 12472:2003(E)
ISO 2003
---------------------- Page: 1 ----------------------
ISO 12472:2003(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but

shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In

downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat

accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation

parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In

the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO 2003

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,

electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or

ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2003 — All rights reserved
---------------------- Page: 2 ----------------------
ISO 12472:2003(E)
Contents Page

Foreword............................................................................................................................................................ iv

Introduction ........................................................................................................................................................ v

1 Scope...................................................................................................................................................... 1

2 Normative references ........................................................................................................................... 2

3 Terms and definitions........................................................................................................................... 2

4 Apparatus............................................................................................................................................... 2

5 Test specimen ....................................................................................................................................... 5

6 Pre-test analysis and installation ........................................................................................................ 6

7 Test procedure ...................................................................................................................................... 8

8 Performance criteria ............................................................................................................................. 8

9 Expression of results............................................................................................................................ 8

10 Test report.............................................................................................................................................. 8

11 Field of direct application..................................................................................................................... 9

Annex A (informative) Guidance and information on the role of intumescent seals and operation

and limitations of the test................................................................................................................... 10

© ISO 2003 — All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 12472:2003(E)

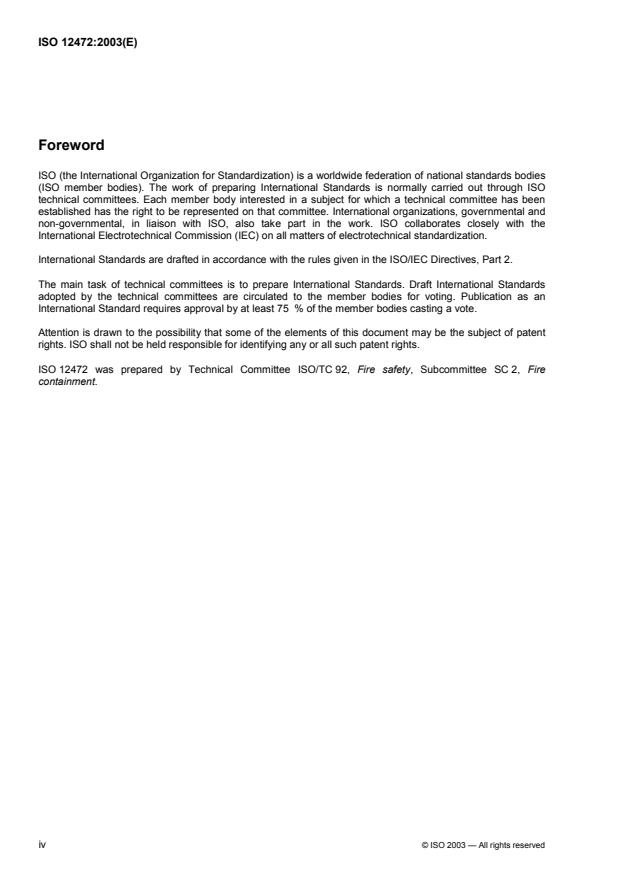

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies

(ISO member bodies). The work of preparing International Standards is normally carried out through ISO

technical committees. Each member body interested in a subject for which a technical committee has been

established has the right to be represented on that committee. International organizations, governmental and

non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the

International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.

The main task of technical committees is to prepare International Standards. Draft International Standards

adopted by the technical committees are circulated to the member bodies for voting. Publication as an

International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. ISO shall not be held responsible for identifying any or all such patent rights.

ISO 12472 was prepared by Technical Committee ISO/TC 92, Fire safety, Subcommittee SC 2, Fire

containment.
iv © ISO 2003 — All rights reserved
---------------------- Page: 4 ----------------------
ISO 12472:2003(E)
Introduction

This test method has been developed for a number of reasons, the primary one being the recognition of the need

to have a repeatable and reproducible test procedure by which the performance of intumescent products can be

evaluated, particularly so as to ascertain any change in performance resulting from “real time” ageing.

It is a common requirement under any critical product certification scheme that durability be able to be quantified.

There are no recognized accelerated ageing methods suitable for use with intumescent sealing products and, as

a consequence, real time ageing tests are carried out. It was considered that over a period of twenty years,

manufacturing variations would probably occur on any type of proprietary fire-resisting door. The effect of such

variations would be to mask any performance changes. The testing apparatus specified here is capable of being

built to reproducible and repeatable specification, which will allow even small variations in performance to be

identified.

The fact that the method has eradicated most of the variables, making it repeatable and reproducible, also makes

it suitable for quality control purposes. As a quality control test it has the added advantage of heating the

intumescent seals in the same manner as they would be in practice; in the case of pressure-forming intumescent

materials, the method also allows the pressure-forming characteristics of the materials to be characterized for

their shear resistance in a comparative manner. This is not measured by any other known technique.

Finally, because the test heats the specimen in a characteristic way and applies typical movement or shear forces,

repeatable product-by-product comparisons can be made. This permits a restricted amount of product

interchangeability covering the least onerous door modes and configurations. Even under these conditions, the

intumescent material proposed to replace the existing material must itself have been the subject of a full-scale test

on another door design, if confidence is to be gained in its performance at large scale.

© ISO 2003 — All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 12472:2003(E)
Fire resistance of timber door assemblies — Method of
determining the efficacy of intumescent seals

SAFETY PRECAUTIONS — The attention of all persons concerned with managing and carrying out

this fire resistance test is drawn to the fact that fire testing can be hazardous and that there is a

possibility that toxic and/or harmful smoke and gases could be evolved during the test. Mechanical

and operational hazards can also arise during the construction of the test elements or structures, their

testing, and disposal of test residues.

An assessment of all potential hazards and risks to health shall be made and safety precautions shall

be identified and provided. Written safety instructions shall be issued. Appropriate training shall be

given to relevant personnel. Laboratory personnel shall ensure that they follow written safety

instructions at all times.

IMPORTANT — During fire resistance testing, the leaves shall not deflect more than half their

thickness. The distortion shall be measured between the top of the opening edge and the frame of a

full-sized door when tested opening into the furnace during a test in accordance with ISO 3008. If the

door leaf undergoes distortion greater than this during the test, then the method is unsuitable for

evaluating alternative sealing methods.
1 Scope

This International Standard specifies a test method for determining the effective sealing capability of

intumescent materials or systems in the context of sealing door–to–frame clearances in timber door

assemblies. Intumescent seals extend the duration for which the gap between the leaf edge and the frame will

satisfy the integrity criteria of the fire resistance test, and sealing systems can be compared using this method.

The method is suitable for evaluating the efficacy of exposed intumescent sealing systems used in conjunction

with timber fire resisting doors of up to 1 h fire resistance. It is not suitable for comparing concealed

intumescent seals. The results can be applied to proven, single-acting, single-leaf, latched, timber door

assemblies of sizes up to that given in the field of direct application.

This International Standard is applicable to timber door assemblies whose intumescent seals have been

tested in accordance with ISO 3008 and have satisfied the integrity and — if appropriate — the insulation

criterion, whilst incorporating another form of heat-activated seal for a period appropriate to the application.

The suitability of any sealing system for use on timber door assemblies of any other configuration (i.e.

unlatched single doors, double leaf assemblies etc., or doors constructed of other materials) can only be

evaluated by subjecting a full-sized door assembly, complete with seals, to testing in accordance with

ISO 3008.

The method does not provide any measure of the ability of the seal to resist the flow of smoke (although a gap

that is sealed will provide a reduction in the flow of hot products of combustion) or any information as to the

additional protection that could be needed at hardware/ironmongery positions.
© ISO 2003 — All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 12472:2003(E)
2 Normative references

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

ISO 834-1, Fire-resistance tests — Elements of building construction — Part 1: General requirements

ISO 3008, Fire resistance tests — Door and shutter assemblies

ISO 8302, Thermal insulation — Determination of steady-state thermal resistance and related properties —

Guarded hot plate apparatus
ISO 13943, Fire safety — Vocabulary
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 13943 and the following apply.

3.1
intumescent seal

seal comprising material or combination of materials with the property of swelling or foaming when exposed to

heat, intended to improve the fire performance of the element of construction in which it is incorporated

3.2
concealed intumescent seal

seal where the material is fitted below a timber lipping of at least 4 mm thickness by a thermally softening

adhesive and not visible from the outside
3.3
exposed intumescent seal

seal either set into a groove in the edge of the leaf or face of the frame, or applied directly to the face and

visible when installed
3.4
integrity

ability of a separating element of building construction, when exposed to fire on one side, to prevent the

passage through it of flames and hot gases or the occurrence of flames on the unexposed side

3.5
supporting construction

construction that may be required for the testing of some building elements and into which the test specimen

is installed
EXAMPLE The wall into which a door is fitted.
3.6
test construction
complete assembly of the test specimen together with its supporting construction
3.7
timber fire-resisting door assembly

door assembly intended, when closed, to resist the passage of fire or combustion products or both, where the

leaf edge incorporates a combustible edging not less than 5 mm thick and where the construction materials

are not of metal
2 © ISO 2003 — All rights reserved
---------------------- Page: 7 ----------------------
ISO 12472:2003(E)
4 Apparatus
4.1 General

The apparatus used for the test shall generally be in accordance with ISO 834-1. Additional apparatus will be

required to evaluate the contribution to the fire resistance of timber fire-resisting door assemblies provided by

intumescent seals as specified in 4.2.
4.2 Additional apparatus
4.2.1 Test rig

4.2.1.1 The test rig consists of a low carbon steel angle frame (60 mm × 30 mm × 5 mm thick) with mitred

welded corners forming a square with outer dimensions of 600 mm × 600 mm. A low carbon steel plate

(nominally 5 mm thick), which overlaps the hardwood lipping by a depth of (10 ± 1) mm, shall be fixed

centrally on a diagonally mounted 15 mm diameter round steel shaft retained in bushes at each end. The

central panel shall be retained in a diagonally central position by means of locking collars bearing against the

face of pivot blocks on the diagonal shaft, lightly greased, such that the gap between the central panel and the

outer frame is equal on all edges (see Figure 1).

4.2.1.2 A suitable, easy-to-release mechanism such as a cam that does not disturb the panel when

activated shall be mounted on the back face of the central steel panel in order to maintain the alignment of the

central panel with the back of the outer frame (see Figure 2).

4.2.1.3 A steel bracket incorporating a deflection limit adjusting screw at one end shall be fixed to the

panel by means of a metal block as shown in Figure 1. The screw is used to limit the deflection of the panel to

that specified in Clause 7.

4.2.1.4 On the rear face of the frame, a 100 mm diameter pulley wheel shall be mounted on a steel pulley

bracket to facilitate the application of a load to the central panel at the point shown in Figure 1. A wire rope

shall be attached to the central panel at the position shown so that the rope passes over the pulley and hangs

down below the rig for a length of approximately 300 mm. A weight, or a weight pan and weights, of 7,5 kg

mass shall be attached to the lower end of this wire rope.

4.2.1.5 The flush face of the outer frame shall be clad with a non-combustible insulating board, or

laminated boards, with a density of 680 kg/m ± 10 % and a thermal conductivity of between 0,14 W/(m⋅K)

and 0,18W/(m⋅K) determined using the ISO 8302 test method, to a thickness equal to the thickness of the

door to which the results are normally to be applied. A lipping of hardwood (of density greater than 550 kg/m

oven-dry weight) shall be affixed to the inner edge of this cladding to the full thickness of the insulating board

and to a depth of (19 ± 1) mm. Lipping shall be applied by means of high-temperature adhesive (resorcinol

formaldehyde or similar).

The central panel shall be clad in a similar manner and a similar hardwood lipping shall be incorporated in the

perimeter of this panel to a nominal depth of (19 ± 1) mm, but finally sized such that the gap between the

lipping on the frame and the central panel is (3,5 ± 0,5) mm on all edges.

4.2.1.6 Special attention shall be paid to the method of corner jointing the timber lippings at the corners to

ensure that they do not open up and burn through during the test. The method of jointing shown in Figure 3 is

recommended.
© ISO 2003 — All rights reserved 3
---------------------- Page: 8 ----------------------
ISO 12472:2003(E)
Dimensions in millimetres
Key
1 bush
10 outer frame
2 outer frame 11 central panel deflection limit adjustment screw
3 central panel 12 bush
4 locking collar 13 7,5 kg load
5 shaft pivot blocks 14 hardwood lippings (550 kg/m min.)
6 steel pulley wheel 15 intumescent sealing material
7 cam-retaining device 16 non-combustible insulation boards
8 steel pulley bracket
See Figure 2.
9 wire rope
W 54/60 or W 44/30.

Figure 1 — Apparatus for determining contribution of intumescent seals to fire resistance of doors

and shutter assemblies
4 © ISO 2003 — All rights reserved
---------------------- Page: 9 ----------------------
ISO 12472:2003(E)
a) Cam-fully-retaining central panel
b) Cam-partially-retaining central panel
c) Cam open central panel released
Figure 2 — Details of cam-operated retaining device
5 Test specimen
5.1 General

The specimen shall consist of one or more intumescent sealing strips of the type to be evaluated, fixed into or

onto the hardwood edging of the test rig in accordance with 4.2.1.5 and in a manner similar to that of practice.

5.2 Specimen si
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
