ISO 5745:2004
(Main)Pliers and nippers — Pliers for gripping and manipulating — Dimensions and test values
Pliers and nippers — Pliers for gripping and manipulating — Dimensions and test values
ISO 5745:2004 specifies the principal dimensions of pliers for gripping and manipulating and the test values for the pliers in order to verify their aptitude to function in conformity with ISO 5744:2004. General technical requirements are given in ISO 5743:2004.
Pinces et tenailles — Pinces de serrage et de manipulation — Dimensions et valeurs d'essai
L'ISO 5745:2004 spécifie les principales dimensions des pinces de serrage et de manipulation et les valeurs d'essai, en vue de vérifier leur aptitude fonctionnelle conformément à l'ISO 5744:2004. Les spécifications techniques générales des pinces sont données dans l'ISO 5743:2004.
General Information
Relations
Buy Standard
Standards Content (Sample)

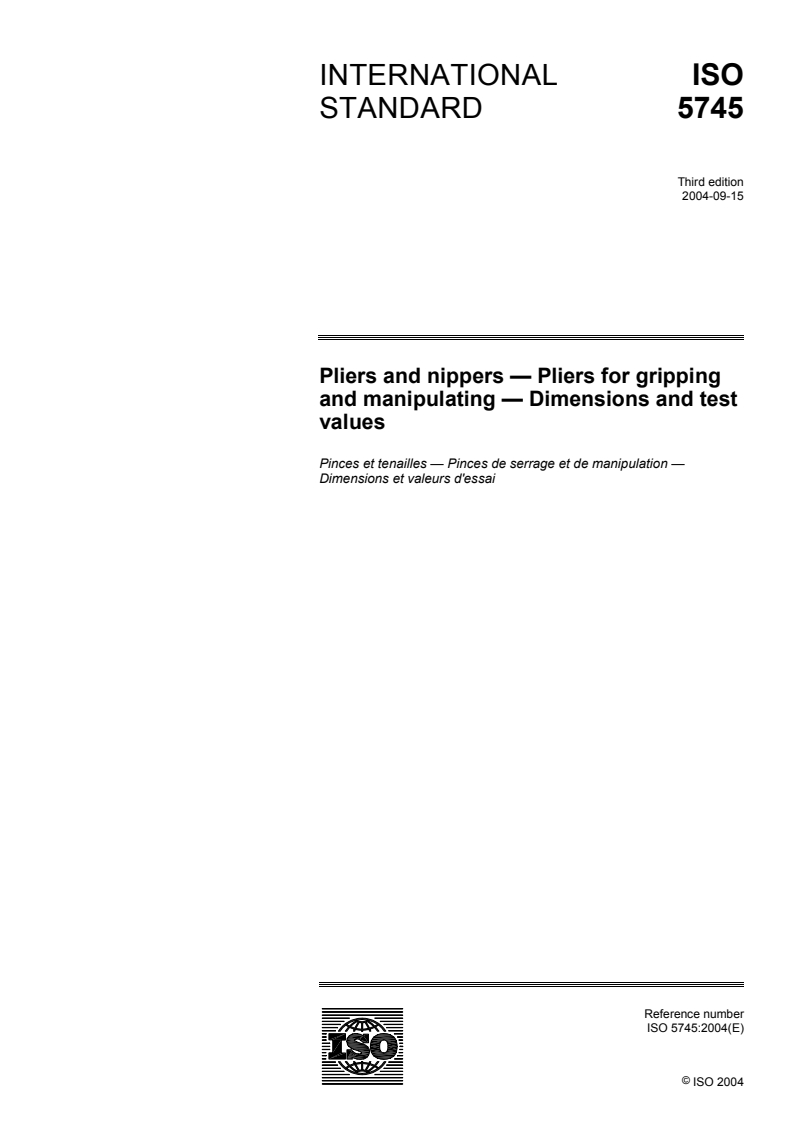

INTERNATIONAL ISO
STANDARD 5745
Third edition
2004-09-15
Pliers and nippers — Pliers for gripping
and manipulating — Dimensions and test
values
Pinces et tenailles — Pinces de serrage et de manipulation —
Dimensions et valeurs d'essai
Reference number
©
ISO 2004
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2004 – All rights reserved

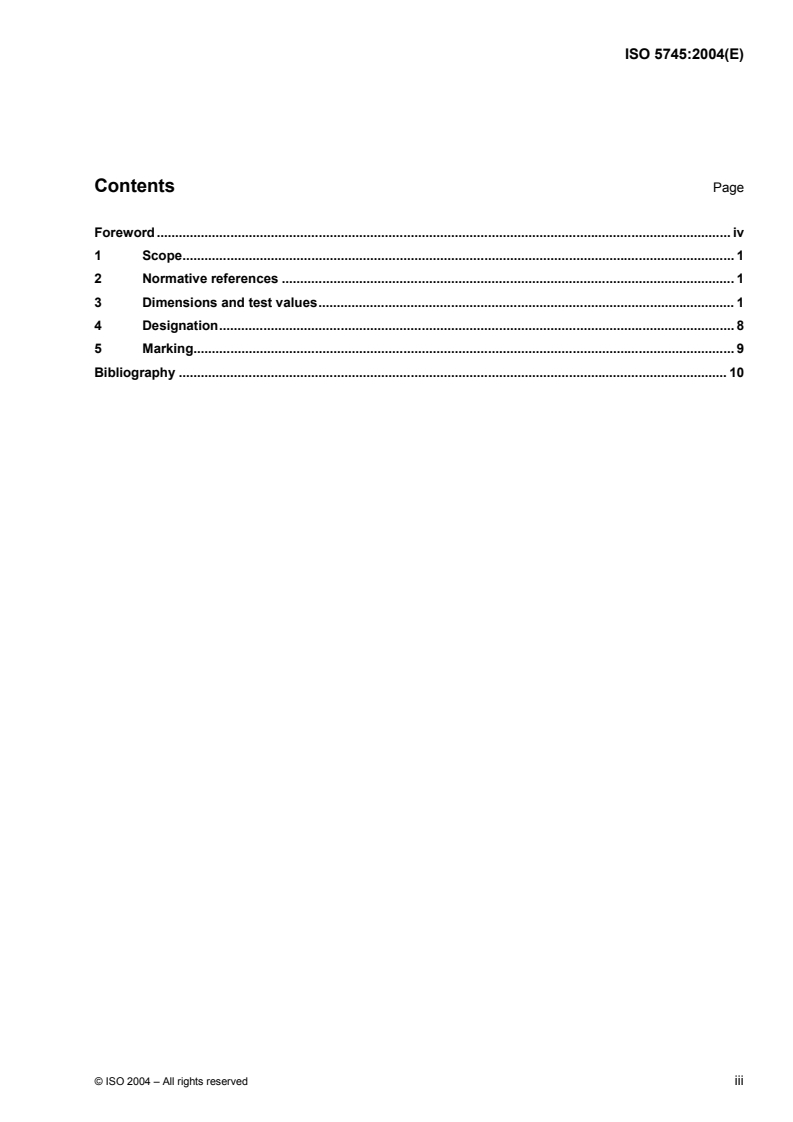

Contents Page
Foreword. iv
1 Scope. 1
2 Normative references. 1
3 Dimensions and test values. 1
4 Designation. 8
5 Marking. 9
Bibliography . 10
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 5745 was prepared by Technical Committee ISO/TC 29, Small tools, Subcommittee SC 10, Assembly
tools for screws and nuts, pliers and nippers.
This third edition cancels and replaces the second edition (ISO 5745:1988) which has been technically revised.
iv © ISO 2004 – All rights reserved
INTERNATIONAL STANDARD ISO 5745:2004(E)
Pliers and nippers — Pliers for gripping and manipulating —
Dimensions and test values
1 Scope
This International Standard specifies the principal dimensions of pliers for gripping and manipulating and the
test values for the pliers in order to verify their aptitude to function in conformity with ISO 5744. General
technical requirements are given in ISO 5743.
The pliers for gripping and manipulating illustrated in this International Standard are examples only and are
not intended to affect the manufacturer's design.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 5743, Pliers and nippers — General technical requirements
ISO 5744:2004, Pliers and nippers — Methods of test
3 Dimensions and test values
3.1 Round nose pliers for gripping and manipulating
The principal dimensions for round nose pliers for gripping and manipulating are shown in Figure 1 and given
in Table 1.
Round nose pliers shall be tested in accordance with ISO 5744.
After the load test, the permanent set s shall not exceed the value given in Table 2. If distance l is not
suitable for the load test, the formula given in ISO 5744:2004, 4.2 shall be used.
Dimensions in millimetres
a
F = Load applied in load test.
Figure 1 — Round nose pliers for gripping and manipulating
Table 1 — Round nose pliers for gripping and manipulating,
principal dimensions
Dimensions in millimetres
l l d w t
Length of 3 1 3
nose
max. max. max.
125 ± 6,3 2 16 9
− 5
Short
32 2,8 18 10
140 ± 8
− 6,3
nose
160 ± 8 3,2 20 11
− 8
140 ± 7 40 ± 4 2,8 17 9
Long
160 ± 8 50 ± 5 3,2 19 10
nose
180 ± 9 63 ± 6,3 3,6 20 11
2 © ISO 2004 – All rights reserved
Table 2 — Round nose pliers for gripping and manipulating,
torsion and load test values
Torsion test Load test
Nominal Torque Maximum Load Maximum
length twist permanent
Length of
set
nose
a
l l T α F s
1 max max
mm mm N ⋅ m N mm
125 63 0,5 630
Short
20°
140 71 1,0 710
nose
160 80 1,25 800
140 63 0,25 630
Long
25°
160 71 0,5 710
nose
180 80 1,0 800
a
s = w − w (see ISO 5744).
1 2
3.2 Flat nose pliers for gripping and manipulating
The principal dimensions of flat nose pliers for gripping and manipulating are shown in Figure 2 and given in
Table 3.
Flat nose pliers shall be tested in accordance with ISO 5744.
Dimensions in millimetres
a
The hea
...
INTERNATIONAL ISO
STANDARD 5745
Third edition
2004-09-15
Pliers and nippers — Pliers for gripping
and manipulating — Dimensions and test
values
Pinces et tenailles — Pinces de serrage et de manipulation —
Dimensions et valeurs d'essai
Reference number
©
ISO 2004
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2004 – All rights reserved
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references. 1
3 Dimensions and test values. 1
4 Designation. 8
5 Marking. 9
Bibliography . 10
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 5745 was prepared by Technical Committee ISO/TC 29, Small tools, Subcommittee SC 10, Assembly
tools for screws and nuts, pliers and nippers.
This third edition cancels and replaces the second edition (ISO 5745:1988) which has been technically revised.
iv © ISO 2004 – All rights reserved
INTERNATIONAL STANDARD ISO 5745:2004(E)
Pliers and nippers — Pliers for gripping and manipulating —
Dimensions and test values
1 Scope
This International Standard specifies the principal dimensions of pliers for gripping and manipulating and the
test values for the pliers in order to verify their aptitude to function in conformity with ISO 5744. General
technical requirements are given in ISO 5743.
The pliers for gripping and manipulating illustrated in this International Standard are examples only and are
not intended to affect the manufacturer's design.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 5743, Pliers and nippers — General technical requirements
ISO 5744:2004, Pliers and nippers — Methods of test
3 Dimensions and test values
3.1 Round nose pliers for gripping and manipulating
The principal dimensions for round nose pliers for gripping and manipulating are shown in Figure 1 and given
in Table 1.
Round nose pliers shall be tested in accordance with ISO 5744.
After the load test, the permanent set s shall not exceed the value given in Table 2. If distance l is not
suitable for the load test, the formula given in ISO 5744:2004, 4.2 shall be used.
Dimensions in millimetres
a
F = Load applied in load test.
Figure 1 — Round nose pliers for gripping and manipulating
Table 1 — Round nose pliers for gripping and manipulating,
principal dimensions
Dimensions in millimetres
l l d w t
Length of 3 1 3
nose
max. max. max.
125 ± 6,3 2 16 9
− 5
Short
32 2,8 18 10
140 ± 8
− 6,3
nose
160 ± 8 3,2 20 11
− 8
140 ± 7 40 ± 4 2,8 17 9
Long
160 ± 8 50 ± 5 3,2 19 10
nose
180 ± 9 63 ± 6,3 3,6 20 11
2 © ISO 2004 – All rights reserved
Table 2 — Round nose pliers for gripping and manipulating,
torsion and load test values
Torsion test Load test
Nominal Torque Maximum Load Maximum
length twist permanent
Length of
set
nose
a
l l T α F s
1 max max
mm mm N ⋅ m N mm
125 63 0,5 630
Short
20°
140 71 1,0 710
nose
160 80 1,25 800
140 63 0,25 630
Long
25°
160 71 0,5 710
nose
180 80 1,0 800
a
s = w − w (see ISO 5744).
1 2
3.2 Flat nose pliers for gripping and manipulating
The principal dimensions of flat nose pliers for gripping and manipulating are shown in Figure 2 and given in
Table 3.
Flat nose pliers shall be tested in accordance with ISO 5744.
Dimensions in millimetres
a
The hea
...

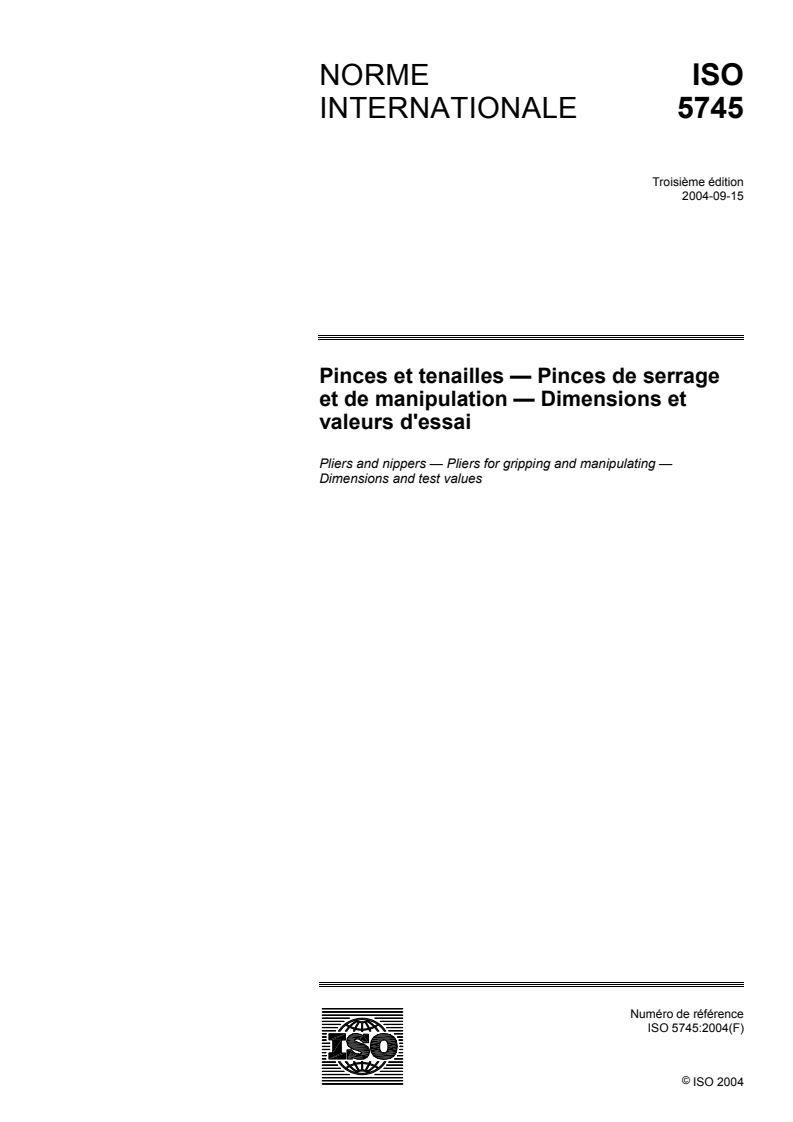

NORME ISO
INTERNATIONALE 5745
Troisième édition
2004-09-15
Pinces et tenailles — Pinces de serrage
et de manipulation — Dimensions et
valeurs d'essai
Pliers and nippers — Pliers for gripping and manipulating —
Dimensions and test values
Numéro de référence
©
ISO 2004
PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.
© ISO 2004
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2004 – Tous droits réservés
Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Références normatives. 1
3 Dimensions et valeurs d'essai. 1
4 Désignation. 9
5 Marquage. 9
Bibliographie . 10
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 5745 a été élaborée par le comité technique ISO/TC 29, Petit outillage, sous-comité SC 10, Outils de
manœuvre pour vis et écrous, pinces et tenailles.
Cette troisième édition annule et remplace la deuxième édition (ISO 5745:1988), dont elle constitue une
révision technique.
iv © ISO 2004 – Tous droits réservés
NORME INTERNATIONALE ISO 5745:2004(F)
Pinces et tenailles — Pinces de serrage et de manipulation —
Dimensions et valeurs d'essai
1 Domaine d'application
La présente Norme internationale spécifie les principales dimensions des pinces de serrage et de
manipulation et les valeurs d'essai, en vue de vérifier leur aptitude fonctionnelle conformément à l'ISO 5744.
Les spécifications techniques générales des pinces sont données dans l'ISO 5743.
Les pinces de serrage et de manipulation illustrant la présente Norme internationale ne sont données qu'à
titre d'exemples. Elles ne doivent en rien influencer la conception.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Pour les références non datées, la dernière édition du
document de référence s'applique (y compris les éventuels amendements).
ISO 5743, Pinces et tenailles — Spécifications techniques générales
ISO 5744:2004, Pinces et tenailles — Méthodes d'essai
3 Dimensions et valeurs d'essai
3.1 Pinces rondes de serrage et de manipulation
Les principales dimensions des pinces rondes de serrage et de manipulation sont représentées à la Figure 1
et données dans le Tableau 1.
Dimensions en millimètres
a
F = force appliquée dans l'essai de flexion.
Figure 1 — Pince ronde de serrage et de manipulation
Tableau 1 — Principales dimensions des pinces rondes de serrage
et de manipulation
Dimensions en millimètres
l l d w t
Longueur
3 1 3
des becs
max. max. max.
25 2 16 9
125 ± 6,3
− 5
Becs
140 ± 8 2,8 18 10
− 6,3
courts
160 ± 8 3,2 20 11
− 8
2,8 17 9
140 ± 7 40 ± 4
Becs
160 ± 8 50 ± 5 3,2 19 10
longs
180 ± 9 63 ± 6,3 3,6 20 11
Les pinces rondes de serrage et de manipulation doivent être essayées conformément à l’ISO 5744.
Après l'essai de flexion, la déformation permanente s ne doit pas excéder la valeur donnée dans le Tableau 2.
Si la distance l n'est pas adaptée pour l'essai de flexion, la formule donnée dans l'ISO 5744:2004, 4.2 doit
être utilisée.
2 © ISO 2004 – Tous droits réservés
Tableau 2 — Valeurs d'essais de torsion et de flexion
des pinces rondes de serrage et de manipulation
Essai de torsion Essai de flexion
Longueur
Couple Torsion Force Déformation
nominale
maximale permanente
Longueur
maximale
des becs
a
l l
T α F s
max max
mm mm N mm
N⋅m
125 63 0,5 630
Becs
20°
140 71 1,0 710
courts
160 80 1,25 800
140 63 0,25 630
Becs
25°
160 71 0,5 710
longs
180 80 1,0 800
a
s = w − w (voir l'ISO 5744).
1 2
3.2 Pinces plates de serrage et de manipulation
Les principales dimensions des pinces plates de serrage et de manipulation sont représentées à la Figure 2 et
données dans le Tableau 3.
Dimensions en millimètres
a
La tête peut être chanfreinée sur la longueur l .
b
F =
...
NORME ISO
INTERNATIONALE 5745
Troisième édition
2004-09-15
Pinces et tenailles — Pinces de serrage
et de manipulation — Dimensions et
valeurs d'essai
Pliers and nippers — Pliers for gripping and manipulating —
Dimensions and test values
Numéro de référence
©
ISO 2004
PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.
© ISO 2004
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse
ii © ISO 2004 – Tous droits réservés
Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Références normatives. 1
3 Dimensions et valeurs d'essai. 1
4 Désignation. 9
5 Marquage. 9
Bibliographie . 10
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 5745 a été élaborée par le comité technique ISO/TC 29, Petit outillage, sous-comité SC 10, Outils de
manœuvre pour vis et écrous, pinces et tenailles.
Cette troisième édition annule et remplace la deuxième édition (ISO 5745:1988), dont elle constitue une
révision technique.
iv © ISO 2004 – Tous droits réservés
NORME INTERNATIONALE ISO 5745:2004(F)
Pinces et tenailles — Pinces de serrage et de manipulation —
Dimensions et valeurs d'essai
1 Domaine d'application
La présente Norme internationale spécifie les principales dimensions des pinces de serrage et de
manipulation et les valeurs d'essai, en vue de vérifier leur aptitude fonctionnelle conformément à l'ISO 5744.
Les spécifications techniques générales des pinces sont données dans l'ISO 5743.
Les pinces de serrage et de manipulation illustrant la présente Norme internationale ne sont données qu'à
titre d'exemples. Elles ne doivent en rien influencer la conception.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Pour les références non datées, la dernière édition du
document de référence s'applique (y compris les éventuels amendements).
ISO 5743, Pinces et tenailles — Spécifications techniques générales
ISO 5744:2004, Pinces et tenailles — Méthodes d'essai
3 Dimensions et valeurs d'essai
3.1 Pinces rondes de serrage et de manipulation
Les principales dimensions des pinces rondes de serrage et de manipulation sont représentées à la Figure 1
et données dans le Tableau 1.
Dimensions en millimètres
a
F = force appliquée dans l'essai de flexion.
Figure 1 — Pince ronde de serrage et de manipulation
Tableau 1 — Principales dimensions des pinces rondes de serrage
et de manipulation
Dimensions en millimètres
l l d w t
Longueur
3 1 3
des becs
max. max. max.
25 2 16 9
125 ± 6,3
− 5
Becs
140 ± 8 2,8 18 10
− 6,3
courts
160 ± 8 3,2 20 11
− 8
2,8 17 9
140 ± 7 40 ± 4
Becs
160 ± 8 50 ± 5 3,2 19 10
longs
180 ± 9 63 ± 6,3 3,6 20 11
Les pinces rondes de serrage et de manipulation doivent être essayées conformément à l’ISO 5744.
Après l'essai de flexion, la déformation permanente s ne doit pas excéder la valeur donnée dans le Tableau 2.
Si la distance l n'est pas adaptée pour l'essai de flexion, la formule donnée dans l'ISO 5744:2004, 4.2 doit
être utilisée.
2 © ISO 2004 – Tous droits réservés
Tableau 2 — Valeurs d'essais de torsion et de flexion
des pinces rondes de serrage et de manipulation
Essai de torsion Essai de flexion
Longueur
Couple Torsion Force Déformation
nominale
maximale permanente
Longueur
maximale
des becs
a
l l
T α F s
max max
mm mm N mm
N⋅m
125 63 0,5 630
Becs
20°
140 71 1,0 710
courts
160 80 1,25 800
140 63 0,25 630
Becs
25°
160 71 0,5 710
longs
180 80 1,0 800
a
s = w − w (voir l'ISO 5744).
1 2
3.2 Pinces plates de serrage et de manipulation
Les principales dimensions des pinces plates de serrage et de manipulation sont représentées à la Figure 2 et
données dans le Tableau 3.
Dimensions en millimètres
a
La tête peut être chanfreinée sur la longueur l .
b
F =
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
