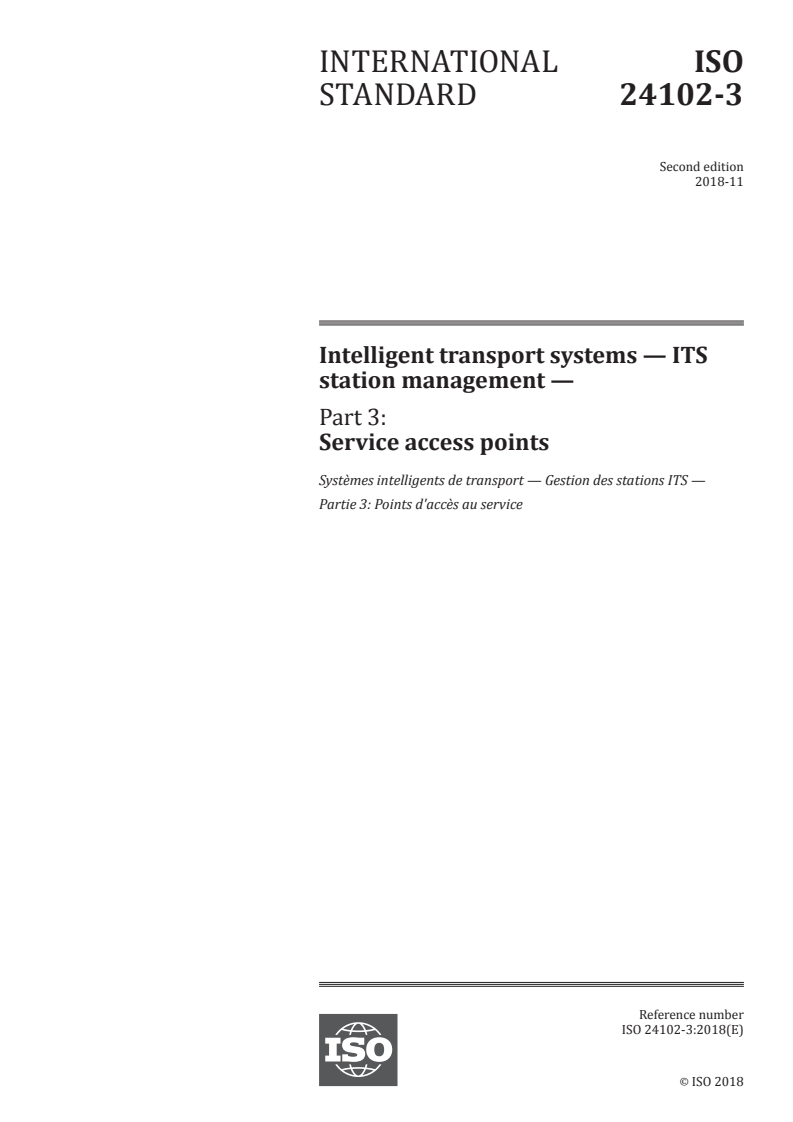

INTERNATIONAL ISO
STANDARD 24102-3
Second edition
2018-11
Intelligent transport systems — ITS
station management —
Part 3:
Service access points
Systèmes intelligents de transport — Gestion des stations ITS —
Partie 3: Points d'accès au service
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

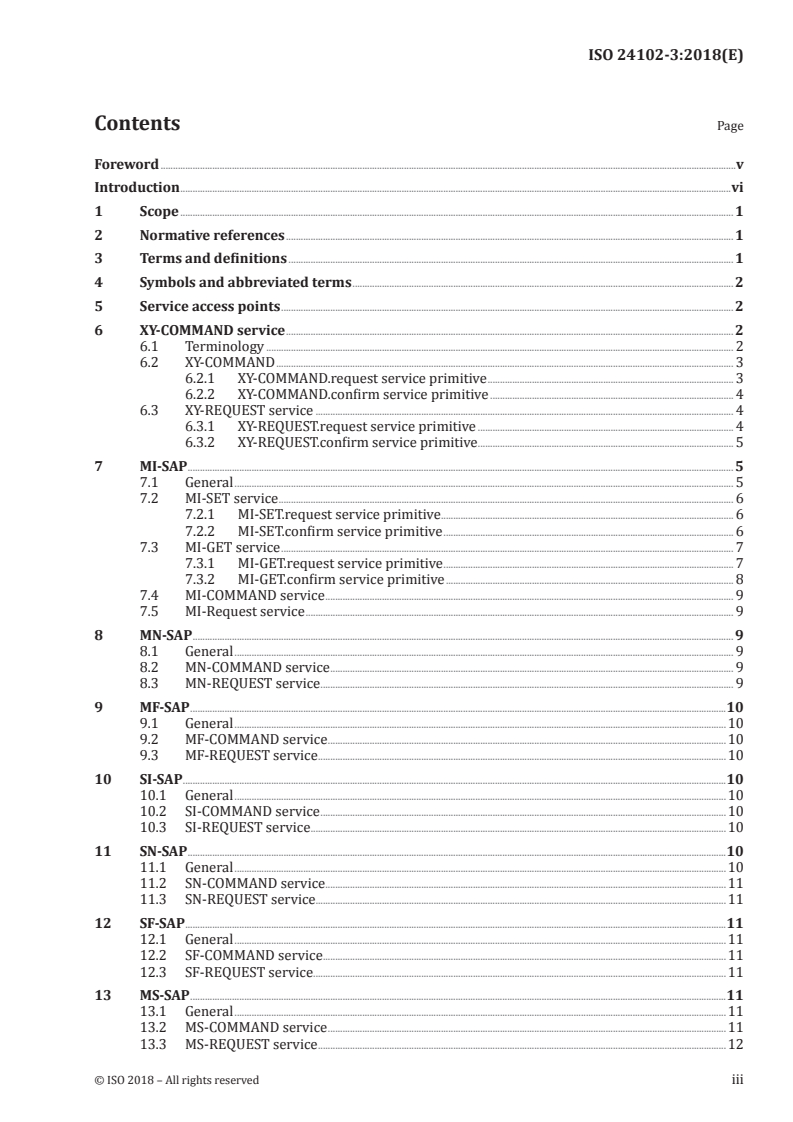

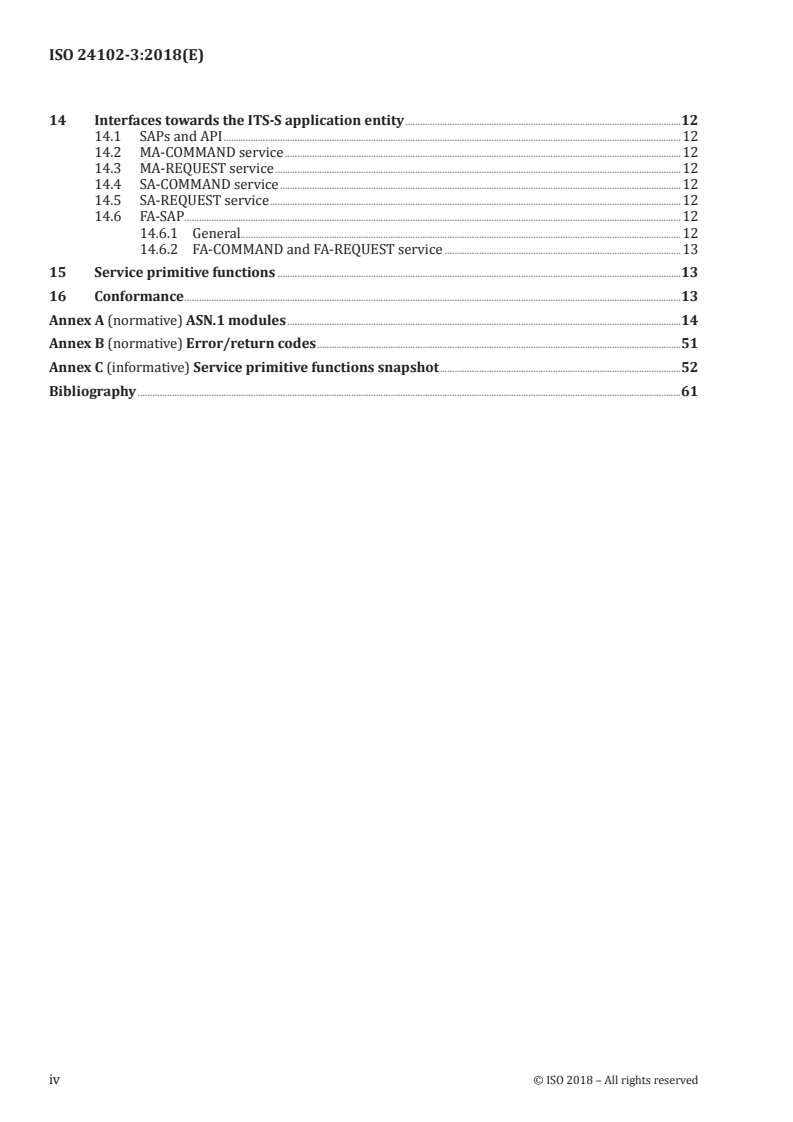

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms . 2
5 Service access points . 2
6 XY-COMMAND service . 2
6.1 Terminology . 2
6.2 XY-COMMAND . 3
6.2.1 XY-COMMAND.request service primitive . 3
6.2.2 XY-COMMAND.confirm service primitive . 4
6.3 XY-REQUEST service . 4
6.3.1 XY-REQUEST.request service primitive . 4
6.3.2 XY-REQUEST.confirm service primitive . 5
7 MI-SAP . 5
7.1 General . 5
7.2 MI-SET service . 6
7.2.1 MI-SET.request service primitive . 6
7.2.2 MI-SET.confirm service primitive . 6
7.3 MI-GET service . 7
7.3.1 MI-GET.request service primitive . 7
7.3.2 MI-GET.confirm service primitive . 8
7.4 MI-COMMAND service . 9
7.5 MI-Request service . 9
8 MN-SAP . 9
8.1 General . 9
8.2 MN-COMMAND service . 9
8.3 MN-REQUEST service . 9
9 MF-SAP .10
9.1 General .10
9.2 MF-COMMAND service .10
9.3 MF-REQUEST service .10
10 SI-SAP .10
10.1 General .10
10.2 SI-COMMAND service .10
10.3 SI-REQUEST service .10
11 SN-SAP .10
11.1 General .10
11.2 SN-COMMAND service .11
11.3 SN-REQUEST service.11
12 SF-SAP .11
12.1 General .11
12.2 SF-COMMAND service .11
12.3 SF-REQUEST service .11
13 MS-SAP .11
13.1 General .11
13.2 MS-COMMAND service .11
13.3 MS-REQUEST service .12
14 Interfaces towards the ITS-S application entity .12
14.1 SAPs and API .12
14.2 MA-COMMAND service .12
14.3 MA-REQUEST service .12
14.4 SA-COMMAND service .12
14.5 SA-REQUEST service .12
14.6 FA-SAP.12
14.6.1 General.12
14.6.2 FA-COMMAND and FA-REQUEST service .13
15 Service primitive functions .13
16 Conformance .13
Annex A (normative) ASN.1 modules .14
Annex B (normative) Error/return codes .51
Annex C (informative) Service primitive functions snapshot .52
Bibliography .61
iv © ISO 2018 – All rights reserved
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.
This second edition cancels and replaces the first edition (ISO 24102-3:2013), which has been technically
revised. It also incorporates the Amendment ISO 24102-3:2013/Amd1: 2017.
A list of all parts in the ISO 24102 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
NOTE The former ISO 24102-5 has been converted into a separate standard ISO 22418, as it is not a station
management standard.
Introduction
This document is part of a family of International Standards for communications in intelligent transport
systems (ITS) based on the ITS station and communications architecture specified in ISO 21217 and
illustrated in Figure 1.
Figure 1 — ITS station reference architecture with named interfaces
This document is Part 3 of a multipart standard which determines the intelligent transport systems
(ITS) station management service access points.
The ITS station management entity provides functionality related to the management of communication
protocol layers and the security entity presented in the ITS station reference architecture specified in
ISO 21217 and presented in Figure 1.
ITS station management is specified as a distributed process, where no supervisory entity is employed.
vi © ISO 2018 – All rights reserved
INTERNATIONAL STANDARD ISO 24102-3:2018(E)
Intelligent transport systems — ITS station management —
Part 3:
Service access points
1 Scope
This document specifies the management service access points, i.e. the service access points of
— the interfaces between the ITS-S management entity and
— the ITS-S access layer (MI-SAP),
— the ITS-S networking & transport layer (MN-SAP),
— the ITS-S facilities layer (MF-SAP);
— the interfaces between the ITS-S security entity and
— the ITS-S access layer,
— the ITS-S networking & transport layer,
— the ITS-S facilities layer;
— the interface between the ITS-S management entity and the ITS-S security entity (MS-SAP)
— the interfaces between the ITS-S application entity and
— the ITS-S management entity (MA-SAP),
— the ITS-S security entity (SA-SAP).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 21217, Intelligent Transport Systems — Communications access for land mobiles (CALM) — Architecture
ISO/IEC 8825-2, Information technology — ASN.1 encoding rules: Specification of Packed Encoding
Rules (PER)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 21217 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Symbols and abbreviated terms
For the purposes of this document, the abbreviated terms given in ISO 21217 apply.
5 Service access points
The functionality of the management services and service primitives of the service access points (SAPs)
— MI-SAP, MN-SAP, MF-SAP,
— SI-SAP, SN-SAP, SF-SAP,
— MS-SAP,
— MA-SAP, SA-SAP
is specified in this document. The functionality shall be as specified using the abstract syntax notation
ASN.1. These SAPs are internal functional interfaces of the ITS station architecture specified in
ISO 21217, and illustrated in Figure 1.
NOTE 1 For the purpose of this document the SX-SAPs are also considered as management SAPs.
NOTE 2 SAPs can be non-exposed interfaces. Thus service primitives of SAPs are not subject to
conformance tests.
NOTE 3 All interfaces towards the ITS-S applications are considered to be implemented in an API. Such
an API provides, as a minimum, the functionality of the MA-SAP, the SA-SAP, and the FA-SAP; the FA-SAP is a
communications SAP also considered in this document as it fits logically to MA-SAP and SA-SAP.
The service primitives contain functions that are specified in ASN.1 in other standards, providing
managment and security functionality.
Means to secure the access to management functionality need to be specified within the global context
of the BSMD security introduced in ISO 21217. Details are outside the scope of this document.
6 XY-COMMAND service
6.1 Terminology
The term "ITS-S layer" means
— ITS-S access layer (Y=I), or
— ITS-S networking & transport layer (Y=N), or
— ITS-S facilities layer (Y=F),
see Figure 1.
The term "ITS-S entity" means
— ITS-S management entity (X=M), or
— ITS-S security entity (X=S, Y=S), or
— ITS-S application entity (Y=A),
see Figure 1.
The term XY-COMMAND identifies a service where X equals either M or S, and Y equals either I, N, F, or
A, and a service where X equals M and Y equals S.
2 © ISO 2018 – All rights reserved
The term XY-REQUEST identifies a service where X equals either M or S, and Y equals either I, N, F, or A,
and a service where X equals M and Y equals S.
XY-COMMAND.requests are commands presented by X to Y, and acknowledged by Y to X with XY-
COMMAND.confirm.
XY-REQUEST.requests are commands presented by Y to X, and acknowledged by X to Y with XY-
REQUEST.confirm.
An XY-COMMAND.request service primitive contains the service function XY-Command; an XY-
COMMAND.confirm service primitive contains the service function XY-CmdConfirm.
An XY-REQUEST.request service primitive contains the service function XY-Request; an XY-REQUEST.
confirm service primitive contains the service function XY-ReqConfirm.
The functionality of these service primitives, disregard of their implemenation, shall be as defined in
ASN.1; the respective ASN.1 specifications are provided in Annex A.
These ASN.1 specifications become observable as PDUs for ITS station-internal managment
[7]
communications specified in ISO 24102-4 ; thus for the specification of these PDUs, the respective
ASN.1 definitions become normative and mandatory in the strict sense.
Service functions are identified by a unique reference number. A specific service function that is used in
different SAPs is identified by the same reference number value in all of these SAPs.
6.2 XY-COMMAND
6.2.1 XY-COMMAND.request service primitive
The service primitive XY-COMMAND.request allows the ITS-S management entity or ITS-S security
entity to trigger an action at an ITS-S layer or in the ITS-S application entity.
The parameters of the service primitive XY-COMMAND.request are as follows:
XY-COMMAND.request (
Link-ID,
CommandRef,
XY-Command
)
Table 1 — XY-COMMAND.request parameter description
Name Description
Link-ID Only present in the service primitives of the MI-SAP and SI-SAP.
[4]
Unique identifier of a VCI or CI specified in ISO 21218 .
CommandRef Cyclic reference number of command unique for the given XY-COMMAND.
XY-Command.No Reference number of service function.
XY-Command.Value Service function.
An XY-COMMAND.request shall be generated by the ITS-S management or security entity when the
selected ITS-S layer or the ITS-S application entity shall perform an action.
Upon receipt of XY-COMMAND.request, disregard of its implementation, the requested action shall be
performed. Details are outside the scope of this document.
6.2.2 XY-COMMAND.confirm service primitive
The service primitive XY-COMMAND.confirm reports the result of a previous XY-COMMAND.request.
The parameters of the management service primitive XY-COMMAND.confirm are as follows:
XY-COMMAND.confirm (
Link-ID
CommandRef,
XY-CmdConfirm,
ErrStatus
)
Table 2 — XY-COMMAND.confirm Parameter description
Name Description
Link-ID Only present in the service primitives of the MI-SAP and SI-SAP.
[4]
Unique identifier of a VCI or CI specified in ISO 21218 .
CommandRef Unique cyclic reference number of command. Same value as in related MN-COMMAND.
request.
XY-CmdConfirm.No Reference number of service function. Same value as XY-Command.No in related
XY-COMMAND.request.
XY-CmdConfirm.Value Service function; carries optional confirm data.
ErrStatus Error/return code, see Table B.1.
An XY-COMMAND.confirm shall be generated by the respective ITS-S layer or the ITS-S application
entity upon performance of a previous XY-COMMAND.request in case ErrStatus indicates error, or XY-
CmdConfirm is present. It may be generated in case ErrStatus indicates success or XY-CmdConfirm is
not present.
Upon receipt of XY-COMMAND.confirm, disregard of its implementation, ErrStatus and XY-CmdConfirm
shall be evaluated and a possible action shall be performed properly. Details are outside the scope of
this document.
6.3 XY-REQUEST service
6.3.1 XY-REQUEST.request service primitive
The service primitive XY-REQUEST.request allows an ITS-S layer or the ITS-S application entity to
trigger an action at the ITS-S management or security entity.
The parameters of XY-REQUEST.request are as follows:
XY-REQUEST.request (
CommandRef,
XY-Request
)
4 © ISO 2018 – All rights reserved
Table 3 — XY-REQUEST.request parameter description
Name Description
CommandRef Unique cyclic reference number of command.
XY-Request.No Reference number of service function.
XY-Request.Value Service function.
An XY-REQUEST.request shall be generated by an ITS-S layer or the ITS-S application entity when the
ITS-S management or security entity shall perform an action.
Upon receipt of XY-REQUEST.request, disregard of its implementation, the required action shall be
performed. Details are outside the scope of this document.
6.3.2 XY-REQUEST.confirm service primitive
The service primitive XY-REQUEST.confirm reports the result of a previous XY-REQUEST.request.
The parameters of XY-REQUEST.confirm are as follows:
XY-REQUEST.confirm (
CommandRef,
XY-ReqConfirm,
ErrStatus
)
Table 4 — XY-REQUEST.confirm Parameter description
Name Description
CommandRef Unique cyclic reference number of command. Same value as in related XY-REQUEST.
request.
XY-ReqConfirm.No Reference number of service function. Same value as XY-Request.No in related MN-
REQUEST.request.
XY-ReqConfirm.Value Service function; carries optional confirm data.
ErrStatus Error/return code, see Table B.1.
An XY-REQUEST.confirm shall be generated by the respective ITS station management or security
entity upon performance of a previous XY-REQUEST.request in case ErrStatus indicates error or XY-
ReqConfirm is present. It may be generated in case ErrStatus indicates success or XY-ReqConfirm is not
present.
Upon receipt of XY-REQUEST.confirm, disregard of its implementation, ErrStatus and MN-ReqConfirm
shall be evaluated and a possible action shall be performed properly. Details are outside the scope of
this document.
7 MI-SAP
7.1 General
In addition to the MI-COMMAND, MI-REQUEST, SI-COMMAND, and SI-REQUEST service, the following
services are specified for the MI-SAP:
a) the service MI-SET that allows the ITS-S management entity to set I-Parameter values in a "(Virtual)
[4]
Communication Interface" (CI, VCI); see ISO 21218 ;
b) the service MI-GET that allows the ITS-S management entity to read I-Parameter values from a
(virtual) CI.
Setting of I-Parameter values is built on the service primitives MI-SET.request and MI-SET.confirm.
Reading of I-Parameter values is built on the service primitives MI-GET.request and MI-GET.confirm.
The functionality of these service primitives, disregard of their implemenation, shall be as defined in
ASN.1; the respective ASN.1 specifications are provided in Annex A:
— MI-SET.request is of ASN.1 type MI-Set-request;
— MI-SET.confirm is of ASN.1 type MI-Set-confirm;
— MI-GET.request is of ASN.1 type MI-Get-request;
— MI-GET.confirm is of ASN.1 type MI-Get-confirm.
NOTE Station-internal management communications between the ITS-S management entity and the ITS-S
access layer in other ITS-SCUs is provided by the PDUs "MI-rset", "MI-rget", "MI-rcmd" and "MI-rreq" specified in
[7]
ISO 24102-4 .
7.2 MI-SET service
7.2.1 MI-SET.request service primitive
The service primitive MI-SET.request allows setting of I-Parameters by the ITS-S management.
The parameters of MI-SET.request are as follows:
MI-SET.request (
Link-ID,
CommandRef,
Sequence of I-Param
)
Table 5 — MI-SET.request parameter description
Name Description Component of
MI-Set-request
linkID
Link-ID Unique identifier of a VCI/CI.
commandRef
CommandRef Unique cyclic reference number of command.
[4]
set-params
Sequence of I-Param I-Parameters specified in ISO 21218 .
An MI-SET.request is generated by the ITS-S management entity when I-Parameters specified in
[4]
ISO 21218 shall be set.
Upon receipt of MI-SET.request, disregard of its implementation, the selected parameters shall be set if
applicable.
7.2.2 MI-SET.confirm service primitive
The service primitive MI-SET.confirm reports the result of a previous MI-SET.request.
The parameters of MI-SET.confirm are as follows:
MI-SET.confirm (
Link-ID,
CommandRef,
SequenceOfErrors,
ErrorCode
)
6 © ISO 2018 – All rights reserved
The optional element "Sequence of Errors" shall be available once at least one of the requested settings
was in error. It may be available in order to acknowledge settings explicitly.
Table 6 — MI-SET.confirm parameter description
Name Description Component of
MI-Set-confirm
linkID
Link-ID Unique identifier of a VCI/CI.
commandRef
CommandRef Unique cyclic reference number of com-
mand.
errors
SequenceOfErrors Sequence of information elements for I-
Parameters (I-Param.No and error status
code) where setting of a value failed.
errStatus
ErrorCode General error status code of the MI-SET.
request
Error status codes shall be as specified in Annex B. These are used in the parameter SequenceOfErrors,
and in the parameter ErrorCode.
Possible error status codes used inthe parameter SequenceOfErrors are listed below.
— A request to set a defined "read only" I-Parameter shall be acknowledged with ErrStatus 7 "ACCESS
VIOLATION".
— A request to set an undefined I-Parameter shall be acknowledged with ErrStatus 2 "INVALID
PARAMETER NUMBER".
— A request to set a defined I-Parameter with an illegal value shall be acknowledged with ErrStatus 3
"INVALID PARAMETER VALUE".
— A request to set a defined I-Parameter with an illegal type of value shall be acknowledged with
ErrStatus 1 "UNSPECIFIED FAILURE".
— In case a general error not covered by the above error codes occurs, the request shall be acknowledged
with ErrStatus 1 "UNSPECIFIED ERROR"
Possible error status codes used in the parameter ErrorCode are listed below
— Successful setting of all parameters may be acknowledged with ErrStatus 0 "SUCCESS".
— Any kind of failure shall be acknowledged with ErrStatus 1 "UNSPECIFIED ERROR" with details to
be reported in the parameter Sequence of errors.
An MI-SET.confirm is generated by the MAE upon reception of a previous MI-SET.request.
Upon receipt of MI-SET.confirm, the ITS-S management entity shall evaluate the sequence of errors, if
applicable, and act accordingly. Details are outside the scope of this document.
7.3 MI-GET service
7.3.1 MI-GET.request service primitive
The service primitive MI-GET.request requests reporting of I-Parameter values to the ITS-S
management entity.
The parameters of the management service primitive MI-GET.request are as follows:
MI-GET.request (
Link-ID,
CommandRef
SequenceOf_I-ParamNo
)
Table 7 — MI-GET.request parameter description
Name Description Component of
MI-Get-request
linkID
Link-ID Unique identifier of a VCI/CI.
commandRef
CommandRef Unique cyclic reference number of com-
mand.
get-param-no
SequenceOf_I-ParamNo Sequence of I-Paramter reference num-
[4]
bers, see ISO 21218 .
An MI-GET.request is generated by the ITS-S management entity when I-Parameter values shall be
retrieved.
On receipt of MI-GET.request, disregard of its implementation, I-Parameters shall be reported to the
ITS-S management entity.
7.3.2 MI-GET.confirm service primitive
The service primitive MI-GET.confirm reports I-Parameter values to the ITS-S management entity.
The parameters of MI-GET.confirm are as follows:
MI-GET.confirm (
Link-ID,
CommandRef,
SequenceOf_I-Param
)
Table 8 — MI-GET.confirm parameter description
Name Description Component of
MI-Get-confirm
linkID
Link-ID Unique identifier of a VCI/CI.
commandRef
CommandRef Unique cyclic reference number of com-
mand.
get-param
SequenceOf_I-Param Sequence of successfully retrieved I-
Parameters,
followed by
sequence of status information elements
for I-Parameters (I-Param.No and error
status code) where retrieval of a value
failed.
errStatus
ErrorCode General error status code of the MI-GET.
request
Error status codes shall be as specified in Annex B. These are used in the parameter SequenceOf_I-
Params, and in the parameter ErrorCode.
8 © ISO 2018 – All rights reserved
Possible error status codes used inthe parameter SequenceOf_I-Params are listed below.
— A request to get the value of a defined "write only" I-Parameter shall be acknowledged with ErrStatus
7 "ACCESS VIOLATION".
— A request to get the value of an undefined I-Parameter shall be acknowledged with ErrStatus 2
"INVALID PARAMETER NUMBER".
Possible error status codes used in the parameter ErrorCode are listed below.
— Successful setting of all parameters may be acknowledged with ErrStatus 0 "SUCCESS".
— Any kind of failure shall be acknowledged with ErrStatus 1 "UNSPECIFIED ERROR" with details to
be reported in the parameter Sequence of errors.
The management service primitive MI-GET.confirm shall be generated by the MAE upon reception of a
previous MI-GET.request.
Upon receipt of MI-GET.confirm, the ITS-S management entity shall evaluate the parameter values and
act accordingly. Details are outside the scope of this document.
7.4 MI-COMMAND service
The ASN.1 code of the MI-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.6. Details on MI-Commands presented by the ITS-S management
entity to the ITS-S access layer are specified in other standards.
The functionality of MI-Commands shall be as specified in ASN.1.
7.5 MI-Request service
The ASN.1 code of the MI-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.11. Details on MI-Requests presented by the ITS-S access layer to
the ITS-S management entity are specified in other standards.
The functionality of MI-Requests shall be as specified in ASN.1.
8 MN-SAP
8.1 General
NOTE Station-internal management communications between the ITS-S management entity and the ITS-S
networking & transport layer in other ITS-SCUs is provided by the PDUs "MN-rcmd" and "MN-rreq" specified in
[7]
ISO 24102-4 .
8.2 MN-COMMAND service
The ASN.1 code of the MN-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.5. Details on MN-Commands presented by the ITS-S management
entity to the ITS-S networking & transport layer are specified in other standards.
The functionality of MN-Commands shall be as specified in ASN.1.
8.3 MN-REQUEST service
The ASN.1 code of the MN-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.10. Details on MN-Requests presented by the ITS-S networking &
transport layer to the ITS-S management entity are specified in other standards.
The functionality of MN-Requests shall be as specified in ASN.1.
9 MF-SAP
9.1 General
NOTE Station-internal management communications between the ITS-S management entity and the ITS-S
[7]
facilities layer in other ITS-SCUs is provided by the PDUs "MF-rcmd" and "MF-rreq" specified in ISO 24102-4 .
9.2 MF-COMMAND service
The ASN.1 code of the MF-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.4. Details on MF-Commands presented by the ITS-S management
entity to the ITS-S facilities layer are specified in other standards.
The functionality of MF-Commands shall be as specified in ASN.1.
9.3 MF-REQUEST service
The ASN.1 code of the MF-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.4. Details on MF-Requests presented by the ITS-S facilities layer to
the ITS-S management entity are specified in other standards.
The functionality of MF-Requests shall be as specified in ASN.1.
10 SI-SAP
10.1 General
Void.
10.2 SI-COMMAND service
The ASN.1 code of the SI-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.15. Details on SI-Commands presented by the ITS-S security entity
to the ITS-S access layer are specified in other standards.
The functionality of SI-Commands shall be as specified in ASN.1.
10.3 SI-REQUEST service
The ASN.1 code of the SI-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.19. Details on SI-Requests presented by the ITS-S access layer to
the ITS-S security entity are specified in other standards.
The functionality of SI-Requests shall be as specified in ASN.1.
11 SN-SAP
11.1 General
Void.
10 © ISO 2018 – All rights reserved
11.2 SN-COMMAND service
The ASN.1 code of the SN-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.14. Details on SN-Commands presented by the ITS-S security entity
to the ITS-S networking & transport layer are specified in other standards.
The functionality of SN-Commands shall be as specified in ASN.1.
11.3 SN-REQUEST service
The ASN.1 code of the SN-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.18. Details on SN-Requests presented by the ITS-S networking &
transport layer to the ITS-S security entity are specified in other standards.
The functionality of SN-Requests shall be as specified in ASN.1.
12 SF-SAP
12.1 General
Void.
12.2 SF-COMMAND service
The ASN.1 code of the SF-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.13. Details on SF-Commands presented by the ITS-S security entity
to the ITS-S facilities layer are specified in other standards.
The functionality of SF-Commands shall be as specified in ASN.1.
12.3 SF-REQUEST service
The ASN.1 code of the SF-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.17. Details on SF-Requests presented by the ITS-S facilities layer to
the ITS-S security entity are specified in other standards.
The functionality of SF-Requests shall be as specified in ASN.1.
13 MS-SAP
13.1 General
NOTE Station-internal management communications between the ITS-S management entity and the ITS-S
networking & transport layer in other ITS-SCUs is provided by the PDUs "MS-rcmd" and "MS-rreq" specified in
[7]
ISO 24102-4 .
13.2 MS-COMMAND service
The ASN.1 code of the MS-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.2. Details on MS-Commands presented by the ITS-S management
entity to the ITS-S security entity are specified in other standards.
The functionality of MS-Commands shall be as specified in ASN.1.
13.3 MS-REQUEST service
The ASN.1 code of the MS-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.7. Details on MF-Requests presented by the ITS-S management
entity to the ITS-S security entity are specified in other standards.
The functionality of MS-Requests shall be as specified in ASN.1.
14 Interfaces towards the ITS-S application entity
14.1 SAPs and API
The API illustrated in Figure 1 contains the functionality of the interfaces MA, FA, and SA specified
in ISO 21217. The MA-SAP and the SA-SAP, and some basic features of the FA-SAP are specified in this
document.
NOTE Station-internal management communications between the ITS-S management entity and the
ITS-S application entity in other ITS-SCUs is provided by the PDUs "MA-rcmd" and "MA-rreq" specified in
[7]
ISO 24102-4 .
14.2 MA-COMMAND service
The ASN.1 code of the MA-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.3. Details on MA-Commands presented by the ITS-S management
entity to the ITS-S application entity are specified in other standards.
The functionality of MA-Commands shall be as specified in ASN.1.
14.3 MA-REQUEST service
The ASN.1 code of the MA-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.8. Details on MA-Requests presented by the ITS-S management
entity to the ITS-S application entity are specified in other standards.
The functionality of MA-Requests shall be as specified in ASN.1.
14.4 SA-COMMAND service
The ASN.1 code of the SA-COMMAND service, its service primitives, and the current status of service
primitive functions is specified in A.12. Details on SA-Commands presented by the ITS-S security entity
to the ITS-S application entity are specified in other standards.
The functionality of SA-Commands shall be as specified in ASN.1.
14.5 SA-REQUEST service
The ASN.1 code of the SA-REQUEST service, its service primitives, and the current status of service
primitive functions is specified in A.16. Details on SA-Requests presented by the ITS-S application
entity to the ITS-S security entity are specified in other standards.
The functionality of SA-Requests shall be as specified in ASN.1.
14.6 FA-SAP
14.6.1 General
As there is still no International Standard on general services for the FA-SAP, the respective
specifications already contained in the predecessor of this document are maintained.
12 © ISO 2018 – All rights reserved
14.6.2 FA-COMMAND and FA-REQUEST service
Instead of defining FA-COMMAND and FA-REQUEST services in the same way as XY-COMMAND and XY-
REQUEST, extendible sets of service primitives in the two directions
— up from ITS-S facilities layer to the ITS-S application entity (i.e. the FA-REQUEST service of ASN.1
type FAsapRequest),
— down from the ITS-S application entity to the ITS-S facilities layer (i.e. the FA-COMMAND service of
ASN.1 type FAsapIndication)
were defined using the anytype approach of ASN.1 with CLASS.
Details on how to design instantiations of the FA-SAP services are out of scope of this document.
The ASN.1 code of the FA-COMMAND and FA-REQUEST service, their service primitives, and the current
status of service primitive functions is specified in A.21. Details on FA-Commands and FA-Requests
presented by the ITS-S security entity to the ITS-S application entity are specified in other standards.
15 Service primitive functions
The service primitives specified in Clause 6 carry service primitive functions, i.e. the payload.
— The payload contained in the XY-COMMAND.request service primitives is identified by an XY-
Command.No of ASN.1 type INTEGER (0.65535), pointing to the payload XY-Command.Value;
see 6.2.1.
— The payload contained in the XY-COMMAND.confirm service primitives, 6.2.2, 6.3.2, is identified by
an XY-CmdConfirm.No of ASN.1 type INTEGER (0.65535), pointing to the payload XY-CmdConfirm.
Value; , see 6.2.1.
— The payload contained in the XY-REQUEST
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
