ISO 9330-4:2000
(Main)Welded steel tubes for pressure purposes — Technical delivery conditions — Part 4: Submerged arc-welded unalloyed and alloyed steel tubes with specified elevated temperature properties
Welded steel tubes for pressure purposes — Technical delivery conditions — Part 4: Submerged arc-welded unalloyed and alloyed steel tubes with specified elevated temperature properties
This part of ISO 9330 specifies the technical delivery conditions for submerged arc-welded tubes of circular crosssection, made of unalloyed or alloyed steel with specified elevated temperature properties. These tubes are intended for pressure purposes in cases when the material is also subjected to elevated temperatures, e.g. for the construction of steam generating equipment and for interconnecting pipework. The requirements of appropriate international application standards and relevant national legal regulations shall be taken into account by the user. For boilers and pressure vessels International Standards ISO 831, ISO 2604 and ISO 5730 are available. For the general technical delivery requirements, see ISO 404. NOTE The English words "tube" and "pipe" are synonymous.
Tubes en acier soudés pour service sous pression — Conditions techniques de livraison — Partie 4: Tubes soudés à l'arc immergé en aciers non alliés et alliés avec caractéristiques spécifiées à température élevée
General Information
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 9330-4
First edition
2000-07-01
Welded steel tubes for pressure
purposes — Technical delivery
conditions —
Part 4:
Submerged arc-welded unalloyed and
alloyed steel tubes with specified elevated
temperature properties
Tubes en acier soudés pour service sous pression —
Conditions techniques de livraison —
Partie 4: Tubes soudés à l'arc immergé en aciers non alliés et alliés avec
caractéristiques spécifiées à température élevée
Reference number
ISO 9330-4:2000(E)
©
ISO 2000
---------------------- Page: 1 ----------------------
ISO 9330-4:2000(E)

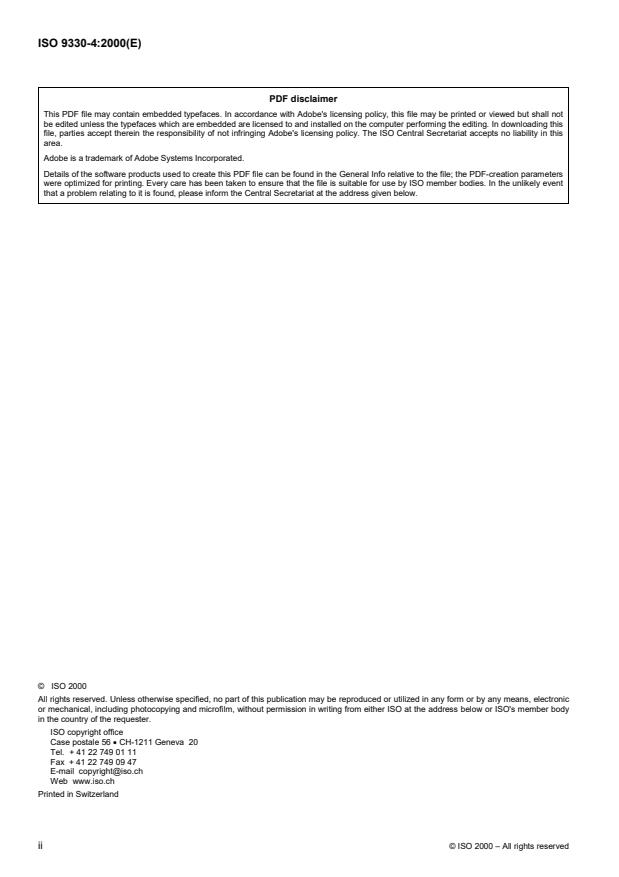

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2000
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 9330-4:2000(E)
Contents Page
Foreword.iv
1 Scope .1
2 Normative references .1
3 Symbols .2
4 Information to be supplied by the purchaser .3
5 Manufacturing process .4
6 Metallurgical properties .6
7 Dimensions, masses and tolerances.10
8 Technical delivery conditions .12
9 Inspection and testing.13
10 Samples .15
11 Test methods and results .17
12 Marking .22
13 Protection .22
14 Documents .22
Annex A (informative) Long term rupture values.23
© ISO 2000 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 9330-4:2000(E)

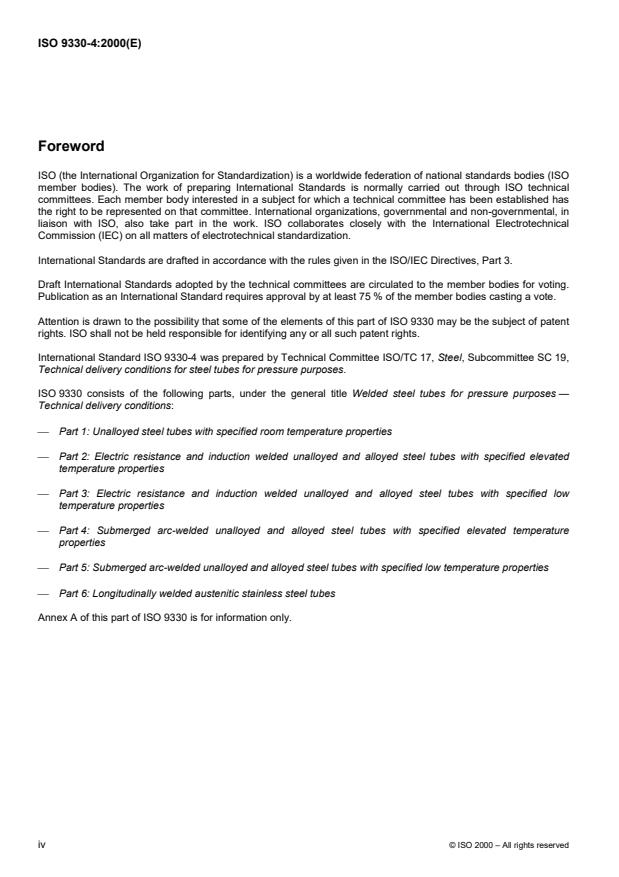

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 9330 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 9330-4 was prepared by Technical Committee ISO/TC 17, Steel, Subcommittee SC 19,
Technical delivery conditions for steel tubes for pressure purposes.
ISO 9330 consists of the following parts, under the general title Welded steel tubes for pressure purposes —
Technical delivery conditions:
� Part 1: Unalloyed steel tubes with specified room temperature properties
� Part 2: Electric resistance and induction welded unalloyed and alloyed steel tubes with specified elevated
temperature properties
� Part 3: Electric resistance and induction welded unalloyed and alloyed steel tubes with specified low
temperature properties
� Part 4: Submerged arc-welded unalloyed and alloyed steel tubes with specified elevated temperature
properties
� Part 5: Submerged arc-welded unalloyed and alloyed steel tubes with specified low temperature properties
� Part 6: Longitudinally welded austenitic stainless steel tubes
Annex A of this part of ISO 9330 is for information only.
iv © ISO 2000 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 9330-4:2000(E)
Welded steel tubes for pressure purposes — Technical delivery
conditions —
Part 4:
Submerged arc-welded unalloyed and alloyed steel tubes
with specified elevated temperature properties
1 Scope
This part of ISO 9330 specifies the technical delivery conditions for submerged arc-welded tubes of circular cross-
section, made of unalloyed or alloyed steel with specified elevated temperature properties. These tubes are
intended for pressure purposes in cases when the material is also subjected to elevated temperatures, e.g. for the
construction of steam generating equipment and for interconnecting pipework.
The requirements of appropriate international application standards and relevant national legal regulations shall be
taken into account by the user. For boilers and pressure vessels International Standards ISO 831, ISO 2604 and
ISO 5730 are available.
For the general technical delivery requirements, see ISO 404.
NOTE The English words “tube” and “pipe” are synonymous.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 9330. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 9330 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of ISO and IEC maintain
registers of currently valid International Standards.
1)
ISO 148:1983 , Steel — Charpy impact test (V-notch).
ISO 377:1997, Steel and steel products — Location and preparation of samples and test pieces for mechanical
testing.
IS0 404:1992, Steel and steel products — General technical delivery requirements.
ISO 783:1999, Metallic materials — Tensile testing at elevated temperature.
ISO 2566-1:1984, Steel — Conversion of elongation values — Part 1: Carbon and low alloy steels.
ISO 3205:1976, Preferred test temperatures.
1) This International Standard has been withdrawn and replaced by ISO 148-1:—, ISO 148-2:1998 and ISO 148-3:1998.
© ISO 2000 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 9330-4:2000(E)
ISO 3545-1:1989, Steel tubes and fittings — Symbols for use in specifications — Part 1: Tubes and tubular
accessories with circular cross-section.
ISO 4200:1991, Plain end steel tubes, welded and seamless — General tables of dimensions and masses per unit
length.
ISO 4948-1:1982, Steels — Classification — Part 1: Classification of steels into unalloyed and alloy steels based
on chemical composition.
ISO/TR 4949:1989, Steel names based on letter symbols.
ISO 5173:1981, Fusion welded butt joints in steel — Transverse root and face bend test.
ISO 5177:1981, Fusion welded butt joints in steel — Transverse side bend test.
ISO 5252:1991, Steel tubes — Tolerance systems.
ISO 6761:1981, Steel tubes — Preparation of ends of tubes and fittings for welding.
ISO 6892:1998, Metallic materials — Tensile testing at ambient temperature.
ISO 7438:1985, Metallic materials — Bend test.
ISO 9765:1990, Submerged arc-welded steel tubes for pressure purposes — Ultrasonic testing of the weld seam
for the detection of longitudinal and/or transverse imperfections.
ISO 10474:1991, Steel and steel products — Inspection documents.
ISO 11496:1993, Seamless and welded steel tubes for pressure purposes — Ultrasonic testing of tube ends for the
detection of laminar imperfections.
ISO 12094:1994, Welded steel tubes for pressure purposes — Ultrasonic testing for the detection of laminar
imperfections in strip/plates used in the manufacture of welded tubes.
IS0 12096:1996, Submerged arc-welded steel tubes for pressure purposes — Radiographic testing of the weld
seam for the detection of imperfections.
ISO 14284:1996, Steel and iron — Sampling and preparation of samples for the determination of chemical
composition.
3 Symbols
3.1 Fundamental symbols
D is the specified outside diameter.
T is the specified wall thickness.
3.2 Symbols for tolerances
See ISO 5252.
2 © ISO 2000 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 9330-4:2000(E)
3.3 Symbols for tests
3.3.1 Tensile test
See ISO 6892.
3.3.2 Hydraulic test
p is the test pressure.
E
� is the stress which occurs in the metal during the test.
4 Information to be supplied by the purchaser
4.1 Mandatory information
The purchaser shall state on his enquiry and order the following information:
a) the denomination “tube”;
b) reference to the relevant dimensional standard;
c) dimensions (outside diameter � wall thickness), see 7.1;
d) length, see 7.2;
e) tolerances if exact lengths greater than 12 m are ordered, see 7.3.4;
f) reference to this part of ISO 9330, i.e. ISO 9330-4;
g) steel grade, see Table 3;
h) test category for unalloyed steels, see 9.3.1.
4.2 Optional information
Enquiries and orders for tubes in accordance with this part of ISO 9330 shall be supplemented, if it is deemed
necessary by the purchaser, with the indication of one or more of the following optional requirements, which shall
be the subject of special agreements:
a) dimensions (inside diameter � wall thickness) see 7.1;
b) steelmaking process, see 5.1;
c) delivery condition, see 5.4;
d) special straightness requirements, see 7.3.6;
e) tolerances on the height of the weld seam, see 7.3.2;
f) bevelled ends, see 8.2;
g) product analysis, see 10.1.3;
h) tensile testing of weld for tubes over 219 mm but less than 508 mm outside diameter, see 10.1.3;
i) determination of proof stress at elevated temperature R , see 10.1.3;
p0,2
© ISO 2000 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 9330-4:2000(E)
j) impact test, see 10.1.3;
k) specific marking, see 12.3;
l) protective coating, see 13;
m) type of inspection and testing and corresponding document, see 9.2 and 14.
4.3 Example of an order
Example of an order conforming to the dimensional standard ISO 4200, with an outside diameter of 457 mm, a wall
thickness of 10 mm and a standard length (random length) of 4 m to 8 m, made of steel grade PH 23 with specified
elevated temperature properties to be submitted to specific inspection and testing to test category I involving the
issuing of an inspection document 3.1 B in accordance with ISO 10474:1991.
Tube ISO 4200 - 457 ����10-4to 8- ISO9330-4- PH23-l-3.1.B
5 Manufacturing process
5.1 Steelmaking process
If requested, the purchaser shall be informed of the steelmaking process used.
Steels may be cast in ingots or may be strand cast. When steels of different grades are sequentially strand cast
identification of the resultant transition material is required. The producer shall remove the transition material by an
established procedure that positively separates the grades.
5.2 Deoxidation process
Steels intended for the production of tubes covered by this part of ISO 9330 shall be fully-killed.
5.3 Product-making process for tubes
A welded tube is obtained by shaping a flat-rolled product and then welding the edges. The weld may be
longitudinal or helical.
Tubes shall be submerged arc-welded (SAW) using at least one run on the inside and one run on the outside of the
tube. Unless otherwise agreed, the process of manufacture is left to the discretion of the manufacturer, provided
that the welding method and welder/welding operator have been approved in accordance with a qualified
procedure.
Tubes covered by this part of ISO 9330 may be hot finished or cold finished. The terms “hot finished” and “cold
finished” apply to the condition of the tube before it is heat treated, if applicable.
5.4 Delivery condition
5.4.1 Tubes covered by this part of ISO 9330 shall be delivered in accordance with Table 1 and when
appropriate the heat treatment conditions indicated in Table 2.
5.4.2 By agreement between the purchaser and the manufacturer the tubes may be delivered in a condition
other than the final delivery condition in which case they shall be suitable for subsequent manipulation and the
purchaser shall be informed of any treatment necessary to obtain the specified properties.
4 © ISO 2000 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 9330-4:2000(E)
Table 1 — Delivery conditions
Delivery condition
Grade
Cold formed Hot formed
As-welded, not heat-treated
PH 23, PH 26, PH 29, PH 35 Welded, normalized on full tube
Welded, heat treatment on full tube
16 Mo 3, 13 CrMo 4-5, 11 CrMo 9-10 Welded, heat treatment on full tube
Table 2 — Heat treatment conditions
Austenitizing Tempering
Reference heat
Cooling Cooling
temperature temperature
Steel grade
a
medium medium
treatment
°C °C
b
PH 23 880-940 Air — —
N
b
PH 26 880-940 Air — —
N
Unalloyed
steels PH 29 880-940 Air — —
b
N
PH 35 880-940 Air — —
b
N
16 Mo 3 N 890-950 Air — —
Alloyed
13 CrMo 4-5 900-960 Air 660-730 Air
N � T
steels
11 CrMo 9-10 900-960 Air 680-750 Air
N � T
a
N = normalizing; N � T = normalizing � tempering.
b
The hot finished tubes may be delivered in the non treated condition at the discretion of the manufacturer provided that the
hot finishing produces a technically equivalent metallurgical condition. The methods of control to ensure equivalence of
structure shall be the subject of a previous agreement between the purchaser and manufacturer.
© ISO 2000 – All rights reserved 5
---------------------- Page: 9 ----------------------
ISO 9330-4:2000(E)
6 Metallurgical properties
6.1 Chemical composition
6.1.1 Heat analysis
The heat analysis reported by the steel producer shall apply and comply with the requirements given in Table 3.
Table 3 — Chemical composition (heat analysis), % (m/m)
Al
P S
a
Steel grade CSi Mn Cr Mo (total) Others
max. max.
max.
b
PH 23 u 0,17 0,10-0,30 0,30-0,80 0,035 0,03 — — —
b
PH 26 u 0,21 0,10-0,35 0,40-1,20 0,035 0,03 — — —
Unalloyed
steels b
PH 29 u 0,22 0,10-0,40 0,65-1,40 0,035 0,03 — — —
c c b, d
PH 35 u 0,22 0,15-0,55 1,00-1,50 0,035 0,03 — — —
e b
16 Mo 3 0,12-0,20 0,15-0,35 0,40-0,80 0,035 0,03 — 0,25-0,35 0,02
Alloyed
e b
13 CrMo 4-5 0,10-0,17 0,15-0,35 0,40-0,70 0,035 0,03 0,7-1,1 0,40-0,60 0,02
steels
b
11 CrMo 9-10 0,08-0,15 0,15-0,40 0,30-0,70 0,035 0,03 2,0-2,5 0,90-1,20 0,02
NOTE Elements not included in this table should not be intentionally added without the agreement of the purchaser except for elements
which may be added for deoxidation and finishing of the heat. All reasonable precautions should be taken to prevent the addition of elements
from scrap or other materials used in the manufacture, but residual elements may be present provided that the mechanical properties and
applicability are not adversely affected. If the amount of residual elements is likely to affect the weldability of the steel, the content of such
elements (heat analysis) should be stated in the documents mentioned in clause 14.
a
Classification in accordance with ISO 4948-1; designation in accordance with ISO/TR 4949.
b
A maximum copper content of 0,25 % (m/m) may be requested by the purchaser in order to facilitate subsequent forming operations.
c
For tubes with wall thickness � 30 mm the upper limit of the carbon content may be increased by 0,02 % but (C + Mn/6) shall never
exceed 0,47 % (m/m).
d
At the discretion of the manufacturer additions of niobium, titanium and vanadium are permitted up to levels permitted for the non-alloyed
steels listed in ISO 4948-1:1982, unless otherwise agreed upon between the purchaser and the manufacturer. In such a case the test
certificate shall state the level of these elements.
e
For tubes with wall thickness � 30 mm the upper limit of the carbon content may be increased by 0,02 % (m/m).
6 © ISO 2000 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 9330-4:2000(E)
6.1.2 Product analysis
If a product analysis is required (see 10.1.3), the permissible deviations given in Table 4 shall apply to the heat
analysis specified in Table 3.
The deviations, other than when maxima only are specified, apply either above or below the specified limits of the
range but not both above and below for the same element from different sample products from the same heat.
When maxima only are specified, the deviations are positive only.
Table 4 — Permitted deviations from the specified chemical composition limits given in Table 3
Content specified for the Permissible deviation
Element heat analysis
%(m/m) %(m/m)
C u 0,22
� 0,03
Si u 0,55
� 0,05
Mn
u 1,50 � 0,10
P
u 0,035 � 0,005
S u 0,030 � 0,005
Cr u 2,50 � 0,10
u 0,35
� 0,04
Mo
� 0,30u 1,20 � 0,05
Al u 0,020 � 0,005
© ISO 2000 – All rights reserved 7
---------------------- Page: 11 ----------------------
ISO 9330-4:2000(E)
6.2 Mechanical properties
6.2.1 At room temperature
The mechanical and technological properties of the tubes covered by this part of ISO 9330, measured at room
temperature (23 °C � 5 °C, see ISO 3205), to be obtained on test pieces selected, prepared and tested in
accordance with clause 9, shall comply with the requirements of Table 5.
Table 5 — Mechanical properties at room temperature
Tensile test Bend test Impact
test
b
R or R or R min. for
Tensile Elongation
eH p0,2 t0,5
a
strength
wall thickness Diameter
A min.
Steel grade Transverse
of the
c
mandrel
R
� 16 mm � 40 mm lt
� 16 mm
m
u 40 mm u 60 mm
2 2
N/mm N/mm %mm J
PH 23 360-480 235 225 215 25 23 3T 27
PH 26 410-530 265 255 245 21 19 4T 27
Unalloyed
steels
PH 29 460-580 290 280 270 23 21 4T 27
PH 35 510-640 355 335 315 19 17 4T 27
d e
16 Mo 31 450-600 270 270 260 22 20 4T 27
Alloyed
d
4T
3CrMo4-5 440-590 290 290 280 22 20 27
steels
11 CrMo 9-10 480-630 280 280 280 20 18 4T 27
a
For wall thicknesses � 60 mm, the values to be obtained shall be the subject of agreement between the purchaser and the manufacturer
at the time of ordering.
b
l = longitudinal; t = transversal.
c
Applicable for wall thicknesses � 30 mm, unless otherwise indicated.
d 2
For wall thicknessesu 10 mm the minimum value of yield strength may be increased by I0 N/mm .
e
Applicable for wall thicknesses � 10 mm.
8 © ISO 2000 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 9330-4:2000(E)
6.2.2 At elevated temperature
6.2.2.1 Proof stress
The minimum proof stress R values at elevated temperatures are indicated in Table 6.
p0,2
Table 6 — Minimum 0,2 % proof stress (R )valuesatelevatedtemperature
p0,2
R
P0,2
2
N/mm
Steel
Wall
a
grade
thickness
Temperature
°C
150 200 250 300 350 400 450 500 550 600
u 16
185 165 145 127 116 110 106 —— —
PH 23
� 16u 40
183 16.4 145 127 116 110 106 —— —
� 40u 60
172 159 145 127 116 110 106 —— —
u 16
216 194 171 152 141 134 130 —— —
Un-
PH 26
� 16u 40
213 192 171 152 141 134 130 —— —
alloyed
steels
� 40u 60
204 lea 171 152 141 134 130 —— —
u 16
247 223 198 177 167 158 153 —— —
PH 29
� 16u 40 242 220 198 177 167 158 153 —— —
� 40u 60
236 217 198 177 167 158 153 —— —
u 60
PH 35 270 255 235 215 200 180 170 —— —
u 60
16Mo3 237 224 206 173 159 155 150 145 ——
Alloyed
u 60
steels 13 CrMo 4-5 230 220 210 183 169 164 161 156 150 145
u 60
11 CrMo 9-10 241 233 224 219 212 207 194 180 160 137
a
Values for wall thicknesses � 50 mm are subject to agreement between the purchaser and the manufacturer.
6.2.2.2 Stress rupture properties
The long term stress rupture property (� ) values at elevated temperatures are indicated in annex A. It is stressed
R
that they are given for information only.
6.3 Weldability
Steels intended for the production of tubes covered by this part of ISO 9330 are generally regarded as being
weldable. However, account should be taken of the fact that the behaviour of the steel during and after welding is
dependent not only on the steel, but also significantly, on the condition of preparing and carrying out the welding.
© ISO 2000 – All rights reserved 9
---------------------- Page: 13 ----------------------
ISO 9330-4:2000(E)
7 Dimensions, masses and tolerances
7.1 Diameters, wall thicknesses and masses
The outside diameters, wall thicknesses and masses of the tubes covered by this part of ISO 9330 should be
selected from those given in ISO 4200.
By agreement between the purchaser and the manufacturer tubing specified by inside diameter and wall thickness
can be supplied. In such a case the dimensions and the tolerances required should be agreed upon at the time of
enquiry and order.
7.2 Lengths
7.2.1 It shall be stated on the enquiry and order whether the tubes are to be delivered with random lengths,
see 7.2.2, or with exact lengths, see 7.2.3.
7.2.2 If the tubes are to be delivered with random lengths, the length range shall be agreed upon at the time of
inquiry and ordering.
7.2.3 If the tubes are to be delivered with exact lengths, the length tolerances given in 7.3.4 shall apply.
7.3 Tolerances
7.3.1 Tolerances on outside diameter and on wall thickness (excluding the weld)
The outside diameters and the wall thicknesses of the tubes covered by this part of ISO 9330 shall be within the
tolerance limits given in Table 7, see 9.3.2.2.
Within areas where the tube surface has been dressed by mechanical machining (such as grinding), e.g. as a
result of instructions required for the performance of non-destructive testing, it is permissible to exceed the minus
deviation on the outside diameter by a small amount over a length of not more than 1 m, provided that wall
thickness remains within the lower tolerance limits.
Table 7 — Tolerances on outside diameter and on wall thickness (excluding the weld seam)
Tolerances on
(see ISO 5252)
DT
� 0,75 % with a min. of �10 % with a min. of
� 0,5 mm � 0,2 mm
10 © ISO 2000 – All rights reserved
---------------------- Page: 14 ----------------------
ISO 9330-4:2000(E)
7.3.2 Tolerances on the height of the weld seam
The heights of the external and internal weld seam shall be within the tolerance limits indicated in Table 8
(see 9.3.2.2).
Table 8 — Tolerances on height of weld seam
Wall thickness (T) Maximum height of external and
internal weld seam reinforcement
mm mm
Tu 8 3
3,5
8� Tu 14,2
4,8
T� 14,2
7.3.3 Misalignment of plate edges at the weld
Radial misalignment of the abutting plate or strip edges shall not exceed the following limits:
� for wall thicknessesu 12,5 mm: 1,6 mm;
� for wall thicknesses � 12,5 mm: 12,5 % of specified wall thickness or 3,2 mm, whichever is the smaller.
7.3.4 Tolerances on exact lengths
� 10 mm
� for lengthsu 6m:
0
� 15 mm
� for lengths � 6mu 12 m:
0
For lengths � 12 m, the applicable tolerance shall be agreed upon between the purchaser and the manufacturer.
7.3.5 Ovality
The ovality shall be determined as a percentage using the following formula, see ISO 3545-1:
_
DD
max min
Ovality� 100
D
Where D and D are respectively the maximum and the minimum outside diameters measured in the same
max min
cross-section.
For tubes having D� 406 mm ovality is included in the limits of the diameter tolerances.
For tubes having DW 406 mm the ovality shall not exceed 2 % if the D/T ratio is � 100. If the D/T ratio isW 100 the
tolerance on ovality shall be agreed upon between the purchaser and manufacturer.
7.3.6 Straightness
All tubes shall be reasonably straight. The deviation from straightness shall not exceed 0,002 � L where L is the
length. Deviation from straightness over any one metre length shall not exceed 3 mm.
Special requirements regarding straightness shall be the subject of an agreement between the purchaser and the
manufacturer.
© ISO 2000 – All rights reserved 11
---------------------- Page: 15 ----------------------
ISO 9330-4:2000(E)
8 Technical delivery conditions
8.1 Appearance and soundness
8.1.1 The tubes shall be free from such defects as can be established by visual inspection and testing in
accordance with this part of ISO 9330.
8.1.2 The tubes shall have a finish and internal and external surface condition typical of the manufacturing
process and, when applicable, the heat-treated condition. The finish and surface condition shall permit surface
imperfections or marks requiring dressing to be identified.
8.1.3 It shall be permissible to dress, by grinding or machining, surface marks and imperfections provided that
the thickness of the tube after dressing does not fall below the minimum permitted wall thickness.
8.1.4 Surface imperfections which encroach on the minimum wall thickness shall be considered defects and shall
be deemed not to comply with this part of ISO 9330.
8.1.5 All dressed areas shall blend smoothly into the contour of the tube.
8.1.6 The manufacturer shall explore, by grinding, a sufficient number of surface marks and imperfections
identified during visual inspection to provide assurance that these have been evaluated to ensure compliance with
8.1.7.
8.1.7 The manufacturer shall, subject to the limitations given in 8.1.8, dress surface marks and imperfections
found by exploration in accordance with 8.1.6 to be deeper than 5 % of the specified thickness but not less than
0,5 mm.
8.1.8 If surface imperfections acceptable under 8.1.7 are not scattered and/or appear over a large area in excess
of what is considered to be an acceptable surface condition then tubes shall be rejected or alternatively subjected
to dressing as agreed upon between the purchaser and the manufacturer.
8.1.9 Repairs to the parent metal of the tubes shall only be carried out by grinding or machining. Peening or
welding are not permitted.
NOTE Repairs to the weld seam are permitted, in accordance with an established procedure.
8.2 Preparation of ends
Tubes are normally delivered with square cut ends. By agreement between the purchaser and the manufacturer at
the time of ordering they can also be delivered with bevelled ends, see ISO 6761. The ends shall be free from
excessive burrs.
8.3 Delivery conditions
When the tubes are delivered in the heat-treated condition the parameters given in Table 2 shall apply.
12 © ISO 2000 – All rights reserved
---------------------- Page: 16 ----------------------
ISO 9330-4:2000(E)
9 Inspection and testing
9.1 Type of inspection and testing
The inspection and testing procedure for deliveries in accordance with this part of ISO 9330 shall be as specified in
ISO 404.
9.2 Types of the inspection document
Tubes delivered in accordance with this part of ISO 9330 shall be provided with an inspection certificate, 3.1.B, in
accordance with ISO 10474, see 4.2.
NOTE If inspection document 3.1.C or 3.2 is specified the purchaser should notify the manufacturer of the address of the
organization or person nominated by him to carry out the inspection and to produce the certificate of conformity.
The inspection documents supplied shall contain at least the following information:
a) reference to the order;
b) description of products to which the inspection document applies;
c) information on tests as follows:
1) location of sample, direction of test pieces and test temperature;
2) t
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
