ISO 10097-1:1999

Wireline diamond core drilling equipment - System A - Part 1: Metric units

This part of ISO 10097 specifies the nomenclature and the leading dimensions necessary for the interchangeability of the following wireline drilling equipment for drilling holes 48 mm to 96 mm in diameter, yielding cores of 27 mm to 63 mm in diameter. The equipment is illustrated in Figure 1 and comprises the following: a) core bit; b) reaming shell; c) core lifter; d) core lifter case; e) outer tube; f) inner tube; g) drill rod (smooth pipe only).

Équipement de forage au diamant à ligne à câble avec carottage — Système A — Partie 1: Unités métriques

Oprema wireline za diamantno vrtanje na jedro - Sistem A - 1. del: Metrske enote

General Information

• Status: Published
• Publication Date: 20-Oct-1999
• ICS: 73.100.30 - Equipment for drilling and mine excavation
• Technical Committee: ISO/TC 82 - Mining
• Drafting Committee: ISO/TC 82 - Mining
• Current Stage: 9093 - International Standard confirmed
• Start Date: 04-Sep-2023
• Completion Date: 13-Dec-2025
• Ref Project: SIST ISO 10097-1:2001 - Wireline diamond core drilling equipment -- System A -- Part 1: Metric units

Overview

ISO 10097-1:1999 specifies the nomenclature and principal dimensions for wireline diamond core drilling equipment - System A - in metric units. It defines the dimensional and material requirements needed to ensure interchangeability of components used to drill holes 48 mm to 96 mm in diameter and recover cores 27 mm to 63 mm in diameter. The standard covers core bits, reaming shells, core lifters and cases, outer and inner core tubes, and smooth drill rods.

Key topics and technical requirements

• Scope and designation
  • Items are identified by the prefix WL plus hole-dimension letters (A, B, N, H). Example: WLB core bit.
• Component list
  • Core bit, reaming shell, core lifter, core lifter case, outer tube, inner tube, drill rod (smooth pipe).
• Materials
  • Minimum mechanical properties specified for drill rods and core tubes: tensile strength 690 MPa, yield 550 MPa, elongation 12%. Other items are not specified.
• Dimensions and tolerances
  • All dimensions in millimetres; detailed tables for each component (core bit, reaming shell, lifter, tubes, rod) set max/min values and thread pitches.
  • Rod lengths commonly 3 m, 1.5 m, 0.75 m (DCDMA/CDDA conformity may use 3.048 m, 1.524 m, 0.762 m).
• Eccentricity and straightness
  • Eccentricity (distance between outer and inner centres) shall not exceed 10% of nominal wall thickness Q; eccentricity is calculated from measured Qmax and Qmin values.
  • Straightness limits when rolled against a straightedge: drill rods 1 in 2 000, core tubes 1 in 1 500.
• Threads and joint details
  • Annex A (informative) provides principal drill-rod thread dimensions (taper, pitch, diameters, spire depths). Thread pitches and profiles are listed per WL size.

Applications and users

ISO 10097-1 is essential for:

• Manufacturers and OEMs of wireline core drilling equipment to ensure parts are interchangeable and compatible.
• Drilling contractors and mining/geotechnical operators who specify or procure System A wireline assemblies.
• Design engineers, QA inspectors and maintenance teams who verify dimensions, threads, material properties and straightness.
• Procurement and spare-parts management to match WL designations and accept interchangeable components.

Practical benefits include reduced downtime, simplified spare-part inventories and confidence in compatibility across suppliers.

Related standards

• ISO 10097-2 - System A, Inch units (companion part)
• ISO 3551-1:1992 - Rotary core diamond drilling equipment - System A - Metric units (normative reference recommended for combined use)

Keywords: ISO 10097-1, wireline diamond core drilling equipment, System A, metric units, core bit, reaming shell, core lifter, drill rod, interchangeability, dimensions and tolerances.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oprema wireline za diamantno vrtanje na jedro - Sistem A - 1. del: Metrske enoteÉquipement de forage au diamant à ligne à câble avec carottage -- Système A -- Partie 1: Unités métriquesWireline diamond core drilling equipment -- System A -- Part 1: Metric units73.100.30Oprema za vrtanje in izkopavanjeEquipment for drilling and mine excavationICS:Ta slovenski standard je istoveten z:ISO 10097-1:1999SIST ISO 10097-1:2001en01-junij-2001SIST ISO 10097-1:2001SLOVENSKI
STANDARD
AReference numberISO 10097-1:1999(E)INTERNATIONALSTANDARDISO10097-1First edition1999-10-15Wireline diamond core drilling equipment —System A —Part 1:Metric unitsÉquipement de forage au diamant à ligne à câble avec carottage —Système A —Partie 1: Unités métriquesSIST ISO 10097-1:2001

ISO 1999All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronicor mechanical, including photocopying and microfilm, without permission in writing from the publisher.International Organization for StandardizationCase postale 56 · CH-1211 Genève 20 · [e-mail] in SwitzerlandiiContents1 Scope.12 Normative reference.13 Designation.14 Materials.25 Dimensions and tolerances.25.1 General.25.2 Conformity.25.3 Eccentricity.25.4 Straightness.25.5 Technical conditions.2Annex A (informative)
Principal dimensions of drill rod threads.12SIST ISO 10097-1:2001

© ISOISO 10097-1:1999(E)iiiForewordISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISOmember bodies). The work of preparing International Standards is normally carried out through ISO technicalcommittees. Each member body interested in a subject for which a technical committee has been established hasthe right to be represented on that committee. International organizations, governmental and non-governmental, inliaison with ISO, also take part in the work. ISO collaborates closely with the International ElectrotechnicalCommission (IEC) on all matters of electrotechnical standardization.International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.International Standard ISO 10097-1 was prepared by Technical Committee ISO/TC 82, Mining, SubcommitteeSC 6, Diamond core drilling equipment.ISO 10097 consists of the following parts, under the general title Wireline diamond core drilling equipment —System A:¾ Part 1: Metric units¾ Part 2: Inch unitsAnnex A of this part of ISO 10097 is for information only.SIST ISO 10097-1:2001

INTERNATIONAL STANDARD
© ISOISO 10097-1:1999(E)1Wireline diamond core drilling equipment — System A —Part 1:Metric units1 ScopeThis part of ISO 10097 specifies the nomenclature and the leading dimensions necessary for the interchangeabilityof the following wireline drilling equipment for drilling holes 48 mm to 96 mm in diameter, yielding cores of 27 mm to63 mm in diameter.The equipment is illustrated in Figure 1 and comprises the following:a) core bit;b) reaming shell;c) core lifter;d) core lifter case;e) outer tube;f) inner tube;g) drill rod (smooth pipe only).2 Normative referenceThe following normative document contains provisions which, through reference in this text, constitute provisions ofthis part of ISO 10097. For dated references, subsequent amendments to, or revisions of, this publication do notapply. However, parties to agreements based on this part of ISO 10097 are encouraged to investigate the possibilityof applying the most recent edition of the normative document indicated below. For undated references, the latestedition of the normative document referred to applies. Members of ISO and IEC maintain registers of currently validInternational Standards.ISO 3551-1:1992, Rotary core diamond drilling equipment — System A — Part 1: Metric units.3 DesignationItems made in accordance with this part of ISO 10097 shall be designated by the identification letters WL and holedimensions A, B, N, H.EXAMPLECore bit for wireline drilling hole B dimensions: WLB core bit.SIST ISO 10097-1:2001

part of ISO 10097 shall havethe minimum mechanical properties as specified in Table 1.Table 1 — Mechanical propertiesComponentMinimum tensilestrength, RmN/mm2 (MPa)Minimum yieldstress, ReN/mm2 (MPa)Minimum elongationafter fracture, A%Drill rods69055012Core tubes69055012Other itemsNot specified5 Dimensions and tolerances5.1 GeneralAll dimensions and tolerances are in millimetres unless otherwise stated and shall be in accordance with Tables 3 to9 inclusive.5.2 ConformityIn those industries where drilling depths are measured in metres, the rod lengths shall be 3 m, 1,5 m or 0,75 m. Butwhen drilling in conformity with DCDMA and CDDA standards, the lengths of rods may be 3,048 m, 1,524 m or0,762 m.5.3 EccentricityThe eccentricity is defined as the distance between the centres of the outer and inner diameters and may notexceed 10 % of nominal wall thickness Q.The eccentricity is calculated according to the formula:QQQmaxmin-´2100nomwhere Qmax and Qmin are measured values in the same section.5.4 StraightnessWhen measured over the whole length of the tube by rolling against a straightedge, the maximum deviation shall notbe greater than:¾ for drill rods1 in 2 000;¾ for core tubes1 in 1 500.5.5 Technical conditionsTubes should be made seamless. Tube rolling technique and machining operations are optional.Tube straightness is checked by rolling the tube on a horizontal or slightly inclined flat surf
...

INTERNATIONAL ISO
STANDARD 10097-1
First edition
1999-10-15
Wireline diamond core drilling equipment —
System A —
Part 1:
Metric units
Équipement de forage au diamant à ligne à câble avec carottage —
Système A —
Partie 1: Unités métriques
A
Reference number

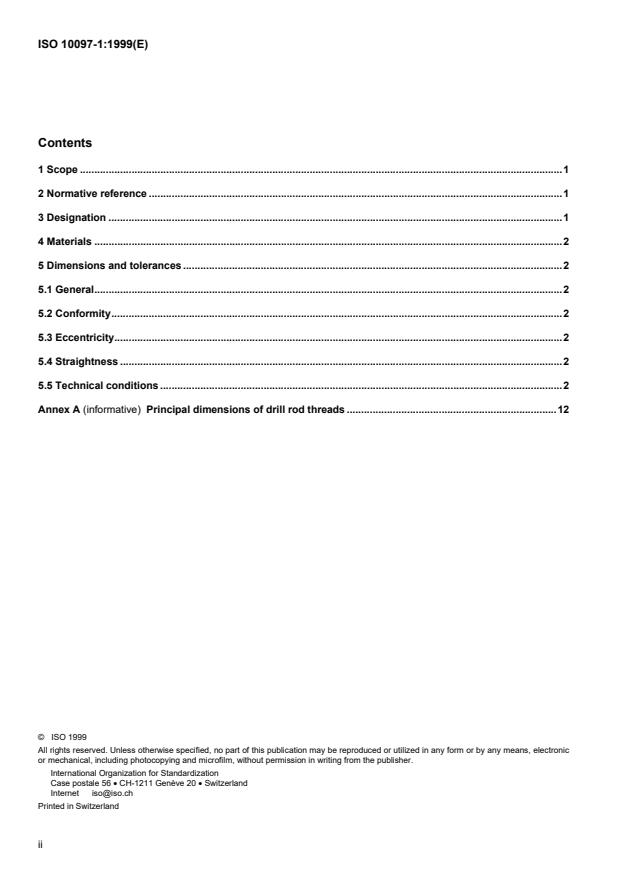

Contents
1 Scope .1
2 Normative reference .1
3 Designation .1
4 Materials .2
5 Dimensions and tolerances .2
5.1 General.2
5.2 Conformity.2
5.3 Eccentricity.2
5.4 Straightness .2
5.5 Technical conditions .2
Annex A (informative) Principal dimensions of drill rod threads .12
©  ISO 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet [e-mail]
Printed in Switzerland
ii
© ISO
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
International Standard ISO 10097-1 was prepared by Technical Committee ISO/TC 82, Mining, Subcommittee
SC 6, Diamond core drilling equipment.
ISO 10097 consists of the following parts, under the general title Wireline diamond core drilling equipment —
System A:
 Part 1: Metric units
 Part 2: Inch units
Annex A of this part of ISO 10097 is for information only.
iii
© ISO

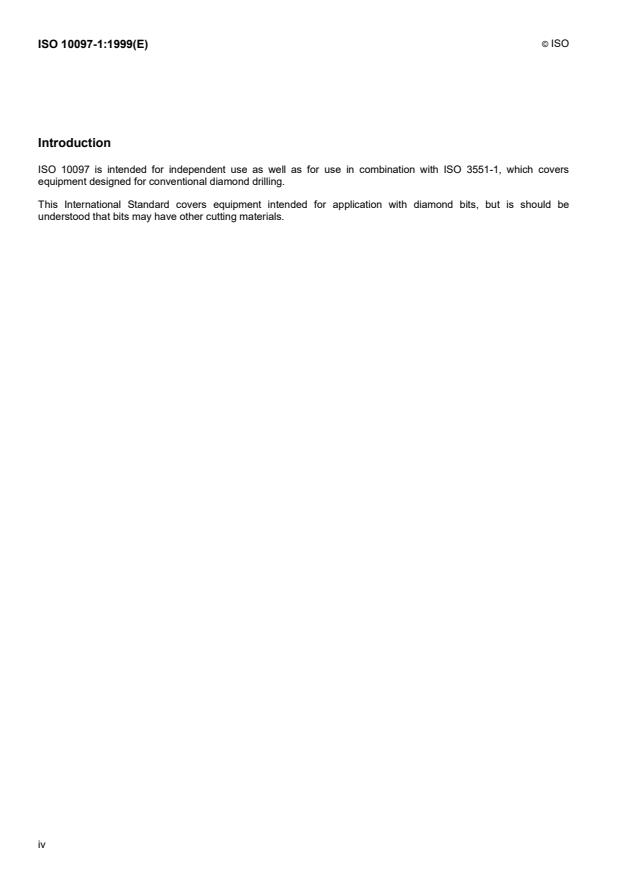

Introduction
ISO 10097 is intended for independent use as well as for use in combination with ISO 3551-1, which covers
equipment designed for conventional diamond drilling.
This International Standard covers equipment intended for application with diamond bits, but is should be
understood that bits may have other cutting materials.
iv
INTERNATIONAL STANDARD  © ISO ISO 10097-1:1999(E)
Wireline diamond core drilling equipment — System A —
Part 1:
Metric units
1 Scope
This part of ISO 10097 specifies the nomenclature and the leading dimensions necessary for the interchangeability
of the following wireline drilling equipment for drilling holes 48 mm to 96 mm in diameter, yielding cores of 27 mm to
63 mm in diameter.
The equipment is illustrated in Figure 1 and comprises the following:
a) core bit;
b) reaming shell;
c) core lifter;
d) core lifter case;
e) outer tube;
f) inner tube;
g) drill rod (smooth pipe only).
2 Normative reference
The following normative document contains provisions which, through reference in this text, constitute provisions of
this part of ISO 10097. For dated references, subsequent amendments to, or revisions of, this publication do not
apply. However, parties to agreements based on this part of ISO 10097 are encouraged to investigate the possibility
of applying the most recent edition of the normative document indicated below. For undated references, the latest
edition of the normative document referred to applies. Members of ISO and IEC maintain registers of currently valid
International Standards.
ISO 3551-1:1992, Rotary core diamond drilling equipment — System A — Part 1: Metric units.
3 Designation
Items made in accordance with this part of ISO 10097 shall be designated by the identification letters WL and hole
dimensions A, B, N, H.
EXAMPLE
Core bit for wireline drilling hole B dimensions: WLB core bit.
© ISO
4 Materials
Materials used in the manufacture of the wireline drilling equipment specified in this part of ISO 10097 shall have
the minimum mechanical properties as specified in Table 1.
Table 1 — Mechanical properties
Component Minimum tensile Minimum yield Minimum elongation
strength, R stress, R after fracture, A
m e
2 2
N/mm (MPa) N/mm (MPa) %
Drill rods 690 550 12
Core tubes 690 550 12
Other items Not specified
5 Dimensions and tolerances
5.1 General
All dimensions and tolerances are in millimetres unless otherwise stated and shall be in accordance with Tables 3 to
9 inclusive.
5.2 Conformity
In those industries where drilling depths are measured in metres, the rod lengths shall be 3 m, 1,5 m or 0,75 m. But
when drilling in conformity with DCDMA and CDDA standards, the lengths of rods may be 3,048 m, 1,524 m or
0,762 m.
5.3 Eccentricity
The eccentricity is defined as the distance between the centres of the outer and inner diameters and may not
exceed 10 % of nominal wall thickness Q.
The eccentricity is calculated according to the formula:
QQ-max min
·100
2Q
nom
where Q and Q are measured values in the same section.
max min
5.4 Straightness
When measured over the whole length of the tube by rolling against a straightedge, the maximum deviation shall not
be greater than:
 for drill rods 1 in 2 000;
 for core tubes 1 in 1 500.
5.5 Technical conditions
Tubes should be made seamless. Tube rolling technique and machining operations are optional.
Tube straightness is checked by rolling the tube on a horizontal or slightly inclined flat surface. When rolling, no
clearances shall be seen between the rod ends and the surface, nor between the middle of the rod (tube) and the
surface.
Hole drilling by wireline system A equipment shall be cased by system A casing as specified in ISO 3551-1.
© ISO
Table 2 — System of dimensional identification letters
A, A , etc. Outside diameters; A being largest; A , A , etc. progressively smaller
1 1 2
B, B , etc. Inside diameters; B being smallest; B , B , etc. progressively larger
1 1 2
C, C , etc. External lengths; C being longest; C , C , etc. progressively shorter
1 1 2
D, D , etc. Internal lengths; D being longest; D , D , etc. progressively shorter
1 1 2
E, E , etc. Major diameter of pin threads; E being largest; E , E , etc. smaller
1 1 2
F, F , etc. Minor diameter of pin threads; F being largest; F , F , etc. smaller
1 1 2
Thread pitch Pin threads
...
