ISO 22086-2:2024

Intelligent transport systems (ITS) - Network-based precise positioning infrastructure for land transportation - Part 2: Functional requirements and data sets for nomadic devices

This document specifies the functional requirements of nomadic devices for lane-level positioning and integrity monitoring with the network-based precise positioning infrastructure for land transportation (NETPPI-LT), a lane-level positioning system based on global navigation satellite systems (GNSS) described in ISO/TR 22086-1. This document identifies the GNNS threats to monitor and the errors to remove or mitigate to achieve lane-level accuracy and integrity. It also specifies the data sets to be contained in messages between the nomadic device and the control station providing GNSS correction and integrity information. This specification enables the nomadic device to support lane-level positioning and integrity monitoring. Enabling techniques and methods, which can be different for each provider or vendor, are not addressed in this document.

Systèmes de transport intelligents — Infrastructure de positionnement précis en réseau pour les transports terrestres — Partie 2: Exigences fonctionnelles et ensembles de données pour les dispositifs nomades

General Information

• Status: Published
• Publication Date: 24-Nov-2024
• ICS: 03.220.01 - Transport in general
• ICS: 35.240.60 - IT applications in transport
• Technical Committee: ISO/TC 204 - Intelligent transport systems
• Drafting Committee: ISO/TC 204/WG 17 - Nomadic Devices in ITS Systems
• Current Stage: 6060 - International Standard published
• Start Date: 25-Nov-2024
• Due Date: 10-May-2025
• Completion Date: 25-Nov-2024

Overview

ISO 22086-2:2024 defines the functional requirements and data sets for nomadic devices used with a network‑based precise positioning infrastructure for land transportation (NETPPI‑LT). Focused on lane‑level positioning and integrity monitoring, the standard specifies what nomadic devices must receive, monitor and compute to achieve GNSS‑based lane accuracy and to alert when positioning error exceeds an alert limit. It covers the required measurements, message content between nomadic devices and the control station, and the set of GNSS threats and errors to be detected, mitigated or removed.

Key technical topics and requirements

• Nomadic device functions: reference network selection and request, fault detection and isolation (FDI), range correction and positioning, and protection level (PL) computation.
• Required GNSS measurements: GNSS type, satellite PRN, pseudorange (code) and carrier‑phase measurements, navigation message, signal quality (C/N0 or SNR), lock time, and loss‑of‑lock indicators.
• Data and messaging: definitions of message sets for requesting and receiving network and augmentation information, including correction information and integrity information exchanged between nomadic device (ND) and control station (CS).
• Network modalities: support for on‑demand (unicasting) and broadcasting provisioning of corrections and integrity information over mobile and one‑way links (e.g., LTE, 5G, WAVE, DMB).
• Integrity monitoring: identification of GNSS threats to monitor, error sources to remove or mitigate, and computation of protection levels to provide instantaneous upper bounds on positioning error.
• Conformance with ITS models: aligns with the GNSS‑based positioning terminal model (EN 16803‑1) and the PoTi (position and time management) facilities layer (ETSI EN 302 890‑2).

Practical applications and users

ISO 22086‑2:2024 is intended for stakeholders building or integrating lane‑level positioning and integrity services:

• Automotive OEMs and ADAS/autonomy suppliers implementing lane‑level navigation and safety functions.
• Nomadic device and GNSS receiver manufacturers developing devices that consume NETPPI‑LT corrections and integrity messages.
• Telematics and ITS service providers operating control stations and correction broadcast services.
• Transportation authorities and system integrators deploying network RTK / NRTK services for road safety and traffic management.
• Fleet management and logistics platforms requiring high‑integrity lane awareness.

Adoption enables reliable lane‑level positioning for use cases such as lane‑specific warnings, precise vehicle localization for cooperative driving, and safety‑critical ITS applications.

Related standards

• ISO/TR 22086‑1 (NETPPI‑LT general information and use cases)
• ETSI EN 302 890‑2 (PoTi facilities layer for position and time management)
• EN 16803‑1 (GNSS positioning terminal model)

Keywords: ISO 22086-2:2024, NETPPI-LT, nomadic devices, lane-level positioning, GNSS, integrity monitoring, protection level, reference network, correction information, ITS.

Standards Content (Sample)

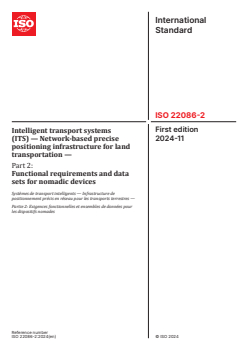

International
Standard
ISO 22086-2
First edition
Intelligent transport systems
2024-11
(ITS) — Network-based precise
positioning infrastructure for land
transportation —
Part 2:
Functional requirements and data
sets for nomadic devices
Systèmes de transport intelligents — Infrastructure de
positionnement précis en réseau pour les transports terrestres —
Partie 2: Exigences fonctionnelles et ensembles de données pour
les dispositifs nomades
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii

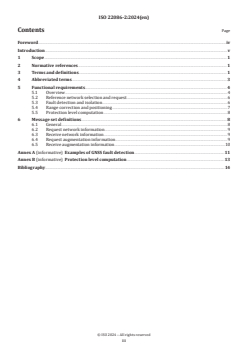

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 3
5 Functional requirements . 4
5.1 Overview .4
5.2 Reference network selection and request .6
5.3 Fault detection and isolation .6
5.4 Range correction and positioning .7
5.5 Protection level computation .8
6 Message set definitions . 8
6.1 General .8
6.2 Request network information .9
6.3 Receive network information .9
6.4 Request augmentation information .9
6.5 Receive augmentation information .10
Annex A (informative) Examples of GNSS fault detection .11
Annex B (informative) Protection level computation .13
Bibliography . 14

iii

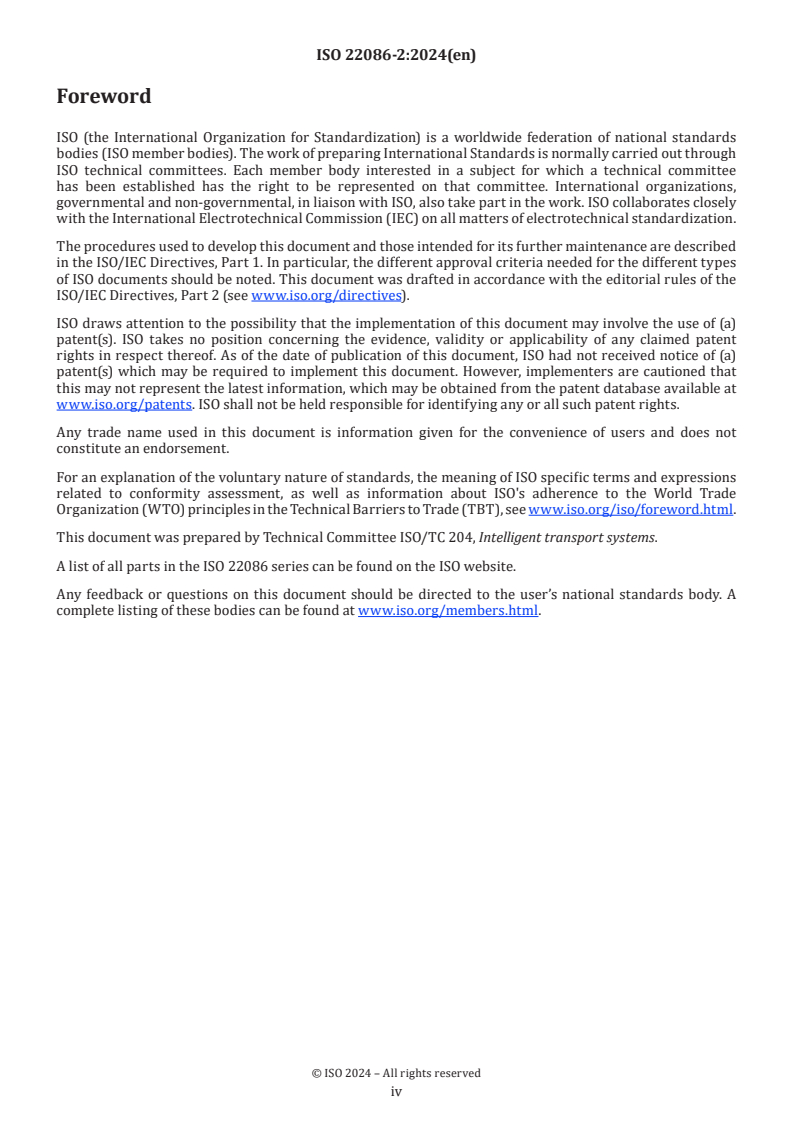

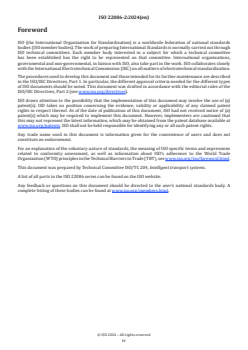

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 204, Intelligent transport systems.
A list of all parts in the ISO 22086 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Lane-level positioning is deemed as a critical function to facilitate emerging applications of intelligent
transport systems (ITS) for safety and traffic efficiency. Another critical issue for applications with safety
concerns is to guarantee or monitor integrity of the positioning result. Global navigation satellite systems
(GNSS) have led the provision of position along with velocity and time information in the ITS domain, but
lane-level accuracy cannot be achieved and integrity monitoring functionalities are not supported with
commercial low-cost GNSS receivers operating in standalone mode.
The ISO 22086 series deals with standard issues on a nomadic device for lane-level positioning and
integrity monitoring with a GNSS-based lane-level positioning system, referred to as network-based
precise positioning infrastructure for land transportation (NETPPI-LT). NETPPLI-LT provides additional
information to enhance positioning accuracy and to monitor integrity over wireless links.

v
International Standard ISO 22086-2:2024(en)
Intelligent transport systems (ITS) — Network-based precise
positioning infrastructure for land transportation —
Part 2:
Functional requirements and data sets for nomadic devices
1 Scope
This document specifies the functional requirements of nomadic devices for lane-level positioning and
integrity monitoring with the network-based precise positioning infrastructure for land transportation
(NETPPI-LT), a lane-level positioning system based on global navigation satellite systems (GNSS) described
in ISO/TR 22086-1. This document identifies the GNNS threats to monitor and the errors to remove
or mitigate to achieve lane-level accuracy and integrity. It also specifies the data sets to be contained in
messages between the nomadic device and the control station providing GNSS correction and integrity
information. This specification enables the nomadic device to support lane-level positioning and integrity
monitoring. Enabling techniques and methods, which can be different for each provider or vendor, are not
addressed in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO/TR 22086-1, Intelligent transport systems (ITS) — Network based precise positioning infrastructure for
land transportation — Part 1: General information and use case definitions
ETSI EN 302 890-2:2020, Intelligent transport systems (ITS); Facilities layer function; Part 2: Position and time
management (PoTi); Release 2
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/TR 22086-1 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
alert limit
error tolerance not to be exceeded without issuing an alert
3.2
augmentation information
correction and integrity information (3.7) for global navigation satellite systems (GNSS) measurements

3.3
auxiliary reference station
reference station within a set of the reference networks, which captures global navigation satellite systems
(GNSS) raw measurements (3.14) at a known position and sends them to the control stations of the network-
based precise positioning infrastructure for land transportation (NETPPI-LT) to produce correction
differences of the range measurements (3.12) relative to the ones of the master reference station (3.8)
3.4
carrier-phase measurement
measure of range between a navigation satellite and a nomadic device or a global navigation satellite
systems (GNSS) receiver embedded within the nomadic device, based on the phase measurements of the
carrier frequency
Note 1 to entry: Carrier-phase measurement is expressed in metres.
3.5
pseudorange (code) measurement
measure of range between a navigation satellite and a nomadic device or a global navigation satellite systems
(GNSS) receiver embedded within the nomadic device, based on the phase delay of the pseudorandom noise code
Note 1 to entry: Pseudorange measurement is expressed in metres.
3.6
correction information
information including raw measurements (3.14) of a master or virtual reference station and correction
differences for pairs of reference stations to remove common errors in global navigation satellite systems
(GNSS) range measurement (3.12) of a nomadic device
3.7
integrity information
information used to determine either the occurrence of failures or uncertainties (e.g. one-sigma) in the
position domain
3.8
master reference station
reference station within a set of the reference networks, for which raw measurements (3.14) and coordinate
information are transmitted to a nomadic device via the control stations of the NETPPI-LT
3.9
navigation message
message containing ephemeris data, used to calculate the position of each global navigation satellite systems
(GNSS) satellite in orbit, and information on time and status of entire satellites in the constellation
3.10
network RTK
network real-time kinematic
RTK (3.13) technique based on multiple reference stations to support an extended service coverage by
provisioning correction differences of the range measurements (3.12) for pairs of master and auxiliary
reference stations (3.3) in addition to raw measurements (3.14) of the master reference station (3.8)
3.11
protection level
upper bound for the positioning error, which is an instantaneous estimate based on different measurements
related to the quality of the received signal, range measurements (3.12), and navigation message (3.9)
3.12
range measurement
pseudorange and carrier-phase measurements (3.4) between a navigation satellite and a nomadic device or a
global navigation satellite systems (GNSS) receiver embedded within the nomadic device

3.13
real-time kinematic
RTK
differential global navigation satellite systems (GNSS) technique that provides, in real time, highly accurate
positioning for a nomadic device based on carrier-phase measurements (3.4), which are corrected by referring
raw measurements (3.14) of a single reference station
3.14
raw measurement
measurement available in a global navigation satellite systems (GNSS) receiver after the signal processing
stage before the positioning stage including code measurements (3.5), carrier-phase measurements (3.4),
navigation messages (3.9), and signal quality indicators
4 Abbreviated terms
5G fifth-generation mobile communications
CCD code carrier divergence
CS control station
DMB digital multimedia broadcasting
DSRC dedicated short-range communications
FDI fault detection and isolation
GNSS global navigation satellite systems
ITS intelligent transportation system
LTE long term evolution
MQM measurement quality monitoring
ND nomadic device
NRTK network real-time kinematic
NETPPI-LT network based precise positioning infrastructure for land transportation
OSR observation space representation
PL protection level
PoTi position and time management
PPP precise point positioning
PPP-RTK precise point positioning-real time kinematic
PRN pseudorandom noise
RF radio frequency
RTCM radio technical commission for maritime services
RTK real-time kinematic
SSR state space representation

WAVE wireless access for vehicular environment
YE-TE yesterday-minus-today ephemeris
5 Functional requirements
5.1 Overview
This document conforms to the GNSS-based positioning terminal model specified in EN 16803-1 for
the reference model of nomadic devices in which the output to safety-related applications includes the
positioning result and the protection level. Such output is used for providing warnings to the users or the
systems and services based on GNSS when exceeding a given alert limit, i.e. the largest positioning error
acceptable for the operation.
The nomadic device shall support the PoTi (position and time management) service at the facilities layer
specified in accordance with ETSI EN 302 890-2. The functions described in this document are implemented
as part of the position augmentation, which is a function of the PoTi entity.
The nomadic device performs a series of functions to ensure lane-level accuracy and integrity with the
NETPPI-LT. Its functional architecture is illustrated in Figure 1. The nomadic device can include multiple
positioning modules in addition to GNSS and can integrate all the data from the modules for positioning as
specified in EN 16803-1. As those methods are beyond the scope of this document, relevant architectures
are not depicted in Figure 1.
Figure 1 — Functional architecture for lane-level positioning and integrity monitoring
Each function for lane-level positioning and integrity monitoring on the nomadic device is described as
follows:
— reference network selection and request;
— fault detection and isolation;
— range correction and positioning;
— protection level computation.
To support these functions, the GNSS receiver equipped on the nomadic device shall provide the following
measurements:
— GNSS type;
— satellite PRN number;
— code and carrier-phase measurements;
— navigation message;
— carrier-to-noise ratio or signal-to-noise ratio of the signal;

— lock time;
— loss of lock indicator.
5.2 Reference network selection and request
The nomadic device shall implement the reference network selection and request, according to data
prov
...
