ISO/TR 6277:2024

Blockchain and distributed ledger technologies - Data flow models for blockchain and DLT use cases

This document uses a set of models that describe the flows of different types of data between distributed ledger technologies (DLT) and related systems, as well as between different DLT nodes. It provides a descriptive analysis of data flows in the development of use cases, as well as the basis for understanding the characteristics of DLT data flows, to support DLT application design and system analysis. The models referenced are in accordance with ISO 23257:2022 and the use case analysis approach provided in ISO/TR 3242:2022.

Technologies des chaînes de blocs et technologies de registre distribué - Modèles de flux de données pour les chaînes de blocs et les cas d'utilisation de DLT

General Information

• Status: Published
• Publication Date: 22-Feb-2024
• ICS: 35.030 - IT Security
• ICS: 35.240.40 - IT applications in banking
• ICS: 35.240.99 - IT applications in other fields
• Technical Committee: ISO/TC 307 - Blockchain and distributed ledger technologies
• Drafting Committee: ISO/TC 307 - Blockchain and distributed ledger technologies
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 27-May-2025
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO/TR 6277:2025 - Blockchain and distributed ledger technologies (DLT) - Data flow models for blockchain and DLT use cases
• Effective Date: 28-Sep-2024

Overview

ISO/TR 6277:2024 - "Blockchain and distributed ledger technologies - Data flow models for blockchain and DLT use cases" is a Technical Report from ISO/TC 307 that consolidates system-level models to describe data flows for blockchain and distributed ledger technology (DLT) systems. The document builds on and references ISO 23257:2022 (reference architecture) and the use‑case analysis approach in ISO/TR 3242:2022, offering a data‑flow‑centric framework to support DLT application design, system analysis, governance and interoperability.

Key topics and guidance

The report focuses on descriptive models and analysis rather than prescriptive rules. Major technical topics covered include:

• Data flow categories (intra‑system and inter‑system) and lifecycle stages for DLT transactions.
• Data categories from storage and source perspectives, including identifier data (e.g., DIDs) and other data classifications.
• Roles and stakeholder activities relevant to data movement across nodes, components and interfaces.
• Transaction procedure analysis, showing preliminary stages, full transaction lifecycle and data processing within DLT systems.
• Interoperability and integration: data exchanges between DLT systems and between DLT and non‑DLT systems.
• Considerations for implementation: data security, privacy protection, governance of data, and interoperability modelling.
• Practical use‑case templates and visualizations - including examples such as insurance for fish farming, an international trade platform, and a peer‑to‑peer metaverse traveller network - that demonstrate data flow analysis in real scenarios.

Practical applications and who should use it

ISO/TR 6277 provides practical value for professionals involved in DLT projects:

• System architects and solution designers - to map data movement, design data partitioning (on‑chain/off‑chain) and identify trust boundaries.
• Developers and integrators - to understand interface data types and inter‑system transaction flows.
• Security, privacy and compliance teams - to assess confidentiality, privacy impact and governance implications of DLT data flows.
• Interoperability specialists and standards teams - to model data exchanges across hybrid systems and multi‑ledger environments.
• Product managers and business analysts - to visualize use‑case data flows and support requirements decisions.

Related standards (for further reading)

• ISO 23257:2022 - Blockchain and distributed ledger technologies - Reference architecture
• ISO/TR 3242:2022 - Use case analysis approach for blockchain/DLT
• ISO 22739 - DLT vocabulary

By providing a structured, data‑centric framework and illustrative use cases, ISO/TR 6277:2024 helps organisations design fit‑for‑purpose DLT solutions, improve governance and accelerate interoperable implementations. Keywords: ISO/TR 6277:2024, data flow models, blockchain, DLT use cases, data flow analysis, interoperability, data security, DIDs.

Standards Content (Sample)

Technical
Report
ISO/TR 6277
First edition
Blockchain and distributed ledger
2024-02
technologies — Data flow models
for blockchain and DLT use cases
Technologies des chaînes de blocs et technologies de registre
distribué - Modèles de flux de données pour les chaînes de blocs et
les cas d'utilisation de DLT
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2  Normative references . 1
3  Terms and definitions . 1
4  Abbreviated terms . 3
5  Overview of data flow for DLT . 3
5.1 General .3
5.2 Categories of data flows .4
5.3 Data categories .4
5.3.1 Data categories from data storage perspective .4
5.3.2 Data categories from data sources perspective .5
5.3.3 Identifier data categories .6
5.3.4 Other data categories .6
5.4 Roles from the perspective of data flow .7
5.4.1 DLT stakeholder roles and stakeholder data .7
5.4.2 Roles/sub-roles and their activities related to data flow .7
5.5 Considerations related to data flow .8
5.5.1 Data security .8
5.5.2 Privacy protection .8
5.5.3 Governance of data .9
5.5.4 Interoperability .9
6  Intra-system data flow . 9
6.1 Overview .9
6.2 Data flow during DLT transaction procedure .10
6.2.1 Preliminary stage .10
6.2.2 Full life cycle data flow in one transaction .10
6.2.3 Overview of data process within DLT system . 12
7  Inter-system data flow .13
7.1 Data flows between DLT system and DLT system . 13
7.1.1 Outline . 13
7.1.2 Transaction submission .14
7.1.3 Transaction execution with eventual consistency .14
7.1.4 Result feedback . .14
7.1.5 Overview of data process between DLT system and DLT system .14
7.2 Data flows between DLT system and non-DLT system . 15
7.3 Data flow of DID . 15
8  Data flow analysis in DLT use cases .16
8.1 Overview .16
8.2 Template development . .16
8.2.1 DLT Data flow categories between components and interfaces .16
8.2.2 DLT use case categories .17
8.2.3 Data flow description in DLT use cases .21
8.3 Use case: Insurance service for fish farming . 23
8.3.1 Abstract . 23
8.3.2 Use case categories . . . 23
8.3.3 Use case summary .24
8.3.4 Data flow considerations .24
8.3.5 Visualizations . 25
8.4 Use case: International trade platform . 30
8.4.1 Abstract . 30
8.4.2 Use case categories . . . 30

iii

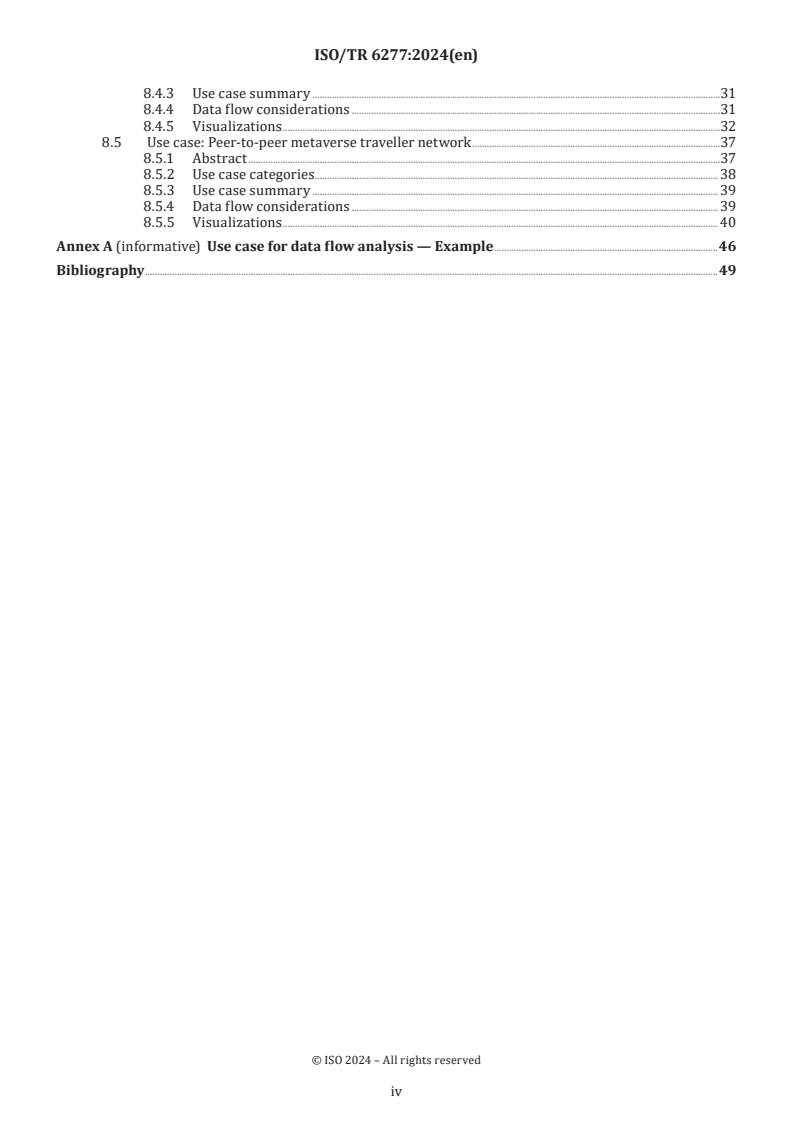

8.4.3 Use case summary .31
8.4.4 Data flow considerations .31
8.4.5 Visualizations .32
8.5 Use case: Peer-to-peer metaverse traveller network .37
8.5.1 Abstract .37
8.5.2 Use case categories . . . 38
8.5.3 Use case summary . 39
8.5.4 Data flow considerations . 39
8.5.5 Visualizations . 40
Annex A (informative)  Use case for data flow analysis — Example .46
Bibliography .49

iv
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 307, Blockchain and distributed ledger
technologies.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

v
Introduction
This document consolidates a set of system-level models from ISO 23257:2022 and ISO/TR 3242:2022 to
give a data-flow-centric description framework for blockchain and distributed ledger technology (DLT) use
cases. The framework enables a data flow analysis approach for blockchain and DLT use cases which has
been defined in ISO 23257:2022, successfully applied across all use cases in ISO/TR 3242:2022 and extended
in this document to display more detailed information on data flows.
The robust descriptive capabilities provided by this framework can help to improve blockchain and DLT
application design and enhance interoperability. It can be beneficial for:
— clear understanding of data types and data flows in distributed ledger systems that allows for better-
designed, fit-for-purpose systems;
— better governance and risk management;
— a sound basis for interoperability modelling for the use cases that require data exchange in hybrid or
orchestrated systems environment.
Understanding data flows can be a necessary foundation for DLT users to ensure data privacy and data
confidentiality in DLT use cases, or a decision-making basis when implementing technology selection or
scheme assessment. From this perspective, data flow analysis is especially essential to scenarios which
frequently involve data flows among stakeholders or devices. To illustrate the features of data flows in DLT
use cases with above characteristics, this document provides three uses cases which apply the description
framework to unfold data flows among devices, data flows along with business process, as well as data flows
between physical and virtual spaces. These use cases can also provide an insight into the role of data flow
analysis in balancing business value maximization and risk controls.
This document is organized as follows:
— Clause 5 presents an overview of DLT data flows, including data flow categories, data categories, roles/
subroles and considerations related to data flow.
— Clause 6 and Clause 7 provide analysis of typical intra-system and inter-system data flows for DLT
systems.
— Clause 8 provides three DLT use cases based on a descriptive and visualization template focusing on data
flows.
vi
Technical Report ISO/TR 6277:2024(en)
Blockchain and distributed ledger technologies — Data flow
models for blockchain and DLT use cases
1 Scope
This document uses a set of models that describe the flows of different types of data between distributed
ledger technologies (DLT) and related systems, as well as between different DLT nodes.
It provides a descriptive analysis of data flows in the development of use cases, as well as the basis for
understanding the characteristics of DLT data flows, to support DLT application design and system analysis.
The models referenced are in accordance with ISO 23257:2022 and the use case analysis approach provided
in ISO/TR 3242:2022.
2  Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 22739, Blockchain and distributed ledger technologies — Vocabulary
ISO 23257, Blockchain and distributed ledger technologies — Reference architecture
3  Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 22739, ISO 23257 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
cloud computing
paradigm for enabling network access to a scalable and elastic pool of shareable physical or virtual resources
with self-service provisioning and administration on-demand
Note 1 to entry: Examples of resources include servers, operating systems, networks, software, applications, and
storage equipment.
Note 2 to entry: Self-service provisioning refers to the provisioning of resources provided to cloud services performed
by cloud service customers through automated means.
[SOURCE: ISO/IEC 22123-1:2023, 3.1.1]
3.2
data category
class of data items that are closely related from a formal or semantic point of view
[SOURCE: ISO 30042:2019, 3.8, modified — Example and Notes to entry deleted.]

3.3
data flow
sequence in which data transfer, use, and transformation are performed during the execution of a computer
program
[SOURCE: ISO 23257:2022, 3.5]
3.4
decentralized identifier
DID
identifier that is issued and managed in a decentralized system and designed to be unique within a context
Note 1 to entry: Decentralized identifiers are used in systems that do not rely on central registration authorities.
[SOURCE: ISO 22739:2024, 3.18]
3.5
derived data
data created as a result of processing that involves steps other than or in addition to direct retrieval and
validation of information from data functions
[SOURCE: ISO/IEC 20926:2009, 3.17]
3.6
DLT account
distributed ledger technology account
representation of an entity participating in a transaction in a DLT system
[SOURCE: ISO 22739:2024, 3.26]
3.7
edge
boundary between pertinent digital and physical entities delineated by networked sensors and actuators
Note 1 to entry: Pertinent digital entities means that the digital entities which need to be considered can vary
depending on the system under consideration and the context in which those entities are used.
[SOURCE: ISO/IEC TR 23188:2020. 3.1.2]
3.8
end user identifiable information
EUII
derived data associated with a user that is captured or generated from the use of the service by that user
Note 1 to entry: Data that is linked to the user but is not DLT user data.
Note 2 to entry: End user identifiable information includes connectivity data, usage data.
[SOURCE: ISO/IEC 19944-1:2020, 3.1.2, modified — Notes 1 and 2 to entry added.]
3.9
role
set of activities that serves a common purpose
[SOURCE: ISO/IEC 22123-1:2023, 3.1.10]
3.10
peer-to-peer
P2P
relating to, using, or being a network of equal peers that share information and resources with each other
directly without relying on a central entity
[SOURCE: ISO 22739:2024, 3.70]

3.11
smart contract
computer program stored in a distributed ledger technology system wherein the outcome of any execution
of the program is recorded on the distributed ledger
Note 1 to entry: A smart contract can represent terms in a contract in law and create a legally enforceable obligation
under the legislation of an applicable jurisdiction.
[SOURCE: ISO 22739:2024, 3.88]
3.12
sub-role
subset of the activities of a given role
[SOURCE: ISO/IEC 22123-1:2023, 3.3.11]
3.13
transaction record
record documenting a transaction of any type
Note 1 to entry: Transaction records can be included in, or referred to, in a ledger record.
Note 2 to entry: Transaction records can include the result of a transaction.
[SOURCE: ISO 22739:2024, 3.95]
4  Abbreviated terms
API Application programming interface
DID Decentralized identifier
DLT Distributed ledger technology
ICT Information and communications technology
IoT Internet of things
n.e.c. Not elsewhere classified
PIA Privacy impact assessment
PII Personal identifiable information
PoC Proof of concept
SDG Sustainable development goal
SME Small and medium-sized enterprise
VC Verifiable credential
5  Overview of data flow for DLT
5.1 General
The impetus for introducing DLT-specific data flow models is to support technical and business process
analysis. The models mentioned in this document are in accordance with ISO 23257:2022 and applied across
all use cases in ISO/TR 3242:2022 combined with the behavioural UML models. The focus on the approach in
this document is exploring diverse ways of applying it to data flow analysis on DLT use cases. The approach

taken in this document derives from architectural approaches in cloud computing and service-oriented
design. If a service model is a collection of components that represents a business service, a data flow model
that is described across component-based view of a system can help bring clarity to both technical and
business objectives in system design.
It can be seen in ISO/TR 3242:2022 and elsewhere that applications and systems deploy blockchain and DLT
to provide robust and purposeful system transparency in highly distributed, multi-party systems, on cloud-
based execution environments. The data flow models reviewed here can be used in tandem with service-
modelling approaches to gain greater insight into system functionality and business process performance.
5.2  Categories of data flows
ISO 23257:2022 and ISO/TR 3242:2022 identify five fundamental data flows relative to DLT systems:
— Data flow N: data flowing within and between the nodes of the DLT system.
— Data flow A: data flowing between separate DLT systems when they interoperate.
— Data flow B: data flowing between a DLT system and non-DLT systems connected to it.
— Data flow C: data flowing between administration applications and a DLT system.
— Data flow D: data flowing between user applications and a DLT system.
NOTE ISO 23257:2022 defines Data flow Z as data flowing among the nodes of the DLT system. ISO/TR 3242:2022
includes data flow within the nodes of the DLT system and defines Data flow Z as data flowing within and between the
nodes of the DLT system. This document adopts the definition in ISO/TR 3242:2022 and uses the code N instead of Z to
avoid confusion.
5.3 Data categories
This document identifies data categories in the DLT ecosystems, to help understanding DLT data flows
and support transparency about DLT data. A data taxonomy is also useful for the conversation about data
between different roles/sub-roles. This document provides the following four sets of data categories:
— data categories from data storage perspective;
— data categories from data sources;
— identifier data categories;
— other data categories.
5.3.1  Data categories from data storage perspective
5.3.1.1 General
In order to balance the advantages and performance of DLT systems, off-ledger data storage has increasingly
become a common auxiliary way of data storage in DLT system, especially in the DLT applications involving
large amount of DLT user data.
The main concern for on-ledger data and off-ledger data is the difference of scope of data processing and use.
In most cases, processing and use of off-ledger data have no much difference with data in other types of IT
systems, however, it is usually impossible to delete on-ledger data, which makes it more crucial to provide
specific ways of ensuring transparency and privacy protection.
5.3.1.2 On-ledger data
On-ledger data are data stored inside a DLT system, which includes small amounts of data from DLT users.
Due to the size-limit of DLT ledger, on-ledger data can also include hashes related to off-ledger data from DLT
users.
5.3.1.3 Off-ledger data
For large amounts of data from DLT users, or personal identifiable information (PII) which might need to
be deleted or updated by the PII principal, it is common practice to store the data on a cloud on the user’s
infrastructure or a public storage provided by a third party or network. Off-ledger data also includes data
from the DLT provider data and data derived when a DLT application is used.
Figure 1 — Data categories from storage perspective
5.3.2  Data categories from data sources perspective
5.3.2.1 General
ISO 23257:2022 defines six DLT roles, including DLT developers, DLT administrators, DLT users, DLT
providers, DLT governors and DLT auditors. Among these DLT roles, DLT administrators, DLT users and DLT
providers are most closely related to DLT data. In order to support different stakeholders to carry out data-
related activities, or to formulate data-related policies, this document identifies seven data categories which
are associated to different DLT roles (see Figure 2).
Figure 2 — DLT stakeholder roles and related DLT data categories (reproduced from
ISO 23257:2022)
5.3.2.1.1 Transaction record
Transaction record can be financial transaction data, or generalized transaction data such as genome data,
voter record, transport data, product production data. Transaction records might be on-ledger data or off-
ledger data with related hashes stored on ledger. Transaction record is generated when a DLT user uses a
DLT system to record a transaction.

5.3.2.1.2 DLT account data
A smart contract or digital asset, for example, can be associated with a DLT account. Corresponding DLT
account data are data representing an entity whose data are recorded on a DLT system. DLT account data
are generated or updated when a DLT user creates a DLT account or uses the account.
5.3.2.1.3  End user identifiable information
End user identifiable information is linkage to the user but is not directly created by DLT users. End user
identifiable information includes connectivity data, usage data.
5.3.2.1.4 Operations data
Operations data are data which is used for supporting the operation of DLT system, which includes service
logs, configuration data.
5.3.2.1.5 Access and authentication data
Access and authentication data are data used within DLT system to manage access DLT capabilities, DLT
data or smart contract, which includes passwords, cryptographic keys, security certificates. Access and
authentication data are controlled by DLT administrator and are critical to its administrative activities.
5.3.2.1.6  Smart contract data
Smart contract data includes not only executable codes of program but also execution results. Smart contract
data can be generated when a DLT developer creates or maintains the smart contract, or a DLT operator
runs the smart contract.
5.3.2.1.7 Derived data
Derived data include data describing the connections of the DLT system, data describing the usage of the
DLT services, etc. Derived data also include end user identifiable information.
5.3.3  Identifier data categories
ISO/TR 6039 specifies the identifiers data including:
— Subject identifiers: natural persons and legal entities used by administrations of countries, for specific
(international) government functions and in some industries. Subjects are entities with rights and
obligations.
— Object identifiers: object identifiers used for government purposes and in several industries. Objects are
entities without right and obligations.
5.3.4 Other data categories
5.3.4.1  Overview
There are many other types of data and data types of selected examples that are important in financial use
cases are presented in 5.3.4.2 to 5.3.4.4.
5.3.4.2 Market price data
Market prices are available for many objects. These include, but are not limited to:
— stock prices of listed companies at exchanges;
— currency rates of Forex markets;

— commodity prices for commodity markets;
— derivatives rates;
— interest rates (Central Banks reference rates and market rates);
— prices of retailers and web-retailers for goods and services.
5.3.4.3 Accountancy data categories
— Stock data: Accountants use specific terminology included in the IFRS standard which uses a balance
sheet that can be presented in an annual report. These stock data include: the value of the goods, debtor
position, creditors position presented on the balance sheet. The stock data covers the aggregation of
data at a certain point in time.
— Flow data: Accountants use terminology included in the IFRS standard for flow data such as a) profit and
loss account and b) cashflow statement. Flow data includes the flow of values, as they change over time,
during a predefined time period.
5.3.4.4  Message data in networks
— Messages: Data in messages can be structured or unstructured. The (industry) networks used for
Business to Government (B2G) or for Business to Business (B2B) purposes include mostly instructions
on the structure of the data messages used in the network involved.
5.4  Roles from the perspective of data flow
5.4.1 DLT stakeholder roles and stakeholder data
Data flows are triggered by the data-related operations of stakeholders, between system components that
belong to or are associated with them. Stakeholders achieve their aims by means of role-based interactions
with the DLT system.
ISO 23257:2022, 9.2 describes a set of roles/sub-roles which address the main activities associated with DLT
systems and gives overall descriptions for activities of these roles/sub-roles. When discussing data flow and
data taxonomy, the detailed data-related activities of these roles/sub-roles are necessary information.
5.4.2  Roles/sub-roles and their activities related to data flow
5.4.2.1 Data-related activities of DLT users
A DLT user often uses a DLT system on their devices, by using a DLT application or an application that
interacts with a DLT API. Examples of its activities include:
— providing data to DLT systems;
— using data obtained from DLT systems on their devices;
— installing applications on devices.
5.4.2.2  Data-related activities of DLT administrators
A DLT administrator performs administrative activities which might be data-oriented or produce data.
Examples of its activities include:
— developing plans to ensure blockchain data backup and recovery, as well as possible data replication and
failover;
— ensuring compliance of data storage and processing;

— discovery, classification and protection of data;
— managing access and authentication data;
— managing application configuration data;
— managing cross-ledger data exchange;
— managing long-term preservation of data.
5.4.2.3 Data-related activities of DLT providers
As defined in ISO 23257:2022, DLT provider is the business stakeholder owning and operating one or
more DLT nodes. DLT providers can have data interaction with DLT users and are also responsible for the
operation of data.
DLT providers include three sub-roles:
— DLT system operators;
— DLT node operators;
— DLT application operators.
5.4.2.3.1  Data-related activities of DLT system operators
Examples of DLT system operators’ activities include:
— providing audit data activities according to audit’s requests;
— maintaining operation data.
5.4.2.3.2 Data-related activities of DLT node operators
Examples of DLT node operators' activities include:
— data tracking to achieve the system performance quality control;
— managing access control of data shared by different DLT users on the same node.
5.4.2.3.3 Data-related activities of DLT application operators
Examples of DLT application operators’ activities include:
— providing data, applications and data related services;
— processing and using data including data from DLT users under an agreement.
5.5  Considerations related to data flow
5.5.1 Data security
Data security covers preservation of confidentiality, integrity and availability of data.
For DLT systems, it is necessary to ensure full-link security in end-to-end data channel, from IoT, user
devices to DLT systems.
5.5.2 Privacy protection
As specified in ISO/TR 23244:2020, there is a series of challenges for privacy protection in DLT systems,
which are generally based on characteristics that differentiate them from other ICT systems.

ISO/TR 23244:2020 also lists a range of areas which privacy within a DLT system covers:
— privacy of blockchain users;
— personal information stored within blockchain blocks;
— personal information stored in external resources referenced in DLT content (off-ledger);
— privacy of transactions or data.
Besides, security of authorization data for related parties to use DLT users’ data are also an important
concern.
A given DLT system might contain PII or it might contain no PII. Establishing whether a given system
contains PII requires a privacy impact assessment (PIA), which is dealt with by ISO/IEC 29134. A PIA ideally
can be undertaken as part of the design of a DLT system in order to ensure that the solution is capable of
compliance with relevant privacy requirements.
5.5.3 Governance of data
Governing bodies of DLT data are structured differently from traditional IT systems. There are multiple
stakeholders involved in the life cycle of DLT data. ISO/TS 23635:2022 identifies three main tasks that each
group of stakeholders can govern a DLT system through:
— Evaluation of the current and future use of DLT system and identification of obligations and risks.
— Direct preparation and implementation of policies, procedures and internal control frameworks to
ensure that the use of DLT systems meets obligations and mitigates significant risk.
— Monitoring of conformance of policies, procedures and performance of the internal control framework
operations to ensure sufficient risk mitigation and compliance to obligations.
ISO/IEC 38505-1:2017 also provides an example data management life cycle. See Figure 3.
Figure 3 — Example data management life cycle
NOTE Archivists use another life cycle model. To archive is one of two final dispositions, the other being delete.
For DLT system, the storing of data involves numerous stakeholders, and the deletion of on-ledger data
which is designed to be immutable also needs to be reconsidered.
5.5.4 Interoperability
ISO/IEC 22123-1:2023 defines interoperability as the ability of two or more systems or applications to
exchange information and to mutually use the information that has been exchanged.
The interoperability related to data applies to the external flows of data identified.
6  Intra-system data flow
6.1  Overview
A typical process with a serial of data flows taking place within a DLT system is a transaction life-cycle (see
Figure 4). Two stages are considered for a whole transaction process, respectively preliminary stage and full
life cycle transaction stage. For the full life cycle stage, although a transaction life cycle can differ because of
differing protocols or implementations, this document takes a 5-steps-life cycle including submit, broadcast,
consensus, execute and feedback as an example.

Figure 4 — Intra-system data flow process: User creates transaction record
NOTE 1 The data life cycle model works well only when there are clearly identifiable stages in “real-life”. When data
are actively modified and used during all their lifetime, life cycle model could be unhelpful.
To clarify the data involved activities, this document identifies the following information for each step.
— data categories (from data storage and DLT system role perspectives);
— data flow categories;
— actions of data: data creation, data storage, data processing, data transmission.
NOTE 2 Data content is use case specific.
6.2  Data flow during DLT transaction procedure
6.2.1  Preliminary stage
6.2.1.1  DLT system setup
After the DLT system is created, the DLT developer and provider set up multiple distributed nodes, system
configuration, administrator accounts, etc. Accordingly, the operation data and access authentication data
are created and stored consistently among multiple nodes.
6.2.1.2 DLT user account registration
The DLT user performs registration on the DLT system before utilizing on-chain services. Optionally, the
user can provide identifiable information to establish the link between account and physical item.
— Data creation: the DLT account data are created, including account identity, balance, status, etc.
— Data storage: the account data are consistently stored at distributed nodes. Conforming to the applicable
requirements, policies, rules and considerations in ISO/TR 23244, the sensitive information in DLT
account data can be stored on the blockchain system with protection based on access control, encryption,
etc. Alternatively, the sensitive information can be linked to on-chain identifier and stored in an off-
ledger datastore with restricted access.
6.2.2  Full life cycle data flow in one transaction
6.2.2.1 Outline
One transaction implementation is illustrated in Figure 5.
— S1: Transaction submission. The transaction message is submitted by user or admin system. If it is
submitted by user, this message can be viewed as data flow D. Otherwise, it is data flow C.

— S2: Transaction broadcasting. The message is validated and broadcasted among distributed nodes, which
corresponds to data flow N.
— S3: Consensus achievement. The consensus protocol is achieved to determine the transaction execution
order, which corresponds to data flow N.
— S4: Transaction execution. Each node executes transaction independently.
— S5: Result feedback. The result is sent back to user or admin system. If it is submitted by user, this message
can be viewed as data flow D. Otherwise, it is data flow C.
Figure 5 — Illustration of transaction implementation
6.2.2.2  S1: Transaction submission
A user utilizes the corresponding interface to interact with the DLT system and initiates a transaction with
or without smart contract.
— Data transmission: the transaction initiation message is submitted by user, which contains transaction
content, e.g. sender/receiver account identity, and business information. The business information can
be digital asset amount, or parameters to call smart contract.
— Data creation: transaction data submitted by user is recorded on ledger.
6.2.2.3 S2: Transaction broadcasting
A node which receives initiation message verifies the message by checking message format, account identity
validity, double spending, signature, etc. If this transaction message is valid, it is sent to other distributed
nodes within the given DLT network. Subsequently, other distributed nodes verify the received message
independently and buffer it.
— Data processing: the transaction content is verified per node.
— Data transmission: the transaction content is transmitted among distributed nodes within DLT network.
— Data storage: the transaction content is buffered per node.
6.2.2.4  S3: Consensus achievement
The consensus protocol is performed among nodes to determine the execution order of transactions.
— Data creation: interactive messages to determine the execution order are created.

— Data transmission: interactive messages are communicated among distributed nodes according to the
implemented consensus protocol.
— Data storage: the execution order is stored per node.
6.2.2.5 S4: Transaction execution
Each node independently executes transactions based on the agreed order.
— Data processing: the data, e.g. business information, archived blocks, account data, smart contract data
are processed according to the pre-defined computation rules. Optionally, after computation, the account
data and smart contract data are updated accordingly.
— Data creation: receipt data are generated. Optionally, new smart contract data and event data are
generated.
— Data storage: the transaction content and receipt data are archived in the confirmed blocks. The smart
contract data and event data are consistently stored at distributed nodes.
6.2.2.6 S5: Result feedback
The receipt data are transmitted to the user who initiates the transaction. Optionally, the event data are
transmitted to the subscribed users.
— Data creation: log data to record node operation is generated, including event distribution.
— Data storage: the log data are stored per node.
Similarly, the administer can call system-level smart contract and utilize the above procedure to update the
...
