ISO 22431:2018

Aerospace series - Pipe coupling 8°30' - Dynamic beam seal end for ferrule, welded - Geometric configuration

ISO 22431:2018 specifies the dimensions of the dynamic beam seal end for welded ferrules for pipe couplings 8°30′, nominal pressure up to 28 000 kPa, for aerospace applications.

Série aérospatiale - Système de raccordement 8°30' - Extrémité de joint à lèvre pour olive soudée - Configuration géométrique

General Information

• Status: Published
• Publication Date: 13-Mar-2018
• ICS: 49.080 - Aerospace fluid systems and components
• Technical Committee: ISO/TC 20/SC 10 - Aerospace fluid systems and components
• Drafting Committee: ISO/TC 20/SC 10/WG 6 - Couplings for rigid pipe
• Current Stage: 9093 - International Standard confirmed
• Start Date: 13-Nov-2023
• Completion Date: 13-Dec-2025

Relations

• Parent: ISO 8905:1988 - Sawn timber - Test methods - Determination of ultimate strength in shearing parallel to grain
• Effective Date: 06-Jun-2022

Overview

ISO 22431:2018 - Aerospace series - specifies the geometric configuration and dimensions of the dynamic beam seal end for welded ferrules used with pipe couplings 8°30′. It applies to aerospace pipe couplings designed for nominal pressures up to 28 000 kPa. The document provides dimensional data (millimetres), surface roughness guidance and a standard designation format for consistent manufacturing and procurement.

Key topics and requirements

• Scope: Dimensions and geometric configuration for dynamic beam seal ends on welded ferrules for 8°30′ pipe couplings in aerospace applications (≤ 28 000 kPa).
• Configuration and dimensions: Defined by a reference figure and a comprehensive Table 1 listing codes, nominal diameters and specific dimensional values for multiple sizes.
• Surface roughness: Requirements are given per the reference figure; design documentation can specify alternatives when needed.
• Manufacturer discretion: Dimensions not listed in the standard may be set by the manufacturer provided qualification and acceptance requirements of EN 3275, type II are met.
• Designation: Standardized part coding (example: ISO22431 0806) to ensure unambiguous identification across supply chains.
• Units and tolerances: Dimensions are in millimetres and specific tolerances for key features are provided in the tables/figures.

Practical applications and users

Who uses ISO 22431:

• Aerospace component designers and engineers specifying pipe couplings and ferrules for aircraft and spacecraft fluid systems.
• Manufacturers fabricating welded ferrules and pipe coupling components to ensure interchangeability and compliance.
• Quality, test and procurement teams verifying dimensional conformity, surface finish and acceptance criteria. Practical uses:
• Standardizing mating interfaces for high-pressure aerospace pipe couplings (hydraulic, pneumatic or other fluid transfer systems within aircraft and space vehicles).
• Reducing design ambiguity and supplier mismatch by using a common geometric reference and designation.

Related standards

• EN 3275 - Dynamic beam seal - technical specification and qualification/acceptance (referenced for acceptance requirements).
• EN 2656 - Coupling ends, welded - geometric configuration (referenced for diameter relationships).
• Prepared under ISO/TC 20 (Aircraft and space vehicles), SC 10 (Aerospace fluid systems and components) and adopted from ASD-STAN work.

Keywords: ISO 22431, pipe coupling 8°30′, dynamic beam seal end, welded ferrule, geometric configuration, aerospace pipe coupling, 28 000 kPa, EN 3275, EN 2656.

Standards Content (Sample)

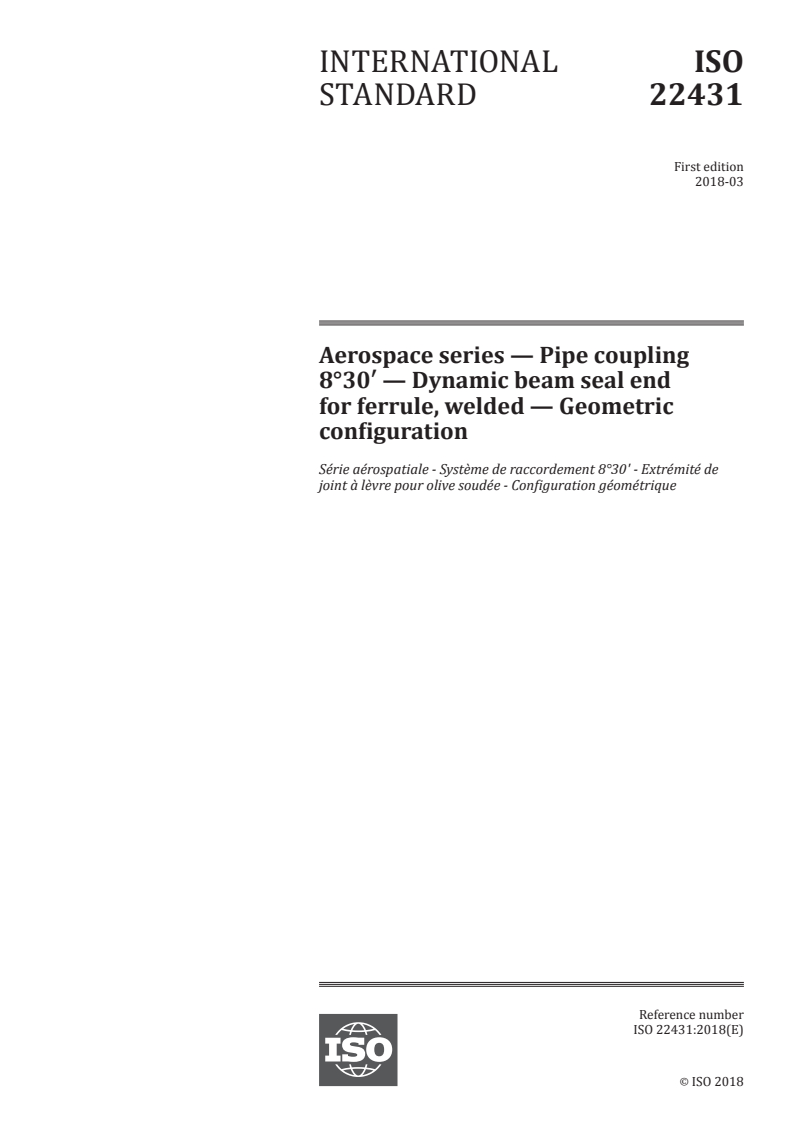

INTERNATIONAL ISO
STANDARD 22431
First edition
2018-03
Aerospace series — Pipe coupling
8°30′ — Dynamic beam seal end
for ferrule, welded — Geometric
configuration
Série aérospatiale - Système de raccordement 8°30' - Extrémité de
joint à lèvre pour olive soudée - Configuration géométrique
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

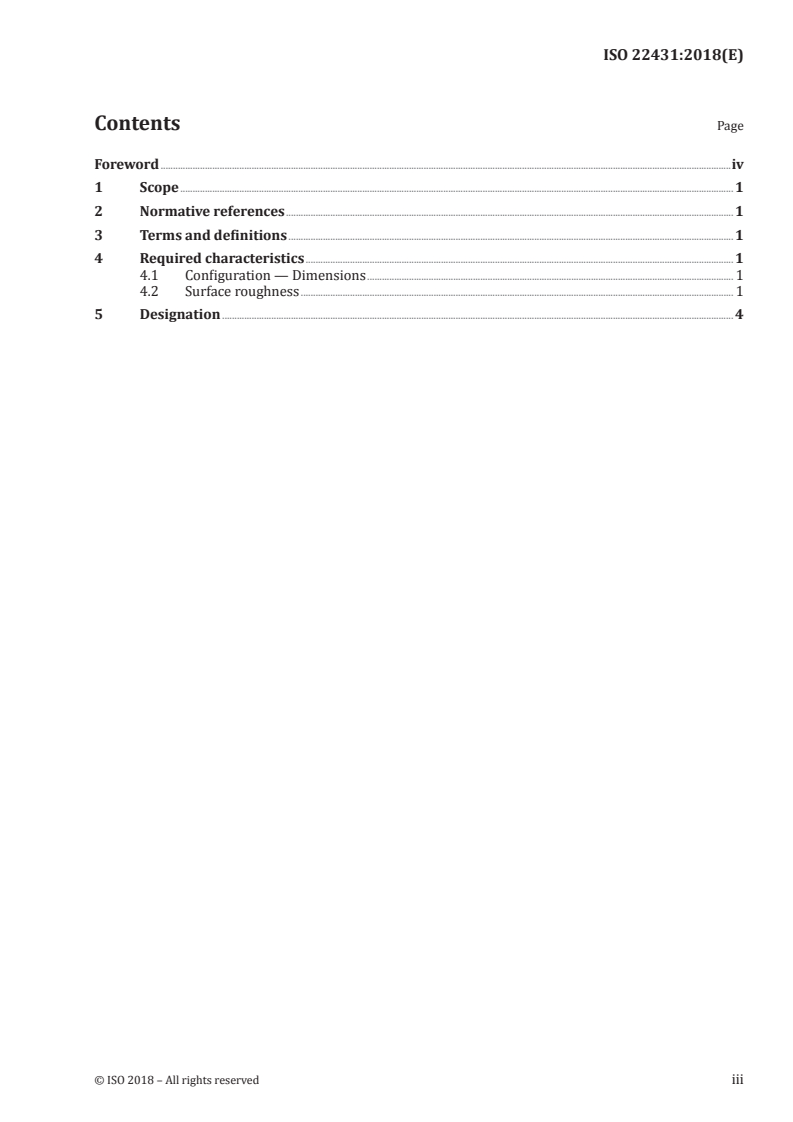

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Required characteristics . 1
4.1 Configuration — Dimensions . 1
4.2 Surface roughness . 1
5 Designation . 4

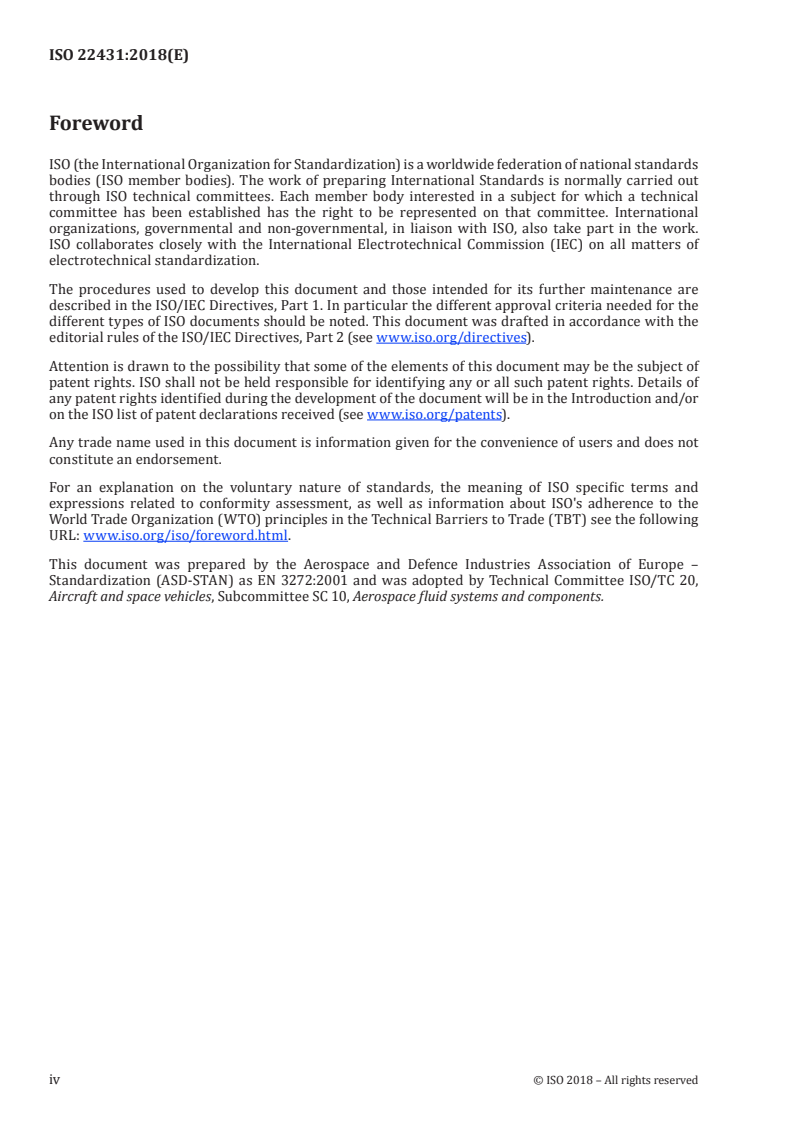

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during th
...
