ISO 7076-5:2014

Fire protection — Foam fire extinguishing systems — Part 5: Fixed compressed air foam equipment

ISO 7076-5:2014 specifies requirements, test and assessment methods, and performance criteria for fixed compressed air foam equipment of fixed foam extinguishing systems for indoor or outdoor utilization, or both. Technical safety requirements concerning the design and manufacturing of drives, auxiliary equipment, sources of energy, or pumps are outside the scope of ISO 7076-5:2014. Special hazards arising from the particular conditions under which these systems are used are outside the scope of ISO 7076-5:2014. Hazards relating to any kind of mechanical, electrical, hydraulic, pneumatic, and other equipment dealt with by the respective standards for such equipment are outside the scope of ISO 7076-5:2014. Hazards arising from the noise of systems are outside the scope of ISO 7076-5:2014.

Protection contre l'incendie — Installations fixes d'extinction par mousse physique — Partie 5: Équipement fixe pour mousse physique à air comprimé

General Information

• Status: Published
• Publication Date: 06-May-2014
• ICS: 13.220.10 - Fire-fighting
• Technical Committee: ISO/TC 21/SC 6 - Foam and powder media and firefighting systems using foam and powder
• Drafting Committee: ISO/TC 21/SC 6 - Foam and powder media and firefighting systems using foam and powder
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 26-Feb-2020

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 7076-5
First edition
2014-05-01
Fire protection — Foam fire
extinguishing systems —
Part 5:
Fixed compressed air foam equipment
Protection contre l’incendie — Installations fixes d’extinction par
mousse physique —
Partie 5: Équipement fixe pour mousse physique à air comprimé
Reference number
ISO 7076-5:2014(E)
©
ISO 2014

---------------------- Page: 1 ----------------------
ISO 7076-5:2014(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 7076-5:2014(E)

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Abbreviated terms . 3
5 Requirements . 3
5.1 Compliance . 3
5.2 General . 3
5.3 Operation and control of systems . 4
6 Tests . 4
6.1 General . 4
6.2 CAF fire extinguishment tests/verification . 5
6.3 CAF foam quality measurements . 7
6.4 CAF foam discharge devices .10
6.5 CAF generation and proportioning.10
6.6 Salt fog corrosion .11
6.7 Thermal shock .11
7 Test report .12
8 Data .12
8.1 Operating instructions .12
8.2 Service and maintenance instructions .13
8.3 Fault causes and corrective actions .14
9 Marking .14
Annex A (normative) Conductivity test procedure .15
Annex B (normative) Low expansion foam fire test configurations .17
Annex C (normative) Low expansion foam fire test chronology
.18
Bibliography .19
© ISO 2014 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 7076-5:2014(E)

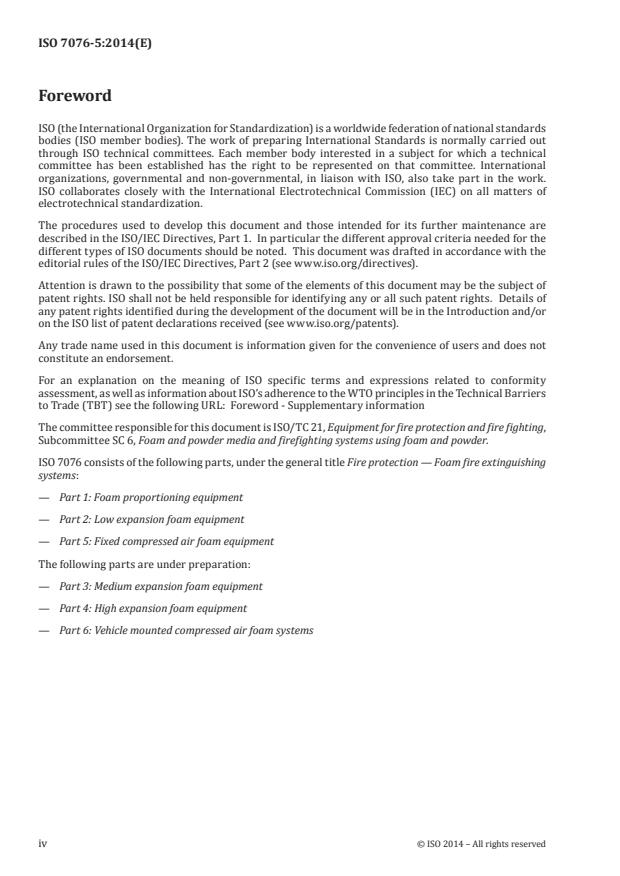

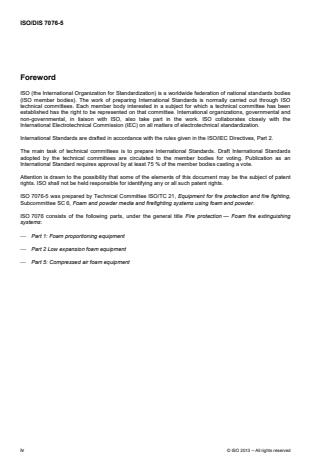

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 6, Foam and powder media and firefighting systems using foam and powder.
ISO 7076 consists of the following parts, under the general title Fire protection — Foam fire extinguishing
systems:
— Part 1: Foam proportioning equipment
— Part 2: Low expansion foam equipment
— Part 5: Fixed compressed air foam equipment
The following parts are under preparation:
— Part 3: Medium expansion foam equipment
— Part 4: High expansion foam equipment
— Part 6: Vehicle mounted compressed air foam systems
iv © ISO 2014 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 7076-5:2014(E)

Introduction
This part of ISO 7076 is prepared by ISO/TC 21/SC 6, and is based on FM Global Class 5130 Approval
Standard on Foam Extinguishing Systems.
Fixed compressed air foam equipment is required to function satisfactorily not only in the event of fire,
but also during and after exposure to conditions it is likely to meet in practice, including corrosion,
vibration, direct impact, and indirect shock. Specific tests are intended to assess the performance of the
equipment under such conditions.
The aim of using such systems is to improve the fire suppression effectiveness of the fire extinguishing
agent on the burning materials for both Class A and Class B fires, by producing uniform and more stable
bubbles, which improves the cooling effect of the applied media.
This part of ISO 7076 is not intended to place any other restrictions on the design and construction of
fixed compressed air foam equipment.
© ISO 2014 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 7076-5:2014(E)
Fire protection — Foam fire extinguishing systems —
Part 5:
Fixed compressed air foam equipment
1 Scope
This part of ISO 7076 specifies requirements, test and assessment methods, and performance criteria
for fixed compressed air foam equipment of fixed foam extinguishing systems for indoor or outdoor
utilization, or both.
Technical safety requirements concerning the design and manufacturing of drives, auxiliary equipment,
sources of energy, or pumps are outside the scope of this part of ISO 7076.
Special hazards arising from the particular conditions under which these systems are used are outside
the scope of this part of ISO 7076.
Hazards relating to any kind of mechanical, electrical, hydraulic, pneumatic, and other equipment dealt
with by the respective standards for such equipment are outside the scope of this part of ISO 7076.
Hazards arising from the noise of systems are outside the scope of this part of ISO 7076.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
IEC 60068-1, Environmental testing — Part 1: General and guidance
ASTM B117, Standard practice for operating salt spray (fog) apparatus
NFPA 11-2010, Standard for Low-, Medium-, and High-Expansion Foam
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
air delivery rate
volume of air, in normal condition, that is fed into a fixed compressed air foam system per unit of time
Note 1 to entry: While inside the system, the air volume will be compressed according to the pressure applied.
Once it leaves the system from the nozzle to the atmosphere, the air will expand to its normal volume again.
3.2
air/foam solution volume ratio
ratio stating how many parts of air (at normal condition) are mixed with one part of the foam solution
in a fixed compressed air foam system
Note 1 to entry: The ratio is expressed as the pair of values one part foam solution to x parts air (1:x).
© ISO 2014 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 7076-5:2014(E)

3.3
approved
acceptable to the authority having jurisdiction
3.4
authority having jurisdiction
AHJ
organization, office, or individual responsible for enforcing the requirements of a code or standard, or
for approving equipment, materials, an installation, or a procedure
3.5
compressed air foam
CAF
homogenous foam produced by the combination of water, foam concentrate, and air or nitrogen under
pressure
3.6
compressed air foam generating method
method of generating compressed air foam recognized in this part of ISO 7076 using a mixing chamber
to combine air or nitrogen under pressure, water, and foam concentrate in the correct proportions
Note 1 to entry: The resulting compressed air foam flows through piping to the hazard being protected.
3.7
compressed air foam discharge device
device specifically designed to discharge compressed air foam in a predetermined pattern
3.8
fixed compressed air foam system
fixed CAFS
system employing compressed air foam discharge devices attached to a piping system through which
foam is transported from a mixing chamber
Note 1 to entry: Discharge of fixed CAFS begins with automatic actuation of a detection system, or manual
actuation that opens valves permitting compressed air foam, generated in the mixing chamber, to flow through a
piping system and discharged over the area served by the discharge devices.
3.9
drainage time 25 %
time taken for 25 % of the foam to collapse into solution
3.10
wet foam
foam produced by a fixed compressed air foam system and which has a foam solution/air volume ratio
of between 1:3 to 1:10
3.11
dry foam
foam produced by a fixed compressed air foam system and which has a foam solution/air volume ratio
of more than 1:10
3.12
foam expansion ratio
ratio of the volume of expanded foam and its solution
3.13
foam solution
mixture of water and foam concentrate
2 © ISO 2014 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 7076-5:2014(E)

3.14
(foam solution) delivery rate
Q
W
volume (of water plus foam concentrate) delivered per unit of time by a system
Note 1 to entry: At proportioning ratios of up to 1 %, the difference between water delivery rate and foam solution
delivery rate can be neglected.
3.15
foam quality
quality of foam based on foam expansion ratio and 25 % drainage time
3.16
nozzle
specially designed device that can discharge foam in a predetermined pattern
3.17
operation pressure of the fixed CAF system
pressure at the system input connection at which all performance and safety requirements are met and
which shall be specified by the fixed compressed air foam system
3.18
operation range
range (of conditions) specified by the manufacturer of a system and within which the system can be
operated without limitations while achieving the intended performance characteristics
3.19
proportioning ratio
volume of foam concentrate added to water by volume, given as a percentage of the solution
3.20
listed
equipment, materials, or services included in a list published by an organization that is acceptable to
the authority having jurisdiction and concerned with evaluation of production of listed equipment or
materials or periodic evaluation of services, and whose listing states that either the equipment, material,
or service meets appropriate designated standards or has been tested and found suitable for a specified
purpose
4 Abbreviated terms
CAF compressed air foam
CAFS compressed air foam system
5 Requirements
5.1 Compliance
In order to comply with this part of ISO 7076, the fixed CAF system shall meet the requirements of this
clause, which shall be verified by technical inspection or engineering assessment, shall be tested as
specified in Clause 6, and shall meet the requirements of the tests.
5.2 General
5.2.1 The fixed CAF system shall be designed in accordance with the requirements of Chapter 7 of
NFPA 11-2010 and of this clause.
© ISO 2014 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 7076-5:2014(E)

5.2.2 A fixed CAF system shall generate at least wet foam.
5.2.3 A homogeneous, finely pored foam shall be discharged at the nozzles.
5.3 Operation and control of systems
5.3.1 The operating range(s) for dry foam and wet foam shall be specified by the system manufacturer.
5.3.2 There shall be no compressed air pulses at the fixed CAF system outlet cross section when the
system is switched on and off.
5.3.3 Within the operating range and at a foam solution delivery pressure of between 0,4 MPa and
1 MPa, the deviation from the set proportioning ratio shall not exceed
a) 0 to +20 % for proportioning ratios up to 1 % and
b) 0 to +30 % for proportioning ratios between 1 % and 3 %.
5.3.4 The pressure drop across the fixed CAF system when operated at the nominal delivery rate shall
not exceed 0,2 MPa.
5.3.5 The CAF unit shall be equipped with an air pressure regulating system that prevents the flow of
air when the liquid discharge is interrupted.
5.3.6 System controls shall be designed in accordance with 4.9 of NFPA 11-2010.
6 Tests
6.1 General
6.1.1 CAF shall demonstrate extinguishing performance in Class B fire tests. Fires shall be extinguished
by the end of the allowable discharge time and shall not reignite during the post-extinguishment
observation period.
6.1.2 Atmospheric conditions for tests
6.1.2.1 Unless otherwise stated in a test procedure, conduct the testing after the test specimen has
been allowed to stabilize in the standard atmospheric conditions for testing as specified in IEC 60068-
1 as follows:
— temperature: (15 to 35) °C;
— relative humidity: (25 to 75) %;
— air pressure: (86 to 106) kPa.
6.1.2.2 The temperature and humidity shall be substantially constant for each test where the standard
atmospheric conditions are applied.
6.1.3 Operating conditions for tests
6.1.3.1 If a test method requires a specimen, such as nozzle or mixing chamber, to be operational,
then connect the specimen to a suitable water supply and foam concentrate having the characteristics
required by the manufacturer’s data. Unless otherwise specified in the test method, the fixed CAF system
4 © ISO 2014 – All rights reserved

---------------------- Page: 9 ----------------------
ISO 7076-5:2014(E)

parameters applied to the specimen shall be set within the manufacturer’s specified range(s) and shall
remain substantially constant throughout the tests. The value chosen for each parameter shall normally
be the nominal value, or the mean of the specified range.
6.1.3.2 The details of the water supply and foam concentrate used shall be given in the test report (see
Clause 7).
6.2 CAF fire extinguishment tests/verification
6.2.1 The fire test pan (see Figure 1) shall be square and fabricated of steel with a minimum thickness
2
of 4,8 mm. The inside dimensions shall be 2,16 m by a minimum of 305 mm deep. All surfaces shall meet
at 90° angles and shall be joined by continuous, liquid-tight welds. The upper edge of the pan shall be
reinforced by an externally attached 38 mm steel angle of 4,8 mm minimum thickness. The angle shall
be attached to the pan by continuously welding its outside corner to the top edge of the pan, so that
the upper surface of one leg of the angle is flush with the top of the pan and the other leg of the angle
is tight against the outside wall of the pan. The lower leg of the angle shall be attached to the pan by
approximately 12-mm-long tack welds spaced approximately every 50 mm. The pan can be fitted with
a drain connection and lifting lugs below the reinforcing angle, if desired. Other equivalent construction
shall be allowed, provided that minimum section thicknesses are met or exceeded.
Dimensions in millimetres
Key
1 typical location for stovepipe insertion
Figure 1 — Low expansion fire test pan
6.2.2 The fire test shall be conducted with the pan resting on a flat surface or elevated no more than
305 mm above that surface. If the pan is to be so elevated, then a continuous skirt shall be used to prevent
air circulation below the pan during the test.
6.2.3 At minimum, the concentrate shall be tested with commercial grade heptane for the test fuel.
After the pan has been levelled, heptane shall be added to a minimum depth of 50 mm. Then water shall
be added to raise the heptane level to provide a minimum freeboard of 203 mm. For water-miscible fuels,
water cannot be used to adjust the fuel level in the pan. Therefore, a shallower pan can be used if the
manufacturer does not wish to test with a freeboard greater than 203 mm.
© ISO 2014 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO 7076-5:2014(E)

6.2.4 Tests shall be conducted inside or outside under conditions of calm air and no precipitation, and
at ambient air, premix, and fuel temperatures between 10 °C and 32 °C.
6.2.5 Foam solution shall be prepared by mixing the specified amount of concentrate with water, either
in a premixed solution or continuously by use of suitable proportioning equipment. Volume measuring,
weighing, or flow measuring equipment shall be of sufficient accuracy to ensure that concentration is
within ±5 % of the specified value. If conductivity measurements are to be used as a proxy for direct
measurements of volume, weight, or flow to determine concentration, the procedure of Annex A shall be
used to validate the correlation of conductivity to concentration.
6.2.6 The discharge device and application rate to be used in test shall be selected by the manufacturer.
The application rate used shall define the minimum rate for the concentrate, unless an additional
successful test is conducted at a lower application rate. Authorities having jurisdiction can mandate
higher application rates for specific hazards.
6.2.7 CAF fire extinguishment tests shall be conducted using four nozzles installed on the manufacturer’s
maximum specified square spacing and at the manufacturer’s minimum recommended foam application
rate. Nozzle height shall be the manufacturer’s specified minimum. A second set of tests shall be conducted
using the manufacturer’s maximum area of coverage asymmetry, if other than square spacing is specified
for the system. After review of the test results, the worst performing combinations of concentrates,
hardware, and installation geometries shall also be tested at the manufacturer’s maximum recommended
installation height. Tests shall be conducted with each concentrate and at the manufacturer’s specified
concentration(s).
6.2.8 For non-water-miscible fuels, including commercial grade heptanes, the test fuel shall be ignited
and allowed to burn for the preburn time indicated in Annex B prior to the application of foam. CAF
discharge duration shall be 5 min with 5 min of subsequent water discharge. Since CAF discharge devices
are typically not sprinklers, this will require overlaying of the CAF piping grid with a second sprinkler grid.
2
The sprinkler grid shall be with a minimum water application rate of 0,3 gal/min/ft (12,2 mm/min). A
maximum water application rate for foam breakdown as specified by the manufacturer shall be tested. The
2
maximum water application rate can be selected by the manufacturer from 0,3 gal/min/ft to 1,0 gal/min/
2 2
ft (12,2 mm/min to 40,8 mm/min) at even 0,1 gal/min/ft (4,1 mm/min) steps. The timing for reignition
attempts and the burn-back resistance evaluation shall be as specified for foam-water sprinklers and the
type of concentrate, as shown in Annex B.
For water-miscible fuels, the test method is the same, except CAF discharge duration shall be 5 min
with no subsequent water discharge. The timing for reignition attempts and the burn-back resistance
evaluation shall be as specified for foam-water sprinklers and the type of concentrate, as shown in
Annex B. If a premixed solution is not used, concentration shall be verified by appropriate instrumentation
to measure water and concentrate flow rates or weight or volume changes.
6.2.9 The pan surface shall be completely covered by the foam blanket and the fire completely
extinguished by the end of foam discharge. If the discharge device is a foam-water sprinkler, or a device
which can be installed under a fire protection sprinkler system, then water-only discharge shall continue
for an additional 5 min to verify that the foam blanket cannot be easily degraded by subsequent water
discharge. The water application rate shall be the same as used for the foam for a foam-water sprinkler
2
with a minimum 0,2 gal/min/ft (8,1 mm/min) rate. A subsequent maximum water application rate for
foam breakdown, as specified by the manufacturer, shall be tested. This maximum application rate can
2 2
be selected by the manufacturer from 0,3 gal/min/ft to 1,0 gal/min/ft (12,2 mm/min to 40,8 mm/min)
2
at even steps of 0,1 gal/min/ft (4,1 mm/min). If the test fuel is water miscible, the water-only discharge
will not be used for that fuel, because the mixing of water with the fuel will prejudice the reignition and
sealing evaluations. All concentrates and concentrations submitted for use on water-miscible fuels shall
also be tested on heptane fuel with subsequent water-only discharge.
6.2.10 As for reignition resistance, after the completion of discharge, the foam blanket shall remain
undisturbed for an observation period, as indicated in Annex C. During this time, the fuel shall not reignite
when a lighted torch is passed within 25 mm of the surface of the foam blanket. Reignition attempts shall
6 © ISO 2014 – All rights reserved

---------------------- Page: 11 ----------------------
ISO 7076-5:2014(E)

be made within 1 min after the end of discharge and within 1 min before the end of the observation period.
Reignition attempts shall be 1 min in duration, during which time the entire surface of the blanket shall be
probed, including the corners. The torch shall consist of an approximately 100-mm-diameter by 100-mm-
long tightly wrapped roll of heptane-soaked cotton cloth at the end of a steel rod approximately 1,2 m
long. Alternatively, a propane torch can be used for this purpose if provided with a non-air-aspirating
tip at the end of a minimum length 1,2 m wand and adjusted to produce a yellow flame a minimum of
100 mm long. The propane container shall be at the operator end of the wand and shall not be extended
over the pan surface.
6.2.11 As for burn-back resistance, at the end of the observation period, the foam blanket shall be
deliberately broken and the fuel shall be reignited in the rift. The rift shall be created by placing a vertical
pipe in the pan, removing the foam blanket from within the pipe, reigniting the fuel within the pipe, and
slowly removing the pipe. The pipe shall be fabricated from steel sheet of 0,38 mm to 1,23 mm thickness
and a minimum of 305 mm inside diameter and approximately 355 mm long. The pipe shall be placed
with its outer surface approximately 0,76 m from both walls of the pan in the corner where the foam
blanket appears to be weakest. The foam blanket captured within the pipe shall be removed as thoroughly
as possible without agitating the surface of the fuel. The fire within the pipe shall be allowed to burn for
1 min prior to removing the pipe. Subsequently, the burning rift shall either reclose or not enlarge beyond
2
0,9 m over a 5 min observation period.
6.2.12 Annex C provides a tabular chronology of the schedule of events for this test.
6.2.13 A foam sample shall be captured under the same discharge conditions as used for this test. Quality
measurements shall be taken from this sample. These values shall be used to verify that discharge devices
can produce foam sufficiently similar to that used in the successful fire tests. Accurate foam quality
measurements cannot be possible with extremely low expansion ratios and rapid drainage times, such as
is frequently the case with conventional sprinklers used for foam water service. When there is no quality
data obtained in an extinguishment test, that test cannot be used to qualify equipment other than that
actually used in the test.
6.3 CAF foam quality measurements
6.3.1 The expansion ratio and 25 % drainage time for foam produced from a concentrate at a specified
concentration ratio that has been successfully fire tested shall be measured to establish benchmark values
for use in evaluation of the effectiveness of any discharge devices proposed for use with that foam.
6.3.2 A foam slider shall be used to collect foam samples for determining foam quality. A typical “slider”
is illustrated in Figure 2 and consists of a sheet of smooth metal, plastic, or wood held on a frame at an
angle of 45° to the floor. Foam reaching the “slider” surface shall be guided into a foam sample container
placed at the bottom of the sheet. Excessive overflowing of foam solution shall be avoided to prevent foam
agitation in the container.
6.3.3 Two collection containers shall be used. The containers shall be graduate cylinders of 1 600 ml
to 2 000 ml capacity. Each contai
...

DRAFT INTERNATIONAL STANDARD ISO/DIS 7076-5
ISO/TC 21/SC 6 Secretariat: SAC
Voting begins on Voting terminates on

2013-05-15 2013-08-15
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION  •  МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ  •  ORGANISATION INTERNATIONALE DE NORMALISATION


Fire protection — Foam fire extinguishing systems —
Part 5:
Compressed air foam equipment
Protection contre l'incendie — Installations fixes d'extinction par mousse physique —
Partie 5: Équipement pour mousse physique à air comprimé

ICS 13.220.10









To expedite distribution, this document is circulated as received from the committee
secretariat. ISO Central Secretariat work of editing and text composition will be undertaken at
publication stage.
Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du
secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au
Secrétariat central de l'ISO au stade de publication.



THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE
REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
©  International Organization for Standardization, 2013

---------------------- Page: 1 ----------------------
ISO/DIS 7076-5

COPYRIGHT PROTECTED DOCUMENT


©  ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form or by any
means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior written permission.
Permission can be requested from either ISO at the address below or ISO’s member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland

ii © ISO 2013 – All rights reserved

---------------------- Page: 2 ----------------------
ISO/DIS 7076-5
Contents Page
Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references . 1
2 Terms and definitions . 2
4 Abbreviated terms . 4
5 Requirements . 4
5.1 Compliance . 4
5.2 General . 4
5.3 Water supplies . 4
5.4 Foam concentrate . 5
5.5 Air or Nitrogen supply . 5
5.6 Compressed air foam discharge devices . 6
5.7 Operation and control of systems . 6
5.8 System types . 7
5.9 Limitations . 7
5.10 System design . 7
5.11 CAFS discharge device choice and location . 8
5.12 Discharge density . 8
5.13 Discharge duration . 8
5.14 System flow calculation . 8
5.15 Testing and acceptance . 8
6 Tests . 8
6.1 General . 8
6.2 CAF fire extinguishment tests/verification . 9
6.3 CAF foam quality measurements . 12
6.4 CAF Foam discharge devices . 14
6.5 CAF Generation and proportioning . 14
6.6 Salt fog corrosion . 16
6.7 Thermal shock . 16
7 Report . 16
8 Data . 16
8.1 Operating instructions . 16
8.2 Service and maintenance instructions . 18
8.3 Fault causes and corrective actions . 18
9 Marking . 18
Annex A (normative) Conductivity test procedure . 20
Annex B (normative) Low expansion foam fire test configurations . 22
Annex C (normative) Low expansion foam fire test chronology . 23

© ISO 2013 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO/DIS 7076-5
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 7076-5 was prepared by Technical Committee ISO/TC 21, Equipment for fire protection and fire fighting,
Subcommittee SC 6, Foam and powder media and firefighting systems using foam and powder.
ISO 7076 consists of the following parts, under the general title Fire protection — Foam fire extinguishing
systems:
 Part 1: Foam proportioning equipment
 Part 2 Low expansion foam equipment
 Part 5: Compressed air foam equipment
iv © ISO 2013 – All rights reserved

---------------------- Page: 4 ----------------------
ISO/DIS 7076-5
Introduction
This part of ISO 7076 is prepared by ISO/TC 21/SC 6, and is based on NFPA 11 Standard for Low-, Medium-,
and High-Expansion Foam, and FM Global Class 5130 Approval Standard on Foam Extinguishing Systems.
Compressed air foam equipment is required to function satisfactorily not only in the event of fire, but also
during and after exposure to conditions it is likely to meet in practice, including corrosion, vibration, direct
impact and indirect shock. Specific tests are intended to assess the performance of the equipment under such
conditions.
The aim of using such systems is to improve the fire suppression effectiveness of the fire extinguishing agent
on the burning materials for both Class A and Class B fires, by producing uniform and more stable bubbles,
which improves the cooling effect of the applied media.
This part of ISO 7076 is not intended to place any other restrictions on the design and construction of
compressed air foam equipment.
© ISO 2013 – All rights reserved v

---------------------- Page: 5 ----------------------
DRAFT INTERNATIONAL STANDARD ISO/DIS 7076-5

Fire protection — Foam fire extinguishing systems — Part 5:
Compressed air foam equipment
1 Scope
This part of ISO 7076 specifies requirements, test and assessment methods and performance criteria for
compressed air foam equipment of fixed foam extinguishing system for indoor or outdoor or both utilization.
Technical safety requirements concerning the design and manufacturing of drives, auxiliary equipment,
sources of energy or pumps are outside the scope of this part of ISO 7076.
Special hazards arising from the particular conditions under which these systems are used are outside the
scope of this part of ISO 7076.
Hazards relating to any kind of mechanical, electrical, hydraulic, pneumatic and other equipment dealt with by
the respective standards for such equipment are outside the scope of this part of ISO 7076.
Hazards arising from the noise of systems are outside the scope of this part of ISO 7076.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 7000, Graphical symbols for use on equipment — Index and synopsis
IEC 60204-1, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
IEC 60529, Degrees of protection provided by enclosures (IP code)
IEC 61310-1, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for visual,
acoustic and tactile signals
IEC 61310-2, Safety of machinery — Indication, marking and actuation — Part 2: Requirements for marking
IEC 61310-3, Safety of machinery — Indication, marking and actuation — Part 3: Requirements for the
location and operation of actuators
IEC 60068-1, Environmental testing — Part 1: General and guidance
ASTM B117, Standard practice for operating salt spray (fog) apparatus
EN 349, Safety of machinery — Minimum gaps to avoid crushing of parts of the human body
EN 547-2, Safety of machinery — Human body measurements — Part 2: Principles for determining the
dimensions required for access openings
EN 547-3, Safety of machinery — Human body measurements — Part 3: Anthropometric data
© ISO 2013 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO/DIS 7076-5
EN 659, Protective gloves for firefighters
EN 894-1, Safety of machinery — Ergonomics requirements for the design of displays and control actuators
Part 1: General principles for human interactions with displays and control actuators
EN 894-2, Safety of machinery — Ergonomics requirements for the design of displays and control
actuators — Part 2: Displays
EN 894-3, Safety of machinery — Ergonomics requirements for the design of displays and control
actuators — Part 3: Control actuators
EN 894-4, Safety of machinery — Ergonomics requirements for the design of displays and control
actuators — Part 4: Location and arrangement of displays and control actuators
EN 953, Safety of machinery — Guards — General requirements for the design and construction of fixed and
movable guards
EN 1846-2, Firefighting and rescue service vehicles — Part 2: Common requirements — Safety and
performance
EN 1846-3:2002+A1:2008, Fire-fighting and rescue service vehicles — Part 3: Permanently installed
equipment — Safety and performance
EN 14466:2005+A1:2008, Fire-fighting pumps — Portable pumps — Safety and performance requirements,
tests
NFPA 24, Standard for the Installation of Private Fire Service Mains and Their Appurtenances
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
air delivery rate
volume of air, in normal condition, that is fed into a compressed-air foam system per unit of time
NOTE While inside the system the air-volume will be compressed according to the pressure applied. Once leaving
the system from the nozzle to atmosphere, the air will expand to its normal volume again.
3.2
air/foam solution volume ratio
ratio stating how many parts of air (at normal condition) are mixed with one part of the foam solution in a
compressed-air foam system
NOTE The ratio is expressed as the pair of values one part foam solution to x parts air (1: x).
3.3
approved
acceptable to the authority having jurisdiction
3.4
Authority Having Jurisdiction
AHJ
an organization, office, or individual responsible for enforcing the requirementsof a code or standard, or for
approving equipment, materials, an installation, or a procedure
2 © ISO 2013 – All rights reserved

---------------------- Page: 7 ----------------------
ISO/DIS 7076-5
3.5
compressed air foam
CAF
a homogenous foam produced by the combination of water, foam concentrate, and air or nitrogen under
pressure
3.6
compressed air foam generating method
a method of generating compressed air foam recognized in this standard using a mixing chamber to combine
air or nitrogen under pressure, water, and foam concentrate in the correct proportions. The resulting
compressed air foam flows through piping to the hazard being protected.
3.7
compressed air foam discharge device
a device specifically designed to discharge compressed air foam in a predetermined pattern
3.8
compressed air foam system
CAFS
a system employing compressed air foam discharge devices attached to a piping system through which foam
is transported from a mixing chamber. Discharge of CAFS begins with automatic actuation of a detection
system, or manual actuation that opens valves permitting compressed air foam, generated in the mixing
chamber, to flow through a piping system and discharged over the area served by the discharge devices.
3.9
drainage time 25 %
time taken for 25 % of the foam to collapse into solution
3.10
wet foam
foam produced by a compressed-air foam system and which has a foam solution/air volume ratio of between
1:3 to 1:10
3.11
dry foam
foam produced by a compressed-air foam system and which has a foam solution/air volume ratio of more than
1:10
3.12
foam expansion ratio
ratio of the volume of expanded foam and its solution
3.13
foam solution
mixture of water and foam concentrate
3.14
(foam solution) delivery rate Q
W
volume (of water plus foam concentrate) delivered per unit of time by a system
NOTE At proportioning ratios of up to 1 % the difference between water delivery rate and foam solution delivery rate
can be neglected.
3.15
Foam quality
Quality of foam based on foam expansion ratio and 25 % drainage time
3.16
Nozzle
a specially designed device that can discharge foam in a predetermined pattern
© ISO 2013 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO/DIS 7076-5
3.17
Operation pressure of the CAF system
pressure at the system input connection at which all performance and safety requirements are met and which
shall be specified by the compressed-air foam system
3.18
operation range
range (of conditions) specified by the manufacturer of a system and within which the system can be operated
without limitations while achieving the intended performance characteristics
3.19
proportioning ratio
volume of foam concentrate added to water by volume, given as a percentage of the solution
3.20
Listed
equipment, materials, or services included in a list published by an organization that is acceptable to the
authority having jurisdiction and concerned with evaluation of production of listed equipment or materials or
periodic evaluation of services, and whose listing states that either the equipment, material, or service meets
appropriate designated standards or has been tested and found suitable for a specified purpose
4 Abbreviated terms
 CAF compressed air foam
 CAFS compressed air foam system
5 Requirements
5.1 Compliance
In order to comply with this part of ISO 7076, the CAF system shall meet the requirements of this clause,
which shall be verified by technical inspection or engineering assessment, shall be tested as specified in 6
and shall meet the requirements of the tests.
5.2 General
5.2.1 A CAF system shall generate at least wet foam.
5.2.2 A homogeneous, finely-pored foam shall be discharged at the nozzles.
5.2.3 All components shall be listed for their intended use.
5.2.4 Where listings for components do not exist, components shall be approved.
5.3 Water supplies
5.3.1 The water supply to compressed air foam systems shall be permitted to be hard or soft, fresh or salt,
but shall be of a quality so that adverse effects on foam formation or foam stability do not occur.
5.3.2 No corrosion inhibitors, emulsion breaking chemicals, or any other additives shall be present without
prior consultation with the foam concentrate supplier.
5.3.3 The water supply shall be of a quantity to supply all the discharge devices that shall be permitted to
be used simultaneously for the specified time.
4 © ISO 2013 – All rights reserved

---------------------- Page: 9 ----------------------
ISO/DIS 7076-5
5.3.4 The quantity of water shall include not only the volume required for the compressed air foam
apparatus but also water that shall be permitted to be used in other fire-fighting operations, in addition to the
normal plant requirements.
5.3.5 The pressure available at the inlet to the compressed air foam system under required flow conditions
shall be at least the minimum pressure for which the system has been designed.
5.3.7 The water system shall be designed and installed in accordance with an official standard
implemented as national standard.
5.3.8 Water supply shall be protected against freezing in climates where freezing temperatures are
expected.
5.4 Foam concentrate
5.4.1 Foam concentrate shall be listed.
5.4.2 The foam concentrate used in a compressed air foam system shall be that listed for use with the
equipment.
5.4.3 The performance of the system shall be dependent on the composition of the foam concentrate as
listed with associated fuels and protection storage arrangement (consult applicable standard for storage
arrangement protection).
5.4.4 The quality of the concentrate for proper performance under the installation requirements of this
standard shall be determined by suitable tests.
5.4.6 The amount of foam concentrate in the system shall be at least sufficient for the largest single hazard
protected, or a group of hazards that are to be protected simultaneously.
5.4.7 Storage tanks shall be of corrosion-resisting materials and construction compatible with the foam
concentrate.
5.4.8 Consideration shall be given to design of the storage tanks to minimize evaporation of concentrate.
5.4.9 Markings shall be provided on storage tanks to identify the type of concentrate, manufacturer, lot
number, manufactured date, and its intended concentration in solution.
5.4.10 Foam concentrate shall be stored within the listed temperature limitations.
5.4.11 A reserve supply of foam concentrate sufficient to meet system design requirements shall be
provided in order to put the system back into service after operation.
5.4.12 The reserve supply shall be in separate tanks or compartments, in drums or cans on the premises, or
available from an approved outside source within a specified time.
5.4.13 Different types of foam concentrates shall not be mixed for storage.
5.4.14 Different brands of the same type of concentrate shall not be mixed unless data are provided by the
foam concentrate manufacturer to prove that they are compatible within the bounds of the listing and are
accepted by the AHJ.
5.5 Air or Nitrogen supply
5.5.1 The amount of air or nitrogen shall be at least sufficient for the largest single hazard protected, or a
group of hazards that are to be protected simultaneously.
© ISO 2013 – All rights reserved 5

---------------------- Page: 10 ----------------------
ISO/DIS 7076-5
5.5.2 A reserve supply of air or nitrogen sufficient to meet system design requirements shall be provided in
order to put the system back into service after operation or available from an approved outside source within a
specified time.
5.5.3 Air or nitrogen storage containers shall be listed as part of the compressed air system.
5.5.4 Pressurized storage containers shall be designed to comply with the requirements of an official
standard implemented as national standard.
5.5.5 Pressurized storage containers shall not be located where they are subject to severe weather
conditions or to mechanical, chemical, or other damage.
5.5.6 Each pressurized storage container shall be provided with a safety, over-pressure releasing device.
5.5.8 Regulators controlling the air or nitrogen pressure for compressed air foam systems shall be listed for
the intended purpose.
5.5.9 Air compressors used as a dedicated source of air supply shall be listed for use on fire protection
systems.
5.5.10 Plant air shall be permitted to be utilized where the facility has an air supply that complies with the
requirements of a dedicated main and reserve air supply, including the quality, quantity, and pressure
requirements of the listing, and shall be subjected to the approval of the AHJ. The reliability of the air supply
and power to the air supply should be considered by the AHJ.
5.6 Compressed air foam discharge devices
5.6.1 Compressed air foam discharge devices shall be listed for the intended purpose.
5.6.2 Discharge devices shall be located and installed so that they are not subject to mechanical, chemical,
climatic, or other conditions that would render them inoperative.
5.7 Operation and control of systems
5.7.1 The operating range(s) for dry foam and wet foam shall be specified by the system manufacturer.
NOTE An example for the operating-range of a CAF system is given in Annex D.
5.7.2 There shall be no compressed air pulses at the CAF system outlet cross-section when the system is
switched on and off.
5.7.3 Within the operating range and at a foam solution delivery pressure of between 0.4 MPa and 1 MPa,
the deviation from the set proportioning ratio shall not exceed
a) 0 to + 20 % for proportioning ratios up to 1 %;
b) 0 to + 30 % for proportioning ratios between 1 % and 3 %.
5.7.4 The pressure drop across the CAF system when operated at the nominal delivery rate shall not
exceed 0.2 MPa.
5.7.5 The CAF unit shall be equipped with an air pressure regulating system that prevents the flow of air
when the liquid discharge is interrupted.
5.7.6 Compressed air foam systems shall be permitted to be actuated automatically or manually.
5.7.7 All systems shall have provisions for manual and emergency mechanical actuation.
5.7.8 An automatic system shall be activated by automatic detection equipment.
6 © ISO 2013 – All rights reserved

---------------------- Page: 11 ----------------------
ISO/DIS 7076-5
5.7.9 Operation shall be controlled by listed or approved mechanical, electrical, hydraulic, or pneumatic
means.
5.7.10 When operation is automatic, a reliable source of energy shall be used.
5.7.11 The need for an alternative power supply shall be determined by the AHJ.
5.7.12 Automatic detection equipment, whether pneumatic, hydraulic, or electric, shall be provided with
supervision arranged so that failure of equipment or loss of supervising air pressure or loss of electric energy
results in positive notification of the abnormal condition.
5.7.13 The system shall be permitted to be arranged to shut off automatically after a predetermined
operating time.
5.7.14 Automatic shutdown shall be subject to the approval of the AHJ.
5.7.15 Where automatic shutdown is required, an alarm condition shall remain until manually reset.
5.7.16 The detection system shall activate a local alarm as well as an alarm at a constantly attended
location.
5.7.17 The detection system’s alarms also shall be actuated when the system is operated manually.
5.7.18 Controls for manually actuated systems shall be located in a place removed from the hazard zone to
permit them to be operated in an emergency, yet close enough to ensure operator knowledge of fire
conditions.
5.7.19 The location and purposes of the controls shall be indicated and shall be related to the operating
instructions.
5.7.20 All operating devices shall be designed for the service conditions they encounter.
5.7.21 Operating devices shall not be rendered inoperative, or be susceptible to inadvertent operation, by
environmental factors such as high or low temperature, atmospheric humidity or pollution, or marine
conditions.
5.8 System types
5.8.1 Compressed air foam systems conforming to this chapter shall be fixed deluge-type or fixed spray-
type systems, wherein compressed air foam shall discharge simultaneously from all nozzles upon system
activation.
5.8.2 The system shall be permitted to be designed to protect a single zone or multiple zones.
5.9 Limitations
5.9.1 Compressed air foam systems shall be designed and installed in accordance with their listing for the
specific hazards and protection objectives specified in the listing.
5.9.2 These limitations are described in the manufacturer’s listed design manual, which shall be part of the
listing of the system.
5.10 System design
The system shall be designed in accordance with the manufacturer’s design manual, which shall be part of the
listing.
© ISO 2013 – All rights reserved 7

---------------------- Page: 12 ----------------------
ISO/DIS 7076-5
5.11 CAFS discharge device choice and location
5.11.1 Discharge devices shall be of the type listed for the intended purpose.
5.11.2 Discharge devices shall be located in accordance with listing limitations on height, spacing, floor
coverage, and alignment.
5.12 Discharge density
5.12.1 The design discharge density shall be in accordance with the applicable occupancy standards and in
accordance with the manufacturer’s listing but in no case less than 1.63 L/min/m2 (0.04 gpm/ft2) for
hydrocarbon fuel applications and 2.45 L/min/m2 (0.06 gpm/ft2) for alcohol and ketone applications.
5.12.2 Where fixed spray-type systems are used to protect three-dimensional equipment, the minimum
density shall be applied over the projected area of rectangular prism envelope for the equipment and its
appurtenances.
5.13 Discharge duration
5.13.1 The sys
...
