This document provides information and specifications on the management of road traffic in controlled zones (CZ) through the application of geofencing. Specifically, this document specifies a “Controlled Zone Data Dictionary” (CZDD) for management of controlled zones, and provides an extendible toolkit that regulators can use, for example, to inform potential CZ users (e.g. vehicles) about: — the CZ area, i.e. the geographical boundaries of the CZ; — CZ access conditions including exemptions; — time windows indicating when these CZ access conditions are applicable. This allows potential CZ users to select an appropriate routing, either by pre-trip planning or ad hoc re-routing. This document also provides illustrations and guidelines on how to use this toolkit. The toolkit is designed in accordance with the general ITS station and communications architecture specified in ISO 21217, and with optionally applicable C-ITS protocols and procedures, e.g. ISO 22418 on “Service Announcement”, ISO 18750 on the “Local Dynamic Map”, and ISO 17419 on globally unique identifiers. Cybersecurity provision can be provided through conformance to ISO 21177. Enforcement is out of scope of this document.
Systèmes de transport intelligents — ITS urbains — Gestion de "zones contrôlées" pour les UVAR à l'aide de C-ITS
General Information
Standards Content (Sample)
International
Standard
ISO 24311
First edition
Intelligent transport systems —
Mobility integration — 'Controlled
2024-03
zone' management for urban
vehicle access restrictions (UVARs)
using C-ITS
Systèmes de transport intelligents — ITS urbains — Gestion de
"zones contrôlées" pour les UVAR à l'aide de C-ITS
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviations . 2
5 Management of controlled zones . 2
5.1 General .2
5.2 CZ manager .3
5.3 Controlled zone .3
5.4 CZ access conditions .6
5.5 CZ exemptions .7
5.6 Resultant behaviour .8
5.7 Routing paradigms .8
5.8 Controlled zone messages and data dictionary .8
5.8.1 Messages .8
5.8.2 Data dictionary .9
6 Use cases . 9
6.1 General .9
6.2 Pre-trip planning .9
6.3 Approaching a CZ boundary .9
6.4 Starting in a CZ .10
6.5 Operation in a CZ for a limited time .10
6.6 Operation in a CZ is subject to a fee .10
6.7 Access to CZ controlled with a barrier .11
7 Elements of the CZ data dictionary .11
7.1 General .11
7.2 ControlledZone .11
7.3 CzAccessConditions .11
7.4 CzAccessConditionsExemptions . 12
8 Messages and related security .13
8.1 General . 13
8.2 Applying the concept of In-Vehicle Information . 13
8.3 Applying the concept of ITS message sets .14
Annex A (normative) ASN.1 module of the CZ data dictionary .15
Annex B (normative) Service announcement for the ITS application “CZ Management” .20
Annex C (informative) LDM data objects for CZ management .21
Bibliography .22
iii

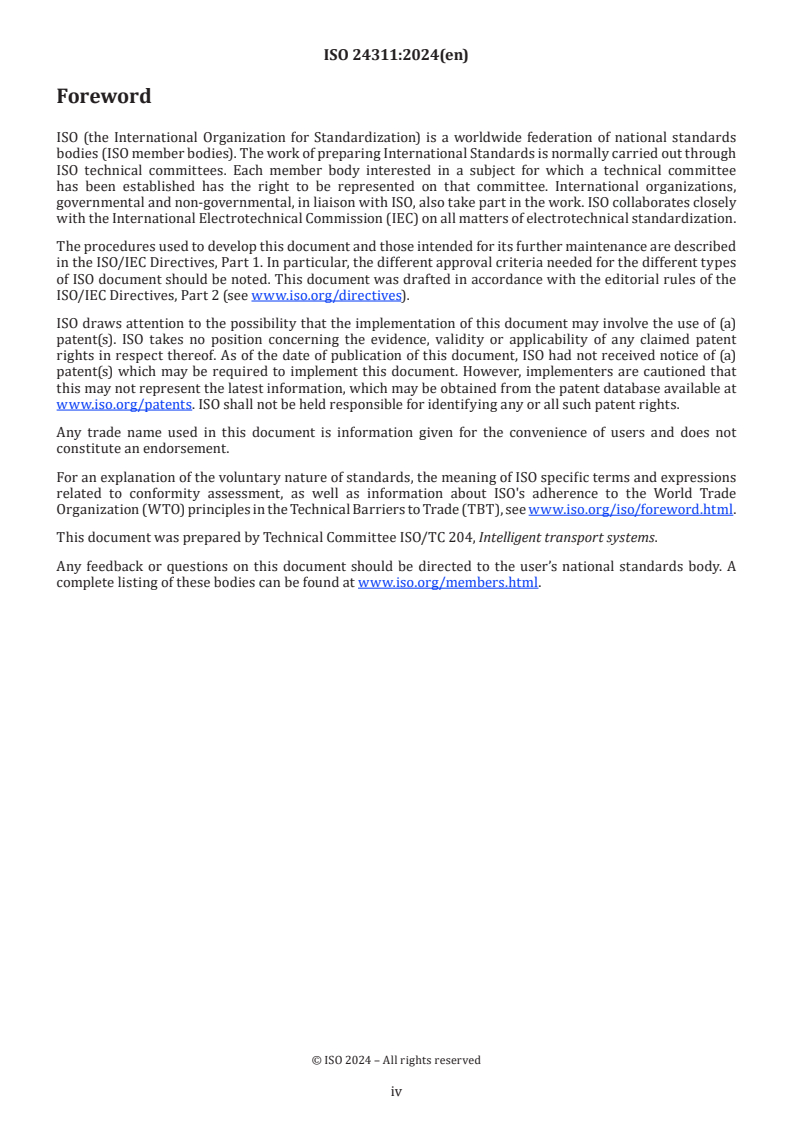

Foreword
