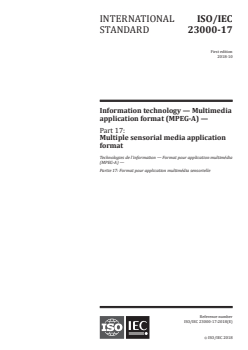

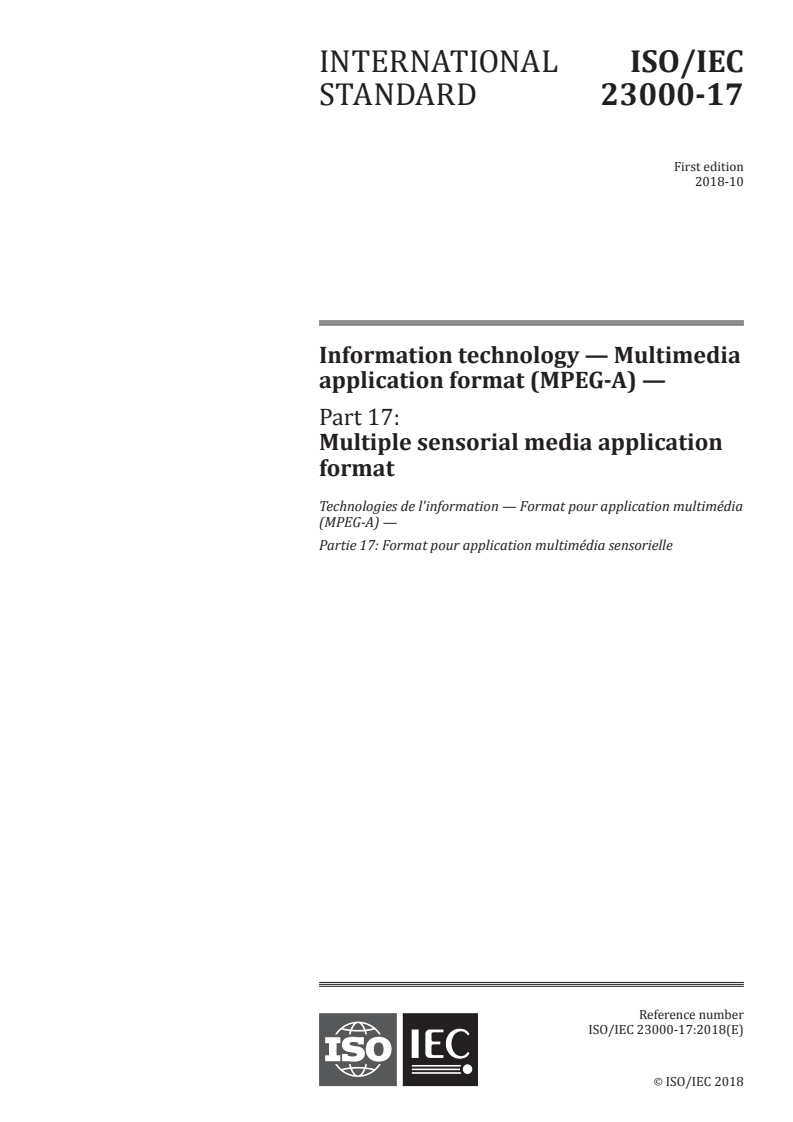

INTERNATIONAL ISO/IEC
STANDARD 23000-17
First edition
2018-10
Information technology — Multimedia
application format (MPEG-A) —
Part 17:
Multiple sensorial media application
format
Technologies de l'information — Format pour application multimédia
(MPEG-A) —
Partie 17: Format pour application multimédia sensorielle
Reference number
ISO/IEC 23000-17:2018(E)
ISO/IEC 2018
---------------------- Page: 1 ----------------------
ISO/IEC 23000-17:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2018

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO/IEC 2018 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 23000-17:2018(E)

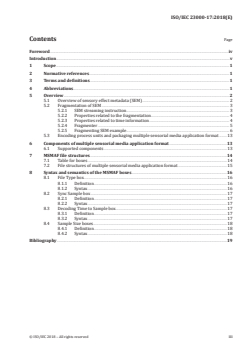

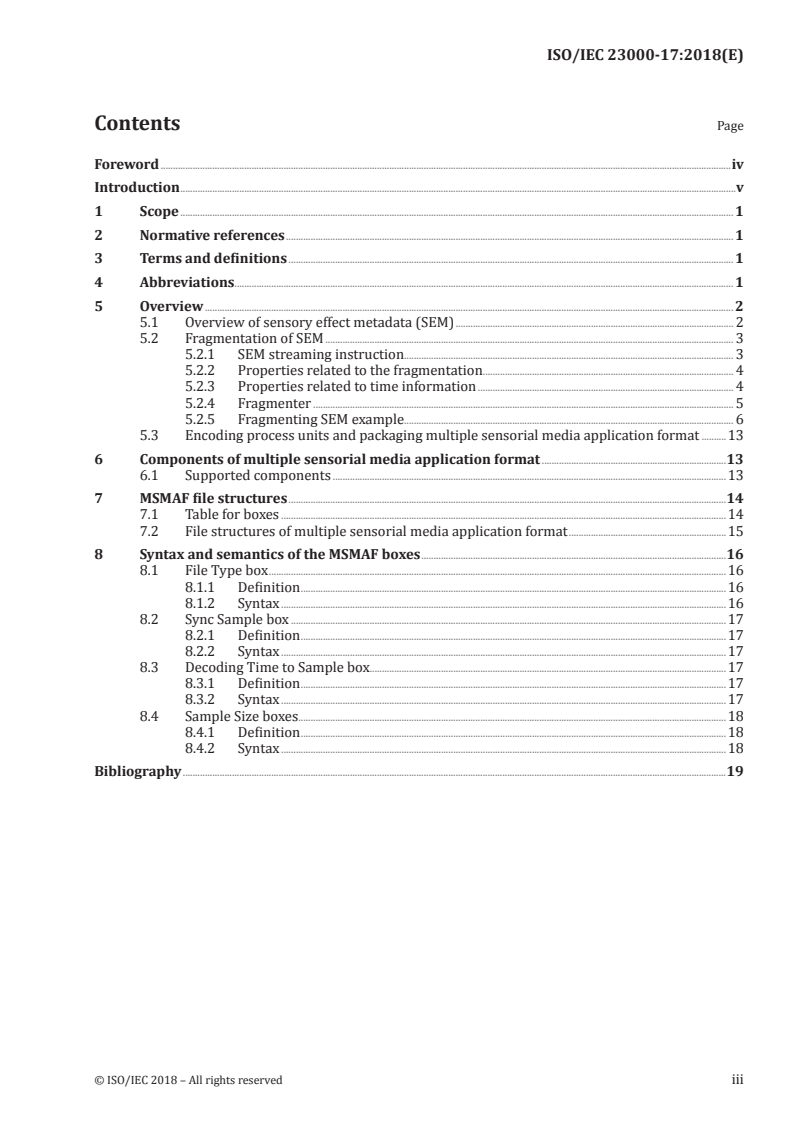

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Abbreviations........................................................................................................................................................................................................... 1

5 Overview ....................................................................................................................................................................................................................... 2

5.1 Overview of sensory effect metadata (SEM) ................................................................................................................. 2

5.2 Fragmentation of SEM ...................................................................................................................................................................... 3

5.2.1 SEM streaming instruction .................. .................................................................................................................... 3

5.2.2 Properties related to the fragmentation .................. .................................................................................... 4

5.2.3 Properties related to time information ........................................................................................................ 4

5.2.4 Fragmenter ........................................................................................................................................................................... 5

5.2.5 Fragmenting SEM example...................................................................................................................................... 6

5.3 Encoding process units and packaging multiple sensorial media application format ..........13

6 Components of multiple sensorial media application format ...........................................................................13

6.1 Supported components ................................................................................................................................................................13

7 MSMAF file structures ..................................................................................................................................................................................14

7.1 Table for boxes .....................................................................................................................................................................................14

7.2 File structures of multiple sensorial media application format ................................................................15

8 Syntax and semantics of the MSMAF boxes ............................................................................................................................16

8.1 File Type box ..........................................................................................................................................................................................16

8.1.1 Definition .............................................................................................................................................................................16

8.1.2 Syntax .....................................................................................................................................................................................16

8.2 Sync Sample box .................................................................................................................................................................................17

8.2.1 Definition .............................................................................................................................................................................17

8.2.2 Syntax .....................................................................................................................................................................................17

8.3 Decoding Time to Sample box.................................................................................................................................................17

8.3.1 Definition .............................................................................................................................................................................17

8.3.2 Syntax .....................................................................................................................................................................................17

8.4 Sample Size boxes ..............................................................................................................................................................................18

8.4.1 Definition .............................................................................................................................................................................18

8.4.2 Syntax .....................................................................................................................................................................................18

Bibliography .............................................................................................................................................................................................................................19

© ISO/IEC 2018 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 23000-17:2018(E)

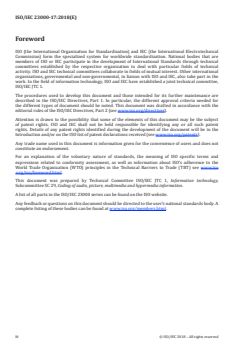

Foreword

ISO (the International Organization for Standardization) and IEC (the International Electrotechnical

Commission) form the specialized system for worldwide standardization. National bodies that are

members of ISO or IEC participate in the development of International Standards through technical

committees established by the respective organization to deal with particular fields of technical

activity. ISO and IEC technical committees collaborate in fields of mutual interest. Other international

organizations, governmental and non-governmental, in liaison with ISO and IEC, also take part in the

work. In the field of information technology, ISO and IEC have established a joint technical committee,

ISO/IEC JTC 1.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for

the different types of document should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject

of patent rights. ISO and IEC shall not be held responsible for identifying any or all such patent

rights. Details of any patent rights identified during the development of the document will be in the

Introduction and/or on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/IEC JTC 1, Information technology,

Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.

A list of all parts in the ISO/IEC 23000 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO/IEC 2018 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/IEC 23000-17:2018(E)
Introduction

Along with the sensation associated with the 3D film industry, the development of MulSeMedia (multiple

sensorial media), or 4D media, has received much attention from the public. 4D movies generally add

sensory effects to 3D and/or IMAX movies, allowing audiences to immerse themselves more deeply in the

movie viewing experience. Along with the two human senses of sight and hearing, sensory effects such

as wind, vibration, scent and others can stimulate other senses, such as the tactile and olfaction senses.

The multiple sensorial media application format (MSMAF) defines a file format for multiple sensorial

media services. It specifies core structures of multiple sensorial media application format being

organized by the combination of related information for multiple sensorial media applications.

Services using the MSMAF can be realized in two ways: offline and online. The offline services include

DVDs and movie plays in theatres, whereas the online services include streaming services on IP-TV or

broadcasting with MPEG-2 transport streams.
© ISO/IEC 2018 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO/IEC 23000-17:2018(E)
Information technology — Multimedia application format
(MPEG-A) —
Part 17:
Multiple sensorial media application format
1 Scope

This document specifies a file format which is capable of storage, interchange, management, editing

and presentation of multiple sensorial media contents based on the ISO base media file format. The file

format provides the overall structure for storing multiple sensorial media contents.

2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at https: //www .electropedia .org/
— ISO Online browsing platform: available at https: //www .iso .org/obp
3.1
sensory effect metadata

record that defines the description schemes and descriptors to represent sensory effects

3.2
sensory effect

effect to augment perception by stimulating human senses in a particular scene of a multimedia

application

Note 1 to entry: Combinations of tactile display may also provide directional, shape information.

EXAMPLE Scent, wind, light, haptic (kinesthetic-force, stiffness, weight, friction, texture, widget (button,

slider, joystick), tactile: air-jet, suction pressure, thermal, current and vibration.

4 Abbreviations
BiM binary MPEG format for XML (ISO/IEC 23001-1)
DIA digital item adaptation (ISO/IEC 21000-7)
MPEG-21 multimedia framework (ISO/IEC 21000)
MPEG-7 multimedia content description interface (ISO/IEC 15938)
SEDL sensory effects description language (ISO/IEC 23005-3)
© ISO/IEC 2018 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO/IEC 23000-17:2018(E)
SEM sensory effect metadata (ISO/IEC 23005-3)
SEV sensory effects vocabulary (ISO/IEC 23005-3)
XML extensible mark-up language
XSI XML streaming instructions (ISO/IEC 21000-7)
5 Overview
5.1 Overview of sensory effect metadata (SEM)

It is necessary to play multiple sensorial media that contains metadata for representing real-sense

effects according to the scenes of the media. In order to satisfy this requirement, sensory effect

metadata (SEM) was standardized in ISO/IEC 23005-3. The SEM is metadata for representing 4D real-

sense effects and consists of two main parts: effect property and effect variable. The effect property can

be transferred in front of a media stream or transferred periodically for preparing channel switching.

The effect variables can also easily fragmented and transferred by the unit of a time slice. The effect

property contains the definition of each sensory effect applied to multiple sensorial media. After

analysing the effect property, representing devices like a home server can map each sensory effect to

a proper 4D device in the user’s environment. The effect variables contain control variables to operate

4D real-sense devices. Figure 1 shows the SEM processing architecture.
Figure 1 — SEM processing architecture for representing 4D effects

Table 1 shows some examples of effects and corresponding properties and Table 2 shows variables

and mapped device commands. This system can support wind, shading, heating, motion, light, flash,

diffusion, sting, tickler, air jet and water sprayer effects to define properties and control devices.

Table 1 — Examples of effects and corresponding properties
Effects SEMs

Wind
intensity-value="10.0" intensity-range="0.0 12.0"/>

Incline

duration="5">


Wave

duration="9"> distance="10"/>
2 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 23000-17:2018(E)
Table 1 (continued)
Effects SEMs


Shake

duration="2">

LED

intensity-value="100.0" intensity-range="0.00001 32000.0" color="#FFFFFF"/>


Scent

intensity-value="9.0" intensity-range="0.0 10.0" scent=":SCENT: lilac"/>

Table 2 shows an example of SEM. Each SEM data will be parsed, analysed and then changed into proper

control values.
Table 2 — Effect variables and selected device commands
Effects Variables Device command
Wind SetWindSpeedRatio=100 Turn on fan with maximum level
SetIncline pitch="45"
Incline roll="0" yaw="0",
pitchSpeed=10
Incline motion chair to front angle 45 degrees with speed 10 cm/sec
SetWave
direction="front_rear"
Wave
startDirection="up"
count="3" distance="10"
Wave motion chair from front-up to rear-down, 3 times, 10 cm
SetShake
Shake direction="Heave"
count="1" distance="20"
Shake motion chair from up to down, 1 time, 20 cm.
SetColor r="255" g="255"
LED Turn on led light “white”
b="255"
SetOnOff=True,

Scent SetDensityRatio=100, Turn on diffuser value number “1” to make strong (100 %) smell

SetDiffusionSourceID=1
5.2 Fragmentation of SEM
5.2.1 SEM streaming instruction

The SEM root element, the GroupOfEffects element, Effect element, and ReferenceEffect element in ISO/

IEC 23005-3 can contain the siAttributeList that is the XML streaming instruction specified in ISO/

IEC 21000-7. The XML streaming instructions allow firstly to identify process units in an XML document

and secondly to assign time information to them.

A process unit is a set of connected XML elements. It is specified by one element, named an anchor

element, and by a process unit mode indicating how other connected elements are aggregated to this

anchor to compose the process unit. Depending on the mode, the anchor element is not necessarily the

root of the process unit. The content provider may require that a given process unit be encoded as a

random access point.
© ISO/IEC 2018 – All rights reserved 3
---------------------- Page: 8 ----------------------
ISO/IEC 23000-17:2018(E)
The main functionalities of the XML streaming instruction are as follows:
— fragmenting an XML document into process units;
— indicating which process units shall be encoded as random access point;

— assigning time information (i.e., processing time stamp) to these process units.

5.2.2 Properties related to the fragmentation
The properties related to the fragmentation are specified as follows.

— anchorElement is one of {undefined, false, true}. When set to true, this property indicates

an anchor element. This property is not inherited and its default value is undefined.

— puMode is one of {undefined, self, ancestors, descendants, ancestorsDescendants,

preceding, sequential}. The process unit mode property specifies how elements are

aggregated to the anchor element to compose a process unit. This property is inherited and its

default value is undefined.
— self: the process unit contains only the anchor element.

— ancestors: the process unit contains the anchor element and its ancestors stack, i.e., its

ancestors elements.

— descendants: the process unit contains the anchor element and its descendant elements.

— ancestorsDescendants: the process unit contains the anchor element, its ancestor, and

descendant element (Figure 2).

— preceding: the process unit contains the anchor element, its descendant and parent elements,

and all the preceding-sibling elements of its ancestor elements and their descendants.

— precedingSiblings: the process unit contains the anchor element, its descendant and

parent elements, and all the preceding-sibling elements (and their descendants) of its ancestor

elements.

— sequential: the process unit contains the anchor element, its ancestors stack, and all the

following elements (i.e., descendants, following siblings, and their ancestors) until a next

element is flagged as an anchor element.
Figure 2 — Example of process unit – puMode = ancestorsDescendants

— encodesAsRAP is one of {undefined, false, true}. When set to true, this property indicate

that the process unit shall be encoded as a random access point. This property is inherited and its

value is undefined.
5.2.3 Properties related to time information

The processing time stamp of a process unit defines the point in time where it is available to the

application for consumption. It is specified by the set of time properties of the PU's anchor element.

There are two defined time modes: an absolute time mode where the PUs' PTS are specified according

4 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 9 ----------------------
ISO/IEC 23000-17:2018(E)

to a same time origin and a relative time mode where they are defined relatively to the PTS of the

previous PU.
The properties related to time information are specified as follows:

— timescale is one of {undefined, an integer value}. It specifies the time scale, i.e., the number of

ticks per second. This property is inherited and its default value is undefined.

— ptsDelta is one of {undefined, an integer value}. It specifies the relative interval in time ticks

after the preceding anchor element. The default value for the processing time stamp of the first

anchor element is 0. This property is inherited and its default value is undefined.

— absTimeScheme is one of {undefined, a string value}: It specifies the absolute time scheme used.

This property is inherited and its default value is undefined.

— absTime is one of {undefined, a string value}: It specifies the absolute time of the anchor element.

Its syntax and semantics are specified according to the time scheme used (absTimeScheme

property). This property is not inherited and its default value is undefined.

— pts is one of {undefined, an integer value}. It specifies the absolute time of the anchor element as

the number of ticks since the origin. This property is not inherited and its default value is undefined.

5.2.4 Fragmenter

The fragmenter can generate process units (PUs) using an XML document with XSI attributes described

in the previous section.
Figure 3 — Normative processing related to XML streaming instruction

The fragmenter parses the XML document in a depth-first order. XML streaming instructions properties

are computed by fragmenter. An element with the anchorElement property set to true indicates an

anchor element and a new process unit. The process unit then comprises connected elements according

to the puMode property of the anchor element (Figure 3).
© ISO/IEC 2018 – All rights reserved 5
---------------------- Page: 10 ----------------------
ISO/IEC 23000-17:2018(E)
5.2.5 Fragmenting SEM example
The following instance is a SEM instance with XSI attributes.
?xml version="1.0" encoding="UTF-8" standalone="yes"?>
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="urn:mpeg:mpeg-v:2010:01-SEDL-NS"
xmlns:sev="urn:mpeg:mpeg-v:2010:01-SEV-NS"
xmlns:mpeg7="urn:mpeg:mpeg7:schema:2004"
xmlns:ct="urn:mpeg:mpeg-v:2010:01-CT-NS"
xmlns:si="urn:mpeg:mpeg21:2003:01-DIA-XSI-NS"
xsi:schemaLocation="urn:mpeg:mpeg-v:2010:01-SEV-NS MPEG-V-SEV.xsd"
si:puMode="sequential"
si:anchorElement="true"
si:timeScale="1000">

alias="COLOR"/>




0
0 0 0
255
255 255 255



86.60 67.60 38.0
46.00 137.0 16.5
2.365 19.41 203.9


1.0 1.0 1.0


0.2150 0.2050 0.4250


1.0228 -0.0228 1.6222
1.0242 -0.0242 1.5624
6 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 11 ----------------------
ISO/IEC 23000-17:2018(E)
1.0220 -0.0220 1.6180


0.0155 -0.0073 -0.0023
-0.0052 0.0099 0.0002
0.0003 -0.0009 0.0049




100


BARCO

0.2835 0.6043
0.1509 0.0624
0.6244 0.3410


500


si:anchorElement="true" activate="true" color=":COLOR:white" intensity-value="50"

intensity-range="0.0 100.0" duration="5000" si:pts="1000"/>
si:anchorElement="true" activate="true" color=":COLOR:red" duration="7000"
intensity-value="30" intensity-range="0.0 100.0" si:pts="6000"/>
id="explosion_effect" si:pts="20000">

value="65.0" color=":COLOR:white" duration="5000" activate="true" si:ptsDelta="0"/>

intensity-value="40.0" duration="5000" activate="true" si:ptsDelta="0"/>
value="50.0" duration="5000" activate="true" si:ptsDelta="0"/>
intensity-value="60.0" duration="5000" activate="true" si:ptsDelta="0"/>


© ISO/IEC 2018 – All rights reserved 7
---------------------- Page: 12 ----------------------
ISO/IEC 23000-17:2018(E)

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="urn:mpeg:mpeg-v:2010:01-SEDL-NS"
xmlns:sev="urn:mpeg:mpeg-v:2010:01-SEV-NS"
xmlns:mpeg7="urn:mpeg:mpeg7:schema:2004"
xmlns:ct="urn:mpeg:mpeg-v:2010:01-CT-NS"
xmlns:si="urn:mpeg:mpeg21:2003:01-DIA-XSI-NS"
xsi:schemaLocation="urn:mpeg:mpeg-v:2010:01-SEV-NS MPEG-V-SEV.xsd"
si:puMode="sequential"
si:anchorElement="true"
si:timeScale="1000">

alias="COLOR"/>



. . .


si:anchorElement="true" activate="true" color=":COLOR:white" intensity-value="50"

intensity-range="0.0 100.0" duration="5000" si:pts="1000"/>
si:anchorElement="true" activate="true" color=":COLOR:red" duration="7000"
intensity-value="30" intensity-range="0.0 100.0" si:pts="6000"/>
id="explosion_effect" si:pts="20000">

value="65.0" color=":COLOR:white" duration="5000" activate="true" si:ptsDelta="0"/>

value="40.0" duration="5000" activate="true" si:ptsDelta="0"/>
value="50.0" duration="5000" activate="true" si:ptsDelta="0"/>

value="60.0" duration="5000" activate="true" si:ptsDelta="0"/>


The XSI attributes of the SEM root element, puMode and timeScale, are inherited to its child anchor

elements. There are four anchor elements in the instance. The timeScale from the SEM root element

and pts become the time information of each processing unit.
8 © ISO/IEC 2018 – All rights reserved
---------------------- Page: 13 ----------------------
ISO/IEC 23000-17:2018(E)

The following instances are the examples of processing units generated by the fragmenter. Because the

puMode of the SEM root element is sequential, the first processing unit includes following elements

until a next element is flagged as an anchor element. Therefore, the first processing unit contains the

SEM root, the DescriptionMetadata, and the Declarations. Because the puMode of the second,

third, and forth enchorElement are ancestorsDescedents, it overides the puMode of the SEM

root element.
© ISO/IEC 2018 – All rights reserved 9
---------------------- Page: 14 -------
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
