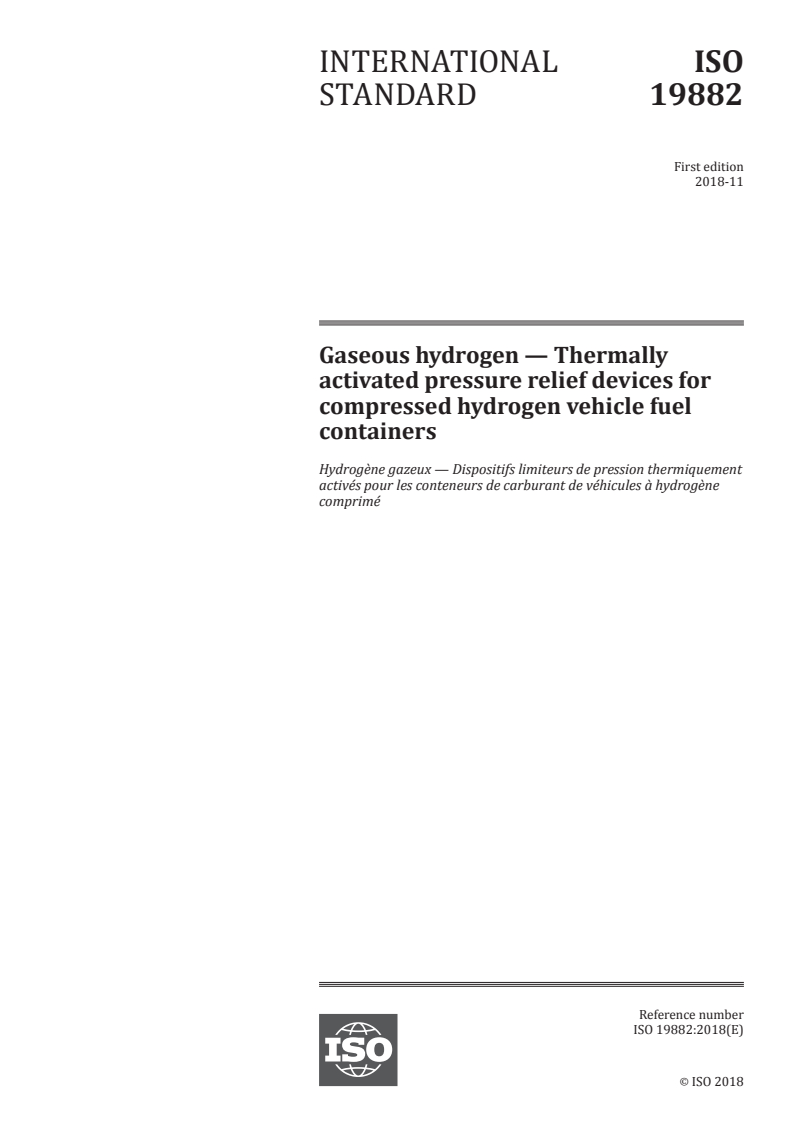

INTERNATIONAL ISO
STANDARD 19882
First edition
2018-11
Gaseous hydrogen — Thermally
activated pressure relief devices for
compressed hydrogen vehicle fuel
containers
Hydrogène gazeux — Dispositifs limiteurs de pression thermiquement
activés pour les conteneurs de carburant de véhicules à hydrogène
comprimé
Reference number
ISO 19882:2018(E)
©
ISO 2018

---------------------- Page: 1 ----------------------
ISO 19882:2018(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 19882:2018(E)

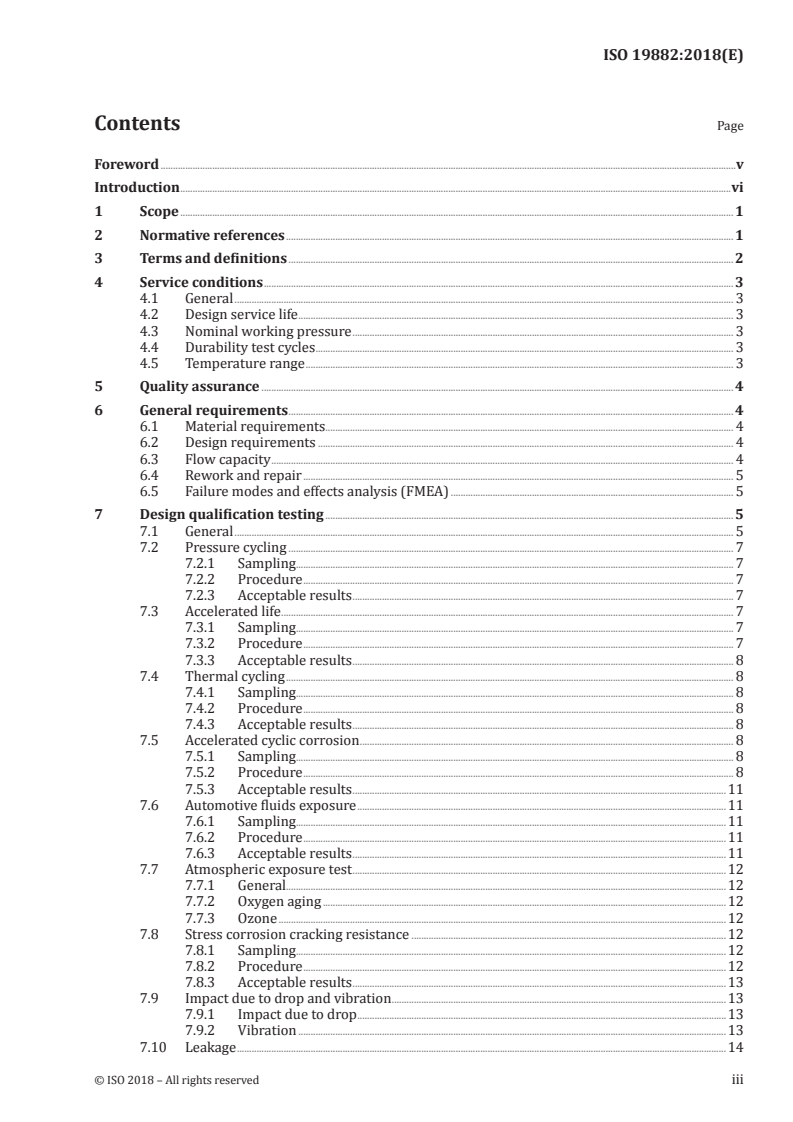

Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Service conditions . 3
4.1 General . 3
4.2 Design service life . 3
4.3 Nominal working pressure . 3
4.4 Durability test cycles . 3
4.5 Temperature range . 3
5 Quality assurance . 4
6 General requirements . 4
6.1 Material requirements. 4
6.2 Design requirements . 4
6.3 Flow capacity . 4
6.4 Rework and repair . 5
6.5 Failure modes and effects analysis (FMEA) . 5
7 Design qualification testing . 5
7.1 General . 5
7.2 Pressure cycling . 7
7.2.1 Sampling. 7
7.2.2 Procedure . 7
7.2.3 Acceptable results . 7
7.3 Accelerated life . 7
7.3.1 Sampling. 7
7.3.2 Procedure . 7
7.3.3 Acceptable results . 8
7.4 Thermal cycling . 8
7.4.1 Sampling. 8
7.4.2 Procedure . 8
7.4.3 Acceptable results . 8
7.5 Accelerated cyclic corrosion . 8
7.5.1 Sampling. 8
7.5.2 Procedure . 8
7.5.3 Acceptable results .11
7.6 Automotive fluids exposure .11
7.6.1 Sampling.11
7.6.2 Procedure .11
7.6.3 Acceptable results .11
7.7 Atmospheric exposure test .12
7.7.1 General.12
7.7.2 Oxygen aging .12
7.7.3 Ozone .12
7.8 Stress corrosion cracking resistance .12
7.8.1 Sampling.12
7.8.2 Procedure .12
7.8.3 Acceptable results .13
7.9 Impact due to drop and vibration .13
7.9.1 Impact due to drop .13
7.9.2 Vibration .13
7.10 Leakage .14
© ISO 2018 – All rights reserved iii

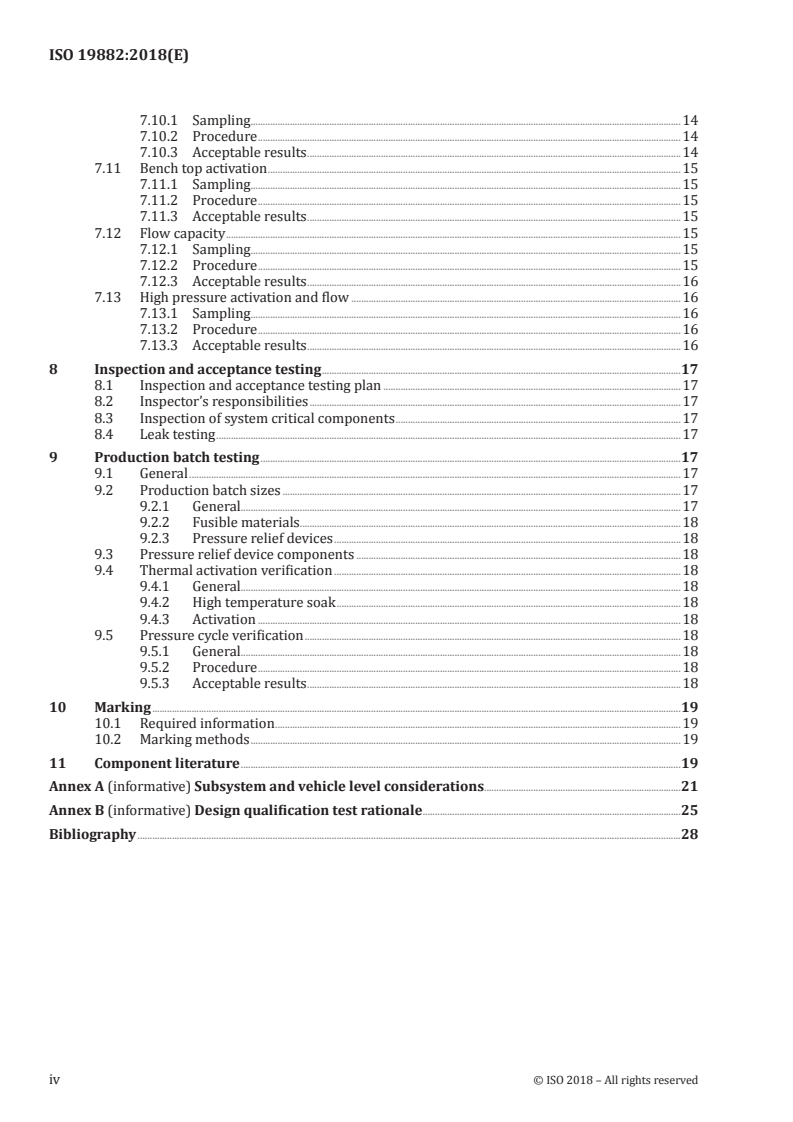

---------------------- Page: 3 ----------------------
ISO 19882:2018(E)

7.10.1 Sampling.14
7.10.2 Procedure .14
7.10.3 Acceptable results .14
7.11 Bench top activation .15
7.11.1 Sampling.15
7.11.2 Procedure .15
7.11.3 Acceptable results .15
7.12 Flow capacity .15
7.12.1 Sampling.15
7.12.2 Procedure .15
7.12.3 Acceptable results .16
7.13 High pressure activation and flow .16
7.13.1 Sampling.16
7.13.2 Procedure .16
7.13.3 Acceptable results .16
8 Inspection and acceptance testing .17
8.1 Inspection and acceptance testing plan .17
8.2 Inspector’s responsibilities .17
8.3 Inspection of system critical components .17
8.4 Leak testing .17
9 Production batch testing .17
9.1 General .17
9.2 Production batch sizes .17
9.2.1 General.17
9.2.2 Fusible materials.18
9.2.3 Pressure relief devices .18
9.3 Pressure relief device components .18
9.4 Thermal activation verification .18
9.4.1 General.18
9.4.2 High temperature soak .18
9.4.3 Activation .18
9.5 Pressure cycle verification .18
9.5.1 General.18
9.5.2 Procedure .18
9.5.3 Acceptable results .18
10 Marking .19
10.1 Required information .19
10.2 Marking methods .19
11 Component literature .19
Annex A (informative) Subsystem and vehicle level considerations .21
Annex B (informative) Design qualification test rationale .25
Bibliography .28
iv © ISO 2018 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 19882:2018(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 197, Hydrogen technologies.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
© ISO 2018 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 19882:2018(E)

Introduction
The purpose of this document is to promote the implementation of hydrogen powered land vehicles
through the creation of performance based testing requirements for thermally activated pressure
relief devices for compressed hydrogen fuel containers. The successful commercialization of hydrogen
land vehicle technologies requires standards pertaining to fueling stations, vehicle fuel system
components and the global homologation of standards requirements for technologies with the same
end use. This will allow manufacturers to achieve economies of scale in production through the ability
to manufacture one product for global use.
This document is based on the CSA Standard ANSI/CSA HPRD 1-2013.
vi © ISO 2018 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 19882:2018(E)
Gaseous hydrogen — Thermally activated pressure relief
devices for compressed hydrogen vehicle fuel containers
1 Scope
This document establishes minimum requirements for pressure relief devices intended for use on
hydrogen fuelled vehicle fuel containers that comply with ISO 19881, IEC 62282-4-101, ANSI HGV 2,
CSA B51 Part 2, EC79/EU406, SAE J2579, or the UN GTR No. 13.
The scope of this document is limited to thermally activated pressure relief devices installed on fuel
containers used with fuel cell grade hydrogen according to SAE J2719 or ISO 14687 for fuel cell land
vehicles, and Grade A or better hydrogen according to ISO 14687 for internal combustion engine land
vehicles. This document also contains requirements for thermally activated pressure relief devices
acceptable for use on-board light duty vehicles, heavy duty vehicles and industrial powered trucks such
as forklifts and other material handling vehicles, as it pertains to UN GTR No. 13.
Pressure relief devices designed to comply with this document are intended to be used with high
quality hydrogen fuel such as fuel complying with SAE J2719 or ISO 14687 Type 1 Grade D.
Pressure relief devices can be of any design or manufacturing method that meets the requirements of
this document.
This document does not apply to reseating, resealing, or pressure activated devices.
Documents which apply to hydrogen fuel vehicles and hydrogen fuel subsystems include
IEC 62282- 4- 101, SAE J2578 and SAE J2579.
Annex A presents an informative record of recommended fuel container, fuel storage subsystem
and vehicle level requirements. The statements in Annex A are intended as recommendations for
consideration of inclusion by the organizations and committees developing standards on these sub
system and vehicle level standards.
Annex B presents a rationale for the design qualification tests in this document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1431-1, Rubber, vulcanized or thermoplastic — Resistance to ozone cracking — Part 1: Static and
dynamic strain testing
ISO 6270-2, Paints and varnishes — Determination of resistance to humidity — Part 2: Condensation (in-
cabinet exposure with heated water reservoir)
1)
ISO 14687 , Hydrogen fuel quality — Product specification
ISO 19881, Gaseous hydrogen — Land vehicle fuel containers
ASTM D1149, Standard Test Method for Rubber Deterioration-Surface Ozone Cracking in a Chamber
ASTM D1193-06(R2011), Standard Specification for Reagent Water
1) To be published. Current stage 40.60
© ISO 2018 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 19882:2018(E)

CSA ANSI HGV 2, Compressed hydrogen gas vehicle fuel containers
CSA B51-14, Boiler, Pressure Vessel, and Pressure Piping Code
EC79 (EU406), Type-approval of hydrogen-powered motor vehicles
SAE J2579: 2013, Standard for Fuel Systems in Fuel Cell and Other Hydrogen Vehicles
SAE J2719, Hydrogen Fuel Quality for Fuel Cell Vehicles
UN GTR No. 13, UN Global Technical Regulation on Hydrogen and Fuel Cell Vehicles
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
flow capacity
capacity in volume per unit time at specified conditions
3.2
fusible material
metal, alloy, or other material capable of being melted by heat where the melting is integral to the
function of the pressure relief device (3.6)
3.3
manufacturer's specified activation temperature
temperature, as specified by the pressure relief device manufacturer, at which the pressure relief device
(3.6) is designed to release pressure
3.4
manufacturer's specified nominal working pressure
highest settled pressure at a uniform gas temperature of 15 °C of the container or container assembly
with which the pressure relief device (3.6) may be used, as specified by the pressure relief device
manufacturer
3.5
normal cubic centimeters
Ncc
3
dry gas that occupies a volume of 1 cm at a temperature of 273,15 K (0 °C) and an absolute pressure of
101,325 kPa
3.6
pressure relief device
device that, when activated under specified performance conditions, is used to vent the container
contents
Note 1 to entry: Reseating and resealing devices are not addressed by this document.
3.7
thermally activated pressure relief device
TPRD
pressure relief device (3.6) activated by temperature
2 © ISO 2018 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 19882:2018(E)

4 Service conditions
4.1 General
Fuel containers may accidentally be exposed to fire or elevated temperature. These conditions may act
to increase the contained pressure or to degrade the structural materials, depending on the container
type and materials of construction. A pressure relief device provides a means to vent the fuel container
under these conditions.
A specific pressure relief device may not be suitable for all container types, sizes or installations. Fuel
container or installation standards may require that a pressure relief device be tested in conjunction
with other components.
CGA S1.1 states: “relief devices may not prevent burst of a cylinder under all conditions of fire exposure.
When the heat transferred to the cylinder is localized, intensive, and remote to the relief device, or
when the fire builds rapidly, such as in an explosion, and is of very high intensity, the cylinder can
weaken sufficiently to rupture before the relief device operates, or while it is operating”.
The following service conditions are representative of what can be seen in an automotive service.
These service conditions are provided as a basis for the design, manufacture, inspection and testing of
pressure relief devices which are used in compressed hydrogen vehicle fuel containers.
4.2 Design service life
The design service life of the pressure relief device shall be specified by the pressure relief device
manufacturer.
4.3 Nominal working pressure
This document applies to pressure relief devices that have a nominal working pressure, as specified
by the manufacturer, of 25 MPa, 35 MPa, 50 MPa or 70 MPa at 15 °C, hereinafter referred to in this
document as the following:
a) “H25” — 25 MPa;
b) “H35” — 35 MPa;
c) “H50” — 50 MPa;
d) “H70” — 70 MPa.
Other nominal working pressures for hydrogen gas besides those defined are allowed if the required
qualification test requirements of this document are met.
4.4 Durability test cycles
The design pressure cycles for pressure relief devices shall be between not more than 10 % of the
manufacturer's specified nominal working pressure and not less than 150 % of the manufacturer's
specified nomina
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
