INTERNATIONAL ISO/IEC
STANDARD 14496-4
Second edition
2004-12-15
AMENDMENT 31
2009-03-15
Information technology — Coding of
audio-visual objects —
Part 4:
Conformance testing
AMENDMENT 31: Conformance testing for
SVC profiles
Technologies de l'information — Codage des objets audiovisuels —
Partie 4: Essai de conformité
AMENDEMENT 31: Essai de conformité pour profils SVC
Reference number
ISO/IEC 14496-4:2004/Amd.31:2009(E)
©
ISO/IEC 2009
---------------------- Page: 1 ----------------------

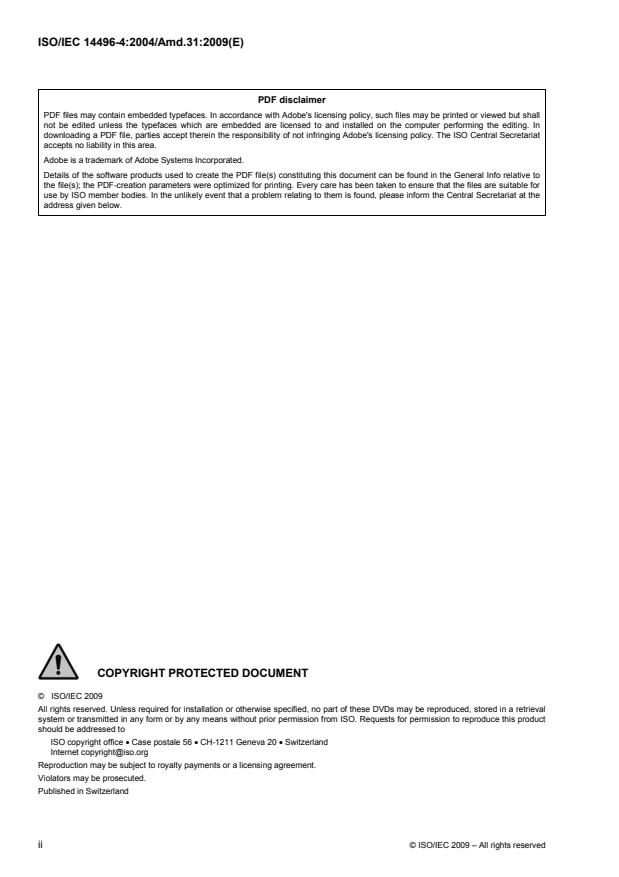

ISO/IEC 14496-4:2004/Amd.31:2009(E)
PDF disclaimer
PDF files may contain embedded typefaces. In accordance with Adobe's licensing policy, such files may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading a PDF file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create the PDF file(s) constituting this document can be found in the General Info relative to
the file(s); the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the files are suitable for
use by ISO member bodies. In the unlikely event that a problem relating to them is found, please inform the Central Secretariat at the
address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2009
All rights reserved. Unless required for installation or otherwise specified, no part of these DVDs may be reproduced, stored in a retrieval
system or transmitted in any form or by any means without prior permission from ISO. Requests for permission to reproduce this product
should be addressed to
ISO copyright office • Case postale 56 • CH-1211 Geneva 20 • Switzerland
Internet copyright@iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
Published in Switzerland
ii © ISO/IEC 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
These DVDs contain:
1) the publication ISO/IEC 14496-4:2004/Amd.31:2009 in portable document format (PDF), which can
be viewed using Adobe® Acrobat® Reader;
2) electronic attachments relevant to conformance testing for SVC profiles.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Installation
If this publication has been packaged as a zipped file, do NOT open the file from the DVD, but copy it to the
desired location in your local environment. Once the file has been copied to your local environment, open the
file to unzip its contents. For compound documents (e.g. HTML documents comprising several files or folders,
documents that have been subdivided owing to the total file size, etc.), in order for the links between
documents to function properly, the file and folder names must be maintained and all the files stored in the
same folder.
Where the zip file contains a Readme file, it is essential to consult this file to understand the way in which the
document has been
...
INTERNATIONAL ISO/IEC
STANDARD 14496-4
Second edition
2004-12-15
AMENDMENT 31
2009-03-15
Information technology — Coding of
audio-visual objects —
Part 4:
Conformance testing
AMENDMENT 31: Conformance testing for
SVC profiles
Technologies de l'information — Codage des objets audiovisuels —
Partie 4: Essai de conformité
AMENDEMENT 31: Essai de conformité pour profils SVC
Reference number
ISO/IEC 14496-4:2004/Amd.31:2009(E)
©
ISO/IEC 2009
---------------------- Page: 1 ----------------------

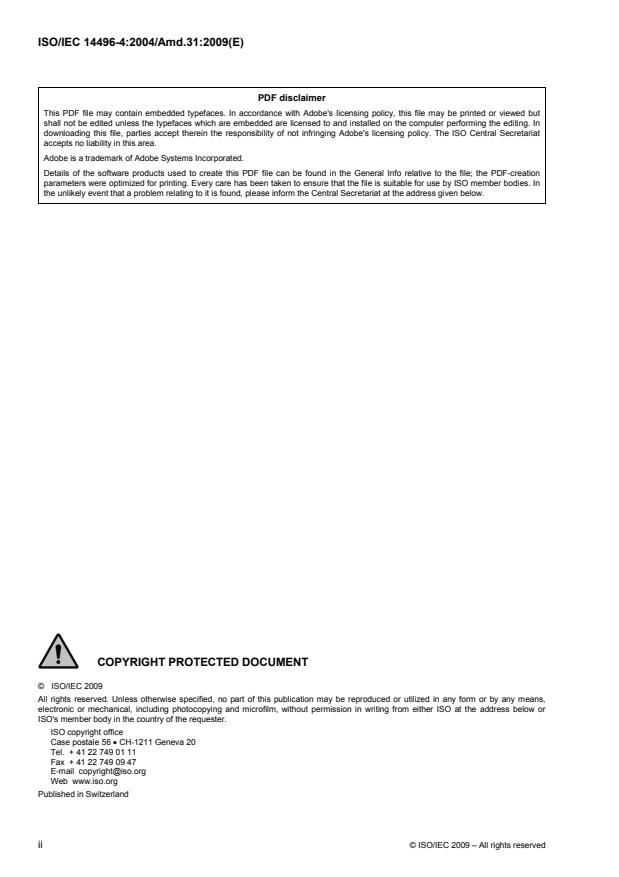

ISO/IEC 14496-4:2004/Amd.31:2009(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
COPYRIGHT PROTECTED DOCUMENT
© ISO/IEC 2009
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2009 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
Amendment 31 to ISO/IEC 14496-4:2004 was prepared by Joint Technical Committee ISO/IEC JTC 1,
Information technology, Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia
information.
This Amendment establishes conformance test requirements for conformance to ITU-T Rec. H.264⎪
ISO/IEC 14496-10.
In this Amendment, additional text to ITU-T Rec. H.264⎪ISO/IEC 14496-10 is specified for testing the
conformance of ITU-T Rec. H.264 | ISO/IEC 14496-10 video decoders including in particular the SVC Profiles,
which consist of the Scalable Baseline, Scalable High, and Scalable High Intra profiles.
The following subclauses specify the normative tests for verifying conformance of ITU-T Rec. H.264⎪
ISO/IEC 14496-10 video bitstreams and decoders. These normative tests make use of test data (bitstream
test suites) provided as an electronic annex to this document, and of the reference software decoder specified
in ISO/IEC 14496-5 with source code available in electronic format.
The numbering in this Amendment is relative to the text of ISO/IEC 14496-4. When a numbered item (i.e., a
clause, subclause, figure, table, or equation) or associated content is being replaced or modified, the same
number is used for the modified numbered item. When a numbered item is inserted between prior numbered
items, the number of the corresponding numbered item immediately preceding it is used and the letter 'a' is
appended to this number. When, after this one such inserted numbered item, another numbered item is
inserted, the letter “a” is replaced by the letter “b” to indicate their relative order, and so on, following ordinary
English alphabetical order. If text integrating this Amendment with ISO/IEC 14496-4 is produced, the inserted
numbered items with appended letters are to be assigned to corresponding numbers in their numerical order
without any such letters, and any subsequent numbered items are to be assigned later numbers to avoid
conflicts. The purpose of the numbering convention in this Amendment text is to avoid the renumbering of
existing numbered items in ISO/IEC 14496-4 while drafting this Amendment. Therefore, if the addition of a
numbered item does not require renumbering of numbered items in ISO/IEC 14496-4, the final number is
assigned to the numbered item herein.
© ISO/IEC 2009 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
Information technology — Coding of audio-visual objects —
Part 4:
Conformance testing
AMENDMENT 31: Conformance testing for SVC profiles
Replace 10.3.1 with the following:
10.3.1 bitstream: An ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10 video bitstream. A bitstream may contain IDR, I,
P, B, SI, SP, EI, EP and EB slices.
Add the following text after 10.3.3:
10.3.4 TemporalIdMax: Maximum value of temporal_id in the NAL unit header extension for SVC of the
coded slice NAL units or prefix NAL units of an ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10 video bitstream.
Replace 10.6.5.7 with the following:
10.6.5.7 Decoder conformance test of a particular profile-and-level
In order for a decoder of a particular profile-and-level to claim output order conformance to
ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10 as described by this Recommendation ⎪ International Standard, the
decoder shall successfully pass the static test defined in subclause 10.6.5.5 with all the bitstreams of the
normative test suite specified for testing decoders of this particular profile-and-level.
In order for a decoder of a particular profile and level to claim output timing conformance to
ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10 as described by this Recommendation ⎪ International Standard, the
decoder shall successfully pass both the static test defined in subclause 10.6.5.5 and the dynamic test defined
in subclause 10.6.5.6 with all the bitstreams of the normative test suite specified for testing decoders of this
particular profile-and-level. Tables 1 and 2 define the normative test suites for each profile-and-level
combination. The test suite for a particular profile-and-level combination is the list of bitstreams that are
marked with an “X” in the column corresponding to that profile-and-level combination.
“X” indicates that the bitstream is designed to test both the dynamic and static conformance of the decoder.
The bitstream column specifies the bitstream used for each test.
A decoder that conforms to the Scalable Baseline profile at a specific level shall be capable of decoding the
Scalable Baseline profile bitstreams specified in Table AMD31-1.
A decoder that conforms to the Scalable High profile at a specific level shall be capable of decoding the
Scalable High profile bitstreams specified in Table AMD31-1.
© ISO/IEC 2009 – All rights reserved 1
---------------------- Page: 4 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
A decoder that conforms to the Scalable High Intra profile at a specific level shall be capable of decoding the
Scalable High Intra profile bitstreams specified in Table AMD31-1.
Add the following sentence before 10.6.6.1:
In Table AMD31-1, the value “59.94” shall be interpreted as an approximation of an exact value of
60000 ÷ 1001.
Add the following text after 10.6.6.29.7:
10.6.6.30 Test bitstreams – SVC Profiles: Scalable Baseline Profile 4:2:0 8 bit
10.6.6.30.1 Test bitstream #SVCBC-1
Specification: All slices are coded as I, P, EI, EP or EB slices. Each layer representation contains only one
slice. disable_deblocking_filter_idc is equal to 1, specifying disabling of the deblocking filter process.
entropy_coding_mode_flag is equal to 0 for layer representations with dependency_id equal to 0, specifying
the CAVLC parsing process, and entropy_coding_mode_flag is equal to 1 for layer representations with
dependency_id equal to 1, specifying the CABAC parsing process. pic_order_cnt_type is equal to 0.
gaps_in_frame_num_value_allowed_flag is equal to 1. Reference picture list reordering and memory
management control operations are used. transform_8x8_mode_flag is equal to 1 for layer representations
with dependency_id equal to 1, specifying that 8x8 transform decoding process may be in use.
DependencyIdMax is equal to 1, TemporalIdMax is equal to 4 and DQIdMax is equal to 16.
extended_spatial_scalability is equal to 0. SpatialResolutionChangeFlag is equal to 0.
no_inter_layer_pred_flag is equal to 0. use_ref_base_pic_flag is equal to 0, specifying that reference base
pictures are not used as reference pictures for the inter prediction process. seq_tcoeff_level_prediction_flag is
equal to 0. slice_header_restriction_flag is equal to 0 and store_ref_base_pic_flag is equal to 0, specifying
that the reference base picture are not stored. slice_skip_flag is equal to 0. adaptive_base_mode_flag is equal
to 1, specifying that inter-layer motion and inter-layer intra prediction are enabled.
adaptive_motion_prediction_flag is equal to 1, specifying that inter-layer motion prediction is enabled.
adaptive_residual_prediction_flag is equal to 1, specifying that inter-layer residual prediction is enabled.
inter_layer_deblocking_filter_control_present_flag is equal to 0. All NAL units are encapsulated into the byte
stream format specified in Annex B in ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10.
Functional stage: Gaps in frame_num, reference picture list reordering, memory management control
operations and decoding of EI, EP and EB coded slices of a quality enhancement layer, 8x8 transform size
with inter-layer motion, intra and residual prediction and CABAC parsing.
Purpose: Check that the decoder can properly handle gaps in frame_num, reference picture list reordering,
memory management control operations and EI, EP and EB coded slices of a quality enhancement layer, 8x8
transform size with inter-layer motion, intra and residual prediction and CABAC parsing.
10.6.6.30.2 Test bitstream #SVCBM-1
Specification: All slices are coded as I, P, EI or EP slices. Only the first frame is coded as an IDR access unit
and each dependency representation contains only one slice. disable_deblocking_filter_idc is equal to 1,
specifying disabling of the deblocking filter process. entropy_coding_mode_flag is equal to 0, specifying the
CAVLC parsing process. pic_order_cnt_type is equal to 2. DependencyIdMax is equal to 0, TemporalIdMax is
equal to 0, and DQIdMax is equal to 1. extended_spatial_scalability is equal to 0,
SpatialResolutionChangeFlag is equal to 0, chroma_phase_x_plus1_flag is equal to 1, and
chroma_phase_y_plus1 is equal to 1. no_inter_layer_pred_flag is equal to 0, slice_header_restriction_flag is
equal to 0, scan_idx_start is equal to 0, and scan_idx_end is equal to 15. seq_tcoeff_level_prediction_flag is
equal to 0. slice_skip_flag is equal to 0, adaptive_base_mode_flag is equal to 0 (with default_base_mode_flag
equal to 1), adaptive_motion_prediction_flag is equal to 0 (with default_motion_prediction_flag equal to 1),
and adaptive_residual_prediction_flag is equal to 1. disable_inter_layer_deblocking_filter_idc is equal to 1. All
NAL units are encapsulated into the byte stream format specified in Annex B in ITU-T Rec. H.264 ⎪
ISO/IEC 14496-10.
2 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 5 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
Functional stage: Decoding of EI and EP coded slices of a quality enhancement layer.
Purpose: Check that the decoder can properly handle EI and EP coded slices of a quality enhancement layer.
10.6.6.30.3 Test bitstream #SVCBM-2
Specification: All slices are coded as I, P, EI or EP slices. Each layer representation contains only one slice.
disable_deblocking_filter_idc is equal to 1, specifying disabling of the deblocking filter process.
entropy_coding_mode_flag is equal to 0, specifying the CAVLC parsing process. pic_order_cnt_type is equal
to 0. DependencyIdMax is equal to 0, TemporalIdMax is equal to 0 and DQIdMax is equal to 1.
extended_spatial_scalability is equal to 0. SpatialResolutionChangeFlag is equal to 0.
no_inter_layer_pred_flag is equal to 0. adaptive_tcoeff_level_prediction_flag is equal to 0, specifying that an
alternative inter-layer prediction process is applied for the whole sequence. slice_header_restriction_flag is
equal to 1. slice_skip_flag is equal to 0. default_base_mode_flag is equal to 1, specifying inter-layer motion
and intra prediction. default_residual_prediction_flag is equal to 0.
inter_layer_deblocking_filter_control_present_flag is equal to 0. All NAL units are encapsulated into the byte
stream format specified in Annex B in ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10.
Functional stage: Decoding of EI and EP coded slices of a quality enhancement layer, using an alternative
inter-layer prediction process for translation to an AVC bitstream.
Purpose: Check that the decoder can properly handle EI and EP coded slices of a quality enhancement layer,
using an alternative inter-layer prediction process for translation to an AVC bitstream.
10.6.6.30.4 Test bitstream #SVCBM-3
Specification: All slices are coded as I, P or EP slices. Each layer representation contains only one slice.
disable_deblocking_filter_idc is equal to 1, specifying disabling of the deblocking filter process.
entropy_coding_mode_flag is equal to 0, specifying the CAVLC parsing process. pic_order_cnt_type is equal
to 0. DependencyIdMax is equal to 0, TemporalIdMax is equal to 0 and DQIdMax is equal to 1.
extended_spatial_scalability is equal to 0. SpatialResolutionChangeFlag is equal to 0.
no_inter_layer_pred_flag is equal to 0. tcoeff_level_prediction_flag is equal to 1, specifying that an alternative
inter-layer prediction process is applied on a macroblock basis. slice_header_restriction_flag is equal to 1.
slice_skip_flag is equal to 0. default_base_mode_flag is equal to 1, specifying inter-layer motion and intra
prediction. default_residual_prediction_flag is equal to 0. inter_layer_deblocking_filter_control_present_flag is
equal to 0. All NAL units are encapsulated into the byte stream format specified in Annex B in
ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10.
Functional stage: Decoding of EI and EP coded slices of a quality enhancement layer, enabling an
alternative inter-layer prediction process by macroblock for translation to an AVC bitstream.
Purpose: Check that the decoder can properly handle EI and EP coded slices of a quality enhancement layer,
enabling an alternative inter-layer prediction process by macroblock for translation to an AVC bitstream.
10.6.6.30.5 Test bitstream #SVCBM-4
Specification: All slices are coded as I, P, EI or EP slices. Each layer representation contains only one slice.
disable_deblocking_filter_idc is equal to 1, specifying disabling of the deblocking filter process.
entropy_coding_mode_flag is equal to 0, specifying the CAVLC parsing process. pic_order_cnt_type is equal
to 0. DependencyIdMax is equal to 0, TemporalIdMax is equal to 0 and DQIdMax is equal to 2.
extended_spatial_scalability is equal to 0. SpatialResolutionChangeFlag is equal to 0.
no_inter_layer_pred_flag is equal to 0. tcoeff_level_prediction_flag is equal to 1 for the layer representation
with quality_id equal to 1, specifying that an alternative inter-layer prediction process is applied on a
macroblock basis. For the layer representation with quality_id equal to 2 seq_tcoeff_level_prediction_flag is
equal to 0. slice_header_restriction_flag is equal to 1. slice_skip_flag is equal to 0. default_base_mode_flag is
equal to 1, specifying inter-layer motion and intra prediction. default_residual_prediction_flag is equal to 0.
inter_layer_deblocking_filter_control_present_flag is equal to 0. All NAL units are encapsulated into the byte
stream format specified in Annex B in ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10.
© ISO/IEC 2009 – All rights reserved 3
---------------------- Page: 6 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
Functional stage: Decoding of EI and EP coded slices of a quality enhancement layer and of a quality
enhancement layer enabling an alternative inter-layer prediction process by macroblock for translation to an
AVC bitstream.
Purpose: Check that the decoder can properly handle EI and EP coded slices of a quality enhancement layer
and of a quality enhancement layer enabling an alternative inter-layer prediction process by macroblock for
translation to an AVC bitstream.
10.6.6.30.6 Test bitstream #SVCBM-5
Specification: All slices are coded as I, P, EI, or EP slices. Each layer representation contains only one slice.
disable_deblocking_filter_idc is equal to 1, specifying disabling of the deblocking filter process.
entropy_coding_mode_flag is equal to 0 for layer representations with quality_id equal to 0, specifying the
CAVLC parsing process. entropy_coding_mode_flag is equal to 1 for layer representations with quality_id
greater than 0, specifying the CABAC parsing process. pic_order_cnt_type is equal to 0.
gaps_in_frame_num_value_allowed_flag is equal to 1. Reference picture list reordering and memory
management control operations are used. transform_8x8_mode_flag is equal to 1 for layer representation with
quality_id greater than 0, specifying that 8x8 transform decoding process may be in use. mb_qp_delta is equal
to 0. DependencyIdMax is equal to 0, TemporalIdMax is equal to 4 and DQIdMax is equal to 3.
extended_spatial_scalability is equal to 0. SpatialResolutionChangeFlag is equal to 0.
no_inter_layer_pred_flag is equal to 0. use_ref_base_pic_flag is equal to 1 for access units with temporal_id
equal to 0, specifying that reference base pictures may be used as reference pictures for the inter prediction
process. seq_tcoeff_level_prediction_flag is equal to 0. slice_header_restriction_flag is equal to 0 and
store_ref_base_pic_flag is equal to 1 for access units with temporal_id equal to 0, specifying that reference
base pictures are stored for these access units. slice_skip_flag is equal to 0. default_base_mode_flag is equal
to 1 for layer representations with quality_id greater than 1, specifying inter-layer motion and intra prediction.
default_residual_prediction_flag is equal to 1 for layer representations with quality_id greater than 1.
inter_layer_deblocking_filter_control_present_flag is equal to 0. All NAL units are encapsulated into the byte
stream format specified in Annex B in ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10.
Functional stage: Gaps in frame_num, Reference picture list reordering, memory management control
operations and decoding of EI and EP slices of quality enhancement layers, using key pictures and transform
coefficient fragmentation, 8x8 transform size with inter-layer motion and intra prediction.
Purpose: Check that the decoder can properly handle gaps in frame_num, reference picture list reordering,
memory management control operations and EI and EP coded slices of quality enhancement layers, using
key pictures and transform coefficient fragmentation, 8x8 transform size with inter-layer motion and intra
prediction.
10.6.6.30.7 Test bitstream #SVCBCT-1
Specification: All slices are coded as I, P, EI, EP or EB slices. Each layer representation contains only one
slice. disable_deblocking_filter_idc is equal to 0. entropy_coding_mode_flag is equal to 0 for layer
representation with dependency_id equal to 0, specifying the CAVLC parsing process, and
entropy_coding_mode_flag is equal to 1 for layer representation with dependency_id equal to 1, specifying the
CABAC parsing process. pic_order_cnt_type is equal to 0. gaps_in_frame_num_value_allowed_flag is equal
to 1. Reference picture list reordering and memory management control operations are used.
transform_8x8_mode_flag is equal to 1 for layer representation with dependency_id equal to 1, specifying that
8x8 transform decoding process may be in use. DependencyIdMax is equal to 1, TemporalIdMax is equal to 4
and DQIdMax is equal to 16. extended_spatial_scalability is equal to 0. SpatialResolutionChangeFlag is equal
to 0. no_inter_layer_pred_flag is equal to 0. use_ref_base_pic_flag is equal to 1, specifying that reference
base pictures are not used as reference pictures for the inter prediction process.
seq_tcoeff_level_prediction_flag is equal to 0. slice_header_restriction_flag is equal to 0 and
store_ref_base_pic_flag is equal to 0, specifying that reference base picture are not stored. slice_skip_flag is
equal to 0. adaptive_base_mode_flag is equal to 1, specifying that inter-layer motion and inter-layer intra
prediction is enabled. adaptive_motion_prediction_flag is equal to 1, specifying that inter-layer motion
prediction is enabled. adaptive_residual_prediction_flag is equal to 1, specifying that inter-layer residual
prediction is enabled. inter_layer_deblocking_filter_control_present_flag is equal to 0. All NAL units are
encapsulated into the byte stream format specified in Annex B in ITU-T Rec. H.264 ⎪ ISO/IEC 14496-10.
4 © ISO/IEC 2009 – All rights reserved
---------------------- Page: 7 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
Functional stage: Gaps in frame_num, reference picture list reordering, memory management control
operations and decoding of EI, EP and EB coded slices of a quality and temporal enhancement layer, 8x8
transform size with inter-layer motion, intra and residual prediction and CABAC parsing.
Purpose: Check that the decoder can properly handle gaps in frame_num, reference picture list reordering,
memory management control operations and EI, EP and EB coded slices of a quality and temporal
enhancement layer, 8x8 transform size with inter-layer motion, intra and residual prediction and CABAC
parsing.
10.6.6.30.8 Test bitstream #SVCBMT-1
Specification: All slices are coded as I, P, EI or EP slices. Only the first frame is coded as an IDR access unit
and each dependency representation contains only one slice. disable_deblocking_filter_idc is equal to 1,
specifying disabling of the deblocking filter process. entropy_coding_mode_flag is equal to 0, specifying the
CAVLC parsing process. pic_order_cnt_type is equal to 2. Reference picture list reordering is used.
DependencyIdMax is equal to 0, TemporalIdMax is equal to 3, and DQIdMax is equal to 1.
extended_spatial_scalability is equal to 0, SpatialResolutionChangeFlag is equal to 0,
chroma_phase_x_plus1_flag is equal to 1, and chroma_phase_y_plus1 is equal to 1.
no_inter_layer_pred_flag is equal to 0, slice_header_restriction_flag is equal to 0, scan_idx_start is equal to 0,
and scan_idx_end is equal to 15. seq_tcoeff_level_prediction_flag is equal to 0. slice_skip_flag is equal to 0,
adaptive_base_mode_flag is equal to 0 (with default_base_mode_flag equal to 1),
adaptive_motion_prediction_flag is equal to 0 (with default_motion_prediction_flag equal to 1), and
adaptive_residual_prediction_flag is equal to 1. disable_inter_layer_deblocking_filter_idc is equal to 1. All NAL
units are encapsulated into the byte stream format specified in Annex B in ITU-T Rec. H.264 ⎪
ISO/IEC 14496-10.
Functional stage: Reference picture list reordering and decoding of EI and EP coded slices of a quality
enhancement layer.
Purpose: Check that the decoder can properly handle reference picture list reordering and EI and EP coded
slices of a quality enhancement layer.
10.6.6.30.9 Test bitstream #SVCBMT-2
Specification: All slices are coded as I, P, EI or EP slices. Only the first frame is coded as an IDR access unit
and each dependency representation contains only one slice. disable_deblocking_filter_idc is equal to 1,
specifying disabling of the deblocking filter process. entropy_coding_mode_flag is equal to 0, specifying the
CAVLC parsing process. pic_order_cnt_type is equal to 2. Reference picture list reordering and memory
management control operations are used. DependencyIdMax is equal to 0, TemporalIdMax is equal to 3, and
DQIdMax is equal to 1. extended_spatial_scalability is equal to 0, SpatialResolutionChangeFlag is equal to 0,
chroma_phase_x_plus1_flag is equal to 1, and chroma_phase_y_plus1 is equal to 1.
no_inter_layer_pred_flag is equal to 0, slice_header_restriction_flag is equal to 0, scan_idx_start is equal to 0,
and scan_idx_end is equal to 15. seq_tcoeff_level_prediction_flag is equal to 0. slice_skip_flag is equal to 0,
adaptive_base_mode_flag is equal to 0 (with default_base_mode_flag equal to 1),
adaptive_motion_prediction_flag is equal to 0 (with default_motion_prediction_flag equal to 1), and
adaptive_residual_prediction_flag is equal to 1. disable_inter_layer_deblocking_filter_idc is equal to 1. All NAL
units are encapsulated into the byte stream format specified in Annex B in ITU-T Rec. H.264 ⎪
ISO/IEC 14496-10.
Functional stage: Reference picture list reordering, memory management control operations, and decoding
of EI and EP coded slices of a quality enhancement layer.
Purpose: Check that the decoder can properly handle reference picture list reordering, memory management
control operations, and EI and EP coded slices of a quality enhancement layer.
© ISO/IEC 2009 – All rights reserved 5
---------------------- Page: 8 ----------------------
ISO/IEC 14496-4:2004/Amd.31:2009(E)
10.6.6.30.10 Test bitstream #SVCBMT-3
Specification: All slices are coded as I, P, EI or EP slices. Only the first frame is coded as an IDR access unit
and each dependency representation can contain more than one slice. disable_deblocking_filter_idc is equal
to 1, specifying disabling of the deblocking filter process. entropy_coding_mode_flag is equal to 0, specifying
the CAVLC parsing process. pic_order_cnt_type is equal to 2. Reference picture list reordering and memory
management control operations are used. slice_qp_delta is equal to a non-zero value to change the quantizer
scale at each slice and mb_qp_delta is equal to a non-zero value to change the quantizer scale at some
macroblocks. DependencyIdMax is equal to 0, TemporalIdMax is equal to 3, and DQIdMax is equal to 1.
extended_spatial_scalability is equal to 0, SpatialResolutionChangeFlag is equal to 0,
chroma_phase_x_plus1_flag is equal to 1, and chroma_phase_y_plus1 is equal to 1.
no_inter_layer_pred_flag is equal to 0, slice_header_restriction_flag is equal to 0, scan_idx_start is equal to 0,
and scan_idx_end is equal to 15. seq_tcoeff_level_prediction_flag is equal to 0. slice_skip_flag is equal to 0,
adaptive_base_mode_flag is equal to 0 (with default_base_mode_flag equal to 1),
adaptive_motion_prediction_flag is equal to 0 (with default_motion_prediction_flag equal to 1), and
adaptive_residual_prediction_flag is equal to 1. disable_inter_layer_deblocking_filter_idc is equal to 1. All NAL
units are encapsulated into the byte stream format specified in Annex B in ITU-T Rec. H.264 ⎪
ISO/IEC 14496-10.
Functional stage: Reference picture list reordering, memory management control operations, and decoding
of EI and EP coded slices of a quality enhancement layer, with non-zero values of slice_qp_delta and
mb_qp_delta.
Purpose: Check that the decoder can properly handle reference picture list reordering, memory management
control operations, and EI and EP coded slices of a quality enhancement layer, with non-zero values of
slice_qp_delta and mb_qp_delta.
10.6.6.30.11 Test bitstream #SVCBMT-4
Specification: All slices are coded as I, P, EI or EP slices. Only the first frame is coded as an IDR access unit
and each dependency representation can contain more than one slice. disable_deblocking_filter_idc is equal
to 2, specifying enabling of deblocking filter process (without slice boundary deblocking). Additionally,
slice_alpha_c0_offset_div2 and slice_beta_offset_div2 are not equal to 0. entropy_coding_mode_flag is equal
to 0, specifying the CAVLC parsing process. pic_order_cnt_type is equal to 2. Reference picture list
reordering and memory management control operations are used. slice_qp_delta is equal to a non-zero value
to change the quantizer scale at each slice and mb_qp_delta is equal to a non-zero value to change the
quantizer scale at some macroblocks. DependencyIdMax is equal to 0, TemporalIdMax is equal to 3, and
DQIdMax is equal to 1. extended_spatial_scalability is equal to 0, SpatialResolutionChangeFlag is equal to 0,
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
