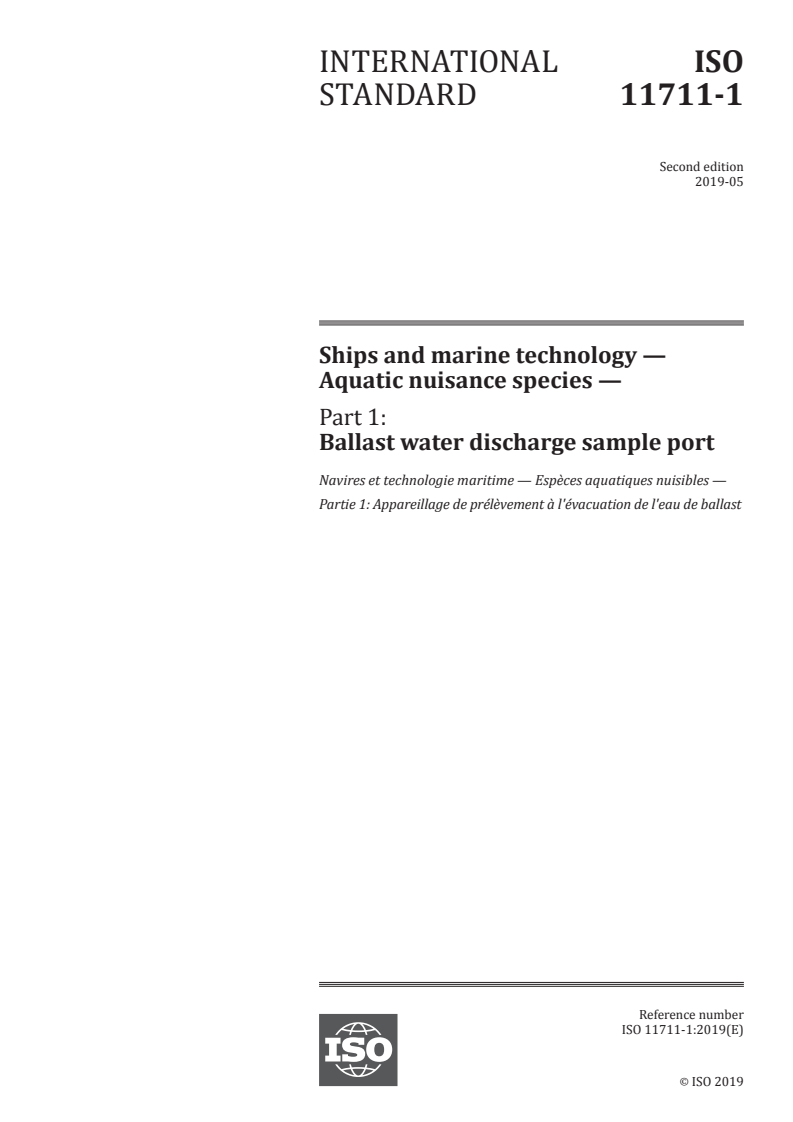

INTERNATIONAL ISO
STANDARD 11711-1
Second edition
2019-05
Ships and marine technology —
Aquatic nuisance species —
Part 1:
Ballast water discharge sample port
Navires et technologie maritime — Espèces aquatiques nuisibles —
Partie 1: Appareillage de prélèvement à l'évacuation de l'eau de ballast
Reference number
©
ISO 2019
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved

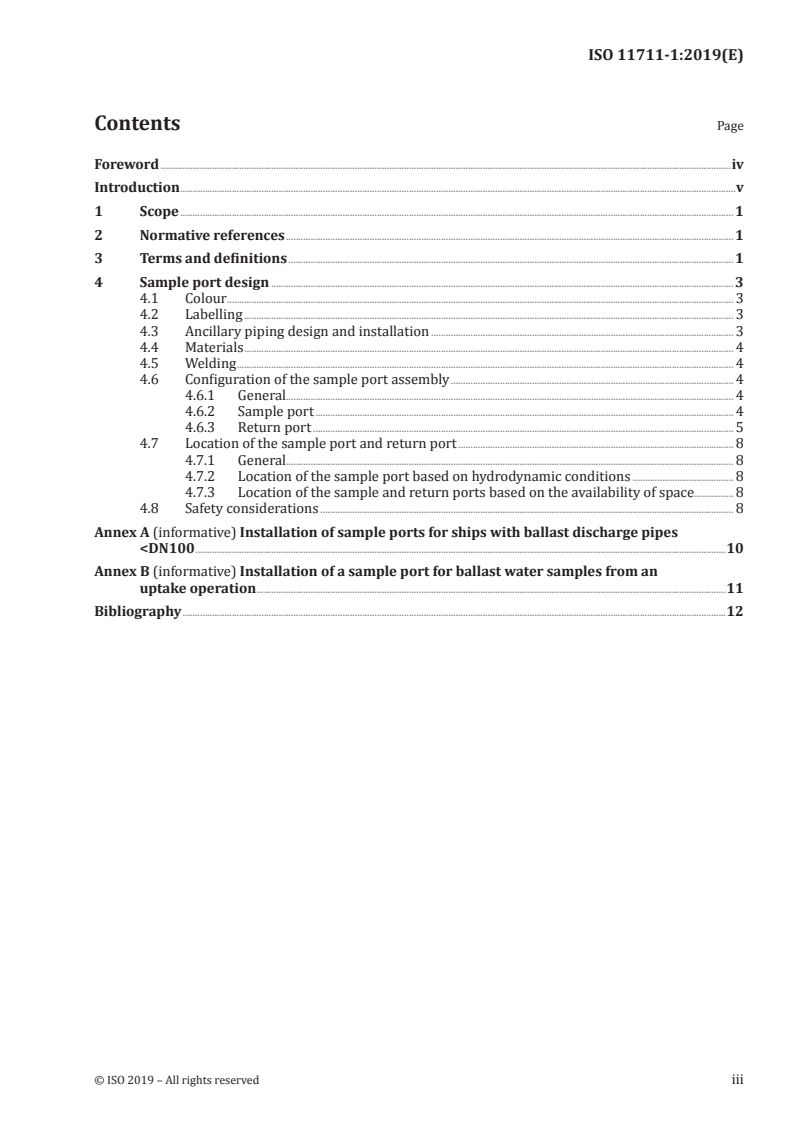

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Sample port design . 3
4.1 Colour . 3
4.2 Labelling . 3
4.3 Ancillary piping design and installation . 3
4.4 Materials . 4
4.5 Welding . 4
4.6 Configuration of the sample port assembly . 4
4.6.1 General. 4
4.6.2 Sample port . 4
4.6.3 Return port . 5
4.7 Location of the sample port and return port . 8
4.7.1 General. 8
4.7.2 Location of the sample port based on hydrodynamic conditions . 8
4.7.3 Location of the sample and return ports based on the availability of space . 8
4.8 Safety considerations . 8
Annex A (informative) Installation of sample ports for ships with ballast discharge pipes
Annex B (informative) Installation of a sample port for ballast water samples from an
uptake operation .11
Bibliography .12

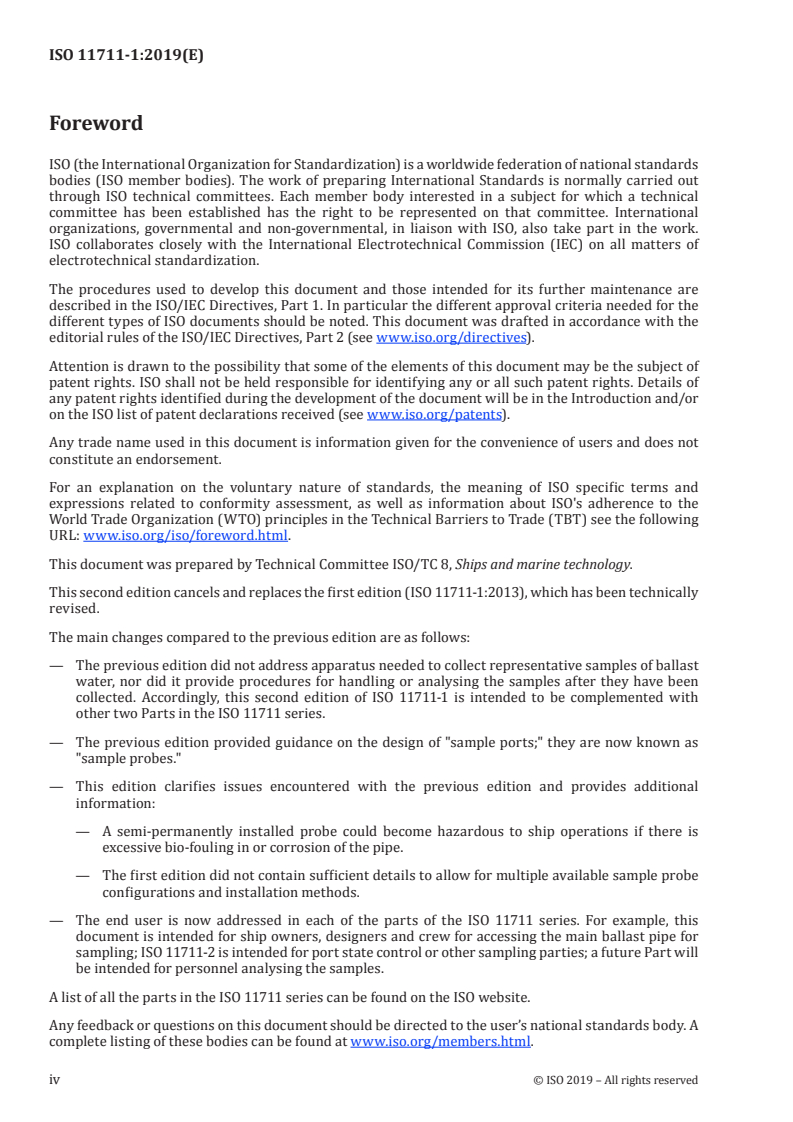

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology.
This second edition cancels and replaces the first edition (ISO 11711-1:2013), which has been technically
revised.
The main changes compared to the previous edition are as follows:
— The previous edition did not address apparatus needed to collect representative samples of ballast
water, nor did it provide procedures for handling or analysing the samples after they have been
collected. Accordingly, this second edition of ISO 11711-1 is intended to be complemented with
other two Parts in the ISO 11711 series.
— The previous edition provided guidance on the design of "sample ports;" they are now known as
"sample probes."
— This edition clarifies issues encountered with the previous edition and provides additional
information:
— A semi-permanently installed probe could become hazardous to ship operations if there is
excessive bio-fouling in or corrosion of the pipe.
— The first edition did not contain sufficient details to allow for multiple available sample probe
configurations and installation methods.
— The end user is now addressed in each of the parts of the ISO 11711 series. For example, this
document is intended for ship owners, designers and crew for accessing the main ballast pipe for
sampling; ISO 11711-2 is intended for port state control or other sampling parties; a future Part will
be intended for personnel analysing the samples.
A list of all the parts in the ISO 11711 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
Introduction
This document provides guidance to shipboard personnel and other concerned parties on designs,
installations and procedures required to obtain representative samples of ballast water from the
ballast water discharge piping prior to discharge. ISO 11711-1 defines arrangements for shipboard
ballast piping and fittings that are independent of the sampling apparatus used by sampling teams.
1)
ISO 11711-2 will provide guidance on the selection and use of sampling apparatus needed to collect
and process the samples on board the vessel. These concepts are illustrated in Figure 1. A future part
will provide methodologies to analyse the samples and determine compliance with ballast water
discharge regulations.
Sampling is intended to determine whether ballast water is in compliance with regulatory discharge
standards, such as during the installation or evaluation of ballast water treatment equipment, periodic
ballast water discharge assessments or during a port state control inspection of the ballast water being
discharged.
The sampling guidance provided by the ISO 11711 series is intended to support measurement of
organism counts in ballast discharge piping consistent with the requirements of the International
Maritime Organisation (IMO) D-2 discharge standard. Such measurement requires the collection and
analysis of representative samples, i.e. the makeup of the sample is representative of the water flowing
in the ballast pipe over the period of sample collection.
The guidance provided by the ISO 11711 series is valid only for turbulent flows within the ballast
discharge pipe. Selecting appropriate sample probes and controlling sample flows to meet
representative sampling constraints will be discussed in ISO 11711-2.
1) Under development.
Key
1 sample collection device valve 6 sample probe
2 sample port access flange 7 sample water flow
3 sample port valve 8 ballast water flow
4 sample port 9 sample collection device
5 ballast main pipe
ISO 11711-1 – BALLAST WATER SAMPLE PORT - FITTING ARRANGEMENTS
ISO 11711-2 – ON-BOARD BALLAST WATER SAMPLING AND SAMPLE PROCESSING
NOTE 1 Figure not to scale.
NOTE 2 The figure shows a sample port arranged perpendicular to the main ballast flow.
Figure 1 — Illustration of the Scopes of ISO 11711-1 and ISO 11711-2
vi © ISO 2019 – All rights reserved
INTERNATIONAL STANDARD ISO 11711-1:2019(E)
Ships and marine technology — Aquatic nuisance
species —
Part 1:
Ballast water discharge sample port
1 Scope
This document specifies requirements for the design and the fitting arrangements of ballast water
discharge sample ports.
In coordination with the vessel, a suitable sample collection probe is installed into the shipboard sample
port as needed to collect ballast samples, and the port is sealed with a blind flange at other times. This
document addresses the location of sample ports to accommodate representative sampling, and it
standardizes the presentation of the port to accommodate various probe configurations. It provides
specifications for a return port to the ballast line downstream of the sample collection port, allowing
processed sample water to be returned to the ballast pipe. The appropriate sample probe and other
sample collection apparatus is determined by the sample collection team according to the requirements
of ISO 11711-2.
NOTE The distinction between the sample port discussed in this document and the sample probe discussed
in ISO 11711-2 is worth noting. The sample port is a permanent apparatus designed and installed in the ship's
ballast piping to accept multiple sample probe configurations. The sample probe is a temporarily installed water
collection pipe designed by the sampling party to mate with the sample port and to meet the measurement
objectives of the sample.
This document is applicable to ships with a ballast discharge pipe size of DN 100 or greater, with
turbulent flows. Guidance for smaller ballast pipe diameters is given in Annex A.
This document primarily addresses the collection of ballast water discharge samples. Optional
requirements for installation of sample ports intended to collect uptake samples are provided in
Annex B.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 7005-1, Pipe flanges — Part 1: Steel flanges for industrial and general service piping systems
ISO 14726, Ships and marine technology — Identification colours for the content of piping systems
ISO 15614 (all parts), Specification and qualification of welding procedures for metallic materials —
Welding procedure test
ISO 17602, Ships and marine technology — Metal valves for use in flanged pipe — Face-to-face and centre-
to-face dimensions
3 Ter
...
