Heat-resistant steels

ISO 4955:2016 specifies requirements for the grades listed in Table 2, which are usually employed for products for which the resistance to the effects of hot gases and the products of combustion at temperatures in the region above 550°C and/or to long-term mechanical stress is the main requirement. NOTE 1 Grades mentioned in this International Standard may also be used for corrosion and creep resistant purposes. ISO 4955:2016 is applicable to the following: - flat products; - bars, sections, rod, semi-finished products and forgings. NOTE 2 Hammer-forged semi-finished products (blooms, billets, slabs, etc.), seamless rolled rings and hammer-forged bars are in the following, covered under semi-finished products or bars and not under the term "forgings". NOTE 3 Not all of the grades included in this International Standard are necessarily available in all product forms. NOTE 4 In Table 2, two alloys are listed in addition to the steels since they belong to the heat resistant grades. NOTE 5 Heat resistant wire in the cold worked condition is covered by ISO 16143‑3. NOTE 6 Corrosion resistant stainless steels for which resistance to corrosion is of primary importance are covered by ISO 16143‑1 and ISO 16143‑2. NOTE 7 Heat-resistant steels for valves are covered by ISO 683‑15. In addition to this International Standard, the general technical delivery requirements of ISO 404 are applicable.

Aciers réfractaires

General Information

Status
Published
Publication Date
28-Apr-2016
Current Stage
6060 - International Standard published
Start Date
15-Mar-2016
Completion Date
29-Apr-2016
Ref Project

RELATIONS

Effective Date
04-Jan-2014

Buy Standard

Standard
ISO 4955:2016 - Heat-resistant steels
English language
37 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

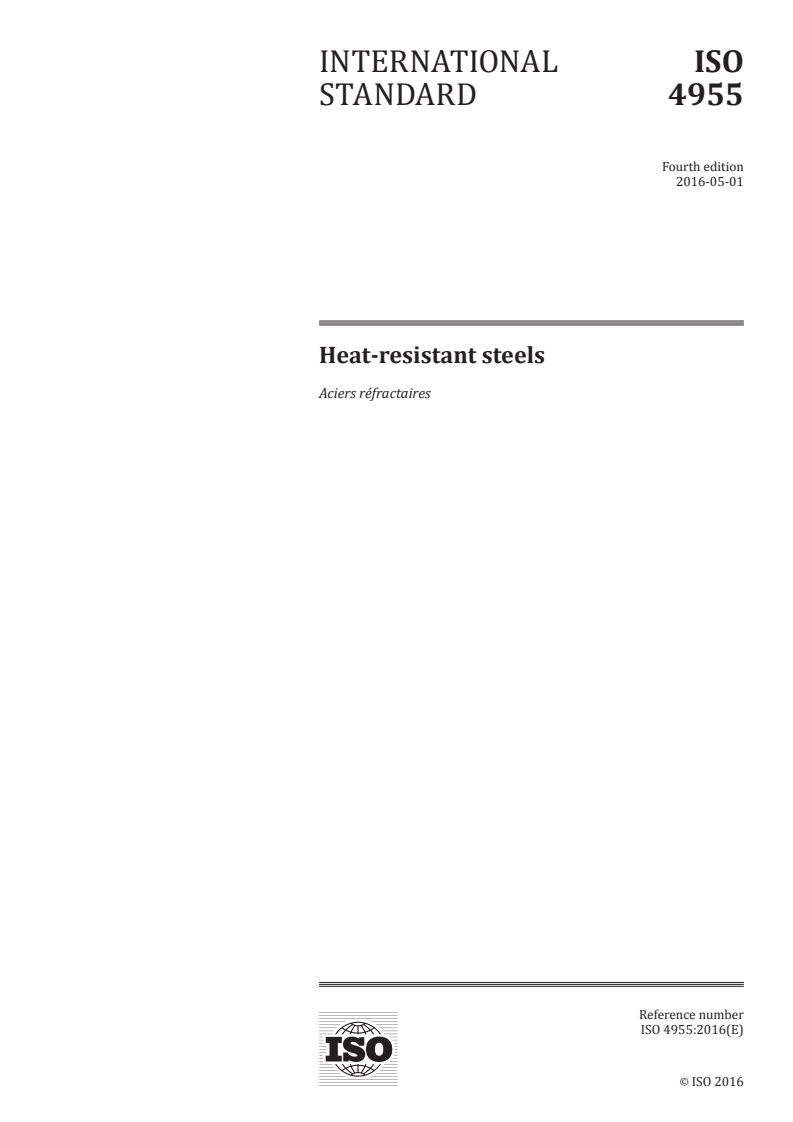

INTERNATIONAL ISO
STANDARD 4955
Fourth edition
2016-05-01
Heat-resistant steels
Aciers réfractaires
Reference number
ISO 4955:2016(E)
ISO 2016
---------------------- Page: 1 ----------------------
ISO 4955:2016(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2016, Published in Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form

or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior

written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of

the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2016 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 4955:2016(E)

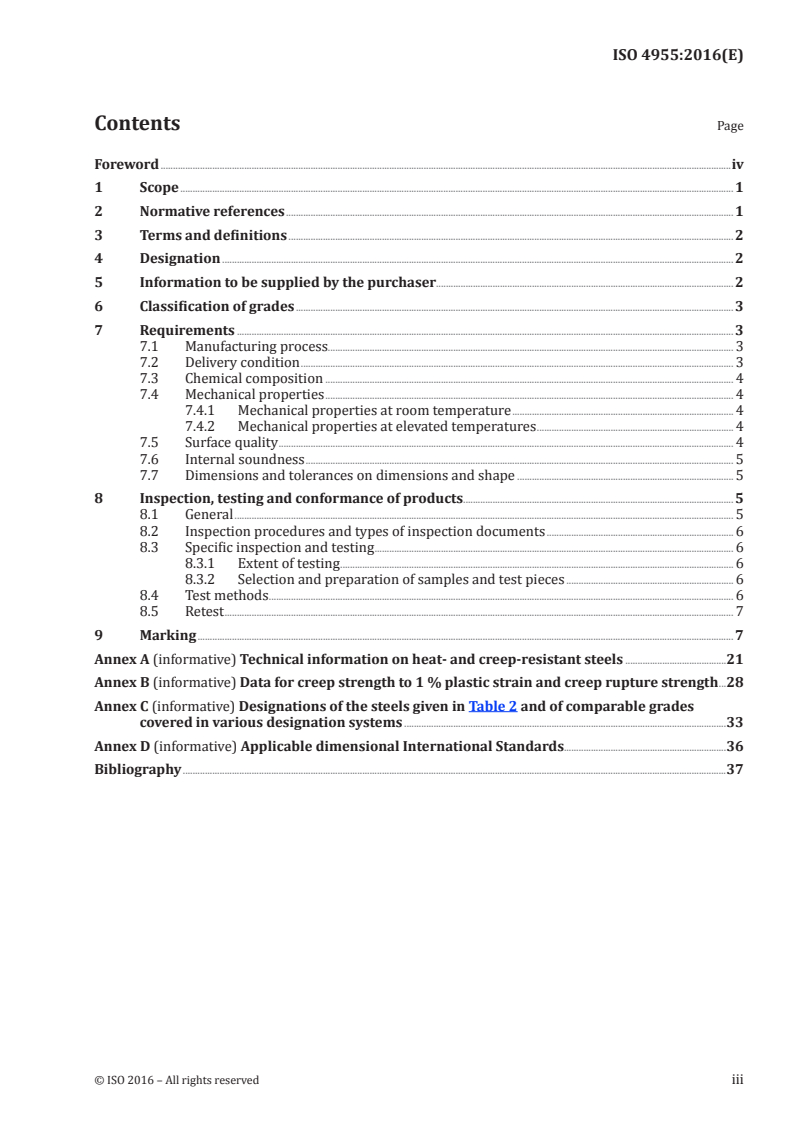

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 2

4 Designation ................................................................................................................................................................................................................ 2

5 Information to be supplied by the purchaser......................................................................................................................... 2

6 Classification of grades .................................................................................................................................................................................. 3

7 Requirements .......................................................................................................................................................................................................... 3

7.1 Manufacturing process..................................................................................................................................................................... 3

7.2 Delivery condition ................................................................................................................................................................................ 3

7.3 Chemical composition ...................................................................................................................................................................... 4

7.4 Mechanical properties ...................................................................................................................................................................... 4

7.4.1 Mechanical properties at room temperature .......................................................................................... 4

7.4.2 Mechanical properties at elevated temperatures ................................................................................ 4

7.5 Surface quality ......................................................................................................................................................................................... 4

7.6 Internal soundness .............................................................................................................................................................................. 5

7.7 Dimensions and tolerances on dimensions and shape ........................................................................................ 5

8 Inspection, testing and conformance of products.............................................................................................................. 5

8.1 General ........................................................................................................................................................................................................... 5

8.2 Inspection procedures and types of inspection documents ............................................................................ 6

8.3 Specific inspection and testing .................................................................................................................................................. 6

8.3.1 Extent of testing ................................................................................................................................................................ 6

8.3.2 Selection and preparation of samples and test pieces .................................................................... 6

8.4 Test methods ............................................................................................................................................................................................. 6

8.5 Retest ............................................................................................................................................................................................................... 7

9 Marking .......................................................................................................................................................................................................................... 7

Annex A (informative) Technical information on heat- and creep-resistant steels .........................................21

Annex B (informative) Data for creep strength to 1 % plastic strain and creep rupture strength ...28

Annex C (informative) Designations of the steels given in Table 2 and of comparable grades

covered in various designation systems ...................................................................................................................................33

Annex D (informative) Applicable dimensional International Standards..................................................................36

Bibliography .............................................................................................................................................................................................................................37

© ISO 2016 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 4955:2016(E)

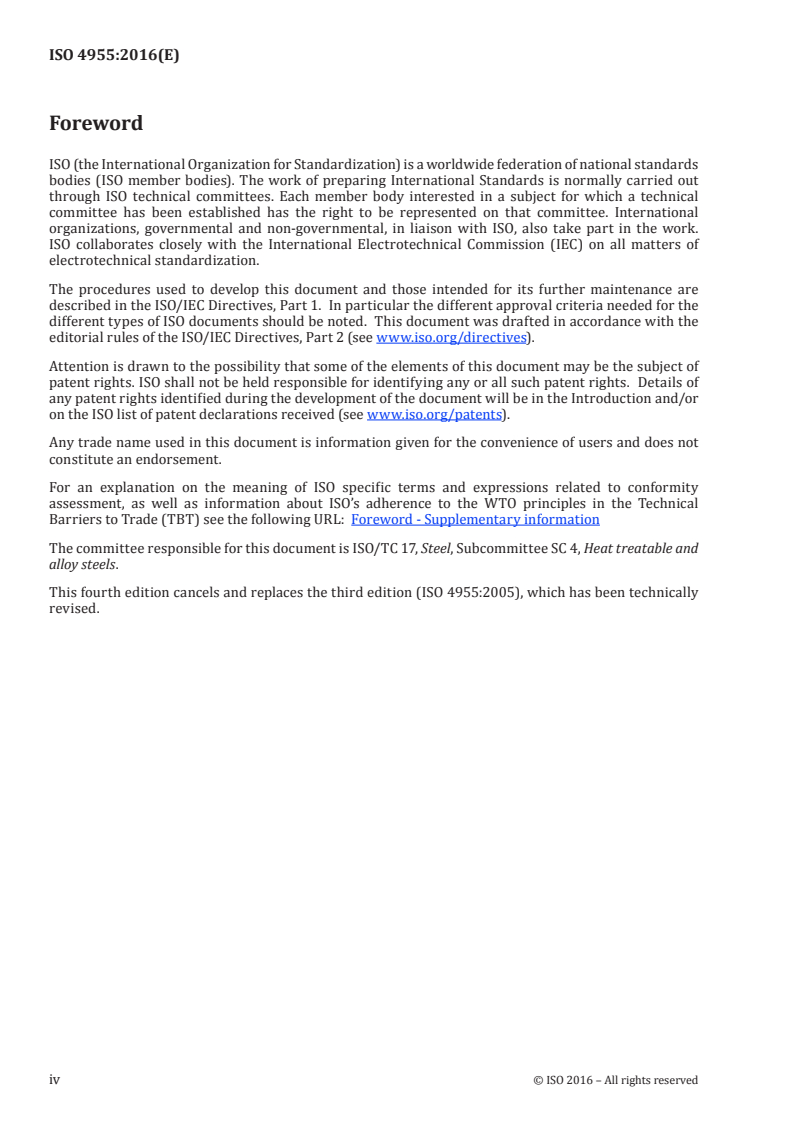

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www.iso.org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation on the meaning of ISO specific terms and expressions related to conformity

assessment, as well as information about ISO’s adherence to the WTO principles in the Technical

Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information

The committee responsible for this document is ISO/TC 17, Steel, Subcommittee SC 4, Heat treatable and

alloy steels.

This fourth edition cancels and replaces the third edition (ISO 4955:2005), which has been technically

revised.
iv © ISO 2016 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 4955:2016(E)
Heat-resistant steels
1 Scope

This International Standard specifies requirements for the grades listed in Table 2, which are

usually employed for products for which the resistance to the effects of hot gases and the products of

combustion at temperatures in the region above 550°C and/or to long-term mechanical stress is the

main requirement.

NOTE 1 Grades mentioned in this International Standard may also be used for corrosion and creep resistant

purposes.
This International Standard is applicable to the following:
— flat products;
— bars, sections, rod, semi-finished products and forgings.

NOTE 2 Hammer-forged semi-finished products (blooms, billets, slabs, etc.), seamless rolled rings and

hammer-forged bars are in the following, covered under semi-finished products or bars and not under the term

“forgings”.

NOTE 3 Not all of the grades included in this International Standard are necessarily available in all

product forms.

NOTE 4 In Table 2, two alloys are listed in addition to the steels since they belong to the heat resistant grades.

NOTE 5 Heat resistant wire in the cold worked condition is covered by ISO 16143-3.

NOTE 6 Corrosion resistant stainless steels for which resistance to corrosion is of primary importance are

covered by ISO 16143-1 and ISO 16143-2.
NOTE 7 Heat-resistant steels for valves are covered by ISO 683-15.

In addition to this International Standard, the general technical delivery requirements of ISO 404 are

applicable.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

ISO 377, Steel and steel products — Location and preparation of samples and test pieces for mechanical testing

ISO 404, Steel and steel products — General technical delivery requirements
ISO 4885, Ferrous products — Heat treatments — Vocabulary
ISO/TS 4949, Steel names based on letter symbols
ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method

ISO 6892-1:2009, Metallic materials — Tensile testing — Part 1: Method of test at room temperature

ISO 6929, Steel products — Vocabulary
© ISO 2016 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 4955:2016(E)

ISO 9443, Heat-treatable and alloy steels — Surface quality classes for hot-rolled round bars and wire

rods — Technical delivery conditions
ISO/TR 9769, Steel and iron — Review of available methods of analysis
ISO 10474, Steel and steel products — Inspection documents

ISO 14284, Steel and iron — Sampling and preparation of samples for the determination of chemical

composition
ISO 15510, Stainless steels — Chemical composition

ISO 20723, Structural steels — Surface condition of hot-rolled sections — Delivery requirements

3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 377, ISO 404, ISO 4885,

ISO 6929, ISO 14284 and the following apply.
3.1
heat resistant steels

heat resistant steels of this International Standard are used at above 550°C (wustite point) due to their

excellent resistance to the effects of hot gases and products of combustion, as well as their resistance

to the influence of molten salts and molten metals but also showing good mechanical properties during

short and long-term stressing
3.2
creep resistant grades

steels, nickel- or cobalt-alloys with a minimum of 8 % chromium, which are characterised by good

mechanical behaviour at temperatures above 500 °C under long-range service conditions, i.e. primarily

by creep strength to 1 % plastic strain or creep rupture strength during long-time stressing

4 Designation

For the steel grades covered by this International Standard, the steel names as given in the tables are

allocated in accordance with ISO/TS 4949.

For the steel grades covered by this International Standard, the steel numbers as given in the tables are

allocated in accordance with ISO 15510.
5 Information to be supplied by the purchaser

It shall be the responsibility of the purchaser to specify all requirements that are necessary for products

under this specification. Such requirements to be considered include, in the order listed, but not limited

to, the following:
— the desired quantity;
— the product form;

— the number of the appropriate dimensional standard (see Annex A), the nominal dimensions, plus

any choice of requirements;
— the type of material (grade);
— the number of this International Standard (ISO 4955);
— the name or number of the steel grade;
2 © ISO 2016 – All rights reserved
---------------------- Page: 6 ----------------------
ISO 4955:2016(E)

— if, for the relevant steel in Tables 6 and 7 for the mechanical properties, more than one treatment

condition is covered, the symbol for the desired heat treatment;

— the desired process route, including surface finish (see 7.2, 7.5 and Table 4, footnote d);

— if a verification of internal soundness is required, the requirements have to be agreed at the time of

enquiry and order;

— any further optional test agreed between the manufacturer and purchaser at the time of enquiry

and order;

— the type of inspection document and its designation in accordance with ISO 10474 (see 8.2).

EXAMPLE 1 ton of plates according to ISO 9444-2 with a specified thickness of 5,0 mm, a specified width

of 1 200 mm, with trimmed edges (T) and a specified length of 2 500 mm made of a steel grade with the name

X8NiCrAlTi32–21 (4876–088–00-I) as specified in ISO 4955, in process route 1U and inspection certificate 3.1 as

specified in ISO 10474:
1 t plate ISO 9444-2 — 5,0 × 1200T × 2500
Steel ISO 4955 — X8NiCrAlTi32–21 + 1U
ISO 10474 — 3.1
1 t plate ISO 9444-2 — 5,0 × 1200T × 2500
Steel ISO 4955 — 4876-088-00-I + 1U
ISO 10474 — 3.1
6 Classification of grades

Heat-resistant steels covered in this International Standard are classified according to their structure

into the following:
— austenitic grades;
— ferritic grades;
— martensitic grades;
— precipitation hardening grades.
7 Requirements
7.1 Manufacturing process

Unless a special steelmaking process is agreed when ordering, the steelmaking process shall be at the

discretion of the manufacturer. When he so requests, the purchaser shall be informed what steelmaking

process is being used.
7.2 Delivery condition

The products shall be supplied in the delivery condition agreed in the order by reference to the process

route given in Tables 4 and 5 (see also Annex A) and where different alternatives exist to the treatment

conditions given in Tables 6 and 7.
© ISO 2016 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO 4955:2016(E)
7.3 Chemical composition

7.3.1 The chemical composition requirements given in Table 2 apply with respect to the chemical

composition of the cast analysis.

7.3.2 The product analysis may deviate from the limiting values for the cast analysis given in Table 2 by

values listed in Table 3.
7.4 Mechanical properties
7.4.1 Mechanical properties at room temperature

The mechanical properties at room temperature as specified in Tables 6 and 7 apply for the relevant

specified heat treatment condition. This does not apply to the process route 1U (hot rolled, not heat-

treated, not descaled). If, by agreement at the time of ordering, the products are to be supplied in a non-

heat-treated condition, the mechanical properties specified in Tables 6 and 7 shall be obtainable from

reference test pieces which have received the appropriate heat treatment (simulated heat treatment).

7.4.2 Mechanical properties at elevated temperatures

The mechanical properties at elevated temperature as specified in Table 8 apply for each specified

heat treatment condition. This does not apply to the process route 1U (hot rolled, not heat-treated, not

descaled) and to semi-finished products.

The tensile test at elevated temperature shall be carried out at temperature of interest only when

agreed at the time of enquiry and order.

If, by agreement at the time of ordering, the products are to be supplied in a non-heat-treated condition,

the mechanical properties specified in Table 8 shall be obtainable from reference test pieces which have

received the appropriate heat treatment (simulated heat treatment).
7.5 Surface quality

Availability, and the determination of the types of process route and surface finish (for flat products,

see Table 4 and for long products, see Table 5) most suited to a particular case, should be discussed

with the manufacturer.

The general surface appearance with respect to soundness and surface finish shall be consistent with

good production practice, for the grade and quality ordered, as determined by visual inspection.

When flat products are delivered in coil form, the degree and extent of imperfections may be expected

to be higher, due to the impracticability of removing short lengths of coil.

Flat products delivered with hot-rolled or cold-rolled finishes (see Table 4) shall, unless otherwise

agreed, be supplied with only one surface inspected to the required finish (the prime surface). In

such instances, the manufacturer should indicate the prime surface, by marking the material or the

packaging, or by some other agreed method. The default method is to mark the prime surface, and

to make this surface the top surface of plates, sheets and cut lengths, or the outside surface of coiled

products.

For long products, the available surface finishes are given in Table 5. Slight surface imperfections,

inherent to the production process, are permitted. Exact requirements concerning the maximum depth

of acceptable discontinuities for bars, rods and sections in the relevant conditions are given in Table 1.

4 © ISO 2016 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 4955:2016(E)

Table 1 — Maximum depth of acceptable discontinuities for bars, rods and sections

Conditions Product forms Permissible depth of discontinuities Max. % of delivered weight in

excess of permissible depth of
discontinuities

1U, 1C, 1E, 1D Sections To be agreed upon at the time of enquiry and order on the basis of ISO 20723.

1U, 1C, 1E, 1D Rounds and rod Specified at the time of enquiry and order, otherwise ISO 9443 class 1 za2.

1X Rounds — max. 0,2 mm for d ≤ 20 mm 1 %
— max. 0,01 d for 20 < d ≤ 75 mm
— max. 0,75 mm for d > 75 mm
Hexagons — max. 0,3 mm for d ≤ 15 mm 2 %
— max. 0,02 d for 15 < d ≤ 63 mm
Other bars — max. 0,3 mm for d ≤ 15 mm 4 %
— max. 0,02 d for 15 < d ≤ 63 mm
1G Rounds Technically defect free by manufacture. 0,2 %

Depth of discontinuities is understood as being the distance, measured normally to the surface, between the bottom of

the discontinuities and that surface.

At the time of enquiry and order, it may be agreed that the product shall be delivered with a surface that is technically

defect free by manufacture. In this case, also the maximum % of delivered weight in excess of permissible depth of

discontinuities shall be agreed.
7.6 Internal soundness

For the internal soundness, where appropriate, requirements together with the conditions for their

verification may be agreed at the time of enquiry and order, if possible, with reference to other

International Standards (e.g. ISO 17577 for flat products of thickness equal to or greater than 6 mm).

7.7 Dimensions and tolerances on dimensions and shape

7.7.1 The dimensions and the tolerances on dimensions and shape are to be agreed at the time of

enquiry and order, as far as possible with reference to the dimensional International Standards listed in

Annex D. The ordered dimensions shall, where applicable, include the minimum machining allowances.

7.7.2 If none of the International Standards listed in Annex D is applicable, then the dimensions

and tolerances should be agreed at the time of enquiry and order on the basis of regional or national

standards.
8 Inspection, testing and conformance of products
8.1 General

The manufacturer shall carry out appropriate process control, inspection and testing to ensure that the

delivery complies with the requirements of the order.
This includes the following:
— a suitable frequency of verification of the dimensions of the products;

— an adequate intensity of visual examination of the surface quality of the products;

— an appropriate frequency and type of test to ensure that the correct grade of steel is delivered.

The nature and frequency of these verifications, examinations and tests are determined by the

manufacturer, based on the degree of consistency that has been determined by the evidence of his

quality system. In view of this, verifications by specific tests for these requirements are not necessary

unless otherwise agreed upon.
© ISO 2016 – All rights reserved 5
---------------------- Page: 9 ----------------------
ISO 4955:2016(E)
8.2 Inspection procedures and types of inspection documents

8.2.1 Products complying with this International Standard shall be ordered and delivered with one of

the inspection documents as specified in ISO 10474. The type of document shall be agreed upon at the

time of enquiry and order. If the order does not contain any specification of this type, a test report 2.2

shall be issued.

8.2.2 If, in accordance with the agreements made at the time of enquiry and order, a test report is to be

provided, this shall cover the following:
a) a statement that the material complies with the requirements of the order;

b) the results of the cast analysis for all elements specified for the type of steel supplied.

8.2.3 If, in accordance with the agreements in the order, an inspection certificate 3.1 or 3.2 is to be

provided, the specific inspections and tests described in 8.3 shall be carried out and their results shall be

certified in the document.
In addition to the details in 8.2.2, the document shall cover the following:

a) the results of the mandatory tests marked in the second column of Tables 9 and 10 by an “m”;

b) the results of any optional test or inspection agreed when ordering.
8.3 Specific inspection and testing
8.3.1 Extent of testing

The tests to be carried out, either mandatorily (m) or by agreement (o) and the composition and size

of the test units, and the number of sample products, samples and test pieces to be taken are given in

Tables 9 and 10.
8.3.2 Selection and preparation of samples and test pieces

8.3.2.1 The general conditions for selection and preparation of samples and test pieces shall be in

accordance with ISO 377 and ISO 14284.

8.3.2.2 The samples for the tensile test shall be taken in accordance with Figures 1 to 3. Samples

from flat products shall be taken in such a way that they are located halfway between the centre and a

longitudinal edge.

The samples shall be taken from products in the delivery condition. If agreed, the samples may be taken

from flat products before flattening or from bars before straightening.

For samples to be given a simulated heat treatment, the conditions for annealing shall be agreed.

8.3.2.3 Samples for the hardness test, where requested, shall be taken from the same locations as those

for the tensile test.
8.4 Test methods

8.4.1 Unless otherwise agreed when ordering, the choice of a suitable physical or chemical method of

analysis to determine the product analysis is at the discretion of the manufacturer. In cases of dispute,

the analysis shall be carried out by a laboratory approved by the two parties. In these cases, the reference

method of analysis shall be agreed, where possible, with reference to ISO/TR 9769.

6 © ISO 2016 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 4955:2016(E)

8.4.2 The tensile test at room temperature shall be carried out in accordance with ISO 6892-1, taking

into account for flat products the additional or deviating conditions specified in Figure 3, footnote a. It

shall be performed under controlled conditions in accordance with ISO 6892-1:2009, Clause 5.

Unless otherwise agreed, the tensile strength and elongation after fracture shall be determined and,

in addition, for ferritic, martensitic, precipitation-hardening, austenitic free-cutting and austenitic-

ferritic steels, the 0,2 % proof strength, and for austenitic steels, the 0,2 % and 1 % proof strength.

8.4.3 The Brinell hardness test shall be carried out in accordance with ISO 6506-1.

8.4.4 Dimensions and dimensional tolerances of the products shall be tested in accordance with the

requirements of the relevant dimensional International Standards given in Annex D.

8.5 Retest
See ISO 404.
9 Marking

9.1 The products shall be marked with the manufacturer’s trademark or symbol and the steel name

or number. The product shall also be marked with the cast number, thickness or dimension (and if an

inspection, certificate is requested) an identification number related to the inspection certificate.

9.2 Unless otherwise agreed, the method of marking and the material of marking shall be at the option

of the manufacturer. Its quality shall be such that it shall be durable for at least one year, can withstand

normal handling and can be stored in unheated storage under cover. The corrosion resistance of the

product shall not be impaired by the marking.
9.3 Each unit shall be marked:

— for flat products as an alternative, for items that are wrapped, bundled or boxed, or where the

surface is ground or polished, the marking may be applied to the packaging or to a tag securely

attached to it;

— for semi-finished products, bars, sections and forgings by means of labels attached to the bundle

or, by agreement at the time of enquiry and order, by inking, adhesive labels, electrolytic etching or

stamping;
— for rods, by means of a label attached to the coil.
© ISO 2016 – All rights reserved 7
---------------------- Page: 11 ----------------------
ISO 4955:2016(E)
Table 2 — Chemical composition (cast analysis)
Designation % (mass fraction)
Name ISO-number C Si Mn P S Cr Ni N Others
Austenitic steels for heat resistant applications

X6CrNiSiNCe19–10 4818–304– 0,04 to 1,00 to 1,00 0,045 0,015 18,0 to 9,0 to 0,12 to Ce: 0,03 to 0,08

15-E 0,08 2,00 20,0 11,0 0,20
X15CrNiSi20–12 4828–305– 0,20 1,50 to 2,00 0,045 0,030 19,0 to 11,0 to 0,10 —
09-I 2,50 21,0 13,0

X7CrNiSiNCe21–11 4835–308– 0,05 to 1,40 to 0,80 0,040 0,030 20,0 to 10,0 to 0,14 to Ce: 0,03 to 0,08

15-U 0,10 2,00 22,0 12,0 0,20
X18CrNi23–13 4833–309– 0,20 1,00 2,00 0,045 0,030 22,0 to 12,0 to 0,10 —
08-I 24,0 15,0
X8CrNi25–21 4845–310– 0,10 1,50 2,00 0,045 0,015 24,0 to 19,0 to 0,10 —
08-E 26,0 22,0
X15CrNiSi25–21 4841–314– 0,20 1,50 to 2,00 0,045 0,015 24,0 to 19,0 to 0,10 —
00-E 2,50 26,0 22,0

X8NiCrAlTi32–21 4876–088– 0,05 to 1,00 1,50 0,015 0,015 19,0 to 30,0 to — Al: 0,15 to 0,60

00-I 0,10 23,0 34,0 Ti: 0,15 to 0,60
Cu: 0,70

X6NiCrSiNCe35–25 4854–353– 0,04 to 1,20 to 2,00 0,040 0,015 24,0 to 34,0 to 0,12 to Ce: 0,03 to 0,08

15-E 0,08 2,00 26,0 36,0 0,20
Austenitic steels for creep resistant applications
Mo: 0,80 to 1,20
X10CrNiMoMnNbV 4982–215– 0,06 to 0,20 to 5,50 to 14,0 to 9,0 to V: 0,15 to 0,40
0,035 0,015 0,10
B15–10–1 00-E 0,15 1,00 7,0 16,0 11,0 Nb: 0,75 to 1,25
B: 0,003 to 0,009
X7CrNi18–9 4948–304– 0,04 to 1,00 2,00 0,045 0,030 17,0 to 8,0 to — —
09-I 0,10 19,0 11,0

X7CrNiTi18–10 4940–321– 0,04 to 1,00 2,00 0,045 0,030 17,0 to 9,0 to — Ti: 5 × C to 0,80

09-I 0,10 19,0 12,0

X7CrNiNb18–10 4912–347– 0,04 to 1,00 2,00 0,045 0,030 17,0 to 9,0 to — Nb: 10 × C to 1,20

09-I 0,10 19,0 12,0
4961–347– 0,04 to 0,30 to 15,0 to 12,0 to — Nb: 10 × C to 1,20
X8CrNiNb16–13 1,50 0,035 0,015
77-E 0,10 0,60 17,0 14,0
4918–316– 0,04 to 16,0 to 12,0 to 0,10 Mo: 2,00 to 2,50
X6CrNiMo17–13–2 0,75 2,00 0,035 0,015
09-E 0,08 18,0 14,0

X7NiCrWCuCoNbN 4990–310– 0,04 to 0,40 0,60 0,025 0,015 21,5 to 23,5 to 0,20 to Co: 1,0 to 2,0

B25–23–3-3–3-2 35-U 0,10 23,5 26,5 0,30 Cu: 2,5 to 3,5
Nb: 0,40 to 0,60
W: 3,0 to 4,0
B: 0,002 to 0,008
Ferritic steels for heat resistant applications

X10CrAlSi7 4713–503– 0,12 0,50 to 1,00 0,040 0,0150 6,0 to 8,0 — — Al: 0,50 to 1,00

72-E 1,00
X2CrTi12 4512–409– 0,03 1,00 1,00 0,040 0,015 10,5 to — — Ti: 6 × (C+N) to
10-I 12,5 0,65
X6Cr13 4000–410– 0,08 1,00 1,00 0,040 0,030 12,0 to 1,00 — —
08-I 14,0

X10CrAlSi13 4724–405– 0,12 0,70 to 1,00 0,040 0,015 12,0 to 1,00 — Al: 0,70 to 1,20

77-I 1,40 14,0

Elements not quoted in this table shall not be intentionally added to the steel without the agreement of the purchaser, except for finishing the cast. All

appropriate precautions shall be taken to avoid the addition of such elements from scrap or other mater

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
